这是我看油管cherno的ray tracing视频笔记记录。

本次讲了如何将键盘控制移动和旋转代入应用程序中。

引入Camera.h和Camera.cpp两个文件:

// Camera.h
#pragma once

#include <glm/glm.hpp>
#include <vector>

class Camera
{
public:
	Camera(float verticalFOV, float nearClip, float farClip);

	bool OnUpdate(float ts);
	void OnResize(uint32_t width, uint32_t height);

	const glm::mat4& GetProjection() const { return m_Projection; }
	const glm::mat4& GetInverseProjection() const { return m_InverseProjection; }
	const glm::mat4& GetView() const { return m_View; }
	const glm::mat4& GetInverseView() const { return m_InverseView; }

	const glm::vec3& GetPosition() const { return m_Position; }
	const glm::vec3& GetDirection() const { return m_ForwardDirection; }

	const std::vector<glm::vec3>& GetRayDirections() const { return m_RayDirections; }

	float GetRotationSpeed();
private:
	void RecalculateProjection();
	void RecalculateView();
	void RecalculateRayDirections();
private:
	glm::mat4 m_Projection{ 1.0f };
	glm::mat4 m_View{ 1.0f };
	glm::mat4 m_InverseProjection{ 1.0f };
	glm::mat4 m_InverseView{ 1.0f };

	float m_VerticalFOV = 45.0f;
	float m_NearClip = 0.1f;
	float m_FarClip = 100.0f;

	glm::vec3 m_Position{ 0.0f, 0.0f, 0.0f };
	glm::vec3 m_ForwardDirection{ 0.0f, 0.0f, 0.0f };

	// Cached ray directions
	std::vector<glm::vec3> m_RayDirections;

	glm::vec2 m_LastMousePosition{ 0.0f, 0.0f };

	uint32_t m_ViewportWidth = 0, m_ViewportHeight = 0;
};


// Camera.cpp
#include "Camera.h"

#include <glm/gtc/matrix_transform.hpp>
#include <glm/gtc/quaternion.hpp>
#include <glm/gtx/quaternion.hpp>

#include "Walnut/Input/Input.h"

using namespace Walnut;

Camera::Camera(float verticalFOV, float nearClip, float farClip)
	: m_VerticalFOV(verticalFOV), m_NearClip(nearClip), m_FarClip(farClip)
{
	m_ForwardDirection = glm::vec3(0, 0, -1);
	m_Position = glm::vec3(0, 0, 3);
}

bool Camera::OnUpdate(float ts)
{
	glm::vec2 mousePos = Input::GetMousePosition();
	glm::vec2 delta = (mousePos - m_LastMousePosition) * 0.002f;
	m_LastMousePosition = mousePos;

	if (!Input::IsMouseButtonDown(MouseButton::Right))
	{
		Input::SetCursorMode(CursorMode::Normal);
		return false;
	}

	Input::SetCursorMode(CursorMode::Locked);

	bool moved = false;

	constexpr glm::vec3 upDirection(0.0f, 1.0f, 0.0f);
	glm::vec3 rightDirection = glm::cross(m_ForwardDirection, upDirection);

	float speed = 5.0f;

	// Movement
	if (Input::IsKeyDown(KeyCode::W))
	{
		m_Position += m_ForwardDirection * speed * ts;
		moved = true;
	}
	else if (Input::IsKeyDown(KeyCode::S))
	{
		m_Position -= m_ForwardDirection * speed * ts;
		moved = true;
	}
	if (Input::IsKeyDown(KeyCode::A))
	{
		m_Position -= rightDirection * speed * ts;
		moved = true;
	}
	else if (Input::IsKeyDown(KeyCode::D))
	{
		m_Position += rightDirection * speed * ts;
		moved = true;
	}
	if (Input::IsKeyDown(KeyCode::Q))
	{
		m_Position -= upDirection * speed * ts;
		moved = true;
	}
	else if (Input::IsKeyDown(KeyCode::E))
	{
		m_Position += upDirection * speed * ts;
		moved = true;
	}

	// Rotation
	if (delta.x != 0.0f || delta.y != 0.0f)
	{
		float pitchDelta = delta.y * GetRotationSpeed();
		float yawDelta = delta.x * GetRotationSpeed();

		glm::quat q = glm::normalize(glm::cross(glm::angleAxis(-pitchDelta, rightDirection),
			glm::angleAxis(-yawDelta, glm::vec3(0.f, 1.0f, 0.0f))));
		m_ForwardDirection = glm::rotate(q, m_ForwardDirection);

		moved = true;
	}

	if (moved)
	{
		RecalculateView();
		RecalculateRayDirections();
	}

	return moved;
}

void Camera::OnResize(uint32_t width, uint32_t height)
{
	if (width == m_ViewportWidth && height == m_ViewportHeight)
		return;

	m_ViewportWidth = width;
	m_ViewportHeight = height;

	RecalculateProjection();
	RecalculateRayDirections();
}

float Camera::GetRotationSpeed()
{
	return 0.3f;
}

void Camera::RecalculateProjection()
{
	m_Projection = glm::perspectiveFov(glm::radians(m_VerticalFOV), (float)m_ViewportWidth, (float)m_ViewportHeight, m_NearClip, m_FarClip);
	m_InverseProjection = glm::inverse(m_Projection);
}

void Camera::RecalculateView()
{
	m_View = glm::lookAt(m_Position, m_Position + m_ForwardDirection, glm::vec3(0, 1, 0));
	m_InverseView = glm::inverse(m_View);
}

void Camera::RecalculateRayDirections()
{
	m_RayDirections.resize(m_ViewportWidth * m_ViewportHeight);

	for (uint32_t y = 0; y < m_ViewportHeight; y++)
	{
		for (uint32_t x = 0; x < m_ViewportWidth; x++)
		{
			glm::vec2 coord = { (float)x / (float)m_ViewportWidth, (float)y / (float)m_ViewportHeight };
			coord = coord * 2.0f - 1.0f; // -1 -> 1

			glm::vec4 target = m_InverseProjection * glm::vec4(coord.x, coord.y, 1, 1);
			glm::vec3 rayDirection = glm::vec3(m_InverseView * glm::vec4(glm::normalize(glm::vec3(target) / target.w), 0)); // World space
			m_RayDirections[x + y * m_ViewportWidth] = rayDirection;
		}
	}
}

根据glm库文件的键盘输入，实时根据输入的按键或是鼠标的移动进行监听和渲染视角。

在主函数中改变如下:

// Renderer.cpp
glm::vec4 Renderer::TraceRay(const Ray& ray)
{
	float radius = 0.5f;
	// rayDirection = glm::normalize(rayDirection);

	// (bx^2 + by^2)t^2 + (2(axbx + ayby))t + (ax^2 + ay^2 - r^2) = 0
	// where
	// a = ray origin
	// b = ray direction
	// r = radius
	// t = hit distance

	//float a = coord.x * coord.x + coord.y * coord.y + coord.z * coord.z;
	float a = glm::dot(ray.Direction, ray.Direction);
	float b = 2.0f * glm::dot(ray.Origin, ray.Direction);
	float c = glm::dot(ray.Origin, ray.Origin) - radius * radius;

	// Quadratic formula discriminant:
	// b^2 - 4ac



	float discriminant = b * b - 4.0f * a * c;

	if (discriminant < 0.0f)
	{
		return glm::vec4(0, 0, 0, 1);
	}
	// (-b +- sqrt(discriminant)) / 2a
	float t0 = (-b + glm::sqrt(discriminant)) / (2.0f * a);
	float closestT = (-b - glm::sqrt(discriminant)) / (2.0f * a);

	//glm::vec3 h0 = rayOrigin + rayDirection * t0;
	glm::vec3 hitPoint = ray.Origin + ray.Direction * closestT;
	glm::vec3 normal = glm::normalize(hitPoint);

	glm::vec3 lightDir = glm::normalize(glm::vec3(-1, -1, -1));

	float d = glm::max(glm::dot(normal, -lightDir), 0.0f);  // == cos(angle)

	glm::vec3 sphereColor(1, 0, 1);
	sphereColor *= d;
	return glm::vec4(sphereColor, 1.0f);   // 0xff000000
}

其中ray类是一个非常简单的头文件:

#pragma once

#include <glm/glm.hpp>

struct Ray
{
	glm::vec3 Origin;
	glm::vec3 Direction;
};

渲染函数如下:

void Renderer::Render(const Camera& camera)
{
	//const glm::vec3& rayOrigin = camera.GetPosition();

	Ray ray;
	ray.Origin = camera.GetPosition();

	// render every pixel
	for (uint32_t y = 0; y < m_FinalImage->GetHeight(); ++y)
	{
		for (uint32_t x = 0; x < m_FinalImage->GetWidth(); ++x)
		{
			//glm::vec2 coord = { (float)x / (float)m_FinalImage->GetWidth(), (float)y / (float)m_FinalImage->GetHeight() };
			//coord = coord * 2.0f - 1.0f; // -1 -> 1
	        ray.Direction = camera.GetRayDirections()[x + y * m_FinalImage->GetWidth()];
		    glm::vec4 color = TraceRay(ray);
			color = glm::clamp(color, glm::vec4(0.0f), glm::vec4(1.0f));
			m_ImageData[x + y * m_FinalImage->GetWidth()] = Utils::ConvertToRGBA(color);

		}
	}
	m_FinalImage->SetData(m_ImageData);
}

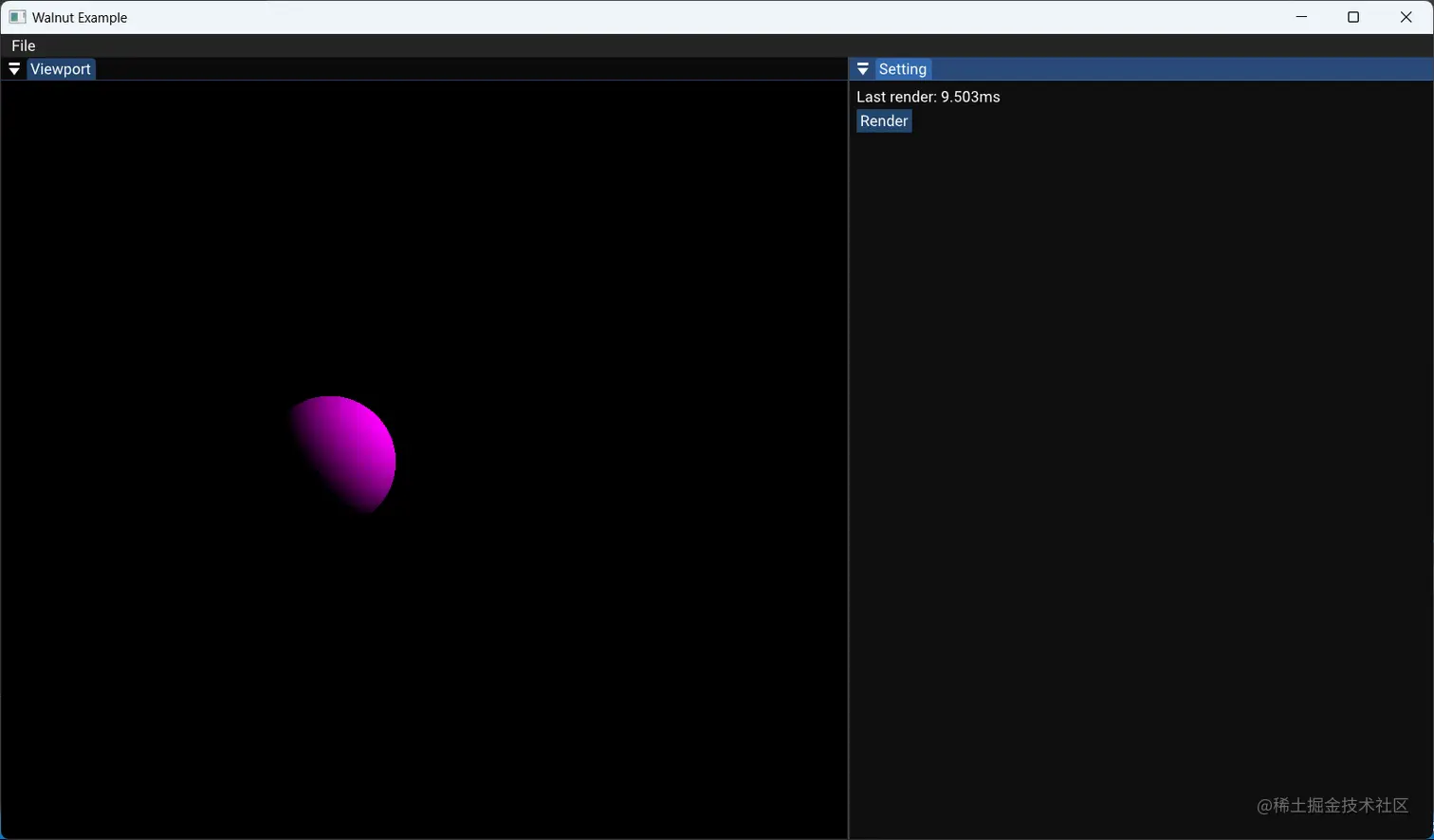

运行结果如下，可以像在unity初始页面一样旋转视角:



release编译使得渲染过程快乐很多，渲染一次平均9ms，也就是接近一百帧的速度，可以说对于游戏的测评速度，是十分快了。

image.png 旋转视角的时候会掉帧到20ms一次左右，大致是每秒50帧，就不是很高了，可以说速度并不是很好。
