基本环境

SpringBoot:2.6.13
PLC4X:0.10.0

Modbus模拟器：

ModbusPal modbuspal.sourceforge.net/
IoTClient Tool gitee.com/zhaopeiym/I…

ModbusPal使用参考 plc4x.apache.org/users/getti… 。

pom.xml

<dependency>
    <groupId>org.apache.plc4x</groupId>
    <artifactId>plc4j-api</artifactId>
    <version>0.10.0</version>
</dependency>
<dependency>
    <groupId>org.apache.plc4x</groupId>
    <artifactId>plc4j-driver-modbus</artifactId>
    <version>0.10.0</version>
    <scope>runtime</scope>
</dependency>

其他依赖根据自己需要添加。

模拟一个Modbus slave

添加slave后并启动

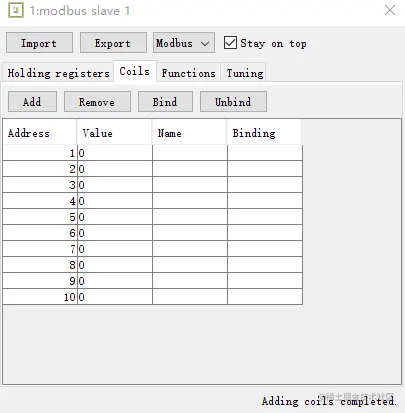

再点击眼睛按钮编辑slave，选择Coils（线圈）添加10个地址，其value只能是0/1

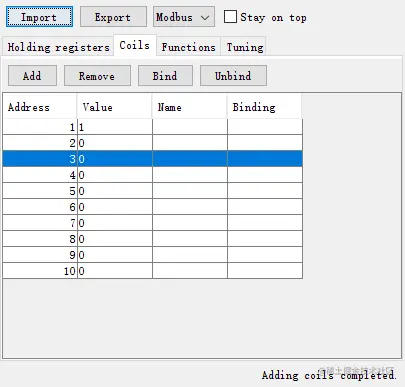

读取线圈值

Coil指的是Modbus设备中用于控制开关状态的位数据。这些数据通常表示为可读写的线圈寄存器，可以用于控制诸如继电器和开关等设备。

Modbus地址参考：plc4x.apache.org/users/proto… 需要注意的点是：

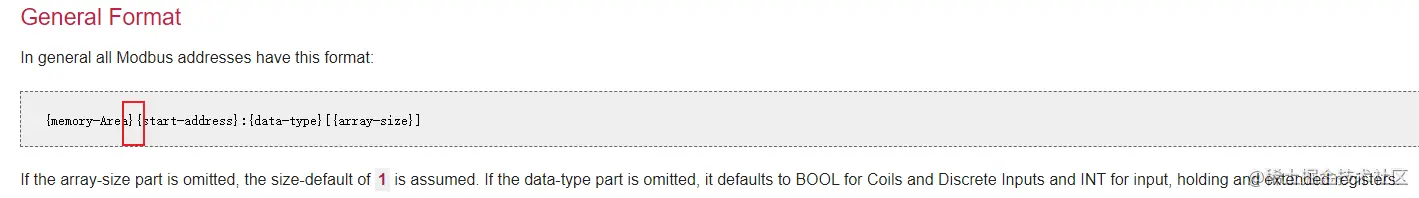

官方文档少了一个:，所以正确的格式是：

{memory-Area}:{start-address}:{data-type}[{array-size}]

而且只能填coil，0/0x都会报是不合法的地址

同步读

// 0.10.0版本之前是 modbus://127.0.0.1:502
String connectionString = "modbus-tcp://127.0.0.1:502";

// 1.获取PlcConnection对象
PlcConnection plcConnection = new PlcDriverManager().getConnection(connectionString);

// 2.判断是否可以读取
boolean canRead = plcConnection.getMetadata().canRead();
if (!canRead) {
log.error("该连接不支持读取数据");
return;
}

// 3.创建读取请求
PlcReadRequest.Builder builder = plcConnection.readRequestBuilder();
// 第一个参数是地址别名，第二个参数是 Modbus 地址
// {memory-Area}:{start-address}:{data-type}[{array-size}]
builder.addItem("coil-1", "coil:1:BOOL[1]");
builder.addItem("coil-2", "coil:2:BOOL");
builder.addItem("coil-3", "coil:3");
builder.addItem("coil-4", "coil:4");
builder.addItem("coils-5-10", "coil:5[6]");
PlcReadRequest readRequest = builder.build();

PlcReadResponse response = readRequest.execute().get(5000, TimeUnit.MILLISECONDS);
for (String fieldName : response.getFieldNames()) {
if(response.getResponseCode(fieldName) == PlcResponseCode.OK) {
int numValues = response.getNumberOfValues(fieldName);
if(numValues == 1) {
log.info("Value[" + fieldName + "]: " + response.getObject(fieldName));
}
else {
log.info("Value[" + fieldName + "]:");
for(int i = 0; i < numValues; i++) {
log.info(" - " + response.getObject(fieldName, i));
}
}
}
else {
log.error("Error[" + fieldName + "]: " + response.getResponseCode(fieldName).name());
}
}

其中builder.addItem("coils-5-10", "coil:5[6]");是读取从地址5到10的数据

结果：

异步读

String connectionString = "modbus-tcp://127.0.0.1";
PlcConnection plcConnection = new PlcDriverManager().getConnection(connectionString);
boolean canRead = plcConnection.getMetadata().canRead();
if (!canRead) {
log.error("该连接不支持读取数据");
return;
}

PlcReadRequest.Builder builder = plcConnection.readRequestBuilder();
builder.addItem("coils", "coil:1[10]");
PlcReadRequest readRequest = builder.build();

CompletableFuture<? extends PlcReadResponse> asyncResponse = readRequest.execute();
asyncResponse.whenComplete((response, throwable) -> {
Boolean[] coilArray = new Boolean[10];
response.getAllBooleans("coils").toArray(coilArray);
for (int i = 0; i < coilArray.length; i++) {
log.info("Coil[" + i + "]: " + coilArray[i]);
}
});

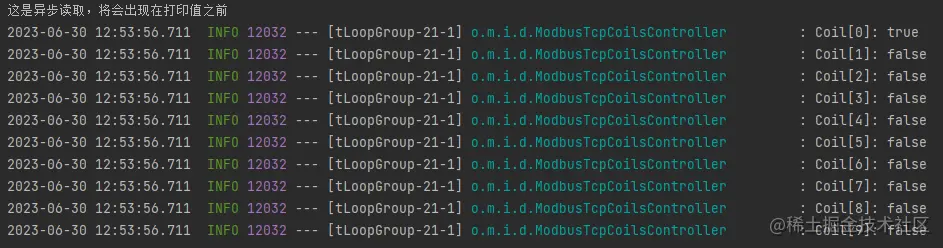

System.out.println("这是异步读取，将会出现在打印值之前");

写线圈值

同步写

String connectionString = "modbus-tcp://127.0.0.1";
PlcConnection plcConnection = new PlcDriverManager().getConnection(connectionString);
boolean canWrite = plcConnection.getMetadata().canWrite();
if (!canWrite) {
log.error("该连接不支持写入数据");
return;
}

PlcWriteRequest.Builder builder = plcConnection.writeRequestBuilder();
builder.addItem("value-1", "coil:1", false);
PlcWriteRequest writeRequest = builder.build();

PlcWriteResponse response = writeRequest.execute().get();

for (String fieldName : response.getFieldNames()) {
PlcResponseCode responseCode = response.getResponseCode(fieldName);
if(responseCode == PlcResponseCode.OK) {
log.info("Value[" + fieldName + "]: updated");
}
else {
log.error("Error[" + fieldName + "]: " + responseCode.name());
}
}

结果是写入失败：

暂时没找到原因！！！

异步写

String connectionString = "modbus-tcp://127.0.0.1";
PlcConnection plcConnection = new PlcDriverManager().getConnection(connectionString);
boolean canWrite = plcConnection.getMetadata().canWrite();
if (!canWrite) {
log.error("该连接不支持写入数据");
return;
}

PlcWriteRequest.Builder builder = plcConnection.writeRequestBuilder();
builder.addItem("value-1", "coil:1", false);
PlcWriteRequest writeRequest = builder.build();

CompletableFuture<? extends PlcWriteResponse> asyncResponse = writeRequest.execute();
asyncResponse.whenComplete((response, throwable) -> {
for (String fieldName : response.getFieldNames()) {
PlcResponseCode responseCode = response.getResponseCode(fieldName);
if(responseCode == PlcResponseCode.OK) {
log.info("Value[" + fieldName + "]: updated");
}
else {
log.error("Error[" + fieldName + "]: " + responseCode.name());
}
}
});
System.out.println("这是异步读取，将会出现在打印值之前");

结果同同步写一样，暂时没找到原因。

读取Holding Register

Holding Register（保持寄存器）：指的是Modbus设备中用于存储控制和状态数据的16位数据。这些数据通常表示为可读写的保持寄存器，用于保存设备的状态信息、设置参数等。

在操作Holding Register时得先在ModbusPal里加地址，不然会找不到。

同步读

只需要在addItem时调整一下即可：

builder.addItem("value-3", "holding-register:1");
builder.addItem("value-4", "holding-register:3[4]");

异步读

String connectionString = "modbus-tcp://127.0.0.1";
PlcConnection plcConnection = new PlcDriverManager().getConnection(connectionString);
boolean canRead = plcConnection.getMetadata().canRead();
if (!canRead) {
log.error("该连接不支持读取数据");
return;
}

PlcReadRequest.Builder builder = plcConnection.readRequestBuilder();
builder.addItem("values", "holding-register:1[10]");
PlcReadRequest readRequest = builder.build();

CompletableFuture<? extends PlcReadResponse> asyncResponse = readRequest.execute();
asyncResponse.whenComplete((response, throwable) -> {
Short[] holdingRegisterArray = new Short[10];
response.getAllShorts("values").toArray(holdingRegisterArray);
for (int i = 0; i < holdingRegisterArray.length; i++) {
log.info("holding-register[" + i + "]: " + holdingRegisterArray[i]);
}
});

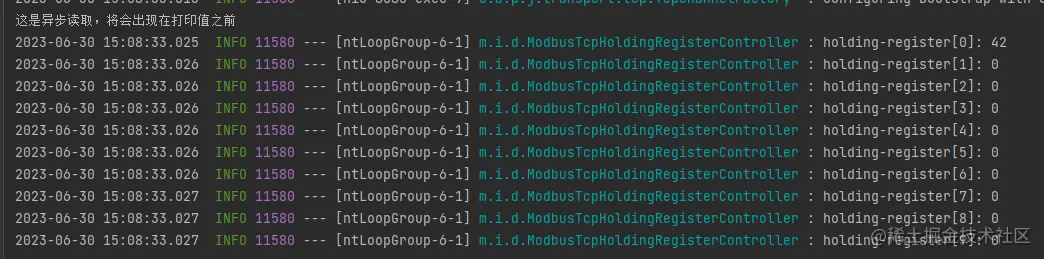

System.out.println("这是异步读取，将会出现在打印值之前");
}

写入Holding Register

同步写

同理在addItem时替换成：builder.addItem("value-1", "holding-register:1", 26);

异步写

String connectionString = "modbus-tcp://127.0.0.1";
PlcConnection plcConnection = new PlcDriverManager().getConnection(connectionString);
boolean canWrite = plcConnection.getMetadata().canWrite();
if (!canWrite) {
log.error("该连接不支持写入数据");
return;
}

PlcWriteRequest.Builder builder = plcConnection.writeRequestBuilder();
for (int i = 1; i <= 10; i++) {
builder.addItem("value-" + i, "holding-register:" + i + ":UINT[1]", 10 - i);
}
PlcWriteRequest writeRequest = builder.build();

CompletableFuture<? extends PlcWriteResponse> asyncResponse = writeRequest.execute();
asyncResponse.whenComplete((response, throwable) -> {
for (String fieldName : response.getFieldNames()) {
PlcResponseCode responseCode = response.getResponseCode(fieldName);
if (responseCode == PlcResponseCode.OK) {
log.info("Value[" + fieldName + "]: updated");
} else {
log.error("Error[" + fieldName + "]: " + responseCode.name());
}
}
});
System.out.println("这是异步读取，将会出现在打印值之前");

SpringBoot集成PLC4x与Modbus TCP通信
