【6月日新计划11】WPF入门-Resource

1. Static Resource/Dynamic Resource

    <Window.Resources>
        <Style x:Key="btn_left"  TargetType="Button">
            <Setter Property="Height" Value="35"/>
            <Setter Property="Width" Value="100"/>
            <Setter Property="Background" Value="AntiqueWhite"/>
            <Setter Property="BorderThickness" Value="2"/>
        </Style>
        <Style x:Key="btn_top"  TargetType="Button">
            <Setter Property="Height" Value="45"/>
            <Setter Property="Width" Value="95"/>
            <Setter Property="Background" Value="Chocolate"/>
        </Style>
        <SolidColorBrush x:Key="Solider" Color="Yellow"/>
    </Window.Resources>
    <Grid>
        <Button Grid.Column="0" Content="btn_top_00"  Style="{StaticResource ResourceKey=btn_top}" Click="Change_Color_Click"/>
        <Button Grid.Column="1" Content="btn_top_01"  Style="{StaticResource ResourceKey=btn_top}" Background="{StaticResource Solider}"/>
        <Button Grid.Column="2" Content="btn_top_02"  Style="{StaticResource ResourceKey=btn_top}" Background="{DynamicResource Solider}"/>
    </Grid>

        private void Change_Color_Click(object sender, RoutedEventArgs e)
        {
            this.Resources["Solider"] = new SolidColorBrush(Colors.Red);
        }

2.Resource Dictionary

資源字典就是把一些公共的樣式提取出來。

learn.microsoft.com/en-us/dotne…

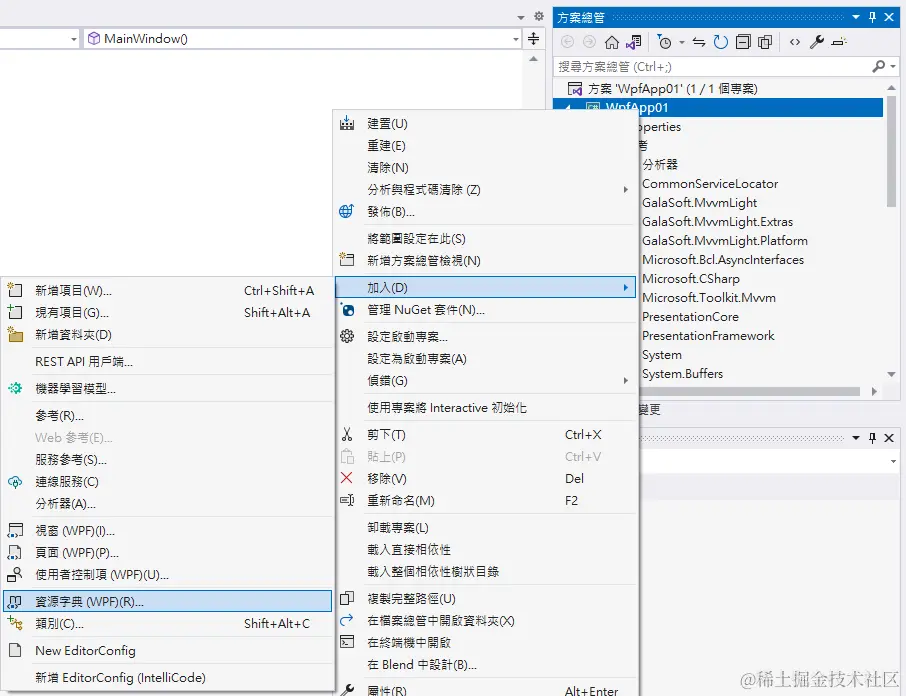

1.首先創建資源字典,可參考下面的樣式

2.將樣式導入App.xaml

    <Application.Resources>
      <ResourceDictionary>
        <ResourceDictionary.MergedDictionaries>
          <ResourceDictionary Source="myresourcedictionary.xaml"/>
          <ResourceDictionary Source="myresourcedictionary2.xaml"/>
        </ResourceDictionary.MergedDictionaries>
      </ResourceDictionary>
    </Application.Resources>

3.獲取資源

App.Current.FindResource("xxx_Key_xxxx")

3. Resource Style

<Window x:Class="resources.ResExample"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="ResExample" Height="400" Width="300">
    <Window.Resources>
        <SolidColorBrush x:Key="MyBrush" Color="#05E0E9"/>
        <Style TargetType="Border">
            <Setter Property="Background" Value="#4E1A3D" />
            <Setter Property="BorderThickness" Value="5" />
            <Setter Property="BorderBrush">
                <Setter.Value>
                    <LinearGradientBrush>
                        <GradientStop Offset="0.0" Color="#4E1A3D"/>
                        <GradientStop Offset="1.0" Color="Salmon"/>
                    </LinearGradientBrush>
                </Setter.Value>
            </Setter>
        </Style>
        <Style TargetType="TextBlock" x:Key="TitleText">
            <Setter Property="FontSize" Value="18"/>
            <Setter Property="Foreground" Value="#4E87D4"/>
            <Setter Property="FontFamily" Value="Trebuchet MS"/>
            <Setter Property="Margin" Value="0,10,10,10"/>
        </Style>
        <Style TargetType="TextBlock" x:Key="Label">
            <Setter Property="HorizontalAlignment" Value="Right"/>
            <Setter Property="FontSize" Value="13"/>
            <Setter Property="Foreground" Value="{StaticResource MyBrush}"/>
            <Setter Property="FontFamily" Value="Arial"/>
            <Setter Property="FontWeight" Value="Bold"/>
            <Setter Property="Margin" Value="0,3,10,0"/>
        </Style>
    </Window.Resources>

    <Border>
        <StackPanel>
            <TextBlock Style="{StaticResource TitleText}">Title</TextBlock>
            <TextBlock Style="{StaticResource Label}">Label</TextBlock>
            <TextBlock HorizontalAlignment="Right" FontSize="36" Foreground="{StaticResource MyBrush}" Text="Text" Margin="20" />
            <Button HorizontalAlignment="Left" Height="30" Background="{StaticResource MyBrush}" Margin="40">Button</Button>
            <Ellipse HorizontalAlignment="Center" Width="100" Height="100" Fill="{StaticResource MyBrush}" Margin="10" />
        </StackPanel>
    </Border>

</Window>

3.1 Itemscontrol

<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:local="clr-namespace:UI_Vision">

    <Style TargetType="ItemsControl" x:Key="ColorItemsControl">
        <Setter Property="ItemsPanel">
            <Setter.Value>
                <ItemsPanelTemplate>
                    <StackPanel Orientation="Horizontal"/>
                </ItemsPanelTemplate>
            </Setter.Value>
        </Setter>

        <Setter Property="ItemTemplate">
            <Setter.Value>
                <DataTemplate>
                    <Label Content="{Binding ItemName}"
                               Width ="100"
                               Height="50"
                               FontSize="35"
                               Background="Green"></Label>
                </DataTemplate>
            </Setter.Value>
        </Setter>
    </Style>


    <Style TargetType="ListBox" x:Key="ColorlistBox">
        <Setter Property="ItemsPanel">
            <Setter.Value>
                <ItemsPanelTemplate>
                    <StackPanel Orientation="Horizontal"/>
                </ItemsPanelTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="ColorlistBoxItem" TargetType="{x:Type ListBoxItem}">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type ListBoxItem}">

                    <Label Name="itemName" Content="{Binding ItemName }" Margin="2"  Foreground="White" Width="100" Height="40"  Background="Green"  FontSize="16" FontWeight="Bold"/>

                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

</ResourceDictionary>
