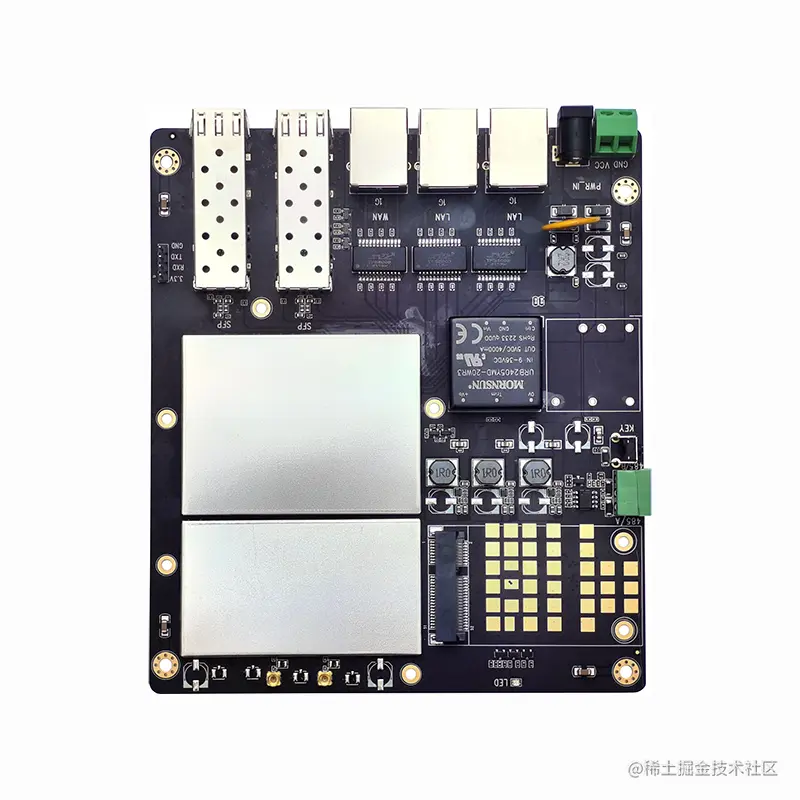

IPQ6010 QCA8075 QCN5052 QCN5022 WiFi Embedded Motherboard
WiFi Qualcomm Chipset Embedded Motherboard
- Chipset: IPQ6010+QCA8075+QCN5052+QCN5022
- 2.4GHz rate 573.5Mbps, 5.8GHz rate 1200Mbps
- Support access point, client, WDS access point, WDS client mode
- Support 2×2MIMO, dual-band combined MMCX connector
- Support extended Uart/RS-485/5G cellular module
- Includ 3* 1Gbps ethernet RJ45 Port and 2* 1Gbps SFP
- Professional intrinsic safety power supply design, with under-voltage protection, output short-circuit, over-current, over-voltage protection, input anti-reverse connection function
- WIFI stand-alone power consumption ≤ 15W, extended 5G network power consumption ≤ 18W
- DC or 2-PIN 5.08mm pitch terminals for power supply, wide voltage range as 9~36V
- Meet the intrinsic safety requirement
- Support AC management
