前文介绍jdbc interpreter和interpreter模块交互代码，本篇文章主要分析Zengine调用Interpreter模块代码。
介绍完这篇文章之后，我们即可将paragraph run的流程串起来(后面会将整个流程进行串讲)
同样，来看下这个测试类
zeppelin-zengine/src/test/java/org/apache/zeppelin/interpreter/remote/RemoteInterpreterTest.java
@Test public void testFIFOScheduler() throws InterruptedException, InterpreterException { LOGGER.info("===testFIFOScheduler===="); interpreterSetting.getOption().setPerUser(InterpreterOption.SHARED); // by default SleepInterpreter would use FIFOScheduler LOGGER.info("===getInterpreter===="); final Interpreter interpreter1 = interpreterSetting.getInterpreter("user1", note1Id, "sleep"); LOGGER.info("===createDummyInterpreterContext===="); final InterpreterContext context1 = createDummyInterpreterContext(); // run this dummy interpret method first to launch the RemoteInterpreterProcess to avoid the // time overhead of launching the process. LOGGER.info("111"); LOGGER.info("=====name:{}=======",interpreter1.getClassName()); System.out.println(interpreter1.getClassName()); interpreter1.interpret("10101", context1); LOGGER.info("222"); Thread thread1 = new Thread() { @Override public void run() { try { assertEquals(Code.SUCCESS, interpreter1.interpret("100", context1).code()); } catch (InterpreterException e) { e.printStackTrace(); fail(); } } }; Thread thread2 = new Thread() { @Override public void run() { try { assertEquals(Code.SUCCESS, interpreter1.interpret("100", context1).code()); } catch (InterpreterException e) { e.printStackTrace(); fail(); } } }; long start = System.currentTimeMillis(); thread1.start(); thread2.start(); thread1.join(); thread2.join(); long end = System.currentTimeMillis(); assertTrue((end - start) >= 200); }
可以看下这个测试方法，这边加了一些日志
RemoteInterpreterTest 继承 AbstractInterpreterTest 里面的抽象类，会先执行setUp方法对读取配置文件信息interpreter 进行初始化
核心主要是执行RemoteInterpreter里面的 interpret 方法，
@Override public InterpreterResult interpret(final String st, final InterpreterContext context) throws InterpreterException { LOGGER.info("st:\n{}", st); if (LOGGER.isDebugEnabled()) { LOGGER.debug("st:\n{}", st); }
final FormType form = getFormType();
RemoteInterpreterProcess interpreterProcess = null;
try {
interpreterProcess = getOrCreateInterpreterProcess();
} catch (IOException e) {
throw new InterpreterException(e);
}
if (!interpreterProcess.isRunning()) {
return new InterpreterResult(InterpreterResult.Code.ERROR,
"Interpreter process is not running\n" + interpreterProcess.getErrorMessage());
}
return interpreterProcess.callRemoteFunction(client -> {
RemoteInterpreterResult remoteResult = client.interpret(
sessionId, className, st, convert(context));
Map<String, Object> remoteConfig = (Map<String, Object>) GSON.fromJson(
remoteResult.getConfig(), new TypeToken<Map<String, Object>>() {
}.getType());
context.getConfig().clear();
if (remoteConfig != null) {
context.getConfig().putAll(remoteConfig);
}
GUI currentGUI = context.getGui();
GUI currentNoteGUI = context.getNoteGui();
if (form == FormType.NATIVE) {
GUI remoteGui = GUI.fromJson(remoteResult.getGui());
GUI remoteNoteGui = GUI.fromJson(remoteResult.getNoteGui());
currentGUI.clear();
currentGUI.setParams(remoteGui.getParams());
currentGUI.setForms(remoteGui.getForms());
currentNoteGUI.setParams(remoteNoteGui.getParams());
currentNoteGUI.setForms(remoteNoteGui.getForms());
} else if (form == FormType.SIMPLE) {
final Map<String, Input> currentForms = currentGUI.getForms();
final Map<String, Object> currentParams = currentGUI.getParams();
final GUI remoteGUI = GUI.fromJson(remoteResult.getGui());
final Map<String, Input> remoteForms = remoteGUI.getForms();
final Map<String, Object> remoteParams = remoteGUI.getParams();
currentForms.putAll(remoteForms);
currentParams.putAll(remoteParams);
}
return convert(remoteResult);
}
);
}
其中getOrCreateInterpreterProcess()一路点下去 最终是去调用zeppelin-zengine/src/main/java/org/apache/zeppelin/interpreter/remote/ExecRemoteInterpreterProcess.java 里面的start 方法，通过 commons-exec命令执行shell 或者cmd 脚本(bin/interpreter.sh) 启动一个独立的进程，shell 脚本里面具体执行的类(org.apache.zeppelin.interpreter.remote.RemoteInterpreterServer)，和前一篇文章interpreter 原理分析相呼应
@Override public void start(String userName) throws IOException { // start server process CommandLine cmdLine = CommandLine.parse(interpreterRunner); cmdLine.addArgument("-d", false); cmdLine.addArgument(getInterpreterDir(), false); cmdLine.addArgument("-c", false); cmdLine.addArgument(getIntpEventServerHost(), false); cmdLine.addArgument("-p", false); cmdLine.addArgument(String.valueOf(intpEventServerPort), false); cmdLine.addArgument("-r", false); cmdLine.addArgument(getInterpreterPortRange(), false); cmdLine.addArgument("-i", false); cmdLine.addArgument(getInterpreterGroupId(), false); if (isUserImpersonated() && !userName.equals("anonymous")) { cmdLine.addArgument("-u", false); cmdLine.addArgument(userName, false); } cmdLine.addArgument("-l", false); cmdLine.addArgument(getLocalRepoDir(), false); cmdLine.addArgument("-g", false); cmdLine.addArgument(getInterpreterSettingName(), false);
interpreterProcessLauncher = new InterpreterProcessLauncher(cmdLine, getEnv());
interpreterProcessLauncher.launch();
interpreterProcessLauncher.waitForReady(getConnectTimeout());
if (interpreterProcessLauncher.isLaunchTimeout()) {
throw new IOException(
String.format("Interpreter Process creation is time out in %d seconds", getConnectTimeout() / 1000) + "\n"
+ "You can increase timeout threshold via "
+ "setting zeppelin.interpreter.connect.timeout of this interpreter.\n"
+ interpreterProcessLauncher.getErrorMessage());
}
if (!interpreterProcessLauncher.isRunning()) {
throw new IOException("Fail to launch interpreter process:\n" + interpreterProcessLauncher.getErrorMessage());
}
if (isHadoopClientAvailable()) {
String launchOutput = interpreterProcessLauncher.getProcessLaunchOutput();
Matcher m = YARN_APP_PATTER.matcher(launchOutput);
if (m.find()) {
String appId = m.group(1);
LOGGER.info("Detected yarn app: {}, add it to YarnAppMonitor", appId);
YarnAppMonitor.get().addYarnApp(ConverterUtils.toApplicationId(appId), this);
}
}
}

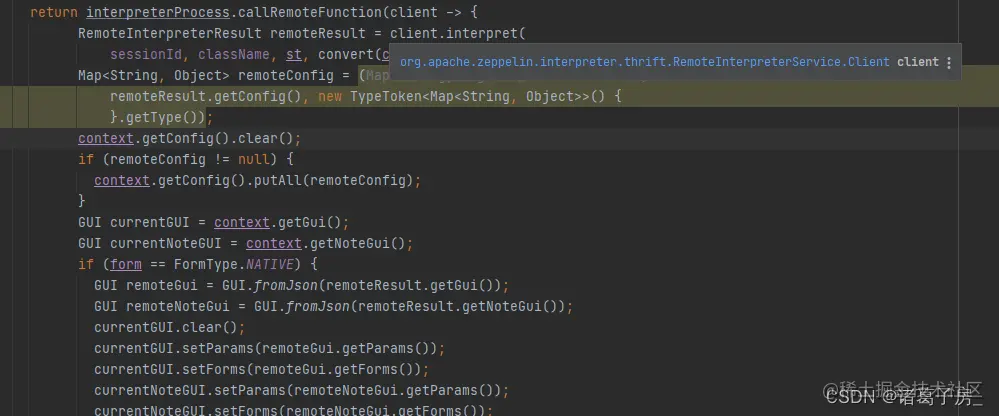

而实际调用thrift server 端服务的client 端代码

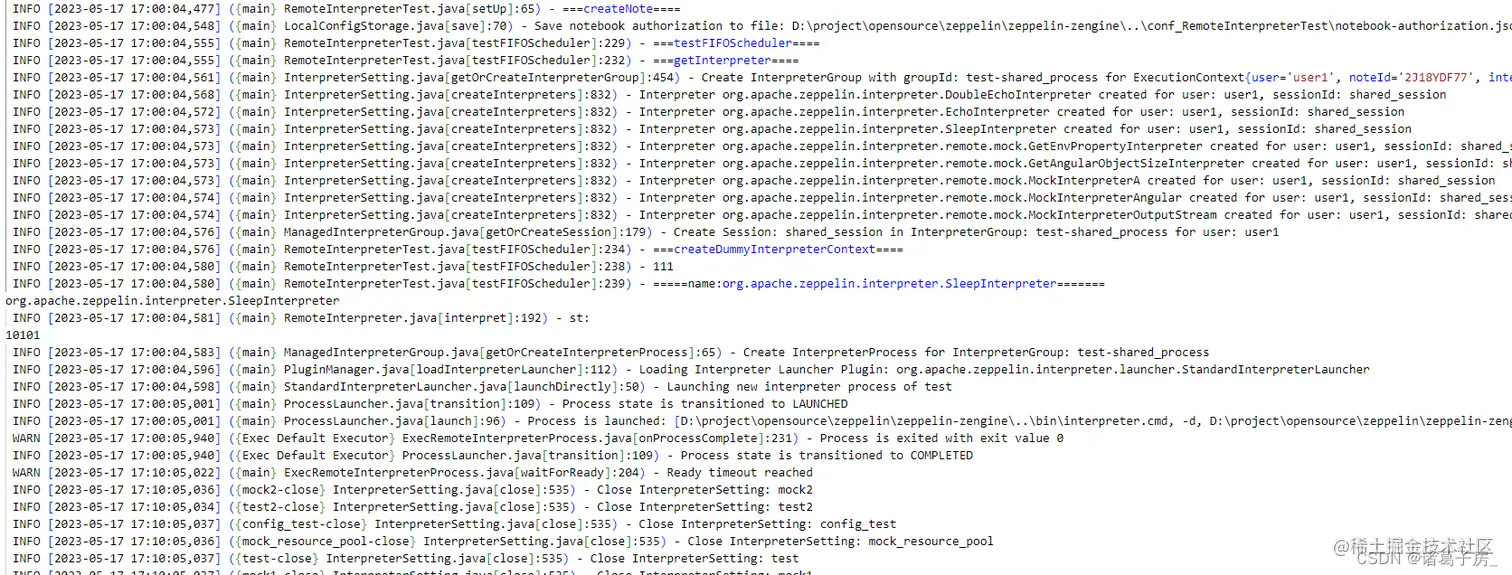

上述图片是代码运行的log，可以帮助我们定位代码的运行顺序
({FIFO-RemoteInterpreter-python-shared_process-shared_session-1} ProcessLauncher.java[launch]:96) - Process is launched: [.\bin\interpreter.cmd, -d, ./\interpreter/python, -c, 10.4.144.223, -p, 52945, -r, :, -i, python-shared_process, -l, ./\local-repo\python, -g, python]
({FIFO-RemoteInterpreter-md-shared_process-shared_session-1} ProcessLauncher.java[launch]:96) - Process is launched: [.\bin\interpreter.cmd, -d, ./\interpreter/md, -c, 10.4.144.223, -p, 52945, -r, :, -i, md-shared_process, -l, ./\local-repo\md, -g, md]
({FIFO-RemoteInterpreter-jdbc-shared_process-shared_session-1} ProcessLauncher.java[launch]:96) - Process is launched: [.\bin\interpreter.cmd, -d, ./\interpreter/jdbc, -c, 10.4.144.223, -p, 52945, -r, :, -i, jdbc-shared_process, -l, ./\local-repo\jdbc, -g, jdbc]
