一、代码注释详解

• 柱状占比图通过style占比实现，标识线及标识数字通过循环加style动态定位实现
• 动态饼状图通过canvas画圆中的起点、终点、顺逆时针等实现，文字位置通过数据占比的多元表达式实现
• 需要注意的是当左侧盒子高度及右侧盒子高度发生变化时，需要微调相关属性，否则会出现偏差
• 具体代码及注释如下：

<template>
  <div class="box">
    <div class="graphicalProportion">
      <!-- 左侧柱状图 -->
      <div class="leftCylindricality">
        <div class="leftCylindricalityContent">
          <div class="title">测试标题</div>
          <div class="chartColumn">
            <div class="chartColumnTerm" v-for="item in list">
              <div class="category">
                {{ item.category }}
              </div>
              <div class="proportion">
                <div class="called" :style="{ 'width': item.called + '%' }"></div>
                <div class="uncalled" :style="{ 'width': item.uncalled + '%' }"></div>
              </div>
            </div>
            <div class="call" v-for="ele, index in 4" :style="{ 'left': index * 130 + 100 + 'px' }">
              <div class="callLine"></div>
              <div class="callNum">{{ 50 * index }}</div>
            </div>
          </div>
          <div class="identifying">
            <div class="identifyingLeft">
              <div class="identifyingLeftBlock"></div>
              <div class="identifyingLeftText">测试A</div>
            </div>
            <div class="identifyingRight">
              <div class="identifyingRightBlock"></div>
              <div class="identifyingRightText">测试B</div>
            </div>
          </div>
        </div>
      </div>
      <!-- 右侧饼状图 -->
      <div class="rightCylindricality">
        <div class="rightCylindricalityContent">
          <div class="title">测试标题</div>
          <div class="sectorProportion">
            <canvas id="myCanvas" ref="myCanvas" width="488" height="480"> </canvas>
          </div>
          <div class="identifying" style="margin-top: 15px;">
            <div class="identifyingLeft">
              <div class="identifyingLeftBlock"></div>
              <div class="identifyingLeftText">测试A</div>
            </div>
            <div class="identifyingRight">
              <div class="identifyingRightBlock"></div>
              <div class="identifyingRightText">测试A</div>
            </div>
          </div>
        </div>
      </div>
    </div>
  </div>
</template>
<script setup>
import { ref, reactive, toRefs } from 'vue';
const data = reactive({
  list: [{
    category: '测试1',
    called: 70,
    uncalled: 30
  }, {
    category: '测试2',
    called: 35,
    uncalled: 65
  }, {
    category: '测试3',
    called: 45,
    uncalled: 55
  }, {
    category: '测试4',
    called: 90,
    uncalled: 10
  }, {
    category: '测试5',
    called: 50,
    uncalled: 50
  }, {
    category: '测试6',
    called: 60,
    uncalled: 40
  }, {
    category: '测试7',
    called: 30,
    uncalled: 70
  }],
  leftProportion: 54,
  rightProportion: 46,
})
// 解构数据
const { list } = toRefs(data)
// const canvas = ref();
onMounted(() => {
  // 获取画布
  const canvas = document.getElementById('myCanvas');
  // 2d
  const ctx = canvas.getContext('2d');
  // 开始路径
  ctx.beginPath()
  // 圆心位置
  ctx.moveTo(238, 240)
  // 参数分别为(x轴，y轴，圆半径，起点，终点，是否逆时针)
  ctx.arc(canvas.width / 2 - 2, canvas.height / 2, 240, 1.5 * Math.PI, (1.5 - data.leftProportion / 50) * Math.PI, true)
  // 结束路径
  ctx.closePath()
  // 填充颜色
  ctx.fillStyle = '#c0504d'
  // 填充
  ctx.fill()

  // 开始路径
  ctx.beginPath()
  // 圆心位置
  ctx.moveTo(240, 240)
  // 参数分别为(x轴，y轴，圆半径，起点，终点，是否逆时针)
  ctx.arc(canvas.width / 2, canvas.height / 2, 240, 1.5 * Math.PI, (1.5 + data.rightProportion / 50) * Math.PI, false)
  // 结束路径
  ctx.closePath()
  // 填充颜色
  ctx.fillStyle = '#4f81bd'
  // 填充
  ctx.fill()

  // 绘制左侧文字
  // 开始路径
  ctx.beginPath();
  // 设置填充色，此处转换为实心字体颜色，如果设置描边则为空心文字
  ctx.fillStyle = '#dfa7a6';
  // 设置字体
  ctx.font = '20px serif';
  // 设置文字位置
  ctx.fillText(data.leftProportion + '%', data.leftProportion > 20 ? 150 : data.leftProportion <= 10 ? data.leftProportion <= 5 ? 220 : 200 : 170, data.leftProportion > 20 ? data.leftProportion > 25 ? data.leftProportion > 50 ? 240 : 180 : 130 : data.leftProportion <= 10 ? 60 : 90);
  // 结束路径
  ctx.closePath();

  // 绘制右侧文字
  ctx.beginPath();
  // 设置填充色，此处转换为实心字体颜色，如果设置描边则为空心文字
  ctx.fillStyle = '#dfa7a6';
  // 设置字体
  ctx.font = '20px serif';
  // 设置文字位置
  ctx.fillText(data.rightProportion + '%', data.rightProportion > 20 ? 320 : data.rightProportion <= 10 ? data.rightProportion <= 5 ? 245 : 270 : 290, data.rightProportion > 20 ? data.rightProportion > 25 ? data.rightProportion > 50 ? 240 : 180 : 130 : data.rightProportion <= 10 ? 60 : 90);
  // 结束路径
  ctx.closePath();
})
</script>
<style scoped lang="scss">
.box {
  padding: 20px;
}

.title {
  line-height: 60px;
  text-align: center;
  font-size: 18px;
}

.identifying {
  display: flex;
  align-items: center;
  font-size: 12px;
  justify-content: center;
  margin-top: 5px;

  .identifyingLeft,
  .identifyingRight {
    display: flex;
    align-items: center;
  }

  .identifyingLeftBlock,
  .identifyingRightBlock {
    width: 8px;
    height: 8px;
    margin: 5px;
  }

  .identifyingLeftBlock {
    background-color: #4f81bd;
  }

  .identifyingRightBlock {
    background-color: #c0504d;
  }
}

.graphicalProportion {

  display: flex;
  justify-content: space-between;

  .leftCylindricality {
    width: 32%;
    height: 600px;
    background-color: #ccc;
    padding: 8px;
    border-radius: 20px;
    box-sizing: border-box;

    .leftCylindricalityContent {
      position: relative;
      background-color: #fff;
      width: 100%;
      height: 100%;

      .call {
        font-size: 12px;
        position: absolute;
        top: 50px;

        .callLine {
          height: 480px;
          width: 1px;
          background-color: #ccc;
        }

        .callNum {
          transform: translateX(-50%);
        }
      }

      .chartColumn {
        .chartColumnTerm {
          display: flex;

          >div {
            margin-bottom: 45px;
            margin-top: 5px;
          }

          .category {
            width: 100px;
            text-align: right;
            padding-right: 10px;
            line-height: 20px;
            font-size: 14px;
          }

          .proportion {
            display: flex;
            align-items: center;
            width: 260px;
            height: 20px;
            z-index: 999;

            .called {
              background-color: #4f81bd;
              height: 100%;
            }

            .uncalled {
              background-color: #c0504d;
              height: 100%;
            }
          }
        }
      }
    }
  }

  .rightCylindricality {
    width: 66%;
    height: 600px;
    background-color: #ccc;
    padding: 8px;
    border-radius: 20px;
    margin-left: 20px;
    box-sizing: border-box;

    .rightCylindricalityContent {
      position: relative;
      background-color: #fff;
      width: 100%;
      height: 100%;

      .sectorProportion {
        width: 488px;
        height: 480px;
        margin: 0 auto;
      }
    }
  }
}
</style>

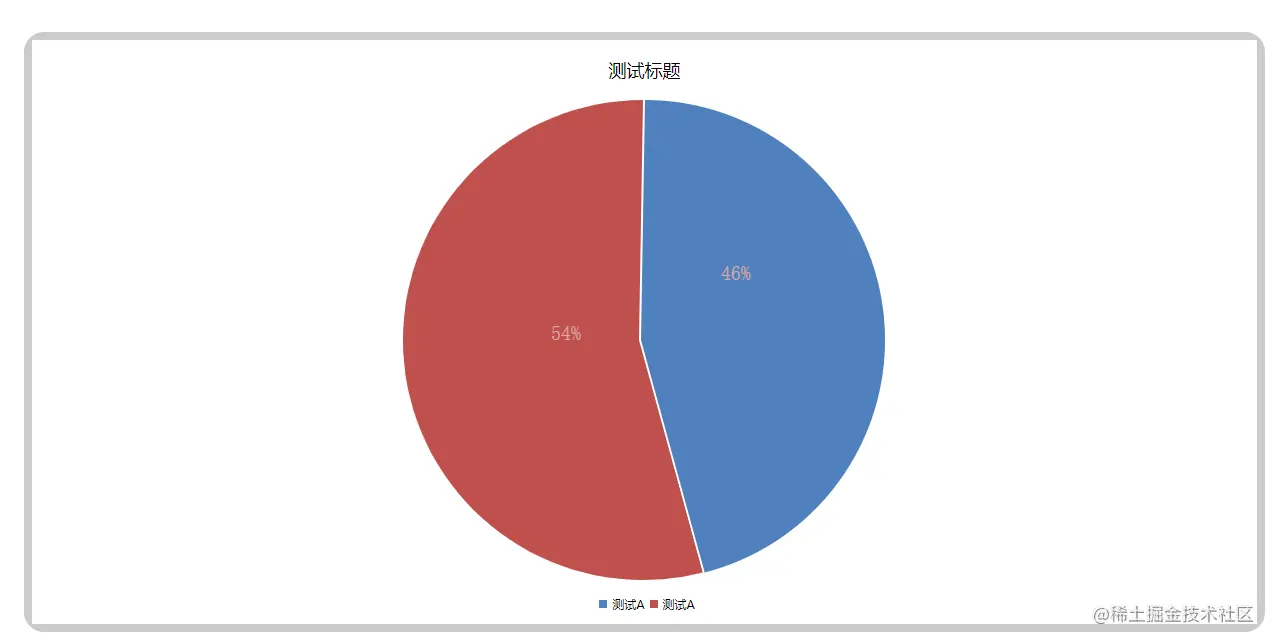

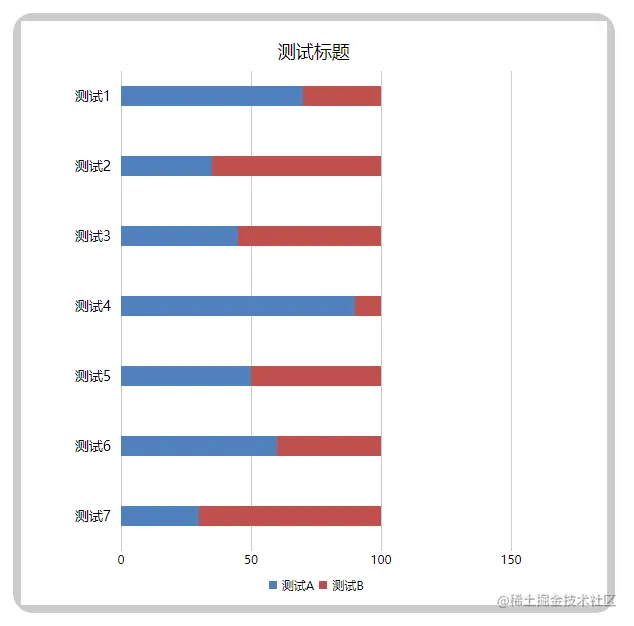

二、效果展示
