docker-compose一键构建rocketmq

长风朗月碎梦
348 阅读7分钟

1 构建 a-m-a-s 主从模式

docker-compose-yml

version: '3'
services:
  rocketmq-namesrv-A:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-namesrv-A
    restart: always
    ports:
      - 9876:9876
    volumes:
      - ./namesrv/logs:/home/rocketmq/logs
      - ./namesrv/store:/home/rocketmq/store
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
    command: ["sh","mqnamesrv"]
    networks:
      - rocketmq

  rocketmq-namesrv-B:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-namesrv-B
    restart: always
    ports:
      - 9877:9876
    volumes:
      - ./namesrv/logs1:/home/rocketmq/logs
      - ./namesrv/store1:/home/rocketmq/store
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
    command: ["sh","mqnamesrv"]
    networks:
      - rocketmq

  rocketmq-broker-a:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-broker-a
    restart: always
    ports:
      - 10911:10911
      - 10912:10912
    volumes:
      - ./broker/conf/broker-a.conf:/etc/rocketmq/broker.conf
    environment:
      NAMESRV_ADDR: "rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876"
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
    command: sh mqbroker -c /etc/rocketmq/broker.conf autoCreateTopicEnable=true &
    depends_on:
      - rocketmq-namesrv-A
      - rocketmq-namesrv-B
    networks:
      - rocketmq

  rocketmq-broker-b:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-broker-b
    restart: always
    ports:
      - 10921:10921
      - 10922:10922
    volumes:

      - ./broker/conf/broker-b.conf:/etc/rocketmq/broker.conf
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
      NAMESRV_ADDR: "rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876"
    command: sh mqbroker -c /etc/rocketmq/broker.conf autoCreateTopicEnable=true &
    depends_on:
      - rocketmq-namesrv-A
      - rocketmq-namesrv-B
    networks:
      - rocketmq

  rocketmq-console:
    image: styletang/rocketmq-console-ng
    container_name: rocketmq-console
    restart: always
    ports:
      - 8180:8080
    environment:
      JAVA_OPTS: "-Drocketmq.namesrv.addr=rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false"
    depends_on:
      - rocketmq-broker-a
      - rocketmq-broker-b
    networks:
      - rocketmq


networks:
  rocketmq:
    driver: bridge

broker-a.conf

#所属集群名字
brokerClusterName=DefaultCluster1

#broker名字，注意此处不同的配置文件填写的不一样，如果在broker-a.properties使用:broker-a,
#在broker-b.properties使用:broker-b
brokerName=rocketmq-broker-a

#0 表示Master，>0 表示Slave
brokerId=0

#nameServer地址，分号分割
namesrvAddr=rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876
#namesrvAddr=rocketmq-namesrv:9876

#启动IP,如果 docker 报 com.alibaba.rocketmq.remoting.exception.RemotingConnectException: connect to <192.168.0.120:10909> failed
# 解决方式1 加上一句producer.setVipChannelEnabled(false);，解决方式2 brokerIP1 设置宿主机IP，不要使用docker 内部IP
brokerIP1=192.168.10.105

#在发送消息时，自动创建服务器不存在的topic，默认创建的队列数
defaultTopicQueueNums=4

#是否允许 Broker 自动创建Topic，建议线下开启，线上关闭 ！！！这里仔细看是false，false，false
autoCreateTopicEnable=true

#是否允许 Broker 自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=true



#删除文件时间点，默认凌晨4点
deleteWhen=04

#文件保留时间，默认48小时
fileReservedTime=120

#commitLog每个文件的大小默认1G
mapedFileSizeCommitLog=1073741824

#ConsumeQueue每个文件默认存30W条，根据业务情况调整
mapedFileSizeConsumeQueue=300000

#destroyMapedFileIntervalForcibly=120000
#redeleteHangedFileInterval=120000
#检测物理文件磁盘空间
diskMaxUsedSpaceRatio=88
#存储路径
#storePathRootDir=/home/ztztdata/rocketmq-all-4.1.0-incubating/store
#commitLog 存储路径
#storePathCommitLog=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/commitlog
#消费队列存储
#storePathConsumeQueue=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/consumequeue
#消息索引存储路径
#storePathIndex=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/index
#checkpoint 文件存储路径
#storeCheckpoint=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/checkpoint
#abort 文件存储路径
#abortFile=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/abort
#限制的消息大小
maxMessageSize=65536

#flushCommitLogLeastPages=4
#flushConsumeQueueLeastPages=2
#flushCommitLogThoroughInterval=10000
#flushConsumeQueueThoroughInterval=60000

#Broker 的角色
#- ASYNC_MASTER 异步复制Master
#- SYNC_MASTER 同步双写Master
#- SLAVE
brokerRole=ASYNC_MASTER

#刷盘方式
#- ASYNC_FLUSH 异步刷盘
#- SYNC_FLUSH 同步刷盘
flushDiskType=ASYNC_FLUSH

#发消息线程池数量
#sendMessageThreadPoolNums=128
#拉消息线程池数量
#pullMessageThreadPoolNums=128

broker-b.conf


#所属集群名字
brokerClusterName=DefaultCluster1

#broker名字，注意此处不同的配置文件填写的不一样，如果在broker-a.properties使用:broker-a,
#在broker-b.properties使用:broker-b
brokerName=rocketmq-broker-b

#0 表示Master，>0 表示Slave
brokerId=0

#nameServer地址，分号分割
#nameServer地址，分号分割
namesrvAddr=rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876
#namesrvAddr=rocketmq-namesrv:9876

#启动IP,如果 docker 报 com.alibaba.rocketmq.remoting.exception.RemotingConnectException: connect to <192.168.0.120:10909> failed
# 解决方式1 加上一句producer.setVipChannelEnabled(false);，解决方式2 brokerIP1 设置宿主机IP，不要使用docker 内部IP
brokerIP1=192.168.10.105

#在发送消息时，自动创建服务器不存在的topic，默认创建的队列数
defaultTopicQueueNums=4

#是否允许 Broker 自动创建Topic，建议线下开启，线上关闭 ！！！这里仔细看是false，false，false
autoCreateTopicEnable=true

#是否允许 Broker 自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=true

#Broker 对外服务的监听端口
listenPort=10921

#删除文件时间点，默认凌晨4点
deleteWhen=04

#文件保留时间，默认48小时
fileReservedTime=120

#commitLog每个文件的大小默认1G
mapedFileSizeCommitLog=1073741824

#ConsumeQueue每个文件默认存30W条，根据业务情况调整
mapedFileSizeConsumeQueue=300000

#destroyMapedFileIntervalForcibly=120000
#redeleteHangedFileInterval=120000
#检测物理文件磁盘空间
diskMaxUsedSpaceRatio=88
#存储路径
#storePathRootDir=/home/ztztdata/rocketmq-all-4.1.0-incubating/store
#commitLog 存储路径
#storePathCommitLog=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/commitlog
#消费队列存储
#storePathConsumeQueue=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/consumequeue
#消息索引存储路径
#storePathIndex=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/index
#checkpoint 文件存储路径
#storeCheckpoint=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/checkpoint
#abort 文件存储路径
#abortFile=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/abort
#限制的消息大小
maxMessageSize=65536

#flushCommitLogLeastPages=4
#flushConsumeQueueLeastPages=2
#flushCommitLogThoroughInterval=10000
#flushConsumeQueueThoroughInterval=60000

#Broker 的角色
#- ASYNC_MASTER 异步复制Master
#- SYNC_MASTER 同步双写Master
#- SLAVE
brokerRole=ASYNC_MASTER

#刷盘方式
#- ASYNC_FLUSH 异步刷盘
#- SYNC_FLUSH 同步刷盘
flushDiskType=ASYNC_FLUSH

#发消息线程池数量
#sendMessageThreadPoolNums=128
#拉消息线程池数量
#pullMessageThreadPoolNums=128

2.构建 a-m-b-m 双主模式

version: '3'
services:
  rocketmq-namesrv-A:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-namesrv-A
    restart: always
    ports:
      - 9876:9876
    volumes:
      - ./namesrv/logs:/home/rocketmq/logs
      - ./namesrv/store:/home/rocketmq/store
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
    command: ["sh","mqnamesrv"]
    networks:
      rocketmq_net:
        aliases:
          - rocketmq-namesrv
  rocketmq-namesrv-B:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-namesrv-B
    restart: always
    ports:
      - 9877:9876
    volumes:
      - ./namesrv/logs:/home/rocketmq/logs
      - ./namesrv/store:/home/rocketmq/store
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
    command: ["sh","mqnamesrv"]
    networks:
      rocketmq_net:
        aliases:
          - rocketmq-namesrv



  rocketmq-broker-b:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-broker-b
    restart: always
    ports:
      - 10909:10909
      - 10911:10911
    volumes:

      - ./broker/conf/broker-b.conf:/etc/rocketmq/broker.conf
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
      NAMESRV_ADDR: "rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876"
    command: sh mqbroker -c /etc/rocketmq/broker.conf autoCreateTopicEnable=true &
    depends_on:
      - rocketmq-namesrv-A
      - rocketmq-namesrv-B
    networks:
      rocketmq_net:
        aliases:
          - rocketmq-namesrv



  rocketmq-broker-b-s:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-broker-b-s
    restart: always
    ports:
      - 10907:10909
      - 10950:10950
    volumes:

      - ./broker/conf/broker-b-s.conf:/etc/rocketmq/broker.conf
    environment:
      NAMESRV_ADDR: "rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876"
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"

    command: sh mqbroker -c /etc/rocketmq/broker.conf autoCreateTopicEnable=true &

    depends_on:
      - rocketmq-broker-b
    networks:
      rocketmq_net:
        aliases:
          - rocketmq-namesrv



  rocketmq-console:
    image: styletang/rocketmq-console-ng
    container_name: rocketmq-console
    restart: always
    ports:
      - 8180:8080
    environment:
      JAVA_OPTS: "-Drocketmq.namesrv.addr=rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false"
    depends_on:

      - rocketmq-broker-b
      - rocketmq-broker-b-s
    networks:
      rocketmq_net:
        aliases:
          - rocketmq-namesrv
networks:
  rocketmq_net:
    name: rocketmq_net
    driver: bridge


#所属集群名字
brokerClusterName=DefaultCluster1

#broker名字，注意此处不同的配置文件填写的不一样，如果在broker-a.properties使用:broker-a,
#在broker-b.properties使用:broker-b
brokerName=rocketmq-broker-b

#0 表示Master，>0 表示Slave
brokerId=1

#nameServer地址，分号分割
#nameServer地址，分号分割
namesrvAddr=rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876
#namesrvAddr=rocketmq-namesrv:9876

#启动IP,如果 docker 报 com.alibaba.rocketmq.remoting.exception.RemotingConnectException: connect to <192.168.0.120:10909> failed
# 解决方式1 加上一句producer.setVipChannelEnabled(false);，解决方式2 brokerIP1 设置宿主机IP，不要使用docker 内部IP
brokerIP1=192.168.10.100

#在发送消息时，自动创建服务器不存在的topic，默认创建的队列数
defaultTopicQueueNums=4

#是否允许 Broker 自动创建Topic，建议线下开启，线上关闭 ！！！这里仔细看是false，false，false
autoCreateTopicEnable=true

#是否允许 Broker 自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=true

#Broker 对外服务的监听端口
listenPort=10950

#删除文件时间点，默认凌晨4点
deleteWhen=04

#文件保留时间，默认48小时
fileReservedTime=120

#commitLog每个文件的大小默认1G
mapedFileSizeCommitLog=1073741824

#ConsumeQueue每个文件默认存30W条，根据业务情况调整
mapedFileSizeConsumeQueue=300000

#destroyMapedFileIntervalForcibly=120000
#redeleteHangedFileInterval=120000
#检测物理文件磁盘空间
diskMaxUsedSpaceRatio=88
#存储路径
#storePathRootDir=/home/ztztdata/rocketmq-all-4.1.0-incubating/store
#commitLog 存储路径
#storePathCommitLog=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/commitlog
#消费队列存储
#storePathConsumeQueue=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/consumequeue
#消息索引存储路径
#storePathIndex=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/index
#checkpoint 文件存储路径
#storeCheckpoint=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/checkpoint
#abort 文件存储路径
#abortFile=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/abort
#限制的消息大小
maxMessageSize=65536

#flushCommitLogLeastPages=4
#flushConsumeQueueLeastPages=2
#flushCommitLogThoroughInterval=10000
#flushConsumeQueueThoroughInterval=60000

#Broker 的角色
#- ASYNC_MASTER 异步复制Master
#- SYNC_MASTER 同步双写Master
#- SLAVE
brokerRole=SLAVE

#刷盘方式
#- ASYNC_FLUSH 异步刷盘
#- SYNC_FLUSH 同步刷盘
flushDiskType=ASYNC_FLUSH

#发消息线程池数量
#sendMessageThreadPoolNums=128
#拉消息线程池数量
#pullMessageThreadPoolNums=128

3.sh脚本一键构建

为了方便构建直接使用sh 脚本 我使用的是 搭建双主模式

  • 创建 init_rocketmq.sh

  • 替换 sed -i 's#{your-ip}#192.168.10.101#g'  init_rocketmq.sh .file

  • 执行 docker-compose up 即可

- init_rocketmq.sh 内容

mkdir -p ./namesrv/logs
mkdir -p ./namesrv/store
mkdir -p ./namesrv/logs1
mkdir -p ./namesrv/store1
mkdir -p ./broker/conf
cat > ./docker-compose.yml <<-'EOF'
version: '3'
services:
  rocketmq-namesrv-A:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-namesrv-A
    restart: always
    ports:
      - 9876:9876
    volumes:
      - ./namesrv/logs:/home/rocketmq/logs
      - ./namesrv/store:/home/rocketmq/store
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
    command: ["sh","mqnamesrv"]
    networks:
      - rocketmq

  rocketmq-namesrv-B:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-namesrv-B
    restart: always
    ports:
      - 9877:9876
    volumes:
      - ./namesrv/logs1:/home/rocketmq/logs
      - ./namesrv/store1:/home/rocketmq/store
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
    command: ["sh","mqnamesrv"]
    networks:
      - rocketmq

  rocketmq-broker-a:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-broker-a
    restart: always
    ports:
      - 10911:10911
      - 10912:10912
    volumes:
      - ./broker/conf/broker-a.conf:/etc/rocketmq/broker.conf
    environment:
      NAMESRV_ADDR: "rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876"
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
    command: sh mqbroker -c /etc/rocketmq/broker.conf autoCreateTopicEnable=true &
    depends_on:
      - rocketmq-namesrv-A
      - rocketmq-namesrv-B
    networks:
      - rocketmq

  rocketmq-broker-b:
    image: foxiswho/rocketmq:4.8.0
    container_name: rocketmq-broker-b
    restart: always
    ports:
      - 10921:10921
      - 10922:10922
    volumes:

      - ./broker/conf/broker-b.conf:/etc/rocketmq/broker.conf
    environment:
      JAVA_OPT_EXT: "-Duser.home=/home/rocketmq -Xms512M -Xmx512M -Xmn128m"
      NAMESRV_ADDR: "rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876"
    command: sh mqbroker -c /etc/rocketmq/broker.conf autoCreateTopicEnable=true &
    depends_on:
      - rocketmq-namesrv-A
      - rocketmq-namesrv-B
    networks:
      - rocketmq

  rocketmq-console:
    image: styletang/rocketmq-console-ng
    container_name: rocketmq-console
    restart: always
    ports:
      - 8180:8080
    environment:
      JAVA_OPTS: "-Drocketmq.namesrv.addr=rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false"
    depends_on:
      - rocketmq-broker-a
      - rocketmq-broker-b
    networks:
      - rocketmq

networks:
  rocketmq:
    driver: bridge

EOF

cat > ./broker/conf/broker-a.conf <<-'EOF'

brokerClusterName=DefaultCluster1

brokerName=rocketmq-broker-a

brokerId=0

brokerIP1={your-ip}

defaultTopicQueueNums=4

autoCreateTopicEnable=true

autoCreateSubscriptionGroup=true
deleteWhen=04

fileReservedTime=120

mapedFileSizeCommitLog=1073741824

mapedFileSizeConsumeQueue=300000

diskMaxUsedSpaceRatio=88
maxMessageSize=65536


brokerRole=ASYNC_MASTER

flushDiskType=ASYNC_FLUSH


EOF


cat > ./broker/conf/broker-b.conf <<-'EOF'

brokerClusterName=DefaultCluster1

brokerName=rocketmq-broker-b

brokerId=0

namesrvAddr=rocketmq-namesrv-A:9876;rocketmq-namesrv-B:9876
brokerIP1={your-ip}

defaultTopicQueueNums=4

autoCreateTopicEnable=true

autoCreateSubscriptionGroup=true

listenPort=10921

deleteWhen=04

fileReservedTime=120

mapedFileSizeCommitLog=1073741824

mapedFileSizeConsumeQueue=300000

maxMessageSize=65536


brokerRole=ASYNC_MASTER

flushDiskType=ASYNC_FLUSH
EOF

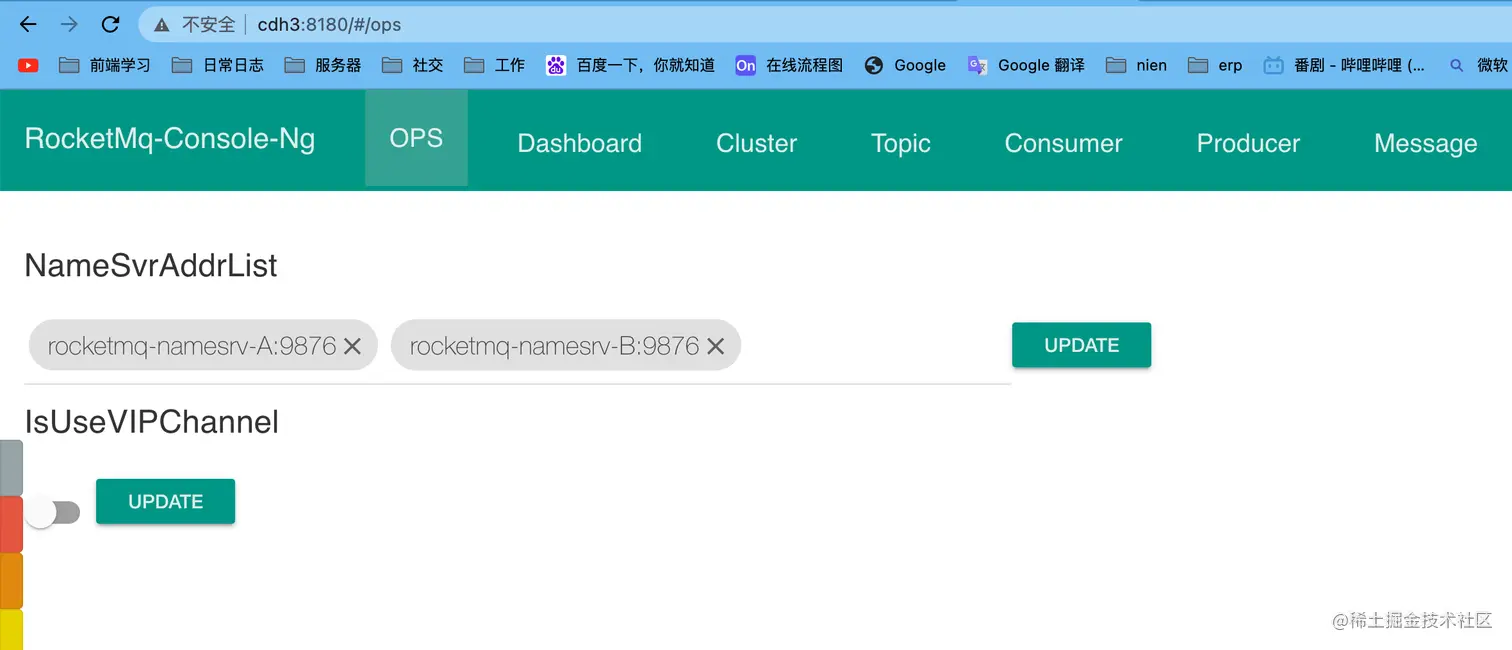

4.访问 rocketmq

http://cdh3:8180/

5.测试下 rocketmq功能

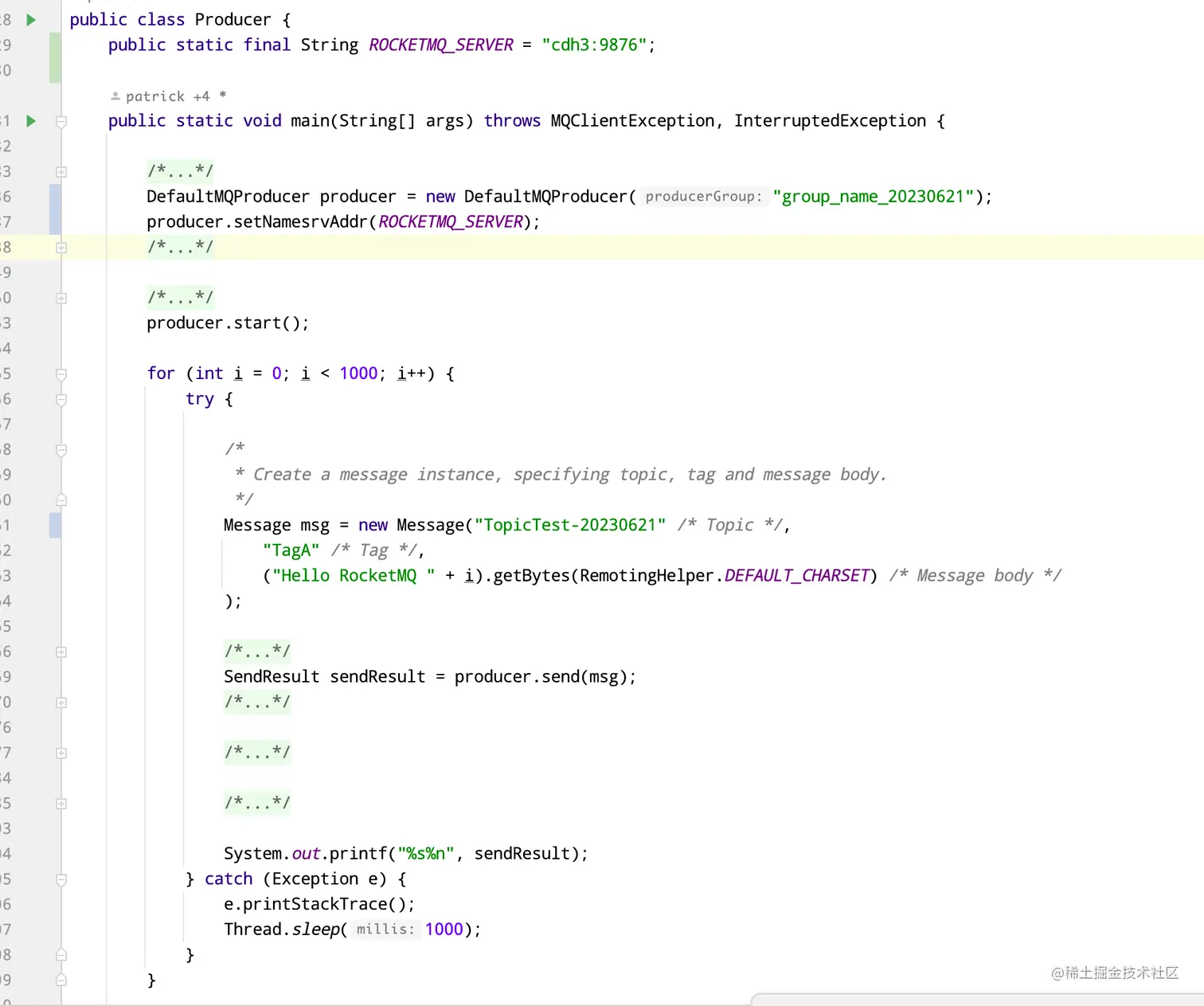

生产消息

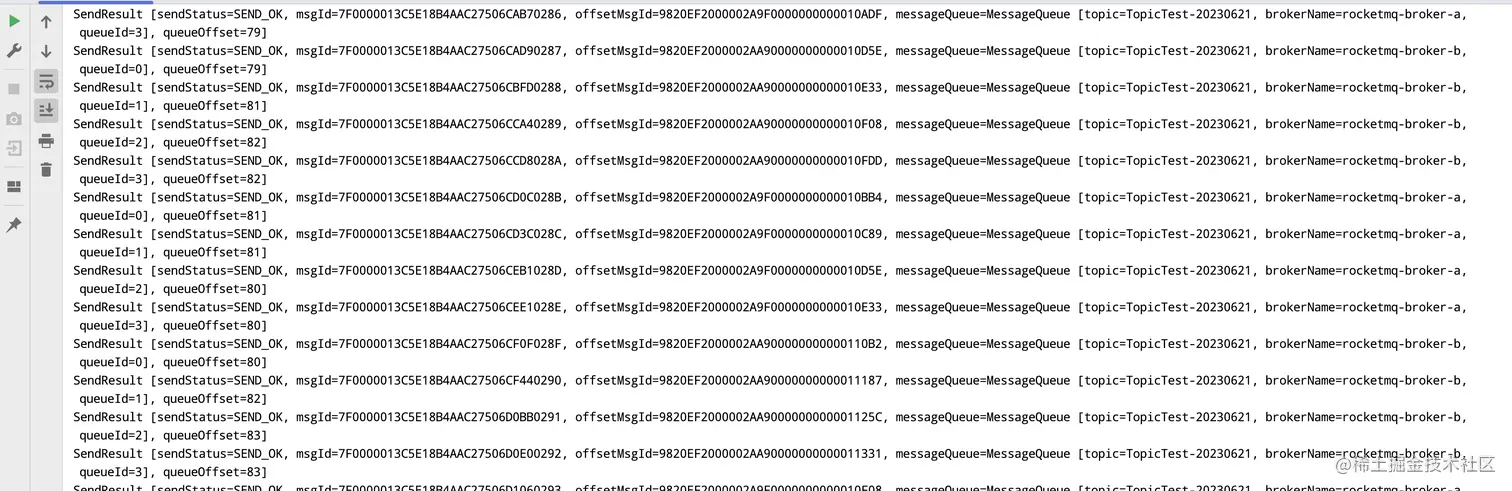

可以看到 消息在往 a和b两个 broker 随机发送

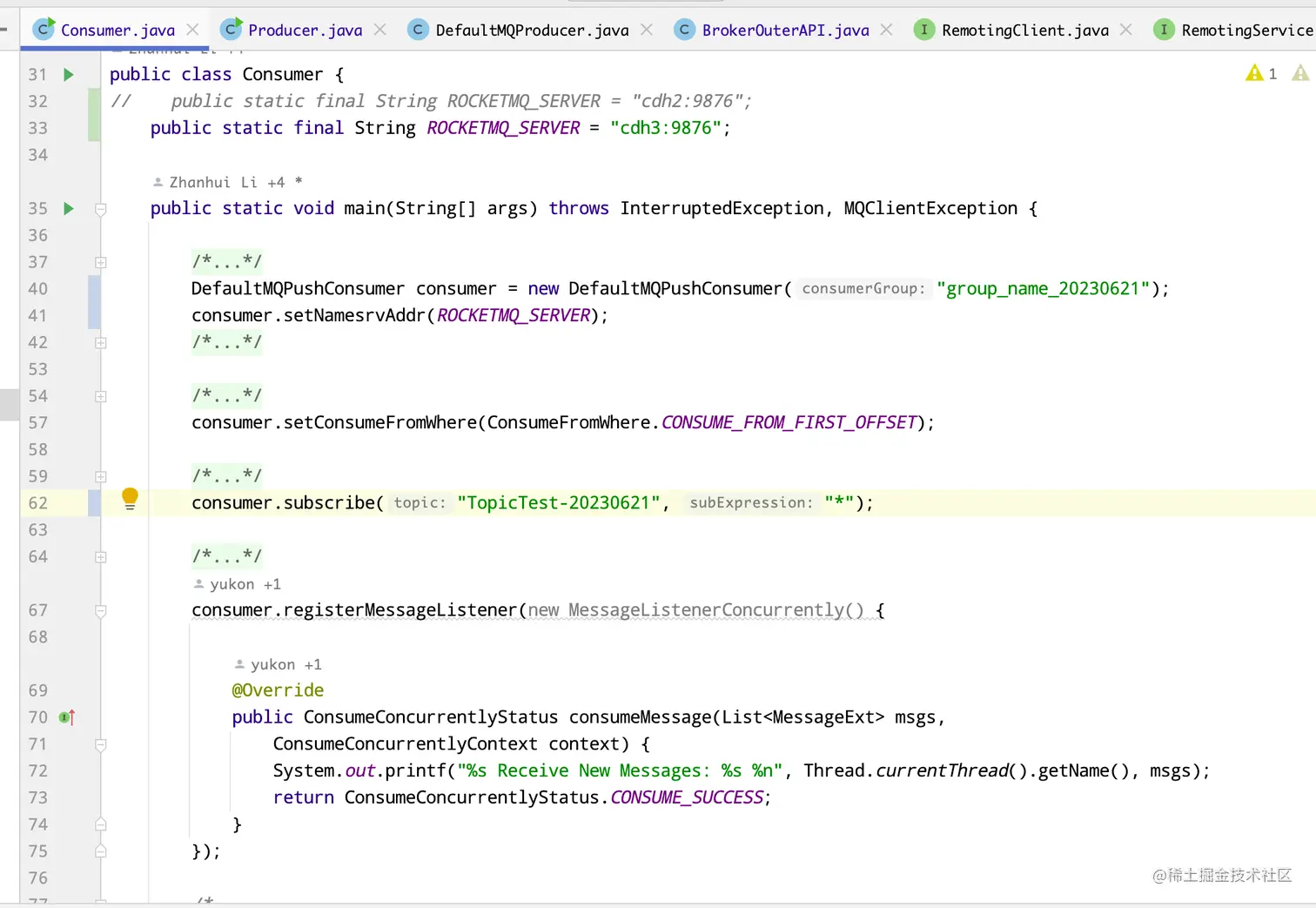

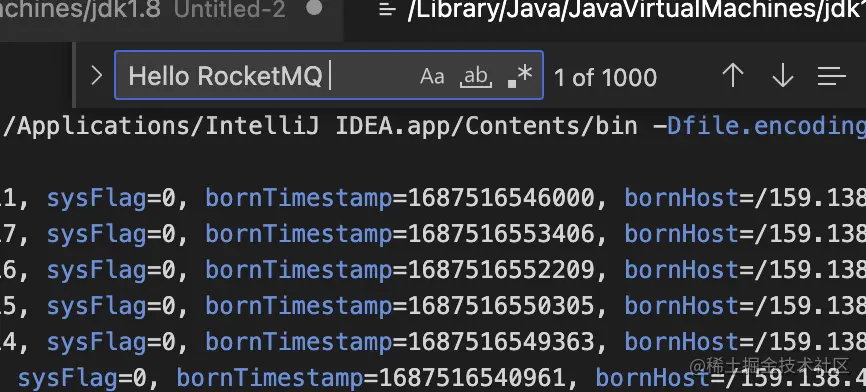

消费消息


可以看到 消费了 a和b两个 broker 的消息


条数也没有 问题，

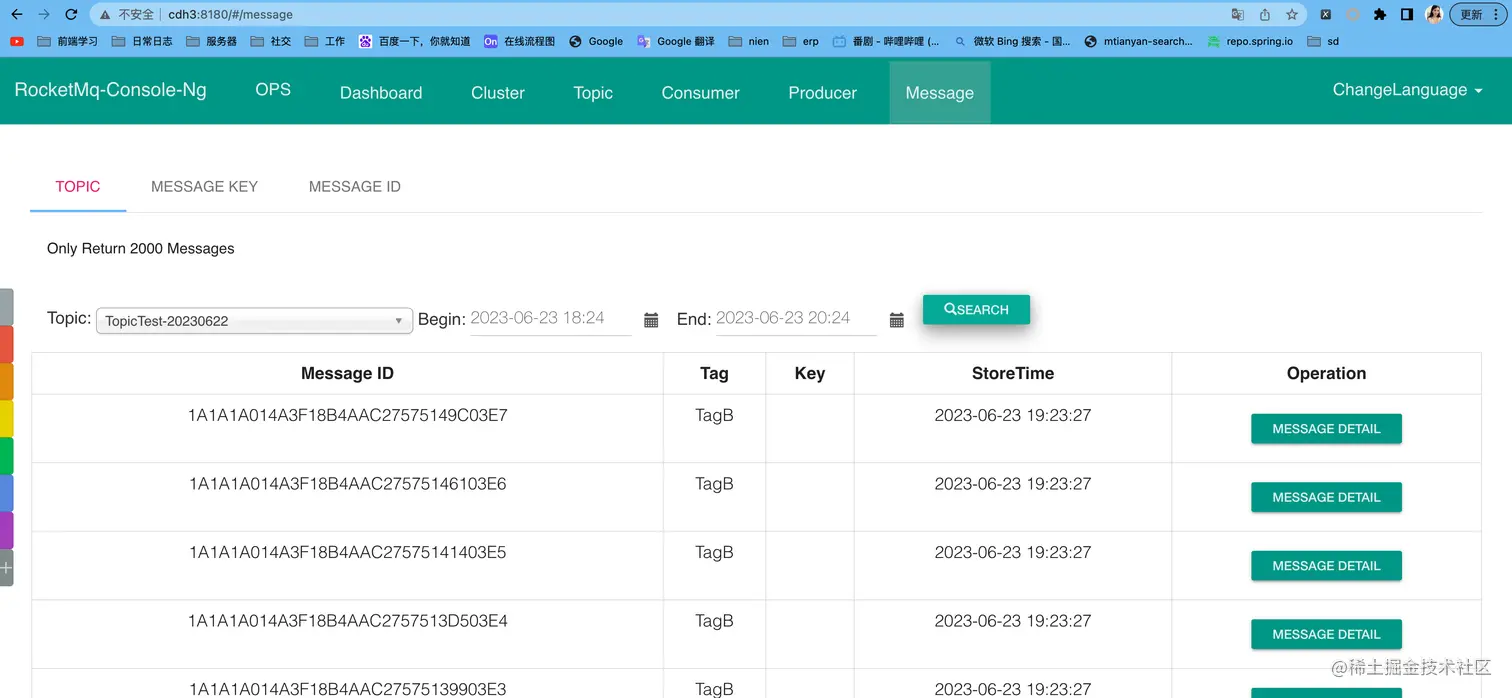

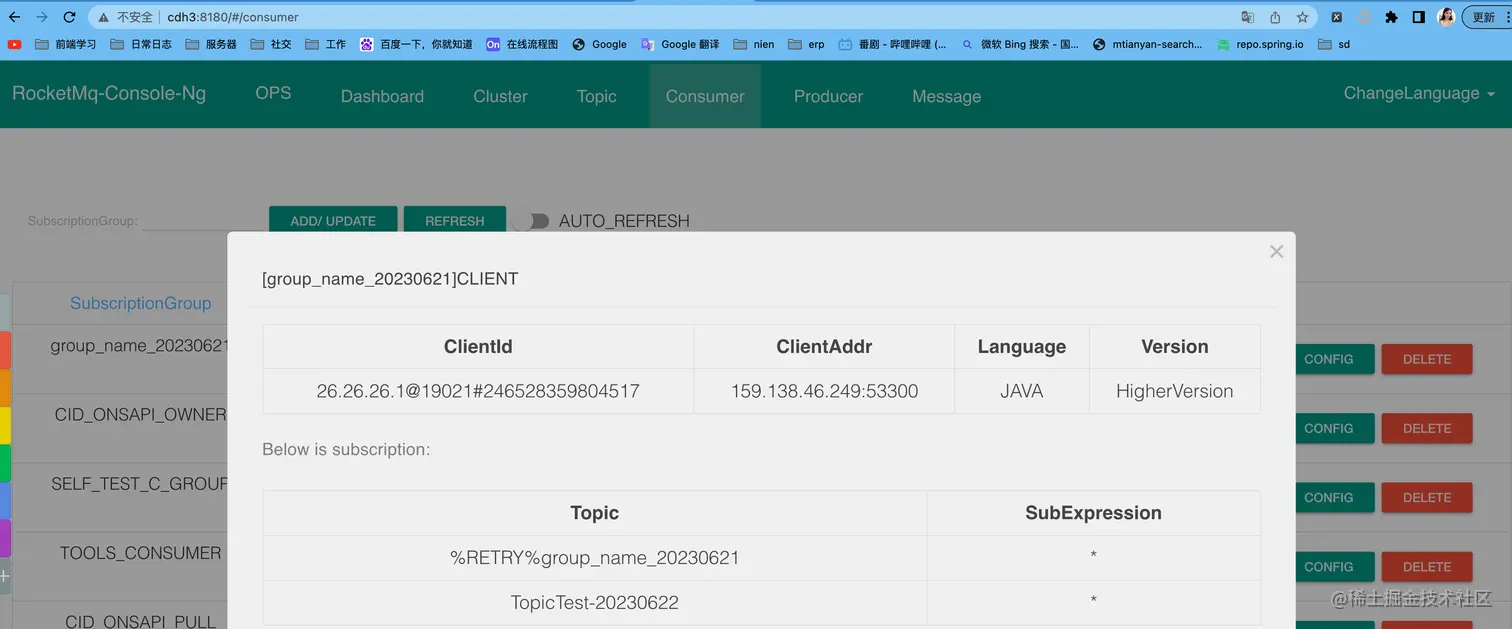

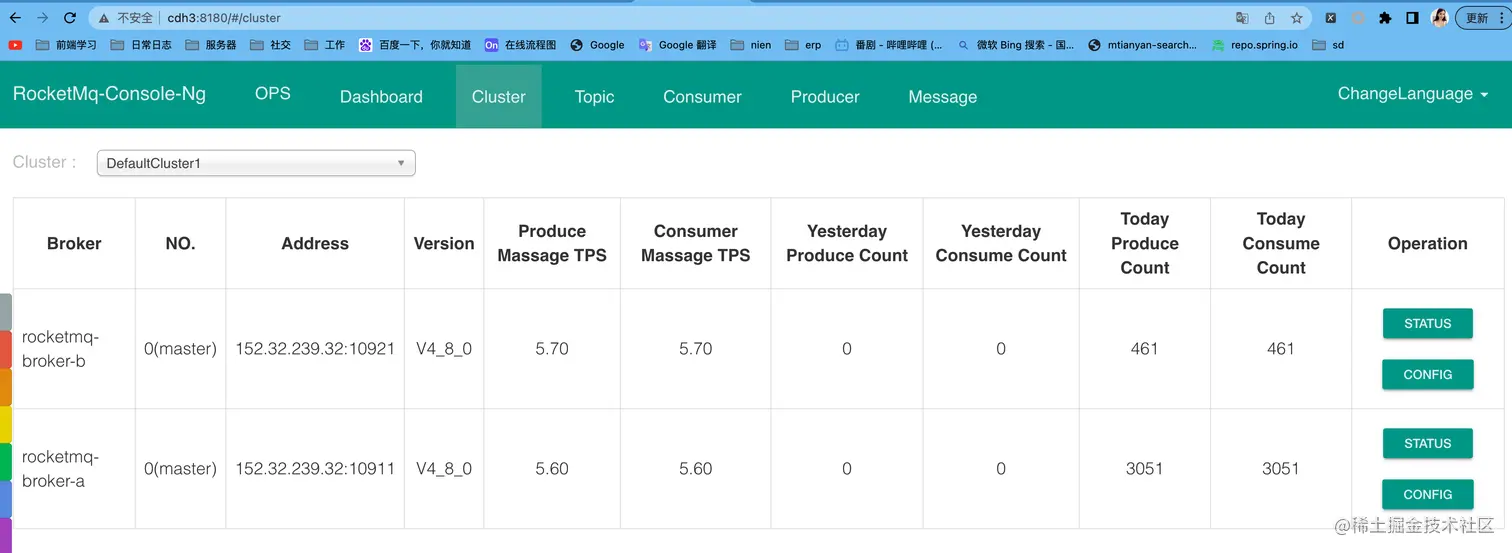

console管理页面







avatar
文章
阅读
粉丝
