在xml文件中定义bean

代码地址： github.com/WangChao-ly…

建议订阅博主专栏，从下到上系统手写spring源码，体会其中过程！

有了资源加载器，就可以在xml格式配置文件中声明式地定义bean的信息，资源加载器读取xml文件，解析出bean的信息，然后往容器中注册BeanDefinition。BeanDefinitionReader是读取bean定义信息的抽象接口，XmlBeanDefinitionReader是从xml文件中读取的实现类。BeanDefinitionReader需要有获取资源的能力，且读取bean定义信息后需要往容器中注册BeanDefinition，因此BeanDefinitionReader的抽象实现类AbstractBeanDefinitionReader拥有ResourceLoader和BeanDefinitionRegistry两个属性。 由于从xml文件中读取的内容是String类型，所以属性仅支持String类型和引用其他Bean。后面会讲到类型转换器，实现类型转换。 为了方便后面的讲解和功能实现，并且尽量保持和spring中BeanFactory的继承层次一致，对BeanFactory的继承层次稍微做了调整。

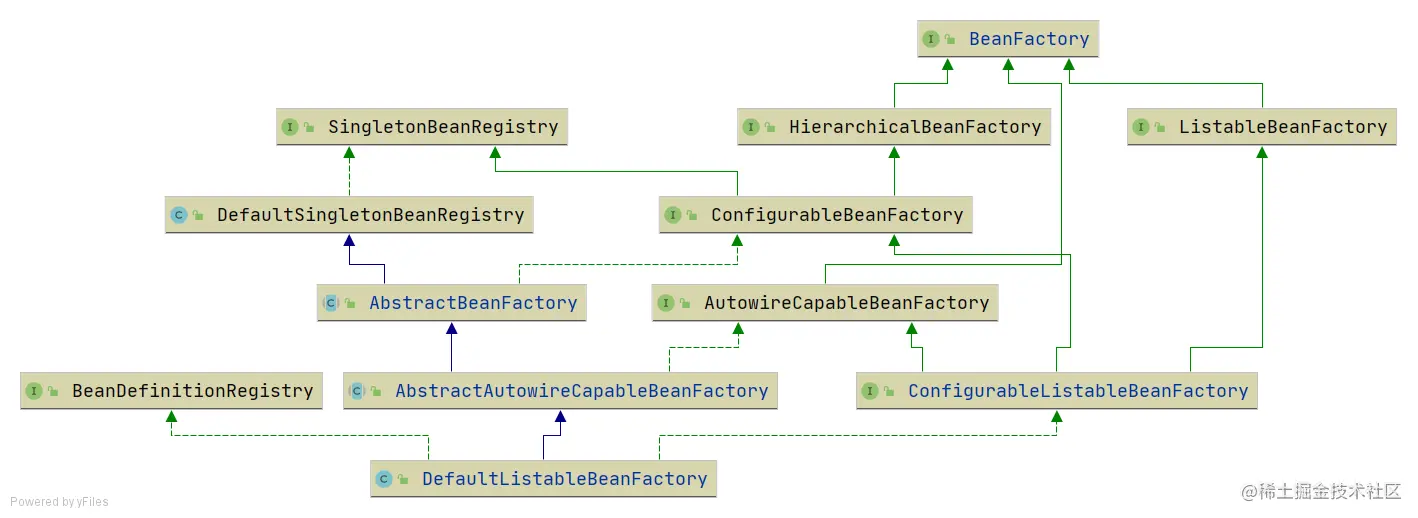

到目前为止，整体的层次图形：

改造原有BeanFactory

1. 为BeanFactory接口添加根据名称和类型查找bean方法

public interface BeanFactory {

	/**
	 * 获取bean
	 *
	 * @param name
	 * @return
	 * @throws BeansException bean不存在时
	 */
	Object getBean(String name) throws BeansException;

	/**
	 * 根据名称和类型查找bean
	 *
	 * @param name
	 * @param requiredType
	 * @param <T>
	 * @return
	 * @throws BeansException
	 */
	<T> T getBean(String name, Class<T> requiredType) throws BeansException;
}

2. 编写BeanFactory的三个继承接口ListableBeanFactory、HierarchicalBeanFactory、AutowireCapableBeanFactory

• ListableBeanFactory：新增返回指定类型的所有实例和返回定义的所有bean名称方法

public interface ListableBeanFactory extends BeanFactory {

	/**
	 * 返回指定类型的所有实例
	 *
	 * @param type
	 * @param <T>
	 * @return
	 * @throws BeansException
	 */
	<T> Map<String, T> getBeansOfType(Class<T> type) throws BeansException;

	/**
	 * 返回定义的所有bean的名称
	 *
	 * @return
	 */
	String[] getBeanDefinitionNames();
}

• HierarchicalBeanFactory：目前只是单纯继承BeanFactory接口

public interface HierarchicalBeanFactory extends BeanFactory {

}

• AutowireCapableBeanFactory：目前只是单纯继承BeanFactory接口

public interface AutowireCapableBeanFactory extends BeanFactory {

}

3. 编写ConfigurableBeanFactory：该接口继承了HierarchicalBeanFactory、SingletonBeanRegistry，BeanFactory和单例bean注册等功能

public interface ConfigurableBeanFactory extends HierarchicalBeanFactory, SingletonBeanRegistry {

}

4. 由于继承了抽象类DefaultSingletonBeanRegistry实现了ConfigurableBeanFactory接口，因此随着BeanFactory的改变，该类可以选择性的实现上边新增的方法，实现根据名称和类型获取bean的方法

public abstract class AbstractBeanFactory extends DefaultSingletonBeanRegistry implements ConfigurableBeanFactory {
	@Override
	public Object getBean(String name) throws BeansException {
		Object bean = getSingleton(name);
		if (bean != null) {
			return bean;
		}

		BeanDefinition beanDefinition = getBeanDefinition(name);
		return createBean(name, beanDefinition);
	}

	@Override
	public <T> T getBean(String name, Class<T> requiredType) throws BeansException {
		return ((T) getBean(name));
	}

	protected abstract Object createBean(String beanName, BeanDefinition beanDefinition) throws BeansException;

	protected abstract BeanDefinition getBeanDefinition(String beanName) throws BeansException;
}

5. 编写ConfigurableListableBeanFactory接口，该接口继承了ListableBeanFactory, AutowireCapableBeanFactory和ConfigurableBeanFactory。也就是说该接口具备BeanFactory三个实现类的全部功能，并且拥有单例注册表的功能，同时该接口提供了根据name查找BeanDefinition的功能

public interface ConfigurableListableBeanFactory extends ListableBeanFactory, AutowireCapableBeanFactory, ConfigurableBeanFactory {
	/**
	 * 根据名称查找BeanDefinition
	 *
	 * @param beanName
	 * @return
	 * @throws BeansException 如果找不到BeanDefintion
	 */
	BeanDefinition getBeanDefinition(String beanName) throws BeansException;
}

6. AbstractAutowireCapableBeanFactory之前已经介绍过，现在只为它扩展了public T getBean(String name, Class requiredType) 方法(通过继承DefaultSingletonBeanRegistry获得的)
7. 实现了ListableBeanFactory中的getBeansOfType方法，和getBeanDefinitionNames方法，同时实现了BeanDefinitionRegistry接口，具备了关于BeanDefinition相关的方法外还具备了获取bean等方法，具体实现如下：

public class DefaultListableBeanFactory extends AbstractAutowireCapableBeanFactory
		implements ConfigurableListableBeanFactory, BeanDefinitionRegistry {

	private Map<String, BeanDefinition> beanDefinitionMap = new HashMap<>();

	@Override
	public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition) {
		beanDefinitionMap.put(beanName, beanDefinition);
	}

	@Override
	public BeanDefinition getBeanDefinition(String beanName) throws BeansException {
		BeanDefinition beanDefinition = beanDefinitionMap.get(beanName);
		if (beanDefinition == null) {
			throw new BeansException("No bean named '" + beanName + "' is defined");
		}

		return beanDefinition;
	}

	@Override
	public boolean containsBeanDefinition(String beanName) {
		return beanDefinitionMap.containsKey(beanName);
	}

	@Override
	public <T> Map<String, T> getBeansOfType(Class<T> type) throws BeansException {
		Map<String, T> result = new HashMap<>();
		beanDefinitionMap.forEach((beanName, beanDefinition) -> {
			Class beanClass = beanDefinition.getBeanClass();
			if (type.isAssignableFrom(beanClass)) {
				T bean = (T) getBean(beanName);
				result.put(beanName, bean);
			}
		});
		return result;
	}

	@Override
	public String[] getBeanDefinitionNames() {
		Set<String> beanNames = beanDefinitionMap.keySet();
		return beanNames.toArray(new String[beanNames.size()]);
	}
}

8. 总结：到目前为止，之前关于bean的类和接口改造完毕，现在需要扩展关于从xml中加载 bean的类和接口了！

Xml文件中定义Bean

1. 编写读取bean定义信息即BeanDefinition的接口，该接口用在xml中抽象读取bean的相关方法

public interface BeanDefinitionReader {
        //获取注册
	BeanDefinitionRegistry getRegistry();
        //获取资源加载器
	ResourceLoader getResourceLoader();
        //通过Resource接口，调用Resource中的方法，加载xml资源
	void loadBeanDefinitions(Resource resource) throws BeansException;

	void loadBeanDefinitions(String location) throws BeansException;

	void loadBeanDefinitions(String[] locations) throws BeansException;
}

2. AbstractBeanDefinitionReader，该抽象类实现BeanDefinitionReader，实现了其中的部分方法，并且拥有成员变量BeanDefinitionRegistry和ResourceLoader接口对象，后续可以传他们的实现类，可以让AbstractBeanDefinitionReader类拥有注册和资源加载两个功能，具体代码如下：

public abstract class AbstractBeanDefinitionReader implements BeanDefinitionReader {

	private final BeanDefinitionRegistry registry;

	private ResourceLoader resourceLoader;

	protected AbstractBeanDefinitionReader(BeanDefinitionRegistry registry) {
		this(registry, new DefaultResourceLoader());
	}

	public AbstractBeanDefinitionReader(BeanDefinitionRegistry registry, ResourceLoader resourceLoader) {
		this.registry = registry;
		this.resourceLoader = resourceLoader;
	}

	@Override
	public BeanDefinitionRegistry getRegistry() {
		return registry;
	}

	@Override
	public void loadBeanDefinitions(String[] locations) throws BeansException {
		for (String location : locations) {
			loadBeanDefinitions(location);
		}
	}

	public void setResourceLoader(ResourceLoader resourceLoader) {
		this.resourceLoader = resourceLoader;
	}

	@Override
	public ResourceLoader getResourceLoader() {
		return resourceLoader;
	}
}

3. 编写最终实现类XmlBeanDefinitionReader，该类继承了AbstractBeanDefinitionReader，实现了相关方法，核心部分开始解析xml文件，将解析的内容，通过BeanDefinitionRegistry，将bean注册到容器中。

• 细节点1：bean标签，id优先于name，如果id和name都为空，将类名的第一个字母转为小写后作为bean的名称
• 细节点2：bean标签中配置的className，将会被用到Class.forName(className)，反射加载类

代码如下，代码中的常量定义方法，和super(registry)的调用等，都是我们值得学习的，注意，我们都是面向接口编程，调用时候，需要传入该接口的具体实现类才行：

public class XmlBeanDefinitionReader extends AbstractBeanDefinitionReader {

	public static final String BEAN_ELEMENT = "bean";
	public static final String PROPERTY_ELEMENT = "property";
	public static final String ID_ATTRIBUTE = "id";
	public static final String NAME_ATTRIBUTE = "name";
	public static final String CLASS_ATTRIBUTE = "class";
	public static final String VALUE_ATTRIBUTE = "value";
	public static final String REF_ATTRIBUTE = "ref";

	public XmlBeanDefinitionReader(BeanDefinitionRegistry registry) {
		super(registry);
	}

	public XmlBeanDefinitionReader(BeanDefinitionRegistry registry, ResourceLoader resourceLoader) {
		super(registry, resourceLoader);
	}

	@Override
	public void loadBeanDefinitions(String location) throws BeansException {
		ResourceLoader resourceLoader = getResourceLoader();
		Resource resource = resourceLoader.getResource(location);
		loadBeanDefinitions(resource);
	}

	@Override
	public void loadBeanDefinitions(Resource resource) throws BeansException {
		try {
			InputStream inputStream = resource.getInputStream();
			try {
				doLoadBeanDefinitions(inputStream);
			} finally {
				inputStream.close();
			}
		} catch (IOException ex) {
			throw new BeansException("IOException parsing XML document from " + resource, ex);
		}
	}

	protected void doLoadBeanDefinitions(InputStream inputStream) {
		Document document = XmlUtil.readXML(inputStream);
		Element root = document.getDocumentElement();
		NodeList childNodes = root.getChildNodes();
		for (int i = 0; i < childNodes.getLength(); i++) {
			if (childNodes.item(i) instanceof Element) {
				if (BEAN_ELEMENT.equals(((Element) childNodes.item(i)).getNodeName())) {
					//解析bean标签
					Element bean = (Element) childNodes.item(i);
					String id = bean.getAttribute(ID_ATTRIBUTE);
					String name = bean.getAttribute(NAME_ATTRIBUTE);
					String className = bean.getAttribute(CLASS_ATTRIBUTE);

					Class<?> clazz = null;
					try {
						clazz = Class.forName(className);
					} catch (ClassNotFoundException e) {
						throw new BeansException("Cannot find class [" + className + "]");
					}
					//id优先于name
					String beanName = StrUtil.isNotEmpty(id) ? id : name;
					if (StrUtil.isEmpty(beanName)) {
						//如果id和name都为空，将类名的第一个字母转为小写后作为bean的名称
						beanName = StrUtil.lowerFirst(clazz.getSimpleName());
					}

					BeanDefinition beanDefinition = new BeanDefinition(clazz);

					for (int j = 0; j < bean.getChildNodes().getLength(); j++) {
						if (bean.getChildNodes().item(j) instanceof Element) {
							if (PROPERTY_ELEMENT.equals(((Element) bean.getChildNodes().item(j)).getNodeName())) {
								//解析property标签
								Element property = (Element) bean.getChildNodes().item(j);
								String nameAttribute = property.getAttribute(NAME_ATTRIBUTE);
								String valueAttribute = property.getAttribute(VALUE_ATTRIBUTE);
								String refAttribute = property.getAttribute(REF_ATTRIBUTE);

								if (StrUtil.isEmpty(nameAttribute)) {
									throw new BeansException("The name attribute cannot be null or empty");
								}

								Object value = valueAttribute;
								if (StrUtil.isNotEmpty(refAttribute)) {
									value = new BeanReference(refAttribute);
								}
								PropertyValue propertyValue = new PropertyValue(nameAttribute, value);
								beanDefinition.getPropertyValues().addPropertyValue(propertyValue);
							}
						}
					}
					if (getRegistry().containsBeanDefinition(beanName)) {
						//beanName不能重名
						throw new BeansException("Duplicate beanName[" + beanName + "] is not allowed");
					}
					//注册BeanDefinition
					getRegistry().registerBeanDefinition(beanName, beanDefinition);
				}
			}
		}
	}
}

总结测试，完整代码看开头链接：

public class XmlFileDefineBeanTest {

	@Test
	public void testXmlFile() throws Exception {
		DefaultListableBeanFactory beanFactory = new DefaultListableBeanFactory();
		XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);
		beanDefinitionReader.loadBeanDefinitions("classpath:spring.xml");

		Person person = (Person) beanFactory.getBean("person");
		System.out.println(person);
		assertThat(person.getName()).isEqualTo("derek");
		assertThat(person.getCar().getBrand()).isEqualTo("porsche");

		Car car = (Car) beanFactory.getBean("car");
		System.out.println(car);
		assertThat(car.getBrand()).isEqualTo("porsche");
	}
}

spring.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
	         http://www.springframework.org/schema/beans/spring-beans.xsd
		 http://www.springframework.org/schema/context
		 http://www.springframework.org/schema/context/spring-context-4.0.xsd">

    <bean id="person" class="org.springframework.test.ioc.bean.Person">
        <property name="name" value="derek"/>
        <property name="car" ref="car"/>
    </bean>

    <bean id="car" class="org.springframework.test.ioc.bean.Car">
        <property name="brand" value="porsche"/>
    </bean>
</beans>
