前言

本文主要记录如何安装Kubernetes Dashboard，并配置控制台的安全访问，包括用户和角色的创建，以及获取认证令牌登录控制台。

安装Dashboard

1.执行以下命令

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.5.0/aio/deploy/recommended.yaml

2.等待kubernetes-dashboard的创建及配置

namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created

启动Dashboard

1.执行以下命令

kubectl proxy

2.或者指定监听端口

kubectl proxy --port=8001 &

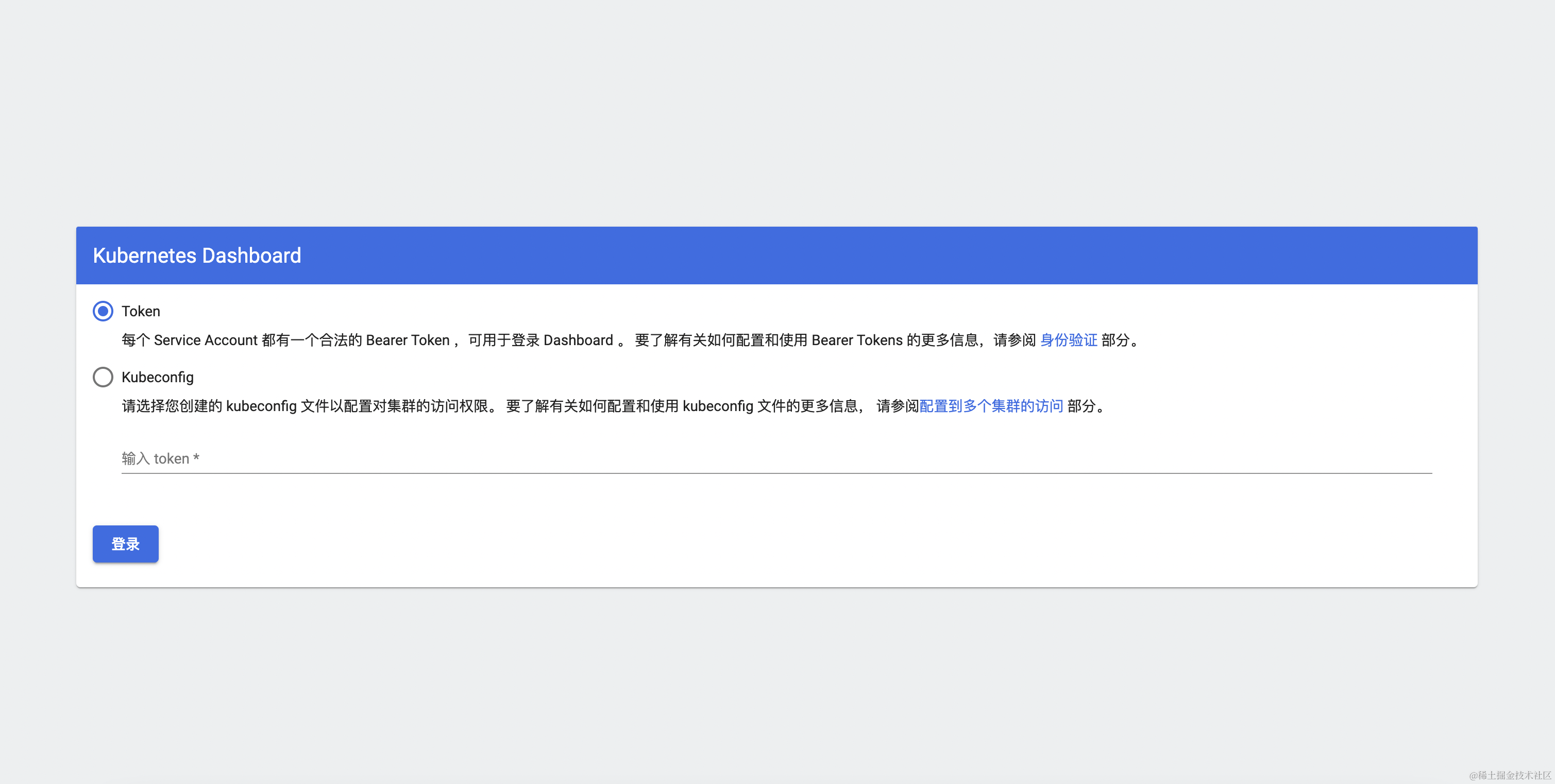

3.浏览器访问：http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/

访问控制

RBAC：Roles based Access Control
Kubernetes Dashboard 是基于 RBAC 实现的安全访问，进入 Dashboard 时需要提供 Bearer Token 登录

创建用户（管理员）

使用Bearer Token，以管理员权限登录Dashboard

创建一个Service Account

以下示例创建一个Service Account admin-user
1.创建文件：k8s-dashboard-adminuser.yaml
metadata.name，Service Account
metadata.namespace，所属命名空间

apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard

2.在yaml文件所在目录执行命令

kubectl apply -f k8s-dashboard-adminuser.yaml

创建一个ClusterRoleBinding

在Kubernetes集群配置之后（通过kubeadm或其他集群管理工具），
Kubernetes默认存在一个Cluster Role（集群角色）：cluster-admin
查看集群角色：

kubectl get clusterroles

以下示例使用集群角色cluster-admin绑定到Service Account admin-user
1.创建文件：k8s-dashboard-adminuser2clusteradmin.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard

2.在yaml文件所在目录执行命令

kubectl apply -f k8s-dashboard-adminuser2clusteradmin.yaml

获取Bearer Token

1.通过以下命令获取Bearer Token
-n，namespace，指定命名空间

kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"

2.获取得到JWT

eyJhbGciOiJSUzI1NiIsImtpZCI6IkdfYXVQNXVRZ0d5MGVWV3FveWg2REt6bHM2cEpuMG5xUDF4Rk1LU25adzQifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXJiNjZuIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI0MTFjYmM0NC02YzJkLTQwM2EtOWY4Yy03N2FjYzQ4MDQ3OTIiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.lSWeiMQ47ZBXMkzBlaGDvqtGLbpRXVwgGCsKSOXX5q9XWLiAgWxrDt8ypsjff1frlhaOgloYiwwZQZBuqBJXyuixxdyI-KQhQHwvngXiZrFZLzNBtp3K9uPuKUMX2NxJMsLnPDEFHx8tXkbba__xwryiJ8rvrckwj4KohTfsq5t2p8Jdrl2FFdGRYncOIHpE8uNEJpJpHzlyMSSvtAj1im1E2X4YyzZOmNmmrvq3dZG7jTXq8uUiDwNBZC6aNdqwd7c38eukl6pJqzjUz0aGhdm6n9Z9AzY37VfSfe0WXr0MFhPvOYY5PL1mBtkb5lC_Kd45WtYpTK49ODKoqbSQYg

3.使用token即可登入Dashboard

移除用户

通过以下命令可删除 ServiceAccount 和 ClusterRoleBinding

kubectl -n kubernetes-dashboard delete serviceaccount admin-user
kubectl -n kubernetes-dashboard delete clusterrolebinding admin-user
