1.简介
- 默认的launcher就是launcher3这个app了，手机启动以后自动启动的app，就是我们常说的桌面。
- 点击home键会返回桌面app，如果手机上装有多个桌面app，那么点击home键会提示让你选择一个。
1.1.launcher.xml
布局简单分析下
<com.android.launcher3.LauncherRootView
android:id="@+id/launcher"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:fitsSystemWindows="true">
<com.android.launcher3.dragndrop.DragLayer
android:id="@+id/drag_layer"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:clipChildren="false"
android:clipToPadding="false"
android:importantForAccessibility="no">
<com.android.launcher3.views.AccessibilityActionsView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:contentDescription="@string/home_screen"
/>
<!-- The workspace contains 5 screens of cells -->
<!-- 左右滑动的控件 DO NOT CHANGE THE ID -->
<com.android.launcher3.Workspace
android:id="@+id/workspace"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_gravity="center"
android:theme="@style/HomeScreenElementTheme"
launcher:pageIndicator="@+id/page_indicator" />
<!-- home页底部那几个快捷方式，DO NOT CHANGE THE ID -->
<include
android:id="@+id/hotseat"
layout="@layout/hotseat" />
<!-- 对应workspace的指示器，只有一页的话不显示。Keep these behind the workspace so that they are not visible when
we go into AllApps -->
<com.android.launcher3.pageindicators.WorkspacePageIndicator
android:id="@+id/page_indicator"
android:layout_width="match_parent"
android:layout_height="@dimen/workspace_page_indicator_height"
android:layout_gravity="bottom|center_horizontal"
android:theme="@style/HomeScreenElementTheme" />
<!-- 这个是长按app快捷方式的时候，屏幕顶部出现的操作按钮，取消,卸载等按钮-->
<include
android:id="@+id/drop_target_bar"
layout="@layout/drop_target_bar" />
<com.android.launcher3.views.ScrimView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/scrim_view"
android:background="@android:color/transparent" />
<!--这个是手势上划以后看到的页面，就是一个搜索框，下边是所有已安装的app-->
<include
android:id="@+id/apps_view"
layout="@layout/all_apps"
android:layout_width="match_parent"
android:layout_height="match_parent" />
<!--用来显示recents内容的,具体布局在quickStep目录下重写了-->
<include
android:id="@+id/overview_panel"
layout="@layout/overview_panel" />
</com.android.launcher3.dragndrop.DragLayer>
</com.android.launcher3.LauncherRootView>

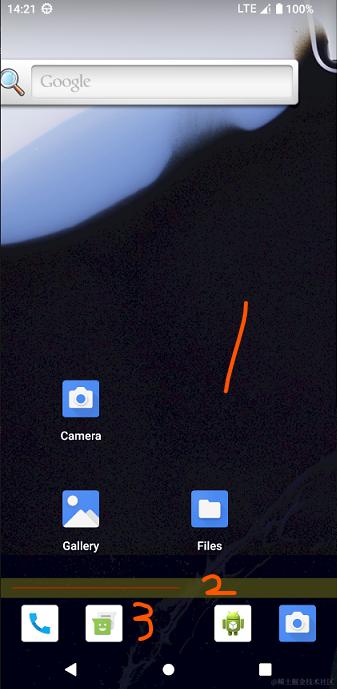

下图:1是id/workspace ，2是id/page_indicator ，3是id/hotseat

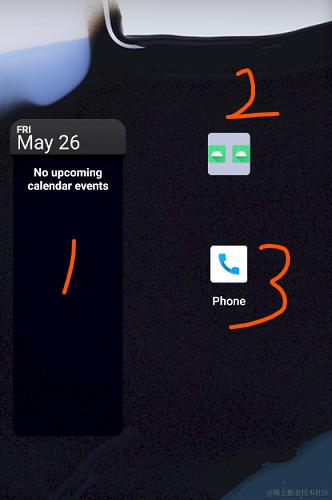

下图是布局里的id://apps_views
>1.hotseat.xml
<com.android.launcher3.Hotseat
android:id="@+id/hotseat"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:theme="@style/HomeScreenElementTheme"
android:importantForAccessibility="no"
android:preferKeepClear="true"
launcher:containerType="hotseat" />
>2.all_apps.xml
<com.android.launcher3.allapps.LauncherAllAppsContainerView
android:id="@+id/apps_view"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:clipChildren="true"
android:clipToPadding="false"
android:focusable="false"
android:saveEnabled="false" />
>3.drop_target_bar.xml
<com.android.launcher3.DropTargetBar
android:layout_width="match_parent"
android:layout_height="@dimen/dynamic_grid_drop_target_size"
android:layout_gravity="center_horizontal|top"
android:focusable="false"
android:alpha="0"
android:theme="@style/HomeScreenElementTheme"
android:visibility="invisible">
<!-- Delete target -->
<com.android.launcher3.DeleteDropTarget
android:id="@+id/delete_target_text"
style="@style/DropTargetButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:gravity="center"
android:text="@string/remove_drop_target_label" />
<!-- Uninstall target -->
<com.android.launcher3.SecondaryDropTarget
android:id="@+id/uninstall_target_text"
style="@style/DropTargetButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:gravity="center"
android:text="@string/uninstall_drop_target_label" />
</com.android.launcher3.DropTargetBar>
2.DeviceProfile.java
DeviceProfile是通过Builder来创建的，如下
public static class Builder {
public DeviceProfile build() {
//...
return new DeviceProfile(mContext, mInv, mInfo, mWindowBounds, mDotRendererCache,
mIsMultiWindowMode, mTransposeLayoutWithOrientation, mIsMultiDisplay,
mIsGestureMode, mViewScaleProvider);
}
2.1.构造方法
- inlineNavButtonsEndSpacing读取的是device_profile.xml里的值，没有的话用的是默认值 taskbar_button_margin_default=48dp
- hotseatBarEndOffset就是3个导航按钮占用的位置,包括其他间隔
//taskbar显示，非手势模式，非手机
if (areNavButtonsInline && !isPhone) {
inlineNavButtonsEndSpacing = res.getDimensionPixelSize(inv.inlineNavButtonsEndSpacing);
/*
* 3 nav buttons +
* Spacing between nav buttons +
* Space at the end for contextual buttons
*/
hotseatBarEndOffset = 3 * res.getDimensionPixelSize(R.dimen.taskbar_nav_buttons_size)
+ 2 * res.getDimensionPixelSize(R.dimen.taskbar_button_space_inbetween)
+ inlineNavButtonsEndSpacing;
} else {
inlineNavButtonsEndSpacing = 0;
hotseatBarEndOffset = 0;
}
2.2.updateWorkspacePadding
private void updateWorkspacePadding() {
Rect padding = workspacePadding;
if (isVerticalBarLayout()) {
//这个是hotseat显示在两边的，不看
padding.top = 0;
padding.bottom = edgeMarginPx;
if (isSeascape()) {
padding.left = hotseatBarSizePx;
padding.right = hotseatBarSidePaddingStartPx;
} else {
padding.left = hotseatBarSidePaddingStartPx;
padding.right = hotseatBarSizePx;
}
} else {
// Pad the bottom of the workspace with hotseat bar
// and leave a bit of space in case a widget go all the way down
//底部的margin就是 hotseat的高度 + workspace的底部padding + 指示器的高度
int paddingBottom = hotseatBarSizePx + workspaceBottomPadding
+ workspacePageIndicatorHeight - mWorkspacePageIndicatorOverlapWorkspace
- mInsets.bottom;
int paddingTop = workspaceTopPadding + (isScalableGrid ? 0 : edgeMarginPx);
int paddingSide = desiredWorkspaceHorizontalMarginPx;
padding.set(paddingSide, paddingTop, paddingSide, paddingBottom);
}
insetPadding(workspacePadding, cellLayoutPaddingPx);
}
2.3.getHotseatLayoutPadding
计算hotseat容器的4个padding
public Rect getHotseatLayoutPadding(Context context) {
Rect hotseatBarPadding = new Rect();
if (isVerticalBarLayout()) {
//两边显示的，不看，平板一般不是
} else if (isTaskbarPresent) {//3个导航按钮显示的时候
// Center the QSB vertically with hotseat
int hotseatBarBottomPadding = getHotseatBarBottomPadding();
int hotseatBarTopPadding =
hotseatBarSizePx - hotseatBarBottomPadding - hotseatCellHeightPx;
//获取hotseat需要的高度，见补充1
int hotseatWidth = getHotseatRequiredWidth();
//availableWidthPx正常就是屏幕的宽，这里取差值一半，就是说hotseat默认居中显示
int leftSpacing = (availableWidthPx - hotseatWidth) / 2;
int rightSpacing = leftSpacing;
// Hotseat aligns to the left with nav buttons
//hotseatBarEndOffset就是右侧3个导航按钮要占用的大小，数据见补充5
if (hotseatBarEndOffset > 0) {
leftSpacing = inlineNavButtonsEndSpacing;
//居左显示的，宽度减去左边界，hotseat占用大小，最后
rightSpacing = availableWidthPx - hotseatWidth - leftSpacing + hotseatBorderSpace;
}
hotseatBarPadding.set(leftSpacing, hotseatBarTopPadding, rightSpacing,
hotseatBarBottomPadding);
boolean isRtl = Utilities.isRtl(context.getResources());
if (isRtl) {
hotseatBarPadding.right += getAdditionalQsbSpace();
} else {
hotseatBarPadding.left += getAdditionalQsbSpace();
}
} else if (isScalableGrid) {
int sideSpacing = (availableWidthPx - hotseatQsbWidth) / 2;
hotseatBarPadding.set(sideSpacing,
0,
sideSpacing,
getHotseatBarBottomPadding());
} else {
// We want the edges of the hotseat to line up with the edges of the workspace, but the
// icons in the hotseat are a different size, and so don't line up perfectly. To account
// for this, we pad the left and right of the hotseat with half of the difference of a
// workspace cell vs a hotseat cell.
float workspaceCellWidth = (float) widthPx / inv.numColumns;
float hotseatCellWidth = (float) widthPx / numShownHotseatIcons;
int hotseatAdjustment = Math.round((workspaceCellWidth - hotseatCellWidth) / 2);
hotseatBarPadding.set(
hotseatAdjustment + workspacePadding.left + cellLayoutPaddingPx.left
+ mInsets.left,
0,
hotseatAdjustment + workspacePadding.right + cellLayoutPaddingPx.right
+ mInsets.right,
getHotseatBarBottomPadding());
}
return hotseatBarPadding;
}
>1..getHotseatRequiredWidth
private int getHotseatRequiredWidth() {
//hotseat里显示qsb（device_profiles.xml配置的）的时候才有值，我们没有这个，后续都无视
int additionalQsbSpace = getAdditionalQsbSpace();
return iconSizePx * numShownHotseatIcons
+ hotseatBorderSpace * (numShownHotseatIcons - (areNavButtonsInline ? 0 : 1))
+ additionalQsbSpace;
}
2.4.calculateHotseatBorderSpace
计算hotseat里icon之间的间隔
private int calculateHotseatBorderSpace(float hotseatWidthPx, int numExtraBorder) {
//icon占用的总大小
float hotseatIconsTotalPx = iconSizePx * numShownHotseatIcons;
//总尺寸减去icon的大小，除以间隔数
int hotseatBorderSpace =
(int) (hotseatWidthPx - hotseatIconsTotalPx)
/ (numShownHotseatIcons - 1 + numExtraBorder);
return Math.min(hotseatBorderSpace, maxHotseatIconSpacePx);
}
2.5.InvariantDeviceProfile.java
private void initGrid(Context context, Info displayInfo, DisplayOption displayOption,
@DeviceType int deviceType) {
//...
for (WindowBounds bounds : displayInfo.supportedBounds) {
localSupportedProfiles.add(new DeviceProfile.Builder(context, this, displayInfo)
.setIsMultiDisplay(deviceType == TYPE_MULTI_DISPLAY)
.setWindowBounds(bounds)
.setDotRendererCache(dotRendererCache)
.build());
这里的bounds有3种，根据结果猜测应该是竖屏加两种横屏，模拟器日志如下
//bounds and inset
Rect(0, 0 - 1440, 2960)==Rect(0, 84 - 0, 168)
Rect(0, 0 - 2960, 1440)==Rect(0, 84 - 168, 0)
Rect(0, 0 - 2960, 1440)==Rect(168, 84 - 0, 0)
>1.invDistWeightedInterpolate
- bounds.availableSize ,这个东西和原本的bounds有个inset的区别。
- y值有个状态栏的差异区别，所以最终的width和height是差一点的。
- 比如设备宽600px，高1000px，平板模式，最终minWidthPx可能是600px，minHeightPx可能是590px
private static DisplayOption invDistWeightedInterpolate(
Info displayInfo, ArrayList<DisplayOption> points, @DeviceType int deviceType) {
int minWidthPx = Integer.MAX_VALUE;
int minHeightPx = Integer.MAX_VALUE;
for (WindowBounds bounds : displayInfo.supportedBounds) {
boolean isTablet = displayInfo.isTablet(bounds);
if (isTablet && deviceType == TYPE_MULTI_DISPLAY) {
// For split displays, take half width per page
minWidthPx = Math.min(minWidthPx, bounds.availableSize.x / 2);
minHeightPx = Math.min(minHeightPx, bounds.availableSize.y);
} else if (!isTablet && bounds.isLandscape()) {
// We will use transposed layout in this case
minWidthPx = Math.min(minWidthPx, bounds.availableSize.y);
minHeightPx = Math.min(minHeightPx, bounds.availableSize.x);
} else {
minWidthPx = Math.min(minWidthPx, bounds.availableSize.x);
minHeightPx = Math.min(minHeightPx, bounds.availableSize.y);
}
}
1200*1920的设备平板模式日志：
# bounds.availableSize的大小如下
Point(1200, 1872)
Point(1200, 1728)
Point(1920, 1152)
## 最终minWidthPx和minHeightPx的值
1200/1152
1200*1920的设备手机模式日志：（就是把launcher里isTablet的判断方法返回false）
Point(1200, 1872)
Point(1920, 1152)
Point(1776, 1152)
## 最终minWidthPx和minHeightPx的值
1152/1776
3.View
3.1.CellLayout
>1.构造方法
构造方法里默认添加了一个自定义的ShortcutAndWidgetContainer容器(我们的图标其实最终都是添加到这个容器里的)
public class CellLayout extends ViewGroup {
//...
public @interface ContainerType{}
public static final int WORKSPACE = 0;
public static final int HOTSEAT = 1;
public static final int FOLDER = 2;
public CellLayout(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.CellLayout, defStyle, 0);
//容器的类型，有3种，默认是workspace
mContainerType = a.getInteger(R.styleable.CellLayout_containerType, WORKSPACE);
a.recycle();
// A ViewGroup usually does not draw, but CellLayout needs to draw a rectangle to show
// the user where a dragged item will land when dropped.
setWillNotDraw(false);
setClipToPadding(false);
mActivity = ActivityContext.lookupContext(context);
DeviceProfile deviceProfile = mActivity.getDeviceProfile();
resetCellSizeInternal(deviceProfile);
//每页分割的行数和列数
mCountX = deviceProfile.inv.numColumns;
mCountY = deviceProfile.inv.numRows;
mOccupied = new GridOccupancy(mCountX, mCountY);
mTmpOccupied = new GridOccupancy(mCountX, mCountY);
mFolderLeaveBehind.mDelegateCellX = -1;
mFolderLeaveBehind.mDelegateCellY = -1;
setAlwaysDrawnWithCacheEnabled(false);
Resources res = getResources();
mBackground = getContext().getDrawable(R.drawable.bg_celllayout);
mBackground.setCallback(this);
mBackground.setAlpha(0);
//就是长按图标的时候，图标底部会出现一个椭圆的边框，就是那个颜色
mGridColor = Themes.getAttrColor(getContext(), R.attr.workspaceAccentColor);
mGridVisualizationRoundingRadius =
res.getDimensionPixelSize(R.dimen.grid_visualization_rounding_radius);
mReorderPreviewAnimationMagnitude = (REORDER_PREVIEW_MAGNITUDE * deviceProfile.iconSizePx);
// Initialize the data structures used for the drag visualization.
mEaseOutInterpolator = Interpolators.DEACCEL_2_5; // Quint ease out
mDragCell[0] = mDragCell[1] = -1;
mDragCellSpan[0] = mDragCellSpan[1] = -1;
for (int i = 0; i < mDragOutlines.length; i++) {
mDragOutlines[i] = new CellLayoutLayoutParams(0, 0, 0, 0, -1);
}
mDragOutlinePaint.setColor(Themes.getAttrColor(context, R.attr.workspaceTextColor));
//...
mShortcutsAndWidgets = new ShortcutAndWidgetContainer(context, mContainerType);
mShortcutsAndWidgets.setCellDimensions(mCellWidth, mCellHeight, mCountX, mCountY,
mBorderSpace);
//默认添加了一个容器
addView(mShortcutsAndWidgets);
}
>2.resetCellSize
public void resetCellSize(DeviceProfile deviceProfile) {
resetCellSizeInternal(deviceProfile);//见补充3
requestLayout();
}
>3.resetCellSizeInternal
private void resetCellSizeInternal(DeviceProfile deviceProfile) {
//根据3种容器类型，加载不同的borderSpace
switch (mContainerType) {
case FOLDER:
mBorderSpace = new Point(deviceProfile.folderCellLayoutBorderSpacePx,
deviceProfile.folderCellLayoutBorderSpacePx);
break;
case HOTSEAT:
mBorderSpace = new Point(deviceProfile.hotseatBorderSpace,
deviceProfile.hotseatBorderSpace);
break;
case WORKSPACE:
default:
mBorderSpace = new Point(deviceProfile.cellLayoutBorderSpacePx);
break;
}
mCellWidth = mCellHeight = -1;
mFixedCellWidth = mFixedCellHeight = -1;
}
>4.setGridSize
设置网格大小
public void setGridSize(int x, int y) {
mCountX = x;
mCountY = y;
mOccupied = new GridOccupancy(mCountX, mCountY);
mTmpOccupied = new GridOccupancy(mCountX, mCountY);
//最终都设置给构造方法里添加的这个容器里了。毕竟最终的child都是添加到它里边。
mShortcutsAndWidgets.setCellDimensions(mCellWidth, mCellHeight, mCountX, mCountY,
mBorderSpace);
requestLayout();
}
>5.addViewToCellLayout
外部获取数据以后会调用。
public boolean addViewToCellLayout(View child, int index, int childId,
CellLayoutLayoutParams params, boolean markCells) {
final CellLayoutLayoutParams lp = params;
// Hotseat icons - remove text
if (child instanceof BubbleTextView) {
BubbleTextView bubbleChild = (BubbleTextView) child;
//hotseat不显示文字的，只显示图标
bubbleChild.setTextVisibility(mContainerType != HOTSEAT);
}
child.setScaleX(mChildScale);
child.setScaleY(mChildScale);
//网格索引在有效范围里
if (lp.cellX >= 0 && lp.cellX <= mCountX - 1 && lp.cellY >= 0 && lp.cellY <= mCountY - 1) {
//如果跨度是负的，那么就认为是铺满的，也就是最大网格数
if (lp.cellHSpan < 0) lp.cellHSpan = mCountX;
if (lp.cellVSpan < 0) lp.cellVSpan = mCountY;
child.setId(childId);
//可以看到，最终添加到这个容器里了
mShortcutsAndWidgets.addView(child, index, lp);
if (markCells) markCellsAsOccupiedForView(child);
return true;
}
return false;
}
3.2.Hotseat.java
public class Hotseat extends CellLayout implements Insettable {
//...
public Hotseat(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
//这个应该是以前用的，以前的qsb是在hotseat里，现在的是在顶部显示的，所以这个可以不关注，宽高都是0
mQsb = LayoutInflater.from(context).inflate(R.layout.search_container_hotseat, this, false);
addView(mQsb);
}
>1.resetLayout
public void resetLayout(boolean hasVerticalHotseat) {
removeAllViewsInLayout();
mHasVerticalHotseat = hasVerticalHotseat;
DeviceProfile dp = mActivity.getDeviceProfile();
//见3.1.2，主要是重新设置了border space
resetCellSize(dp);
//设置几行几列
if (hasVerticalHotseat) {//垂直方向的hotseat是左右两边显示的，所以宽是1，高度是number
setGridSize(1, dp.numShownHotseatIcons);
} else {//水平方向的，底部显示的，高度固定1
//见3.1.4
setGridSize(dp.numShownHotseatIcons, 1);
}
}
>2.setInsets
设置padding
public void setInsets(Rect insets) {
FrameLayout.LayoutParams lp = (FrameLayout.LayoutParams) getLayoutParams();
DeviceProfile grid = mActivity.getDeviceProfile();
if (grid.isVerticalBarLayout()) {
//左右两侧显示的，高度铺满，宽度限定，根据seascape决定显示在左边还是右边
mQsb.setVisibility(View.GONE);
lp.height = ViewGroup.LayoutParams.MATCH_PARENT;
if (grid.isSeascape()) {
lp.gravity = Gravity.LEFT;
lp.width = grid.hotseatBarSizePx + insets.left;
} else {
lp.gravity = Gravity.RIGHT;
lp.width = grid.hotseatBarSizePx + insets.right;
}
} else {
//底部显示，宽度铺满，高度限定
mQsb.setVisibility(View.VISIBLE);
lp.gravity = Gravity.BOTTOM;
lp.width = ViewGroup.LayoutParams.MATCH_PARENT;
lp.height = grid.hotseatBarSizePx;
}
//计算padding,见2.2.3
Rect padding = grid.getHotseatLayoutPadding(getContext());
//设置padding，毕竟它是match_parent的，设置了padding就相当于决定了child显示的位置
setPadding(padding.left, padding.top, padding.right, padding.bottom);
setLayoutParams(lp);
InsettableFrameLayout.dispatchInsets(this, insets);
}
>3.onInterceptTouchEvent
public boolean onInterceptTouchEvent(MotionEvent ev) {
//触摸事件交给workspace处理了
int yThreshold = getMeasuredHeight() - getPaddingBottom();
if (mWorkspace != null && ev.getY() <= yThreshold) {
mSendTouchToWorkspace = mWorkspace.onInterceptTouchEvent(ev);
return mSendTouchToWorkspace;
}
return false;
}
3.3.WorkspacePageIndicator.java
与workspace翻页对应的一个自定义指示器，不论横屏还是竖屏，都是在底部的，当然了，竖屏的时候是在hotseat上边的。
这里主要说明的是，workspace里有个方法【setPageIndicatorInset()】，设置了这个indicator的margin。
public class WorkspacePageIndicator extends View implements Insettable, PageIndicator {
//
public WorkspacePageIndicator(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
Resources res = context.getResources();
mLinePaint = new Paint();
mLinePaint.setAlpha(0);
mLauncher = Launcher.getLauncher(context);
mLineHeight = res.getDimensionPixelSize(R.dimen.workspace_page_indicator_line_height);
boolean darkText = Themes.getAttrBoolean(mLauncher, R.attr.isWorkspaceDarkText);
mActiveAlpha = darkText ? BLACK_ALPHA : WHITE_ALPHA;
mLinePaint.setColor(darkText ? Color.BLACK : Color.WHITE);
}
protected void onDraw(Canvas canvas) {
if (mTotalScroll == 0 || mNumPagesFloat == 0) {
return;
}
//根据当前所在的页面，画条钱
canvas.drawRoundRect(lineLeft, getHeight() / 2 - mLineHeight / 2, lineRight,
getHeight() / 2 + mLineHeight / 2, mLineHeight, mLineHeight, mLinePaint);
}
//自动隐藏
public void setShouldAutoHide(boolean shouldAutoHide) {
mShouldAutoHide = shouldAutoHide;
if (shouldAutoHide && mLinePaint.getAlpha() > 0) {
hideAfterDelay();
} else if (!shouldAutoHide) {
mDelayedLineFadeHandler.removeCallbacksAndMessages(null);
}
}
3.4.Workspace.java
- 区域很大的，带壁纸显示的，有限数量的页面，每个页面都包含一些图标，文件夹，小组件与用户交互
- 里边的child是CellLayout
public class Workspace<T extends View & PageIndicator> extends PagedView<T>
implements DropTarget, DragSource, View.OnTouchListener,
DragController.DragListener, Insettable, StateHandler<LauncherState>,
WorkspaceLayoutManager, LauncherBindableItemsContainer, LauncherOverlayCallbacks {
//...
public Workspace(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
mLauncher = Launcher.getLauncher(context);
mStateTransitionAnimation = new WorkspaceStateTransitionAnimation(mLauncher, this);
mWallpaperManager = WallpaperManager.getInstance(context);
mAllAppsIconSize = mLauncher.getDeviceProfile().allAppsIconSizePx;
mWallpaperOffset = new WallpaperOffsetInterpolator(this);
setHapticFeedbackEnabled(false);
initWorkspace();
// Disable multitouch across the workspace/all apps/customize tray
setMotionEventSplittingEnabled(true);
//触摸事件的处理
setOnTouchListener(new WorkspaceTouchListener(mLauncher, this));
mStatsLogManager = StatsLogManager.newInstance(context);
}
>1.setInsets
- 从布局看，Workspace控件是铺满全屏的，可实际效果，很明显，距离底部有一段距离。
- WorkspacePageIndicator也是，布局上看，它就是底部居中的，可实际上的位置，明显和底部有一段距离。
- 查看了下这两控件的onlayout方法，并未进行处理，这里处理的
public void setInsets(Rect insets) {
DeviceProfile grid = mLauncher.getDeviceProfile();
mWorkspaceFadeInAdjacentScreens = grid.shouldFadeAdjacentWorkspaceScreens();
//数据来源见2.1.2
Rect padding = grid.workspacePadding;
//设置padding
setPadding(padding.left, padding.top, padding.right, padding.bottom);
mInsets.set(insets);
if (mWorkspaceFadeInAdjacentScreens) {
// In landscape mode the page spacing is set to the default.
setPageSpacing(grid.edgeMarginPx);
} else {
// In portrait, we want the pages spaced such that there is no
// overhang of the previous / next page into the current page viewport.
// We assume symmetrical padding in portrait mode.
int maxInsets = Math.max(insets.left, insets.right);
int maxPadding = Math.max(grid.edgeMarginPx, padding.left + 1);
setPageSpacing(Math.max(maxInsets, maxPadding));
}
//celllayout就是workspace里的child了，设置下padding
updateCellLayoutPadding();
//设置里边的widget的大小，又是套在ShortcutAndWidgetContainer容器里的child
updateWorkspaceWidgetsSizes();
//给indicator设置margin，确保竖屏的话indicator在hotseat上边，横屏的话在右边或者左边
setPageIndicatorInset();
}
//这个是给indicator设置margin
private void setPageIndicatorInset() {
DeviceProfile grid = mLauncher.getDeviceProfile();
FrameLayout.LayoutParams lp = (FrameLayout.LayoutParams) mPageIndicator.getLayoutParams();
// Set insets for page indicator
Rect padding = grid.workspacePadding;
if (grid.isVerticalBarLayout()) {
lp.leftMargin = padding.left + grid.workspaceCellPaddingXPx;
lp.rightMargin = padding.right + grid.workspaceCellPaddingXPx;
lp.bottomMargin = padding.bottom;
} else {
//我们平板走这里，底部显示的
lp.leftMargin = lp.rightMargin = 0;
lp.gravity = Gravity.CENTER_HORIZONTAL | Gravity.BOTTOM;
//底部margin就是hotseat的高度
lp.bottomMargin = grid.hotseatBarSizePx;
}
//Workspace的布局里有指明indicator的id，所以这里拿到了对应的view
mPageIndicator.setLayoutParams(lp);
}
>2.drag start/end
public void onDragStart(DragObject dragObject, DragOptions options) {
if (mDragInfo != null && mDragInfo.cell != null) {
CellLayout layout = (CellLayout) (mDragInfo.cell instanceof LauncherAppWidgetHostView
? dragObject.dragView.getContentViewParent().getParent()
: mDragInfo.cell.getParent().getParent());
layout.markCellsAsUnoccupiedForView(mDragInfo.cell);
}
updateChildrenLayersEnabled();
//判断下是否需要添加新的页面
boolean addNewPage = !(options.isAccessibleDrag && dragObject.dragSource != this);
if (addNewPage) {
mDeferRemoveExtraEmptyScreen = false;
//添加一个空白页面
addExtraEmptyScreenOnDrag(dragObject);
if (dragObject.dragInfo.itemType == LauncherSettings.Favorites.ITEM_TYPE_APPWIDGET
&& dragObject.dragSource != this) {
int currentPage = getDestinationPage();
for (int pageIndex = currentPage; pageIndex < getPageCount(); pageIndex++) {
CellLayout page = (CellLayout) getPageAt(pageIndex);
if (page.hasReorderSolution(dragObject.dragInfo)) {
setCurrentPage(pageIndex);
break;
}
}
}
}
// Always enter the spring loaded mode
mLauncher.getStateManager().goToState(SPRING_LOADED);
}
public void onDragEnd() {
updateChildrenLayersEnabled();
StateManager<LauncherState> stateManager = mLauncher.getStateManager();
stateManager.addStateListener(new StateManager.StateListener<LauncherState>() {
@Override
public void onStateTransitionComplete(LauncherState finalState) {
if (finalState == NORMAL) {
if (!mDeferRemoveExtraEmptyScreen) {
removeExtraEmptyScreen(true /* stripEmptyScreens */);
}
stateManager.removeStateListener(this);
}
}
});
mDragInfo = null;
mDragSourceInternal = null;
}
>3.onViewAdded
public void onViewAdded(View child) {
//可以看到，只能添加CellLayout
if (!(child instanceof CellLayout)) {
throw new IllegalArgumentException("A Workspace can only have CellLayout children.");
}
CellLayout cl = ((CellLayout) child);
cl.setOnInterceptTouchListener(this);//child是否拦截触摸事件，由父类来处理
cl.setImportantForAccessibility(IMPORTANT_FOR_ACCESSIBILITY_NO);
super.onViewAdded(child);
}
>4.bindAndInitFirstWorkspaceScreen
一个是launcher类里调用，一个是下边removeAll的时候调用
public void bindAndInitFirstWorkspaceScreen() {
if (!FeatureFlags.QSB_ON_FIRST_SCREEN) {
return;
}
// 添加第一个页面
CellLayout firstPage = insertNewWorkspaceScreen(Workspace.FIRST_SCREEN_ID, getChildCount());
// Always add a first page pinned widget on the first screen.
if (mFirstPagePinnedItem == null) {
//这个就是那个顶部的search bar
mFirstPagePinnedItem = LayoutInflater.from(getContext())
.inflate(R.layout.search_container_workspace, firstPage, false);
}
int cellHSpan = mLauncher.getDeviceProfile().inv.numSearchContainerColumns;
CellLayoutLayoutParams lp = new CellLayoutLayoutParams(0, 0, cellHSpan, 1, FIRST_SCREEN_ID);
lp.canReorder = false;
//把search bar 添加到第一个cellLayout页面里去
if (!firstPage.addViewToCellLayout(
mFirstPagePinnedItem, 0, R.id.search_container_workspace, lp, true)) {
Log.e(TAG, "Failed to add to item at (0, 0) to CellLayout");
mFirstPagePinnedItem = null;
}
}
+search_container_workspace.xml
<com.android.launcher3.qsb.QsbContainerView
xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="0dp"
android:id="@id/search_container_workspace"
android:padding="0dp" >
<fragment
android:name="com.android.launcher3.qsb.QsbContainerView$QsbFragment"
android:layout_width="match_parent"
android:tag="qsb_view"
android:layout_height="match_parent"/>
</com.android.launcher3.qsb.QsbContainerView>
>5.insertNewWorkspaceScreen
public CellLayout insertNewWorkspaceScreen(int screenId, int insertIndex) {
CellLayout newScreen = (CellLayout) LayoutInflater.from(getContext()).inflate(
R.layout.workspace_screen, this, false /* attachToRoot */);
mWorkspaceScreens.put(screenId, newScreen);
mScreenOrder.add(insertIndex, screenId);
addView(newScreen, insertIndex);//添加到workspace里
mStateTransitionAnimation.applyChildState(
mLauncher.getStateManager().getState(), newScreen, insertIndex);
updatePageScrollValues();
updateCellLayoutPadding();
return newScreen;
}
外部调用的是下边的方法
public void insertNewWorkspaceScreenBeforeEmptyScreen(int screenId) {
// 有空白页的话插在空白页之前，没有的话插在容器末尾
int insertIndex = mScreenOrder.indexOf(EXTRA_EMPTY_SCREEN_ID);
if (insertIndex < 0) {
insertIndex = mScreenOrder.size();
}
insertNewWorkspaceScreen(screenId, insertIndex);
}
public void insertNewWorkspaceScreen(int screenId) {
//默认插入在末尾
insertNewWorkspaceScreen(screenId, getChildCount());
}
>6.removeAllWorkspaceScreens
在launcher里会调用这个方法，主要是清空workspace内容，并初始化一个默认的页面
public void removeAllWorkspaceScreens() {
disableLayoutTransitions();
// 移除首页那个search bar
if (mFirstPagePinnedItem != null) {
((ViewGroup) mFirstPagePinnedItem.getParent()).removeView(mFirstPagePinnedItem);
}
// 清空view以及集合里保存的引用
removeFolderListeners();
removeAllViews();
mScreenOrder.clear();
mWorkspaceScreens.clear();
// Remove any deferred refresh callbacks
mLauncher.mHandler.removeCallbacksAndMessages(DeferredWidgetRefresh.class);
// 重新初始化第一个默认的页面
bindAndInitFirstWorkspaceScreen();
// Re-enable the layout transitions
enableLayoutTransitions();
}
+workspace_screen.xml
<com.android.launcher3.CellLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:launcher="http://schemas.android.com/apk/res-auto"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:hapticFeedbackEnabled="false"
launcher:containerType="workspace" />
>7.workspace元素介绍
如下图，有3种，
- 第一种是LauncherAppWidgetHostView，也就是常说的（某个app的）小部件
- 第二种是文件夹FolderIcon，其实拖拽的时候也是当个图标处理的
- 第三种就是app的快捷图标了DoubleShadowBubbleTextView
>8.addExtraEmptyScreenOnDrag
处理下拖拽的时候，需不需要添加新的空白页。
变量说明：
-
dragSourceChildCount----开始拖动以后，页面上元素的个数，如果是小部件的话，开始拖动的时候这个小部件就自动从页面移除了，所以拖动小部件的时候这个count会少一，举个列子，如果页面上就只有一个小部件，你拖动以后返回的count就是0了。
private void addExtraEmptyScreenOnDrag(DragObject dragObject) { boolean lastChildOnScreen = false; boolean childOnFinalScreen = false; if (mDragSourceInternal != null) { //看上边说明 int dragSourceChildCount = mDragSourceInternal.getChildCount(); //这玩意判断的是折叠屏吗？ If the icon was dragged from Hotseat, there is no page pair if (isTwoPanelEnabled() && !(mDragSourceInternal.getParent() instanceof Hotseat)) { int pagePairScreenId = getScreenPair(dragObject.dragInfo.screenId); CellLayout pagePair = mWorkspaceScreens.get(pagePairScreenId); dragSourceChildCount += pagePair.getShortcutsAndWidgets().getChildCount(); } //拖动的是小部件的话，这个count数少一个，这里需要加回来 if (dragObject.dragView.getContentView() instanceof LauncherAppWidgetHostView) { dragSourceChildCount++; } //说明我们拖动的是页面上的唯一一个元素 if (dragSourceChildCount == 1) { lastChildOnScreen = true; } CellLayout cl = (CellLayout) mDragSourceInternal.getParent(); //这个拖动的图标所在的页面是workspace的最后一个页面 if (getLeftmostVisiblePageForIndex(indexOfChild(cl)) == getLeftmostVisiblePageForIndex(getPageCount() - 1)) { childOnFinalScreen = true; } } // 拖动的是最后一个页面的唯一一个元素，那么不用创建新的空白页面 if (lastChildOnScreen && childOnFinalScreen) { return; } forEachExtraEmptyPageId(extraEmptyPageId -> { //没有空白页的话，创建一个 if (!mWorkspaceScreens.containsKey(extraEmptyPageId)) { insertNewWorkspaceScreen(extraEmptyPageId); } }); }
private void forEachExtraEmptyPageId(Consumer<Integer> callback) {
callback.accept(EXTRA_EMPTY_SCREEN_ID);//空屏的id，固定的
if (isTwoPanelEnabled()) {//双屏的话，再加一个空的
callback.accept(EXTRA_EMPTY_SCREEN_SECOND_ID);
}
}
>9.removeExtraEmptyScreen
public void removeExtraEmptyScreen(boolean stripEmptyScreens) {
removeExtraEmptyScreenDelayed(0, stripEmptyScreens, null);
}
public void removeExtraEmptyScreenDelayed(
int delay, boolean stripEmptyScreens, Runnable onComplete) {
if (mLauncher.isWorkspaceLoading()) {
// Don't strip empty screens if the workspace is still loading
return;
}
if (delay > 0) {
postDelayed(
() -> removeExtraEmptyScreenDelayed(0, stripEmptyScreens, onComplete), delay);
return;
}
// First we convert the last page to an extra page if the last page is empty
// and we don't already have an extra page.
convertFinalScreenToEmptyScreenIfNecessary();
// Then we remove the extra page(s) if they are not the only pages left in Workspace.
if (hasExtraEmptyScreens()) {
forEachExtraEmptyPageId(extraEmptyPageId -> {
removeView(mWorkspaceScreens.get(extraEmptyPageId));
mWorkspaceScreens.remove(extraEmptyPageId);
mScreenOrder.removeValue(extraEmptyPageId);
});
setCurrentPage(getNextPage());
// Update the page indicator to reflect the removed page.
showPageIndicatorAtCurrentScroll();
}
if (stripEmptyScreens) {
// This will remove all empty pages from the Workspace. If there are no more pages left,
// it will add extra page(s) so that users can put items on at least one page.
stripEmptyScreens();
}
if (onComplete != null) {
onComplete.run();
}
}
3.5.WorkspaceTouchListener
用来处理workspace的空白区域的点击事件的，主要就是弹一个如下弹框选项
//处理workspace空白区域的touch事件，并显示一个选项弹框
public class WorkspaceTouchListener extends GestureDetector.SimpleOnGestureListener
implements OnTouchListener {
//...
private int mLongPressState = STATE\_CANCELLED;
private final GestureDetector mGestureDetector;//手势监听，这里就处理下长按事件
public WorkspaceTouchListener(Launcher launcher, Workspace\<?> workspace) {
//..
mGestureDetector = new GestureDetector(workspace.getContext(), this);
}
@Override
public boolean onTouch(View view, MotionEvent ev) {
mGestureDetector.onTouchEvent(ev);//这里就简单的监听了长按事件
int action = ev.getActionMasked();
if (action == ACTION_DOWN) {
// 是否可以处理长按操作
boolean handleLongPress = canHandleLongPress();
if (handleLongPress) {
// Check if the event is not near the edges
DeviceProfile dp = mLauncher.getDeviceProfile();
DragLayer dl = mLauncher.getDragLayer();
Rect insets = dp.getInsets();
mTempRect.set(insets.left, insets.top, dl.getWidth() - insets.right,
dl.getHeight() - insets.bottom);
mTempRect.inset(dp.edgeMarginPx, dp.edgeMarginPx);
//判断下点击是否在可操作范围
handleLongPress = mTempRect.contains((int) ev.getX(), (int) ev.getY());
}
if (handleLongPress) {
mLongPressState = STATE_REQUESTED;//修改状态，后边用到
mTouchDownPoint.set(ev.getX(), ev.getY());
// Mouse right button's ACTION_DOWN should immediately show menu
if (TouchUtil.isMouseRightClickDownOrMove(ev)) {
maybeShowMenu();//鼠标右键的话这里就直接弹框了
return true;
}
}
mWorkspace.onTouchEvent(ev);
// Return true to keep receiving touch events
return true;
}
if (mLongPressState == STATE_PENDING_PARENT_INFORM) {
// Inform the workspace to cancel touch handling
ev.setAction(ACTION_CANCEL);
mWorkspace.onTouchEvent(ev);
ev.setAction(action);
mLongPressState = STATE_COMPLETED;
}
boolean isInAllAppsBottomSheet = mLauncher.isInState(ALL_APPS)
&& mLauncher.getDeviceProfile().isTablet;
final boolean result;
if (mLongPressState == STATE_COMPLETED) {
// We have handled the touch, so workspace does not need to know anything anymore.
result = true;
} else if (mLongPressState == STATE_REQUESTED) {
mWorkspace.onTouchEvent(ev);
//正在拖拽或者移动的话，取消长按事件
if (mWorkspace.isHandlingTouch()) {
cancelLongPress();
} else if (action == ACTION_MOVE && PointF.length(
mTouchDownPoint.x - ev.getX(), mTouchDownPoint.y - ev.getY()) > mTouchSlop) {
cancelLongPress();
}
result = true;
} else {
// We don't want to handle touch unless we're in AllApps bottom sheet, let workspace
// handle it as usual.
result = isInAllAppsBottomSheet;
}
if (action == ACTION_UP || action == ACTION_POINTER_UP) {
if (!mWorkspace.isHandlingTouch()) {
final CellLayout currentPage =
(CellLayout) mWorkspace.getChildAt(mWorkspace.getCurrentPage());
if (currentPage != null) {
//手指抬起的话，把位置发送给壁纸处理
mWorkspace.onWallpaperTap(ev);
}
}
}
if (action == ACTION_UP || action == ACTION_CANCEL) {
cancelLongPress();
}
if (action == ACTION_UP && isInAllAppsBottomSheet) {
mLauncher.getStateManager().goToState(NORMAL);
}
return result;
}
//是否支持长按事件
private boolean canHandleLongPress() {
return AbstractFloatingView\.getTopOpenView(mLauncher) == null
&& mLauncher.isInState(NORMAL);
}
private void cancelLongPress() {
mLongPressState = STATE\_CANCELLED;
}
@Override
public void onLongPress(MotionEvent event) {
maybeShowMenu(); //手势的长按事件回调
}
private void maybeShowMenu() {
if (mLongPressState == STATE\_REQUESTED) {//这个state前边有分析，在可点击范围即可
if (canHandleLongPress()) {//再次判断是否可以长按
mLongPressState = STATE\_PENDING\_PARENT\_INFORM;
//这里就是显示弹框的操作了
mLauncher.showDefaultOptions(mTouchDownPoint.x, mTouchDownPoint.y);
} else {
cancelLongPress();
}
}
}
}
3.6.OptionsPopupView
public void showDefaultOptions(float x, float y) {
OptionsPopupView.show(this, getPopupTarget(x, y), OptionsPopupView.getOptions(this),
false);
}
public static OptionsPopupView show(ActivityContext launcher, RectF targetRect,
List<OptionItem> items, boolean shouldAddArrow, int width) {
//这玩意就是个线性布局
OptionsPopupView popup = (OptionsPopupView) launcher.getLayoutInflater()
.inflate(R.layout.longpress_options_menu, launcher.getDragLayer(), false);
popup.mTargetRect = targetRect;
popup.setShouldAddArrow(shouldAddArrow);
for (OptionItem item : items) {
DeepShortcutView view =
(DeepShortcutView) popup.inflateAndAdd(R.layout.system_shortcut, popup);
if (width > 0) {
view.getLayoutParams().width = width;
}
view.getIconView().setBackgroundDrawable(item.icon);
view.getBubbleText().setText(item.label);
view.setOnClickListener(popup);
view.setOnLongClickListener(popup);
popup.mItemMap.put(view, item);
}
popup.show();
return popup;
}
3.7.ShortcutAndWidgetContainer
public ShortcutAndWidgetContainer(Context context, @ContainerType int containerType) {
super(context);
mActivity = ActivityContext.lookupContext(context);
mWallpaperManager = WallpaperManager.getInstance(context);
mContainerType = containerType;
}
public void setCellDimensions(int cellWidth, int cellHeight, int countX, int countY,
Point borderSpace) {
mCellWidth = cellWidth;
mCellHeight = cellHeight;
mCountX = countX;
mCountY = countY;
mBorderSpace = borderSpace;
}
>1.getChildAt
根据传进来的索引，对比布局参数，判断点击的是哪个
public View getChildAt(int cellX, int cellY) {
final int count = getChildCount();
for (int i = 0; i < count; i++) {
View child = getChildAt(i);
CellLayoutLayoutParams lp = (CellLayoutLayoutParams) child.getLayoutParams();
if ((lp.cellX <= cellX) && (cellX < lp.cellX + lp.cellHSpan)
&& (lp.cellY <= cellY) && (cellY < lp.cellY + lp.cellVSpan)) {
return child;
}
}
return null;
}
>2.onMeasure
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
int count = getChildCount();
int widthSpecSize = MeasureSpec.getSize(widthMeasureSpec);
int heightSpecSize = MeasureSpec.getSize(heightMeasureSpec);
setMeasuredDimension(widthSpecSize, heightSpecSize);
for (int i = 0; i < count; i++) {
View child = getChildAt(i);
if (child.getVisibility() != GONE) {
//最终测量的是child，见补充3
measureChild(child);
}
}
}
>3.measureChild
主要就是通过lp的setup方法，计算child的x,y位置以及宽高
public void measureChild(View child) {
CellLayoutLayoutParams lp = (CellLayoutLayoutParams) child.getLayoutParams();
final DeviceProfile dp = mActivity.getDeviceProfile();
if (child instanceof NavigableAppWidgetHostView) {
((NavigableAppWidgetHostView) child).getWidgetInset(dp, mTempRect);
final PointF appWidgetScale = dp.getAppWidgetScale((ItemInfo) child.getTag());
lp.setup(mCellWidth, mCellHeight, invertLayoutHorizontally(), mCountX, mCountY,
appWidgetScale.x, appWidgetScale.y, mBorderSpace, mTempRect);
} else {
//根据每个网格的大小，以及自己占用的网格大小，计算要显示的尺寸大小
lp.setup(mCellWidth, mCellHeight, invertLayoutHorizontally(), mCountX, mCountY,
mBorderSpace, null);
//...
child.setPadding(cellPaddingX, cellPaddingY, cellPaddingX, 0);
}
//根据上边计算的宽高，设置尺寸
int childWidthMeasureSpec = MeasureSpec.makeMeasureSpec(lp.width, MeasureSpec.EXACTLY);
int childheightMeasureSpec = MeasureSpec.makeMeasureSpec(lp.height, MeasureSpec.EXACTLY);
child.measure(childWidthMeasureSpec, childheightMeasureSpec);
}
>4.onLayout
protected void onLayout(boolean changed, int l, int t, int r, int b) {
int count = getChildCount();
for (int i = 0; i < count; i++) {
final View child = getChildAt(i);
if (child.getVisibility() != GONE) {
layoutChild(child);
}
}
}
public void layoutChild(View child) {
CellLayoutLayoutParams lp = (CellLayoutLayoutParams) child.getLayoutParams();
if (child instanceof NavigableAppWidgetHostView) {
NavigableAppWidgetHostView nahv = (NavigableAppWidgetHostView) child;
//...
}
int childLeft = lp.x;
int childTop = lp.y;
//measure方法的时候已经通过lp的setup方法计算了位置以及宽高，这里直接使用即可
child.layout(childLeft, childTop, childLeft + lp.width, childTop + lp.height);
//...
}
3.8.CellLayoutLayoutParams
celllayout类似网格那种，所以这里的数据都是网格的索引
public CellLayoutLayoutParams(int cellX, int cellY, int cellHSpan, int cellVSpan,
int screenId) {
super(CellLayoutLayoutParams.MATCH_PARENT, CellLayoutLayoutParams.MATCH_PARENT);
this.cellX = cellX;//水平方向索引
this.cellY = cellY;//垂直方向索引
this.cellHSpan = cellHSpan;//水平方向跨度，就是占几个格子
this.cellVSpan = cellVSpan;//垂直方向跨度
this.screenId = screenId;//显示在哪个屏幕上，多页的情况下
}
>1.setup
根据网格的索引，每个网格的宽高，以及自己横向和纵向占几个网格，就可以计算出位置宽高了。
public void setup(int cellWidth, int cellHeight, boolean invertHorizontally, int colCount,
int rowCount, float cellScaleX, float cellScaleY, Point borderSpace,
@Nullable Rect inset) {
if (isLockedToGrid) {
final int myCellHSpan = cellHSpan;
final int myCellVSpan = cellVSpan;
int myCellX = useTmpCoords ? tmpCellX : cellX;
int myCellY = useTmpCoords ? tmpCellY : cellY;
if (invertHorizontally) {
myCellX = colCount - myCellX - cellHSpan;
}
int hBorderSpacing = (myCellHSpan - 1) * borderSpace.x;
int vBorderSpacing = (myCellVSpan - 1) * borderSpace.y;
float myCellWidth = ((myCellHSpan * cellWidth) + hBorderSpacing) / cellScaleX;
float myCellHeight = ((myCellVSpan * cellHeight) + vBorderSpacing) / cellScaleY;
width = Math.round(myCellWidth) - leftMargin - rightMargin;
height = Math.round(myCellHeight) - topMargin - bottomMargin;
x = leftMargin + (myCellX * cellWidth) + (myCellX * borderSpace.x);
y = topMargin + (myCellY * cellHeight) + (myCellY * borderSpace.y);
if (inset != null) {
x -= inset.left;
y -= inset.top;
width += inset.left + inset.right;
height += inset.top + inset.bottom;
}
}
}
3.9.FolderIcon
把多个icon图标放到一起就会有个文件夹了
>1.folder_icon.xml
<com.android.launcher3.folder.FolderIcon
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:focusable="true" >
<com.android.launcher3.views.DoubleShadowBubbleTextView
style="@style/BaseIcon.Workspace"
android:id="@+id/folder_icon_name"
android:focusable="false"
android:layout_gravity="top"
android:layout_width="match_parent"
android:layout_height="match_parent" />
</com.android.launcher3.folder.FolderIcon>
>2.init
构造方法里会初始化一些工具类，
public FolderIcon(Context context) {
super(context);
init();
}
private void init() {
mLongPressHelper = new CheckLongPressHelper(this);//长按事件帮助类
mPreviewLayoutRule = new ClippedFolderIconLayoutRule();
mPreviewItemManager = new PreviewItemManager(this);//预览效果这个来控制
mDotParams = new DotRenderer.DrawParams();
}
public boolean onTouchEvent(MotionEvent event) {
if (event.getAction() == MotionEvent.ACTION_DOWN
&& shouldIgnoreTouchDown(event.getX(), event.getY())) {
return false;
}
// Call the superclass onTouchEvent first, because sometimes it changes the state to
// isPressed() on an ACTION_UP
super.onTouchEvent(event);
//触摸事件交给helper类来处理长按事件
mLongPressHelper.onTouchEvent(event);
// Keep receiving the rest of the events
return true;
}
看一下helper类里长按事件的处理逻辑
private void triggerLongPress() {
if ((mView.getParent() != null)
&& mView.hasWindowFocus()
&& (!mView.isPressed() || mListener != null)
&& !mHasPerformedLongPress) {
boolean handled;
if (mListener != null) {
handled = mListener.onLongClick(mView);
} else {
//我们没有设置listener，所以最后交给FolderIcon自己处理了
handled = mView.performLongClick();
}
if (handled) {
mView.setPressed(false);
mHasPerformedLongPress = true;
}
clearCallbacks();
}
}
这里讲一下，长按事件是在workspace添加元素的时候统一添加的,用的下边这个
default View.OnLongClickListener getWorkspaceChildOnLongClickListener() {
return ItemLongClickListener.INSTANCE_WORKSPACE;
}
>3.获取对象
public static <T extends Context & ActivityContext> FolderIcon inflateFolderAndIcon(int resId,
T activityContext, ViewGroup group, FolderInfo folderInfo) {
//创建folder，也就是foldericon展开的控件
Folder folder = Folder.fromXml(activityContext);
//创建foldericon并设置数据
FolderIcon icon = inflateIcon(resId, activityContext, group, folderInfo);
folder.setFolderIcon(icon);
folder.bind(folderInfo);
icon.setFolder(folder);
return icon;
}
public static FolderIcon inflateIcon(int resId, ActivityContext activity, ViewGroup group,
FolderInfo folderInfo) {
DeviceProfile grid = activity.getDeviceProfile();
FolderIcon icon = (FolderIcon) LayoutInflater.from(group.getContext())
.inflate(resId, group, false);
icon.mFolderName = icon.findViewById(R.id.folder_icon_name);//文件夹名字
//...
FrameLayout.LayoutParams lp = (FrameLayout.LayoutParams) icon.mFolderName.getLayoutParams();
//设置topMargin，这样就显示在图标下边了。
lp.topMargin = grid.iconSizePx + grid.iconDrawablePaddingPx;
icon.setTag(folderInfo);
//点击事件
icon.setOnClickListener(ItemClickHandler.INSTANCE);
//...
icon.setDotInfo(folderDotInfo);
//预览图数据设置
icon.mPreviewVerifier = new FolderGridOrganizer(activity.getDeviceProfile().inv);
icon.mPreviewVerifier.setFolderInfo(folderInfo);
icon.updatePreviewItems(false);
folderInfo.addListener(icon);
return icon;
}
>4.点击事件
ItemClickHandler.INSTANCE
private static void onClick(View v) {
//根据tag拿到点击的view所属的类型，对应处理
Object tag = v.getTag();
if (tag instanceof WorkspaceItemInfo) {
onClickAppShortcut(v, (WorkspaceItemInfo) tag, launcher);
} else if (tag instanceof FolderInfo) {
if (v instanceof FolderIcon) {
onClickFolderIcon(v);
}
} else if (tag instanceof AppInfo) {
startAppShortcutOrInfoActivity(v, (AppInfo) tag, launcher);
} else if (tag instanceof LauncherAppWidgetInfo) {
if (v instanceof PendingAppWidgetHostView) {
onClickPendingWidget((PendingAppWidgetHostView) v, launcher);
}
} else if (tag instanceof ItemClickProxy) {
((ItemClickProxy) tag).onItemClicked(v);
}
}
最终是拿到folder以后调用animate方法显示
folder.animateOpen();
>5.dispatchDraw
protected void dispatchDraw(Canvas canvas) {
super.dispatchDraw(canvas);
if (!mBackgroundIsVisible) return;
mPreviewItemManager.recomputePreviewDrawingParams();
if (!mBackground.drawingDelegated()) {
mBackground.drawBackground(canvas);
}
if (mCurrentPreviewItems.isEmpty() && !mAnimating) return;
//通过管理类画背景，就是folder里缩小的app图标
mPreviewItemManager.draw(canvas);
if (!mBackground.drawingDelegated()) {
mBackground.drawBackgroundStroke(canvas);
}
drawDot(canvas);
}
3.10.Folder
这玩意是个线性布局，点击FolerIcon以后显示的浮窗
public abstract class AbstractFloatingView extends LinearLayout implements TouchController {
public class Folder extends AbstractFloatingView implements ClipPathView, DragSource,
View.OnLongClickListener, DropTarget, FolderListener, TextView.OnEditorActionListener,
View.OnFocusChangeListener, DragListener, ExtendedEditText.OnBackKeyListener {
//...
@IntDef({STATE_CLOSED, STATE_ANIMATING, STATE_OPEN})
public @interface FolderState {}
>1.user_folder_icon_normalized.xml
FolderPagedView也是个自定义view，类似workspace，里边也是添加celllayout作为一页容器
<com.android.launcher3.folder.Folder
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="vertical" >
<com.android.launcher3.folder.FolderPagedView
android:id="@+id/folder_content"
android:clipToPadding="false"
android:layout_width="match_parent"
android:layout_height="match_parent"
launcher:pageIndicator="@+id/folder_page_indicator" />
<!--水平方向，文件夹名字以及indicator-->
<LinearLayout
android:id="@+id/folder_footer"
android:layout_width="match_parent"
android:layout_height="@dimen/folder_footer_height_default"
android:clipChildren="false"
android:orientation="horizontal">
<com.android.launcher3.folder.FolderNameEditText
android:id="@+id/folder_name"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_gravity="center_vertical"
style="@style/TextHeadline"
android:layout_weight="1"/>
<com.android.launcher3.pageindicators.PageIndicatorDots
android:id="@+id/folder_page_indicator"
android:layout_gravity="center_vertical"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:elevation="1dp"
/>
</LinearLayout>
</com.android.launcher3.folder.Folder>
>2.onFinishInflate
获取背景图片，以及给child设置对应的属性
protected void onFinishInflate() {
super.onFinishInflate();
mBackground = (GradientDrawable) ResourcesCompat.getDrawable(getResources(),
R.drawable.round_rect_folder, getContext().getTheme());
mContent = findViewById(R.id.folder_content);
mContent.setFolder(this);
mPageIndicator = findViewById(R.id.folder_page_indicator);
mFolderName = findViewById(R.id.folder_name);
//...
mFooter = findViewById(R.id.folder_footer);
mFooterHeight = dp.folderFooterHeightPx;
}
>3.animateOpen
点击FolderIcon以后会调用下边的方法显示Folder
public void animateOpen() {
animateOpen(mInfo.contents, 0);
}
private void animateOpen(List<WorkspaceItemInfo> items, int pageNo) {
Folder openFolder = getOpen(mActivityContext);
if (openFolder != null && openFolder != this) {
//先查下，如果有在显示的folder，关闭它
openFolder.close(true);
}
mContent.bindItems(items);
centerAboutIcon();//计算下位置，大小，设置下背景图的大小
mItemsInvalidated = true;
updateTextViewFocus();
mIsOpen = true;
BaseDragLayer dragLayer = mActivityContext.getDragLayer();
if (getParent() == null) {
dragLayer.addView(this);//添加到容器里
mDragController.addDropTarget(this);
} else {
}
mContent.completePendingPageChanges();
mContent.setCurrentPage(pageNo);
mDeleteFolderOnDropCompleted = false;
//...anim
// Footer animation
if (mContent.getPageCount() > 1 && !mInfo.hasOption(FolderInfo.FLAG_MULTI_PAGE_ANIMATION)) {
//...
} else {
mFolderName.setTranslationX(0);
}
//...
}
>4.close
首先这个东西是添加到dragLayer层的，所以最开始的touch事件处理就是从layer层开始判断的。
BaseDragLayer.java
public boolean onInterceptTouchEvent(MotionEvent ev) {
int action = ev.getAction();
if (action == ACTION_UP || action == ACTION_CANCEL) {
if (mTouchCompleteListener != null) {
mTouchCompleteListener.onTouchComplete();
}
mTouchCompleteListener = null;
} else if (action == MotionEvent.ACTION_DOWN) {
mActivity.finishAutoCancelActionMode();
}
return findActiveController(ev);//这一行..
}
//继续
protected boolean findActiveController(MotionEvent ev) {
mActiveController = null;
if (canFindActiveController()) {
mActiveController = findControllerToHandleTouch(ev);//这行..
}
return mActiveController != null;
}
//Folder就是继承的AbstractFloatingView，所以显示的时候，最上层查到的topView就是我们的Folder了
private TouchController findControllerToHandleTouch(MotionEvent ev) {
AbstractFloatingView topView = AbstractFloatingView.getTopOpenView(mActivity);
if (topView != null
&& (isEventInLauncher(ev) || topView.canInterceptEventsInSystemGestureRegion())
&& topView.onControllerInterceptTouchEvent(ev)) {//这行..
return topView;
}
for (TouchController controller : mControllers) {
if (controller.onControllerInterceptTouchEvent(ev)) {
return controller;
}
}
return null;
}
//回到Folder.java
public boolean onControllerInterceptTouchEvent(MotionEvent ev) {
if (ev.getAction() == MotionEvent.ACTION_DOWN) {
BaseDragLayer dl = (BaseDragLayer) getParent();
if (isEditingName()) {
if (!dl.isEventOverView(mFolderName, ev)) {
mFolderName.dispatchBackKey();
return true;
}
return false;
} else if (!dl.isEventOverView(this, ev)
&& mLauncherDelegate.interceptOutsideTouch(ev, dl, this)) {//这行..
return true;
}
}
return false;
}
//go on,我们是点击空白区域隐藏Folder，所以很明显，走的else
boolean interceptOutsideTouch(MotionEvent ev, BaseDragLayer dl, Folder folder) {
if (mLauncher.getAccessibilityDelegate().isInAccessibleDrag()) {
// Do not close the container if in drag and drop.
if (!dl.isEventOverView(mLauncher.getDropTargetBar(), ev)) {
return true;
}
} else {
// 这行。
folder.close(true);
return true;
}
return false;
}
// Folder.java
protected void handleClose(boolean animate) {
mIsOpen = false;
//...
if (animate) {
animateClosed();//带动画的，走这里
} else {
closeComplete(false);
post(this::announceAccessibilityChanges);
}
}
//最终会走到这里，重新显示FolderIcon, 并从dragLayer里移除Folder
private void closeComplete(boolean wasAnimated) {
BaseDragLayer parent = (BaseDragLayer) getParent();
if (parent != null) {
parent.removeView(this);// 移除
}
mDragController.removeDropTarget(this);
clearFocus();
if (mFolderIcon != null) {
mFolderIcon.setVisibility(View.VISIBLE);
mFolderIcon.setIconVisible(true);//重新显示
mFolderIcon.mFolderName.setTextVisibility(true);
}
3.11.FolderPagedView
public class FolderPagedView extends PagedView<PageIndicatorDots> implements ClipPathView {
4.学习记录
4.1.ItemLongClickListener.java
hotseat，workspace，allapps页面的icon的长按事件，都会调用canStartDrag这个方法判断的，所以在这个方法里处理就行。
public static final OnLongClickListener INSTANCE_WORKSPACE =
ItemLongClickListener::onWorkspaceItemLongClick;
public static final OnLongClickListener INSTANCE_ALL_APPS =
ItemLongClickListener::onAllAppsItemLongClick;
>1.onWorkspaceItemLongClick
private static boolean onWorkspaceItemLongClick(View v) {
Launcher launcher = Launcher.getLauncher(v.getContext());
//先判断是否支持拖拽
if (!canStartDrag(launcher)) return false;
if (!launcher.isInState(NORMAL) && !launcher.isInState(OVERVIEW)) return false;
if (!(v.getTag() instanceof ItemInfo)) return false;
launcher.setWaitingForResult(null);
beginDrag(v, launcher, (ItemInfo) v.getTag(), launcher.getDefaultWorkspaceDragOptions());
return true;
}
>2.onAllAppsItemLongClick
private static boolean onAllAppsItemLongClick(View view) {
//..
Launcher launcher = Launcher.getLauncher(v.getContext());
//先判断是否支持拖拽
if (!canStartDrag(launcher)) return false;
// When we have exited all apps or are in transition, disregard long clicks
if (!launcher.isInState(ALL_APPS) && !launcher.isInState(OVERVIEW)) return false;
if (launcher.getWorkspace().isSwitchingState()) return false;
// Start the drag
final DragController dragController = launcher.getDragController();
dragController.addDragListener(new DragController.DragListener() {
@Override
public void onDragStart(DropTarget.DragObject dragObject, DragOptions options) {
//开始拖拽，原本的view不可见
v.setVisibility(INVISIBLE);
}
@Override
public void onDragEnd() {
//拖拽结束，恢复可见，移除监听
v.setVisibility(VISIBLE);
dragController.removeDragListener(this);
}
});
launcher.getWorkspace().beginDragShared(v, launcher.getAppsView(), new DragOptions());
return false;
}
>3.canStartDrag
下边的方法返回false，所有的icon都长按都没有反应了，自然也不会拖动了。
//禁止元素拖拽的话，这里返回false即可
public static boolean canStartDrag(Launcher launcher) {
if (launcher == null) {
return false;
}
if (launcher.isWorkspaceLocked()) return false;
if (launcher.getDragController().isDragging()) return false;
return true;
}
4.2.WorkspaceLayoutManager.java
一个抽象类，实现了把view添加到container的逻辑，workspace，hotseat里的元素添加用的这个
default void addInScreen(View child, int container, int screenId, int x, int y,
int spanX, int spanY) {
if (container == LauncherSettings.Favorites.CONTAINER_DESKTOP) {
}
final CellLayout layout;
// 容器是hotseat类型
if (container == LauncherSettings.Favorites.CONTAINER_HOTSEAT
|| container == LauncherSettings.Favorites.CONTAINER_HOTSEAT_PREDICTION) {
layout = getHotseat();
//hotseat里的只有图标，文本隐藏
if (child instanceof FolderIcon) {
((FolderIcon) child).setTextVisible(false);
}
} else {
// 其他的也就是workspace里的了，这个图标文字都显示的
if (child instanceof FolderIcon) {
((FolderIcon) child).setTextVisible(true);
}
layout = getScreenWithId(screenId);
}
ViewGroup.LayoutParams genericLp = child.getLayoutParams();
CellLayoutLayoutParams lp;
if (genericLp == null || !(genericLp instanceof CellLayoutLayoutParams)) {
lp = new CellLayoutLayoutParams(x, y, spanX, spanY, screenId);
} else {
lp = (CellLayoutLayoutParams) genericLp;
lp.cellX = x;
lp.cellY = y;
lp.cellHSpan = spanX;
lp.cellVSpan = spanY;
}
if (spanX < 0 && spanY < 0) {
lp.isLockedToGrid = false;
}
ItemInfo info = (ItemInfo) child.getTag();
int childId = info.getViewId();
boolean markCellsAsOccupied = !(child instanceof Folder);
//把child添加到容器里
if (!layout.addViewToCellLayout(child, -1, childId, lp, markCellsAsOccupied)) {
}
child.setHapticFeedbackEnabled(false);
//看下child的长按事件，都是这个
child.setOnLongClickListener(getWorkspaceChildOnLongClickListener());
if (child instanceof DropTarget) {
//这个是拖拽到顶部丢弃的child
onAddDropTarget((DropTarget) child);
}
}
// child的长按事件用的这个
default View.OnLongClickListener getWorkspaceChildOnLongClickListener() {
return ItemLongClickListener.INSTANCE_WORKSPACE;
}
5.BubbleTextView.java
- 桌面的图标基本都是这个控件，包括hotseat（把文字隐藏了）
- 主要是背景可以画个气泡
public class BubbleTextView extends TextView implements ItemInfoUpdateReceiver,
IconLabelDotView, DraggableView, Reorderable {
//这里定义了8种展示类型，类型不同，图标大小样式啥的可能不一样
private static final int DISPLAY_WORKSPACE = 0;
private static final int DISPLAY_ALL_APPS = 1;
private static final int DISPLAY_FOLDER = 2;
protected static final int DISPLAY_TASKBAR = 5;
private static final int DISPLAY_SEARCH_RESULT = 6;
private static final int DISPLAY_SEARCH_RESULT_SMALL = 7;
5.1.构造方法
public BubbleTextView(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
mActivity = ActivityContext.lookupContext(context);
TypedArray a = context.obtainStyledAttributes(attrs,
R.styleable.BubbleTextView, defStyle, 0);
mLayoutHorizontal = a.getBoolean(R.styleable.BubbleTextView_layoutHorizontal, false);
mIsRtl = (getResources().getConfiguration().getLayoutDirection()
== View.LAYOUT_DIRECTION_RTL);
DeviceProfile grid = mActivity.getDeviceProfile();
//获取display类型，默认的是DISPLAY_WORKSPACE，跟主题有关，见5.2
mDisplay = a.getInteger(R.styleable.BubbleTextView_iconDisplay, DISPLAY_WORKSPACE);
final int defaultIconSize;
if (mDisplay == DISPLAY_WORKSPACE) {
setTextSize(TypedValue.COMPLEX_UNIT_PX, grid.iconTextSizePx);
setCompoundDrawablePadding(grid.iconDrawablePaddingPx);
defaultIconSize = grid.iconSizePx;
setCenterVertically(grid.isScalableGrid);
} else if (mDisplay == DISPLAY_ALL_APPS) {
setTextSize(TypedValue.COMPLEX_UNIT_PX, grid.allAppsIconTextSizePx);
setCompoundDrawablePadding(grid.allAppsIconDrawablePaddingPx);
defaultIconSize = grid.allAppsIconSizePx;
} else if (mDisplay == DISPLAY_FOLDER) {
setTextSize(TypedValue.COMPLEX_UNIT_PX, grid.folderChildTextSizePx);
setCompoundDrawablePadding(grid.folderChildDrawablePaddingPx);
defaultIconSize = grid.folderChildIconSizePx;
} else if (mDisplay == DISPLAY_SEARCH_RESULT) {
defaultIconSize = getResources().getDimensionPixelSize(R.dimen.search_row_icon_size);
} else if (mDisplay == DISPLAY_SEARCH_RESULT_SMALL) {
defaultIconSize = getResources().getDimensionPixelSize(
R.dimen.search_row_small_icon_size);
} else if (mDisplay == DISPLAY_TASKBAR) {
//我们的需求把这个改大点，结果iconSizePx是动态算的，和配置里的差距太大，害我一直搞不定
//解决办法，不用这个值了，直接用taskbar里用的R.dimen.taskbar_icon_touch_size
defaultIconSize = grid.iconSizePx;
} else {
// widget_selection or shortcut_popup
defaultIconSize = grid.iconSizePx;
}
mCenterVertically = a.getBoolean(R.styleable.BubbleTextView_centerVertically, false);
//或者布局里配置iconSizeOverride
mIconSize = a.getDimensionPixelSize(R.styleable.BubbleTextView_iconSizeOverride,
defaultIconSize);
a.recycle();
mLongPressHelper = new CheckLongPressHelper(this);
mDotParams = new DotRenderer.DrawParams();
setEllipsize(TruncateAt.END);
setAccessibilityDelegate(mActivity.getAccessibilityDelegate());
setTextAlpha(1f);
}
5.2.相关的布局以及子类
>1.taskbar_predicted_app_icon.xml
taskbar上hotseat用到的布局，系统推荐的app
<com.android.launcher3.uioverrides.PredictedAppIcon style="@style/BaseIcon.Workspace.Taskbar" />
主题如下，可以看到这里是设置了display
<!-- Icon displayed on the taskbar -->
<style name="BaseIcon.Workspace.Taskbar" >
<item name="iconDisplay">taskbar</item>
</style>
>2.taskbar_app_icon.xml
主题参考补充1
<com.android.launcher3.views.DoubleShadowBubbleTextView style="@style/BaseIcon.Workspace.Taskbar" />
>all_apps_icon.xml
这里是布局里直接生命了display的值
<com.android.launcher3.BubbleTextView xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:launcher="http://schemas.android.com/apk/res-auto"
style="@style/BaseIcon.AllApps"
android:id="@+id/icon"
launcher:iconDisplay="all_apps"
launcher:centerVertically="true" />
6.总结
- 桌面的布局结构
- DevicePorfile，launcher3里各种配置相关的数据基本都在这里，比如常用的hotseat高度，workspace每页可以分成几行几列
- cellLayout，一个可以按照网格分割显示child的容器，hotseat继承的它，workspace里添加的是它
- workspace里每页的元素，主要有3种类型，app的图标，app的小部件，文件夹
- 3.5小节里是空白区域的长按事件，4.1小节的是元素的长按事件
