需求背景

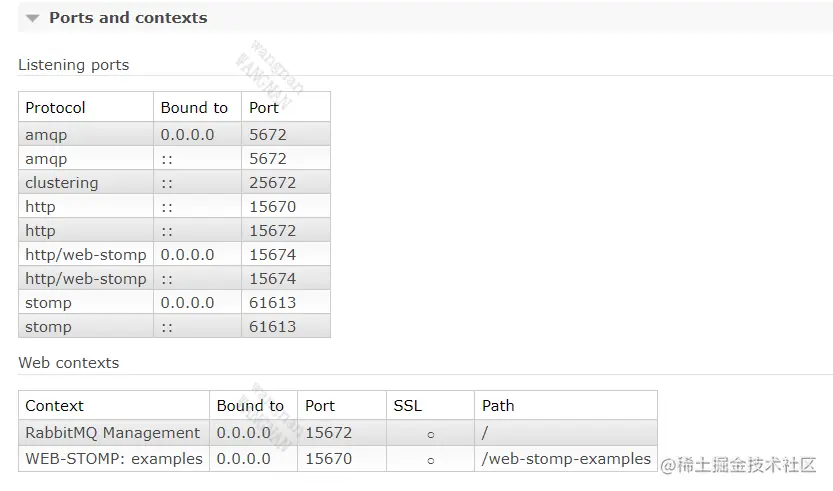

项目需要前端直接与Rabbitmq创建连接，订阅故障上报、发布异常处理等。项目中有三个主题的消息，前端在不同主题的消息中分别需要publish、subscribe、publish&subscribe。前端采用Vue3框架，Rabbitmq官网提供http/web-stomp协议应用于web端与Rabbitmq通讯，下面前端开发围绕着stomp协议展开。官网文档参考 RabbitMQ Web STOMP Plugin — RabbitMQ 【注】Rabbitmq服务端配置文件需要添加端口15674.

Vue封装STOMP

stomp.js

stomp.js是一个stomp协议的代理库，本项目使用stomp.js创建rabbirmq连接实例，源码地址stomp-js/stompjs: Javascript and Typescript Stomp client for Web browsers and node.js apps (github.com)

配置文件

创建rabbitmq.config.js文件定义全局变量，存储连接rabbitmq的服务地址、交换机等。

/* rabbitmq 连接配置*/
export const RMQ_SERVER =  // mq服务地址

export const RMQ_EXCHANGE = ''//交换机
export const RMQ_KEY = ''//交换机routing key
export const RMQ_ROBOT = ''//手动发布异常交换机

export const RMQ_ACCOUNT = '' // 用户名
export const RMQ_PASSWORD = '' // 密码

export const ERROR_KEY = ""//异常队列
export const SOLVE_KEY = ""//异常解决队列
export const RES_KEY = ""//启停响应队列

stompjs实例化

创建stomp-client.js文件，封装并初始化stomp实例

/* 初始化stomp client实例
* https://stomp-js.github.io/
* */

import {Client} from "@stomp/stompjs";
import {RMQ_ACCOUNT, RMQ_PASSWORD, RMQ_SERVER} from '@/config/stompjs/rabbitmq.config'
import {ElMessage} from "element-plus";

const conf = {
    brokerURL: RMQ_SERVER,
    connectHeaders: {
        login: RMQ_ACCOUNT,
        passcode: RMQ_PASSWORD
    },
    debug: (str) => {
         console.log('STOMP: ' + str);
    },
    reconnectDelay: 5000,//断开重连
};//连接服务端的配置
let client = new Client(conf);//创建stomp客户端实例

export const connect = (...topics) => {
    const callbacks = topics.reduce((obj, topic, index) => {
        if (index % 2 === 0) {
            obj[topic] = topics[index + 1];
        }
        return obj;
    }, {})
    client.onConnect = frame => {
        topics.filter((topic, index) => index % 2 === 0).forEach(topic => {
            // @ts-ignore
            client.subscribe(topic, callbacks[topic], (err) => {
                alert(err)
            })
        })
    }
    client.activate();
}
export const publishMsg=(destination, body)=> {
    if (!client.connected) {
        ElMessage.error("网络连接异常");
        return -1;
    }
    client.publish({destination: destination, body: JSON.stringify(body)})
    return 0;
}
/**
 * @module: src\api\stomp-client.ts
 * @desc: 断开连接
 */
export const disconnect=()=>{
    client.deactivate();
}

订阅消息

使用subscribe()方法时必须包含两个参数:目的地destination，回调方法callback，还有一个可选参数headers；获取数据类型为String。 client.subscribe({destination:"",body:JSON.stringify(要发布的消息)})

【注】有多设备端访问，需要同时订阅的情况下需要开启fanout模式！

发布消息

使用publish()方法，必须包含参数: 目的地destination（String），消息体body。

在topic模式下destination为topic名称，存在交换机的模式下destination的格式如下拼接 "/exchang/exchange name/topic name"

应用

在入口文件index.vue中，创建连接以便于在启动项目时订阅相关消息

<template>
  <el-container>
    <el-header style="height: 10vh; border-bottom: 1px solid #CDD0D6">
      <MainHeader></MainHeader>
    </el-header>
    <el-main style="height: 90vh; padding: 0">
      <router-view></router-view>
    </el-main>
  </el-container>
</template>

<script setup>
import {nextTick, onMounted} from 'vue';
import {useHomeStore, useLogStore} from "@/store";
import {connect, publishMsg} from "@/config/stompjs/stomp-client.js";
import {ERROR_KEY, RES_KEY, RMQ_EXCHANGE, RMQ_KEY, RMQ_ROBOT, SOLVE_KEY} from "@/config/stompjs/rabbitmq.config";
import api from "@/api/exceptionLog/api";
import {storeToRefs} from "pinia";
import {useRoute, useRouter} from "vue-router";

const homeStore = useHomeStore();
const logStore = useLogStore();
const { errorList } = storeToRefs(logStore);
const tags = homeStore.tagList;
const router = useRouter();
const route = useRoute();

const getErrorMq = ()=>{
  connect(
      `/exchange/${ERROR_KEY}`, (x:any)=>{
        //订阅异常
        logStore.pushError(JSON.parse(x.body));
      },
      `/exchange/${SOLVE_KEY}`,(x:any)=>{
        //异常消除
        logStore.solveError(JSON.parse(x.body));
      },
      `/exchange/${RES_KEY}`, (x:any)=>{
        //启停状态
        let status = JSON.parse(x.body).systemStatus;
        let type = JSON.parse(x.body).type;
        console.log(status)
        logStore.getRunningStatus(type, status);
      },
      `/exchange/${RMQ_ROBOT}`, (x:any)=>{
        //手动消除
        logStore.solveError(JSON.parse(x.body));
     }
      )
}
//向rabbitmq发布‘获取当前状态’消息
const publishGetStatus =()=>{
  const body0 = {operate: 1, type: 0};//消息体
  const body1 = {operate: 1, type: 1};
  const destination = `/exchange/${RMQ_EXCHANGE}/${RMQ_KEY}`;
  publishMsg(destination, body0);
  publishMsg(destination, body1);
}

onMounted(()=>{
  userListener();
  api.getErrorData().then(res => {
    errorList.value = res.resData;
  })
  //订阅mq队列
  getErrorMq();
})
</script>
