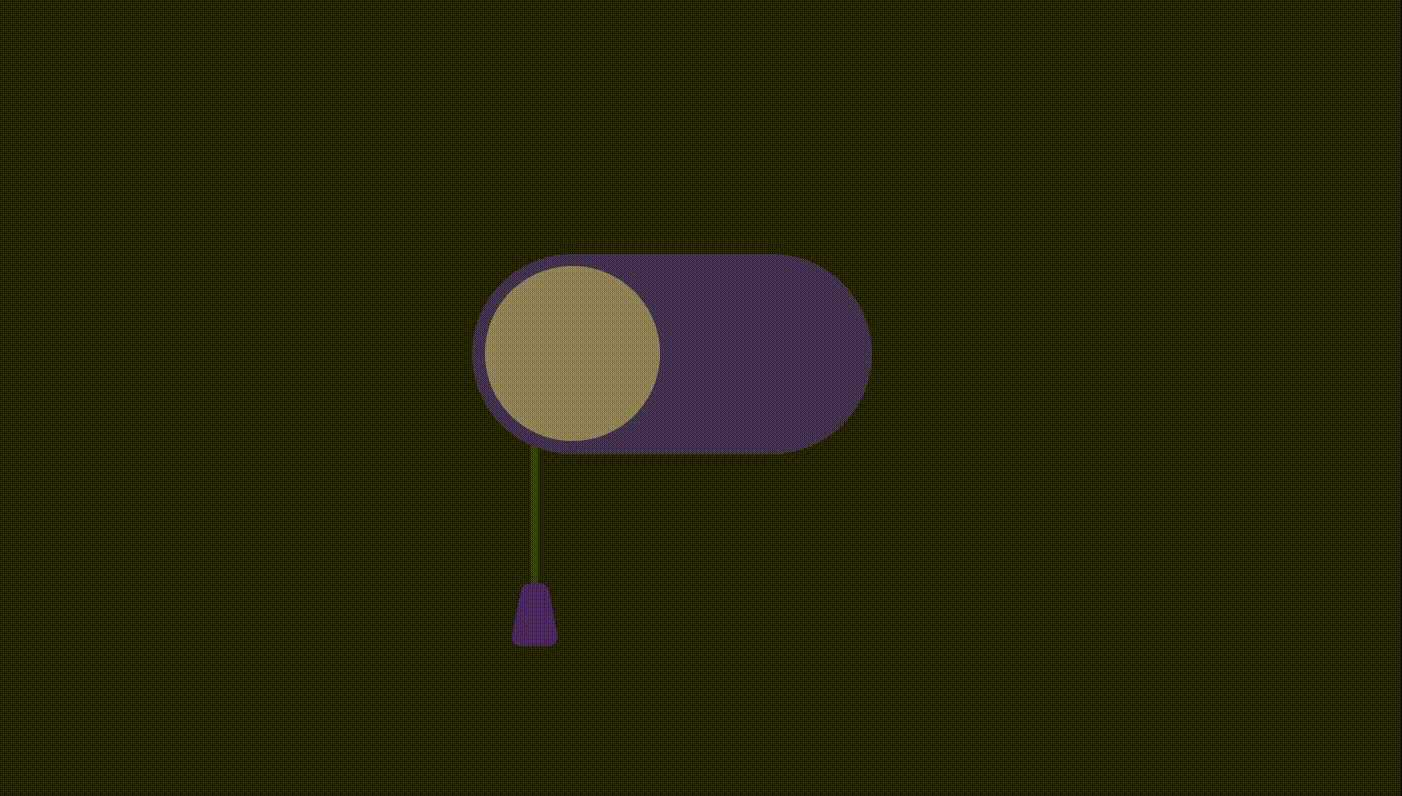

看看效果：
再上代吗：
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script src="https://unpkg.co/gsap@3/dist/gsap.min.js"></script>
<script src="https://assets.codepen.io/16327/MorphSVGPlugin3.min.js"></script>
<style>
body {
margin: 0;
height: 100vh;
width: 100vw;
overflow: hidden;
display: flex;
justify-content: center;
align-items: center;
background: #1a2031;
}
* {
box-sizing: border-box;
}
.btnContainer {
width: 320px;
height: 160px;
position: relative;
}
.btn {
position: absolute;
left: 0;
top: 0;
bottom: 0;
right: 0;
background: #3c3459;
border-radius: 999px;
padding: 10px;
cursor: pointer;
}
.knob {
width: 140px;
height: 140px;
position: relative;
}
.top {
background-color: #827d96;
border-radius: 999px;
position: absolute;
left: 0;
right: 0;
top: 0;
bottom: 0;
}
.light {
border-radius: 999px;
position: absolute;
width: 100px;
height: 100px;
background: radial-gradient(
50% 50% at 50% 50%,
#4cc3e2 10.42%,
rgba(94, 199, 227, 0.791579) 27.08%,
rgba(113, 204, 229, 0.35) 45.31%,
rgba(144, 213, 231, 0.11) 65.1%,
rgba(158, 216, 231, 0.02) 78.12%,
rgba(177, 221, 233, 0) 95.83%
);
left: 50%;
top: 50%;
transform: translate(-50%, -50%);
}
.hidden {
visibility: hidden;
}
svg {
position: absolute;
bottom: 200px;
left: 0;
top: 90%;
}
.no-highlight {
/* bad for accessibility - please don't use this in real world applications */
-webkit-tap-highlight-color: transparent;
-webkit-touch-callout: none;
-webkit-user-select: none;
-khtml-user-select: none;
-moz-user-select: none;
-ms-user-select: none;
user-select: none;
}
</style>
</head>
<body>
<div class="btnContainer">
<svg width="100" height="220" viewBox="0 0 100 220" fill="none" xmlns="http://www.w3.org/2000/svg">
<path id="rope" d="M50 0V130" stroke="#333842" stroke-width="6" />
<path id="rope-original" d="M50 0V130" stroke="black" stroke-width="1" class="hidden" />
<path id="rope-extended" d="M50 0V170" stroke="black" stroke-width="1" class="hidden" />
<path id="rope-compressed" d="M50.6794 99.5395C50.6794 99.5395 51.0304 93.3539 50.6794 89.416C49.698 78.405 40.6105 73.7631 41.2462 62.7267C42.1339 47.3139 63.6882 46.1634 64.4843 30.7456C65.1561 17.7347 50.6794 0.375 50.6794 0.375" stroke="black" stroke-width="1" class="hidden" />
<path id="rope-end" d="M39.282 5.16623C39.9597 1.92197 42.8198 -0.402344 46.134 -0.402344H54.756C58.1211 -0.402344 61.01 1.99207 61.6344 5.29871L68.4328 41.2987C69.2468 45.6092 65.941 49.5977 61.5544 49.5977H38.6135C34.1717 49.5977 30.8531 45.5141 31.7614 41.1662L39.282 5.16623Z" transform="matrix(1,0,0,1,0,120)" fill="#3B2898" />
</svg>
<div class="btn no-highlight" id="btn">
<div class="knob no-highlight">
<div class="light no-highlight"></div>
<div class="top no-highlight"></div>
</div>
</div>
</div>
</body>
<script>
let isChecked = false;
function onBtnDown() {
const tl = gsap.timeline();
tl.to("#rope-end", { duration: 0.2, y: 160 }, "start");
tl.to("#rope", { duration: 0.2, morphSVG: "#rope-extended" }, "start");
}
function onBtnUp() {
const tl = gsap.timeline();
tl.to(
"#rope",
{ duration: 0.4, morphSVG: "#rope-compressed", ease: "bounce.out" },
"up"
);
tl.to(
"#rope",
{ duration: 0.2, morphSVG: "#rope-original", ease: "bounce.out" },
"down"
);
tl.to("#rope-end", { duration: 0.4, y: 90, ease: "bounce.out" }, "up");
tl.to("#rope-end", { duration: 0.2, y: 120, ease: "bounce.out" }, "down");
isChecked = !isChecked;
let x = 0;
let backgroundColor = "#827D96";
let size = "100px";
if (isChecked) {
x = 160;
backgroundColor = "#FFFFFF";
size = "500px";
}
tl.to(".knob", { x, duration: 1 }, "up");
tl.to(".top", { backgroundColor, duration: 1 }, "up");
tl.to(".light", { width: size, height: size, duration: 1 }, "up");
}
const btn = document.getElementById("btn");
btn.addEventListener("mousedown", onBtnDown);
btn.addEventListener("mouseup", onBtnUp);
</script>
</html>
