1.雾

1)片元着色器

 precision mediump float;
            #define LOG2 1.442695
      uniform vec3 uFogColor;//雾颜色
      uniform float uFogDensity;//雾强度
      varying  vec3 vColor;
      varying vec4 vPosition;
      void main() {

        float fogDistance = length(vPosition.xyz );
        // exp2雾
        float fogAmount = 1.0- exp2(-uFogDensity * uFogDensity * fogDistance * fogDistance * LOG2);
        fogAmount = clamp(fogAmount, 0.0, 1.0);

        gl_FragColor = mix(vec4(vColor,1.0), vec4(uFogColor,1.0), fogAmount);
      }

2） 初始化赋值

 //雾颜色
 gl.uniform3f(gl.getUniformLocation(program, 'uFogColor'), 0.1, 0.2, 0.4);
 //雾强度
  gl.uniform1f(gl.getUniformLocation(program, 'uFogDensity'), 0.2);

可以看到雾的效果近看能看清，远看变模糊。

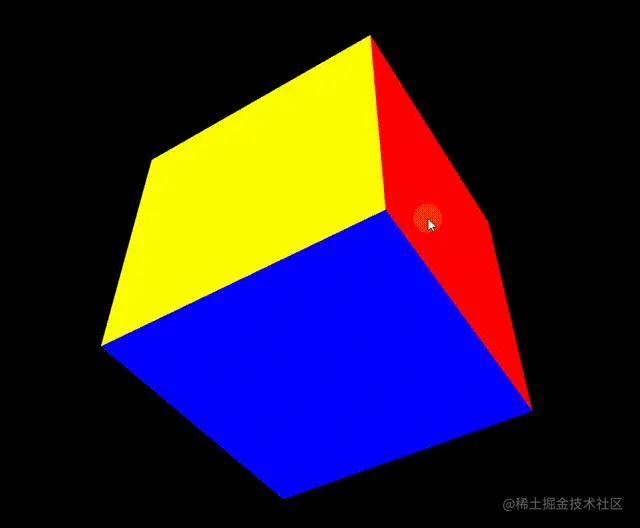

2.旋转物体

1）监听canvas动作

 function initEvent(gl) {
          var rotateAngle = {
            x: 0, //绕y轴旋转角度
            y: 0 //绕x轴旋转角度
          };

          var incAngle = -0.01; //旋转角度步长值，鼠标旋转灵敏度

          var lastClickX, lastClickY; //上次触控点X,Y坐标
          var ismoved = false; //是否移动标志位
          //鼠标按下的监听
          document.onmousedown = function (event) {
            var x = event.clientX;
            var y = event.clientY;
           //如果鼠标在canvas里开始移动
            var rect = (event.target || event.srcElement).getBoundingClientRect();
            if (rect.left <= x && x < rect.right && rect.top <= y && y < rect.bottom) {
              ismoved = true;
              lastClickX = x;
              lastClickY = y;
            }
          };
          //鼠标抬起的监听
          document.onmouseup = function (event) {
            ismoved = false;
          };
          //鼠标移动时的监听
          document.onmousemove = function (event) {
            var x = event.clientX,
              y = event.clientY;
            if (ismoved) {
              rotateAngle.y = rotateAngle.y + (x - lastClickX) * incAngle;
              rotateAngle.x = rotateAngle.x + (y - lastClickY) * incAngle;
            }
            lastClickX = x;
            lastClickY = y;
          };
          return rotateAngle;
        }



2）赋值旋转角度到变换矩阵

   var rotateAngle = initEvent(gl);
   var modelViewMatrix = mat4.create();
          mat4.rotateX(modelViewMatrix, modelViewMatrix, rotateAngle.x);
          mat4.rotateY(modelViewMatrix, modelViewMatrix, rotateAngle.y);
          gl.uniformMatrix4fv(
            gl.getUniformLocation(gl.program, 'uModelViewMatrix'),
            false,
            modelViewMatrix
 );

Github地址

https://github.com/xiaolidan00/my-webgl

参考

• https://webglfundamentals.org/
• 《WebGL编程指南》
• 《webGL 3D开发实战详解 第2版》
