SpringCloud Alibaba Seata处理分布式事务

767 阅读10分钟

概念

分布式事务处理过程的-ID+三组件模型

Transaction ID XID 全局唯一的事务ID

3组件概念

TC (Transaction Coordinator) - 事务协调者

维护全局和分支事务的状态,驱动全局事务提交或回滚。

TM (Transaction Manager) - 事务管理器

定义全局事务的范围:开始全局事务、提交或回滚全局事务。

RM (Resource Manager) - 资源管理器

管理分支事务处理的资源,与TC交谈以注册分支事务和报告分支事务的状态,并驱动分支事务提交或回滚。


1.TM向TC申请开启一个全局事务,全局事务创建成功并生成一个全局唯一的XID

2.XID在微服务调用链路的上下文中传播

3.RM向TC注册分支事务,将其耐入XID对应的全局事务的管辖

4.TM向TC发起针对XID的全局提交或回滚决议

5.TC调度XID下管辖的全部分支事务完成提交或回滚请求

Seta Server下载配置

下载

seata.io/zh-cn/blog/…

选择版本点击source下载即可

image-20200712163800875

我下载的是1.0.0版本

安装

下载完成只后直接解压即可,得到目录

image-20200712163913892

配置

进入到conf文件夹,先备份原始file.conf文件为file - 副本.conf

service

接着修改file.conf中的service模块将 vgroup_mapping.my_test_tx_group = "default"中的default修改为kylin_tx_group

image-20200712164354646

service {
  #transaction service group mapping
  #vgroup_mapping.my_test_tx_group = "default"
  vgroup_mapping.my_test_tx_group = "kylin_tx_group"
  #only support when registry.type=file, please don't set multiple addresses
  default.grouplist = "127.0.0.1:8091"
  #disable seata
  disableGlobalTransaction = false
}

store

接着修改store模块mode = "file"file改为db,同时配置好自己的mysql用户名和密码

image-20200712164611546

service {
  #transaction service group mapping
  #vgroup_mapping.my_test_tx_group = "default"
  vgroup_mapping.my_test_tx_group = "kylin_tx_group"
  #only support when registry.type=file, please don't set multiple addresses
  default.grouplist = "127.0.0.1:8091"
  #disable seata
  disableGlobalTransaction = false
}

## transaction log store, only used in seata-server
store {
  ## store mode: file、db
  mode = "db"

  ## file store property
  file {
    ## store location dir
    dir = "sessionStore"
  }

  ## database store property
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
    datasource = "dbcp"
    ## mysql/oracle/h2/oceanbase etc.
    db-type = "mysql"
    driver-class-name = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata"
    user = "root"
    password = "kylin"
  }
}

数据库

新建seata数据库

image-20200712164724527

运行建表sql

-- the table to store GlobalSession data
drop table if exists `global_table`;
create table `global_table` (
  `xid` varchar(128)  not null,
  `transaction_id` bigint,
  `status` tinyint not null,
  `application_id` varchar(32),
  `transaction_service_group` varchar(32),
  `transaction_name` varchar(128),
  `timeout` int,
  `begin_time` bigint,
  `application_data` varchar(2000),
  `gmt_create` datetime,
  `gmt_modified` datetime,
  primary key (`xid`),
  key `idx_gmt_modified_status` (`gmt_modified`, `status`),
  key `idx_transaction_id` (`transaction_id`)
);

-- the table to store BranchSession data
drop table if exists `branch_table`;
create table `branch_table` (
  `branch_id` bigint not null,
  `xid` varchar(128) not null,
  `transaction_id` bigint ,
  `resource_group_id` varchar(32),
  `resource_id` varchar(256) ,
  `lock_key` varchar(128) ,
  `branch_type` varchar(8) ,
  `status` tinyint,
  `client_id` varchar(64),
  `application_data` varchar(2000),
  `gmt_create` datetime,
  `gmt_modified` datetime,
  primary key (`branch_id`),
  key `idx_xid` (`xid`)
);

-- the table to store lock data
drop table if exists `lock_table`;
create table `lock_table` (
  `row_key` varchar(128) not null,
  `xid` varchar(96),
  `transaction_id` long ,
  `branch_id` long,
  `resource_id` varchar(256) ,
  `table_name` varchar(32) ,
  `pk` varchar(36) ,
  `gmt_create` datetime ,
  `gmt_modified` datetime,
  primary key(`row_key`)
);


image-20200712165946507

registry.conf

将conf目录下的registry.conf备份registry - 副本.conf后修改,目的是:指明注册中心为nacos,及修改nacos连接信息

image-20200712170308132

测试

先启动Nacos,在从bin目录下点击seata-server.bat运行Seta Server

image-20200712170527779

运行成功!

数据库准备

seata_order: 存储订单的数据库

seata_storage:存储库存的数据库

seata_account: 存储账户信息的数据库

CREATE DATABASE seata_order;

CREATE DATABASE seata_storage;

CREATE DATABASE seata_account;

image-20200712172428917

seata_order库下建t_order

image-20200712172534279

CREATE TABLE t_order(
    `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
    `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
    `product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
    `count` INT(11) DEFAULT NULL COMMENT '数量',
    `money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',
    `status` INT(1) DEFAULT NULL COMMENT '订单状态:0:创建中; 1:已完结'
) ENGINE=INNODB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;

SELECT * FROM t_order;

seata_storage库下建t_storage

image-20200712173002472

CREATE TABLE t_storage(
    `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
    `product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
   `total` INT(11) DEFAULT NULL COMMENT '总库存',
    `used` INT(11) DEFAULT NULL COMMENT '已用库存',
    `residue` INT(11) DEFAULT NULL COMMENT '剩余库存'
) ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO seata_storage.t_storage(`id`,`product_id`,`total`,`used`,`residue`)
VALUES('1','1','100','0','100');


SELECT * FROM t_storage;

seata_account库下建t_account

image-20200712173255119

CREATE TABLE t_account(
    `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',
    `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
    `total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',
    `used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用余额',
    `residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'
) ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO seata_account.t_account(`id`,`user_id`,`total`,`used`,`residue`) VALUES('1','1','1000','0','1000');

SELECT * FROM t_account;

按照上述3库分别建对应的回滚日志表db_undo_log.sql

image-20200712173814390

CREATE TABLE `undo_log` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(100) NOT NULL,
  `context` varchar(128) NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(11) NOT NULL,
  `log_created` datetime NOT NULL,
  `log_modified` datetime NOT NULL,
  `ext` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

环境搭建

下订单->减库存->扣余额->改(订单)状态

新建订单Order-Module

创建模块seata-order-service2001

image-20200712192234428

pom

<dependencies>
    <!--nacos-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <!--seata-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
        <exclusions>
            <exclusion>
                <artifactId>seata-all</artifactId>
                <groupId>io.seata</groupId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>io.seata</groupId>
        <artifactId>seata-all</artifactId>
        <version>1.0.0</version>
    </dependency>
    <!--feign-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>
    <!--web-actuator-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!--mysql-druid-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.37</version>
    </dependency>
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid-spring-boot-starter</artifactId>
        <version>1.1.10</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>2.0.0</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
</dependencies>

yml

server:
  port: 2001

spring:
  application:
    name: seata-order-service
  cloud:
    alibaba:
      seata:
        #自定义事务组名称需要与seata-server中的对应
        tx-service-group: kylin_tx_group
    nacos:
      discovery:
        server-addr: localhost:8848
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/seata_order
    username: root
    password: kylin

feign:
  hystrix:
    enabled: false

logging:
  level:
    io:
      seata: info

mybatis:
  mapperLocations: classpath:mapper/*.xml

file.conf

transport {
  # tcp udt unix-domain-socket
  type = "TCP"
  #NIO NATIVE
  server = "NIO"
  #enable heartbeat
  heartbeat = true
  #thread factory for netty
  thread-factory {
    boss-thread-prefix = "NettyBoss"
    worker-thread-prefix = "NettyServerNIOWorker"
    server-executor-thread-prefix = "NettyServerBizHandler"
    share-boss-worker = false
    client-selector-thread-prefix = "NettyClientSelector"
    client-selector-thread-size = 1
    client-worker-thread-prefix = "NettyClientWorkerThread"
    # netty boss thread size,will not be used for UDT
    boss-thread-size = 1
    #auto default pin or 8
    worker-thread-size = 8
  }
  shutdown {
    # when destroy server, wait seconds
    wait = 3
  }
  serialization = "seata"
  compressor = "none"
}

service {

  vgroup_mapping.kylin_tx_group = "default" #修改自定义事务组名称

  default.grouplist = "127.0.0.1:8091"
  enableDegrade = false
  disable = false
  max.commit.retry.timeout = "-1"
  max.rollback.retry.timeout = "-1"
  disableGlobalTransaction = false
}


client {
  async.commit.buffer.limit = 10000
  lock {
    retry.internal = 10
    retry.times = 30
  }
  report.retry.count = 5
  tm.commit.retry.count = 1
  tm.rollback.retry.count = 1
}

## transaction log store
store {
  ## store mode: file、db
  mode = "db"

  ## file store
  file {
    dir = "sessionStore"

    # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
    max-branch-session-size = 16384
    # globe session size , if exceeded throws exceptions
    max-global-session-size = 512
    # file buffer size , if exceeded allocate new buffer
    file-write-buffer-cache-size = 16384
    # when recover batch read size
    session.reload.read_size = 100
    # async, sync
    flush-disk-mode = async
  }

  ## database store
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
    datasource = "dbcp"
    ## mysql/oracle/h2/oceanbase etc.
    db-type = "mysql"
    driver-class-name = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata"
    user = "root"
    password = "kylin"
    min-conn = 1
    max-conn = 3
    global.table = "global_table"
    branch.table = "branch_table"
    lock-table = "lock_table"
    query-limit = 100
  }
}
lock {
  ## the lock store mode: local、remote
  mode = "remote"

  local {
    ## store locks in user's database
  }

  remote {
    ## store locks in the seata's server
  }
}
recovery {
  #schedule committing retry period in milliseconds
  committing-retry-period = 1000
  #schedule asyn committing retry period in milliseconds
  asyn-committing-retry-period = 1000
  #schedule rollbacking retry period in milliseconds
  rollbacking-retry-period = 1000
  #schedule timeout retry period in milliseconds
  timeout-retry-period = 1000
}

transaction {
  undo.data.validation = true
  undo.log.serialization = "jackson"
  undo.log.save.days = 7
  #schedule delete expired undo_log in milliseconds
  undo.log.delete.period = 86400000
  undo.log.table = "undo_log"
}

## metrics settings
metrics {
  enabled = false
  registry-type = "compact"
  # multi exporters use comma divided
  exporter-list = "prometheus"
  exporter-prometheus-port = 9898
}

support {
  ## spring
  spring {
    # auto proxy the DataSource bean
    datasource.autoproxy = false
  }
}

registry.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"

  nacos {
    serverAddr = "localhost:8848"
    namespace = ""
    cluster = "default"
  }
  eureka {
    serviceUrl = "http://localhost:8761/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = "0"
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}

config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "file"

  nacos {
    serverAddr = "localhost"
    namespace = ""
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    app.id = "seata-server"
    apollo.meta = "http://192.168.1.204:8801"
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}

domain

CommonResult

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T>
{
    private Integer code;
    private String  message;
    private T       data;

    public CommonResult(Integer code, String message)
    {
        this(code,message,null);
    }
}

Order

image-20200712193856471

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Order
{
    private Long id;

    private Long userId;

    private Long productId;

    private Integer count;

    private BigDecimal money;

    private Integer status; //订单状态:0:创建中;1:已完结
}

Dao

OrderDao

image-20200712194033770

@Mapper
public interface OrderDao {
    //新建订单
    void create(Order order);

    //修改订单状态,从零改为1
    void update(@Param("userId") Long userId, @Param("status") Integer status);
}

resources文件夹下新建mapper文件夹后添加OrderMapper.xml

image-20200712195738889

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

<mapper namespace="com.kylin.dao.OrderDao">

    <resultMap id="BaseResultMap" type="com.kylin.domain.Order">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <result column="user_id" property="userId" jdbcType="BIGINT"/>
        <result column="product_id" property="productId" jdbcType="BIGINT"/>
        <result column="count" property="count" jdbcType="INTEGER"/>
        <result column="money" property="money" jdbcType="DECIMAL"/>
        <result column="status" property="status" jdbcType="INTEGER"/>
    </resultMap>

    <insert id="create">
        insert into t_order (id,user_id,product_id,count,money,status)
        values (null,#{userId},#{productId},#{count},#{money},0);
    </insert>


    <update id="update">
        update t_order set status = 1
        where user_id=#{userId} and status = #{status};
    </update>

</mapper>

Service

OrderService

image-20200712194412177

public interface OrderService {
    void create(Order order);
}

OrderServiceImpl实现接口

image-20200712194508354

@Service
@Slf4j
public class OrderServiceImpl implements OrderService {
    @Resource
    private OrderDao orderDao;
    @Resource
    private StorageService storageService;
    @Resource
    private AccountService accountService;

    /**
     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     * 简单说:下订单->扣库存->减余额->改状态
     */
    @Override
    @GlobalTransactional(name = "fsp-create-order", rollbackFor = Exception.class)
    public void create(Order order) {
        log.info("----->开始新建订单");
        //1 新建订单
        orderDao.create(order);

        //2 扣减库存
        log.info("----->订单微服务开始调用库存,做扣减Count");
        storageService.decrease(order.getProductId(), order.getCount());
        log.info("----->订单微服务开始调用库存,做扣减end");

        //3 扣减账户
        log.info("----->订单微服务开始调用账户,做扣减Money");
        accountService.decrease(order.getUserId(), order.getMoney());
        log.info("----->订单微服务开始调用账户,做扣减end");

        //4 修改订单状态,从零到1,1代表已经完成
        log.info("----->修改订单状态开始");
        orderDao.update(order.getUserId(), 0);
        log.info("----->修改订单状态结束");

        log.info("----->下订单结束了,O(∩_∩)O哈哈~");

    }
}

StorageService

image-20200712194622630

@FeignClient(value = "seata-storage-service")
public interface StorageService {
    @PostMapping(value = "/storage/decrease")
    CommonResult decrease(@RequestParam("productId") Long productId, @RequestParam("count") Integer count);
}

AccountService

image-20200712194700022

@FeignClient(value = "seata-account-service")
public interface AccountService {
    @PostMapping(value = "/account/decrease")
    CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}

Controller

image-20200712194800233

@RestController
public class OrderController {
    @Resource
    private OrderService orderService;


    @GetMapping("/order/create")
    public CommonResult create(Order order) {
        orderService.create(order);
        return new CommonResult(200, "订单创建成功");
    }
}


Config

MyBatisConfig

image-20200712195109767

@Configuration
@MapperScan({"com.kylin.dao"})
public class MyBatisConfig {
}

DataSourceProxyConfig

image-20200712195327791

import com.alibaba.druid.pool.DruidDataSource;
import io.seata.rm.datasource.DataSourceProxy;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.transaction.SpringManagedTransactionFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import javax.sql.DataSource;

@Configuration
public class DataSourceProxyConfig {


    @Value("${mybatis.mapperLocations}")
    private String mapperLocations;


    @Bean
    @ConfigurationProperties(prefix = "spring.datasource")
    public DataSource druidDataSource(){
        return new DruidDataSource();
    }


    @Bean
    public DataSourceProxy dataSourceProxy(DataSource dataSource) {
        return new DataSourceProxy(dataSource);
    }


    @Bean
    public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(dataSourceProxy);
        sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
        sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
        return sqlSessionFactoryBean.getObject();
    }

}

主启动类

image-20200712195435478

@EnableDiscoveryClient
@EnableFeignClients
@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)//取消数据源自动创建的配置
public class SeataOrderMainApp2001 {

    public static void main(String[] args) {
        SpringApplication.run(SeataOrderMainApp2001.class, args);
    }
}

新建库存Storage-Module

创建模块seata-order-service2002

image-20200712195853583

pom

<dependencies>
    <!--nacos-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <!--seata-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
        <exclusions>
            <exclusion>
                <artifactId>seata-all</artifactId>
                <groupId>io.seata</groupId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>io.seata</groupId>
        <artifactId>seata-all</artifactId>
        <version>1.0.0</version>
    </dependency>
    <!--feign-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>2.0.0</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.37</version>
    </dependency>
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid-spring-boot-starter</artifactId>
        <version>1.1.10</version>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
</dependencies>

yml

server:
  port: 2002

spring:
  application:
    name: seata-storage-service
  cloud:
    alibaba:
      seata:
        tx-service-group: kylin_tx_group
    nacos:
      discovery:
        server-addr: localhost:8848
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/seata_storage
    username: root
    password: kylin

logging:
  level:
    io:
      seata: info

mybatis:
  mapperLocations: classpath:mapper/*.xml

file.conf

保持一致

registry.conf

保持一致

domain

CommonResult一致

Storage

@Data
public class Storage {

    private Long id;

    // 产品id
    private Long productId;

    //总库存
    private Integer total;


    //已用库存
    private Integer used;


    //剩余库存
    private Integer residue;
}

Dao

StorageDao

@Mapper
public interface StorageDao {

    //扣减库存信息
    void decrease(@Param("productId") Long productId, @Param("count") Integer count);
}

resources文件夹下新建mapper文件夹后添加StorageMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >


<mapper namespace="com.kylin.dao.StorageDao">

    <resultMap id="BaseResultMap" type="com.kylin.domain.Storage">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <result column="product_id" property="productId" jdbcType="BIGINT"/>
        <result column="total" property="total" jdbcType="INTEGER"/>
        <result column="used" property="used" jdbcType="INTEGER"/>
        <result column="residue" property="residue" jdbcType="INTEGER"/>
    </resultMap>

    <update id="decrease">
        UPDATE
            t_storage
        SET
            used = used + #{count},residue = residue - #{count}
        WHERE
            product_id = #{productId}
    </update>

</mapper>

Service

StorageServicej接口

image-20200712200832904

public interface StorageService {

    // 扣减库存
    void decrease(Long productId, Integer count);
}


实现类StorageServiceImpl

import com.kylin.dao.StorageDao;
import com.kylin.service.StorageService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service
public class StorageServiceImpl implements StorageService {

    private static final Logger LOGGER = LoggerFactory.getLogger(StorageServiceImpl.class);

    @Resource
    private StorageDao storageDao;

    // 扣减库存
    @Override
    public void decrease(Long productId, Integer count) {
        LOGGER.info("------->storage-service中扣减库存开始");
        storageDao.decrease(productId,count);
        LOGGER.info("------->storage-service中扣减库存结束");
    }
}

Controller

StorageController

Config

保持一致

主启动类

@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
@EnableDiscoveryClient
@EnableFeignClients
public class SeataStorageServiceApplication2002 {
    public static void main(String[] args) {
        SpringApplication.run(SeataStorageServiceApplication2002.class, args);
    }
}

新建账户Account-Module

创建seata-order-service2003

image-20200712201231467

pom

保持一致

yml

server:
  port: 2003

spring:
  application:
    name: seata-account-service
  cloud:
    alibaba:
      seata:
        tx-service-group: kylin_tx_group
    nacos:
      discovery:
        server-addr: localhost:8848
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/seata_account
    username: root
    password: kylin

feign:
  hystrix:
    enabled: false

logging:
  level:
    io:
      seata: info

mybatis:
  mapperLocations: classpath:mapper/*.xml

file.conf

保持一致

registry.conf

保持一致

domain

CommonResult一致

Account

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Account {

    private Long id;

    /**
     * 用户id
     */
    private Long userId;

    /**
     * 总额度
     */
    private BigDecimal total;

    /**
     * 已用额度
     */
    private BigDecimal used;

    /**
     * 剩余额度
     */
    private BigDecimal residue;
}


Dao

AccountDao

@Mapper
public interface AccountDao {

    /**
     * 扣减账户余额
     */
    void decrease(@Param("userId") Long userId, @Param("money") BigDecimal money);
}

resources文件夹下新建mapper文件夹后添加AccountMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

<mapper namespace="com.kylin.dao.AccountDao">

    <resultMap id="BaseResultMap" type="com.kylin.domain.Account">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <result column="user_id" property="userId" jdbcType="BIGINT"/>
        <result column="total" property="total" jdbcType="DECIMAL"/>
        <result column="used" property="used" jdbcType="DECIMAL"/>
        <result column="residue" property="residue" jdbcType="DECIMAL"/>
    </resultMap>

    <update id="decrease">
        UPDATE t_account
        SET
          residue = residue - #{money},used = used + #{money}
        WHERE
          user_id = #{userId};
    </update>

</mapper>

Service

AccountService

public interface AccountService {

    /**
     * 扣减账户余额
     */
    void decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}


AccountServiceImpl实现类

/**
 * 账户业务实现类
 */
@Service
public class AccountServiceImpl implements AccountService {

    private static final Logger LOGGER = LoggerFactory.getLogger(AccountServiceImpl.class);


    @Resource
    AccountDao accountDao;

    /**
     * 扣减账户余额
     */
    @Override
    public void decrease(Long userId, BigDecimal money) {

        LOGGER.info("------->account-service中扣减账户余额开始");
        try {
            TimeUnit.SECONDS.sleep(20);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        accountDao.decrease(userId, money);
        LOGGER.info("------->account-service中扣减账户余额结束");
    }
}

Controller

AccountController

@RestController
public class AccountController {

    @Resource
    AccountService accountService;

    /**
     * 扣减账户余额
     */
    @RequestMapping("/account/decrease")
    public CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money){
        accountService.decrease(userId,money);
        return new CommonResult(200,"扣减账户余额成功!");
    }
}

Config

保持一致

主启动类

SeataAccountMainApp2003

@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
@EnableDiscoveryClient
@EnableFeignClients
public class SeataAccountMainApp2003 {
    public static void main(String[] args) {
        SpringApplication.run(SeataAccountMainApp2003.class, args);
    }
}

测试

访问http://localhost:2001/order/create?userId=1&productId=1&count=10&money=100

image-20200713084531519

image-20200713084519706

AccountServiceImpl添加超时

image-20200713084726949

重新启动访问http://localhost:2001/order/create?userId=1&productId=1&count=10&money=100

image-20200713084911232

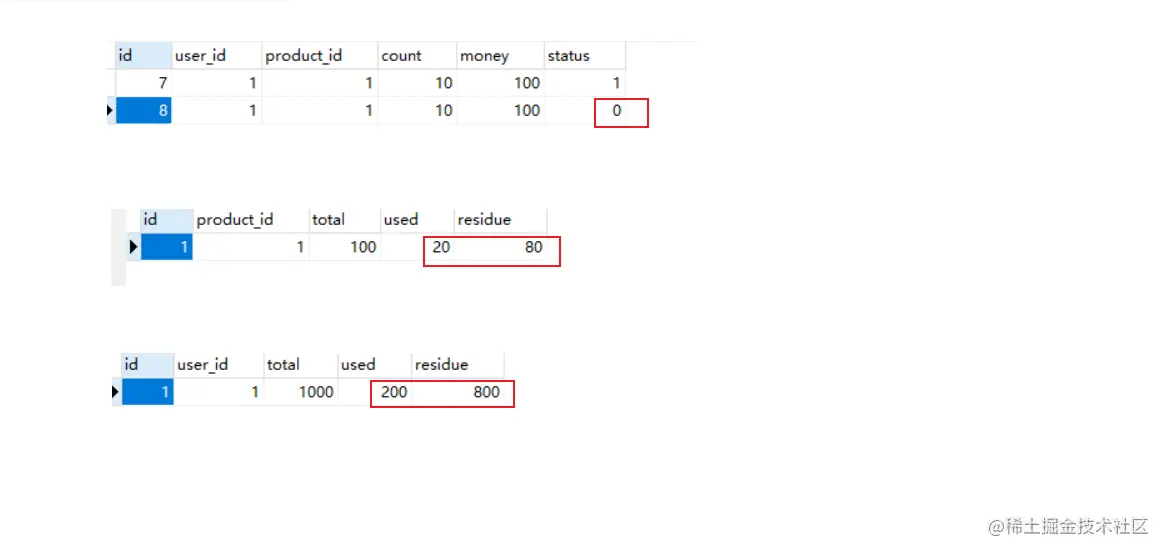

image-20200713085137508

当库存和账户余额扣减后,订单状态并没有设置为已经完成,没有从零改为1,而且由于feign的重试机制,账户余额还有可能被多次扣减。

使用@GlobalTransactional

image-20200713085319179

再次测试http://localhost:2001/order/create?userId=1&productId=1&count=10&money=100

image-20200713085549131

下单后数据库数据并没有任何改变。记录都添加不进来

image-20200713085628128
