背景

当你使用下面代码不断分配内存时，最终导致物理内存耗尽，手机所有应用进程被杀死。 在一次 crash问题排查过程中，现象是crash但是并没有crash日志的捕获，后面排查到就是内存泄露导致的lowmemory 。那么线上如何去监控这种lowmemory killer的情况呢，

JNIEXPORT  void JNICALL
Java_com_test_Java2C_tm(JNIEnv *env, jclass clazz, jlong size) {
    char * t =(char *) malloc(size);
    memset(t,0,size);

}

监控方式

Android R之后system 进程给应用进程提供了一个api 应用进程可以调用android.app.ActivityManager的getHistoricalProcessExitReasons 查看应用的历史被杀原因。 我们每次启动时可以去使用下这个api 查看被杀记录并进行上报。

Return a list of ApplicationExitInfo records containing the reasons for the most recent app deaths.
Note: System stores this historical information in a ring buffer and only the most recent records will be returned.
Note: In the case that this application was bound to an external service with flag Context.BIND_EXTERNAL_SERVICE, the process of that external service will be included in this package's exit info.
Params:
packageName – Optional, a null value means match all packages belonging to the caller's UID. If this package belongs to another UID, you must hold Manifest.permission.DUMP in order to retrieve it.
pid – A process ID that used to belong to this package but died later; a value of 0 means to ignore this parameter and return all matching records.
maxNum – The maximum number of results to be returned; a value of 0 means to ignore this parameter and return all matching records
Returns:

public List<ApplicationExitInfo> getHistoricalProcessExitReasons(@Nullable String packageName,
        @IntRange(from = 0) int pid, @IntRange(from = 0) int maxNum) {
    try {
        ParceledListSlice<ApplicationExitInfo> r = getService().getHistoricalProcessExitReasons(
                packageName, pid, maxNum, mContext.getUserId());
        return r == null ? Collections.emptyList() : r.getList();
    } catch (RemoteException e) {
        throw e.rethrowFromSystemServer();
    }
}

查看ApplicationExitInfo 根据mReason字段大概可以区分下面原因，类型3就是low memory killer 用上面泄漏测试代码测试后 确实得到了3。

类型	描述
1	进程自杀(System#exit)
2	OS signal(OsConstants#SIGKILL)
3	low memory killer
4	java crash
5	native crash
6	anr
7	REASON_INITIALIZATION_FAILURE
8	运行时权限变更
9	过度使用资源
10	用户主动杀进程
11	设备多用户杀场景进程
12	REASON_DEPENDENCY_DIED
13	REASON_OTHER

还有几个ApplicationExitInfo相关字段

mImportance 退出时进程的优先级

应用在前台：100

应用在后台：400

mPss: 退出时进程占用内存

mTimestamp: 进程退出时间戳

指标建立

设备维度分析

简单探究下lowmemory kill的机制

源码搜索(基于Android 13)

搜索后发现这个原因的杀进程 并不是发生在system_server进程中，而是通过 lmkd进程完成 再通知到system_server进程 在com.android.server.am.ProcessList 中发现 mAppExitInfoSourceLmkd

/**
 * Bookkeeping low memory kills info from lmkd.
 */
final AppExitInfoExternalSource mAppExitInfoSourceLmkd =
        new AppExitInfoExternalSource("lmkd", ApplicationExitInfo.REASON_LOW_MEMORY);

堆栈调试

com.android.server.am.LmkdConnection 中 system_server进程通过LocalSocket与lmkd连接 lmkd进程杀进程后会通知到 system_server进程 system_server进程再进行记录

public boolean connect() {
    synchronized (mLmkdSocketLock) {
        if (mLmkdSocket != null) {
            return true;
        }
        // temporary sockets and I/O streams
        final LocalSocket socket = openSocket();

        if (socket == null) {
            Slog.w(TAG, "Failed to connect to lowmemorykiller, retry later");
            return false;
        }

        final OutputStream ostream;
        final InputStream istream;
        try {
            ostream = socket.getOutputStream();
            istream = socket.getInputStream();
        } catch (IOException ex) {
            IoUtils.closeQuietly(socket);
            return false;
        }
        // execute onConnect callback
        if (mListener != null && !mListener.onConnect(ostream)) {
            Slog.w(TAG, "Failed to communicate with lowmemorykiller, retry later");
            IoUtils.closeQuietly(socket);
            return false;
        }
        // connection established
        mLmkdSocket = socket;
        mLmkdOutputStream = ostream;
        mLmkdInputStream = istream;
        mMsgQueue.addOnFileDescriptorEventListener(mLmkdSocket.getFileDescriptor(),
            EVENT_INPUT | EVENT_ERROR,
            new MessageQueue.OnFileDescriptorEventListener() {
                public int onFileDescriptorEvents(FileDescriptor fd, int events) {
                    return fileDescriptorEventHandler(fd, events);
                }
            }
        );
        mLmkdSocketLock.notifyAll();
    }
    return true;
}

        at com.android.server.am.ProcessList$1.handleUnsolicitedMessage(ProcessList.java:810)
        at com.android.server.am.LmkdConnection.processIncomingData(LmkdConnection.java:217)
        at com.android.server.am.LmkdConnection.fileDescriptorEventHandler(LmkdConnection.java:172)
        at com.android.server.am.LmkdConnection.-$$Nest$mfileDescriptorEventHandler(Unknown Source:0)
        at com.android.server.am.LmkdConnection$1.onFileDescriptorEvents(LmkdConnection.java:158)
        at android.os.MessageQueue.dispatchEvents(MessageQueue.java:293)
        at android.os.MessageQueue.nativePollOnce(Native Method)
        at android.os.MessageQueue.next(MessageQueue.java:335)
        at android.os.Looper.loopOnce(Looper.java:161)
        at android.os.Looper.loop(Looper.java:288)
        at android.os.HandlerThread.run(HandlerThread.java:67)
        at com.android.server.ServiceThread.run(ServiceThread.java:44)

        at com.android.server.am.AppExitInfoTracker.updateExistingExitInfoRecordLocked(AppExitInfoTracker.java:477)
        at com.android.server.am.AppExitInfoTracker.handleNoteProcessDiedLocked(AppExitInfoTracker.java:392)
        at com.android.server.am.AppExitInfoTracker$KillHandler.handleMessage(AppExitInfoTracker.java:1632)
        at android.os.Handler.dispatchMessage(Handler.java:106)
        at android.os.Looper.loopOnce(Looper.java:201)
        at android.os.Looper.loop(Looper.java:288)
        at android.os.HandlerThread.run(HandlerThread.java:67)
        at com.android.server.ServiceThread.run(ServiceThread.java:44)

LMKD进程分析

Logcat 下面就按照这个logcat的case 去分析。

2023-04-13 13:49:24.921 456-456/? I/lowmemorykiller: Kill 'com.test' (9213), uid 10251, oom_score_adj 700 to free 128292kB rss, 50152kB swap; reason: low watermark is breached and swap is low (852kB < 314572kB)

上面可以看到杀进程是由lmkd进行的。 杀完之后会通知到我们的system_server进程。 我们继续去跟进一下lmkd

代码位置 system/memory/lmkd

enum lmk_cmd {
    LMK_TARGET = 0,         /* Associate minfree with oom_adj_score */
    LMK_PROCPRIO,           /* Register a process and set its oom_adj_score */
    LMK_PROCREMOVE,         /* Unregister a process */
    LMK_PROCPURGE,          /* Purge all registered processes */
    LMK_GETKILLCNT,         /* Get number of kills */
    LMK_SUBSCRIBE,          /* Subscribe for asynchronous events */
    LMK_PROCKILL,           /* Unsolicited msg to subscribed clients on proc kills */
    LMK_UPDATE_PROPS,       /* Reinit properties */
    LMK_STAT_KILL_OCCURRED, /* Unsolicited msg to subscribed clients on proc kills for statsd log */
    LMK_STAT_STATE_CHANGED, /* Unsolicited msg to subscribed clients on state changed */
};

lmkd.h中也有LMK_PROCKILL定义。我们通过这个去追踪

static inline size_t lmkd_pack_set_prockills(LMKD_CTRL_PACKET packet, pid_t pid, uid_t uid) {
    packet[0] = htonl(LMK_PROCKILL);
    packet[1] = htonl(pid);
    packet[2] = htonl(uid);
    return 3 * sizeof(int);
}

static void ctrl_data_write_lmk_kill_occurred(pid_t pid, uid_t uid) {
    LMKD_CTRL_PACKET packet;
    size_t len = lmkd_pack_set_prockills(packet, pid, uid);

    for (int i = 0; i < MAX_DATA_CONN; i++) {
        if (data_sock[i].sock >= 0 && data_sock[i].async_event_mask & 1 << LMK_ASYNC_EVENT_KILL) {
            ctrl_data_write(i, (char*)packet, len);
        }
    }
}

static int kill_one_process(struct proc* procp, int min_oom_score, struct kill_info *ki,
                            union meminfo *mi, struct wakeup_info *wi, struct timespec *tm,
                            struct psi_data *pd) {
    int pid = procp->pid;
    int pidfd = procp->pidfd;
    uid_t uid = procp->uid;
    char *taskname;
    int kill_result;
    int result = -1;
    struct memory_stat *mem_st;
    struct kill_stat kill_st;
    int64_t tgid;
    int64_t rss_kb;
    int64_t swap_kb;
    char buf[PAGE_SIZE];
    char desc[LINE_MAX];

    if (!procp->valid || !read_proc_status(pid, buf, sizeof(buf))) {
        goto out;
    }
    if (!parse_status_tag(buf, PROC_STATUS_TGID_FIELD, &tgid)) {
        ALOGE("Unable to parse tgid from /proc/%d/status", pid);
        goto out;
    }
    if (tgid != pid) {
        ALOGE("Possible pid reuse detected (pid %d, tgid %" PRId64 ")!", pid, tgid);
        goto out;
    }
    // Zombie processes will not have RSS / Swap fields.
    if (!parse_status_tag(buf, PROC_STATUS_RSS_FIELD, &rss_kb)) {
        goto out;
    }
    if (!parse_status_tag(buf, PROC_STATUS_SWAP_FIELD, &swap_kb)) {
        goto out;
    }

    taskname = proc_get_name(pid, buf, sizeof(buf));
    // taskname will point inside buf, do not reuse buf onwards.
    if (!taskname) {
        goto out;
    }

    mem_st = stats_read_memory_stat(per_app_memcg, pid, uid, rss_kb * 1024, swap_kb * 1024);

    snprintf(desc, sizeof(desc), "lmk,%d,%d,%d,%d,%d", pid, ki ? (int)ki->kill_reason : -1,
             procp->oomadj, min_oom_score, ki ? ki->max_thrashing : -1);

    result = lmkd_free_memory_before_kill_hook(procp, rss_kb / page_k, procp->oomadj,
                                               ki ? (int)ki->kill_reason : -1);
    if (result > 0) {
      /*
       * Memory was freed elsewhere; no need to kill. Note: intentionally do not
       * pid_remove(pid) since it was not killed.
       */
      ALOGI("Skipping kill; %ld kB freed elsewhere.", result * page_k);
      return result;
    }

    trace_kill_start(desc);

    start_wait_for_proc_kill(pidfd < 0 ? pid : pidfd);
    kill_result = reaper.kill({ pidfd, pid, uid }, false);

    trace_kill_end();

    if (kill_result) {
        stop_wait_for_proc_kill(false);
        ALOGE("kill(%d): errno=%d", pid, errno);
        /* Delete process record even when we fail to kill so that we don't get stuck on it */
        goto out;
    }

    last_kill_tm = *tm;

    inc_killcnt(procp->oomadj);

    if (ki) {
        kill_st.kill_reason = ki->kill_reason;
        kill_st.thrashing = ki->thrashing;
        kill_st.max_thrashing = ki->max_thrashing;
        ALOGI("Kill '%s' (%d), uid %d, oom_score_adj %d to free %" PRId64 "kB rss, %" PRId64
              "kB swap; reason: %s", taskname, pid, uid, procp->oomadj, rss_kb, swap_kb,
              ki->kill_desc);
    } else {
        kill_st.kill_reason = NONE;
        kill_st.thrashing = 0;
        kill_st.max_thrashing = 0;
        ALOGI("Kill '%s' (%d), uid %d, oom_score_adj %d to free %" PRId64 "kB rss, %" PRId64
              "kb swap", taskname, pid, uid, procp->oomadj, rss_kb, swap_kb);
    }
    killinfo_log(procp, min_oom_score, rss_kb, swap_kb, ki, mi, wi, tm, pd);

    kill_st.uid = static_cast<int32_t>(uid);
    kill_st.taskname = taskname;
    kill_st.oom_score = procp->oomadj;
    kill_st.min_oom_score = min_oom_score;
    kill_st.free_mem_kb = mi->field.nr_free_pages * page_k;
    kill_st.free_swap_kb = get_free_swap(mi) * page_k;
    stats_write_lmk_kill_occurred(&kill_st, mem_st);

    ctrl_data_write_lmk_kill_occurred((pid_t)pid, uid);

    result = rss_kb / page_k;

out:
    /*
     * WARNING: After pid_remove() procp is freed and can't be used!
     * Therefore placed at the end of the function.
     */
    pid_remove(pid);
    return result;
}

kill_one_process 函数中 ALOGI("Kill '%s' (%d), uid %d, oom_score_adj %d to free %" PRId64 "kB rss, %" PRId64

"kB swap; reason: %s", taskname, pid, uid, procp->oomadj, rss_kb, swap_kb,

ki->kill_desc);的打印日志 也和我们控制台的匹配上了。

2023-04-13 13:49:24.921 456-456/? I/lowmemorykiller: Kill 'com.shizhuang.duapp' (9213), uid 10251, oom_score_adj 700 to free 128292kB rss, 50152kB swap; reason: low watermark is breached and swap is low (852kB < 314572kB)

调用堆栈

mp_event_psi->find_and_kill_process ->kill_one_process->ctrl_data_write_lmk_kill_occurred

mp_event_psi是通过监听/proc/pressure/memory触发的。

/proc/pressure/memory是Linux系统中的一个文件，用于记录内存压力情况。该文件提供了三个指标：内存使用情况（memory), 内存回收情况（memory_stall）和页面交换情况（swap）。
memory：该指标表示系统内存的压力情况。当可用内存不足时，会发生内存压力，导致程序运行缓慢或崩溃。该指标记录了最近一段时间内内存的使用情况，以及内存压力的强度和持续时间等信息。
memory_stall：该指标表示系统内存回收的情况。当系统回收内存时，会发生内存回收压力，影响程序的执行效率。该指标记录了最近一段时间内内存回收的次数、持续时间和回收的页数等信息。
swap：该指标表示系统页面交换的情况。当系统内存不足时，会将不常用的数据存储到交换分区中，以释放内存空间。该指标记录了最近一段时间内页面交换的次数、持续时间和交换的页数等信息。
通过查看/proc/pressure/memory文件，可以了解当前系统的内存使用情况和内存压力情况，从而优化系统的内存管理和程序的执行效率

日志 杀进程条件判断

swap_is_low判断条件 ：SwapFree < SwapTotal*swap_free_low_percentage/100

• SwapFree 和SwapTotal都是通过 /proc/meminfo文件获取的 比如我的机器是SwapTotal: 3145724 kB 而日志是314572kB可以判断swap_free_low_percentage=10

wmark判断条件： MemFree-CmaFree< WMARK_HIGH. WMARK_HIGH是从/proc/zoneinfo 获取的 high

总之就是可用内存越小越容易满足这个条件

else if (swap_is_low && wmark < WMARK_HIGH) {
        /* Both free memory and swap are low */
        kill_reason = LOW_MEM_AND_SWAP;
        snprintf(kill_desc, sizeof(kill_desc), "%s watermark is breached and swap is low (%"
            PRId64 "kB < %" PRId64 "kB)", wmark < WMARK_LOW ? "min" : "low",
            get_free_swap(&mi) * page_k, swap_low_threshold * page_k);
        /* Do not kill perceptible apps unless below min watermark or heavily thrashing */
        if (wmark > WMARK_MIN && thrashing < thrashing_critical_pct) {
            min_score_adj = PERCEPTIBLE_APP_ADJ + 1;
        }
    }

杀进程顺序

通过find_and_kill_process 杀进程

按照进程的oom_score_adj从大到小去杀，相同优先级先杀rss占用较大进程

杀完进程后通过ctrl_data_write_lmk_kill_occurred 通知到system_server进程。

 for (i = OOM_SCORE_ADJ_MAX; i >= min_score_adj; i--) {
        struct proc *procp;

        if (!choose_heaviest_task && i <= PERCEPTIBLE_APP_ADJ) {
            /*
             * If we have to choose a perceptible process, choose the heaviest one to
             * hopefully minimize the number of victims.
             */
            choose_heaviest_task = true;
        }

        while (true) {
            procp = choose_heaviest_task ?
                proc_get_heaviest(i) : proc_adj_tail(i);

            if (!procp)
                break;

            killed_size = kill_one_process(procp, min_score_adj, ki, mi, wi, tm, pd);
            if (killed_size >= 0) {
                if (!lmk_state_change_start) {
                    lmk_state_change_start = true;
                    stats_write_lmk_state_changed(STATE_START);
                }
                break;
            }
        }
        if (killed_size) {
            break;
        }
    }

进程oomadj如何通知到lmkd进程

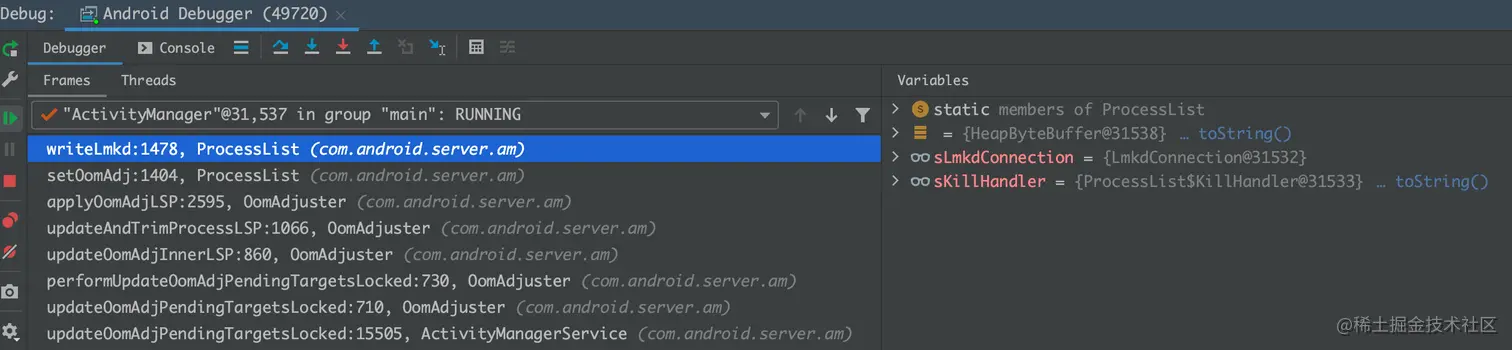

进程oom_adj改变后都会通过ProcessList.writeLmkd中sLmkdConnection通知到lmkd进程

        at com.android.server.am.ProcessList.writeLmkd(ProcessList.java:1478)
        at com.android.server.am.ProcessList.setOomAdj(ProcessList.java:1404)
        at com.android.server.am.OomAdjuster.applyOomAdjLSP(OomAdjuster.java:2595)
        at com.android.server.am.OomAdjuster.updateAndTrimProcessLSP(OomAdjuster.java:1066)
        at com.android.server.am.OomAdjuster.updateOomAdjInnerLSP(OomAdjuster.java:860)
        at com.android.server.am.OomAdjuster.performUpdateOomAdjPendingTargetsLocked(OomAdjuster.java:730)
        at com.android.server.am.OomAdjuster.updateOomAdjPendingTargetsLocked(OomAdjuster.java:710)
        at com.android.server.am.ActivityManagerService.updateOomAdjPendingTargetsLocked(ActivityManagerService.java:15505)


public static void setOomAdj(int pid, int uid, int amt) {
    // This indicates that the process is not started yet and so no need to proceed further.
    if (pid <= 0) {
        return;
    }
    if (amt == UNKNOWN_ADJ)
        return;

    long start = SystemClock.elapsedRealtime();
    ByteBuffer buf = ByteBuffer.allocate(4 * 4);
    buf.putInt(LMK_PROCPRIO);
    buf.putInt(pid);
    buf.putInt(uid);
    buf.putInt(amt);
    writeLmkd(buf, null);
    long now = SystemClock.elapsedRealtime();
    if ((now-start) > 250) {
        Slog.w("ActivityManager", "SLOW OOM ADJ: " + (now-start) + "ms for pid " + pid
                + " = " + amt);
    }
}

AMS scheduleTrimMemory机制

也就是我们application 是在什么情况下会收到onTrimMemory回调，从AMS角度去分析。

1. 我们先确定我们的内存是不是属于正常值。 这个正常值的判断是用处于proState较大的缓存的进程数来判断的。 这也可以理解 ，内存不够时会触发lmkd,缓存进程更容易被杀导致缓存进程数变少。
2. 当我们的memFactor == ProcessStats.ADJ_MEM_FACTOR_NORMA 当前被隐藏界面的进程(即用户点击了Home键或者Back键导致应用的 UI 界面不可见)会调用 scheduleTrimMemory TRIM_MEMORY_UI_HIDDEN
3. 当我们的memFactor != ProcessStats.ADJ_MEM_FACTOR_NORMA时 ，会去走scheduleTrimMemory逻辑，而 前台 的进程和后台进程的调度又是分开的
4. 先说后台进程scheduleTrimMemory逻辑 后台进程条件app.curProcState >= ActivityManager.PROCESS_STATE_HOME，我们把后台进程平均分为3份，最优先的一份 app.trimMemoryLevel = TRIM_MEMORY_COMPLETE ,第二份app.trimMemoryLevel=TRIM_MEMORY_MODERATE 最后一份app.trimMemoryLevel =TRIM_MEMORY_BACKGROUND AMS杀进程机制来看最后一份的进程是最容易被杀的。下一次检测时触发scheduleTrimMemory逻辑然后通知各进程application进行onTrimMemory
5. 再说前台进程，首先会定义一个fgTrimLevel，这个和缓存的进程数numCached有关 比如numCached<=5 fgTrimLevel=TRIM_MEMORY_RUNNING_LOW 然后再给每个进程app.trimMemoryLevel 赋值，当下一次fgTrimLevel变小时 就会触发scheduleTrimMemory逻辑。

所以说scheduleTrimMemory 并不是通过计算 内存 使用进行触发的，而是通过进程优先级较低缓存的进程数间接来判断的，缓存进程数变少了说明当前内存不够了通知应用去释放内存。
