swagger文档分版本展示

背景
日常前后端分离开发中，由于项目中接口众多，有时候前后端联调接口查看不方便，以及每个产品版本的接口不能更加直观的查看。

swagger介绍
Swagger是一个接口文档生成工具，同时提供接口测试调用的辅助功能

分版本效果展示

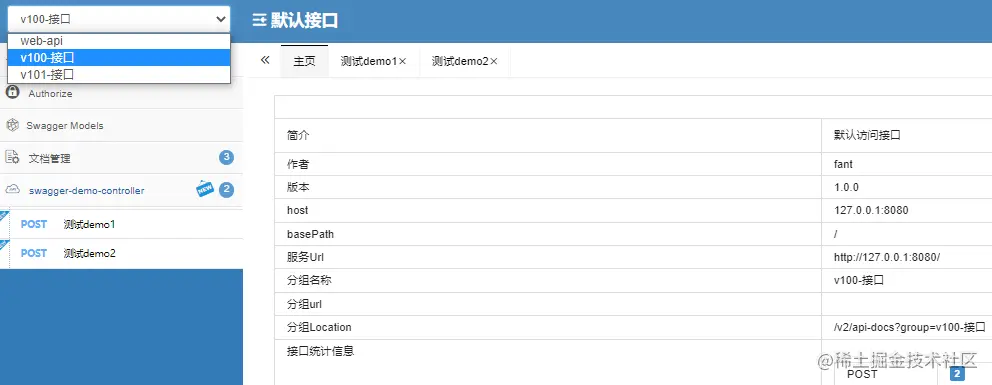

1. v100版本接口

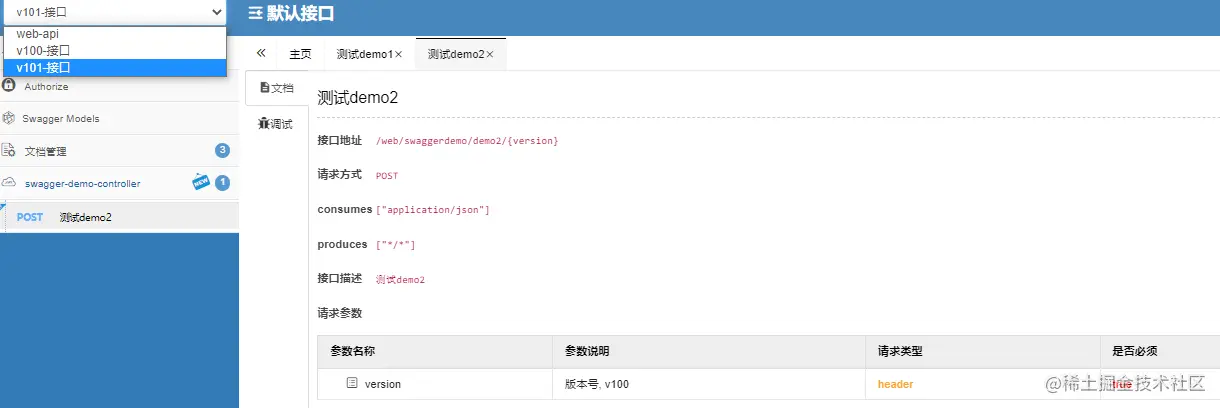

2. v101版本接口


代码详解

1. 好了，版本效果已经展示了，现在我们直接上干货，可以看到我们除了正常的swagger标签外，新增了一个版本@ApiVersion标签, 答案就在这个标签上

@RestController
@RequestMapping("/web/swaggerdemo")
public class SwaggerDemoController {

    @ApiOperation(value = "测试demo1", notes = "测试demo1")
    @ApiImplicitParam(name = "version", value = "版本号, v100", example = "v100", required = true, paramType = "header", dataType = "String")
    @ApiVersion(group = {"v100"})
    @PostMapping("/demo1/{version}")
    public JsonResultAdapter<SwaggerDemoResponse> demo1(@PathVariable("version") String version) {
        if ("v100".equals(version)) {
            SwaggerDemoResponse swaggerDemoResponse = new SwaggerDemoResponse();
            swaggerDemoResponse.setDemoValue(1);
            return JsonResultAdapter.success(swaggerDemoResponse);
        }
        return JsonResultAdapter.apiError();
    }

    @ApiOperation(value = "测试demo2", notes = "测试demo2")
    @ApiImplicitParam(name = "version", value = "版本号, v100", example = "v100", required = true, paramType = "header", dataType = "String")
    @ApiVersion(group = {"v100", "v101"})
    @PostMapping("/demo2/{version}")
    public JsonResultAdapter<SwaggerDemoResponse> demo2(@PathVariable("version") String version) {
        if ("v101".equals(version)) {
            SwaggerDemoResponse swaggerDemoResponse = new SwaggerDemoResponse();
            swaggerDemoResponse.setDemoValue(1);
            return JsonResultAdapter.success(swaggerDemoResponse);
        }
        return JsonResultAdapter.apiError();
    }
}

2. @ApiVersion, 新增标签ApiVersion

@Target({ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
public @interface ApiVersion {

  /**
   * 接口版本号(对应swagger中的group)
   *
   * @return String[]
   */
  String[] group() default {""};
}

3. 核心配置, 我们看这段代码，通过判断接口上标签是否包含该标签来实现分版本控制，最后注册到容器中\

    @PostConstruct
    public void postProcessBeanFactory() throws BeansException {
        List<Docket> list = this.docketFactory();
        if (null != list) {
            list.forEach(o -> configurableListableBeanFactory.registerSingleton(o.getGroupName(), o));
        }
    }

    public Docket docketInstance(String version, String web) {
        List<ApiKey> apiKeys = apiSecurity();
        return new Docket(DocumentationType.SWAGGER_2).enable(true).apiInfo(apiInfo()).select()
                .apis(o -> {
                    if (null != o) {
                        Optional<ApiVersion> annotation = o.findAnnotation(ApiVersion.class);
                        if (annotation.isPresent() && Arrays.asList(annotation.get().group()).contains(version)) {
                            RequestHandlerKey requestHandlerKey = o.key();
                            for (String mapping : requestHandlerKey.getPathMappings()) {
                                if (mapping.toLowerCase().startsWith(web)) {
                                    return true;
                                }
                            }
                        }
                    }
                    return false;
                })
                .paths(PathSelectors.any())
                .build()
                .groupName(version + "-" + "接口")
                .ignoredParameterTypes(HttpServletResponse.class, HttpServletRequest.class)
                .securitySchemes(apiKeys);
    }

    public List<Docket> docketFactory() {
        List<Docket> list = new ArrayList<>();
        List<String> versions = swaggerProperties.getVersions();
        if (!CollectionUtils.isEmpty(versions)) {
            versions.forEach(o -> {
                list.add(this.docketInstance(o, "/web"));
            });
        }
        return list;
    }

4. 其他配置类

 @ConfigurationProperties(
         prefix = "fant.swagger",
         ignoreUnknownFields = true
 )
 @Data
 public class SwaggerProperties {

     private boolean enable = false;
     /**
      * 分组名称是否正序排序
      */
     private boolean groupAsc = true;
     /**
      * 扫描包
      */
     private String packages = "com.fant.web";
     /**
      * 标题
      */
     private String title = "默认接口";
     /**
      * 说明
      */
     private String description = "默认访问接口";
     /**
      * 版本
      */
     private String version = "1.0.0";
     /**
      * 分组名称
      */
     private String groupName = "web-api";
     /**
      * url
      */
     private String url = "http://127.0.0.1:8080/";
     /**
      * 接口版本
      */
     private List<String> versions;
     private String serviceUrl = "http://127.0.0.1:8080/";
     private String licenseUrl = "http://127.0.0.1:8080/";
     private String authorName = "fant";
     private String authorEmail = "api@xx.com";
     private List<String> tokenKeyNames = Arrays.asList("token");
     private List<String> authKeyNames = Arrays.asList("Authorization");
     public boolean isEnable() {
         return enable;
     }
     public void setEnable(boolean enable) {
         this.enable = enable;
     }
 }

分组排序

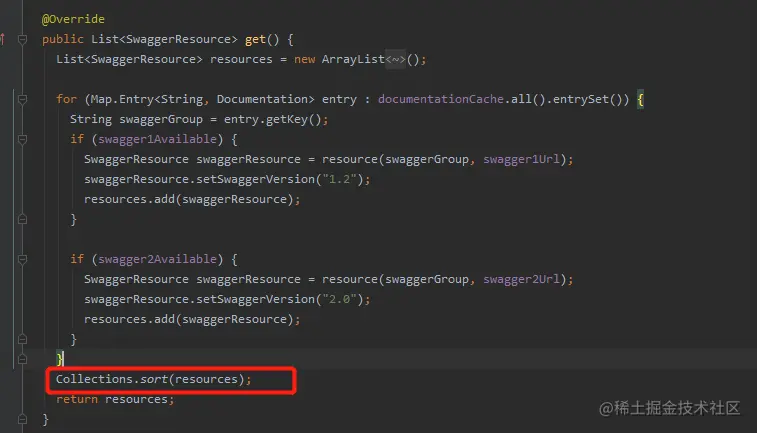

1. 上述我们已经介绍了怎么去分版本来展示接口，但是swagger默认排序是升序，这样如果版本多，就会造成我们需要下拉到最后，下面我们介绍下swagger的分组名称排序，通过查看源码得知，排序是在springfox.documentation.swagger.web.InMemorySwaggerResourcesProvider.get()方法中进行排序

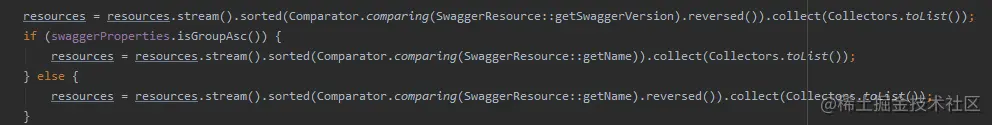

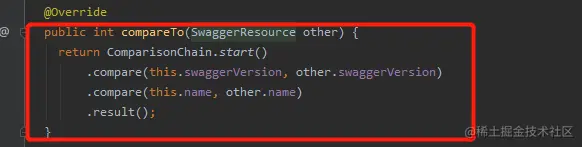

2. 而swagger的默认排序重写的compareTo方法是根据版本，再根据名称升序排序,所以可以重写该类，然后通过参数配置随时改变分组排序
