从0到1安装GPU环境-CUDA\ cuDNN

Xx658
2,531 阅读14分钟

本文介绍在Ubuntu Server 20.04.1操作系统下，为NVIDIA最新显卡RTX 3090进行Tensorflow开发环境的配置及编译安装。
编译采用的CUDA版本为11.1，cuDNN版本为8.0.5，Tensorflow版本为v2.3.0。

1. 系统安装配置

1.1 系统安装

安装Ubuntu Server 20.04.1，安装过程略。

1.2 软件配置

1.2.1 更新软件

sudo apt update
sudo apt upgrade

1.2.2 安装ssh和系统工具

sudo apt install net-tools ssh tree zip

1.2.3 安装编译相关工具

sudo apt install vim git
sudo apt install clang cmake gcc g++ make

2. 显卡驱动安装

2.1 nouveau驱动屏蔽

使用命令 lsmod |grep nouveau，查看是否在使用nouveau驱动，输出如下：

nouveau              1949696  0
mxm_wmi                16384  1 nouveau
wmi                    32768  2 mxm_wmi,nouveau
video                  49152  1 nouveau
ttm                   106496  2 drm_vram_helper,nouveau
drm_kms_helper        184320  4 ast,nouveau
i2c_algo_bit           16384  3 igb,ast,nouveau
drm                   491520  6 drm_kms_helper,drm_vram_helper,ast,ttm,nouveau

使用如下命令，屏蔽nouveau驱动，并重启机器。

sudo -s
echo -e "blacklist nouveau\noptions nouveau modeset=0" > /etc/modprobe.d/blacklist-nouveau.conf
update-initramfs -u
reboot

重启机器后，再次使用lsmod |grep nouveau命令查看，确认nouveau驱动已被屏蔽。

2.2 nvidia驱动安装

2.2.1 下载驱动

wget -c "https://us.download.nvidia.com/XFree86/Linux-x86_64/455.23.04/NVIDIA-Linux-x86_64-455.23.04.run"

2.2.2 安装驱动

chmod a+x NVIDIA-Linux-x86_64-455.23.04.run
sudo ./NVIDIA-Linux-x86_64-455.23.04.run

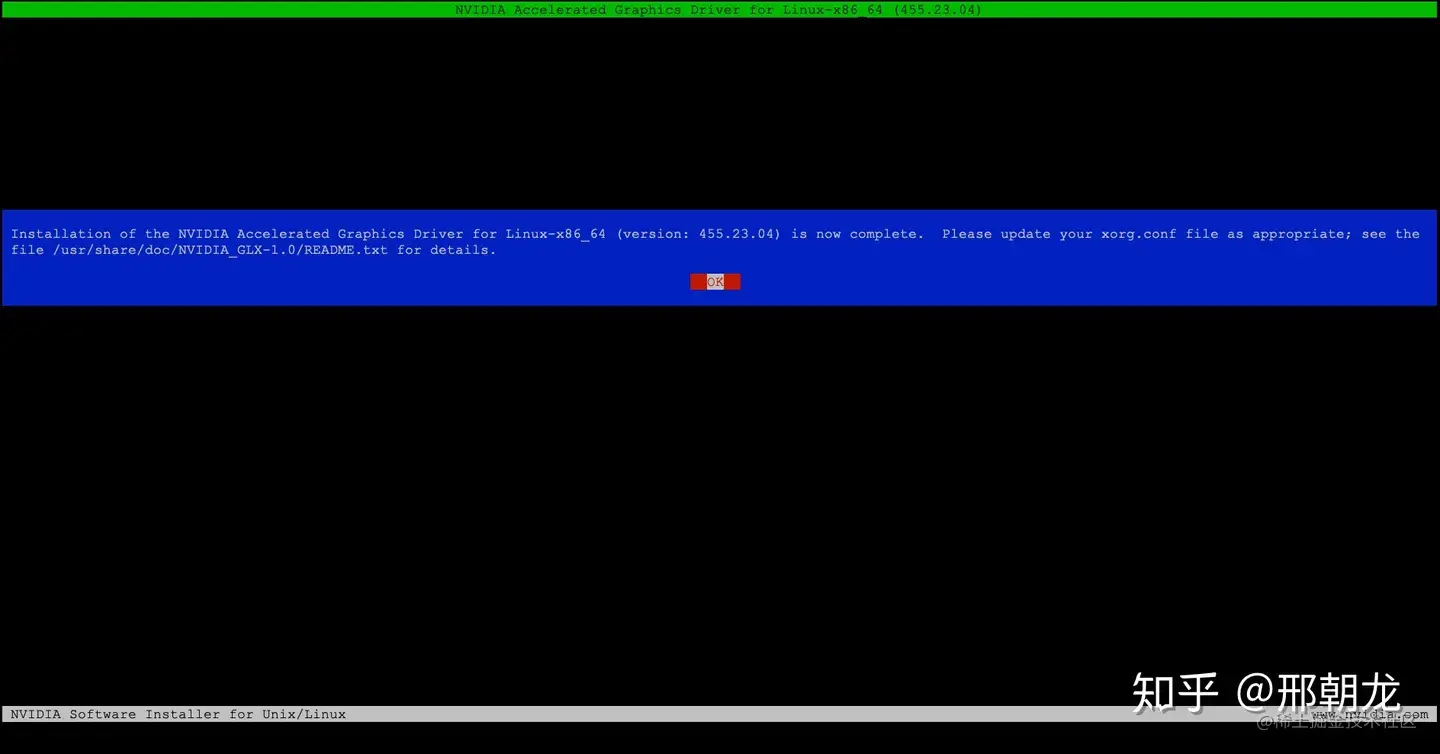

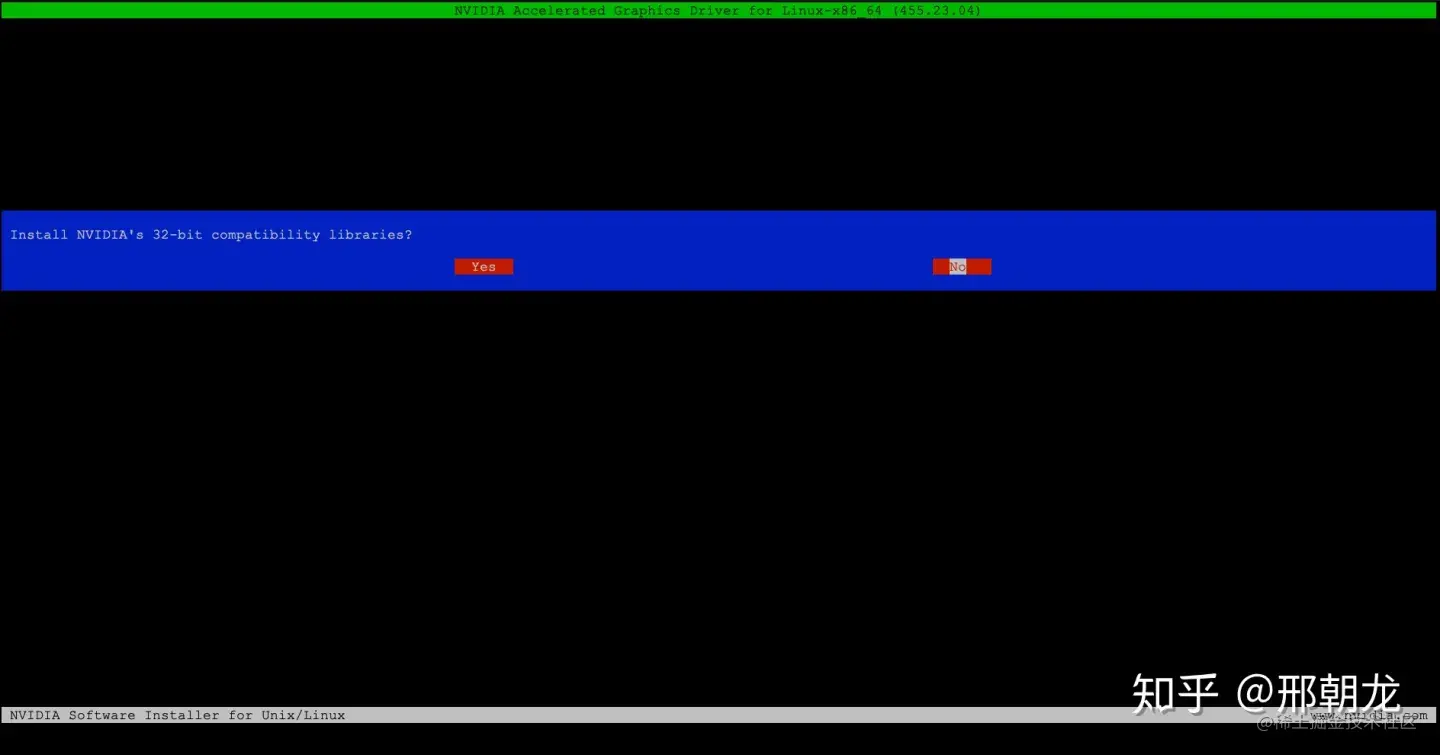

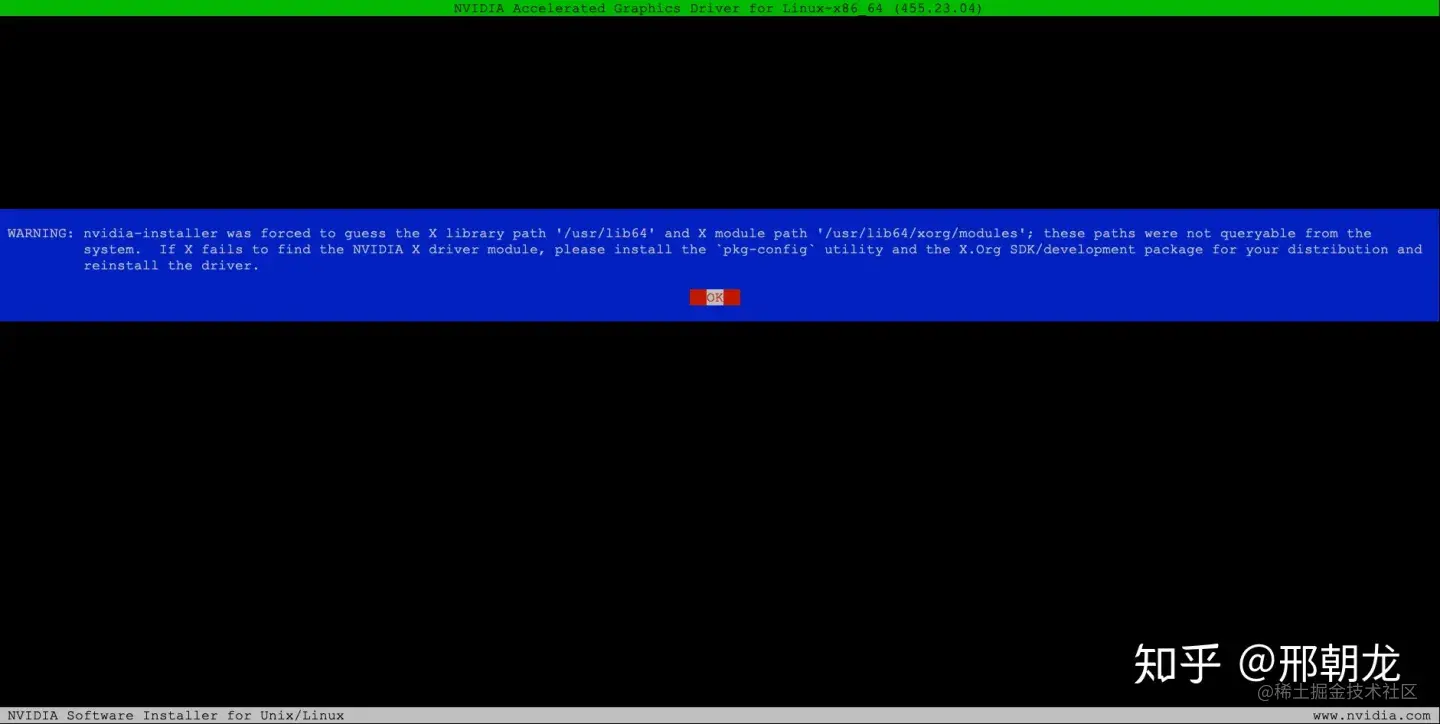

安装过程中会出现如下选择或提示信息，依次如图中选择即可。

2.2.3 查看驱动是否安装成功

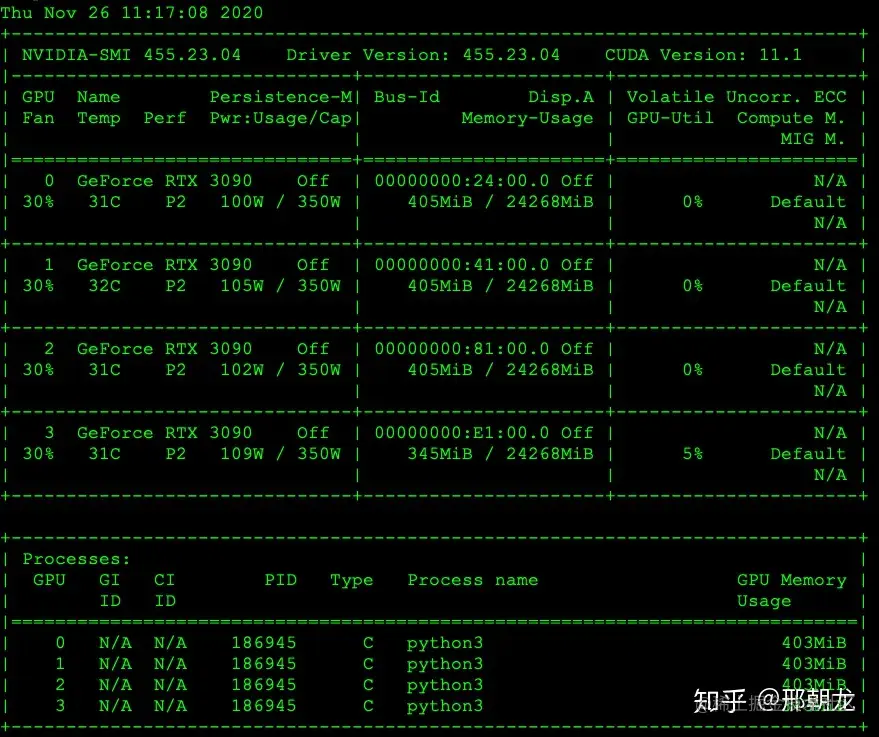

使用nvidia-smi命令查看驱动是否安装成功，输出如下：

Tue Nov 24 06:20:33 2020
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 455.23.04    Driver Version: 455.23.04    CUDA Version: 11.1     |
|-------------------------------+----------------------+----------------------+
| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
|                               |                      |               MIG M. |
|===============================+======================+======================|
|   0  GeForce RTX 3090    Off  | 00000000:24:00.0 Off |                  N/A |
| 30%   32C    P0   101W / 350W |      0MiB / 24268MiB |      0%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+
|   1  GeForce RTX 3090    Off  | 00000000:41:00.0 Off |                  N/A |
| 30%   33C    P0   105W / 350W |      0MiB / 24268MiB |      0%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+
|   2  GeForce RTX 3090    Off  | 00000000:81:00.0 Off |                  N/A |
| 30%   32C    P0   103W / 350W |      0MiB / 24268MiB |      0%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+
|   3  GeForce RTX 3090    Off  | 00000000:E1:00.0 Off |                  N/A |
| 30%   32C    P0   111W / 350W |      0MiB / 24268MiB |     52%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|  No running processes found                                                 |
+-----------------------------------------------------------------------------+

3. CUDA安装配置

3.1 下载cuda

wget -c "https://developer.download.nvidia.com/compute/cuda/11.1.0/local_installers/cuda_11.1.0_455.23.05_linux.run"

说明：wget下载可能会比较慢，可以先用迅雷等工具下载完成后，再用scp命令上传到服务器上。

3.2 安装cuda

chmod a+x cuda_11.1.0_455.23.05_linux.run
sudo ./cuda_11.1.0_455.23.05_linux.run

安装参数调整可以参考3.3，安装成功会出现如下提示。

===========

= Summary =
===========

Driver:   Not Selected
Toolkit:  Installed in /usr/local/cuda-11.1/
Samples:  Not Selected

Please make sure that

 -   PATH includes /usr/local/cuda-11.1/bin
 -   LD_LIBRARY_PATH includes /usr/local/cuda-11.1/lib64, or, add /usr/local/cuda-11.1/lib64 to /etc/ld.so.conf and run ldconfig as root

To uninstall the CUDA Toolkit, run cuda-uninstaller in /usr/local/cuda-11.1/bin
***WARNING: Incomplete installation! This installation did not install the CUDA Driver. A driver of version at least .00 is required for CUDA 11.1 functionality to work.
To install the driver using this installer, run the following command, replacing <CudaInstaller> with the name of this run file:
    sudo <CudaInstaller>.run --silent --driver

Logfile is /var/log/cuda-installer.log

3.3 安装参数调整

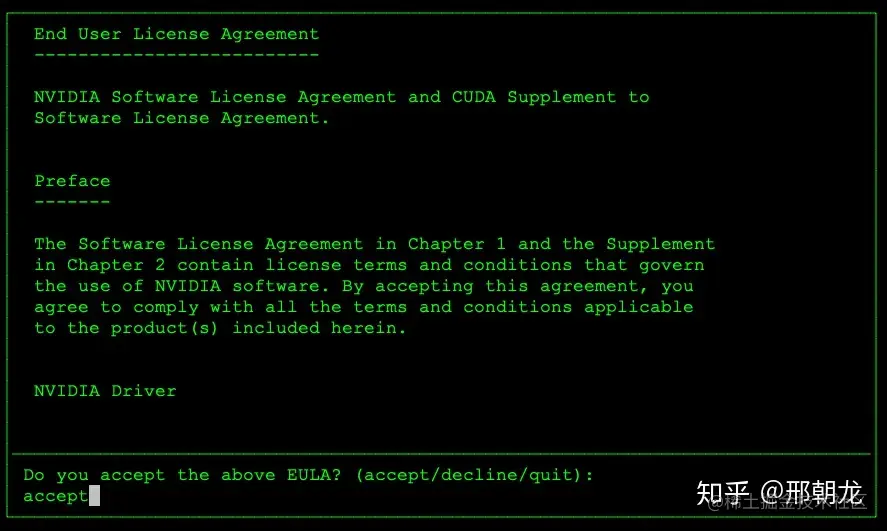

  1. 接受协议，accept。

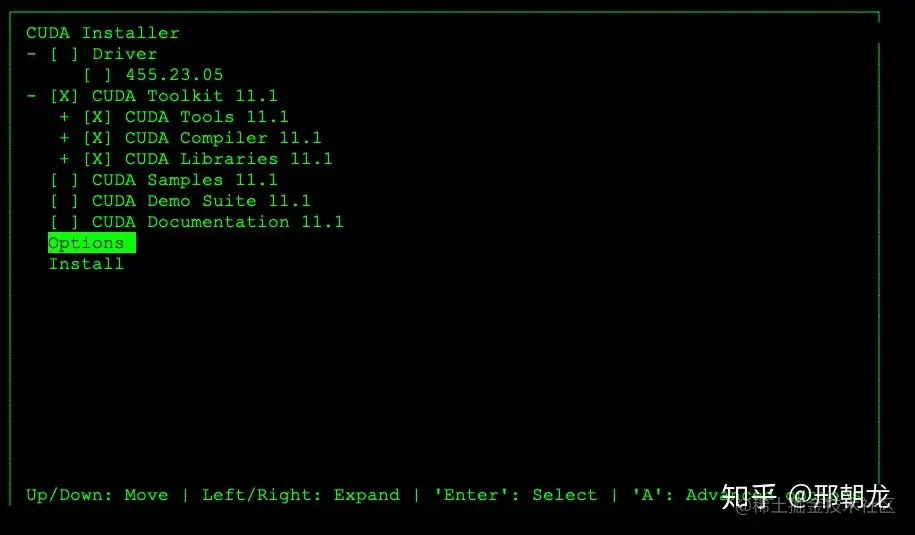

  2. 通过空格键和上下左右键，取消除CUDA Toolkit 11.1之外的其他安装项。

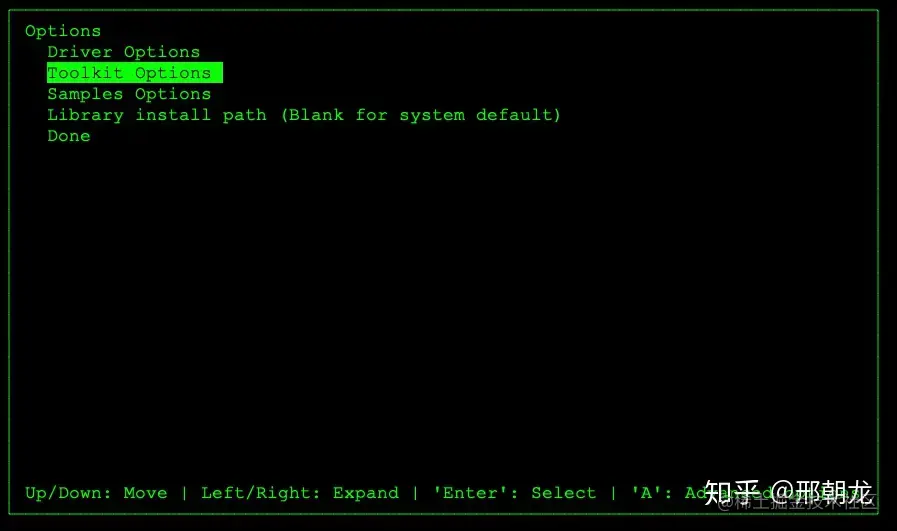

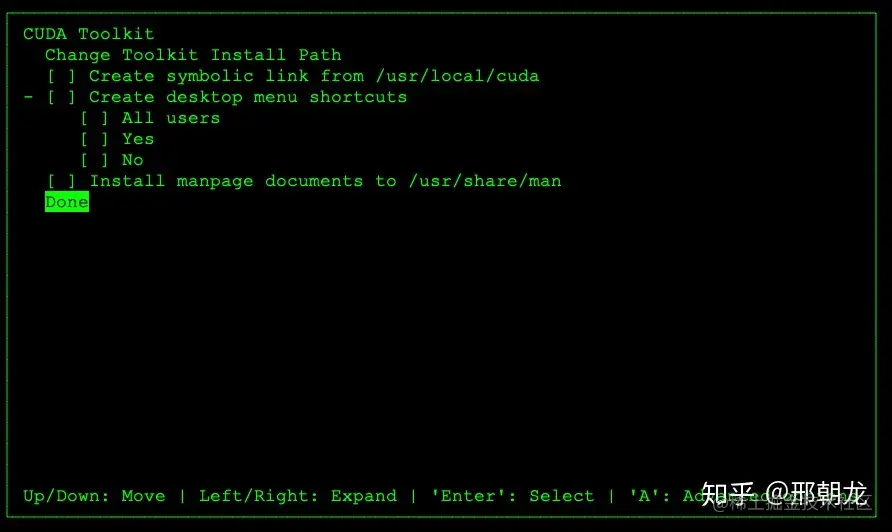

  3. 调整Options中Toolkit Options，将其内的全部项取消勾选。

说明：如果读者想快速安装，可以在接受协议之后，仅取消Driver项即可，其他选用默认。





3.4 添加环境变量

3.4.1 打开配置文件

使用vim打开bashrc文件。

vim ~/.bashrc

3.4.2 写入环境配置

在bashrc文件末尾追加如下内容。

# cuda 11.1
export PATH="/usr/local/cuda-11.1/bin:$PATH"
export LD_LIBRARY_PATH="/usr/local/cuda-11.1/lib64:$LD_LIBRARY_PATH"

3.4.3 生效环境配置

source ~/.bashrc

3.4.4 测试环境变量

使用nvcc -V命令测试环境变量是否配置成功，成功则输出如下内容。

nvcc: NVIDIA (R) Cuda compiler driver
Copyright (c) 2005-2020 NVIDIA Corporation
Built on Tue_Sep_15_19:10:02_PDT_2020
Cuda compilation tools, release 11.1, V11.1.74
Build cuda_11.1.TC455_06.29069683_0

3.5 手动建立链接

这里为了方便后期安装其他cuda版本，采用手动建立软链接，命令如下：

sudo ln -s /usr/local/cuda-11.1 /usr/local/cuda

4. cuDNN安装配置

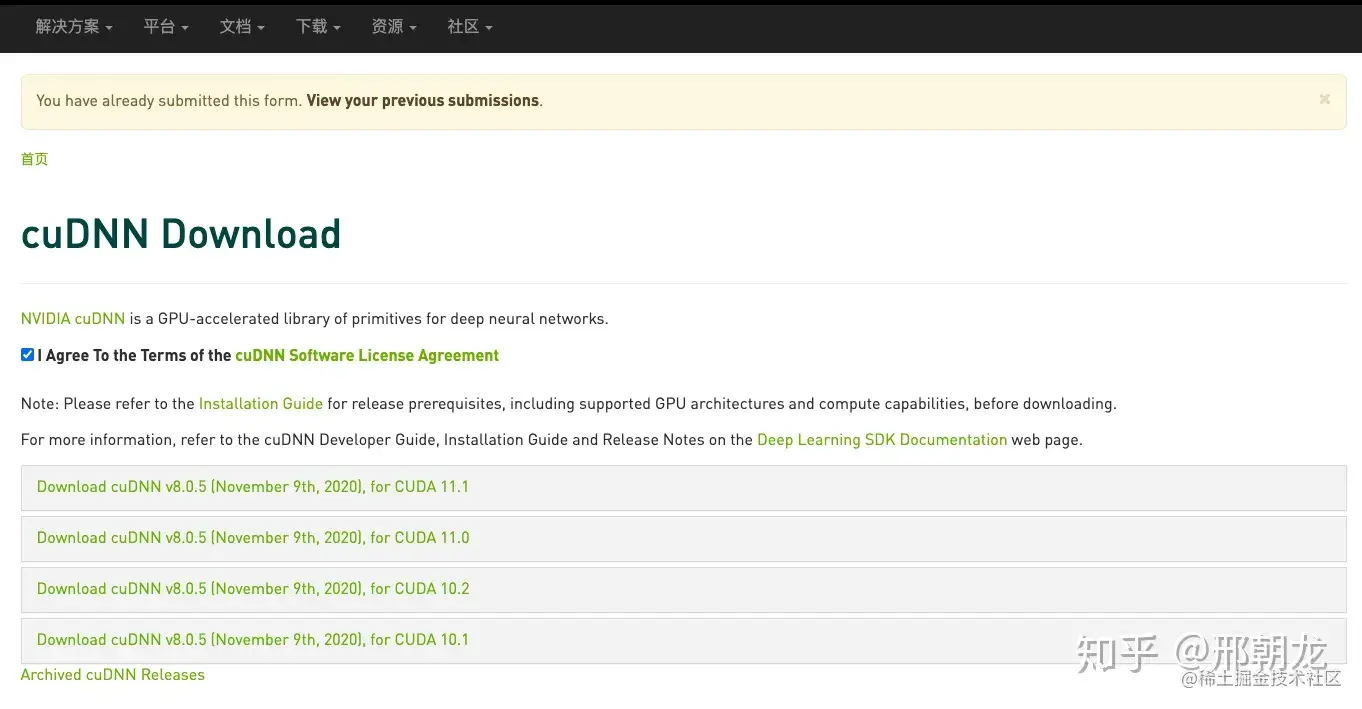

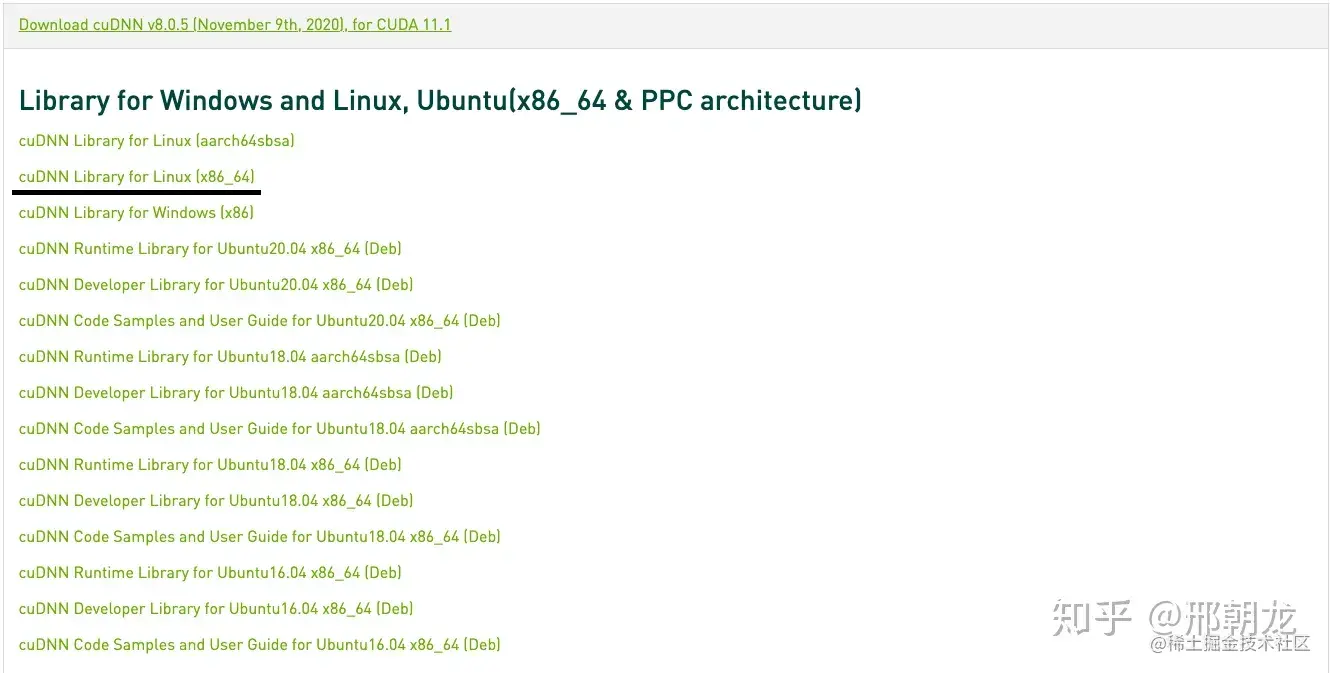

需要到官网注册并下载对应版本，这里使用的版本是8.0.5，安装包为cudnn-11.1-linux-x64-v8.0.5.39.tgz。下载过程可参考下图。



4.1 解压

tar -zxvf cudnn-11.1-linux-x64-v8.0.5.39.tgz

解压为当前目录的cuda文件夹，可以使用tree cuda查看解压文件夹目录结构，其目录结构如下：

cuda
├── include
│   ├── cudnn_adv_infer.h
│   ├── cudnn_adv_train.h
│   ├── cudnn_backend.h
│   ├── cudnn_cnn_infer.h
│   ├── cudnn_cnn_train.h
│   ├── cudnn.h
│   ├── cudnn_ops_infer.h
│   ├── cudnn_ops_train.h
│   └── cudnn_version.h
├── lib64
│   ├── libcudnn_adv_infer.so -> libcudnn_adv_infer.so.8
│   ├── libcudnn_adv_infer.so.8 -> libcudnn_adv_infer.so.8.0.5
│   ├── libcudnn_adv_infer.so.8.0.5
│   ├── libcudnn_adv_train.so -> libcudnn_adv_train.so.8
│   ├── libcudnn_adv_train.so.8 -> libcudnn_adv_train.so.8.0.5
│   ├── libcudnn_adv_train.so.8.0.5
│   ├── libcudnn_cnn_infer.so -> libcudnn_cnn_infer.so.8
│   ├── libcudnn_cnn_infer.so.8 -> libcudnn_cnn_infer.so.8.0.5
│   ├── libcudnn_cnn_infer.so.8.0.5
│   ├── libcudnn_cnn_train.so -> libcudnn_cnn_train.so.8
│   ├── libcudnn_cnn_train.so.8 -> libcudnn_cnn_train.so.8.0.5
│   ├── libcudnn_cnn_train.so.8.0.5
│   ├── libcudnn_ops_infer.so -> libcudnn_ops_infer.so.8
│   ├── libcudnn_ops_infer.so.8 -> libcudnn_ops_infer.so.8.0.5
│   ├── libcudnn_ops_infer.so.8.0.5
│   ├── libcudnn_ops_train.so -> libcudnn_ops_train.so.8
│   ├── libcudnn_ops_train.so.8 -> libcudnn_ops_train.so.8.0.5
│   ├── libcudnn_ops_train.so.8.0.5
│   ├── libcudnn.so -> libcudnn.so.8
│   ├── libcudnn.so.8 -> libcudnn.so.8.0.5
│   ├── libcudnn.so.8.0.5
│   └── libcudnn_static.a
└── NVIDIA_SLA_cuDNN_Support.txt

2 directories, 32 files

4.2 安装

sudo cp cuda/include/*.h /usr/local/cuda-11.1/include/
sudo cp cuda/lib64/libcudnn.so.8.0.5 /usr/local/cuda-11.1/lib64/
cd /usr/local/cuda-11.1/lib64
sudo ln -s libcudnn.so.8.0.5 libcudnn.so.8
sudo ln -s libcudnn.so.8 libcudnn.so

5. Java安装配置

5.1 下载Java

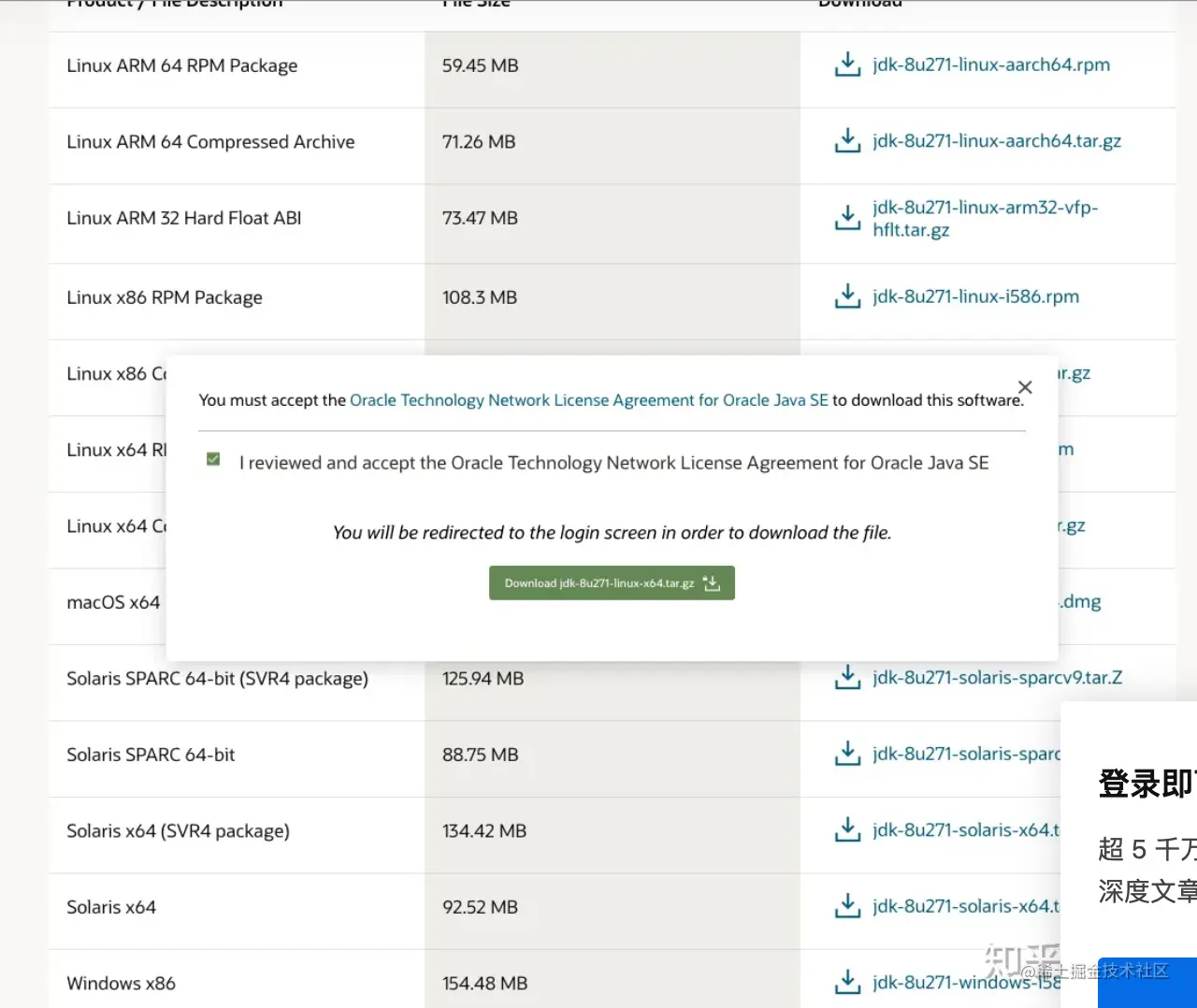

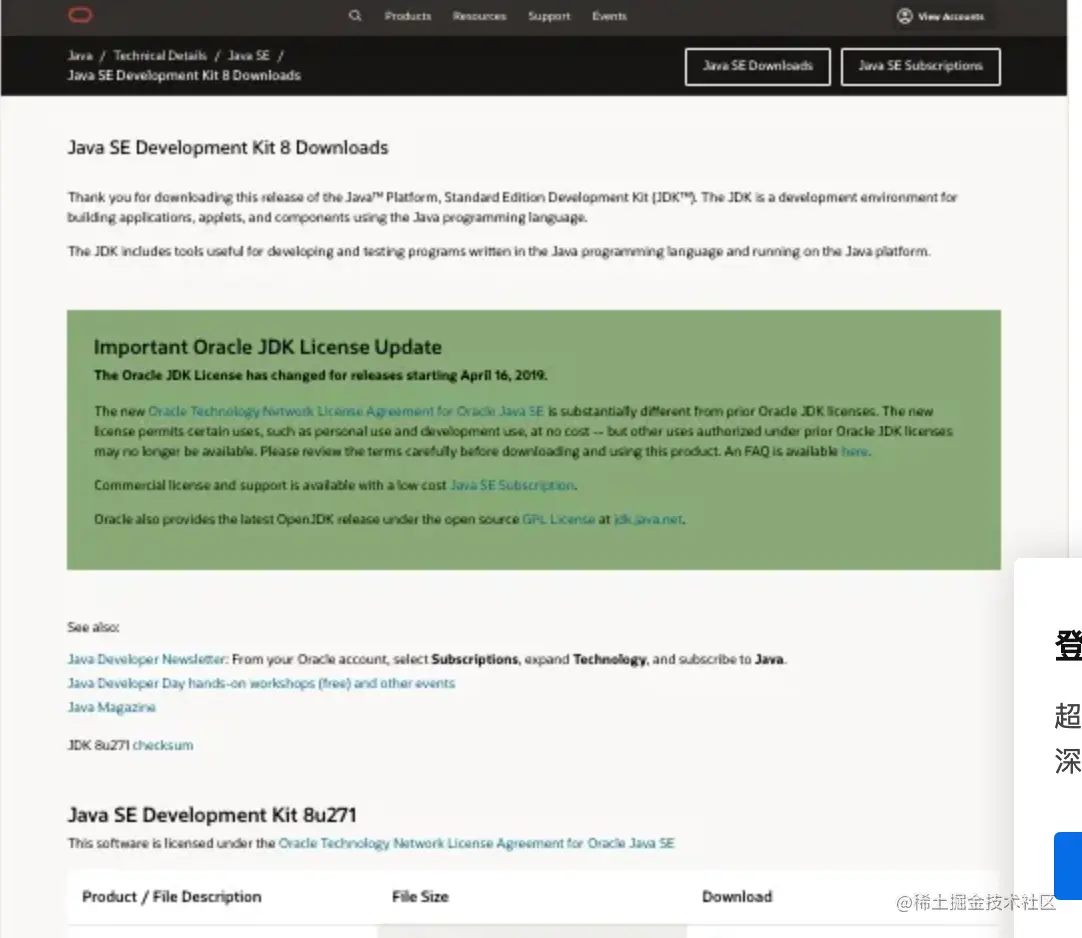

进入JDK8下载页面，下载jdk-8u271-linux-x64.tar.gz并上传到服务器，需要注册账号才能下载。下载过程简略图示见下图。



5.2 安装Java

解压安装包，移动到/opt目录下，并重命名为java-8-sun。

tar -zxvf jdk-8u271-linux-x64.tar.gz
sudo mv jdk1.8.0_271 /opt/java-8-sun

5.3 添加环境变量

5.3.1 打开配置文件

vim ~/.bashrc

5.3.2 写入环境变量

在.bashrc文件末尾追加写入如下内容，使用wq保存退出。

# JDK8
export JAVA_HOME=/opt/java-8-sun
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH

5.3.3 生效环境变量

source ~/.bashrc

5.3.4 测试环境配置

使用java -version测试环境变量配置是否成功，成功输出如下内容：

java version "1.8.0_271"
Java(TM) SE Runtime Environment (build 1.8.0_271-b09)
Java HotSpot(TM) 64-Bit Server VM (build 25.271-b09, mixed mode)

6. Android环境配置

编译Tensorflow Lite的话需要设置Android环境，读者如果没有该需求，可以直接跳过本节。

在用户目录下，新建Android文件夹及相关文件夹。

mkdir ~/Android
mkdir ~/Android/SDK
mkdir ~/Android/NDK

6.1 安装Android SDK

6.1.1 安装命令行工具

进入SDK目录，下载并解压命令行工具。

cd ~/Android/SDK
wget -c "https://dl.google.com/android/repository/commandlinetools-linux-6858069_latest.zip"
unzip -x commandlinetools-linux-6858069_latest.zip

解压后的文件夹为cmdline-tools，使用tree -L 2 cmdline-tools命令查看文件夹目录结构，其目录结构如下。其中要用到的sdkmanager位于cmdline-tools/bin/目录下。

cmdline-tools/
├── bin
│   ├── apkanalyzer
│   ├── avdmanager
│   ├── lint
│   ├── screenshot2
│   └── sdkmanager
├── lib
│   ├── analytics-library
│   ├── annotations
│   ├── apkanalyzer-classpath.jar
│   ├── apkparser
│   ├── avdmanager-classpath.jar
│   ├── build-system
│   ├── common
│   ├── ddmlib
│   ├── device_validator
│   ├── external
│   ├── layoutlib-api
│   ├── lint
│   ├── lint-classpath.jar
│   ├── misc
│   ├── README
│   ├── repository
│   ├── screenshot2-classpath.jar
│   ├── sdk-common
│   ├── sdklib
│   └── sdkmanager-classpath.jar
├── NOTICE.txt
└── source.properties

6.1.2 认识sdkmanager

sdkmanager的相关介绍可以查看官网说明，这里仅做简单介绍。sdkmanager是一个命令行工具，您可以用它来查看、安装、更新和卸载 Android SDK 的软件包。

  1. 列出所有已安装和可用安装包，以及可升级的包

这里需要指定sdk_root参数，尽量采用绝对路径。注意替换下面的用户名。

cmdline-tools/bin/sdkmanager --sdk_root=/home/{user_name}/Android/SDK --list

6.1.3 安装需要的包

6.1.3.1 需要安装的包列表

  • build-tools;21.1.2
  • build-tools;23.0.1
  • build-tools;23.0.2
  • build-tools;23.0.3
  • build-tools;26.0.2
  • build-tools;27.0.1
  • build-tools;28.0.3
  • cmdline-tools;latest
  • emulator
  • extras;android;m2repository
  • extras;google;m2repository
  • patcher;v4
  • platform-tools
  • platforms;android-21
  • platforms;android-23
  • platforms;android-26
  • platforms;android-28
  • sources;android-21
  • sources;android-23
  • sources;android-26
  • sources;android-28

如果是macOS上编译的话，可能需要安装extras;intel;Hardware_Accelerated_Execution_Manager。

6.1.3.2 安装需要的包

使用如下命令进行安装，同样注意替换sdk_root参数的用户名：

cmdline-tools/bin/sdkmanager --sdk_root=/home/ziipin/Android/SDK "build-tools;21.1.2" "build-tools;23.0.1" "build-tools;23.0.2" \
"build-tools;23.0.3" "build-tools;26.0.2" "build-tools;27.0.1" "build-tools;28.0.3" "cmdline-tools;latest" \
"emulator" "extras;android;m2repository" "extras;google;m2repository" "patcher;v4" "platform-tools" \
"platforms;android-21" "platforms;android-23" "platforms;android-26" "platforms;android-28" \
"sources;android-21" "sources;android-23" "sources;android-26" "sources;android-28"

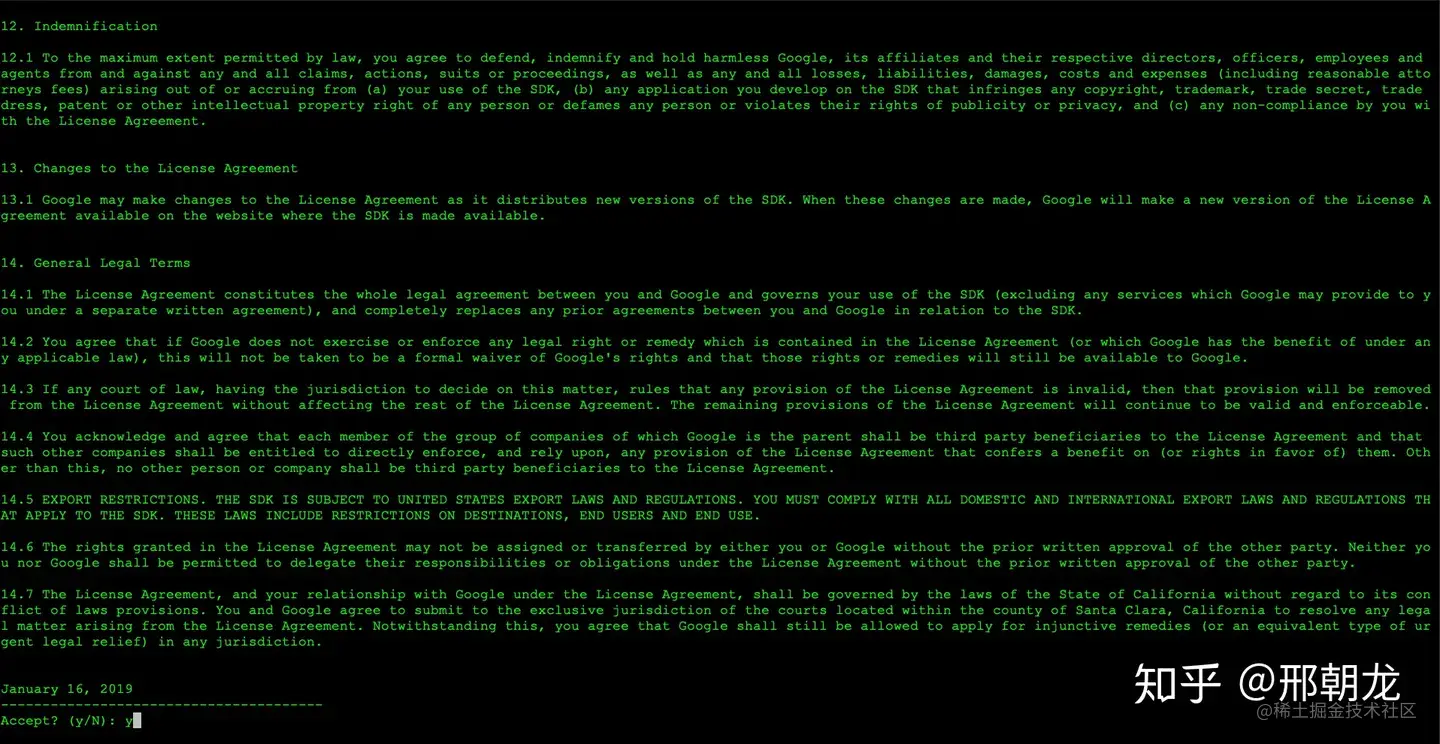

安装过程中需要同意协议，见下图。

下载过程中会出现如下warning，暂时还不清楚是什么原因导致的，可以使用命令rm -rf emulator-2 platform-tools-2，删除emulator-2和platform-tools-2两个文件夹。

Warning: Package "com.android.repository.impl.generated.v1.RemotePackage@862a7b0d" (emulator) should be installed in
"/home/ziipin/Android/SDK/emulator" but
it already exists.
Installing in "/home/ziipin/Android/SDK/emulator-2" instead.
Warning: Package "com.android.repository.impl.generated.v1.RemotePackage@5f48a0aa" (platform-tools) should be installed in
"/home/ziipin/Android/SDK/platform-tools" but
it already exists.
Installing in "/home/ziipin/Android/SDK/platform-tools-2" instead.

6.1.3.3 检查需要的包是否安装成功

使用如下命令检查要安装的包是否安装成功。

cmdline-tools/latest/bin/sdkmanager --list

如果成功，其输出内容如下：

Installed packages:=====================] 100% Computing updates...

| Path                        | Version | Description                             | Location                     |
| --------------------------- | ------- | --------------------------------------- | ---------------------------- |
| build-tools;21.1.2          | 21.1.2  | Android SDK Build-Tools 21.1.2          | build-tools/21.1.2/          |
| build-tools;23.0.1          | 23.0.1  | Android SDK Build-Tools 23.0.1          | build-tools/23.0.1/          |
| build-tools;23.0.2          | 23.0.2  | Android SDK Build-Tools 23.0.2          | build-tools/23.0.2/          |
| build-tools;23.0.3          | 23.0.3  | Android SDK Build-Tools 23.0.3          | build-tools/23.0.3/          |
| build-tools;26.0.2          | 26.0.2  | Android SDK Build-Tools 26.0.2          | build-tools/26.0.2/          |
| build-tools;27.0.1          | 27.0.1  | Android SDK Build-Tools 27.0.1          | build-tools/27.0.1/          |
| build-tools;28.0.3          | 28.0.3  | Android SDK Build-Tools 28.0.3          | build-tools/28.0.3/          |
| cmdline-tools;latest        | 3.0     | Android SDK Command-line Tools (latest) | cmdline-tools/latest/        |
| emulator                    | 30.2.6  | Android Emulator                        | emulator/                    |
| extras;android;m2repository | 47.0.0  | Android Support Repository              | extras/android/m2repository/ |
| extras;google;m2repository  | 58      | Google Repository                       | extras/google/m2repository/  |
| patcher;v4                  | 1       | SDK Patch Applier v4                    | patcher/v4/                  |
| platform-tools              | 30.0.5  | Android SDK Platform-Tools              | platform-tools/              |
| platforms;android-21        | 2       | Android SDK Platform 21                 | platforms/android-21/        |
| platforms;android-23        | 3       | Android SDK Platform 23                 | platforms/android-23/        |
| platforms;android-26        | 2       | Android SDK Platform 26                 | platforms/android-26/        |
| platforms;android-28        | 6       | Android SDK Platform 28                 | platforms/android-28/        |
| sources;android-21          | 1       | Sources for Android 21                  | sources/android-21/          |
| sources;android-23          | 1       | Sources for Android 23                  | sources/android-23/          |
| sources;android-26          | 1       | Sources for Android 26                  | sources/android-26/          |
| sources;android-28          | 1       | Sources for Android 28                  | sources/android-28/          |
......

6.2 安装Android NDK

进入之前创建的NDK目录，下载ndk-r16b和ndk-r18b。

这里为了后续扩展性，下载了两个ndk版本，其实只下载ndk-r18b也是可以的。

cd ~/Android/NDK/
wget -c "https://dl.google.com/android/repository/android-ndk-r16b-linux-x86_64.zip"
wget -c "https://dl.google.com/android/repository/android-ndk-r18b-linux-x86_64.zip"

在当前目录解压ndk包，命令如下。

unzip -x android-ndk-r16b-linux-x86_64.zip
unzip -x android-ndk-r18b-linux-x86_64.zip

7. 安装Tensorflow v2.3.0

7.1 下载 TensorFlow 源代码

7.1.1 克隆源代码

从Tensorflow仓库克隆源代码。

git clone https://github.com/tensorflow/tensorflow.git

7.1.2 更新代码

克隆完源代码后，进入源码根目录，拉取最新代码。

cd tensorflow
git pull

7.1.3 查看代码的tag信息

用来确定目标拉取分支，使用q退出。

git tag

7.1.4 切换到目标分支

git checkout v2.3.0
git pull

7.1.5 确认切换到目标分支

git branch -a

同样使用q退出，如果切换正确，输出内容如下：

* (HEAD detached at v2.3.0)

7.1.6 查看bazel支持版本

grep "BAZEL_VERSION" configure.py

输出内容如下：

_TF_CURRENT_BAZEL_VERSION = None
_TF_MIN_BAZEL_VERSION = '3.1.0'
_TF_MAX_BAZEL_VERSION = '3.99.0'
      'TF_IGNORE_MAX_BAZEL_VERSION' not in os.environ):
  global _TF_CURRENT_BAZEL_VERSION
    current_bazel_version = check_bazel_version(_TF_MIN_BAZEL_VERSION,
                                                _TF_MAX_BAZEL_VERSION)
  _TF_CURRENT_BAZEL_VERSION = convert_version_to_int(current_bazel_version)

可以分析出支持的最小版本为3.1.0，最大版本为3.99.0，下面编译会采用3.1.0版本。

7.2 安装bazel

7.2.1 下载bazel

wget -c "https://github.com/bazelbuild/bazel/releases/download/3.1.0/bazel-3.1.0-installer-linux-x86_64.sh"

7.2.2 安装bazel

chmod a+x bazel-3.1.0-installer-linux-x86_64.sh
./bazel-3.1.0-installer-linux-x86_64.sh --user
source /home/ziipin/.bazel/bin/bazel-complete.bash

使用--user参数会将bazel安装在用户目录下。

7.2.3 验证是否安装成功

使用bazel version命令进行验证，如果安装成功，输出内容如下：

Build label: 3.1.0
Build target: bazel-out/k8-opt/bin/src/main/java/com/google/devtools/build/lib/bazel/BazelServer_deploy.jar
Build time: Wed Apr 22 10:32:27 2020 (1587551547)
Build timestamp: 1587551547
Build timestamp as int: 1587551547

如果不成功，可以在.bashrc文件末尾追加内容export PATH="$PATH:$HOME/bin"，然后source .bashrc，再重新测试。

7.3 安装python依赖包

7.3.1 安装pip3

sudo apt install python3-dev python3-pip

7.3.2 安装依赖包

这里的依赖包使用--user参数，安装在用户目录。

pip3 install -U --user pip six 'numpy<1.19.0' wheel setuptools mock 'future>=0.17.1' 'gast==0.3.3' typing_extensions
pip3 install -U --user keras_applications --no-deps
pip3 install -U --user keras_preprocessing --no-deps

7.4 编译配置

注意：这里配置过程中选择使用gcc进行编译，笔者设置使用clang总是会出现问题。

在代码根目录，使用./configure进行编译配置。其输出和相关选择如下：

You have bazel 3.1.0 installed.
Please specify the location of python. [Default is /usr/bin/python3]:


Found possible Python library paths:
  /usr/local/lib/python3.8/dist-packages
  /usr/lib/python3/dist-packages
Please input the desired Python library path to use.  Default is [/usr/local/lib/python3.8/dist-packages]

Do you wish to build TensorFlow with OpenCL SYCL support? [y/N]: N
No OpenCL SYCL support will be enabled for TensorFlow.

Do you wish to build TensorFlow with ROCm support? [y/N]: N
No ROCm support will be enabled for TensorFlow.

Do you wish to build TensorFlow with CUDA support? [y/N]: y
CUDA support will be enabled for TensorFlow.

Do you wish to build TensorFlow with TensorRT support? [y/N]: N
No TensorRT support will be enabled for TensorFlow.

Found CUDA 11.1 in:
    /usr/local/cuda-11.1/targets/x86_64-linux/lib
    /usr/local/cuda-11.1/targets/x86_64-linux/include
Found cuDNN 8 in:
    /usr/local/cuda-11.1/targets/x86_64-linux/lib
    /usr/local/cuda-11.1/targets/x86_64-linux/include


Please specify a list of comma-separated CUDA compute capabilities you want to build with.
You can find the compute capability of your device at: https://developer.nvidia.com/cuda-gpus. Each capability can be specified as "x.y" or "compute_xy" to include both virtual and binary GPU code, or as "sm_xy" to only include the binary code.
Please note that each additional compute capability significantly increases your build time and binary size, and that TensorFlow only supports compute capabilities >= 3.5 [Default is: 3.5,7.0]: 8.6


Do you want to use clang as CUDA compiler? [y/N]: N
nvcc will be used as CUDA compiler.

Please specify which gcc should be used by nvcc as the host compiler. [Default is /usr/bin/gcc]:


Please specify optimization flags to use during compilation when bazel option "--config=opt" is specified [Default is -march=native -Wno-sign-compare]:


Would you like to interactively configure ./WORKSPACE for Android builds? [y/N]: N
Not configuring the WORKSPACE for Android builds.

Preconfigured Bazel build configs. You can use any of the below by adding "--config=<>" to your build command. See .bazelrc for more details.
    --config=mkl            # Build with MKL support.
    --config=monolithic     # Config for mostly static monolithic build.
    --config=ngraph         # Build with Intel nGraph support.
    --config=numa           # Build with NUMA support.
    --config=dynamic_kernels    # (Experimental) Build kernels into separate shared objects.
    --config=v2             # Build TensorFlow 2.x instead of 1.x.
Preconfigured Bazel build configs to DISABLE default on features:
    --config=noaws          # Disable AWS S3 filesystem support.
    --config=nogcp          # Disable GCP support.
    --config=nohdfs         # Disable HDFS support.
    --config=nonccl         # Disable NVIDIA NCCL support.
Configuration finished

7.5 编译安装

注意：在使用bazel编译过程中，编译的缓存结果会存储在用户目录的.cache/bazel中，如果编译失败，可选择手动删除缓存以避免编译问题。其命令如下：

rm -rf ~/.cache/bazel/

7.5.1 bazel编译

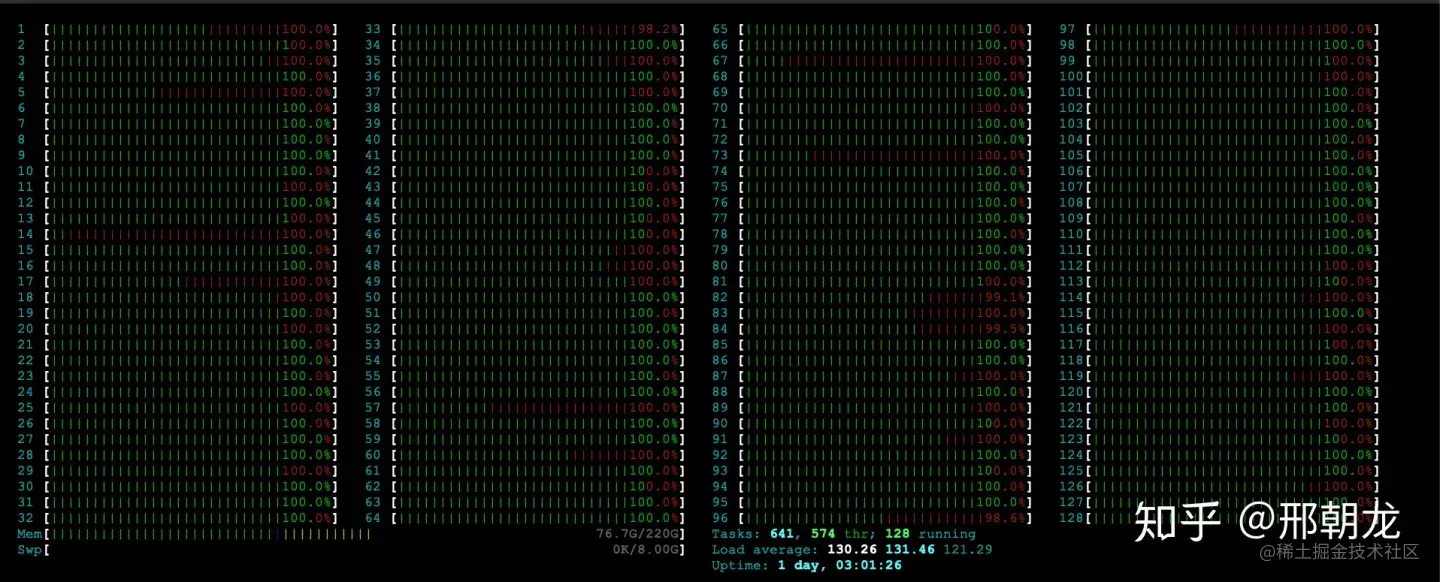

友情提醒一下，编译的过程可能会非常漫长，这里使用64C128T的服务器，编译了大概3个小时。先来个编译中CPU占用一览。

在v2.3.0分支下，默认编译的是v2版本，可以使用如下命令进行编译。

注意：官方文档中--config=v1参数只是开启V1版本的API和使用，并非独立编译V1版本，详情参考issue。

  • CPU支持
bazel build --config=opt //tensorflow/tools/pip_package:build_pip_package
  • GPU支持
bazel build --config=opt --config=cuda //tensorflow/tools/pip_package:build_pip_package

这里使用的是GPU支持编译命令，编译成功后输出如下内容（部分）。

INFO: From Executing genrule //tensorflow/python/keras/api:keras_python_api_gen:
2020-11-25 22:21:53.458424: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudart.so.11.1
INFO: From Executing genrule //tensorflow/python/keras/api:keras_python_api_gen_compat_v1:
2020-11-25 22:21:53.446344: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudart.so.11.1
INFO: From Executing genrule //tensorflow/python/keras/api:keras_python_api_gen_compat_v2:
2020-11-25 22:21:53.445993: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudart.so.11.1
INFO: From Executing genrule //tensorflow:tf_python_api_gen_v2:
2020-11-25 22:21:53.449584: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudart.so.11.1
Target //tensorflow/tools/pip_package:build_pip_package up-to-date:
  bazel-bin/tensorflow/tools/pip_package/build_pip_package
INFO: Elapsed time: 9228.987s, Critical Path: 3555.80s
INFO: 24110 processes: 24110 local.
INFO: Build completed successfully, 35277 total actions

7.5.2 构建软件包

编译完成后，可以使用如下命令进行软件包构建，存储在主目录的tensorflow_pkg文件夹下。

./bazel-bin/tensorflow/tools/pip_package/build_pip_package ~/tensorflow_pkg

7.5.3 安装软件包

使用pip3安装在用户目录。

pip3 install --user ~/tensorflow_pkg/tensorflow-2.3.0-cp38-cp38-linux_x86_64.whl

7.5.4 测试软件包

使用vim minst_test.py命令新建测试文件，写入如下内容。然后使用python3 minst_test.py命令进行测试。

import tensorflow as tf

mnist = tf.keras.datasets.mnist

(x_train, y_train), (x_test, y_test) = mnist.load_data()
x_train, x_test = x_train / 255.0, x_test / 255.0

model = tf.keras.models.Sequential([
  tf.keras.layers.Flatten(input_shape=(28, 28)),
  tf.keras.layers.Dense(128, activation='relu'),
  tf.keras.layers.Dropout(0.2),
  tf.keras.layers.Dense(10, activation='softmax')
])

model.compile(optimizer='adam',
              loss='sparse_categorical_crossentropy',
              metrics=['accuracy'])

model.fit(x_train, y_train, epochs=5)

model.evaluate(x_test,  y_test, verbose=2)

测试过程输出内容如下，可以看到准确度已经接近98%。

2020-11-26 11:16:19.776316: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudart.so.11.1
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/mnist.npz
11493376/11490434 [==============================] - 38s 3us/step
2020-11-26 11:17:00.750010: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcuda.so.1
2020-11-26 11:17:04.777428: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1716] Found device 0 with properties:
pciBusID: 0000:24:00.0 name: GeForce RTX 3090 computeCapability: 8.6
coreClock: 1.695GHz coreCount: 82 deviceMemorySize: 23.70GiB deviceMemoryBandwidth: 871.81GiB/s
2020-11-26 11:17:04.779964: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1716] Found device 1 with properties:
pciBusID: 0000:41:00.0 name: GeForce RTX 3090 computeCapability: 8.6
coreClock: 1.695GHz coreCount: 82 deviceMemorySize: 23.70GiB deviceMemoryBandwidth: 871.81GiB/s
2020-11-26 11:17:04.782452: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1716] Found device 2 with properties:
pciBusID: 0000:81:00.0 name: GeForce RTX 3090 computeCapability: 8.6
coreClock: 1.695GHz coreCount: 82 deviceMemorySize: 23.70GiB deviceMemoryBandwidth: 871.81GiB/s
2020-11-26 11:17:04.784922: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1716] Found device 3 with properties:
pciBusID: 0000:e1:00.0 name: GeForce RTX 3090 computeCapability: 8.6
coreClock: 1.695GHz coreCount: 82 deviceMemorySize: 23.70GiB deviceMemoryBandwidth: 871.81GiB/s
2020-11-26 11:17:04.784954: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudart.so.11.1
2020-11-26 11:17:04.789936: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcublas.so.11
2020-11-26 11:17:04.791692: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcufft.so.10
2020-11-26 11:17:04.792036: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcurand.so.10
2020-11-26 11:17:04.797416: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcusolver.so.11
2020-11-26 11:17:04.798504: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcusparse.so.11
2020-11-26 11:17:04.798660: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudnn.so.8
2020-11-26 11:17:04.818450: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1858] Adding visible gpu devices: 0, 1, 2, 3
2020-11-26 11:17:04.869642: I tensorflow/core/platform/profile_utils/cpu_utils.cc:104] CPU Frequency: 2499775000 Hz
2020-11-26 11:17:04.885947: I tensorflow/compiler/xla/service/service.cc:168] XLA service 0x42c5640 initialized for platform Host (this does not guarantee that XLA will be used). Devices:
2020-11-26 11:17:04.886010: I tensorflow/compiler/xla/service/service.cc:176]   StreamExecutor device (0): Host, Default Version
2020-11-26 11:17:05.581808: I tensorflow/compiler/xla/service/service.cc:168] XLA service 0x387ea40 initialized for platform CUDA (this does not guarantee that XLA will be used). Devices:
2020-11-26 11:17:05.581858: I tensorflow/compiler/xla/service/service.cc:176]   StreamExecutor device (0): GeForce RTX 3090, Compute Capability 8.6
2020-11-26 11:17:05.581880: I tensorflow/compiler/xla/service/service.cc:176]   StreamExecutor device (1): GeForce RTX 3090, Compute Capability 8.6
2020-11-26 11:17:05.581899: I tensorflow/compiler/xla/service/service.cc:176]   StreamExecutor device (2): GeForce RTX 3090, Compute Capability 8.6
2020-11-26 11:17:05.581923: I tensorflow/compiler/xla/service/service.cc:176]   StreamExecutor device (3): GeForce RTX 3090, Compute Capability 8.6
2020-11-26 11:17:05.586577: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1716] Found device 0 with properties:
pciBusID: 0000:24:00.0 name: GeForce RTX 3090 computeCapability: 8.6
coreClock: 1.695GHz coreCount: 82 deviceMemorySize: 23.70GiB deviceMemoryBandwidth: 871.81GiB/s
2020-11-26 11:17:05.590535: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1716] Found device 1 with properties:
pciBusID: 0000:41:00.0 name: GeForce RTX 3090 computeCapability: 8.6
coreClock: 1.695GHz coreCount: 82 deviceMemorySize: 23.70GiB deviceMemoryBandwidth: 871.81GiB/s
2020-11-26 11:17:05.593028: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1716] Found device 2 with properties:
pciBusID: 0000:81:00.0 name: GeForce RTX 3090 computeCapability: 8.6
coreClock: 1.695GHz coreCount: 82 deviceMemorySize: 23.70GiB deviceMemoryBandwidth: 871.81GiB/s
2020-11-26 11:17:05.595505: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1716] Found device 3 with properties:
pciBusID: 0000:e1:00.0 name: GeForce RTX 3090 computeCapability: 8.6
coreClock: 1.695GHz coreCount: 82 deviceMemorySize: 23.70GiB deviceMemoryBandwidth: 871.81GiB/s
2020-11-26 11:17:05.595552: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudart.so.11.1
2020-11-26 11:17:05.595593: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcublas.so.11
2020-11-26 11:17:05.595616: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcufft.so.10
2020-11-26 11:17:05.595637: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcurand.so.10
2020-11-26 11:17:05.595659: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcusolver.so.11
2020-11-26 11:17:05.595680: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcusparse.so.11
2020-11-26 11:17:05.595701: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudnn.so.8
2020-11-26 11:17:05.615147: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1858] Adding visible gpu devices: 0, 1, 2, 3
2020-11-26 11:17:05.615193: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcudart.so.11.1
2020-11-26 11:17:09.220986: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1257] Device interconnect StreamExecutor with strength 1 edge matrix:
2020-11-26 11:17:09.221102: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1263]      0 1 2 3
2020-11-26 11:17:09.221114: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1276] 0:   N N N N
2020-11-26 11:17:09.221124: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1276] 1:   N N N N
2020-11-26 11:17:09.221137: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1276] 2:   N N N N
2020-11-26 11:17:09.221202: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1276] 3:   N N N N
2020-11-26 11:17:09.234266: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1402] Created TensorFlow device (/job:localhost/replica:0/task:0/device:GPU:0 with 22430 MB memory) -> physical GPU (device: 0, name: GeForce RTX 3090, pci bus id: 0000:24:00.0, compute capability: 8.6)
2020-11-26 11:17:09.237725: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1402] Created TensorFlow device (/job:localhost/replica:0/task:0/device:GPU:1 with 22430 MB memory) -> physical GPU (device: 1, name: GeForce RTX 3090, pci bus id: 0000:41:00.0, compute capability: 8.6)
2020-11-26 11:17:09.241007: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1402] Created TensorFlow device (/job:localhost/replica:0/task:0/device:GPU:2 with 22430 MB memory) -> physical GPU (device: 2, name: GeForce RTX 3090, pci bus id: 0000:81:00.0, compute capability: 8.6)
2020-11-26 11:17:09.244133: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1402] Created TensorFlow device (/job:localhost/replica:0/task:0/device:GPU:3 with 22430 MB memory) -> physical GPU (device: 3, name: GeForce RTX 3090, pci bus id: 0000:e1:00.0, compute capability: 8.6)
Epoch 1/5
2020-11-26 11:17:10.791021: I tensorflow/stream_executor/platform/default/dso_loader.cc:48] Successfully opened dynamic library libcublas.so.11
1875/1875 [==============================] - 4s 2ms/step - loss: 0.3000 - accuracy: 0.9123
Epoch 2/5
1875/1875 [==============================] - 4s 2ms/step - loss: 0.1428 - accuracy: 0.9577
Epoch 3/5
1875/1875 [==============================] - 4s 2ms/step - loss: 0.1061 - accuracy: 0.9677
Epoch 4/5
1875/1875 [==============================] - 4s 2ms/step - loss: 0.0887 - accuracy: 0.9729
Epoch 5/5
1875/1875 [==============================] - 4s 2ms/step - loss: 0.0731 - accuracy: 0.9771
313/313 - 1s - loss: 0.0856 - accuracy: 0.9741

另外，测试过程中的GPU占用如下图。

8 编译问题及解决方案

8.1 No library found under: /usr/local/cuda-11.1/targets/x86_64-linux/lib/libcudart.so.11.1

8.1.1 问题描述

遇到问题，问题描述如下：

ERROR: An error occurred during the fetch of repository 'local_config_cuda':
   Traceback (most recent call last):
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 1369
        _create_local_cuda_repository(<1 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 1051, in _create_local_cuda_repository
        _find_libs(repository_ctx, <2 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 598, in _find_libs
        _check_cuda_libs(repository_ctx, <2 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 500, in _check_cuda_libs
        execute(repository_ctx, <1 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/remote_config/common.bzl", line 208, in execute
        fail(<1 more arguments>)
Repository command failed
No library found under: /usr/local/cuda-11.1/targets/x86_64-linux/lib/libcudart.so.11.1
ERROR: Skipping '//tensorflow/tools/pip_package:build_pip_package': no such package '@local_config_cuda//cuda': Traceback (most recent call last):
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 1369
        _create_local_cuda_repository(<1 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 1051, in _create_local_cuda_repository
        _find_libs(repository_ctx, <2 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 598, in _find_libs
        _check_cuda_libs(repository_ctx, <2 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 500, in _check_cuda_libs
        execute(repository_ctx, <1 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/remote_config/common.bzl", line 208, in execute
        fail(<1 more arguments>)
Repository command failed
No library found under: /usr/local/cuda-11.1/targets/x86_64-linux/lib/libcudart.so.11.1
WARNING: Target pattern parsing failed.
ERROR: no such package '@local_config_cuda//cuda': Traceback (most recent call last):
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 1369
        _create_local_cuda_repository(<1 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 1051, in _create_local_cuda_repository
        _find_libs(repository_ctx, <2 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 598, in _find_libs
        _check_cuda_libs(repository_ctx, <2 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/gpus/cuda_configure.bzl", line 500, in _check_cuda_libs
        execute(repository_ctx, <1 more arguments>)
    File "/home/ziipin/Codes/tensorflow/third_party/remote_config/common.bzl", line 208, in execute
        fail(<1 more arguments>)
Repository command failed
No library found under: /usr/local/cuda-11.1/targets/x86_64-linux/lib/libcudart.so.11.1
INFO: Elapsed time: 46.344s
INFO: 0 processes.
FAILED: Build did NOT complete successfully (0 packages loaded)
    currently loading: tensorflow/tools/pip_package

8.1.2 解决方案

进入源码根目录，修改third_party/gpus/cuda_configure.bzl文件。修改完成后保存，并记得清空编译缓存。

修改第532行下方代码为如下内容：

"cudart": _check_cuda_lib_params(
        "cudart",
        cpu_value,
        cuda_config.config["cuda_library_dir"],
        # cuda_config.cuda_version,
        "11.0",
        static = False,
    ),
    "cudart_static": _check_cuda_lib_params(
        "cudart_static",
        cpu_value,
        cuda_config.config["cuda_library_dir"],
        # cuda_config.cuda_version,
        "11.0",
        static = True,
    ),

同时为了保险起见，可以对libcudart.so.11.1做软链接，命令如下。

cd /usr/local/cuda-11.1/lib64
sudo ln -s libcudart.so.11.1.74 libcudart.so.11.1

清空编译缓存

rm -rf ~/.cache/bazel/

8.2 /usr/bin/env: 'python': No such file or directory

8.2.1 问题描述

遇到问题，问题描述如下：

ERROR: /home/ziipin/.cache/bazel/_bazel_ziipin/865b49621e687085adec52dd3a822b71/external/llvm-project/llvm/BUILD:45:1: Executing genrule @llvm-project//llvm:config_gen failed (Exit 127)
/usr/bin/env: 'python': No such file or directory
Target //tensorflow/tools/pip_package:build_pip_package failed to build
Use --verbose_failures to see the command lines of failed build steps.
ERROR: /home/ziipin/Codes/tensorflow/tensorflow/lite/toco/python/BUILD:84:1 Executing genrule @llvm-project//llvm:config_gen failed (Exit 127)
INFO: Elapsed time: 196.293s, Critical Path: 0.67s
INFO: 28 processes: 28 local.
FAILED: Build did NOT complete successfully

8.2.2 解决方案

对python做软链接，完成之后记得清空编译缓存。

sudo ln -s /usr/bin/python3.8 /usr/bin/python
rm -rf ~/.cache/bazel/

9. 安装 Tensorflow master

笔者编译时，master对应的版本为v2.5.0，其编译安装过程与v2.3.0基本一致，不同的是其对cuda11.1和cudnn8.0.5的支持更好，基本无需进行修改即可编译安装。

10. 写在最后

以上就是在Ubuntu Server 20.04.1操作系统下，针对NVIDIA最新显卡RTX 3090，使用CUDA11.1和cuDNN8.0.5，编译安装Tensorflow v2.3.0(|master)的过程。

由于编译环境的复杂性，读者可能会遇到其他问题，欢迎沟通交流。

PS：正如在7.5节介绍的，使用--config=v1无法编译TensorFlow 1.x版本，笔者正在修改v1.15.4源码，希望可以尽快完成，这样就可以在RTX3090上愉快的使用TensorFlow 1.x版本。

11. 参考

  1. How To Compile TensorFlow 2.3 with CUDA 11.1
  2. 从源代码构建
  3. 使用 pip 安装 TensorFlow
  4. /usr/bin/env: 'python': No such file or directory
  5. Installing Bazel on Ubuntu
avatar
文章
阅读
粉丝
