Odoo集成MQTT

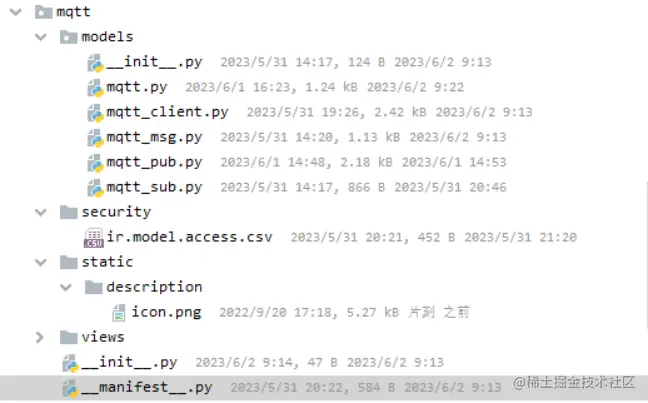

1. 文件结构

2. MQTT 客户端

import paho.mqtt.client as mqtt

client_dict = {}
import logging

_logger = logging.getLogger(__name__)


class MQTTClient(object):
    def __init__(self, client_id, protocol, broker, port, username, password):
        self.client_id = client_id
        self.protocol = protocol
        self.broker = broker
        self.port = port
        self.username = username
        self.password = password
        self.client = mqtt.Client(client_id, protocol)
        self.client.username_pw_set(self.username, self.password)

    def connect(self, keepalive=60):
        self.client.connect(self.broker, self.port, keepalive)
        self.client.loop_start()

    def is_connected(self):
        return self.client.is_connected()

    def disconnect(self):
        self.client.disconnect()
        self.client.loop_stop()

    def subscribe(self, topic, qos):
        self.client.subscribe(topic, qos)

    def publish(self, topic, data, qos):
        _logger.debug(f"{topic}>>>>>>>>>>   发送消息      >>>>>>> {data}")
        self.client.publish(topic=topic, payload=data, qos=qos)

    def on_message(self, client, userdata, msg):
        print("收到消息：", msg.topic, msg.payload.decode()

3. MQTT客户端模型

# -*- coding: utf-8 -*-
# &&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
# DTCloud360
# 邮箱: 200570059@qq.com
# 作者：'ZYF.Yan'
# 公司网址： http://www.dtcloud360.com/
# Copyright 中亿丰数字科技集团有限公司
# 日期：2023/5/31 11:11
# &&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
# -*- coding: utf-8 -*-
from . import mqtt
from ...system_base import datetime_tools
from dtcloud import models, fields


class MqttClient(models.Model):
    _name = "mqtt.client"
    _rec_name = "name"
    _description = "Mqtt客户端"
    _order = "id"

    # string 名称  copy 是否可复制 required 是否必须  default 默认值  False 或 字段对应类型  readonly 是否只读  store 是否存储数据库
    name = fields.Char(string="客户端名称")
    broker = fields.Char(string="主机名", default="10.201.97.11")
    port = fields.Integer(string="端口号", default=1390)
    path = fields.Char(string="路由", default="/mqtt")
    user_name = fields.Char(string="用户")
    password = fields.Char(string="密码")
    keepalive = fields.Integer(string="生命周期", default=60)
    clean_start = fields.Boolean(string="是否清除会话", default=True)
    timeout = fields.Integer(string="话过期时间", help="会话过期时间，单位(秒)", default=0)
    tls = fields.Boolean(string="TLS", default=False)
    state = fields.Selection([("1", "正在连接"), ("2", "断开连接")], string="链接状态", help="True：链接成功 False：未连接")
    date = fields.Datetime(string="时间", default=datetime_tools.now())

    mqtt_pub_ids = fields.One2many(comodel_name="mqtt.pub", inverse_name="client_id", string="发布")
    mqtt_sub_ids = fields.One2many(comodel_name="mqtt.sub", inverse_name="client_id", string="订阅")

    # 获取MQTT客户端
    def get_mqtt_client(self):
        mqtt_client = mqtt.client_dict.get(self.name)
        if mqtt_client and mqtt_client.is_connected():
            return mqtt_client
        mqtt_client = mqtt.MQTTClient(self.name, 5, self.broker, self.port, self.user_name, self.password)
        mqtt_client.connect(keepalive=self.keepalive)
        return mqtt_client

    # 关闭客户端
    def disconnect(self):
        mqtt_client = self.get_mqtt_client()
        mqtt_client.disconnect()
        mqtt_client.loop_stop()

4. MQTT消息发布

<!---->

    # -*- coding: utf-8 -*-
    # &&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
    # DTCloud360
    # 邮箱: 200570059@qq.com
    # 作者：'ZYF.Yan'
    # 公司网址： http://www.dtcloud360.com/
    # Copyright 中亿丰数字科技集团有限公司
    # 日期：2023/5/31 11:11
    # &&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
    # -*- coding: utf-8 -*-

    from ...system_base import datetime_tools
    from dtcloud import models, fields


    class MqttPub(models.Model):
        _name = "mqtt.pub"
        _rec_name = "name"
        _description = "Mqtt发布"
        _order = "id"

        # string 名称
        client_id = fields.Many2one("mqtt.client", "客户端")
        name = fields.Char(string="主题", default="testtopic/1")
        qos = fields.Integer(string="QoS", default=0)
        text = fields.Text(string="发布消息", default='{"msg": "hello"}')
        retain = fields.Boolean(string="保留", default=False)
        date = fields.Datetime(string="时间", default=datetime_tools.now())
        mqtt_pub_lines = fields.One2many(comodel_name="mqtt.pub.line", inverse_name="mqtt_pub_id", )

        # 消息发布
        def publish(self, topic_append=None):
            mqtt_client = self.client_id.get_mqtt_client()
            topic = self.name
            if topic_append:
                topic = self.name + topic_append
            mqtt_client.publish(topic=topic, data=self.text, qos=self.qos)
            self.mqtt_pub_lines.create({
                "name": topic,
                "qos": self.qos,
                "text": self.text,
                "retain": self.retain,
                "date": self.date,
                "mqtt_pub_id": self.id,
            })


    class MqttPubLine(models.Model):
        _name = "mqtt.pub.line"
        _rec_name = "name"
        _description = "Mqtt发布明细"
        _order = "id"

        mqtt_pub_id = fields.Many2one("mqtt.pub", "Mqtt发布")
        name = fields.Char(string="主题", default="testtopic/1")
        qos = fields.Integer(string="QoS", default=0)
        text = fields.Text(string="发布消息", default='{"msg": "hello"}')
        retain = fields.Boolean(string="保留", default=False)
        date = fields.Datetime(string="时间", default=datesstime_tools.now())
