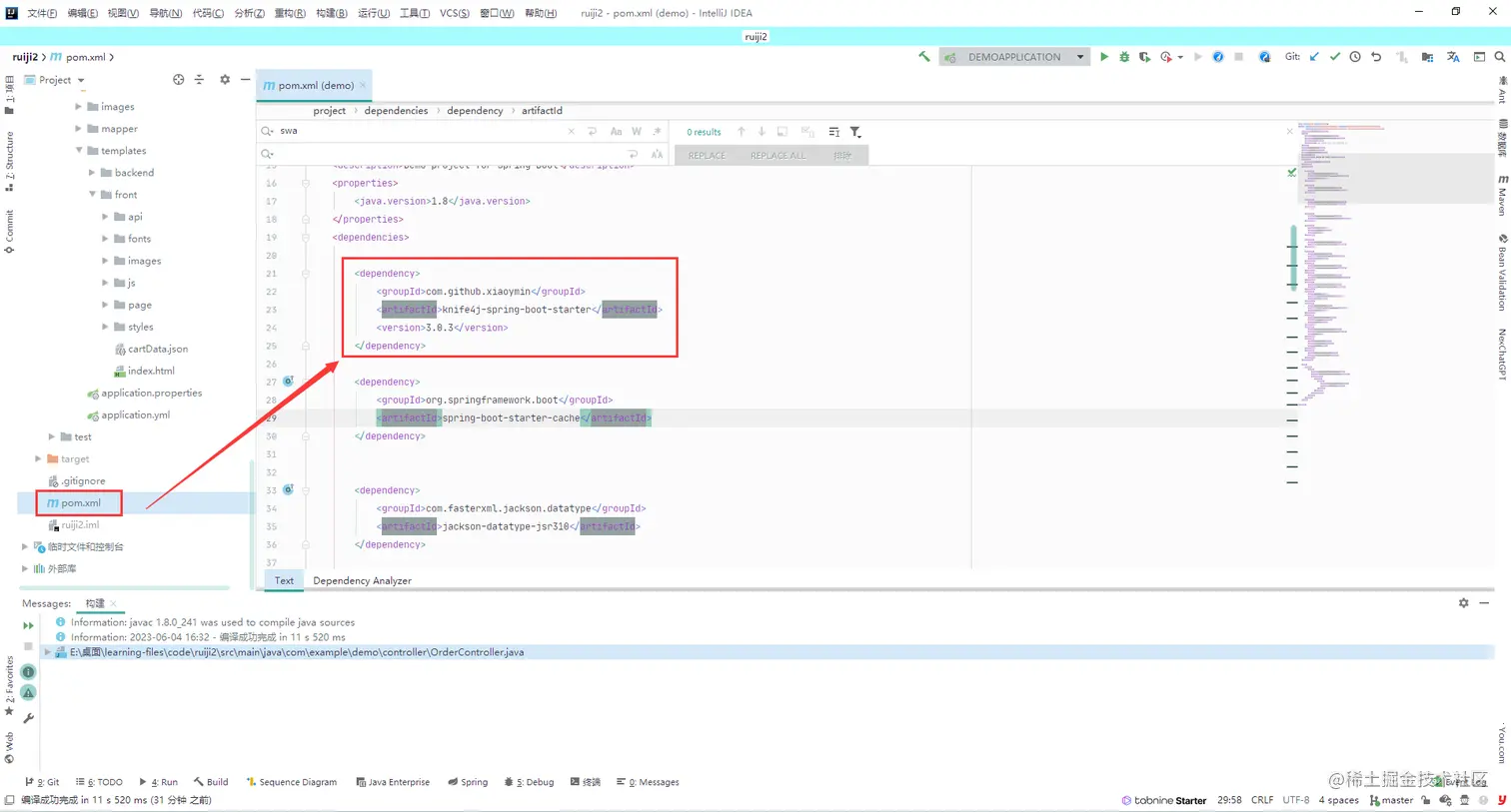

在pom.xml中添加依赖

<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>knife4j-spring-boot-starter</artifactId>
    <version>3.0.3</version>
</dependency>

在config类中设置配置

package com.example.demo.config;

import com.example.demo.common.JacksonObjectMapper;
import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;


/**
 * 前端资源放行配置类
 * */
@Configuration
@Slf4j
@EnableSwagger2
@EnableKnife4j
public class WebMVCConfig extends WebMvcConfigurationSupport {

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.example.demo.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("瑞吉外卖")
                .version("1.0")
                .description("瑞吉外卖接口文档")
                .build();
    }

    /**
     * 设置静态资源映射
     * */
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        //添加映射
        log.info("映射静态资源开始");
        //
        registry.addResourceHandler("doc.html").addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");

    }
}

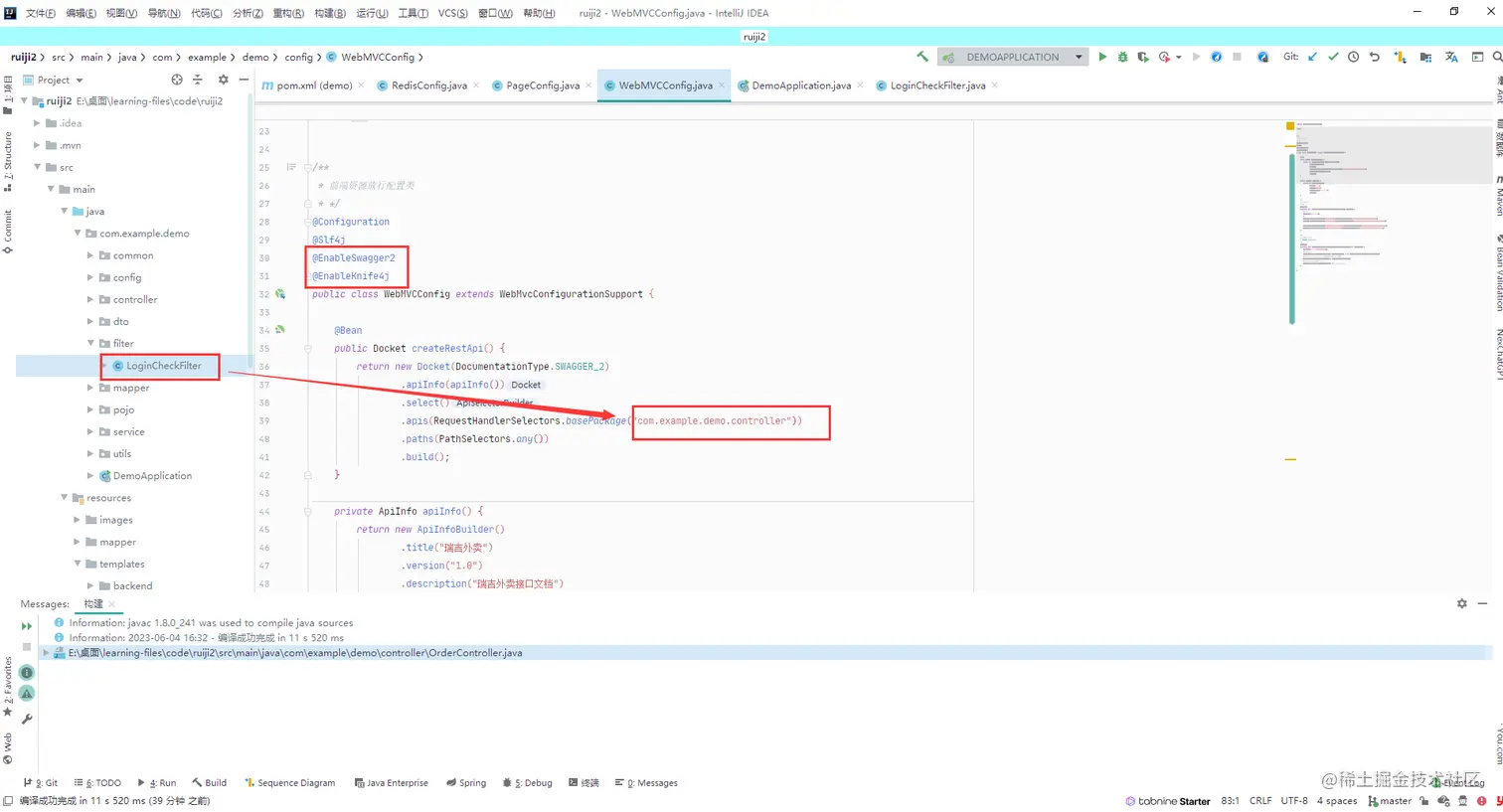

基本上配置下controller的地址就好了

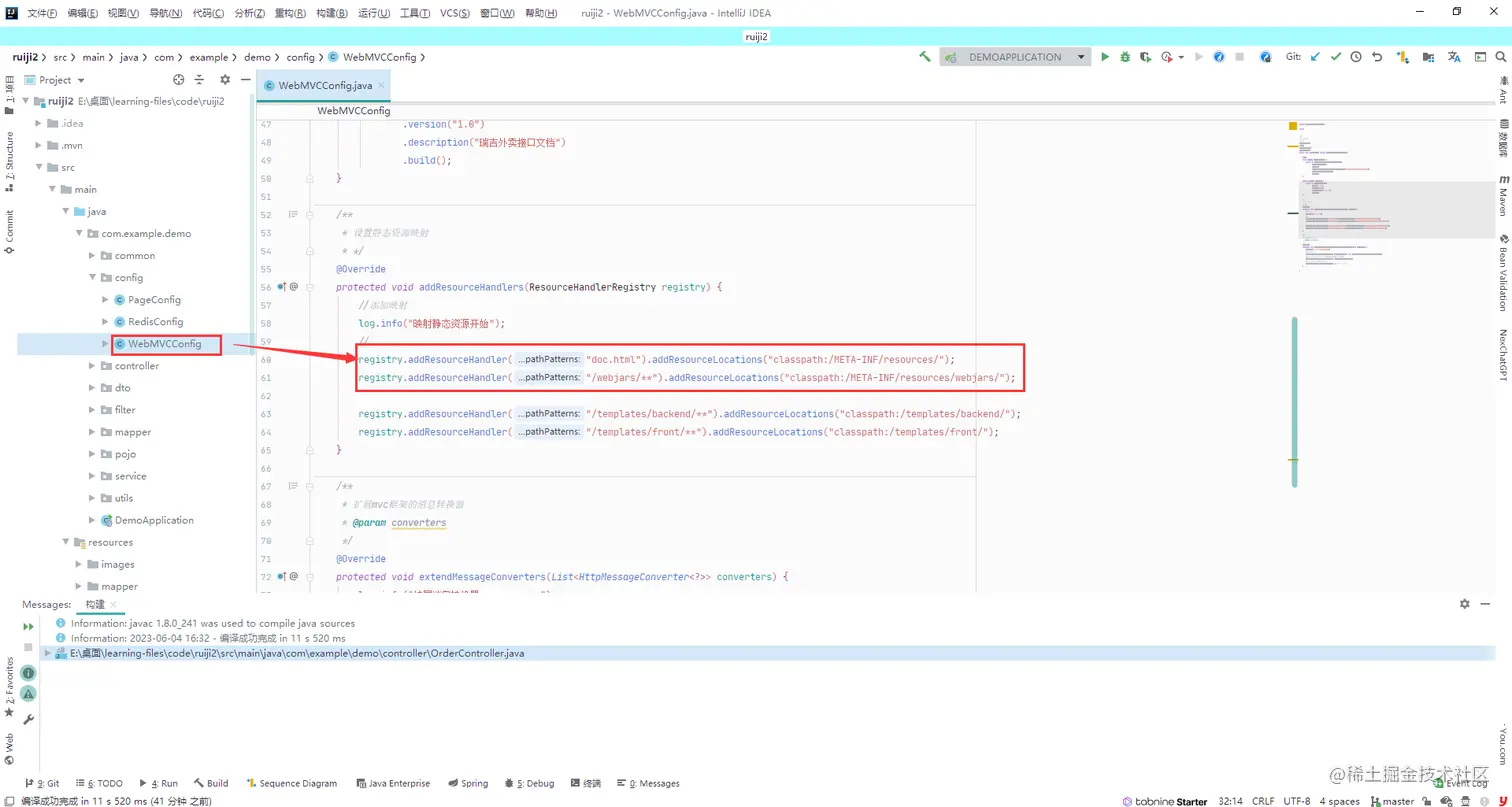

静态资源映射

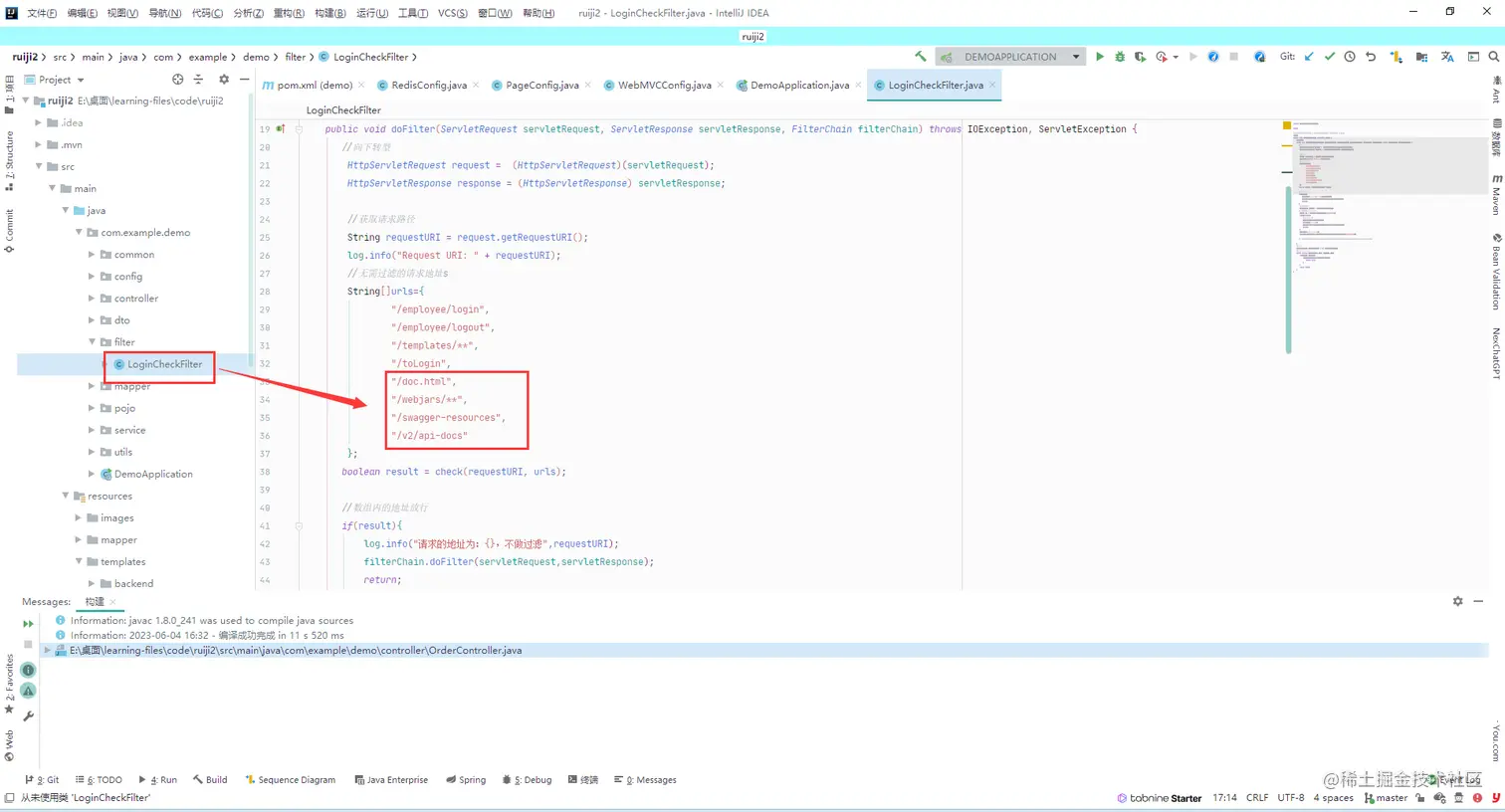

过滤器放行

没有设置前，需要用户登录才能查看接口信息；设置后，无需登录即可查看。

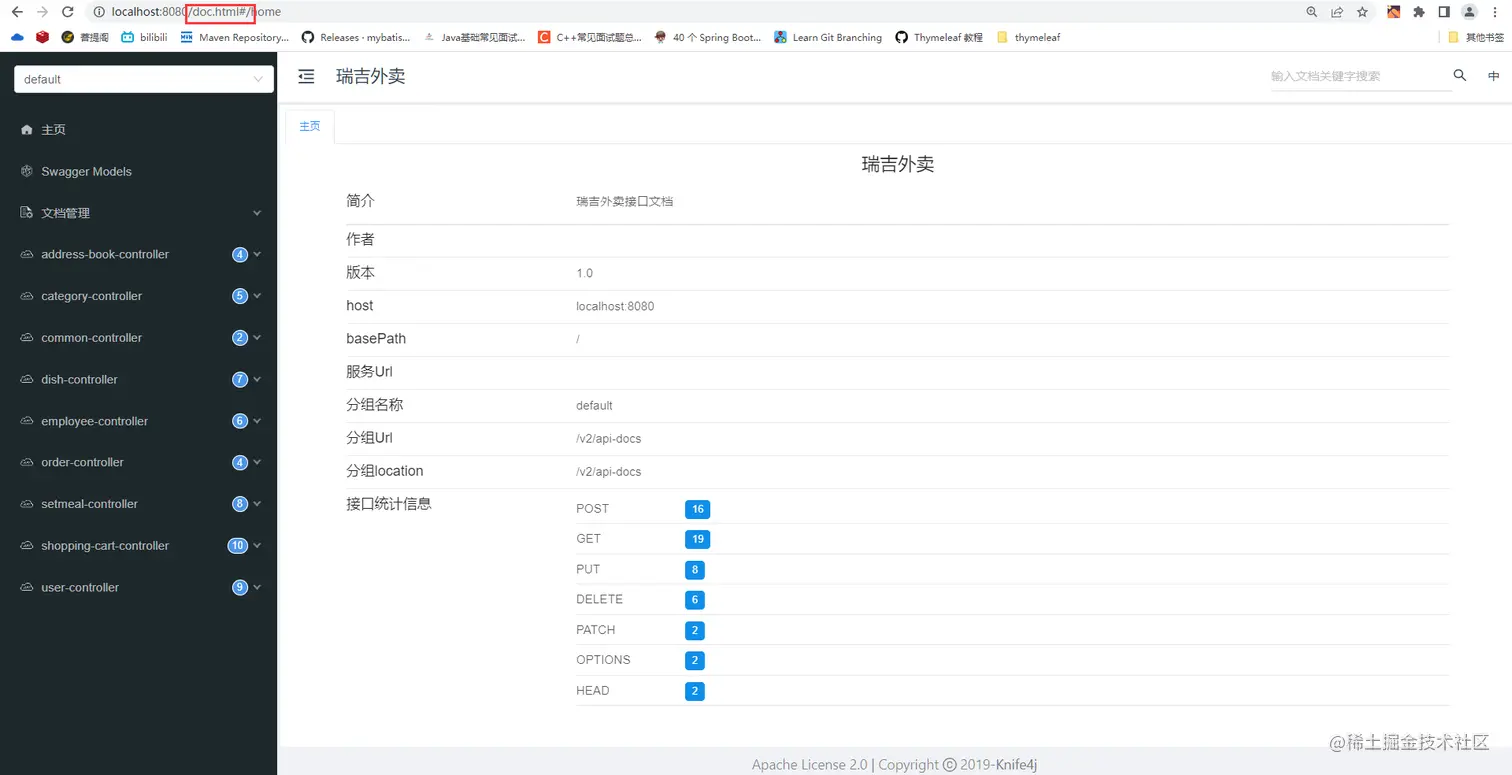

浏览器查看

浏览器输入 http://localhost:8080/doc.html 即可查看

常用注解

注解	说明
@Api	用在类上，例如Controller，表示对类的说明
@ApiModel	用在类上，例如entity、DTO、VO
@ApiModelProperty	用在属性上，描述属性信息
@ApiOperation	用在方法上，例如controller的方法，说明方法的用途、作用

代码示例

controller

/**
* 员工管理
*/
@RestController
@RequestMapping("/admin/employee")
@Slf4j
@Api(tags = "员工相关接口")
public class EmployeeController {

@Autowired
private EmployeeService employeeService;
@Autowired
private JwtProperties jwtProperties;

/**
* 登录
*
* @param employeeLoginDTO
* @return
*/
@PostMapping("/login")
@ApiOperation(value = "员工登录")
public Result<EmployeeLoginVO> login(@RequestBody EmployeeLoginDTO employeeLoginDTO) {

    XXX

    return Result.success(employeeLoginVO);
}

/**
* 退出
*
* @return
*/
@PostMapping("/logout")
@ApiOperation("员工退出")
public Result<String> logout() {

    return Result.success();
}

/**
* 新增员工
* @param employeeDTO
* @return
*/
@PostMapping
@ApiOperation("新增员工")
public Result save(@RequestBody EmployeeDTO employeeDTO){

    XXX

    return Result.success();
}

/**
* 员工分页查询
* @param employeePageQueryDTO
* @return
*/
@GetMapping("/page")
@ApiOperation("员工分页查询")
public Result<PageResult> page(EmployeePageQueryDTO employeePageQueryDTO){

    XXX

    return Result.success(pageResult);
}

/**
* 启用禁用员工账号
* @param status
* @param id
* @return
*/
@PostMapping("/status/{status}")
@ApiOperation("启用禁用员工账号")
public Result startOrStop(@PathVariable Integer status,Long id){

    XXX

    return Result.success();
}

/**
* 根据id查询员工信息
* @param id
* @return
*/
@GetMapping("/{id}")
@ApiOperation("根据id查询员工信息")
public Result<Employee> getById(@PathVariable Long id){

    XXX

    return Result.success(employee);
}

/**
* 编辑员工信息
* @param employeeDTO
* @return
*/
@PutMapping
@ApiOperation("编辑员工信息")
public Result update(@RequestBody EmployeeDTO employeeDTO){

    XXX

    return Result.success();
    }
}

实体类

@Data
@ApiModel(description = "员工登录时传递的数据模型")
public class EmployeeLoginDTO implements Serializable {

    @ApiModelProperty("用户名")
    private String username;

    @ApiModelProperty("密码")
    private String password;

}

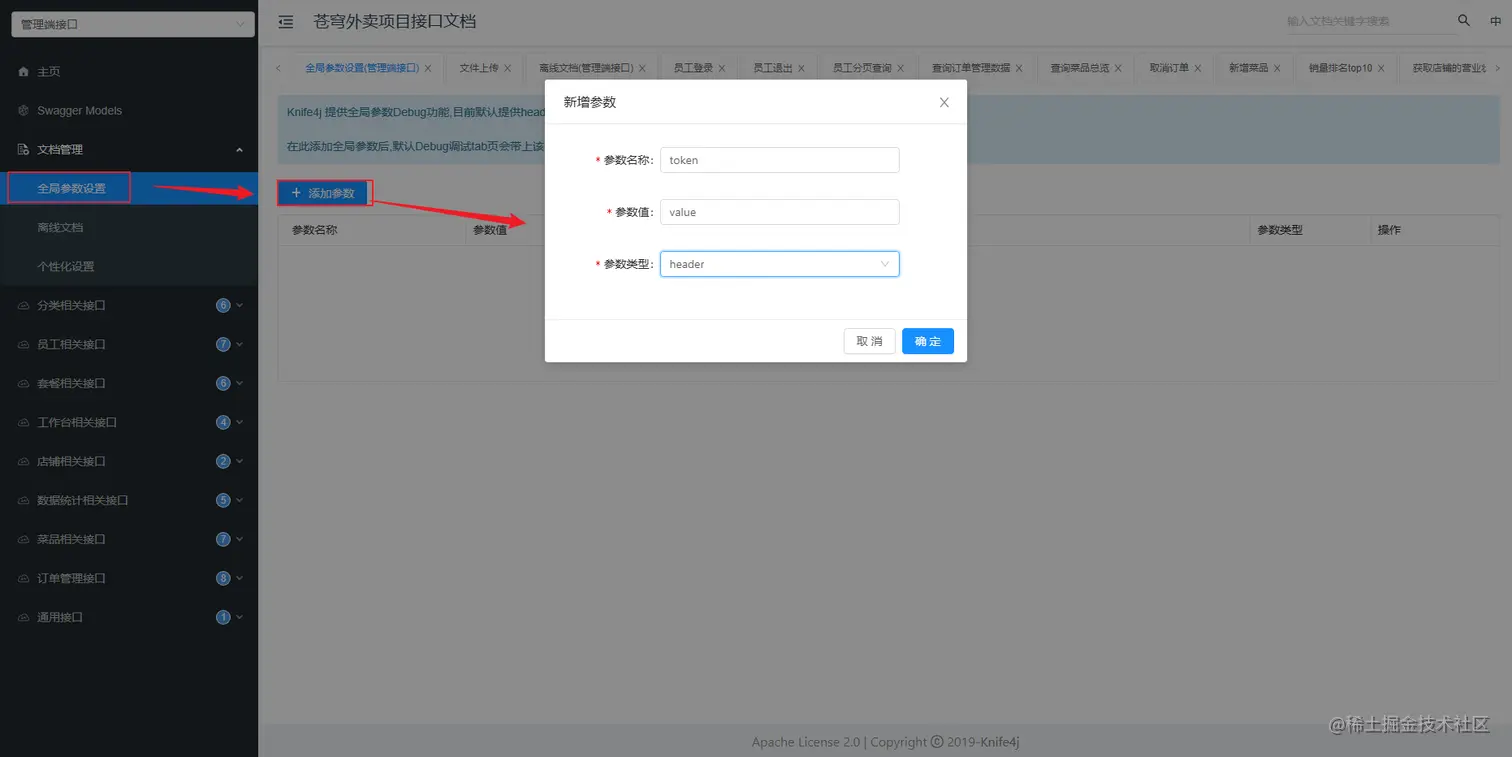

请求中附带token
