使用ShardingSphere + mybatis进行数据库的分表分库与实现多表连接查询

环境使用： Springboot 2.6.0 + Mybatis 2.1.4 + ShardingSphere 5.1.0 + Druid 1.1.22

相关的 Maven依赖

<dependency>
    <groupId>org.apache.shardingsphere</groupId>
    <artifactId>shardingsphere-jdbc-core-spring-boot-starter</artifactId>
    <version>5.1.0</version>
</dependency>

<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>2.1.4</version>
</dependency>

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>1.1.22</version>
</dependency>

<dependency>
    <groupId>org.apache.tomcat</groupId>
    <artifactId>tomcat-dbcp</artifactId>
    <version>10.0.16</version>
</dependency>

按照水平进行分表分库

db0与db1数据库以及表创建如下：

create database db0
use db0
DROP TABLE IF EXISTS `address`;
CREATE TABLE `address` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增ID',
  `student_id` bigint(20) NOT NULL COMMENT '学生id',
  `name` int(64) NOT NULL COMMENT '学生地址',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4  DEFAULT CHARSET=utf8mb4 COMMENT='学生';

DROP TABLE IF EXISTS `student0`;
CREATE TABLE `student0` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增ID',
  `age` int(20) NOT NULL COMMENT '年龄',
  `name` varchar(64) CHARACTER SET utf8mb4  DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4  DEFAULT CHARSET=utf8mb4 COMMENT='学生';

DROP TABLE IF EXISTS `student1`;
CREATE TABLE `student1` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增ID',
  `age` int(20) NOT NULL COMMENT '年龄',
  `name` varchar(64) CHARACTER SET utf8mb4  DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4  DEFAULT CHARSET=utf8mb4  COMMENT='学生';

DROP TABLE IF EXISTS `student2`;
CREATE TABLE `student2` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增ID',
  `age` int(4) NOT NULL COMMENT '年龄',
  `name` varchar(64) CHARACTER SET utf8mb4  DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8mb4  COMMENT='学生';

create database db1
use db1
DROP TABLE IF EXISTS `address`;
CREATE TABLE `address` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增ID',
  `student_id` bigint(20) NOT NULL COMMENT '学生id',
  `name` int(64) NOT NULL COMMENT '学生地址',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4  DEFAULT CHARSET=utf8mb4 COMMENT='学生';

DROP TABLE IF EXISTS `student0`;
CREATE TABLE `student0` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增ID',
  `age` int(20) NOT NULL COMMENT '年龄',
  `name` varchar(64) CHARACTER SET utf8mb4  DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4  DEFAULT CHARSET=utf8mb4 COMMENT='学生';

DROP TABLE IF EXISTS `student1`;
CREATE TABLE `student1` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增ID',
  `age` int(20) NOT NULL COMMENT '年龄',
  `name` varchar(64) CHARACTER SET utf8mb4  DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4  DEFAULT CHARSET=utf8mb4  COMMENT='学生';

DROP TABLE IF EXISTS `student2`;
CREATE TABLE `student2` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增ID',
  `age` int(4) NOT NULL COMMENT '年龄',
  `name` varchar(64) CHARACTER SET utf8mb4  DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8mb4  COMMENT='学生';

项目的目录结构：

学生实体类：

@Data
public class Student {
    private Long id;
    private Integer age;
    private String name;
}

学生Dao：

@Mapper
public interface StudentDao {
    // 插入一条数据
    int insert (Student student);
    // 查询所以学生数据
    List<Student> selectAll ();
    // 通过表连接查询所以学生信息以及地址
    Map<String, Object> studentInfo (Long id);
}

Service类：

@Service
public class StudentService implements IStudentService {

    @Resource
    StudentDao studentDao;

    @Override
    public int insert(Student student) {
        return studentDao.insert(student);
    }

    @Override
    public List<Student> selectAll() {
        return studentDao.selectAll();
    }

    @Override
    public Map<String, Object> studentInfo(Long id) {
        return studentDao.studentInfo(id);
    }
}

resources 下xml 文件：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.shardingsphere.dao.StudentDao">

  <insert id="insert" parameterType="com.example.shardingsphere.entity.Student">
    INSERT INTO student (age, name) VALUES (#{age}, #{name})
  </insert>

  <select id="selectAll" resultType="com.example.shardingsphere.entity.Student">
    select * from student
  </select>

  <select id="studentInfo" parameterType="java.lang.Long" resultType="java.util.Map">
    select student.id as student_id, address.name as address_name,
    student.name as student_name from `student`
    join `address` on `student`.id = `address`.student_id
    where student.id = #{id}
  </select>
</mapper>

ShardingSphere配置文件如下：

# mybatis 的 xml文件路径
mybatis:
  mapper-locations: classpath:/mapper/*.xml

spring:
  shardingsphere:
    # 打开sql 执行的日志输出
    props:
      sql-show: true
    datasource:
      # 配置第一个数据库连接
      ds0:
        driver-class-name: com.mysql.cj.jdbc.Driver
        type: com.alibaba.druid.pool.DruidDataSource
        password: chenpeng1998..
        username: root
        url: jdbc:mysql://localhost:3306/ds0?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=GMT&allowPublicKeyRetrieval=true
      # 配置第二个数据库连接
      ds1:
        driver-class-name: com.mysql.cj.jdbc.Driver
        type: com.alibaba.druid.pool.DruidDataSource
        password: chenpeng1998..
        username: root
        url: jdbc:mysql://localhost:3306/ds1?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=GMT&allowPublicKeyRetrieval=true
      # 记录你所使用的所有数据库
      names: ds0,ds1
    # 配置规则信息， 确定某一条数据在哪个数据库、表里进行插入或查询
    rules:
      sharding:
        sharding-algorithms:
          # 自定义的分库的规则
          custom-db-inline:
            props:
              # 根据 id 进行分库
              algorithm-expression: ds$->{id%2}
            type: INLINE
          # 自定义的分表的规则
          custom-table-inline:
            props:
              # 根据 id 进行分表
              algorithm-expression: student$->{id%3}
            type: INLINE
          # 自定义的分库的规则
          address-db-inline:
            props:
              # 根据 student_id 进行分库
              algorithm-expression: ds$->{student_id%2}
            type: INLINE
        # 选择主键生成的方式，本案例使用雪花算法进行生成id
        key-generators:
          snowflake:
            type: SNOWFLAKE
            props:
              worker-id: 666
        # 根据上面自定义的规则对表进行分库分表
        tables:
          # 对 address 表进行分库
          address:
            # 对 address 表进行分库， {0..1} 代表 可供选择的数据库为ds0和ds1
            actual-data-nodes: ds$->{0..1}.address
            # 利用address中的student_id 进行分库
            database-strategy:
              standard:
                sharding-algorithm-name: address-db-inline
                sharding-column: student_id
          # 对 student 表进行分表分库
          student:
            # 对student的id 字段进行雪花算法生成
            key-generate-strategy:
              column: id
              key-generator-name: snowflake
            # 对 student 表进行分库分库， {0..1} 代表 可供选择的数据库为ds0和ds1
            # {0..2} 代表可供选择的表为student0、student1和student2
            actual-data-nodes: ds$->{0..1}.student$->{0..2}
            # 利用student中的 id进行分库
            database-strategy:
              standard:
                sharding-algorithm-name: custom-db-inline
                sharding-column: id
            # 利用student中的 id进行分表
            table-strategy:
              standard:
                sharding-algorithm-name: custom-table-inline
                sharding-column: id
    #  启动ShardingSphere
    enabled: true

Test 类下进行测试：

@RunWith(SpringRunner.class)
@SpringBootTest
public class TestApi {

    @Resource
    IStudentService studentService;

    @Test
    public void insertStudent() {
        for(int i = 0 ; i < 6 ;  i++) {
            Student student = new Student();
            student.setAge(18);
            student.setName("chen");
            studentService.insert(student);
        }
    }

    @Test
    public void selectAllTest() {
        List<Student> studentList = studentService.selectAll();
        System.out.println(studentList.size());
    }

    @Test
    public void studentInfo() {
        Long id = 871345639999406080L;
        Map<String, Object> studentInfo = studentService.studentInfo(id);
        System.out.println(studentInfo);
    }
}

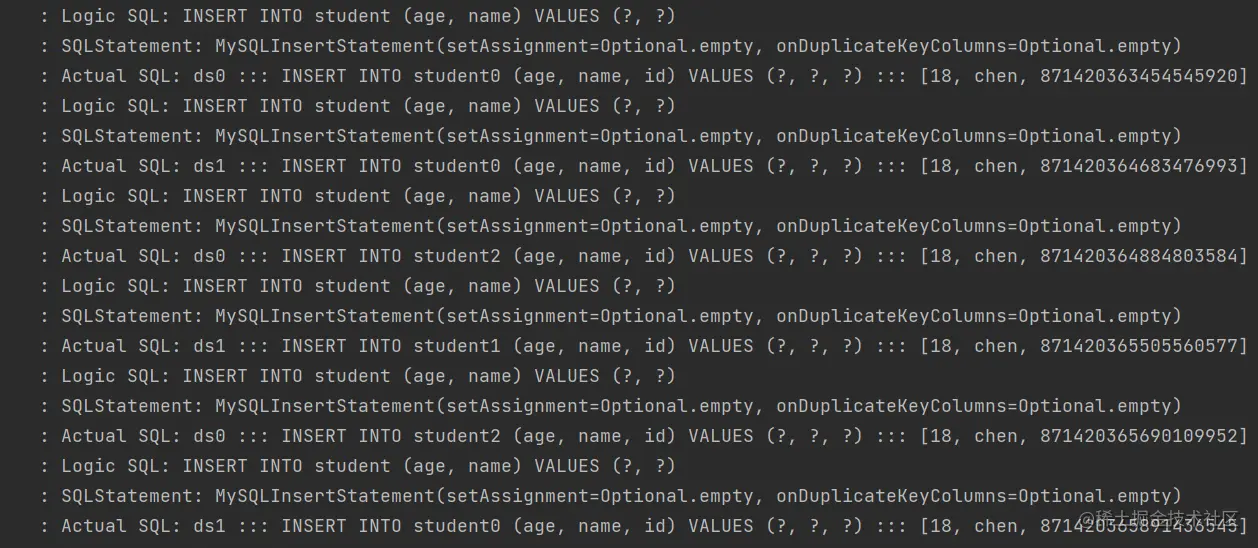

插入多条学生测试结果：从打印的记录中，6条学生记录分别插入了不同库、不同表中

查询所有学生测试结果：查询过程中对所有库所有表进行总计，一共54条

多表连接查询：对Student 表和 Address 表进行关联查询出学生信息以及地址信息

注意： 在多表进行关联查询时， Student表与Address表应该在一个数据库下，否则会报错。
