前言

我们已使用react、vue等框架，编写出todoList，但如何使用Web Components实现它呢？众所周知，Web Components组件的优点为Built once, used everywhere，即只需要编写一次，可以在react、vue、微信小程序等框架内使用。听起来很心动，是不？接下来，让我们看看，在Web Components内如何控制状态的变化。

状态

在该应用内，我自定义了4个状态：

readyForAdd：只被add事件触发
readyForAddSelect：被add、select事件触发
readyForAddUnselectDelete：选中全部checkbox后会触发该状态
readyForAddSelectUnselectDelete：选中部分checkbox后会触发该状态

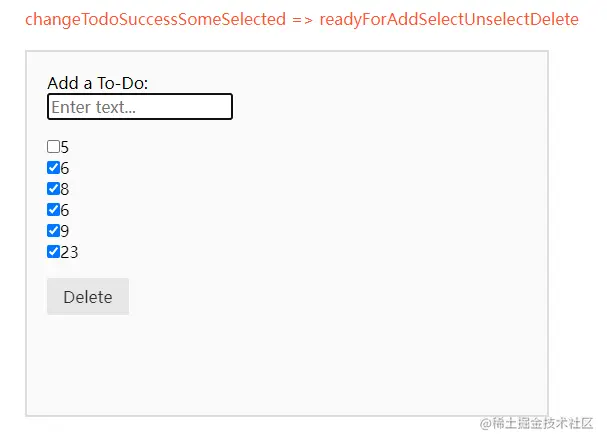

界面效果如下图所示：

状态转换如下表格所示：

Initials State	Pre-Event	Processor	Post-Event	Final State
unknownState	onload	processOnload()	onloadSuccess	readyForAdd
readyForAdd	addTodo	processAddTodo()	addTodoSuccessNoneSelected	readyForAddSelect
readyForAddSelect	addTodo	processAddTodo()	addTodoSuccessNoneSelected	readyForAddSelect
readyForAddSelect	changeTodo	processChangeTodo()	changeTodoSuccessSomeSelected	readyForAddSelectUnselectDelete
readyForAddSelect	changeTodo	processChangeTodo()	changeTodoSuccessAllSelected	readyForAddUnselectDelete
readyForAddUnselectDelete	addTodo	processAddTodo()	addTodoSuccessSomeSelected	readyForAddSelectUnselectDelete
readyForAddUnselectDelete	changeTodo	processchangeTodo()	changeTodoSuccessNoneSelected	readyForAddSelect
readyForAddUnselectDelete	changeTodo	processchangeTodo()	changeTodoSuccessSomeSelected	readyForAddSelectUnselectDelete
readyForAddUnselectDelete	deleteTodo	processDeleteTodo()	deleteTodoSuccessAllDeleted	readyForAdd
readyForAddSelectUnselectDelete	addTodo	processAddTodo()	addTodoSuccessSomeSelected	readyForAddUnselectDelete
readyForAddSelectUnselectDelete	changeTodo	processChangeTodo()	changeTodoSuccessAllSelected	readyForAddUnselectDelete
readyForAddSelectUnselectDelete	changeTodo	processChangeTodo()	changeTodoSuccessSomeSelected	readyForAddSelectUnselectDelete
readyForAddSelectUnselectDelete	changeTodo	processChangeTodo()	changeTodoSuccessNoneSelected	readyForAddSelect
readyForAddSelectUnselectDelete	changeTodo	processChangeTodo()	changeTodoSuccessSomeSelected	readyForAddSelectUnselectDelete
readyForAddSelectUnselectDelete	deleteTodo	processDeleteTodo()	deleteTodoSuccessNoneSelected	readyForAddSelect

开发该应用的步骤如下所示：

编写自定义元素custom elements，分别为input-comp、checkbox-group-comp、button-comp
配置上述表格里的状态及事件对象
编写processor函数，通过对应的custom elements，与web components通信
编写状态控制器Controller

`Web Components`

为了简单起见，这三个组件我并未使用Shadow DOM特征

input-comp.js代码：

export default class InputComp extends HTMLElement {
    static get observedAttributes() {
        return ['data-request'];
    }

    constructor() {
        super();
    }

    attributeChangedCallback(name, oldVal, newVal) {
        if (newVal != null && newVal != undefined && newVal.length > 0 && name === 'data-request') {
            const data = JSON.parse(newVal);
            if (data != null && data.action === 'create') {
                this.innerHTML = this.createInputTxtElem(data);
            }
        }

    }

    createInputTxtElem(data) {
        return `<div id="${data.name}_div">
            <input type="text" name="${data.name}" placeholde="Enter text..."
            value="${data.todoText}">
            </div>`
    }
}

window.customElements.define('input-comp', InputComp);

由于我需要在vue内使用它，故用export default将其作为组件导出

知识点如下：

observedAttributes：获取data-request自定义属性
attributeChangedCallback：当属性变化时，会自动进入到该函数内，当data-request变化时，更改input输入框内容

checkbox-group-comp.js代码：

export default class CheckboxGroupComp extends HTMLElement {
    static get observedAttributes() {
        return ['data-request'];
    }
    constructor() {
        super();
    }

    attributeChangedCallback(name, oldVal, newVal) {
        if (newVal != null && newVal != undefined && newVal.length > 0 && name === 'data-request') {
            let data = JSON.parse(newVal);
            if (data != null && data.action === 'create') {
                this.innerHTML += this.createCheckboxElement(data);
            } else if (data != null && data.action === 'delete') {
                for(let i of data.values) {
                    this.removeChild(document.getElementById("div" + i));
                }
            } else if (data != null && data.action === 'update') {
                for(let el of this.getElementsByTagName('input')){
                    if (!el.checked) {
                        el.removeAttribute('checked');
                    } else {
                        let attr = document.createAttribute('checked');
                        el.setAttributeNode(attr)
                    }
                }
            }

            let nodesArray = Array.from(this.getElementsByTagName('input'));

            let total = nodesArray.length;
            let selected = nodesArray.filter(n => n.checked).map(n => Number(n.value));
            let allItems = nodesArray.map(n => Number(n.value));
            let maxVal = Math.max(...allItems);
            let resp = { itemsCount: total, selectedItems: selected, maxId: maxVal }
            this.setAttribute("data-response", JSON.stringify(resp));
        }
    }
    createCheckboxElement(data) {
        const name = data.name;
        const nextId = data.value;
        const label = data.todoText;

        return `<div id="div${nextId}">
            <input type="checkbox" name="${name}" value="${nextId}"><label id="lbl${nextId}">${label}</label>
            </div>`;
    }
}

window.customElements.define('checkbox-group-comp', CheckboxGroupComp);

CheckboxGroupComp类有三个actions，如下所示：

create：当输入框按下回车键时，触发该动作
update：当勾选checkbox时，触发该动作，新增或删除当前checkbox的checked属性
delete：当点击Delete按钮时，触发该动作，删除对应的checkbox对象集

button-comp.js代码

export default class ButtonComp extends HTMLElement {
    static get observedAttributes() {
        return ['data-request'];
    }
    constructor() {
        super();
    }
    attributeChangedCallback(name, oldVal, newVal) {
        if (newVal != null && newVal != undefined && newVal.length > 0 && name === 'data-request') {
            const data = JSON.parse(newVal);
            if (this.getElementsByTagName('input')[0] == undefined) {
                this.innerHTML = this.createInputButtonElement(data);
            }
        }
    }
    createInputButtonElement(data) {
        return `<input type="button" name="${data.name}"  class="pure-button" value="${data.value}">`;
    }
}

window.customElements.define('button-comp', ButtonComp);

配置状态及事件对象

todoApp.js里的状态代码如下所示：

const appStates = {
    readyForAdd: function (e) {
        document.getElementById("addTodoView").style.display = "block";
        document.getElementById("changeTodoView").style.display = "none";
        document.getElementById("deleteTodoView").style.display = "none";
        document.getElementById("currentState").innerHTML = e.type + ' => readyForAdd';
    },
    readyForAddSelect: function (e) {
        document.getElementById("addTodo").getElementsByTagName("input")[0].value = "";
        document.getElementById("addTodo").getElementsByTagName("input")[0].focus();
        document.getElementById("addTodoView").style.display = "block";
        document.getElementById("changeTodoView").style.display = "block";
        document.getElementById("deleteTodoView").style.display = "none";
        document.getElementById("currentState").innerHTML = e.type + ' => readyForAddSelect';
    },
    readyForAddUnselectDelete: function (e) {
        document.getElementById("addTodoView").style.display = "block";
        document.getElementById("changeTodoView").style.display = "block";
        document.getElementById("deleteTodoView").style.display = "block";
        document.getElementById("currentState").innerHTML = e.type + ' => readyForAddUnselectDelete';
    },
    readyForAddSelectUnselectDelete: function (e) {
        document.getElementById("addTodoView").style.display = "block";
        if (appData.itemsCount() > 0) document.getElementById("changeTodoView").style.display = "block";
        else document.getElementById("changeTodoView").style.display = "none";
        document.getElementById("deleteTodoView").style.display = "block";
        document.getElementById("currentState").innerHTML = e.type + ' => readyForAddSelectUnselectDelete';
    }
}

appStates对象控制各个组件的显隐，它类似于MVC里的View

todoApp.js的事件配置代码如下所示：

const appEvents = {
    onload: {
        process: function (e, handlePostEvent) {
            const data = { name: "addTodo", action: "create", todoText: "" };
            let el = document.getElementById("addTodo");
            el.setAttribute("data-request", JSON.stringify(data));
            handlePostEvent(new CustomEvent('onloadSuccess'));
        }
    },
    onloadSuccess: {
        nextState: function (e) {
            return appStates.readyForAdd(e);
        }
    },
    addTodo: {
        process: function (e, handlePostEvent) {
            let el = document.getElementById("changeTodo");
            let maxId = appData.maxId() + 1;
            let data = { name: "changeTodo", value: maxId, action: "create", todoText:e.detail.value };
            el.setAttribute("data-request", JSON.stringify(data));

            let evttype = '';
            if (appData.selectedCount() > 0 && appData.itemsCount() - appData.selectedCount() > 0) {
                evttype = 'addTodoSuccessSomeSelected';
            } else {
                evttype = 'addTodoSuccessNoneSelected';
            }
            handlePostEvent(new CustomEvent(evttype));
        }
    },
    addTodoSuccessNoneSelected: {
        nextState: function (e) {
            return appStates.readyForAddSelect(e);
        }
    },
    addTodoSuccessSomeSelected: {
        nextState: function (e) {
            return appStates.readyForAddSelectUnselectDelete(e);
        }
    },
    changeTodo: {
        process: function (e, handlePostEvent) {
            let selectedItem = e.detail.value
            let evttype = '';
            console.log(">>> selected value: ", selectedItem);
            if (selectedItem != null) {
                let data = { name: "deleteTodo", value: "Delete" };
                document.getElementById("deleteTodo").setAttribute("data-request", JSON.stringify(data));

                data = { name: "changeTodo", action: "update", value: Number(selectedItem) };
                document.getElementById("changeTodo").setAttribute("data-request", JSON.stringify(data));
            }
            if (appData.selectedCount() > 0) {
                if (appData.selectedCount() == appData.itemsCount()) {
                    evttype = 'changeTodoSuccessAllSelected';
                } else if (appData.itemsCount() - appData.selectedCount() > 0) {
                    evttype = 'changeTodoSuccessSomeSelected';
                }
            } else {
                evttype = 'changeTodoSuccessNoneSelected';
            }
            handlePostEvent(new CustomEvent(evttype));
        }
    },
    changeTodoSuccessSomeSelected: {
        nextState: function (e) {
            return appStates.readyForAddSelectUnselectDelete(e);
        }
    },
    changeTodoSuccessAllSelected: {
        nextState: function (e) {
            return appStates.readyForAddUnselectDelete(e);
        }
    },
    changeTodoSuccessNoneSelected: {
        nextState: function (e) {
            return appStates.readyForAddSelect(e);
        }
    },
    deleteTodo: {
        process: function (e, handlePostEvent) {
            let data = { name: "changeTodo", action: "delete", values: appData.selectedItems() };
            console.log(">>> data: ", appData.selectedItems());
            document.getElementById("changeTodo").setAttribute("data-request", JSON.stringify(data));

            let evttype = '';
            if (appData.itemsCount() > 0 && appData.selectedCount() == 0) {
                evttype = 'deleteTodoSuccessNoneSelected';
            }
            else evttype = 'deleteTodoSuccessAllDeleted';
            handlePostEvent(new CustomEvent(evttype));
        }
    },
    deleteTodoSuccessNoneSelected: {
        nextState: function (e) {
            return appStates.readyForAddSelect(e);
        }
    },
    deleteTodoSuccessAllDeleted: {
        nextState: function (e) {
            return appStates.readyForAdd(e);
        }
    }
}

在appEvents各个事件内，皆定义了nextState函数，而非直接使用appStates，这样我们便能知道该事件对应的下一个状态是什么。process函数处理pre-events，而nextState函数处理post-events，如果大家不清楚的话，可以再次看下文章开头的状态转换表格

`Processor`函数

有意思的是，Processor函数将JSON数据，添加到data-request属性值里，再收集JSON返回数据，并将其添加到data-response属性值里，在Processor函数内，我们使用appData对象读取data-response值。

appData代码如下所示（也在todoApp.js内）

const appData = {
    maxId: function () {
        let data = document.getElementById("changeTodo").getAttribute("data-response");
        if (data.length > 0) {
            return JSON.parse(data).maxId;
        }
        return 0;
    },
    selectedCount: function () {
        return appData.selectedItems().length;
    },
    itemsCount: function () {
        let data = JSON.parse(document.getElementById("changeTodo").getAttribute("data-response"));
        return data.itemsCount;

    },
    selectedItems: function () {
        let data = JSON.parse(document.getElementById("changeTodo").getAttribute("data-response"));
        return data.selectedItems;
    }
}

在MVC模式里，appData类似于Model

Controller

所有的状态控制器函数如下所示（也定义在todoApp.js内）

export function handleAppEvent(customEventName, eventDta) {
    appEventHelper(customEventName, eventDta);
    document.getElementById("addTodo").addEventListener('change', e => {
        appEventHelper('addTodo', e.target.value);
    });
    document.getElementById("changeTodo").addEventListener('change', e => {
        appEventHelper('changeTodo', e.target.value);
    });
    document.getElementById("deleteTodo").addEventListener('click', e => {
        appEventHelper('deleteTodo', e.target.value);
    });
}

export function appEventHelper(customEventName, eventDta){
    let todoEvent = new CustomEvent(customEventName, {
        detail: {
            value: eventDta
        }
    });
    stateTransitionsManager(todoEvent);
}

export function stateTransitionsManager(todoEvent) {
    var todoEventAft = appEvents[todoEvent.type].process(todoEvent, handlePostEvent);
}

export function handlePostEvent(e) {
    appEvents[e.type].nextState(e);
}

值得注意的是，在handleAppEvent函数内，监听并接收所有的HTML DOM事件(pre-events)，包括web component里的事件。

状态如何转换

使用handleAppEvent捕获HTML DOM事件
用CustomEvent包裹该事件，并将其发送到stateTransitionsManager
stateTransitionsManager使用appEvents配置，调用对应的processor函数，将其传递到回调函数内
processor函数与对应的web components通信，创建custom event(post-event)，将它传递到回调函数handlePostEvent内
handlePostEvent利用appEvents配置，调用nexState函数
nexState函数利用appStates配置，控制web component的显隐
屏幕已准备接收用户的下一步动作

如何应用到`Vue`项目内

在App.vue内，引用自定义元素及todoApp.js代码，如下所示：

<template>
    <section id="todoApp" style="width: 90%">
        <div class="pure-g" style="height: 90%;">
            <div class="pure-u-1-4"> </div>
            <section id="todoApp" class="pure-u-1-2">
                <div id="currentState" class="red"> </div>
                <div class="grids-custom">Add a To-Do:
                    <section id="addTodoView" style="display: none;">
                        <input-comp id="addTodo" data-request="" data-response=""></input-comp>
                    </section>
                    <section id="changeTodoView" style="display: none;">
                        <checkbox-group-comp id="changeTodo" data-request="" data-response=""></checkbox-group-comp>
                    </section>
                    <section id="deleteTodoView" style="display: none;">
                        <button-comp id="deleteTodo" data-request=""></button-comp>
                    </section>
                </div>
            </section>
        </div>
    </section>
</template>

import './src/webcomponents/todoApp/button-comp.js'
import './src/webcomponents/todoApp/input-comp.js'
import './src/webcomponents/todoApp/checkbox-group-comp.js'
import { handleAppEvent } from './src/webcomponents/todoApp/todoApp.js'

mounted() {
    handleAppEvent('onload', '')
}

示例

该应用的示例链接

源码下载

所有的源码可通过github下载

结语

我们可使用MVC模式来控制Web Components的状态转换，如果同学们对此感兴趣的话，可以访问Polymer TodoMVC获得更多资料信息。

用Web Components实现todoList，高效且通用，脱离框架限制

前言

状态

Web Components
