Flux is a tool for keeping Kubernetes clusters in sync with sources of configuration (like Git repositories), and automating updates to configuration when there is new code to deploy.

Install

Install CLI

FluxCLI安装文档

Check your Kubernetes cluster

flux check --pre

Dev install

For testing purposes you can install Flux without storing its manifests in a Git repository:

flux install

Or using kubectl:

kubectl apply -f https://github.com/fluxcd/flux2/releases/latest/download/install.yaml

QuickStart

.
├── apps                         # 应用相关信息
│   └── exmaple
├── clusters                     # 集群相关配置
│   ├── gitrepo.yaml             # gitrepository    (CR)
│   ├── terraform.yaml           # terraform        (CR)
│   ├── helm.yaml                # helmrelease      (CR)
│   └── notification.yaml        # alert & provider (CR)
└── infrastructure               # iac 相关配置（主要是 terraform hcl 配置）
    ├── main.tf
    ├── provider.tf
    └── variable.tf

Source Controller

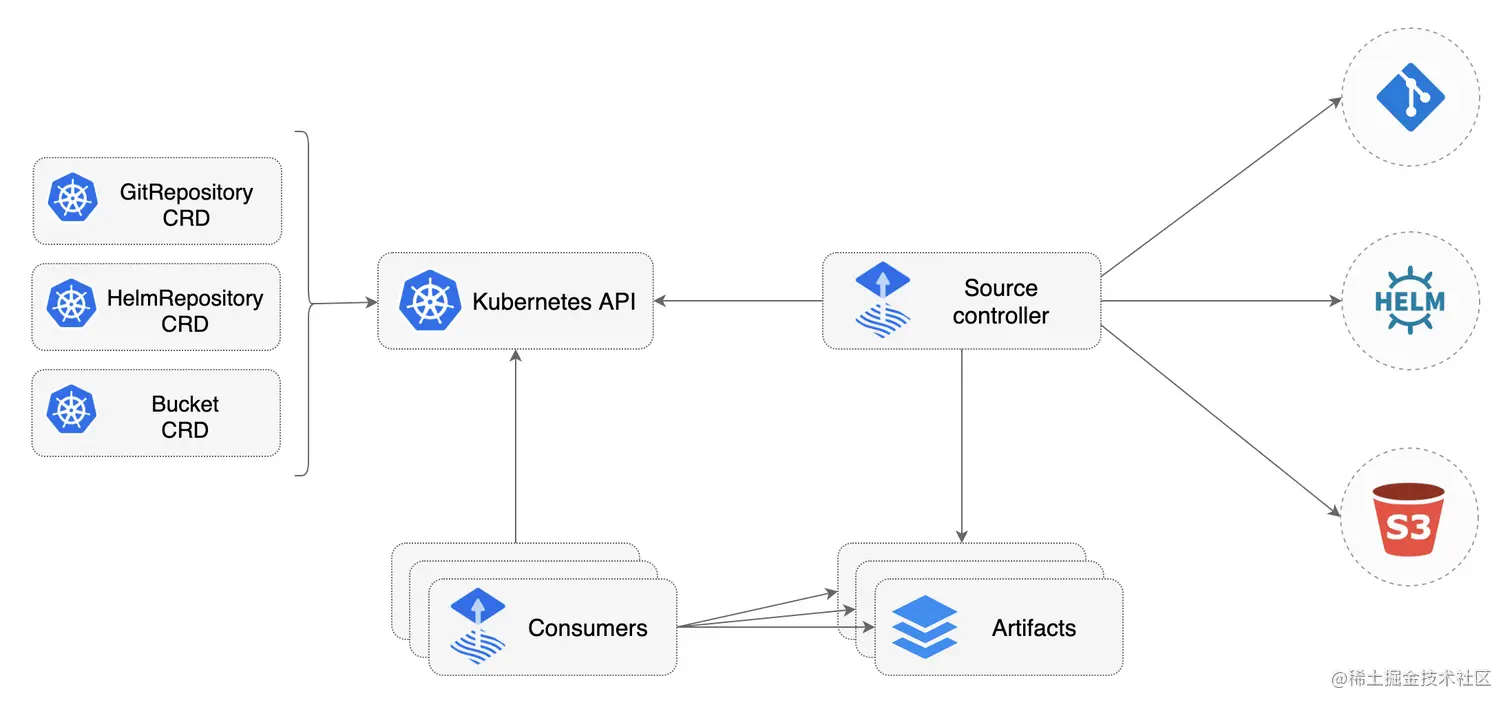

The main role of the source management component is to provide a common interface for artifacts acquisition. The source API defines a set of Kubernetes objects that cluster admins and various automated operators can interact with to offload the Git and Helm repositories operations to a dedicated controller. enter image description here

gitrepo.yaml

apiVersion: source.toolkit.fluxcd.io/v1beta1
kind: GitRepository
metadata:
  name: gitrepo
  namespace: flux-system
spec:
  secretRef:
    name: https-credentials
  interval: 1m
  url: https://github.com/blazehu/gitops_example.git
  ref:
    branch: master

---
apiVersion: v1
kind: Secret
metadata:
  name: https-credentials
  namespace: flux-system
type: Opaque
data:
  username: xxx
  password: xxx

secret 主要是做 git 仓库的认证

interval 是拉取 git 提交的间隔，每隔一分钟会查看 git 仓库是否会有新的提交

TF Controller

TF-controller is an experimental controller for Flux to reconcile Terraform resources in the GitOps way. With the power of Flux together with Terraform, TF-controller allows you to GitOps-ify infrastructure, and application resources, in the Kubernetes and Terraform universe, at your own pace.

tf config

infrastructure
├── main.tf
├── provider.tf
└── variable.tf

provider.tf

terraform {
  required_providers {
    tencentcloud = {
      source  = "tencentcloudstack/tencentcloud"
      version = "1.60.5"
    }
  }
}

provider "tencentcloud" {
}

main.tf

resource "tencentcloud_clb_instance" "example" {
  target_region_info_region    = var.region
  target_region_info_vpc_id    = var.vpc
  vpc_id                       = var.vpc
  clb_name                     = var.clb_name
  network_type                 = "OPEN"
  project_id                   = 0
  security_groups              = [tencentcloud_security_group.sg1.id]
  internet_bandwidth_max_out   = "10"
  internet_charge_type         = "TRAFFIC_POSTPAID_BY_HOUR"
  load_balancer_pass_to_target = "true"

  lifecycle {
    ignore_changes = [
      tags,
    ]
  }
}

resource "tencentcloud_security_group" "sg1" {
  description = "默认安全组"
  name        = "example-sg1"
  project_id  = "0"
}

resource "tencentcloud_security_group_lite_rule" "sglr1" {
  egress            = ["ACCEPT#0.0.0.0/0#ALL#ALL"]
  ingress           = ["ACCEPT#0.0.0.0/0#80,443#TCP", "DROP#0.0.0.0/0#ALL#ALL"]
  security_group_id = tencentcloud_security_group.sg1.id
}

output "clb_vip" {
  value = tencentcloud_clb_instance.example.clb_vips[0]
}

terraform.yaml

apiVersion: infra.contrib.fluxcd.io/v1alpha1
kind: Terraform
metadata:
  name: tf-example
  namespace: flux-system
spec:
  interval: 1m
  approvePlan: "auto"
  destroyResourcesOnDeletion: true
  path: ./infrastructure
  sourceRef:
    kind: GitRepository
    name: gitrepo
    namespace: flux-system
  varsFrom:
  - kind: Secret
    name: tf-secret
  writeOutputsToSecret:
    name: tf-output

---
apiVersion: v1
kind: Secret
metadata:
  name: tf-secret
  namespace: flux-system
type: Opaque
data:
  secret_id: xxx
  secret_key: xxx
  region: xxx

writeOutputsToSecret 输出相关信息至 secret 便于其他资源引用

varsFrom 敏感信息通过该方式在 terraform 中引用

Helm Controller

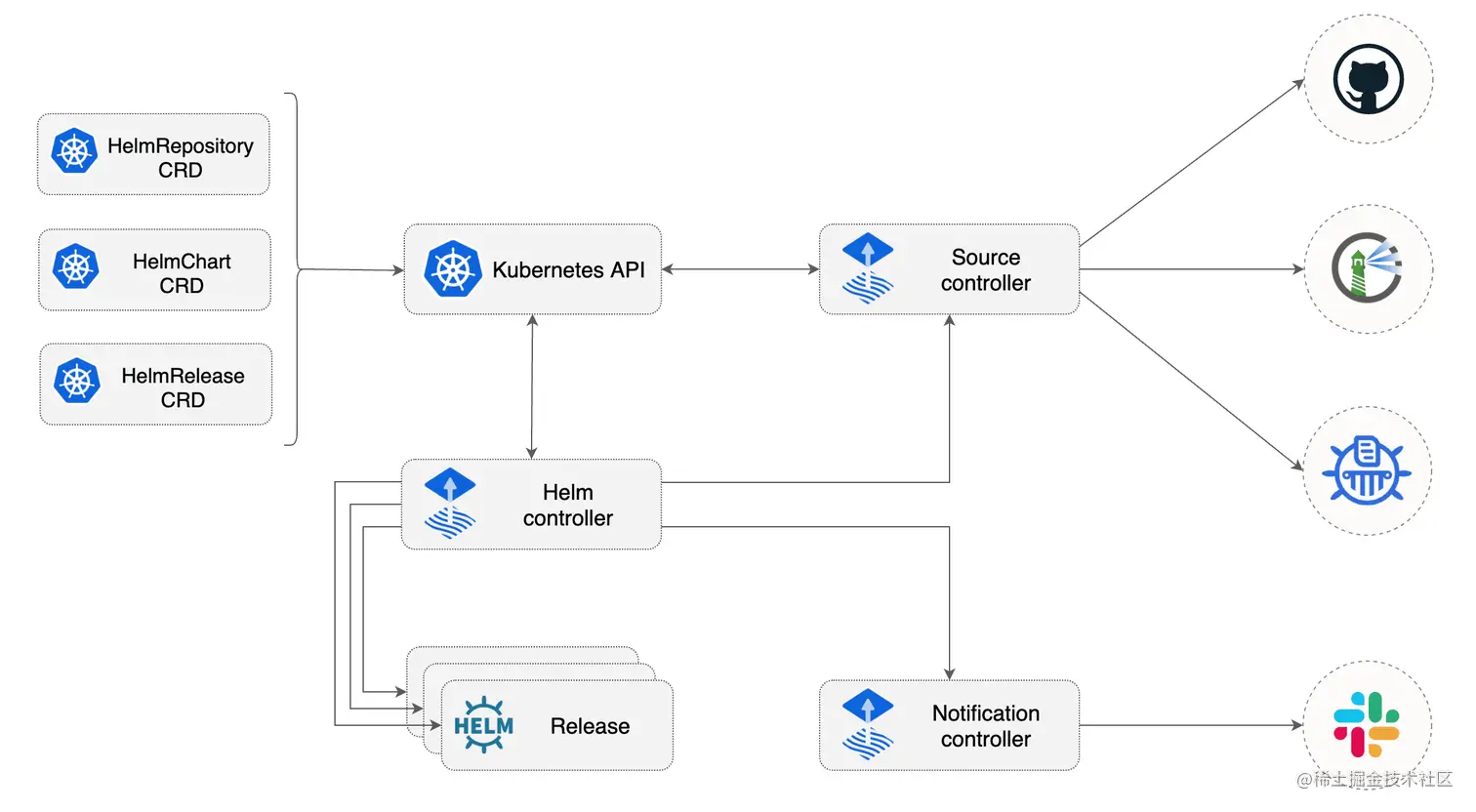

The Helm Controller is a Kubernetes operator, allowing one to declaratively manage Helm chart releases with Kubernetes manifests. enter image description here

helm.yaml

apiVersion: helm.toolkit.fluxcd.io/v2beta1
kind: HelmRelease
metadata:
  name: example
  namespace: flux-system
spec:
  interval: 1m
  targetNamespace: blazehu
  releaseName: example
  chart:
    spec:
      chart: apps/exmaple
      version: ">=0.0.1"
      valuesFile: ./apps/exmaple/values.yaml
      interval: 1m
      sourceRef:
        kind: GitRepository
        name: gitrepo
        namespace: flux-system
  upgrade:
    remediation:
      remediateLastFailure: true
  valuesFrom:
    - kind: Secret
      name: tf-output
      valuesKey: clb_vip
      targetPath: clb.serviceVIP

version: a SemVer range (i.e. >=4.0.0 <5.0.0) to automatically upgrade your releases when a new chart version is available in the release’s referenced HelmRepository.

charts: The name or path the Helm chart is available at in the SourceRef.

valuesFile: Alternative list of values files to use as the chart values.

releaseName: Defaults to a composition of '[TargetNamespace-]Name'.

targetNamespace: TargetNamespace to target when performing operations for the HelmRelease. Defaults to the namespace of the HelmRelease.

Notification Controller

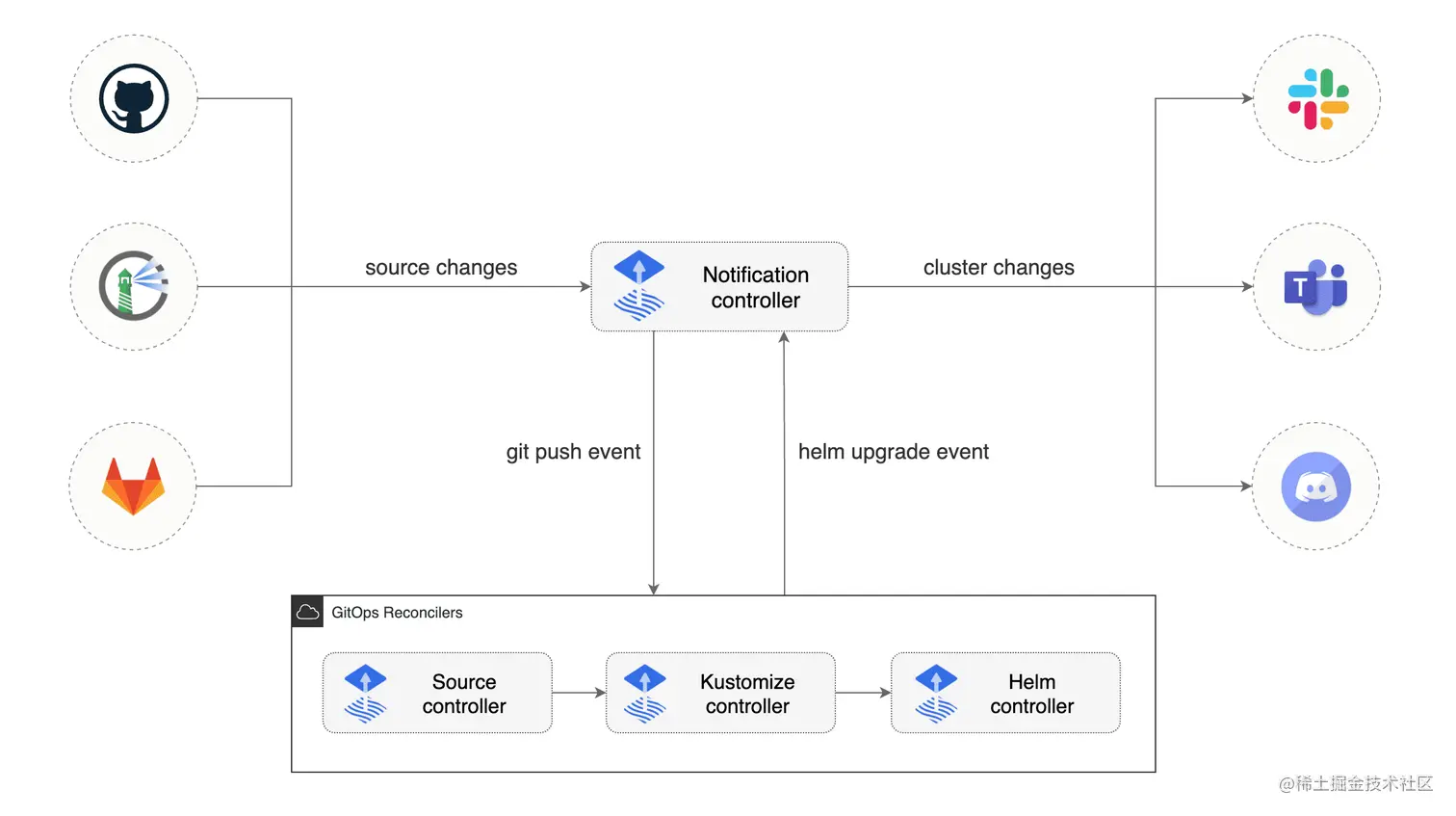

The Notification Controller is a Kubernetes operator, specialized in handling inbound and outbound events. enter image description here

notification.yaml

apiVersion: notification.toolkit.fluxcd.io/v1beta1
kind: Alert
metadata:
  name: example-alert
  namespace: flux-system
spec:
  providerRef:
    name: generic
  eventSeverity: info
  eventSources:
    - kind: GitRepository
      name: gitrepo
      namespace: flux-system
    - kind: HelmRelease
      name: example
      namespace: blazehu

---
apiVersion: notification.toolkit.fluxcd.io/v1beta1
kind: Provider
metadata:
  name: generic
  namespace: flux-system
spec:
  type: generic
  address: https://hooks.slack.com/services/YOUR/SLACK/WEBHOOK
