作用： 削峰填谷（主要解决瞬时写压力大于应用服务能力导致消息丢失、系统奔溃等问题） 系统解耦（解决不同重要程度、不同能力级别系统之间依赖导致一死全死） 提升性能（当存在一对多调用时，可以发一条消息给消息系统，让消息系统通知相关系统） 蓄流压测（线上有些链路不好压测，可以通过堆积一定量消息再放开来压测） 链接：www.jianshu.com/p/2838890f3…
- rocketMq基础
1. mq模式
producor-consumer-nameServer-broker
producor和consumer都是从nameServer中获取broker路由信息和维护topic心跳
2. 同步与异步发送消息
同步是直接调用sendMessage,异步需要添加sendCallBack回调参数;
3. 顺序消费
只有在同一个queue下的消息才能实现消息的顺序消费，为了实现这个消息的顺序需要生产者和消费者的配合
生产者通过queue的选择器来确定对应的queue，消费者选择顺序消息
4. 事务型消息
特定的消息类型
5. 内存空间
commitLog 消息主体，consumer queue存储索引
有异步刷盘和同步刷盘，异步的时候是先i将数据保存到内存，当数据达到一定的量的时候，内存线程会将数据加载到磁盘，缺点是会丢数据，但是效率高；
同步刷盘：需要等待数据保存的返回，很影响性能，优点是不会丢失数据；
6. 消息的高可用:
分别从Producer发送机制、Broker的持久化机制，以及消费者的offSet机制来最大程度保证消息不易丢失
- 从Producer的视角来看：如果消息未能正确的存储在MQ中，或者消费者未能正确的消费到这条消息，都是消息丢失。从Broker的视角来看：如果消息已经存在Broker里面了，如何保证不会丢失呢（宕机、磁盘崩溃） 从Consumer的视角来看：如果消息已经完成持久化了，但是Consumer取了，但是未消费成功且没有反馈，就是消息丢失 从Producer分析：如何确保消息正确的发送到了Broker?默认情况下，可以通过同步的方式阻塞式的发送，check SendStatus，状态是OK，表示消息一定成功的投递到了Broker，状态超时或者失败，则会触发默认的2次重试。此方法的发送结果，可能Broker存储成功了，也可能没成功采取事务消息的投递方式，并不能保证消息100%投递成功到了Broker，但是如果消息发送Ack失败的话，此消息会存储在CommitLog当中，但是对ConsumerQueue是不可见的。可以在日志中查看到这条异常的消息，严格意义上来讲，也并没有完全丢失RocketMQ支持 日志的索引，如果一条消息发送之后超时，也可以通过查询日志的API，来check是否在Broker存储成功
- 从Broker分析：如果确保接收到的消息不会丢失? 消息支持持久化到Commitlog里面，即使宕机后重启，未消费的消息也是可以加载出来的 Broker自身支持同步刷盘、异步刷盘的策略，可以保证接收到的消息一定存储在本地的内存中 Broker集群支持 1主N从的策略，支持同步复制和异步复制的方式，同步复制可以保证即使Master 磁盘崩溃，消息仍然不会丢失
- 从Cunmser分析：如何确保拉取到的消息被成功消费？消费者可以根据自身的策略批量Pull消息 Consumer自身维护一个持久化的offset（对应MessageQueue里面的min offset），标记已经成功消费或者已经成功发回到broker的消息下标 如果Consumer消费失败，那么它会把这个消息发回给Broker，发回成功后，再更新自己的offset 如果Consumer消费失败，发回给broker时，broker挂掉了，那么Consumer会定时重试这个操作 如果Consumer和broker一起挂了，消息也不会丢失，因为consumer 里面的offset是定时持久化的，重启之后，继续拉取offset之前的消息到本地
7.roketmq源码
producer：

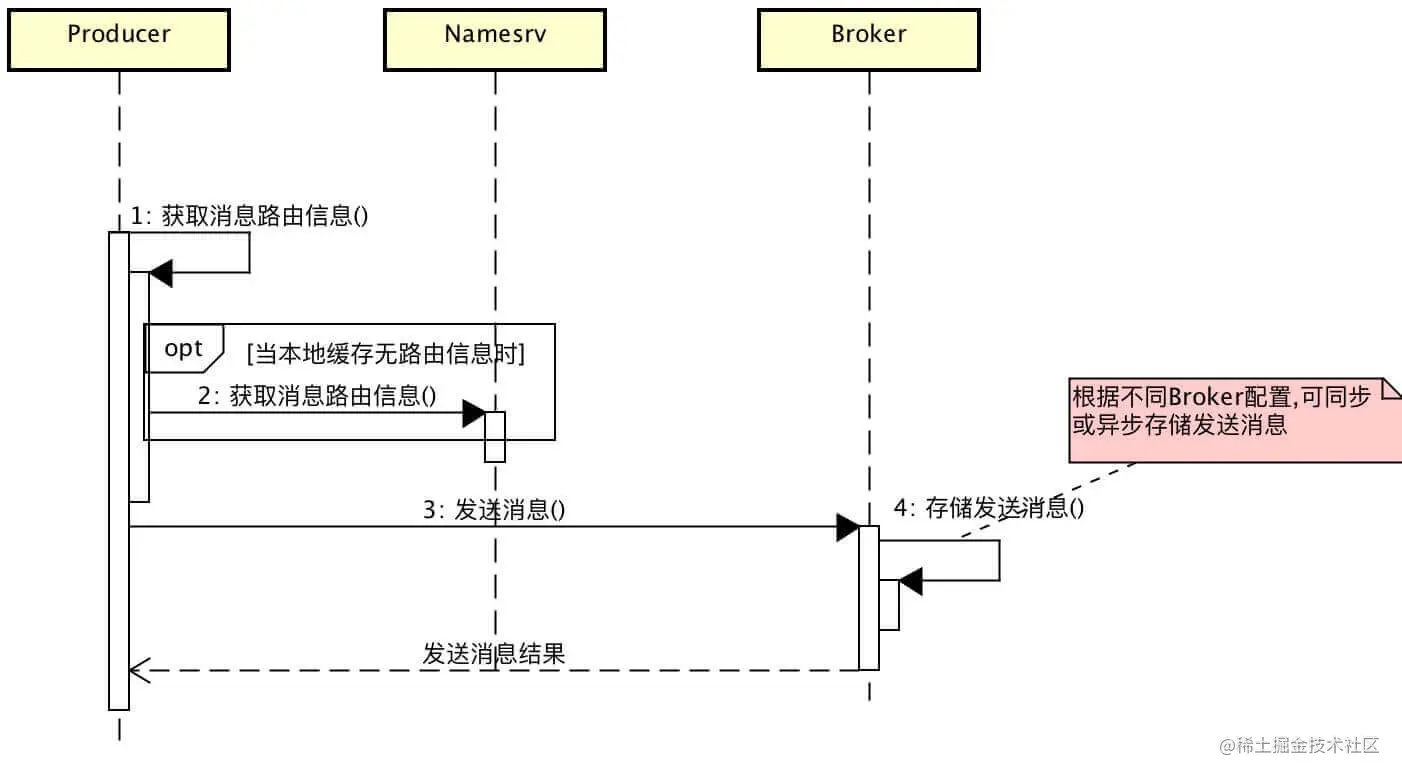

producer消息发送

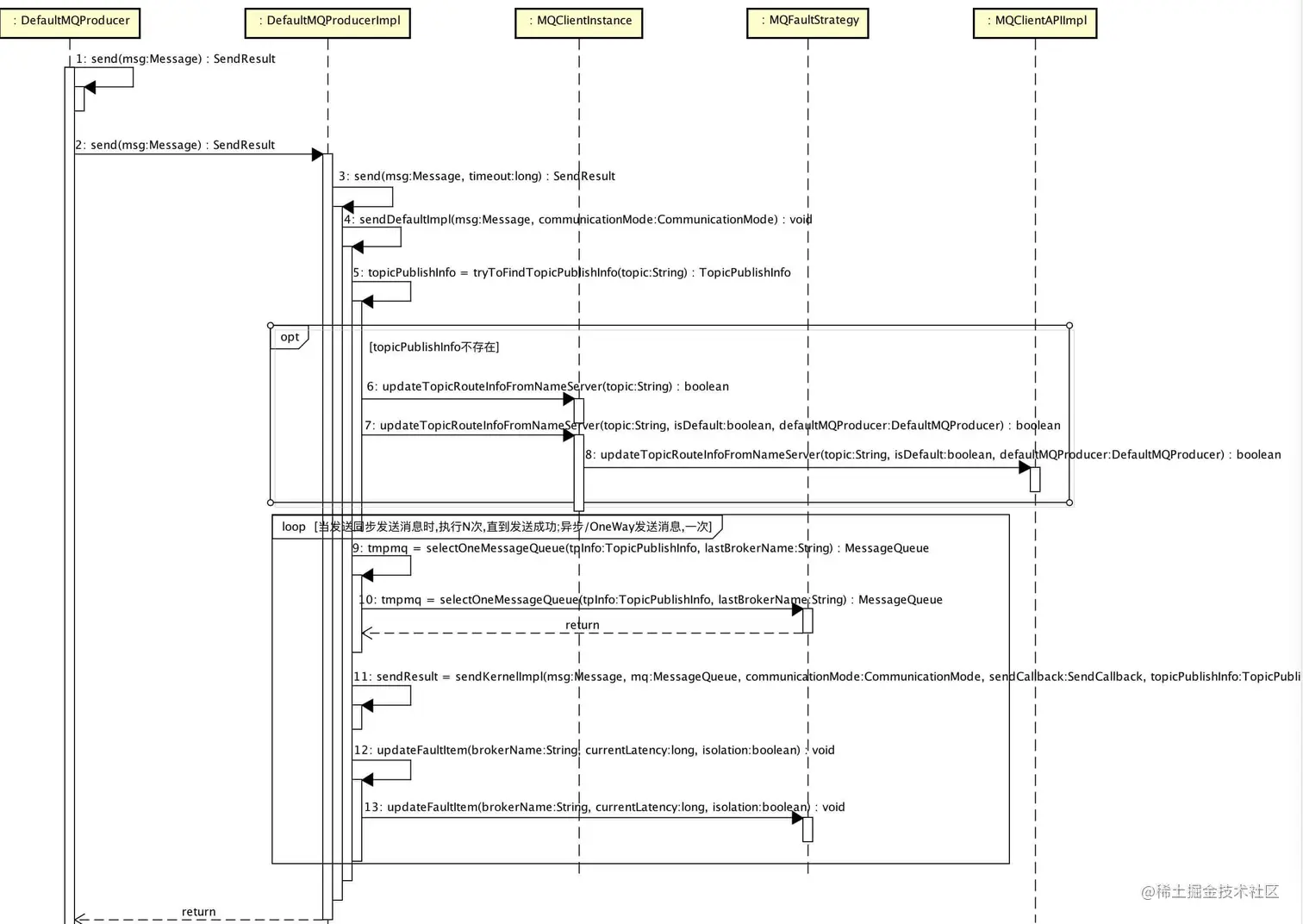

producer源码
DefaultMQProducer#send(Message)
@Override
public SendResult send(Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
return this.defaultMQProducerImpl.send(msg);
}
发送同步消息，DefaultMQProducer#send(Message) 对 DefaultMQProducerImpl#send(Message) 进行封装。\
DefaultMQProducerImpl#sendDefaultImpl()
public SendResult send(Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
return send(msg, this.defaultMQProducer.getSendMsgTimeout());
}
public SendResult send(Message msg, long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
return this.sendDefaultImpl(msg, CommunicationMode.SYNC, null, timeout);
}
private SendResult sendDefaultImpl(Message msg,final CommunicationMode communicationMode,final SendCallback sendCallback, final long timeout) throws MQClientException, RemotingException,MQBrokerException, InterruptedException {
// 校验 Producer 处于运行状态
this.makeSureStateOK();
// 校验消息格式
Validators.checkMessage(msg, this.defaultMQProducer);
//
final long invokeID = random.nextLong(); // 调用编号；用于下面打印日志，标记为同一次发送消息
long beginTimestampFirst = System.currentTimeMillis();
long beginTimestampPrev = beginTimestampFirst;
long endTimestamp = beginTimestampFirst;
// 获取 Topic路由信息
TopicPublishInfo topicPublishInfo = this.tryToFindTopicPublishInfo(msg.getTopic());
if (topicPublishInfo != null && topicPublishInfo.ok()) {
MessageQueue mq = null; // 最后选择消息要发送到的队列
Exception exception = null;
SendResult sendResult = null; // 最后一次发送结果
int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1; // 同步多次调用
int times = 0; // 第几次发送
String\[] brokersSent = new String\[timesTotal]; // 存储每次发送消息选择的broker名
// 循环调用发送消息，直到成功
for (; times < timesTotal; times++) {
String lastBrokerName = null == mq ? null : mq.getBrokerName();
MessageQueue tmpmq = this.selectOneMessageQueue(topicPublishInfo, lastBrokerName); // 选择消息要发送到的队列
if (tmpmq != null) {
mq = tmpmq;
brokersSent\[times] = mq.getBrokerName();
try {
beginTimestampPrev = System.currentTimeMillis();
// 调用发送消息核心方法
sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout);
endTimestamp = System.currentTimeMillis();
// 更新Broker可用性信息
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
switch (communicationMode) {
case ASYNC:
return null;
case ONEWAY:
return null;
case SYNC:
if (sendResult.getSendStatus() != SendStatus.SEND\_OK) {
if (this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) { // 同步发送成功但存储有问题时 && 配置存储异常时重新发送开关 时，进行重试
continue;
}
}
return sendResult;
default:
break;
}
} catch (RemotingException e) { // 打印异常，更新Broker可用性信息，更新继续循环
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
log.warn(msg.toString());
exception = e;
continue;
} catch (MQClientException e) { // 打印异常，更新Broker可用性信息，继续循环
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
log.warn(msg.toString());
exception = e;
continue;
} catch (MQBrokerException e) { // 打印异常，更新Broker可用性信息，部分情况下的异常，直接返回，结束循环
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
log.warn(msg.toString());
exception = e;
switch (e.getResponseCode()) {
// 如下异常continue，进行发送消息重试
case ResponseCode.TOPIC\_NOT\_EXIST:
case ResponseCode.SERVICE\_NOT\_AVAILABLE:
case ResponseCode.SYSTEM\_ERROR:
case ResponseCode.NO\_PERMISSION:
case ResponseCode.NO\_BUYER\_ID:
case ResponseCode.NOT\_IN\_CURRENT\_UNIT:
continue;
// 如果有发送结果，进行返回，否则，抛出异常；
default:
if (sendResult != null) {
return sendResult;
}
throw e;
}
} catch (InterruptedException e) {
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
log.warn(String.format("sendKernelImpl exception, throw exception, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
log.warn(msg.toString());
throw e;
}
} else {
break;
}
}
// 返回发送结果
if (sendResult != null) {
return sendResult;
}
// 根据不同情况，抛出不同的异常
String info = String.format("Send \[%d] times, still failed, cost \[%d]ms, Topic: %s, BrokersSent: %s", times, System.currentTimeMillis() - beginTimestampFirst,
msg.getTopic(), Arrays.toString(brokersSent)) + FAQUrl.suggestTodo(FAQUrl.SEND\_MSG\_FAILED);
MQClientException mqClientException = new MQClientException(info, exception);
if (exception instanceof MQBrokerException) {
mqClientException.setResponseCode(((MQBrokerException) exception).getResponseCode());
} else if (exception instanceof RemotingConnectException) {
mqClientException.setResponseCode(ClientErrorCode.CONNECT\_BROKER\_EXCEPTION);
} else if (exception instanceof RemotingTimeoutException) {
mqClientException.setResponseCode(ClientErrorCode.ACCESS\_BROKER\_TIMEOUT);
} else if (exception instanceof MQClientException) {
mqClientException.setResponseCode(ClientErrorCode.BROKER\_NOT\_EXIST\_EXCEPTION);
}
throw mqClientException;
}
// Namesrv找不到异常
List<String> nsList = this.getmQClientFactory().getMQClientAPIImpl().getNameServerAddressList();
if (null == nsList || nsList.isEmpty()) {
throw new MQClientException(
"No name server address, please set it." + FAQUrl.suggestTodo(FAQUrl.NAME\_SERVER\_ADDR\_NOT\_EXIST\_URL), null).setResponseCode(ClientErrorCode.NO\_NAME\_SERVER\_EXCEPTION);
}
// 消息路由找不到异常
throw new MQClientException("No route info of this topic, " + msg.getTopic() + FAQUrl.suggestTodo(FAQUrl.NO\_TOPIC\_ROUTE\_INFO),
null).setResponseCode(ClientErrorCode.NOT\_FOUND\_TOPIC\_EXCEPTION);
说明 ：发送消息。步骤：获取消息路由信息，选择要发送到的消息队列，执行消息发送核心方法，并对发送结果进行封装返回。
第 1 至 7 行：对sendsendDefaultImpl(...)进行封装。
第 20 行 ：invokeID仅仅用于打印日志，无实际的业务用途。
第 25 行 ：获取 Topic路由信息， 详细解析见：DefaultMQProducerImpl#tryToFindTopicPublishInfo()
第 30 & 34 行 ：计算调用发送消息到成功为止的最大次数，并进行循环。同步或异步发送消息会调用多次，默认配置为3次。
第 36 行 ：选择消息要发送到的队列，详细解析见：MQFaultStrategy
第 43 行 ：调用发送消息核心方法，详细解析见：DefaultMQProducerImpl#sendKernelImpl()
第 46 行 ：更新Broker可用性信息。在选择发送到的消息队列时，会参考Broker发送消息的延迟，详细解析见：MQFaultStrategy
第 62 至 68 行：当抛出RemotingException时，如果进行消息发送失败重试，则可能导致消息发送重复。例如，发送消息超时(RemotingTimeoutException)，实际Broker接收到该消息并处理成功。因此，Consumer在消费时，需要保证幂等性。
DefaultMQProducerImpl#tryToFindTopicPublishInfo()
private TopicPublishInfo tryToFindTopicPublishInfo(final String topic) {
// 缓存中获取 Topic发布信息
TopicPublishInfo topicPublishInfo = this.topicPublishInfoTable.get(topic);
// 当无可用的 Topic发布信息时，从Namesrv获取一次
if (null == topicPublishInfo || !topicPublishInfo.ok()) {
this.topicPublishInfoTable.putIfAbsent(topic, new TopicPublishInfo());
this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic);
topicPublishInfo = this.topicPublishInfoTable.get(topic);
}
// 若获取的 Topic发布信息时候可用，则返回
if (topicPublishInfo.isHaveTopicRouterInfo() || topicPublishInfo.ok()) {
return topicPublishInfo;
} else { // 使用 {@link DefaultMQProducer#createTopicKey} 对应的 Topic发布信息。用于 Topic发布信息不存在 && Broker支持自动创建Topic
this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic, true, this.defaultMQProducer);
topicPublishInfo = this.topicPublishInfoTable.get(topic);
return topicPublishInfo;
}
}
说明 ：获得 Topic发布信息。优先从缓存topicPublishInfoTable，其次从Namesrv中获得。
第 3 行 ：从缓存topicPublishInfoTable中获得 Topic发布信息。
第 5 至 9 行 ：从 Namesrv 中获得 Topic发布信息。
第 13 至 17 行 ：当从 Namesrv 无法获取时，使用 {@link DefaultMQProducer#createTopicKey} 对应的 Topic发布信息。目的是当 Broker 开启自动创建 Topic开关时，Broker 接收到消息后自动创建Topic
DefaultMQProducerImpl#sendKernelImpl()
private SendResult sendKernelImpl(final Message msg, //
final MessageQueue mq, //
final CommunicationMode communicationMode, //
final SendCallback sendCallback, //
final TopicPublishInfo topicPublishInfo, //
final long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
// 获取 broker地址
String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
if (null == brokerAddr) {
tryToFindTopicPublishInfo(mq.getTopic());
brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
}
//
SendMessageContext context = null;
if (brokerAddr != null) {
// 是否使用broker vip通道。broker会开启两个端口对外服务。
brokerAddr = MixAll.brokerVIPChannel(this.defaultMQProducer.isSendMessageWithVIPChannel(), brokerAddr);
byte\[] prevBody = msg.getBody(); // 记录消息内容。下面逻辑可能改变消息内容，例如消息压缩。
try {
// 设置唯一编号
MessageClientIDSetter.setUniqID(msg);
// 消息压缩
int sysFlag = 0;
if (this.tryToCompressMessage(msg)) {
sysFlag |= MessageSysFlag.COMPRESSED\_FLAG;
}
// 事务
final String tranMsg = msg.getProperty(MessageConst.PROPERTY\_TRANSACTION\_PREPARED);
if (tranMsg != null && Boolean.parseBoolean(tranMsg)) {
sysFlag |= MessageSysFlag.TRANSACTION\_PREPARED\_TYPE;
}
// hook：发送消息校验
if (hasCheckForbiddenHook()) {
CheckForbiddenContext checkForbiddenContext = new CheckForbiddenContext();
checkForbiddenContext.setNameSrvAddr(this.defaultMQProducer.getNamesrvAddr());
checkForbiddenContext.setGroup(this.defaultMQProducer.getProducerGroup());
checkForbiddenContext.setCommunicationMode(communicationMode);
checkForbiddenContext.setBrokerAddr(brokerAddr);
checkForbiddenContext.setMessage(msg);
checkForbiddenContext.setMq(mq);
checkForbiddenContext.setUnitMode(this.isUnitMode());
this.executeCheckForbiddenHook(checkForbiddenContext);
}
// hook：发送消息前逻辑
if (this.hasSendMessageHook()) {
context = new SendMessageContext();
context.setProducer(this);
context.setProducerGroup(this.defaultMQProducer.getProducerGroup());
context.setCommunicationMode(communicationMode);
context.setBornHost(this.defaultMQProducer.getClientIP());
context.setBrokerAddr(brokerAddr);
context.setMessage(msg);
context.setMq(mq);
String isTrans = msg.getProperty(MessageConst.PROPERTY\_TRANSACTION\_PREPARED);
if (isTrans != null && isTrans.equals("true")) {
context.setMsgType(MessageType.Trans\_Msg\_Half);
}
if (msg.getProperty("\_\_STARTDELIVERTIME") != null || msg.getProperty(MessageConst.PROPERTY\_DELAY\_TIME\_LEVEL) != null) {
context.setMsgType(MessageType.Delay\_Msg);
}
this.executeSendMessageHookBefore(context);
}
// 构建发送消息请求
SendMessageRequestHeader requestHeader = new SendMessageRequestHeader();
requestHeader.setProducerGroup(this.defaultMQProducer.getProducerGroup());
requestHeader.setTopic(msg.getTopic());
requestHeader.setDefaultTopic(this.defaultMQProducer.getCreateTopicKey());
requestHeader.setDefaultTopicQueueNums(this.defaultMQProducer.getDefaultTopicQueueNums());
requestHeader.setQueueId(mq.getQueueId());
requestHeader.setSysFlag(sysFlag);
requestHeader.setBornTimestamp(System.currentTimeMillis());
requestHeader.setFlag(msg.getFlag());
requestHeader.setProperties(MessageDecoder.messageProperties2String(msg.getProperties()));
requestHeader.setReconsumeTimes(0);
requestHeader.setUnitMode(this.isUnitMode());
if (requestHeader.getTopic().startsWith(MixAll.RETRY\_GROUP\_TOPIC\_PREFIX)) { // 消息重发Topic
String reconsumeTimes = MessageAccessor.getReconsumeTime(msg);
if (reconsumeTimes != null) {
requestHeader.setReconsumeTimes(Integer.valueOf(reconsumeTimes));
MessageAccessor.clearProperty(msg, MessageConst.PROPERTY\_RECONSUME\_TIME);
}
String maxReconsumeTimes = MessageAccessor.getMaxReconsumeTimes(msg);
if (maxReconsumeTimes != null) {
requestHeader.setMaxReconsumeTimes(Integer.valueOf(maxReconsumeTimes));
MessageAccessor.clearProperty(msg, MessageConst.PROPERTY\_MAX\_RECONSUME\_TIMES);
}
}
// 发送消息
SendResult sendResult = null;
switch (communicationMode) {
case ASYNC:
sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(//
brokerAddr, // 1
mq.getBrokerName(), // 2
msg, // 3
requestHeader, // 4
timeout, // 5
communicationMode, // 6
sendCallback, // 7
topicPublishInfo, // 8
this.mQClientFactory, // 9
this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(), // 10
context, //
this);
break;
case ONEWAY:
case SYNC:
sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
brokerAddr,
mq.getBrokerName(),
msg,
requestHeader,
timeout,
communicationMode,
context,
this);
break;
default:
assert false;
break;
}
// hook：发送消息后逻辑
if (this.hasSendMessageHook()) {
context.setSendResult(sendResult);
this.executeSendMessageHookAfter(context);
}
// 返回发送结果
return sendResult;
} catch (RemotingException e) {
if (this.hasSendMessageHook()) {
context.setException(e);
this.executeSendMessageHookAfter(context);
}
throw e;
} catch (MQBrokerException e) {
if (this.hasSendMessageHook()) {
context.setException(e);
this.executeSendMessageHookAfter(context);
}
throw e;
} catch (InterruptedException e) {
if (this.hasSendMessageHook()) {
context.setException(e);
this.executeSendMessageHookAfter(context);
}
throw e;
} finally {
msg.setBody(prevBody);
}
}
// broker为空抛出异常
throw new MQClientException("The broker\[" + mq.getBrokerName() + "] not exist", null);

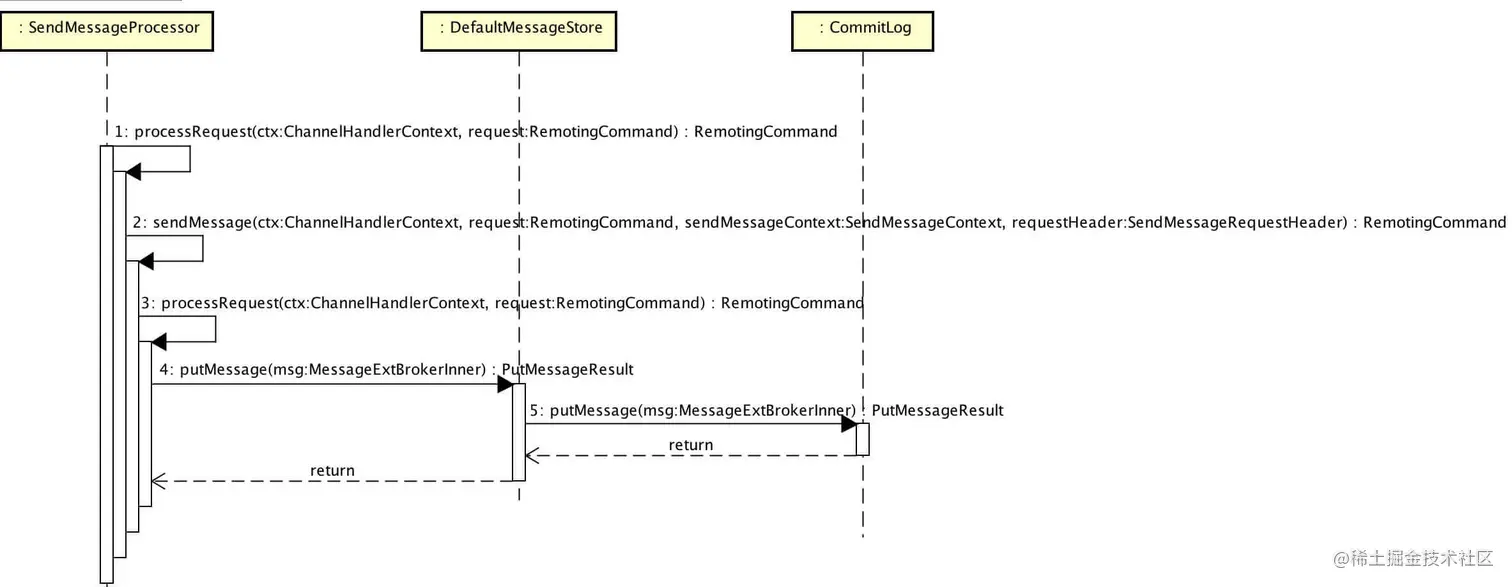

Broker 接收消息
`SendMessageProcessor#sendMessage
@Override
public RemotingCommand processRequest(ChannelHandlerContext ctx, RemotingCommand request) throws RemotingCommandException {
SendMessageContext mqtraceContext;
switch (request.getCode()) {
case RequestCode.CONSUMER\_SEND\_MSG\_BACK:
return this.consumerSendMsgBack(ctx, request);
default:
// 解析请求
SendMessageRequestHeader requestHeader = parseRequestHeader(request);
if (requestHeader == null) {
return null;
}
// 发送请求Context。在 hook 场景下使用
mqtraceContext = buildMsgContext(ctx, requestHeader);
// hook：处理发送消息前逻辑
this.executeSendMessageHookBefore(ctx, request, mqtraceContext);
// 处理发送消息逻辑
final RemotingCommand response = this.sendMessage(ctx, request, mqtraceContext, requestHeader);
// hook：处理发送消息后逻辑
this.executeSendMessageHookAfter(response, mqtraceContext);
return response;
}
}
```js
private RemotingCommand sendMessage(final ChannelHandlerContext ctx, //
final RemotingCommand request, //
final SendMessageContext sendMessageContext, //
final SendMessageRequestHeader requestHeader) throws RemotingCommandException {
`
// 初始化响应
final RemotingCommand response = RemotingCommand.createResponseCommand(SendMessageResponseHeader.class);
final SendMessageResponseHeader responseHeader = (SendMessageResponseHeader) response.readCustomHeader();
response.setOpaque(request.getOpaque());
response.addExtField(MessageConst.PROPERTY_MSG_REGION, this.brokerController.getBrokerConfig().getRegionId());
response.addExtField(MessageConst.PROPERTY_TRACE_SWITCH, String.valueOf(this.brokerController.getBrokerConfig().isTraceOn()));
if (log.isDebugEnabled()) {
log.debug("receive SendMessage request command, {}", request);
}
// 如果未开始接收消息，抛出系统异常
@SuppressWarnings("SpellCheckingInspection")
final long startTimstamp = this.brokerController.getBrokerConfig().getStartAcceptSendRequestTimeStamp();
if (this.brokerController.getMessageStore().now() < startTimstamp) {
response.setCode(ResponseCode.SYSTEM_ERROR);
response.setRemark(String.format("broker unable to service, until %s", UtilAll.timeMillisToHumanString2(startTimstamp)));
return response;
}
// 消息配置(Topic配置）校验
response.setCode(-1);
super.msgCheck(ctx, requestHeader, response);
if (response.getCode() != -1) {
return response;
}
final byte[] body = request.getBody();
// 如果队列小于0，从可用队列随机选择
int queueIdInt = requestHeader.getQueueId();
TopicConfig topicConfig = this.brokerController.getTopicConfigManager().selectTopicConfig(requestHeader.getTopic());
if (queueIdInt < 0) {
queueIdInt = Math.abs(this.random.nextInt() % 99999999) % topicConfig.getWriteQueueNums();
}
//
int sysFlag = requestHeader.getSysFlag();
if (TopicFilterType.MULTI_TAG == topicConfig.getTopicFilterType()) {
sysFlag |= MessageSysFlag.MULTI_TAGS_FLAG;
}
// 对RETRY类型的消息处理。如果超过最大消费次数，则topic修改成"%DLQ%" + 分组名，即加入 死信队列(Dead Letter Queue)
String newTopic = requestHeader.getTopic();
if (null != newTopic && newTopic.startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
// 获取订阅分组配置
String groupName = newTopic.substring(MixAll.RETRY_GROUP_TOPIC_PREFIX.length());
SubscriptionGroupConfig subscriptionGroupConfig =
this.brokerController.getSubscriptionGroupManager().findSubscriptionGroupConfig(groupName);
if (null == subscriptionGroupConfig) {
response.setCode(ResponseCode.SUBSCRIPTION_GROUP_NOT_EXIST);
response.setRemark("subscription group not exist, " + groupName + " " + FAQUrl.suggestTodo(FAQUrl.SUBSCRIPTION_GROUP_NOT_EXIST));
return response;
}
// 计算最大可消费次数
int maxReconsumeTimes = subscriptionGroupConfig.getRetryMaxTimes();
if (request.getVersion() >= MQVersion.Version.V3_4_9.ordinal()) {
maxReconsumeTimes = requestHeader.getMaxReconsumeTimes();
}
int reconsumeTimes = requestHeader.getReconsumeTimes() == null ? 0 : requestHeader.getReconsumeTimes();
if (reconsumeTimes >= maxReconsumeTimes) { // 超过最大消费次数
newTopic = MixAll.getDLQTopic(groupName);
queueIdInt = Math.abs(this.random.nextInt() % 99999999) % DLQ_NUMS_PER_GROUP;
topicConfig = this.brokerController.getTopicConfigManager().createTopicInSendMessageBackMethod(newTopic, //
DLQ_NUMS_PER_GROUP, //
PermName.PERM_WRITE, 0
);
if (null == topicConfig) {
response.setCode(ResponseCode.SYSTEM_ERROR);
response.setRemark("topic[" + newTopic + "] not exist");
return response;
}
}
}
// 创建MessageExtBrokerInner
MessageExtBrokerInner msgInner = new MessageExtBrokerInner();
msgInner.setTopic(newTopic);
msgInner.setBody(body);
msgInner.setFlag(requestHeader.getFlag());
MessageAccessor.setProperties(msgInner, MessageDecoder.string2messageProperties(requestHeader.getProperties()));
msgInner.setPropertiesString(requestHeader.getProperties());
msgInner.setTagsCode(MessageExtBrokerInner.tagsString2tagsCode(topicConfig.getTopicFilterType(), msgInner.getTags()));
msgInner.setQueueId(queueIdInt);
msgInner.setSysFlag(sysFlag);
msgInner.setBornTimestamp(requestHeader.getBornTimestamp());
msgInner.setBornHost(ctx.channel().remoteAddress());
msgInner.setStoreHost(this.getStoreHost());
msgInner.setReconsumeTimes(requestHeader.getReconsumeTimes() == null ? 0 : requestHeader.getReconsumeTimes());
// 校验是否不允许发送事务消息
if (this.brokerController.getBrokerConfig().isRejectTransactionMessage()) {
String traFlag = msgInner.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
if (traFlag != null) {
response.setCode(ResponseCode.NO_PERMISSION);
response.setRemark(
"the broker[" + this.brokerController.getBrokerConfig().getBrokerIP1() + "] sending transaction message is forbidden");
return response;
}
}
// 添加消息
PutMessageResult putMessageResult = this.brokerController.getMessageStore().putMessage(msgInner);
if (putMessageResult != null) {
boolean sendOK = false;
switch (putMessageResult.getPutMessageStatus()) {
// Success
case PUT_OK:
sendOK = true;
response.setCode(ResponseCode.SUCCESS);
break;
case FLUSH_DISK_TIMEOUT:
response.setCode(ResponseCode.FLUSH_DISK_TIMEOUT);
sendOK = true;
break;
case FLUSH_SLAVE_TIMEOUT:
response.setCode(ResponseCode.FLUSH_SLAVE_TIMEOUT);
sendOK = true;
break;
case SLAVE_NOT_AVAILABLE:
response.setCode(ResponseCode.SLAVE_NOT_AVAILABLE);
sendOK = true;
break;
// Failed
case CREATE_MAPEDFILE_FAILED:
response.setCode(ResponseCode.SYSTEM_ERROR);
response.setRemark("create mapped file failed, server is busy or broken.");
break;
case MESSAGE_ILLEGAL:
case PROPERTIES_SIZE_EXCEEDED:
response.setCode(ResponseCode.MESSAGE_ILLEGAL);
response.setRemark(
"the message is illegal, maybe msg body or properties length not matched. msg body length limit 128k, msg properties length limit 32k.");
break;
case SERVICE_NOT_AVAILABLE:
response.setCode(ResponseCode.SERVICE_NOT_AVAILABLE);
response.setRemark(
"service not available now, maybe disk full, " + diskUtil() + ", maybe your broker machine memory too small.");
break;
case OS_PAGECACHE_BUSY:
response.setCode(ResponseCode.SYSTEM_ERROR);
response.setRemark("[PC_SYNCHRONIZED]broker busy, start flow control for a while");
break;
case UNKNOWN_ERROR:
response.setCode(ResponseCode.SYSTEM_ERROR);
response.setRemark("UNKNOWN_ERROR");
break;
default:
response.setCode(ResponseCode.SYSTEM_ERROR);
response.setRemark("UNKNOWN_ERROR DEFAULT");
break;
}
String owner = request.getExtFields().get(BrokerStatsManager.COMMERCIAL_OWNER);
if (sendOK) {
// 统计
this.brokerController.getBrokerStatsManager().incTopicPutNums(msgInner.getTopic());
this.brokerController.getBrokerStatsManager().incTopicPutSize(msgInner.getTopic(), putMessageResult.getAppendMessageResult().getWroteBytes());
this.brokerController.getBrokerStatsManager().incBrokerPutNums();
// 响应
response.setRemark(null);
responseHeader.setMsgId(putMessageResult.getAppendMessageResult().getMsgId());
responseHeader.setQueueId(queueIdInt);
responseHeader.setQueueOffset(putMessageResult.getAppendMessageResult().getLogicsOffset());
doResponse(ctx, request, response);
// hook：设置发送成功到context
if (hasSendMessageHook()) {
sendMessageContext.setMsgId(responseHeader.getMsgId());
sendMessageContext.setQueueId(responseHeader.getQueueId());
sendMessageContext.setQueueOffset(responseHeader.getQueueOffset());
int commercialBaseCount = brokerController.getBrokerConfig().getCommercialBaseCount();
int wroteSize = putMessageResult.getAppendMessageResult().getWroteBytes();
int incValue = (int) Math.ceil(wroteSize / BrokerStatsManager.SIZE_PER_COUNT) * commercialBaseCount;
sendMessageContext.setCommercialSendStats(BrokerStatsManager.StatsType.SEND_SUCCESS);
sendMessageContext.setCommercialSendTimes(incValue);
sendMessageContext.setCommercialSendSize(wroteSize);
sendMessageContext.setCommercialOwner(owner);
}
return null;
} else {
// hook：设置发送失败到context
if (hasSendMessageHook()) {
int wroteSize = request.getBody().length;
int incValue = (int) Math.ceil(wroteSize / BrokerStatsManager.SIZE_PER_COUNT);
sendMessageContext.setCommercialSendStats(BrokerStatsManager.StatsType.SEND_FAILURE);
sendMessageContext.setCommercialSendTimes(incValue);
sendMessageContext.setCommercialSendSize(wroteSize);
sendMessageContext.setCommercialOwner(owner);
}
}
} else {
response.setCode(ResponseCode.SYSTEM_ERROR);
response.setRemark("store putMessage return null");
}
return response;}
```js
AbstractSendMessageProcessor#msgCheck
protected RemotingCommand msgCheck(final ChannelHandlerContext ctx,
final SendMessageRequestHeader requestHeader, final RemotingCommand response) {
// 检查 broker 是否有写入权限
if (!PermName.isWriteable(this.brokerController.getBrokerConfig().getBrokerPermission())
&& this.brokerController.getTopicConfigManager().isOrderTopic(requestHeader.getTopic())) {
response.setCode(ResponseCode.NO\_PERMISSION);
response.setRemark("the broker\[" + this.brokerController.getBrokerConfig().getBrokerIP1()
\+ "] sending message is forbidden");
return response;
}
// 检查topic是否可以被发送。目前是{@link MixAll.DEFAULT\_TOPIC}不被允许发送
if (!this.brokerController.getTopicConfigManager().isTopicCanSendMessage(requestHeader.getTopic())) {
String errorMsg = "the topic\[" + requestHeader.getTopic() + "] is conflict with system reserved words.";
log.warn(errorMsg);
response.setCode(ResponseCode.SYSTEM\_ERROR);
response.setRemark(errorMsg);
return response;
}
TopicConfig topicConfig = this.brokerController.getTopicConfigManager().selectTopicConfig(requestHeader.getTopic());
if (null == topicConfig) { // 不能存在topicConfig，则进行创建
int topicSysFlag = 0;
if (requestHeader.isUnitMode()) {
if (requestHeader.getTopic().startsWith(MixAll.RETRY\_GROUP\_TOPIC\_PREFIX)) {
topicSysFlag = TopicSysFlag.buildSysFlag(false, true);
} else {
topicSysFlag = TopicSysFlag.buildSysFlag(true, false);
}
}
// 创建topic配置
log.warn("the topic {} not exist, producer: {}", requestHeader.getTopic(), ctx.channel().remoteAddress());
topicConfig = this.brokerController.getTopicConfigManager().createTopicInSendMessageMethod(//
requestHeader.getTopic(), //
requestHeader.getDefaultTopic(), //
RemotingHelper.parseChannelRemoteAddr(ctx.channel()), //
requestHeader.getDefaultTopicQueueNums(), topicSysFlag);
if (null == topicConfig) {
if (requestHeader.getTopic().startsWith(MixAll.RETRY\_GROUP\_TOPIC\_PREFIX)) {
topicConfig =
this.brokerController.getTopicConfigManager().createTopicInSendMessageBackMethod(
requestHeader.getTopic(), 1, PermName.PERM\_WRITE | PermName.PERM\_READ,
topicSysFlag);
}
}
// 如果没配置
if (null == topicConfig) {
response.setCode(ResponseCode.TOPIC\_NOT\_EXIST);
response.setRemark("topic\[" + requestHeader.getTopic() + "] not exist, apply first please!"
\+ FAQUrl.suggestTodo(FAQUrl.APPLY\_TOPIC\_URL));
return response;
}
}
// 队列编号是否正确
int queueIdInt = requestHeader.getQueueId();
int idValid = Math.max(topicConfig.getWriteQueueNums(), topicConfig.getReadQueueNums());
if (queueIdInt >= idValid) {
String errorInfo = String.format("request queueId\[%d] is illegal, %s Producer: %s",
queueIdInt,
topicConfig.toString(),
RemotingHelper.parseChannelRemoteAddr(ctx.channel()));
log.warn(errorInfo);
response.setCode(ResponseCode.SYSTEM\_ERROR);
response.setRemark(errorInfo);
return response;
}
return response;
}
DefaultMessageStore#putMessage
public PutMessageResult putMessage(MessageExtBrokerInner msg) {
if (this.shutdown) {
log.warn("message store has shutdown, so putMessage is forbidden");
return new PutMessageResult(PutMessageStatus.SERVICE\_NOT\_AVAILABLE, null);
}
// 从节点不允许写入
if (BrokerRole.SLAVE == this.messageStoreConfig.getBrokerRole()) {
long value = this.printTimes.getAndIncrement();
if ((value % 50000) == 0) {
log.warn("message store is slave mode, so putMessage is forbidden ");
}
return new PutMessageResult(PutMessageStatus.SERVICE_NOT_AVAILABLE, null);
}
// store是否允许写入
if (!this.runningFlags.isWriteable()) {
long value = this.printTimes.getAndIncrement();
if ((value % 50000) == 0) {
log.warn("message store is not writeable, so putMessage is forbidden " + this.runningFlags.getFlagBits());
}
return new PutMessageResult(PutMessageStatus.SERVICE_NOT_AVAILABLE, null);
} else {
this.printTimes.set(0);
}
// 消息过长
if (msg.getTopic().length() > Byte.MAX_VALUE) {
log.warn("putMessage message topic length too long " + msg.getTopic().length());
return new PutMessageResult(PutMessageStatus.MESSAGE_ILLEGAL, null);
}
// 消息附加属性过长
if (msg.getPropertiesString() != null && msg.getPropertiesString().length() > Short.MAX_VALUE) {
log.warn("putMessage message properties length too long " + msg.getPropertiesString().length());
return new PutMessageResult(PutMessageStatus.PROPERTIES_SIZE_EXCEEDED, null);
}
if (this.isOSPageCacheBusy()) {
return new PutMessageResult(PutMessageStatus.OS_PAGECACHE_BUSY, null);
}
long beginTime = this.getSystemClock().now();
// 添加消息到commitLog
PutMessageResult result = this.commitLog.putMessage(msg);
long eclipseTime = this.getSystemClock().now() - beginTime;
if (eclipseTime > 500) {
log.warn("putMessage not in lock eclipse time(ms)={}, bodyLength={}", eclipseTime, msg.getBody().length);
}
this.storeStatsService.setPutMessageEntireTimeMax(eclipseTime);
if (null == result || !result.isOk()) {
this.storeStatsService.getPutMessageFailedTimes().incrementAndGet();
}
return result;
}
```
