yaml文件
# 下载文件
wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml
修改yaml文件的镜像地址
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
k8s-app: metrics-server
rbac.authorization.k8s.io/aggregate-to-admin: "true"
rbac.authorization.k8s.io/aggregate-to-edit: "true"
rbac.authorization.k8s.io/aggregate-to-view: "true"
name: system:aggregated-metrics-reader
rules:
- apiGroups:
- metrics.k8s.io
resources:
- pods
- nodes
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
k8s-app: metrics-server
name: system:metrics-server
rules:
- apiGroups:
- ""
resources:
- nodes/metrics
verbs:
- get
- apiGroups:
- ""
resources:
- pods
- nodes
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: metrics-server
name: metrics-server-auth-reader
namespace: kube-system
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
k8s-app: metrics-server
name: metrics-server:system:auth-delegator
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:auth-delegator
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
k8s-app: metrics-server
name: system:metrics-server
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:metrics-server
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
spec:
ports:
- name: https
port: 443
protocol: TCP
targetPort: https
selector:
k8s-app: metrics-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
spec:
selector:
matchLabels:
k8s-app: metrics-server
strategy:
rollingUpdate:
maxUnavailable: 0
template:
metadata:
labels:
k8s-app: metrics-server
spec:
containers:
- args:
- --cert-dir=/tmp
- --secure-port=4443
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
- --kubelet-use-node-status-port
- --metric-resolution=15s
image: registry.aliyuncs.com/google_containers/metrics-server:v0.6.3 # 此处镜像需要修改为阿里云的
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 3
httpGet:
path: /livez
port: https
scheme: HTTPS
periodSeconds: 10
name: metrics-server
ports:
- containerPort: 4443
name: https
protocol: TCP
readinessProbe:
failureThreshold: 3
httpGet:
path: /readyz
port: https
scheme: HTTPS
initialDelaySeconds: 20
periodSeconds: 10
resources:
requests:
cpu: 100m
memory: 200Mi
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsNonRoot: true
runAsUser: 1000
volumeMounts:
- mountPath: /tmp
name: tmp-dir
nodeSelector:
kubernetes.io/os: linux
priorityClassName: system-cluster-critical
serviceAccountName: metrics-server
volumes:
- emptyDir: {}
name: tmp-dir
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
labels:
k8s-app: metrics-server
name: v1beta1.metrics.k8s.io
spec:
group: metrics.k8s.io
groupPriorityMinimum: 100
insecureSkipTLSVerify: true
service:
name: metrics-server
namespace: kube-system
version: v1beta1
versionPriority: 100
应用yaml文件
kubectl apply -f components.yaml

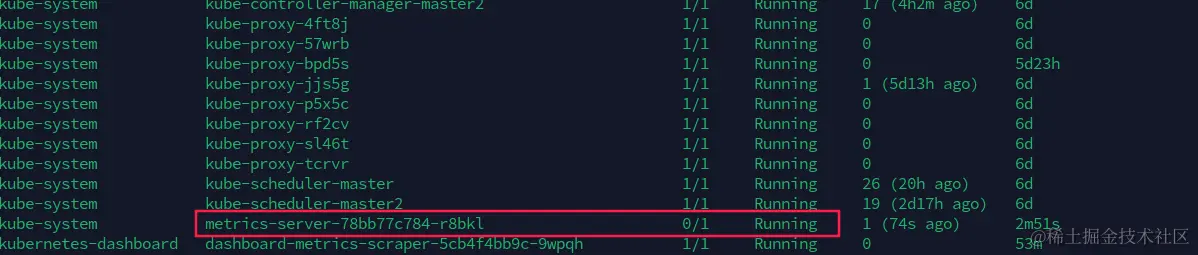

查看pod发现没有正常运行
查看pod日志,发现有错误
E0517 11:49:50.701971 1 scraper.go:140] "Failed to scrape node" err="Get \"https://172.16.0.3:10250/metrics/resource\": x509: cannot validate certificate for 172.16.0.3 because it doesn't contain any IP SANs" node="cloudcone"
I0517 11:49:56.597379 1 server.go:187] "Failed probe" probe="metric-storage-ready" err="no metrics to serve"
解决办法一
# 传递 ‘–kubelet-insecure-tls’ 以禁用证书验证即可（不建议在生产中）
# 执行命令
kubectl edit deployment.apps/metrics-server -n kube-system
# 将 –kubelet-insecure-tls 添加到“spec.template.spec.containers.args”（YAML Path）下的列表中即可
spec:
containers:
- args:
- --cert-dir=/tmp
- --secure-port=4443
- --kubelet-insecure-tls
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
- --kubelet-use-node-status-port
image: registry.cn-hangzhou.aliyuncs.com/ks8_kk/metrics-server:v0.4.2
imagePullPolicy: IfNotPresent
livenessProbe:
解决办法二，启用TLS Bootstrap 证书签发

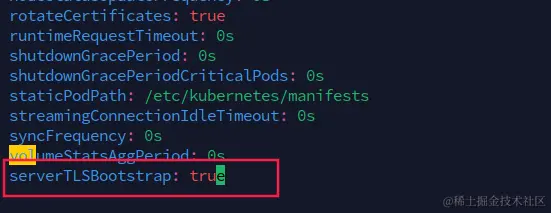

在各个节点修改kubelet的配置文件：vim /var/lib/kubelet/config.yaml
添加如下内容，serverTLSBootstrap: true
# 重启kubelet
systemctl restart kubelet.service
查看认证信息
[root@master dashboard-2.7.0]# kubectl get csr
NAME AGE SIGNERNAME REQUESTOR REQUESTEDDURATION CONDITION
csr-4tw7j 5m2s kubernetes.io/kubelet-serving system:node:master <none> Pending
csr-9hwml 2m33s kubernetes.io/kubelet-serving system:node:node2 <none> Pending
csr-b48k9 3m45s kubernetes.io/kubelet-serving system:node:master2 <none> Pending
csr-fqndz 62s kubernetes.io/kubelet-serving system:node:node5 <none> Pending
csr-lnv7q 2m3s kubernetes.io/kubelet-serving system:node:node3 <none> Pending
csr-w79ww 96s kubernetes.io/kubelet-serving system:node:node4 <none> Pending
csr-xmj8c 3m13s kubernetes.io/kubelet-serving system:node:node1 <none> Pending
csr-ztk97 16s kubernetes.io/kubelet-serving system:node:cloudcone <none> Pending
通过认证
[root@master dashboard-2.7.0]# kubectl certificate approve csr-4tw7j csr-9hwml csr-b48k9 csr-fqndz csr-lnv7q csr-w79ww csr-xmj8c csr-ztk97
certificatesigningrequest.certificates.k8s.io/csr-4tw7j approved
certificatesigningrequest.certificates.k8s.io/csr-9hwml approved
certificatesigningrequest.certificates.k8s.io/csr-b48k9 approved
certificatesigningrequest.certificates.k8s.io/csr-fqndz approved
certificatesigningrequest.certificates.k8s.io/csr-lnv7q approved
certificatesigningrequest.certificates.k8s.io/csr-w79ww approved
certificatesigningrequest.certificates.k8s.io/csr-xmj8c approved
certificatesigningrequest.certificates.k8s.io/csr-ztk97 approved
再次查看认证信息
[root@master dashboard-2.7.0]# kubectl get csr
NAME AGE SIGNERNAME REQUESTOR REQUESTEDDURATION CONDITION
csr-4tw7j 7m31s kubernetes.io/kubelet-serving system:node:master <none> Approved,Issued
csr-9hwml 5m2s kubernetes.io/kubelet-serving system:node:node2 <none> Approved,Issued
csr-b48k9 6m14s kubernetes.io/kubelet-serving system:node:master2 <none> Approved,Issued
csr-fqndz 3m31s kubernetes.io/kubelet-serving system:node:node5 <none> Approved,Issued
csr-lnv7q 4m32s kubernetes.io/kubelet-serving system:node:node3 <none> Approved,Issued
csr-w79ww 4m5s kubernetes.io/kubelet-serving system:node:node4 <none> Approved,Issued
csr-xmj8c 5m42s kubernetes.io/kubelet-serving system:node:node1 <none> Approved,Issued
csr-ztk97 2m45s kubernetes.io/kubelet-serving system:node:cloudcone <none> Approved,Issued
问题报错二：
解决办法和前面一样
Normal Scheduled 2m27s default-scheduler Successfully assigned kube-system/metrics-server-6cff795575-d2wlg to node2
Normal Pulling 2m27s kubelet Pulling image "registry.aliyuncs.com/google_containers/metrics-server:v0.6.4"
Normal Pulled 2m21s kubelet Successfully pulled image "registry.aliyuncs.com/google_containers/metrics-server:v0.6.4" in 6.108s (6.108s including waiting)
Normal Created 2m20s kubelet Created container metrics-server
Normal Started 2m20s kubelet Started container metrics-server
Warning Unhealthy 7s (x13 over 117s) kubelet Readiness probe failed: HTTP probe failed with statuscode: 500
一些常用资源查看命令
# 查看节点资源占用情况
[root@master dashboard-2.7.0]# kubectl top node
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
cloudcone 244m 12% 1465Mi 85%
master 156m 7% 2422Mi 66%
master2 35m 3% 1156Mi 66%
node1 140m 7% 2153Mi 59%
node2 113m 5% 2270Mi 63%
node3 106m 5% 1470Mi 78%
node4 164m 8% 1812Mi 49%
node5 300m 15% 2484Mi 68%
# 查看pod资源占用情况,使用-n指定名称空间
[root@master dashboard-2.7.0]# kubectl top pod -n k8s-util
NAME CPU(cores) MEMORY(bytes)
k8sutil-deployment-2tcqs 0m 1Mi
k8sutil-deployment-9bsks 0m 1Mi
k8sutil-deployment-hsb9w 0m 0Mi
k8sutil-deployment-k5475 0m 0Mi
k8sutil-deployment-kfnpq 0m 0Mi
k8sutil-deployment-wgzcn 0m 0Mi
k8sutil-deployment-zn64b 0m 0Mi
