springcloud集成camunda

一、什么是camunda

Camunda是一个流程引擎，用于管理业务流程和工作流。它可以帮助企业将业务流程转变为自动化工作流，使其更加高效、可靠和可控。Camunda是一个开源的流程引擎，采用Java语言编写，可以轻松地与其他系统进行集成和部署。它具有可扩展性、灵活性和可定制性，以满足各种不同的业务需求。Camunda不仅提供了API和工具来管理流程，还提供了一系列Web界面，使用户可以通过图形化界面观察和管理流程。Camunda还提供了详细的文档和社区支持，使开发人员更容易地使用它来构建流程应用程序。

二、开整

先贴上官方文档地址: camunda-cn.shaochenfeng.com/introductio…

1、我这边是基于gradle来构建项目的，首先创建一个gradle项目然后引入依赖

dependencies {
compile 'org.camunda.bpm.springboot:camunda-bpm-spring-boot-starter-rest:7.16.0'

compile 'mysql:mysql-connector-java'
compile 'org.springframework.boot:spring-boot-starter-jdbc'
compile 'com.alibaba:druid-spring-boot-starter:1.2.16'
compile 'org.springframework.boot:spring-boot-starter-actuator'
compile 'org.springframework.boot:spring-boot-starter-web'
compile 'org.springframework.cloud:spring-cloud-starter-config'
compile ('org.springframework.cloud:spring-cloud-starter-netflix-eureka-client') {
exclude group: 'javax.ws.rs' , module: 'jsr311-api'
}
compile 'org.springframework.cloud:spring-cloud-starter-netflix-hystrix'
compile 'org.springframework.cloud:spring-cloud-starter-netflix-ribbon'

}

这里引入了 spring cloud的一些相关组件，eurka，config，hystrix，ribbon等，根据实际情况酌情引入。

2、配置

spring:
    application:
        name: camunda-api
    profiles:
        active: dev
    main:
        allow-bean-definition-overriding: true
    datasource:
        url: jdbc:mysql://ip:port/camunda_api?autoReconnect=true&useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai&zeroDateTimeBehavior=CONVERT_TO_NULL&allowMultiQueries=true
        username: root
        password: root
        hikari:
            idle-timeout: 30000
            maximum-pool-size: 8
eureka:
    client:
        service-url:
            defaultZone: http://localhost:8810/eureka
        fetch-registry: true
        register-with-eureka: true
        registryFetchIntervalSeconds: 5
        healthcheck:
        enabled: true
    instance:
        prefer-ip-address: true

3、camunda默认的id生成规则为uuid ，如果要替换则需要自定义一个id生成器。这里我们使用雪花id生成器

public class SnowflakeIdGenerator implements IdGenerator {

private static final long WORKER_ID_BITS = 10L;
private static final long SEQUENCE_BITS = 12L;
private static final long MAX_WORKER_ID = (1L << WORKER_ID_BITS) - 1L;
private static final long MAX_SEQUENCE = (1L << SEQUENCE_BITS) - 1L;
private static final long CUSTOM_EPOCH = 1609459200000L; // 2021-01-01 00:00:00
private final long workerId;
private long sequence = 0L;
private long lastTimestamp = -1L;

public SnowflakeIdGenerator() {
    this.workerId = createWorkerId();
}

private long createWorkerId() {
    long workerId;
    try {
    StringBuilder sb = new StringBuilder();
    Enumeration<NetworkInterface> networkInterfaces = NetworkInterface.getNetworkInterfaces();
    while (networkInterfaces.hasMoreElements()) {
    NetworkInterface networkInterface = networkInterfaces.nextElement();
    byte[] macAddress = networkInterface.getHardwareAddress();
    if (macAddress != null) {
    for (byte b : macAddress) {
    sb.append(String.format("%02X", b));
    }
    }
    }
    workerId = sb.toString().hashCode() & MAX_WORKER_ID;
    } catch (Exception ex) {
    workerId = (new SecureRandom().nextInt((int) MAX_WORKER_ID));
    }
    return workerId;
}



@Override
public synchronized String getNextId() {
long currentTimestamp = getTimestamp();
if (currentTimestamp < lastTimestamp) {
throw new IllegalStateException("Clock moved backwards. Refusing to generate id");
}
if (currentTimestamp == lastTimestamp) {
sequence = (sequence + 1) & MAX_SEQUENCE;
if (sequence == 0L) {
currentTimestamp = getNextTimestamp(currentTimestamp);
}
} else {
sequence = 0L;
}
lastTimestamp = currentTimestamp;
long timestamp = (currentTimestamp - CUSTOM_EPOCH) << (WORKER_ID_BITS + SEQUENCE_BITS);
long workerId = this.workerId << SEQUENCE_BITS;
long sequence = this.sequence;
return String.valueOf(timestamp | workerId | sequence);
}




private long getNextTimestamp(long currentTimestamp) {
long timestamp = getTimestamp();
while (timestamp <= currentTimestamp) {
timestamp = getTimestamp();
}
return timestamp;
}
private long getTimestamp() {
return Instant.now().toEpochMilli();
}

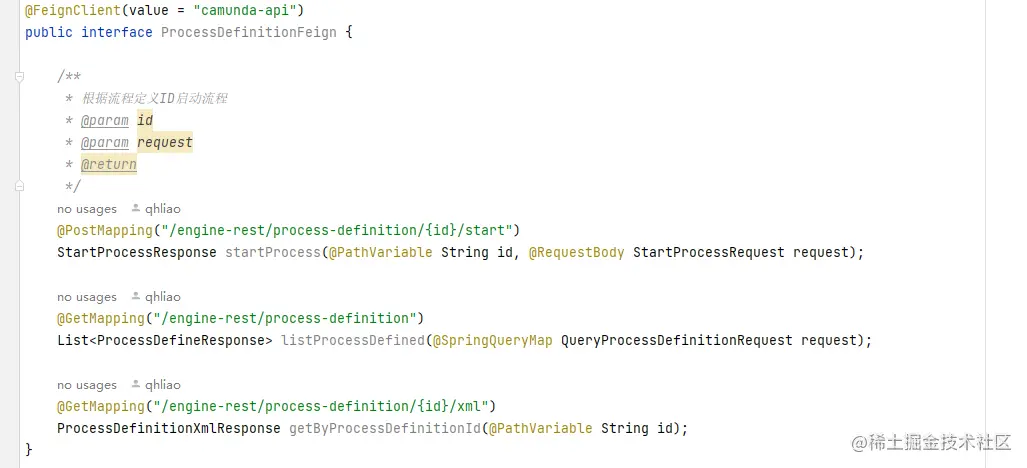

至此可以直接启动该项目，一个camunda的应用就搭起来了。如果是微服务则可以使用feign 来方便服务与服务之间的调用

如
