ELK搭建

ELK+Kafka搭建

1. 安装Docker和Docker Compose 确保您的机器上已经安装了Docker和Docker Compose。如果没有，请参考官方文档进行安装。

2. 编写docker-compose.yml文件 在您的工作目录下创建一个名为docker-compose.yml的文件，并添加以下内容：

   version: '3.7'
   services:
     elasticsearch:
       image: docker.elastic.co/elasticsearch/elasticsearch:7.12.0
       container_name: elasticsearch
       environment:
         - discovery.type=single-node
       ports:
         - "9200:9200"
         - "9300:9300"
       volumes:
         - elasticsearch-data:/usr/share/elasticsearch/data
   ​
     logstash:
       image: docker.elastic.co/logstash/logstash:7.12.0
       container_name: logstash
       user: root
       environment:
         - XPACK_MONITORING_ENABLED=false
       volumes:
         - ./logstash/indexer/config/logstash.yml:/usr/share/logstash/config/logstash.yml
         - ./logstash/indexer/pipeline:/usr/share/logstash/pipeline
       depends_on:
         - elasticsearch
         - kafka
     kibana:
       image: docker.elastic.co/kibana/kibana:7.12.0
       container_name: kibana
       environment:
         - ELASTICSEARCH_URL=http://elasticsearch:9200
         - XPACK_MONITORING_ENABLED=false
       ports:
         - "5601:5601"
       depends_on:
         - elasticsearch
     kafka:
       image: wurstmeister/kafka:2.12-2.4.1
       container_name: kafka
       environment:
         KAFKA_ADVERTISED_HOST_NAME: 192.168.200.100
         KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
       ports:
         - "9092:9092"
       depends_on:
         - zookeeper
   ​
     zookeeper:
       image: wurstmeister/zookeeper
       container_name: zookeeper
       environment:
         ZOO_MY_ID: 1
         ZOO_SERVERS: server.1=zookeeper:2888:3888
       ports:
         - "2181:2181"
       volumes:
         - zookeeper-data:/tmp/zookeeper
   ​
   volumes:
     elasticsearch-data:
     zookeeper-data:


3. 创建Logstash配置文件

   1. 在当前目录下

      mkdir  logstash/indexer/config
      mkdir  logstash/indexer/pipeline


   2. 进入config目录下，新建文件logstash.yml

      http.host: 0.0.0.0
      xpack.monitoring.enabled: false


   3. 进入pipeline目录下，新建文件logstash.conf文件

      input {
        kafka {
          bootstrap_servers => "192.168.99.82:9092"
          decorate_events => true
          topics => ["http-log", "mqtt-log"]
          codec => "json"
        }
      }
      filter {
        if [@metadata][kafka][topic] == "http-log" {
          mutate {
            add_field => { "[@metadata][target_index]" => "xm-http-log" }
          }
        } else if [@metadata][kafka][topic] == "mqtt-log" {
          mutate {
            add_field => { "[@metadata][target_index]" => "xm-mqtt-log" }
          }
        }
      }
      output {
        elasticsearch {
          hosts => ["http://192.168.99.82:9200"]
          index => "%{[@metadata][target_index]}-%{+YYYY.MM.dd}"
        }
      }


4. 启动容器 打开终端，进入您的工作目录，并运行以下命令启动所有容器：

   docker-compose up -d

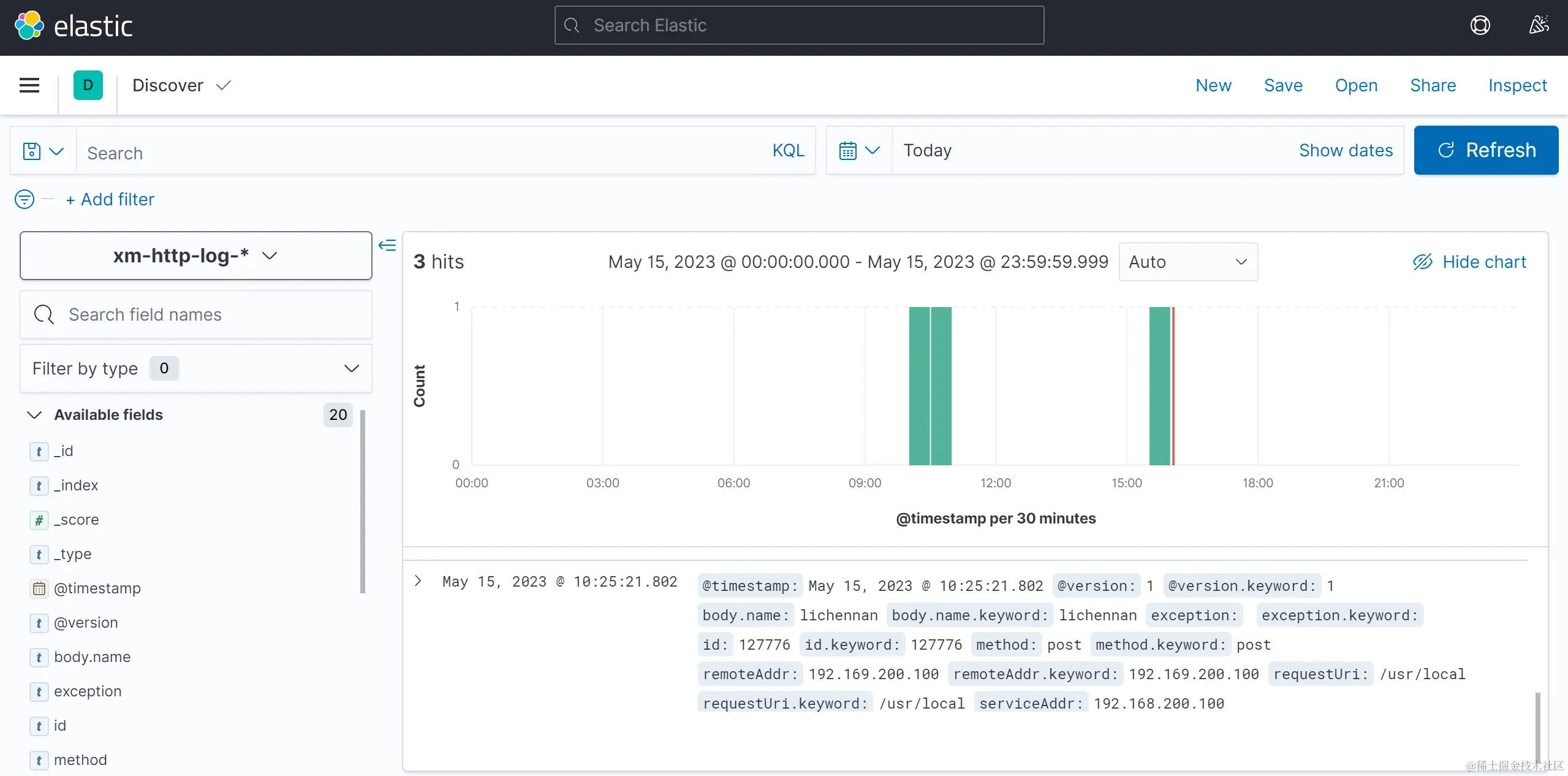

5. 至此就可以在ES中查看日志信息(前提是已经把日志收集到kafka中去了)
