在我之前的文章 “如何在 Linux，MacOS 及 Windows 上进行安装 Elasticsearch”，我详细描述了如何在各个平台中安装 Elastic Stack 8.x。在其中的文章中，我们大多采用默认的证书来安装 Elasticsearch。在今天的文章中，我们用自己创建的证书一步一步地来安装 Elastic Stack 8.x。我们可以参考之前的文章：
我们将在 Ubuntu 20.04 上来进行展示。我们将安装最新的 Elastic Stack 8.7.1。
安装 Elasticsearch
我们首先在 Ubuntu 系统上参照文章 “Elasticsearch: 使用 Debian 安装包来安装 Elasticsearch 8.x” 来安装 Elasticsearch。当然，我们可以使用默认的证书来使得 Elasticsearch 顺利运行，这个是没有任何问题的。但是，在实际的部署中，有很多开发者希望使用自己的证书来进行安装，一方面可控，另一方可以延续之前的 7.x 的安装证书。
在我们运行如下的命令之后：
sudo apt-get update && sudo apt-get install elasticsearch
1. parallels@liuxg:~$ sudo apt-get update && sudo apt-get install elasticsearch
2. Hit:1 https://artifacts.elastic.co/packages/8.x/apt stable InRelease
3. Hit:2 https://download.docker.com/linux/ubuntu focal InRelease
4. Hit:3 http://ports.ubuntu.com/ubuntu-ports focal InRelease
5. Get:4 http://ports.ubuntu.com/ubuntu-ports focal-updates InRelease [114 kB]
6. Get:5 http://ports.ubuntu.com/ubuntu-ports focal-backports InRelease [108 kB]
7. Get:6 http://ports.ubuntu.com/ubuntu-ports focal-security InRelease [114 kB]
8. Get:7 http://ports.ubuntu.com/ubuntu-ports focal-updates/main arm64 DEP-11 Metadata [275 kB]
9. Get:8 http://ports.ubuntu.com/ubuntu-ports focal-updates/universe arm64 DEP-11 Metadata [408 kB]
10. Get:9 http://ports.ubuntu.com/ubuntu-ports focal-backports/main arm64 DEP-11 Metadata [5,236 B]
11. Get:10 http://ports.ubuntu.com/ubuntu-ports focal-backports/universe arm64 DEP-11 Metadata [30.5 kB]
12. Get:11 http://ports.ubuntu.com/ubuntu-ports focal-security/main arm64 DEP-11 Metadata [59.8 kB]
13. Get:12 http://ports.ubuntu.com/ubuntu-ports focal-security/universe arm64 DEP-11 Metadata [95.0 kB]
14. Fetched 1,210 kB in 5s (246 kB/s)
15. Reading package lists... Done
16. N: Skipping acquire of configured file 'stable/binary-aarch64/Packages' as repository 'https://download.docker.com/linux/ubuntu focal InRelease' doesn't support architecture 'aarch64'
17. Reading package lists... Done
18. Building dependency tree
19. Reading state information... Done
20. The following NEW packages will be installed:
21. elasticsearch
22. 0 upgraded, 1 newly installed, 0 to remove and 0 not upgraded.
23. Need to get 397 MB of archives.
24. After this operation, 660 MB of additional disk space will be used.
25. Get:1 https://artifacts.elastic.co/packages/8.x/apt stable/main arm64 elasticsearch arm64 8.7.1 [397 MB]
26. Fetched 397 MB in 1min 24s (4,728 kB/s)
27. Selecting previously unselected package elasticsearch.
28. (Reading database ... 230412 files and directories currently installed.)
29. Preparing to unpack .../elasticsearch_8.7.1_arm64.deb ...
30. Creating elasticsearch group... OK
31. Creating elasticsearch user... OK
32. Unpacking elasticsearch (8.7.1) ...
33. Setting up elasticsearch (8.7.1) ...
34. --------------------------- Security autoconfiguration information ------------------------------
36. Authentication and authorization are enabled.
37. TLS for the transport and HTTP layers is enabled and configured.
39. The generated password for the elastic built-in superuser is : xsYCh*5qOz7hSpkH-fHC
41. If this node should join an existing cluster, you can reconfigure this with
42. '/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <token-here>'
43. after creating an enrollment token on your existing cluster.
45. You can complete the following actions at any time:
47. Reset the password of the elastic built-in superuser with
48. '/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic'.
50. Generate an enrollment token for Kibana instances with
51. '/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana'.
53. Generate an enrollment token for Elasticsearch nodes with
54. '/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node'.
56. -------------------------------------------------------------------------------------------------
57. ### NOT starting on installation, please execute the following statements to configure elasticsearch service to start automatically using systemd
58. sudo systemctl daemon-reload
59. sudo systemctl enable elasticsearch.service
60. ### You can start elasticsearch service by executing
61. sudo systemctl start elasticsearch.service
上面显示了 elastic 超级用户的密码已经 kibana 的 enrollment token 等信息。如果这个时候我们直接启动 elasticsearch 服务，那么它将顺利启动并运行。假如你之前已经生成过自己的证书，那么这个时候，你可以直接进行配置 config/elasticsearch.yml 文件即可。如果你没有，请阅读下一节来创建自己的证书。
创建证书
创建根证书
我们使用如下的命令来生成根证书：
/usr/share/elasticsearch/bin/elasticsearch-certutil ca --silent --pem -out config/certs/ca.zip
我们去 Elasticsearch 的配置文件目录进行查看：
1. root@ubuntu2004:/usr/share/elasticsearch/config/certs# pwd
2. /usr/share/elasticsearch/config/certs
3. root@ubuntu2004:/usr/share/elasticsearch/config/certs# ls
4. ca.zip
我们接下来解压缩上面得到的 ca.zip 文件：
1. root@ubuntu2004:/usr/share/elasticsearch# pwd
2. /usr/share/elasticsearch
3. root@ubuntu2004:/usr/share/elasticsearch# unzip config/certs/ca.zip -d config/certs
4. Archive: config/certs/ca.zip
5. creating: config/certs/ca/
6. inflating: config/certs/ca/ca.crt
7. inflating: config/certs/ca/ca.key
上面显示，ca.zip 含有两个文件 ca.crt 及 ca.key。
为各个 节点生成证书文件
我们在 /usr/share/elasticsearch/config/certs 目录底下创建一个 instances.yml 文件，它将包含我们要使用 SSL 保护的不同节点的实例。就我而言，我的机器的情况如下：
1. root@ubuntu2004:/usr/share/elasticsearch# ifconfig | grep inet
2. inet 172.17.0.1 netmask 255.255.0.0 broadcast 172.17.255.255
3. inet 192.168.0.8 netmask 255.255.255.0 broadcast 192.168.0.255
4. inet6 fe80::d246:4880:928b:f508 prefixlen 64 scopeid 0x20<link>
5. inet 127.0.0.1 netmask 255.0.0.0
6. inet6 ::1 prefixlen 128 scopeid 0x10<host>
7. root@ubuntu2004:/usr/share/elasticsearch# hostname
8. ubuntu2004
如上所示，我当前的机器的 IP 地址为 192.168.0.8，而我的 hostname 是 ubuntu2004。我们甚至可以在 /etc/hosts 中添加如下的项：
1. 127.0.0.1 localhost
2. 192.168.0.8 parallels
3. 192.168.0.8 ubuntu2004
这样当我们 ping ubuntu2004 时，它的响应是：
1. ping ubuntu2004
2. PING ubuntu2004 (192.168.0.8) 56(84) bytes of data.
3. 64 bytes from parallels (192.168.0.8): icmp_seq=1 ttl=64 time=0.112 ms
4. 64 bytes from parallels (192.168.0.8): icmp_seq=2 ttl=64 time=0.250 ms
/usr/share/elasticsearch/config/certs/instances.yml
1. instances:
2. - name: elasticsearch1
3. dns:
4. - localhost
5. - ubuntu2004
6. ip:
7. - "192.168.0.8"
8. - name: elasticsearch2
9. dns:
10. - localhost
11. - ubuntu2204
12. ip:
13. - "192.168.0.9"
14. - name: elasticsearch3
15. dns:
16. - localhost
17. - mac
18. ip:
19. - "192.168.0.3"
20. - name: "kibana"
21. ip:
22. - "192.168.0.8"
在上面，我们列举了三个节点的 Elasticsearch。根据你实际的使用情况，你可以添加或减少。在本文的实例中，我将创建一个单节点的 IP 地址为 192.168.0.8 的 Elasticsearch 集群。我们使用如下的命令：
/usr/share/elasticsearch/bin/elasticsearch-certutil cert --silent --pem -out config/certs/certs.zip --in config/certs/instances.yml --ca-cert config/certs/ca/ca.crt --ca-key config/certs/ca/ca.key
1. root@ubuntu2004:/usr/share/elasticsearch# pwd
2. /usr/share/elasticsearch
3. root@ubuntu2004:/usr/share/elasticsearch# ls config/certs/
4. ca ca.zip instances.yml
5. root@ubuntu2004:/usr/share/elasticsearch# /usr/share/elasticsearch/bin/elasticsearch-certutil cert --silent --pem -out config/certs/certs.zip --in config/certs/instances.yml --ca-cert config/certs/ca/ca.crt --ca-key config/certs/ca/ca.key
6. root@ubuntu2004:/usr/share/elasticsearch# ls config/certs
7. ca ca.zip certs.zip instances.yml
从上面，我们可以看出来它生成了一个叫做 certs.zip 的文件。
我们接下来使用如下的命令来解压缩上面得到的 certs.zip 文件：
1. root@ubuntu2004:/usr/share/elasticsearch# pwd
2. /usr/share/elasticsearch
3. root@ubuntu2004:/usr/share/elasticsearch# ls config/certs/
4. ca ca.zip instances.yml
5. root@ubuntu2004:/usr/share/elasticsearch# /usr/share/elasticsearch/bin/elasticsearch-certutil cert --silent --pem -out config/certs/certs.zip --in config/certs/instances.yml --ca-cert config/certs/ca/ca.crt --ca-key config/certs/ca/ca.key
6. root@ubuntu2004:/usr/share/elasticsearch# ls config/certs
7. ca ca.zip certs.zip instances.yml
8. root@ubuntu2004:/usr/share/elasticsearch# unzip config/certs/certs.zip -d config/certs
9. Archive: config/certs/certs.zip
10. creating: config/certs/elasticsearch1/
11. inflating: config/certs/elasticsearch1/elasticsearch1.crt
12. inflating: config/certs/elasticsearch1/elasticsearch1.key
13. creating: config/certs/elasticsearch2/
14. inflating: config/certs/elasticsearch2/elasticsearch2.crt
15. inflating: config/certs/elasticsearch2/elasticsearch2.key
16. creating: config/certs/elasticsearch3/
17. inflating: config/certs/elasticsearch3/elasticsearch3.crt
18. inflating: config/certs/elasticsearch3/elasticsearch3.key
19. creating: config/certs/kibana/
20. inflating: config/certs/kibana/kibana.crt
21. inflating: config/certs/kibana/kibana.key
如上所示，我们可以看到所有生成的证书文件：
1. root@ubuntu2004:/usr/share/elasticsearch# tree -L 4 config/
2. config/
3. └── certs
4. ├── ca
5. │ ├── ca.crt
6. │ └── ca.key
7. ├── ca.zip
8. ├── certs.zip
9. ├── elasticsearch1
10. │ ├── elasticsearch1.crt
11. │ └── elasticsearch1.key
12. ├── elasticsearch2
13. │ ├── elasticsearch2.crt
14. │ └── elasticsearch2.key
15. ├── elasticsearch3
16. │ ├── elasticsearch3.crt
17. │ └── elasticsearch3.key
18. ├── instances.yml
19. └── kibana
20. ├── kibana.crt
21. └── kibana.key
我们接下来把上面生成的证书拷贝到 /etc/elasticsearch/certs 下面去。
1. root@ubuntu2004:/usr/share/elasticsearch# pwd
2. /usr/share/elasticsearch
3. root@ubuntu2004:/usr/share/elasticsearch# cd config/certs/
4. root@ubuntu2004:/usr/share/elasticsearch/config/certs# ls
5. ca ca.zip certs.zip elasticsearch1 elasticsearch2 elasticsearch3 instances.yml kibana
6. root@ubuntu2004:/usr/share/elasticsearch/config/certs# cp -R ca /etc/elasticsearch/certs/
7. root@ubuntu2004:/usr/share/elasticsearch/config/certs# cp -R elasticsearch1 /etc/elasticsearch/certs/
这样在 /etc/elasticsearch/certs 下的文件如下：
1. root@ubuntu2004:/etc/elasticsearch/certs# ls
2. ca elasticsearch1 http_ca.crt http.p12 transport.p12
3. root@ubuntu2004:/etc/elasticsearch/certs# tree -L 2
4. .
5. ├── ca
6. │ ├── ca.crt
7. │ └── ca.key
8. ├── elasticsearch1
9. │ ├── elasticsearch1.crt
10. │ └── elasticsearch1.key
11. ├── http_ca.crt
12. ├── http.p12
13. └── transport.p12
请注意上面的 http_ca.crt，http.p12 及 transport.p12 是安装时默认生成的证书文件。
我们接下来修改证书文件的权限：
1. chown -R root:elasticsearch ca
2. chown -R root:elasticsearch elasticsearch1/
1. root@ubuntu2004:/etc/elasticsearch# cd certs
2. root@ubuntu2004:/etc/elasticsearch/certs# ls -alh
3. total 40K
4. drwxr-x--- 4 root elasticsearch 4.0K May 12 17:35 .
5. drwxr-s--- 4 root elasticsearch 4.0K May 12 17:40 ..
6. drwxr-xr-x 2 root root 4.0K May 12 17:35 ca
7. drwxr-xr-x 2 root root 4.0K May 12 17:35 elasticsearch1
8. -rw-rw---- 1 root elasticsearch 1.9K May 12 16:12 http_ca.crt
9. -rw-rw---- 1 root elasticsearch 9.8K May 12 16:12 http.p12
10. -rw-rw---- 1 root elasticsearch 5.7K May 12 16:12 transport.p12
11. root@ubuntu2004:/etc/elasticsearch/certs# chown -R root:elasticsearch ca
12. root@ubuntu2004:/etc/elasticsearch/certs# chown -R root:elasticsearch elasticsearch1/
13. root@ubuntu2004:/etc/elasticsearch/certs# ls -alh
14. total 40K
15. drwxr-x--- 4 root elasticsearch 4.0K May 12 17:35 .
16. drwxr-s--- 4 root elasticsearch 4.0K May 12 17:40 ..
17. drwxr-xr-x 2 root elasticsearch 4.0K May 12 17:35 ca
18. drwxr-xr-x 2 root elasticsearch 4.0K May 12 17:35 elasticsearch1
19. -rw-rw---- 1 root elasticsearch 1.9K May 12 16:12 http_ca.crt
20. -rw-rw---- 1 root elasticsearch 9.8K May 12 16:12 http.p12
21. -rw-rw---- 1 root elasticsearch 5.7K May 12 16:12 transport.p12
22. root@ubuntu2004:/etc/elasticsearch/certs# ls -alh ca
23. total 16K
24. drwxr-xr-x 2 root elasticsearch 4.0K May 12 17:35 .
25. drwxr-x--- 4 root elasticsearch 4.0K May 12 17:35 ..
26. -rw-r--r-- 1 root elasticsearch 1.2K May 12 17:35 ca.crt
27. -rw-r--r-- 1 root elasticsearch 1.7K May 12 17:35 ca.key
配置 Elasticsearch 节点
在上面我们已经生成了 Elasticsearch 及 Kibana 的证书文件。我们接下来使用上面的文件来对 Elasticsearch 进行配置：
/etc/elasticsearch/elasticsearch.yml
1. cluster.name: es-demo
2. network.host: 192.168.0.8
3. http.port: 9200
5. # Enable security features
6. xpack.security.enabled: true
8. xpack.security.enrollment.enabled: true
10. # Enable encryption for HTTP API client connections, such as Kibana, Logstash, and Agents
11. xpack.security.http.ssl:
12. enabled: true
13. key: /etc/elasticsearch/certs/elasticsearch1/elasticsearch1.key
14. certificate: /etc/elasticsearch/certs/elasticsearch1/elasticsearch1.crt
15. certificate_authorities: /etc/elasticsearch/certs/ca/ca.crt
16. verification_mode: certificate
19. # Enable encryption and mutual authentication between cluster nodes
20. xpack.security.transport.ssl:
21. enabled: true
22. key: /etc/elasticsearch/certs/elasticsearch1/elasticsearch1.key
23. certificate: /etc/elasticsearch/certs/elasticsearch1/elasticsearch1.crt
24. certificate_authorities: /etc/elasticsearch/certs/ca/ca.crt
25. verification_mode: certificate
我们需要做如上的配置。
启动 Elasticsearch
我们使用如下的命令来启动 elasticsearch 服务：
1. root@ubuntu2004:~# service elasticsearch status
2. ● elasticsearch.service - Elasticsearch
3. Loaded: loaded (/lib/systemd/system/elasticsearch.service; disabled; vendor preset: enabled)
4. Active: inactive (dead)
5. Docs: https://www.elastic.co
6. root@ubuntu2004:~# service elasticsearch start
7. root@ubuntu2004:~# service elasticsearch status
8. ● elasticsearch.service - Elasticsearch
9. Loaded: loaded (/lib/systemd/system/elasticsearch.service; disabled; vendor preset: enabled)
10. Active: active (running) since Fri 2023-05-12 17:59:43 CST; 2s ago
11. Docs: https://www.elastic.co
12. Main PID: 29755 (java)
13. Tasks: 79 (limit: 9379)
14. Memory: 4.2G
15. CGroup: /system.slice/elasticsearch.service
16. ├─29755 /usr/share/elasticsearch/jdk/bin/java -Xms4m -Xmx64m -XX:+UseSerialGC -Dcli.name=server -Dcli.scri>
17. ├─29814 /usr/share/elasticsearch/jdk/bin/java -Des.networkaddress.cache.ttl=60 -Des.networkaddress.cache.n>
18. └─29840 /usr/share/elasticsearch/modules/x-pack-ml/platform/linux-aarch64/bin/controller
20. May 12 17:59:34 ubuntu2004 systemd[1]: Starting Elasticsearch...
21. May 12 17:59:43 ubuntu2004 systemd[1]: Started Elasticsearch.
我们可以看到 elasticsearch 服务已经启动。我们可以通过如下的命令来查看它的日志：
journalctl -u elasticsearch
我们使用如下的命令来检查安装是否成功：
curl -k -u elastic:xsYCh*5qOz7hSpkH-fHC https://192.168.0.8:9200
在上面，请用在安装时提供的 elastic 超级用户密码来进行替换：
1. curl -k -u elastic:xsYCh*5qOz7hSpkH-fHC https://192.168.0.8:9200
2. {
3. "name" : "ubuntu2004",
4. "cluster_name" : "es-demo",
5. "cluster_uuid" : "2-rpYdtJQeOifbwljN2LHA",
6. "version" : {
7. "number" : "8.7.1",
8. "build_flavor" : "default",
9. "build_type" : "deb",
10. "build_hash" : "f229ed3f893a515d590d0f39b05f68913e2d9b53",
11. "build_date" : "2023-04-27T04:33:42.127815583Z",
12. "build_snapshot" : false,
13. "lucene_version" : "9.5.0",
14. "minimum_wire_compatibility_version" : "7.17.0",
15. "minimum_index_compatibility_version" : "7.0.0"
16. },
17. "tagline" : "You Know, for Search"
18. }
很显然，我们的安装时成功的。
安装 Kibana
我们可以参考文章 “Kibana：使用 Debian 安装包来安装 Kibana 8.x” 来安装 Kibana。由于我们已经修改了 Elasticsearch 的证书，我们需要对 Kibana 进行配置。在运行如下的命令之后：
sudo apt-get update && sudo apt-get install kibana
1. root@ubuntu2004:~# sudo apt-get update && sudo apt-get install kibana
2. Hit:1 https://download.docker.com/linux/ubuntu focal InRelease
3. Hit:2 https://artifacts.elastic.co/packages/8.x/apt stable InRelease
4. Hit:3 http://ports.ubuntu.com/ubuntu-ports focal InRelease
5. Get:4 http://ports.ubuntu.com/ubuntu-ports focal-updates InRelease [114 kB]
6. Hit:5 http://ports.ubuntu.com/ubuntu-ports focal-backports InRelease
7. Hit:6 http://ports.ubuntu.com/ubuntu-ports focal-security InRelease
8. Fetched 114 kB in 2s (46.4 kB/s)
9. Reading package lists... Done
10. N: Skipping acquire of configured file 'stable/binary-aarch64/Packages' as repository 'https://download.docker.com/linux/ubuntu focal InRelease' doesn't support architecture 'aarch64'
11. Reading package lists... Done
12. Building dependency tree
13. Reading state information... Done
14. The following NEW packages will be installed:
15. kibana
16. 0 upgraded, 1 newly installed, 0 to remove and 0 not upgraded.
17. Need to get 255 MB of archives.
18. After this operation, 716 MB of additional disk space will be used.
19. Get:1 https://artifacts.elastic.co/packages/8.x/apt stable/main arm64 kibana arm64 8.7.1 [255 MB]
20. Fetched 255 MB in 17s (14.9 MB/s)
21. Selecting previously unselected package kibana.
22. (Reading database ... 231678 files and directories currently installed.)
23. Preparing to unpack .../kibana_8.7.1_arm64.deb ...
24. Unpacking kibana (8.7.1) ...
25. Setting up kibana (8.7.1) ...
26. Restarting kibana service... OK
我们针对 Kibana 进行配置。首先，我们把证书拷贝过来：
1. root@ubuntu2004:/usr/share/elasticsearch/config/certs# pwd
2. /usr/share/elasticsearch/config/certs
3. root@ubuntu2004:/usr/share/elasticsearch/config/certs# ls
4. ca ca.zip certs.zip elasticsearch1 elasticsearch2 elasticsearch3 instances.yml kibana
5. root@ubuntu2004:/usr/share/elasticsearch/config/certs# cp -R ca /etc/kibana/certs/
6. root@ubuntu2004:/usr/share/elasticsearch/config/certs# cp -R kibana /etc/kibana/certs/
我们可以在 Kibana 的配置文件目录看到文件：
1. root@ubuntu2004:/etc/kibana# pwd
2. /etc/kibana
3. root@ubuntu2004:/etc/kibana# ls -al
4. total 44
5. drwxr-s--- 3 root kibana 4096 May 12 18:16 .
6. drwxr-xr-x 150 root root 12288 May 12 16:49 ..
7. drwxr-sr-x 3 root kibana 4096 May 12 18:17 certs
8. -rw-rw---- 1 root kibana 130 Mar 21 2022 kibana.keystore
9. -rw-r--r-- 1 root kibana 62 Mar 21 2022 .kibana.keystore.initial_md5sum
10. -rw-rw---- 1 root kibana 8223 Jul 7 2022 kibana.yml
11. -rw-r--r-- 1 root kibana 305 Jun 29 2022 node.options
12. root@ubuntu2004:/etc/kibana# cd certs/
13. root@ubuntu2004:/etc/kibana/certs# ls -alh
14. total 20K
15. drwxr-sr-x 3 root kibana 4.0K May 12 18:17 .
16. drwxr-s--- 3 root kibana 4.0K May 12 18:16 ..
17. -rw-r--r-- 1 root kibana 1.2K May 12 18:16 ca.crt
18. -rw-r--r-- 1 root kibana 1.7K May 12 18:16 ca.key
19. drwxr-sr-x 2 root kibana 4.0K May 12 18:17 kibana
20. root@ubuntu2004:/etc/kibana/certs# cd kibana/
21. root@ubuntu2004:/etc/kibana/certs/kibana# ls -alh
22. total 16K
23. drwxr-sr-x 2 root kibana 4.0K May 12 18:17 .
24. drwxr-sr-x 3 root kibana 4.0K May 12 18:17 ..
25. -rw-r--r-- 1 root kibana 1.2K May 12 18:17 kibana.crt
26. -rw-r--r-- 1 root kibana 1.7K May 12 18:17 kibana.key
我们可以利用上面的证书文件来配置 /etc/kibana/kibana.yml 文件。上面显示我们的证书文件的所有权是 root:kibana。如果你有不对的，请进行相应修改。
创建 elastic/kibana 服务账号
根据文档 www.elastic.co/guide/en/el…，我们创建一个 elastic/kibana 服务账号。我们在 terminal 下打入如下的命令：
1. root@ubuntu2004:/usr/share/elasticsearch/bin# ls
2. elasticsearch elasticsearch-geoip elasticsearch-setup-passwords
3. elasticsearch-certgen elasticsearch-keystore elasticsearch-shard
4. elasticsearch-certutil elasticsearch-node elasticsearch-sql-cli
5. elasticsearch-cli elasticsearch-plugin elasticsearch-sql-cli-8.7.1.jar
6. elasticsearch-create-enrollment-token elasticsearch-reconfigure-node elasticsearch-syskeygen
7. elasticsearch-croneval elasticsearch-reset-password elasticsearch-users
8. elasticsearch-env elasticsearch-saml-metadata systemd-entrypoint
9. elasticsearch-env-from-file elasticsearch-service-tokens
10. root@ubuntu2004:/usr/share/elasticsearch/bin# ./elasticsearch-service-tokens --help
11. Manages elasticsearch service account file-tokens
13. Commands
14. --------
15. create - Create a file token for specified service account and token name
16. delete - Remove a file token for specified service account and token name
17. list - List file tokens for the specified service account
19. Non-option arguments:
20. command
22. Option Description
23. ------ -----------
24. -E <KeyValuePair> Configure a setting
25. -h, --help Show help
26. -s, --silent Show minimal output
27. -v, --verbose Show verbose output
1. root@ubuntu2004:/usr/share/elasticsearch/bin# ./elasticsearch-service-tokens create elastic/kibana kibana-token
2. SERVICE_TOKEN elastic/kibana/kibana-token = AAEAAWVsYXN0aWMva2liYW5hL2tpYmFuYS10b2tlbjpBQlVPWWpGRlNVQ2hhMWdlNzBpUXZn
我们记下这个 service token。将在下面的配置中使用。
我们是使用如下的命令来把上面的 service token 放进 keystore。我们可以在如下的地址发现已经存在一个叫做 kibana.keystore 的文件。我们无需去重新创建这个文件。
1. root@ubuntu2004:/etc/kibana# ls
2. certs kibana.keystore kibana.yml node.options
参考链接 www.elastic.co/guide/en/ki…。我们打入如下的命令：
root@ubuntu2004:/usr/share/kibana/bin# ./kibana-keystore list
上面显示还没有任何的值在里面。我们使用如下的命令：
1. root@ubuntu2004:/usr/share/kibana/bin# pwd
2. /usr/share/kibana/bin
3. root@ubuntu2004:/usr/share/kibana/bin# ./kibana-keystore list
5. root@ubuntu2004:/usr/share/kibana/bin# ./kibana-keystore add elasticsearch.serviceAccountToken
6. Enter value for elasticsearch.serviceAccountToken: ************************************************************************
7. root@ubuntu2004:/usr/share/kibana/bin# ./kibana-keystore list
8. elasticsearch.serviceAccountToken
配置 Kibana
/etc/kibana/kibana.yml
1. server.port: 5601
2. server.host: "0.0.0.0"
3. server.publicBaseUrl: "https://ubuntu2004:5601"
5. server.ssl.enabled: true
6. server.ssl.certificate: /etc/kibana/certs/kibana/kibana.crt
7. server.ssl.key: /etc/kibana/certs/kibana/kibana.key
9. elasticsearch.hosts: ["https://192.168.0.8:9200"]
11. elasticsearch.ssl.verificationMode: full
12. elasticsearch.ssl.certificateAuthorities: [/etc/kibana/certs/ca.crt]
我们接下来启动 kibana 服务：
service kibana start

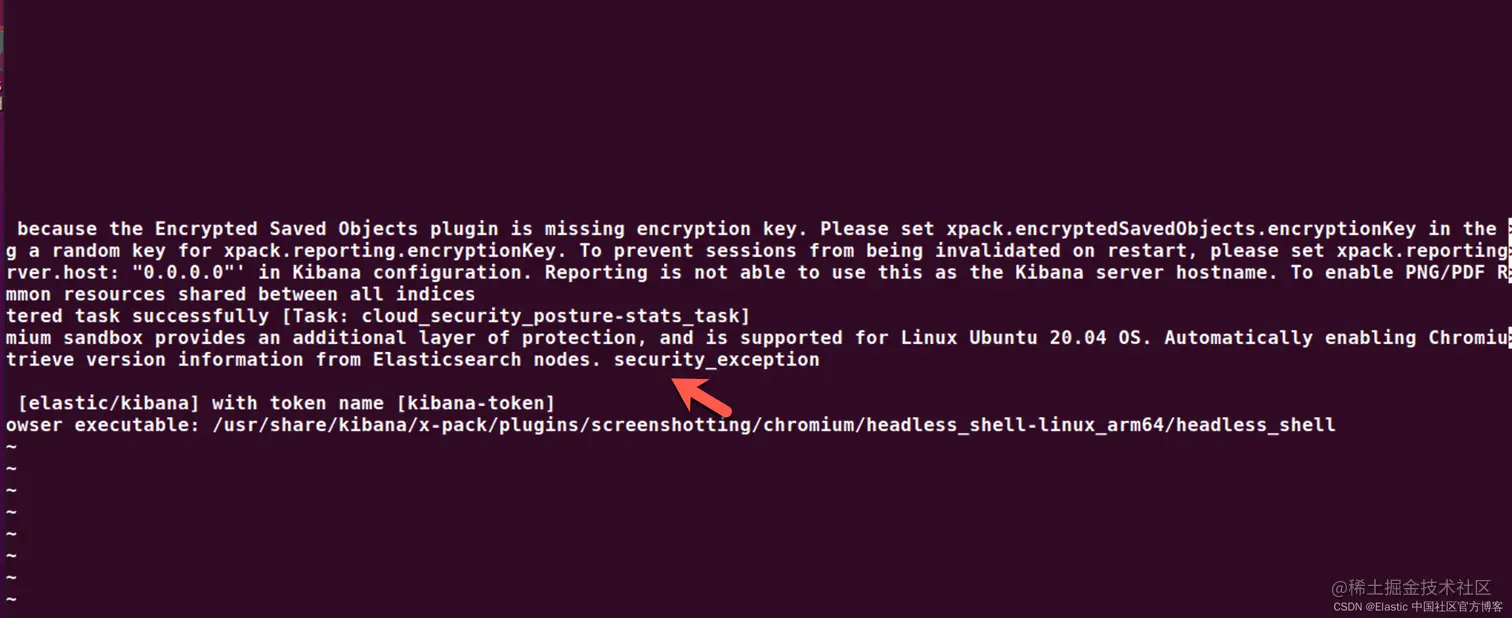

我们查看它的状态：
我们回到 Elasticsearch 的配置目录：
1. root@ubuntu2004:/etc/elasticsearch# ls -al
2. total 76
3. drwxr-s--- 4 root elasticsearch 4096 May 12 18:41 .
4. drwxr-xr-x 150 root root 12288 May 12 16:49 ..
5. drwxr-x--- 4 root elasticsearch 4096 May 12 17:35 certs
6. -rw-rw---- 1 root elasticsearch 536 May 12 16:12 elasticsearch.keystore
7. -rw-rw---- 1 root elasticsearch 1042 Apr 27 12:37 elasticsearch-plugins.example.yml
8. -rw-rw---- 1 root elasticsearch 4375 May 12 17:59 elasticsearch.yml
9. -rw-rw---- 1 root elasticsearch 2623 Apr 27 12:37 jvm.options
10. drwxr-s--- 2 root elasticsearch 4096 Apr 27 12:37 jvm.options.d
11. -rw-rw---- 1 root elasticsearch 17770 Apr 27 12:37 log4j2.properties
12. -rw-rw---- 1 root elasticsearch 473 Apr 27 12:37 role_mapping.yml
13. -rw-rw---- 1 root elasticsearch 197 Apr 27 12:37 roles.yml
14. -rw------- 1 root elasticsearch 140 May 12 18:41 service_tokens
15. -rw-rw---- 1 root elasticsearch 0 Apr 27 12:37 users
16. -rw-rw---- 1 root elasticsearch 0 Apr 27 12:37 users_roles
17. root@ubuntu2004:/etc/elasticsearch# chown elasticsearch service_tokens
18. root@ubuntu2004:/etc/elasticsearch# ls -alh
19. total 76K
20. drwxr-s--- 4 root elasticsearch 4.0K May 12 18:41 .
21. drwxr-xr-x 150 root root 12K May 12 16:49 ..
22. drwxr-x--- 4 root elasticsearch 4.0K May 12 17:35 certs
23. -rw-rw---- 1 root elasticsearch 536 May 12 16:12 elasticsearch.keystore
24. -rw-rw---- 1 root elasticsearch 1.1K Apr 27 12:37 elasticsearch-plugins.example.yml
25. -rw-rw---- 1 root elasticsearch 4.3K May 12 17:59 elasticsearch.yml
26. -rw-rw---- 1 root elasticsearch 2.6K Apr 27 12:37 jvm.options
27. drwxr-s--- 2 root elasticsearch 4.0K Apr 27 12:37 jvm.options.d
28. -rw-rw---- 1 root elasticsearch 18K Apr 27 12:37 log4j2.properties
29. -rw-rw---- 1 root elasticsearch 473 Apr 27 12:37 role_mapping.yml
30. -rw-rw---- 1 root elasticsearch 197 Apr 27 12:37 roles.yml
31. -rw------- 1 elasticsearch elasticsearch 140 May 12 18:41 service_tokens
32. -rw-rw---- 1 root elasticsearch 0 Apr 27 12:37 users
33. -rw-rw---- 1 root elasticsearch 0 Apr 27 12:37 users_roles
修改过后，我们再次重新启动 elasticsearch 服务：
service elasticsearch restart
我们再次重新启动 kibana 服务：
service kibana restart

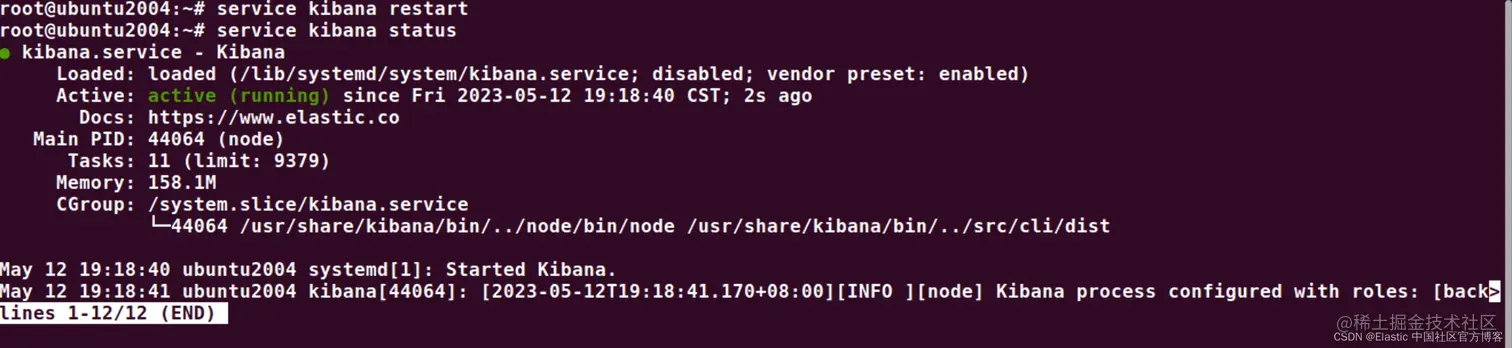

我们再查看 kibana 服务的状态：
这次我们没有看到错误信息了。
我们在浏览器中打入地址 https://localhost:5601：
这样就成功地登录 Kibana 了。
