使用 plantuml，用代码画流程图

plantuml类似一门简单语言，用代码逻辑来绘制流程图。本文从流程图元素、控制语句、布局、样式四个维度学习。为后续分析源码时绘制流程图做好准备。

流程图元素

• 开始


start

• 结束

end

• 语句

 :打开扫一扫;

• 子流程

:扫码登录|

• note

:打水;
note right
注意烫伤
endnote

控制语句

• 条件

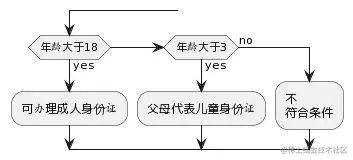

  • if else


  if (年龄大于18) then (yes)
    :可办理成人身份证;
  elseif(年龄大于3) then(yes)
    :父母代表儿童身份证;
  else (no)
    :不
    符合条件;
  endif

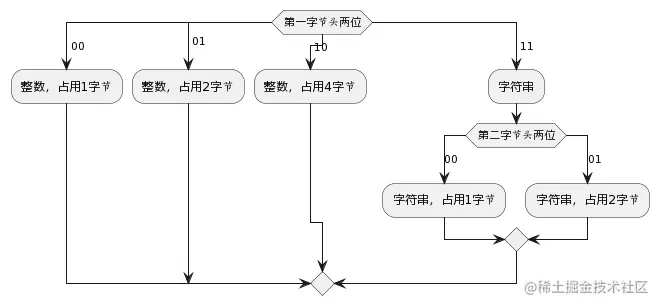

  • switch



  switch (第一字节头两位)
      case ( 00 )
        :整数，占用1字节;
      case ( 01 )
        :整数，占用2字节;
      case ( 10 )
        :整数，占用4字节;
      case ( 11 )
        :字符串;
        switch (第二字节头两位)
          case (00)
              :字符串，占用1字节;
          case (01)
              :字符串，占用2字节;
        endswitch
  endswitch


• while

while (活着)
    :吃饭;
    :睡觉;
    :打豆豆;
endwhile
:结束生命;

布局

• fork

fork
    : 唱歌;
fork again
    : 吃饭;
end fork

• split

split
    : 唱歌;
split again
    : 吃饭;
end split

• group

group 初始化分组
    :read config file;
    :init internal variable;
end group
group 运行分组
    :wait for user interaction;
    :print information;
end group

• rectangle

rectangle {
    :吃饭;
    :睡觉;
}

• swimlanes

|Swimlane1|
:foo1;
|Swimlane2|
:foo2;
:foo3;
|Swimlane1|
:foo4;

样式

• arrow

: a ;
-[dotted]->
: b ;
-[dashed]->
: c ;

• color
  颜色： 色块优先选择：红、绿、黄、蓝，实在不够用了才会选择：橙、青、紫。白色背景，黑色线条和文字，默认字体。
  红： #EC5D57 绿： #70BF41 蓝： #51A7F9 黄： #F5D328 紫： #B36AE2 橙： #F39019 青： #00E5F9

  • 箭头颜色


  : a ;
  -[#blue,dotted]->
  : b ;
  -[dashed]->
  : c ;


  • 语句颜色


  #blue: a ;


  • 流程控制颜色


  if (ok) then (<color:red> yes)
      -[#blue,dotted]->
      :yes;
  else (no)
      -[dashed]->
      :no;
  endif


  • group 颜色


  group #red test {
  :a;
  }


  • 泳道颜色


  |#red|a|
  : aaaa;
  |#blue|b|
  : bbb;
  |c|
  : ccc;


代码片段

开发微软格式的代码片段，加快代码的编写。具体格式参考 代码片段

{
  "Note": {
    "prefix": ["note"],
    "body": [
      "note right",
      "\t$0",
      "endnote"
    ],
    "description": "note"
  },
  "ifelseif": {
    "prefix": ["ifi"],
    "body": [
      "if ($1) then ($2)",
      "\t$0",
      "elseif ($3) then($4)",
      "\t",
      "else ($5)",
      "\t",
      "endelse"
    ],
    "description": "if elseif"
  },
  "ifelse": {
    "prefix": ["ife"],
    "body": [
      "if ($1) then ($2)",
      "\t$0",
      "else ($3)",
      "\t",
      "endelse"
    ],
    "description": "if elseif"
  },

  "elseif": {
    "prefix": ["eif"],
    "body": [
      "elseif ($1) then ($2)",
      "\t$0"
    ],
    "description": "elseif"
  },
  "switch": {
    "prefix": ["sw"],
    "body": [
      "switch ($1)",
      "\tcase ($2):",
      "\t\t$0",
      "endswitch"
    ],
    "description": "switch"
  },
  "case": {
    "prefix": ["ca"],
    "body": [
      "case ($1):",
      "\t$0"
    ],
    "description": "case"
  },

  "while": {
    "prefix": ["wh"],
    "body": [
      "while ($1):",
      "\t$0",
      "endwhile"
    ],
    "description": "while"
  },
  "red": {
    "prefix": ["red"],
    "body": [
      "#EC5D57"
    ],
    "description": "red"
  },
  "green": {
    "prefix": ["green"],
    "body": [
      "#70BF41"
    ],
    "description": "green"
  },
  "blue": {
    "prefix": ["blue"],
    "body": [
      "#51A7F9"
    ],
    "description": "blue"
  },
  "yellow": {
    "prefix": ["yellow"],
    "body": [
      "#F5D328"
    ],
    "description": "yellow"
  },

  "purple": {
    "prefix": ["purple"],
    "body": [
      "#B36AE2"
    ],
    "description": "purple"
  },
  "orange": {
    "prefix": ["orange"],
    "body": [
      "#F39019"
    ],
    "description": "orange"
  },
  "cyan": {
    "prefix": ["cyan"],
    "body": [
      "#00E5F9"
    ],
    "description": "cyan"
  },
  "fork": {
    "prefix": ["fork"],
    "body": [
      "fork",
      "\t$0",
      "fork again",
      "\t",
      "end fork"
    ],
    "description": "fork"
  },
  "split": {
    "prefix": ["split"],
    "body": [
      "split",
      "\t$0",
      "split again",
      "\t",
      "end split"
    ],
    "description": "split"
  },

  "group": {
    "prefix": ["group"],
    "body": [
      "group $1",
      "\t$0",
      "end group"
    ],
    "description": "group"
  },
  "rectangle": {
    "prefix": ["rectangle"],
    "body": [
      "rectangle }",
      "\t$0",
      "}"
    ],
    "description": "rectangle"
  },
  "swimlane": {
    "prefix": ["swimlane"],
    "body": [
      "|$1|",
      "\t$0"
    ],
    "description": "swimlane"
  },
  "dotted": {
    "prefix": ["dotted"],
    "body": [
      "dotted"
    ],
    "description": "dotted"
  },

  "dashed": {
    "prefix": ["dashed"],
    "body": [
      "dashed"
    ],
    "description": "dashed"
  },
  "arrow": {
    "prefix": ["arrow"],
    "body": [
      "-[$1,$2]->"
    ],
    "description": "arrow"
  }

}

参考

• plantuml

总结

本文不是全部语法的枚举。而是从学编程的角度从语句、流程控制、布局、样式学起。够用即可，当有需求不能实现时，请参考上文的参考部分。本文无过组合，比如 if 里调用 case 再调用 while。但 plantuml 是支持的。
