aws 跨可用区流量传输需要收费。
当你的应用流量 100 MB/S 的时候,每个月要消耗 5000 刀美元。
通过为 jaeger-agent 开启 zstd 压缩。
可以节省 80% 的费用。
agent 设计
agent 将数据缓存在内存中,通过 websocket 发送到 collector。
flush 条件:
- time interval 到期。
- buf 大小超过 maxBufferSize。
time interval 参数
time interval 影响:
- compress ratio
- 压缩消耗的 cpu
- websocket 批量发送消耗的 cpu

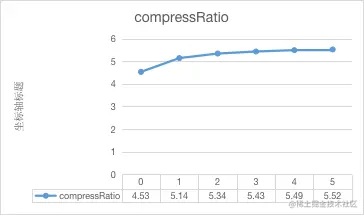

压缩率,随 time interval 增长的并不明显。

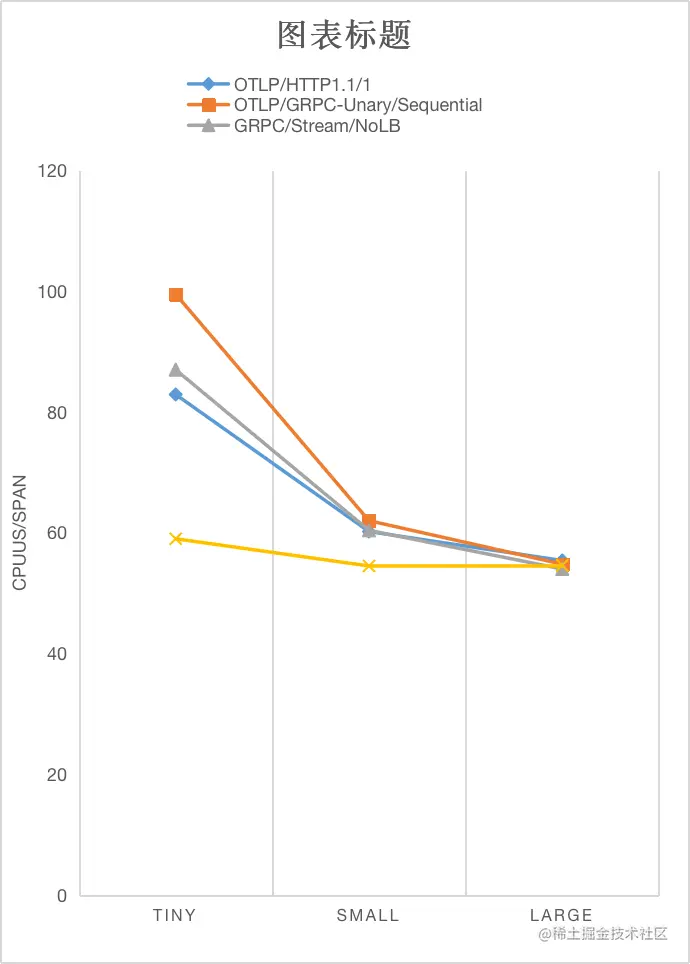

根据之前的研究, websocket 发送所消耗的 cpu 跟批量大小影响不大。
为了降低压缩所消耗的 cpu, 将 time interval 设置为 1s。
maxBufferSize

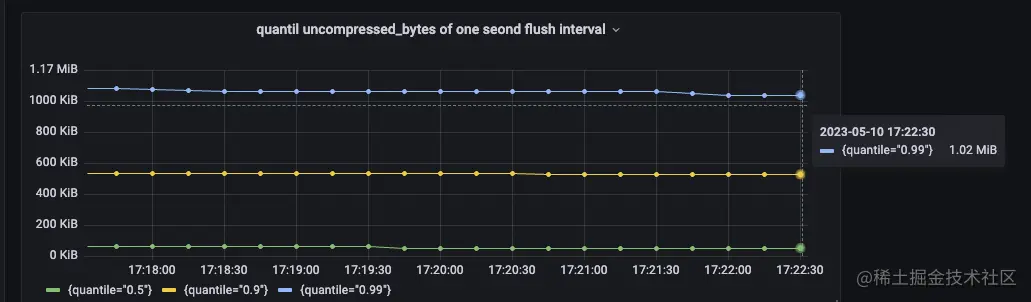

记录当 time interval 为 1s 时。
uncompress bytes 的分位数。
p99 为 1MB, 因此将 max buffer size 设置为 4MB。
