参考文档： blog.frognew.com/2023/01/kub…
机器准备
至少准备两台机器，一台master,一台worker
| 角色 | 主机名简写 | 配置 |
|---|---|---|
| master | test01v | 操作系统: Linux(centos7, 其它操作系统也可, 安装过程类似, 可参考官方文档) 机器配置: CPU >= 2, 内存 >= 2 |
| worker | test02v | 操作系统: Linux(centos7, 其它操作系统也可, 安装过程类似, 可参考官方文档) 机器配置: CPU >= 2, 内存 >= 2 |
本文所用的系统是： Linux ${test01v_hostname} 4.19.12-1.el7.elrepo.x86_64 #1 SMP Fri Dec 21 11:06:36 EST 2018 x86_64 x86_64 x86_64 GNU/LinuxC
系统及依赖配置
以下操作在所有节点执行
系统依赖设置
修改hostname
[root@test01v ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
${test01v_ip} ${test01v_hostname}
${test02v_ip} ${test01v_hostname}
[root@test02v ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
${test01v_ip} ${test01v_hostname}
${test02v_ip} ${test01v_hostname}
确认MAC和product_uuid的唯一性
[root@test01v ~]# ifconfig -a # 查看MAC
[root@test01v ~]# cat /sys/class/dmi/id/product_uuid # 查看product_uuid
防火墙
[root@test01v ~]# systemctl stop firewalld.service
[root@test01v ~]# systemctl disable firewalld.service
[root@test01v ~]# firewall-cmd --state
禁用SELinux
修改/etc/selinux/config, 设置SELINUX=disabled. 重启机器.
[root@test01v ~]# sestatus
SELinux status: disabled
禁用交换内存
编辑/etc/fstab, 将swap注释掉. 重启机器.
[root@test01v ~]# vim /etc/fstab
#/dev/mapper/cl-swap swap swap defaults 0 0
[root@test01v ~]# swapoff -a
containerd设置
创建containerd.conf配置文件
#创建文件
[root@test01v ~]# cat << EOF > /etc/modules-load.d/containerd.conf
> overlay
> br_netfilter
> EOF
#生效
[root@test01v ~]# modprobe overlay
[root@test01v ~]# modprobe br_netfilter
kubernetes-cri设置
注：对 Linux 内核参数进行调整和优化，以满足 k8s 集群和容器运行时环境
创建kubernetes-cri.conf配置文件
#创建文件
[root@test01v ~]# cat << EOF > /etc/sysctl.d/99-kubernetes-cri.conf
> net.bridge.bridge-nf-call-ip6tables = 1 #在 k8s 集群中，网络策略和流量控制依赖于 `iptables` 规则，这两个参数控制是否让 Linux 内核的网桥模块在数据包
> net.bridge.bridge-nf-call-iptables = 1 #经过网桥时调用 `iptables` 或 `ip6tables` 规则，保证网络策略和安全组规则的生效
> net.ipv4.ip_forward = 1 #开启 IPv4 数据包转发功能，使k8s集群中节点能够在不同得端口间转发数据包，保证网络正常通信
> user.max_user_namespaces=28633
> EOF
#生效
[root@test01v ~]# sysctl -p /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
user.max_user_namespaces = 28633
配置服务器支持开启ipvs的前提条件
如果不配置，则即使kube-proxy的配置开启了ipvs模式，也会退回到iptables模式
由于ipvs已经加入到了内核的主干，所以为kube-proxy开启ipvs的前提需要加载以下的内核模块：
[root@test01v ~]# cat > /etc/sysconfig/modules/ipvs.modules <<EOF
> #!/bin/bash
> modprobe -- ip_vs
> modprobe -- ip_vs_rr
> modprobe -- ip_vs_wrr
> modprobe -- ip_vs_sh
> modprobe -- nf_conntrack_ipv4
> EOF
[root@test01v ~]# chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack_ipv4
ip_vs_sh 12688 0
ip_vs_wrr 12697 0
ip_vs_rr 12600 0
ip_vs 145497 6 ip_vs_rr,ip_vs_sh,ip_vs_wrr
nf_conntrack_ipv4 15053 2
nf_defrag_ipv4 12729 1 nf_conntrack_ipv4
nf_conntrack 137239 7 ip_vs,nf_nat,nf_nat_ipv4,xt_conntrack,nf_nat_masquerade_ipv4,nf_conntrack_netlink,nf_conntrack_ipv4
libcrc32c 12644 4 xfs,ip_vs,nf_nat,nf_conntrack
保证在节点重启后能自动加载所需模块。 使用
lsmod | grep -e ip_vs -e nf_conntrack_ipv4命令查看是否已经正确加载所需的内核模块
为了便于查看ipvs的代理规则，最好安装一下管理工具ipvsadm
[root@test01v ~]# yum install -y ipset ipvsadm
输出如下：
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
Resolving Dependencies
--> Running transaction check
---> Package ipset.x86_64 0:6.29-1.el7 will be updated
---> Package ipset.x86_64 0:7.1-1.el7 will be an update
--> Processing Dependency: ipset-libs(x86-64) = 7.1-1.el7 for package: ipset-7.1-1.el7.x86_64
--> Processing Dependency: libipset.so.13(LIBIPSET_4.8)(64bit) for package: ipset-7.1-1.el7.x86_64
--> Processing Dependency: libipset.so.13(LIBIPSET_2.0)(64bit) for package: ipset-7.1-1.el7.x86_64
--> Processing Dependency: libipset.so.13()(64bit) for package: ipset-7.1-1.el7.x86_64
---> Package ipvsadm.x86_64 0:1.27-8.el7 will be installed
--> Running transaction check
---> Package ipset-libs.x86_64 0:6.29-1.el7 will be updated
---> Package ipset-libs.x86_64 0:7.1-1.el7 will be an update
--> Finished Dependency Resolution
Dependencies Resolved
============================================================================
Package Arch Version Repository Size
============================================================================
Installing:
ipvsadm x86_64 1.27-8.el7 base 45 k
Updating:
ipset x86_64 7.1-1.el7 base 39 k
Updating for dependencies:
ipset-libs x86_64 7.1-1.el7 base 64 k
Transaction Summary
============================================================================
Install 1 Package
Upgrade 1 Package (+1 Dependent package)
Total download size: 147 k
Downloading packages:
Delta RPMs disabled because /usr/bin/applydeltarpm not installed.
(1/3): ipset-7.1-1.el7.x86_64.rpm | 39 kB 00:00
(2/3): ipset-libs-7.1-1.el7.x86_64.rpm | 64 kB 00:00
(3/3): ipvsadm-1.27-8.el7.x86_64.rpm | 45 kB 00:00
----------------------------------------------------------------------------
Total 695 kB/s | 147 kB 00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Updating : ipset-libs-7.1-1.el7.x86_64 1/5
Updating : ipset-7.1-1.el7.x86_64 2/5
Installing : ipvsadm-1.27-8.el7.x86_64 3/5
Cleanup : ipset-6.29-1.el7.x86_64 4/5
Cleanup : ipset-libs-6.29-1.el7.x86_64 5/5
Verifying : ipvsadm-1.27-8.el7.x86_64 1/5
Verifying : ipset-7.1-1.el7.x86_64 2/5
Verifying : ipset-libs-7.1-1.el7.x86_64 3/5
Verifying : ipset-libs-6.29-1.el7.x86_64 4/5
Verifying : ipset-6.29-1.el7.x86_64 5/5
Installed:
ipvsadm.x86_64 0:1.27-8.el7
Updated:
ipset.x86_64 0:7.1-1.el7
Dependency Updated:
ipset-libs.x86_64 0:7.1-1.el7
Complete!
部署容器运行时Containerd
下载并安装
cri-containerd-cni-1.6.14-linux-amd64.tar.gz压缩包中已经按照官方二进制部署推荐的目录结构布局好。 里面包含了systemd配置文件，containerd以及cni的部署文件。 下载并解压缩到系统的根目录/中：
[root@test01v ~]# wget https://github.com/containerd/containerd/releases/download/v1.6.14/cri-containerd-cni-1.6.14-linux-amd64.tar.gz
[root@test01v ~]# tar -zxvf cri-containerd-cni-1.6.14-linux-amd64.tar.gz -C /
输出如下：
etc/
etc/cni/
etc/cni/net.d/
etc/cni/net.d/10-containerd-net.conflist
etc/systemd/
etc/systemd/system/
etc/systemd/system/containerd.service
etc/crictl.yaml
usr/
usr/local/
usr/local/sbin/
usr/local/sbin/runc
usr/local/bin/
usr/local/bin/containerd-stress
usr/local/bin/containerd-shim
usr/local/bin/containerd-shim-runc-v1
usr/local/bin/crictl
usr/local/bin/critest
usr/local/bin/containerd-shim-runc-v2
usr/local/bin/ctd-decoder
usr/local/bin/containerd
usr/local/bin/ctr
opt/
opt/cni/
opt/cni/bin/
opt/cni/bin/ptp
opt/cni/bin/bandwidth
opt/cni/bin/static
opt/cni/bin/dhcp
opt/cni/bin/tuning
opt/cni/bin/sbr
opt/cni/bin/macvlan
opt/cni/bin/firewall
opt/cni/bin/host-device
opt/cni/bin/ipvlan
opt/cni/bin/vlan
opt/cni/bin/bridge
opt/cni/bin/portmap
opt/cni/bin/vrf
opt/cni/bin/host-local
opt/cni/bin/loopback
opt/containerd/
opt/containerd/cluster/
opt/containerd/cluster/version
opt/containerd/cluster/gce/
opt/containerd/cluster/gce/cloud-init/
opt/containerd/cluster/gce/cloud-init/master.yaml
opt/containerd/cluster/gce/cloud-init/node.yaml
opt/containerd/cluster/gce/configure.sh
opt/containerd/cluster/gce/cni.template
opt/containerd/cluster/gce/env
注意经测试cri-containerd-cni-1.6.4-linux-amd64.tar.gz包中包含的runc在CentOS 7下的动态链接有问题，这里从runc的github上单独下载runc，并替换上面安装的containerd中的runc
[root@test01v ~]# wget https://github.com/opencontainers/runc/releases/download/v1.1.2/runc.amd64
[root@test01v ~]# rm -f /usr/local/sbin/runc
[root@test01v ~]# mv runc.amd64 /usr/local/sbin/runc
[root@test01v ~]# chown root:root /usr/local/sbin/runc
[root@test01v ~]# chmod 755 /usr/local/sbin/runc
做containerd的软链
[root@test01v ~]# ln -snf /usr/local/sbin/* /bin/
[root@test01v ~]# ln -snf /usr/local/bin/* /bin/
配置containerd文件
[root@test01v ~]# mkdir -p /etc/containerd
[root@test01v ~]# containerd config default > /etc/containerd/config.toml
修改/etc/containerd/config.toml
1). 将sandbox_image = "registry.k8s.io/pause:3.6" 修改为 sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.9"
2). SystemdCgroup = false 修改为 SystemdCgroup = true
启动
配置containerd开机启动，并restart
[root@test06v ~]# systemctl enable containerd --now
[root@test06v ~]# systemctl restart containerd
测试
使用crictl测试一下，确保可以打印出版本信息并且没有错误信息输出:
[root@test06v ~]# crictl version
Version: 0.1.0
RuntimeName: containerd
RuntimeVersion: v1.6.14
RuntimeApiVersion: v1
使用kubeadm部署Kubernetes
安装kubeadm和kubelet
这步所有节点都要执行
[root@test01v ~]# cat <<EOF > /etc/yum.repos.d/kubernetes.repo
> [kubernetes]
> name=Kubernetes
> baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
> enabled=1
> gpgcheck=1
> repo_gpgcheck=0
> gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
> http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
> EOF
[root@test01v ~]# yum makecache fast
输出如下：
Loaded plugins: fastestmirror
ADDOPS-base | 2.9 kB 00:00:00
base | 2.9 kB 00:00:00
centosplus | 2.9 kB 00:00:00
docker-ce-stable | 3.5 kB 00:00:00
epel | 2.9 kB 00:00:00
extras | 2.9 kB 00:00:00
kubernetes | 1.4 kB 00:00:00
puppetlabs-deps | 2.9 kB 00:00:00
puppetlabs-products | 2.9 kB 00:00:00
updates | 2.9 kB 00:00:00
kubernetes/primary | 129 kB 00:00:00
Loading mirror speeds from cached hostfile
kubernetes 956/956
Metadata Cache Created
[root@test01v ~]# yum install -y kubelet-1.26.0-0 kubeadm-1.26.0-0 kubectl-1.26.0-0
输出如下：
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
Resolving Dependencies
--> Running transaction check
---> Package kubeadm.x86_64 0:1.26.0-0 will be installed
--> Processing Dependency: kubernetes-cni >= 0.8.6 for package: kubeadm-1.26.0-0.x86_64
--> Processing Dependency: cri-tools >= 1.19.0 for package: kubeadm-1.26.0-0.x86_64
---> Package kubectl.x86_64 0:1.26.0-0 will be installed
---> Package kubelet.x86_64 0:1.26.0-0 will be installed
--> Processing Dependency: socat for package: kubelet-1.26.0-0.x86_64
--> Processing Dependency: conntrack for package: kubelet-1.26.0-0.x86_64
--> Running transaction check
---> Package conntrack-tools.x86_64 0:1.4.4-7.el7 will be installed
--> Processing Dependency: libnetfilter_cttimeout.so.1(LIBNETFILTER_CTTIMEOUT_1.1)(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_cttimeout.so.1(LIBNETFILTER_CTTIMEOUT_1.0)(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_cthelper.so.0(LIBNETFILTER_CTHELPER_1.0)(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_queue.so.1()(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_cttimeout.so.1()(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_cthelper.so.0()(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
---> Package cri-tools.x86_64 0:1.26.0-0 will be installed
---> Package kubernetes-cni.x86_64 0:1.2.0-0 will be installed
---> Package socat.x86_64 0:1.7.3.2-2.el7 will be installed
--> Running transaction check
---> Package libnetfilter_cthelper.x86_64 0:1.0.0-11.el7 will be installed
---> Package libnetfilter_cttimeout.x86_64 0:1.0.0-7.el7 will be installed
---> Package libnetfilter_queue.x86_64 0:1.0.2-2.el7_2 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
============================================================================================================================================================
Package Arch Version Repository Size
============================================================================================================================================================
Installing:
kubeadm x86_64 1.26.0-0 kubernetes 10 M
kubectl x86_64 1.26.0-0 kubernetes 11 M
kubelet x86_64 1.26.0-0 kubernetes 22 M
Installing for dependencies:
conntrack-tools x86_64 1.4.4-7.el7 base 187 k
cri-tools x86_64 1.26.0-0 kubernetes 8.6 M
kubernetes-cni x86_64 1.2.0-0 kubernetes 17 M
libnetfilter_cthelper x86_64 1.0.0-11.el7 base 18 k
libnetfilter_cttimeout x86_64 1.0.0-7.el7 base 18 k
libnetfilter_queue x86_64 1.0.2-2.el7_2 base 23 k
socat x86_64 1.7.3.2-2.el7 base 290 k
Transaction Summary
============================================================================================================================================================
Install 3 Packages (+7 Dependent packages)
Total download size: 69 M
Installed size: 296 M
Downloading packages:
(1/10): conntrack-tools-1.4.4-7.el7.x86_64.rpm | 187 kB 00:00:00
warning: /var/cache/yum/x86_64/7/kubernetes/packages/3f5ba2b53701ac9102ea7c7ab2ca6616a8cd5966591a77577585fde1c434ef74-cri-tools-1.26.0-0.x86_64.rpm: Header V4 RSA/SHA512 Signature, key ID 3e1ba8d5: NOKEY
Public key for 3f5ba2b53701ac9102ea7c7ab2ca6616a8cd5966591a77577585fde1c434ef74-cri-tools-1.26.0-0.x86_64.rpm is not installed
(2/10): 3f5ba2b53701ac9102ea7c7ab2ca6616a8cd5966591a77577585fde1c434ef74-cri-tools-1.26.0-0.x86_64.rpm | 8.6 MB 00:00:31
(3/10): da58cbf31a0337a968e5a06cfcc00eee420cc2df8930ea817ed2a4227bd81d48-kubeadm-1.26.0-0.x86_64.rpm | 10 MB 00:00:37
(4/10): 23e112935127da08ffd1c32c392cbf62346305ee97ba6c5d070cda422945e4ff-kubectl-1.26.0-0.x86_64.rpm | 11 MB 00:00:39
(5/10): libnetfilter_cthelper-1.0.0-11.el7.x86_64.rpm | 18 kB 00:00:00
(6/10): libnetfilter_queue-1.0.2-2.el7_2.x86_64.rpm | 23 kB 00:00:00
(7/10): socat-1.7.3.2-2.el7.x86_64.rpm | 290 kB 00:00:00
(8/10): libnetfilter_cttimeout-1.0.0-7.el7.x86_64.rpm | 18 kB 00:00:00
(9/10): 9be8590c2de60e249f40726e979a3a7a046320079bc41d330834de74f5399383-kubelet-1.26.0-0.x86_64.rpm | 22 MB 00:01:21
(10/10): 0f2a2afd740d476ad77c508847bad1f559afc2425816c1f2ce4432a62dfe0b9d-kubernetes-cni-1.2.0-0.x86_64.rpm | 17 MB 00:01:03
------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 525 kB/s | 69 MB 00:02:14
Retrieving key from http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
Importing GPG key 0x13EDEF05:
Userid : "Rapture Automatic Signing Key (cloud-rapture-signing-key-2022-03-07-08_01_01.pub)"
Fingerprint: a362 b822 f6de dc65 2817 ea46 b53d c80d 13ed ef05
From : http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
Retrieving key from http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
Importing GPG key 0x3E1BA8D5:
Userid : "Google Cloud Packages RPM Signing Key <gc-team@google.com>"
Fingerprint: 3749 e1ba 95a8 6ce0 5454 6ed2 f09c 394c 3e1b a8d5
From : http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : libnetfilter_cthelper-1.0.0-11.el7.x86_64 1/10
Installing : socat-1.7.3.2-2.el7.x86_64 2/10
Installing : libnetfilter_cttimeout-1.0.0-7.el7.x86_64 3/10
Installing : kubectl-1.26.0-0.x86_64 4/10
Installing : cri-tools-1.26.0-0.x86_64 5/10
Installing : libnetfilter_queue-1.0.2-2.el7_2.x86_64 6/10
Installing : conntrack-tools-1.4.4-7.el7.x86_64 7/10
Installing : kubernetes-cni-1.2.0-0.x86_64 8/10
Installing : kubelet-1.26.0-0.x86_64 9/10
Installing : kubeadm-1.26.0-0.x86_64 10/10
Verifying : kubeadm-1.26.0-0.x86_64 1/10
Verifying : kubelet-1.26.0-0.x86_64 2/10
Verifying : conntrack-tools-1.4.4-7.el7.x86_64 3/10
Verifying : libnetfilter_queue-1.0.2-2.el7_2.x86_64 4/10
Verifying : cri-tools-1.26.0-0.x86_64 5/10
Verifying : kubernetes-cni-1.2.0-0.x86_64 6/10
Verifying : kubectl-1.26.0-0.x86_64 7/10
Verifying : libnetfilter_cttimeout-1.0.0-7.el7.x86_64 8/10
Verifying : socat-1.7.3.2-2.el7.x86_64 9/10
Verifying : libnetfilter_cthelper-1.0.0-11.el7.x86_64 10/10
Installed:
kubeadm.x86_64 0:1.26.0-0 kubectl.x86_64 0:1.26.0-0 kubelet.x86_64 0:1.26.0-0
Dependency Installed:
conntrack-tools.x86_64 0:1.4.4-7.el7 cri-tools.x86_64 0:1.26.0-0 kubernetes-cni.x86_64 0:1.2.0-0
libnetfilter_cthelper.x86_64 0:1.0.0-11.el7 libnetfilter_cttimeout.x86_64 0:1.0.0-7.el7 libnetfilter_queue.x86_64 0:1.0.2-2.el7_2
socat.x86_64 0:1.7.3.2-2.el7
Complete!
# 设置swappiness
[root@test01v ~]# echo "vm.swappiness=0" >> /etc/sysctl.d/99-kubernetes-cri.conf
[root@test01v ~]# sysctl -p /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
user.max_user_namespaces = 28633
vm.swappiness = 0
# 启动 kubelet
[root@test01v ~]# systemctl enable kubelet.service
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.
使用kubeadm init初始化集群
设置初始化yaml文件
使用kubeadm config print init-defaults --component-configs KubeletConfiguration > kubeadm.yaml可以打印集群初始化默认的使用的配置,
1.修改advertiseAddress的值为master的ip
2.name:node 修改为 name: ${test01v_hostname}
3.添加pod网段 podSubnet: 10.244.0.0/16
4.将imageRepository: k8s.gcr.io修改为imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers
修改后得得kubeadm.yaml如下：
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
- system:bootstrappers:kubeadm:default-node-token
token: abcdef.0123456789abcdef
ttl: 24h0m0s
usages:
- signing
- authentication
kind: InitConfiguration
localAPIEndpoint:
advertiseAddress: ${test01_ip}
bindPort: 6443
nodeRegistration:
criSocket: unix:///var/run/containerd/containerd.sock
imagePullPolicy: IfNotPresent
name: node
taints: null
---
apiServer:
timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
local:
dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: 1.26.0
networking:
dnsDomain: cluster.local
serviceSubnet: 10.96.0.0/12
podSubnet: 10.244.0.0/16
scheduler: {}
---
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
anonymous:
enabled: false
webhook:
cacheTTL: 0s
enabled: true
x509:
clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
mode: Webhook
webhook:
cacheAuthorizedTTL: 0s
cacheUnauthorizedTTL: 0s
cgroupDriver: systemd
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging:
flushFrequency: 0
options:
json:
infoBufferSize: "0"
verbosity: 0
memorySwap: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
rotateCertificates: true
runtimeRequestTimeout: 0s
shutdownGracePeriod: 0s
shutdownGracePeriodCriticalPods: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s
下载镜像
[root@test01v ~] # kubeadm config images pull --config kubeadm.yaml
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.26.0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.26.0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.26.0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.26.0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.9
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.6-0
[config/images] Pulled registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:v1.9.3
初始化
[root@lkhtest01v liukaihui]# kubeadm init --config kubeadm.yaml
[init] Using Kubernetes version: v1.26.0
[preflight] Running pre-flight checks
[WARNING FileExisting-tc]: tc not found in system path
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local ${test01v_hostname}] and IPs [10.96.0.1 ${test01v_ip}]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [${test01v_hostname} localhost] and IPs [${test01v_ip} 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [${test01v_hostname} localhost] and IPs [${test01v_ip} 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 18.501857 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node ${test01v_hostname} as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node ${test01v_hostname} as control-plane by adding the taints [node-role.kubernetes.io/control-plane:NoSchedule]
[bootstrap-token] Using token: abcdef.0123456789abcdef
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join ${test01v_ip}:6443 --token abcdef.0123456789abcdef \
--discovery-token-ca-cert-hash sha256:8e764982d2c46b5af0b8c680b1c71cce860e5081621be2d66cdcdb6bea157ac2
上面记录了完成的初始化输出的内容，根据输出的内容基本上可以看出手动初始化安装一个Kubernetes集群所需要的关键步骤。 其中有以下关键内容：
[certs]生成相关的各种证书[kubeconfig]生成相关的kubeconfig文件[kubelet-start]生成kubelet的配置文件"/var/lib/kubelet/config.yaml"[control-plane]使用/etc/kubernetes/manifests目录中的yaml文件创建apiserver、controller-manager、scheduler的静态pod[bootstraptoken]生成token记录下来，后边使用kubeadm join往集群中添加节点时会用到[addons]安装基本插件:CoreDNS,kube-proxy
配置环境, 让当前用户可以执行kubectl命令
[root@test01v ~]# mkdir -p $HOME/.kube
[root@test01v ~]# sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@test01v ~]# sudo chown $(id -u):$(id -g) $HOME/.kube/config
将worker节点加入集群
[root@test02v ~]# kubeadm join ${test01v_ip}:6443 --token s29e99.ta7dq43dduxvvj2s \
> --discovery-token-ca-cert-hash sha256:86879d279c43446cdac2d5787a45d123f3e9319725afa643f2f34a356a32ac88
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
检查集群情况
[root@test01v ~]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME STATUS MESSAGE ERROR
controller-manager Healthy ok
scheduler Healthy ok
etcd-0 Healthy {"health":"true","reason":""}
[root@test01v ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
${test01v_hostname} Ready control-plane 4m16s v1.26.0
${test02v_hostname} Ready <none> 52s v1.26.0
安装网路插件flannel
1.下载flannel.yml
wget https://raw.githubusercontent.com/flannel-io/flannel/master/Documentation/kube-flannel.yml

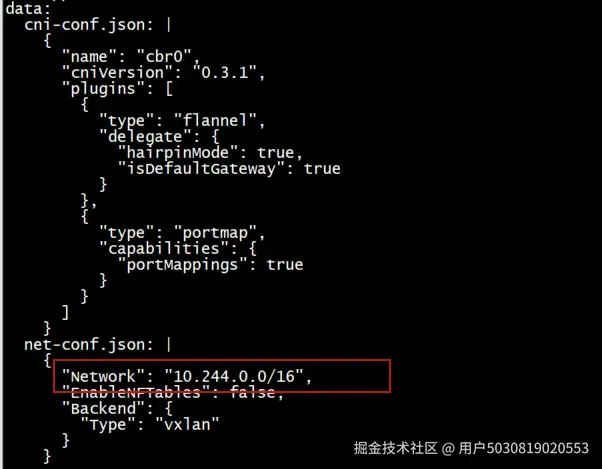

2.修改kube-flannel.yml网段
3. 部署
[root@test01v ~]# kubectl apply -f kube-flannel.yml
4.删除之前containerd自带的网络
所有节点执行如下操作
[root@test01v ~]# cd /etc/cni/net.d
[root@test01v ~]# rm -f 10-containerd-net.conflist
[root@test01v ~]# ip link delete cni0
[root@test01v ~]# systemctl restart containerd
[root@test01v ~]# systemctl restart kubelet
