1.webgl图形变换

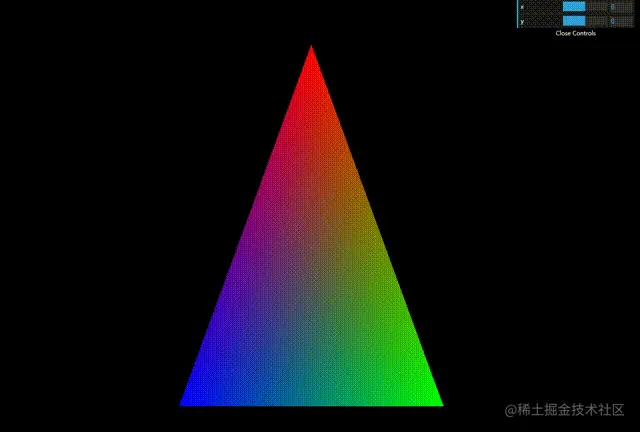

（1)2D 旋转

//计算2D旋转矩阵
function createRotateMatrix(angle=0.0) {
  var radian = degToRad(angle);
  var cosB = Math.cos(radian),
    sinB = Math.sin(radian);
  return flatArr([
    [cosB, sinB, 0.0, 0.0],
    [-sinB, cosB, 0.0, 0.0],
    [0.0, 0.0, 1.0, 0.0],
    [0.0, 0.0, 0.0, 1.0]
  ]);
}

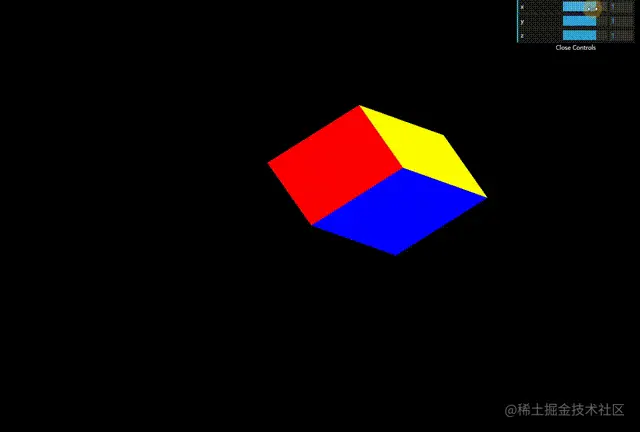

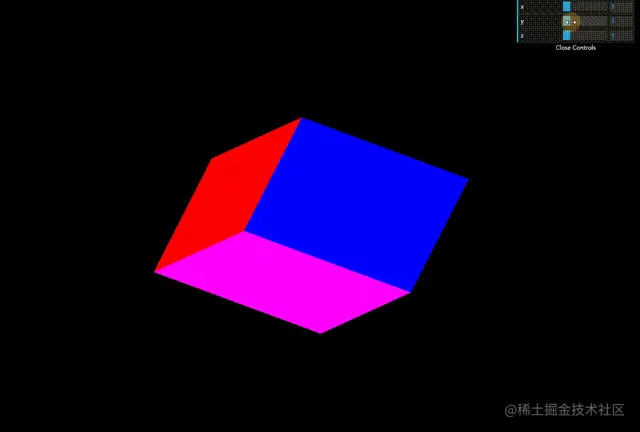

(2)3D旋转

var settings = {
          x: 1,
          y: 1,
          z: 1
        };
          var modelViewMatrix = mat4.create();
          mat4.rotateX(modelViewMatrix, modelViewMatrix, settings.x);
          mat4.rotateY(modelViewMatrix, modelViewMatrix, settings.y);
          mat4.rotateZ(modelViewMatrix, modelViewMatrix, settings.z);

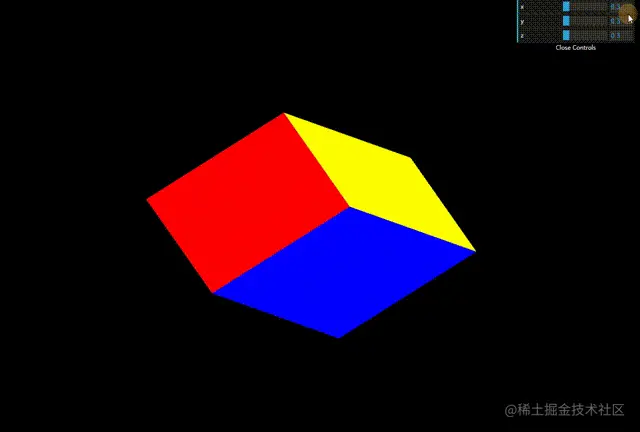

(3)缩放

 function createScaleMatrix(sx=1.0, sy=1.0,sz=1.0) {
          return flatArr([
            [sx, 0, 0.0, 0.0],
            [0, sy, 0.0, 0.0],
            [0.0, 0.0, sz, 0.0],
            [0.0, 0.0, 0.0, 1.0]
          ]);
        }

  //同理
    var modelViewMatrix = mat4.create();
  mat4.scale(modelViewMatrix, modelViewMatrix, [settings.scaleX, settings.scaleY, settings.scaleZ]);

(4)平移

顶点着色器

//vec3 aMovePos;平移的位置
vec3 pos=aPosition+aMovePos;
 gl_Position =vec4(pos,1.0);

平移矩阵

 var modelViewMatrix = mat4.create();
  mat4.translate(modelViewMatrix, modelViewMatrix, [settings.x, settings.y, settings.z]);

2.wegl投影与摄像机

（1）正交投影:一个前后左右上下四个面形成的长方体空间，物体在里面才能显示，超过就不显示，不添加投影矩阵的情况下，默认是[-1.0,1.0]的立方体

 function orthographic(left, right, bottom, top, near, far) {
    return flatArr([
      [2 / (right - left), 0, 0, 0],
      [0, 2 / (top - bottom), 0, 0],
      [0, 0, 2 / (near - far), 0],

      [(left + right) / (left - right),
      (bottom + top) / (bottom - top),
      (near + far) / (near - far),
      1],
    ]);
}

var depth = Math.max(gl.canvas.width, gl.canvas.height);
  var left = -gl.canvas.width * 0.01;
  var right = gl.canvas.width * 0.01;
  var bottom = gl.canvas.height * 0.01;
  var top = -gl.canvas.height * 0.01;
  var near = depth * 0.1;
  var far = -depth * 0.1;
  var projectionMatrix = new Float32Array(orthographic(left, right, bottom, top, near, far));

注意：空间越大，物体就会显得越小，甚至看不到，空间设置要适当
glMatrix正交投影

 var projectionMatrix = mat4.create();
 mat4.ortho(projectionMatrix, left, right, bottom, top, near, far);

（2）透视投影：类似小孔成像，从一个点触发，放射出四棱锥，近点和远点分别切一个面，截取的这个范围内，物体就可以看到，其他就不能看见

function perspective(fieldOfViewInRadians, aspect, near, far) {
  var f = Math.tan(Math.PI * 0.5 - 0.5 * fieldOfViewInRadians);
  var rangeInv = 1.0 / (near - far);

  return flatArr([
    [f / aspect, 0, 0, 0],
    [0, f, 0, 0],
    [0, 0, (near + far) * rangeInv, -1],
    [0, 0, near * far * rangeInv * 2, 0]
  ]);
}

glMatrix透视投影

    var projectionMatrix = mat4.create();

     mat4.perspective(projectionMatrix, fieldOfView, aspect, zNear, zFar);

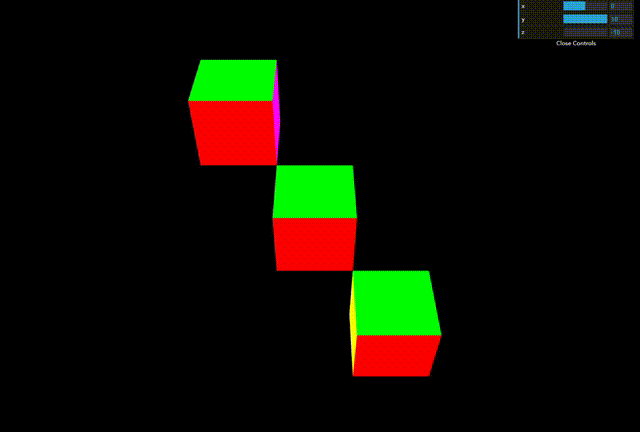

(3)摄像机：一句话就是你的眼睛，你的眼睛等同于一个透视投影，眼睛会移动位置，然后就会呈现不同的视图

 var cameraMatrix = mat4.create();
//lookAt(out, eye, center, up)
mat4.lookAt(cameraMatrix, [settings.x, settings.y, settings.z], [0, 0, 0], [0, 1, 0]);

3.Github地址

https://github.com/xiaolidan00/my-webgl

4.需要使用到的库

glMatrix 官方 API 文档:https://glmatrix.net/docs/module-mat4.html
dat.gui 官方 API 文档:https://github.com/dataarts/dat.gui/blob/master/API.md

参考

https://webglfundamentals.org/
《WebGL编程指南》
《webGL 3D开发实战详解第2版》
