自动sideCar注入
sideCar可以代理pod的流量，便于实现微服务的可观察性、监控、日志记录、配置、断路器等功能，nginx service mesh可以自动向Pod中注入sideCar容器
# 将指定命名空间的sideCar添加上label，添加该label后，nginx service mesh会自动向部署的pod注入sideCar
kubectl label namespaces <namespace name> injector.nsm.nginx.com/auto-inject=enabled
# 如果在自动注入之前有部署的资源，可以重启该资源让nginx service mesh 注入sideCar
# 使用如下命令可以重启pod
kubectl rollout restart <resource type>/<resource name>
# 示例
kubectl rollout restart deployment/frontend
查看自动注入sideCar前后对比结果

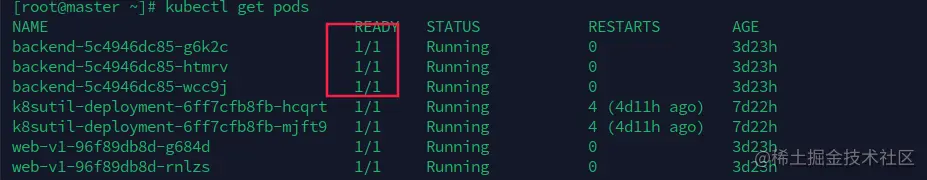

- 注入sideCar之前可以看到Pod里面有一个容器

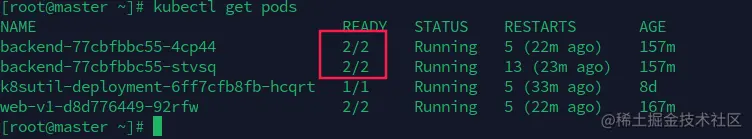

- 注入sideCar之后Pod里面有两个容器，多出来的那个容器即为nginx service mesh自动注入的sideCar
部署nginx ingress controller
克隆仓库并切换到指定的目录
git clone https://github.com/nginxinc/kubernetes-ingress.git --branch v3.1.1
cd kubernetes-ingress/deployments
配置RBAC
给ingress controller创建命名空间和service account
kubectl apply -f common/ns-and-sa.yaml
为上面创建的service account绑定cluster role和cluster role binding
kubectl apply -f rbac/rbac.yaml
创建公共资源
创建一个configMap用来定制nginx配置
kubectl apply -f common/nginx-config.yaml
创建ingressClass资源
kubectl apply -f common/ingress-class.yaml
创建自定义资源
默认情况下需要创建下面的自定义资源，如果不创建的话Ingress controller会处于not ready的状态
kubectl apply -f common/crds/k8s.nginx.org_virtualservers.yaml
kubectl apply -f common/crds/k8s.nginx.org_virtualserverroutes.yaml
kubectl apply -f common/crds/k8s.nginx.org_transportservers.yaml
kubectl apply -f common/crds/k8s.nginx.org_policies.yaml
部署ingress controller
- daemon-set目录：可以利用里面的文件创建deamonSet模式的ingress controller，使每个node都有一个pod
- deployment目录：可以根据需要调整ingress controller数量
# 使用daemonset
kubectl apply -f daemon-set/nginx-ingress.yaml
查看nginx ingress部署情况
访问ingress controller
- 使用demonset方式创建ingress controller时，Ingress Controller容器的80和443端口映射到容器所在节点的相同端口，可以在运行了ingress controller的节点使用该节点的ip和端口访问
- 使用deployment方式创建ingress controller时，需要创建一个nodetype类型或者loadbalancer的service来暴露，方法参考如何访问部署的ingress controller
部署bookinfo示例项目以测试集群业务是否可以正常跑通
bookinfo项目说明
总体架构
Bookinfo 应用分为四个单独的微服务：
productpage. 这个微服务会调用details和reviews两个微服务，用来生成页面。details. 这个微服务中包含了书籍的信息。reviews. 这个微服务中包含了书籍相关的评论。它还会调用ratings微服务。ratings. 这个微服务中包含了由书籍评价组成的评级信息。
review微服务
reviews 微服务有 3 个版本
- v1 版本不会调用
ratings服务。 - v2 版本会调用
ratings服务，并使用 1 到 5 个黑色星形图标来显示评分信息。 - v3 版本会调用
ratings服务，并使用 1 到 5 个红色星形图标来显示评分信息。

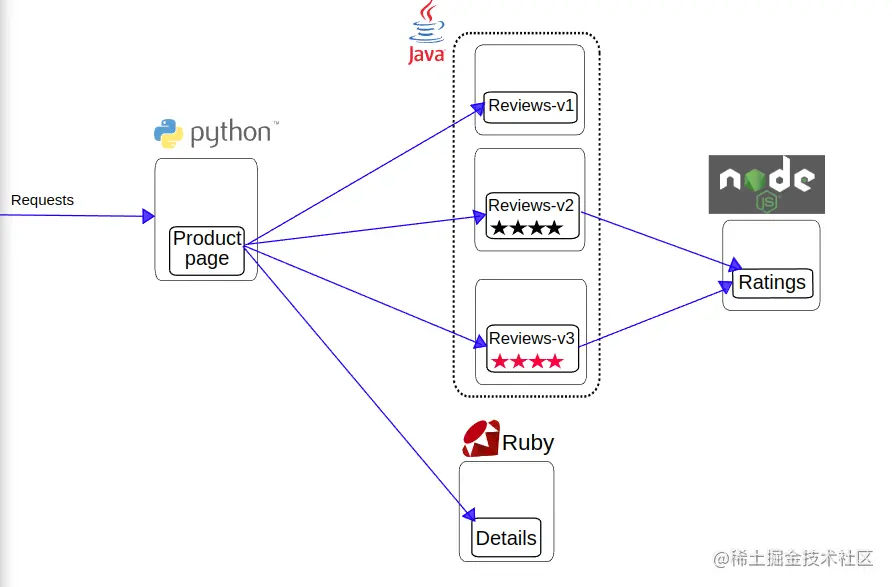

项目整体架构
下载bookinfo 创建pod的yaml文件
wget https://docs.nginx.com/nginx-service-mesh/examples/bookinfo.yaml
# 执行
kubectl apply -f bookinfo.yaml
文件内容说明
# bookinfo.yaml
# Copyright 2017 Istio Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
##################################################################################################
# Details service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: details # 创建details服务
labels:
app: details
service: details
spec:
ports:
- port: 9080 # 该服务暴露的端口
name: http # 该端口的协议类型
selector:
app: details # 将流量路由到被该标签选中的pod
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-details
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: details-v1 # 通过Deployment部署Pod
labels:
app: details
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: details
version: v1
template:
metadata:
labels:
app: details # 指定该pod的label
version: v1
spec:
serviceAccountName: bookinfo-details
containers:
- name: details
image: docker.io/istio/examples-bookinfo-details-v1:1.15.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
---
##################################################################################################
# Ratings service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: ratings
labels:
app: ratings
service: ratings
spec:
ports:
- port: 9080
name: http
selector:
app: ratings
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-ratings
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratings-v1
labels:
app: ratings
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: ratings
version: v1
template:
metadata:
labels:
app: ratings
version: v1
spec:
serviceAccountName: bookinfo-ratings
containers:
- name: ratings
image: docker.io/istio/examples-bookinfo-ratings-v1:1.15.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
---
##################################################################################################
# Reviews service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: reviews
labels:
app: reviews
service: reviews
spec:
ports:
- port: 9080
name: http
selector:
app: reviews
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-reviews
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v1
labels:
app: reviews
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v1
template:
metadata:
labels:
app: reviews
version: v1
spec:
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v1:1.15.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v2
labels:
app: reviews
version: v2
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v2
template:
metadata:
labels:
app: reviews
version: v2
spec:
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v2:1.15.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v3
labels:
app: reviews
version: v3
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v3
template:
metadata:
labels:
app: reviews
version: v3
spec:
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v3:1.15.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
---
##################################################################################################
# Productpage services
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: productpage
labels:
app: productpage
service: productpage
spec:
ports:
- port: 9080
name: http
selector:
app: productpage
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-productpage
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: productpage-v1
labels:
app: productpage
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: productpage
version: v1
template:
metadata:
labels:
app: productpage
version: v1
spec:
serviceAccountName: bookinfo-productpage
containers:
- name: productpage
image: docker.io/istio/examples-bookinfo-productpage-v1:1.15.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
---
查看pod创建情况
下载bookinfo ingress文件
wget https://docs.nginx.com/nginx-service-mesh/examples/nginx-ingress-controller/bookinfo-ingress.yaml
修改为如下内容
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: bookinfo-ingress
spec:
ingressClassName: nginx # use only with k8s version >= 1.18.0
tls:
rules:
- host: www.52anime.cn # 这里可以修改为自己想使用的域名
http:
paths:
- path: /
pathType: Prefix # 前缀匹配
backend:
service:
name: productpage # 访问上面的/路径流量会转由productpage service处理
port:
number: 9080
使用修改文件创建ingress资源

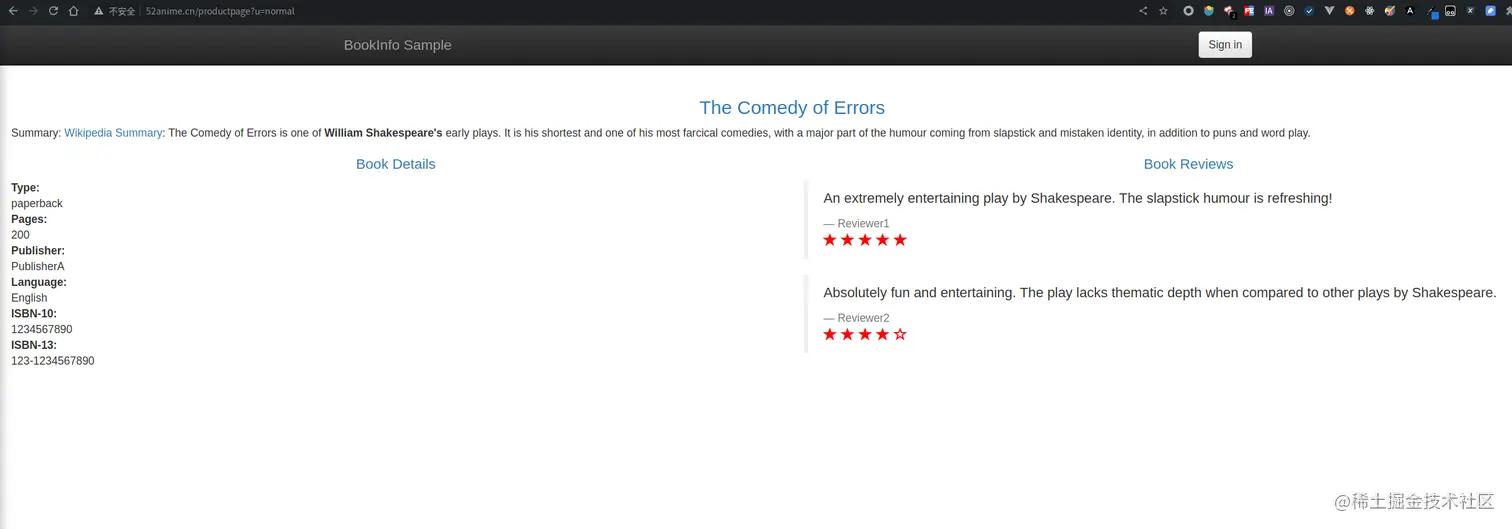

kubectl apply -f bookinfo-ingress.yaml
