width与flex:1;共同使用时父元素被子元素撑开问题

1,299 阅读2分钟

在弹性布局中,一个 flex 子项的最终尺寸是基础尺寸(或内容尺寸)、弹性增长或收缩、最大最小尺寸共同作用的结果。
最终尺寸计算的优先级是:
最大最小尺寸限制 > 弹性增长或收缩 > 基础尺寸

  • 基础尺寸由 flex-base 属性或 width 属性,以及 box-sizing 盒模型共同决定;
  • 内容尺寸最指最大内容宽度,当没有设置基础尺寸是会顶替基础尺寸的角色;
  • 弹性增长指的是 flex-grow 属性,弹性收缩指的是 flex-shrink 属性;
  • 最大尺寸主要受 max-width 属性限制;最小尺寸则比较复杂,受最小内容宽度、width 属性和 min-width 属性共同影响。

问题复现

代码

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Document</title>
  <style>
    body {
      margin: 0;
      padding: 0;
    }
    .wrap {
      width: 100vw;
      height: 100vh;
      display: flex;
    }

  .sidebar {
    width: 200px;
    height: 100%;
    background: #dcffea;
    flex: none;
  }
  .container {
    width: 100%;
    height: 100%;
    background: #dedede;
    flex: 1;
  }
  .text h2 {
    white-space: nowrap;
    text-overflow: ellipsis;
    overflow: hidden;
  }
  </style>
</head>
<body>
  <div class="wrap">
    <div class="sidebar"></div>
    <div class="container">
      <div class="text">
        <h2>Lorem Ipsum is simply dummy text of the printing and typesetting industry.</h2>
        <p>Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.</p>
      </div>
    </div>
  </div>
</body>
</html>

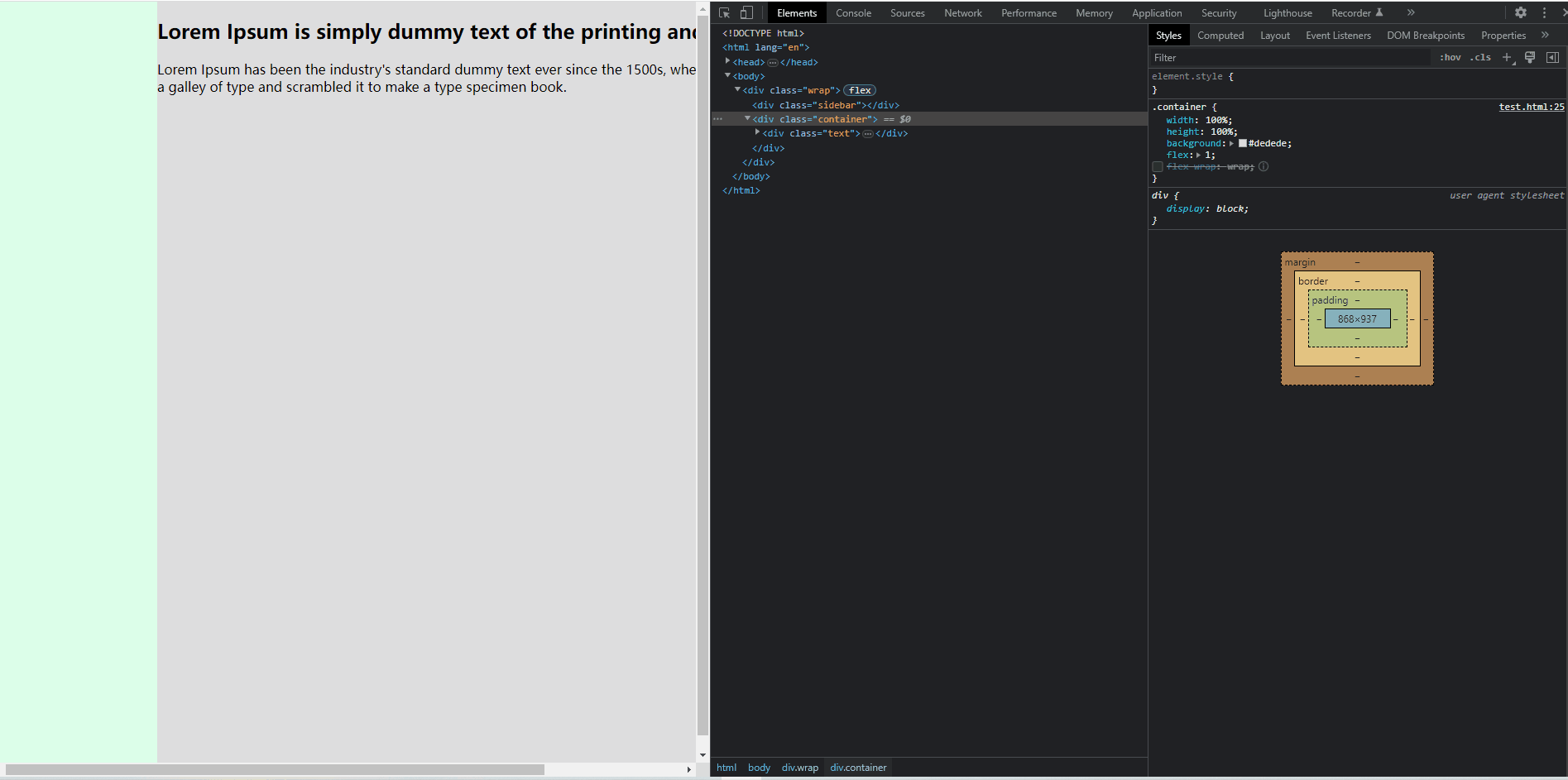

效果:


由上可以看出,父盒子被子元素撑开了,原因是:.text 的内容太多,致使 .container 容器被撑开了,并且 .container 的宽度变大使 .wrap 的宽度也增大了,并不是按照设想的 100vw。同时文本标题超出省略的样式也没有应用到。

解决:

容器使用 width:0;flex:1;;

原理:

因为设置了 flex-basis 属性的元素的最小尺寸是最小内容的宽度(文字内容在所有换行点换行后的尺寸),而我设置了标题不换行导致最小尺寸比较大,最终尺寸大于 flex:1 给到的 flex-basis:0%。(如果我们把标题设置会换行容器就不会被撑开了)。
具体解释为:

flex-basis 属性下的最小尺寸是由内容决定的,而 width 属性下的最小尺寸是由 width 属性的计算值决定的。

这里出现的  “最小尺寸”  表示最终尺寸的最小值,所以在标题不换行的时候如果不设置 width 为 0 那么,flex 容器的宽度就会被内容撑开。当设置 width:0 之后,最小尺寸就为设置的 width 值了,就可以被 flex-grow:1 放大。
