kafka网络层是使用java nio实现了一个NIO Server，采用Reactor模式，基于事件驱动的模式。

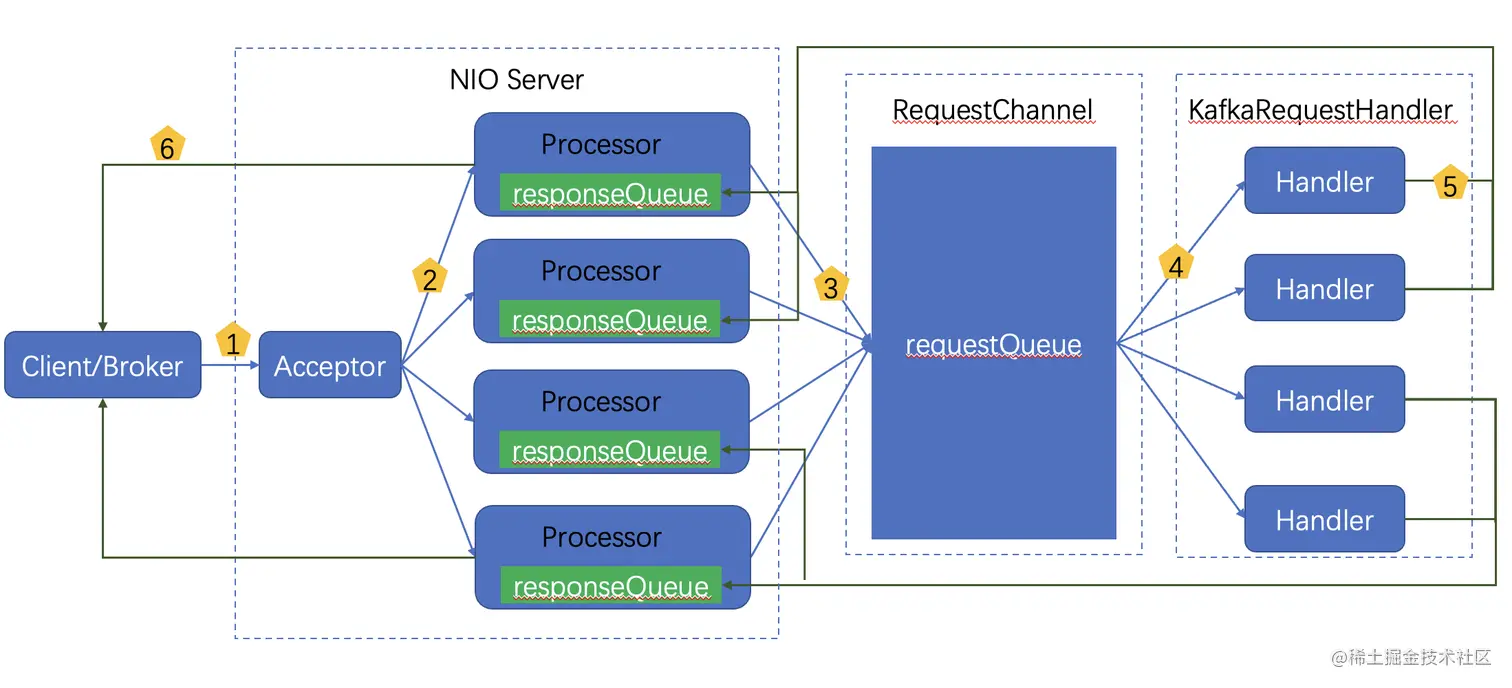

数据处理流程
- client将请求发送给接收器Acceptor，client包括producer，consumer，broker等
- Acceptor将请求转发给Processor处理
- Processor将请求封装后写入队列requestQueue
- KafkaRequestHandler消费requestQueue，取出请求交给handler，handler处理真正的IO处理和外部请求
- handler处理完成后回调response方法，将response写入对应Processor的responseQueue
- Processor从responseQueue中取出response，处理返回给Client/Broker
组件解析
Acceptor
- 创建TCP连接，并将请求传递给Processor处理。每个服务只有一个Acceptor线程。
/** 循环检查新连接的创建 */
def run(): Unit = {
serverChannel.register(nioSelector, SelectionKey.OP_ACCEPT)
startupComplete()
try {
var currentProcessorIndex = 0
while (isRunning) {
try {
val ready = nioSelector.select(500)
if (ready > 0) {
val keys = nioSelector.selectedKeys()
val iter = keys.iterator()
while (iter.hasNext && isRunning) {
try {
val key = iter.next
iter.remove()
if (key.isAcceptable) {
accept(key).foreach { socketChannel =>
/**轮询将连接分配给Processor*/
var retriesLeft = synchronized(processors.length)
var processor: Processor = null
do {
retriesLeft -= 1
processor = synchronized {
currentProcessorIndex = currentProcessorIndex % processors.length
processors(currentProcessorIndex)
}
currentProcessorIndex += 1
} while (!assignNewConnection(socketChannel, processor, retriesLeft == 0))
}
} else
throw new IllegalStateException("Unrecognized key state for acceptor thread.")
} catch {
case e: Throwable => error("Error while accepting connection", e)
}
}
}
}
catch {
case e: ControlThrowable => throw e
case e: Throwable => error("Error occurred", e)
}
}
} finally {
debug("Closing server socket and selector.")
CoreUtils.swallow(serverChannel.close(), this, Level.ERROR)
CoreUtils.swallow(nioSelector.close(), this, Level.ERROR)
shutdownComplete()
}
}
Processor
- 处理单个TCP连接上所有请求的线程。
- 负责将接收到的请求添加到RequestChannel的requestQueue上，并将response请求发送给request发送方。
- 拥有独立的Selector(java.nio.channels.Selector)。
- 线程数由参数num.network.threads控制。推荐设置为CPU核心数*2。
override def run(): Unit = {
startupComplete()
try {
while (isRunning) {
try {
/**获取Acceptor线程下发的连接，将对应SocketChannel注册到Selector上，添加Read事件*/
configureNewConnections()
/**发送response，并将Response放入到inflightResponses临时队列*/
processNewResponses()
/**获取对应SocketChannel上准备就绪的I/O操作*/
poll()
/**将poll执行完成封装的request添加到requestQueue队列上*/
processCompletedReceives()
/**为临时Response队列中的Response执行回调逻辑*/
processCompletedSends()
/**处理发送失败而导致的连接断开*/
processDisconnected()
/**关闭超过配额限制部分的连接*/
closeExcessConnections()
} catch {
case e: Throwable => processException("Processor got uncaught exception.", e)
}
}
} finally {
debug(s"Closing selector - processor $id")
CoreUtils.swallow(closeAll(), this, Level.ERROR)
shutdownComplete()
}
}
KafkaRequestHandlerPool
- 管理KafkaRequestHandler的线程池
- 线程池大小由参数num.io.threads决定，推荐磁盘数*2
class KafkaRequestHandlerPool(val brokerId: Int,
val requestChannel: RequestChannel,
val apis: KafkaApis,
time: Time,
numThreads: Int,
requestHandlerAvgIdleMetricName: String,
logAndThreadNamePrefix : String) extends Logging with KafkaMetricsGroup {
private val threadPoolSize: AtomicInteger = new AtomicInteger(numThreads)
private val aggregateIdleMeter = newMeter(requestHandlerAvgIdleMetricName, "percent", TimeUnit.NANOSECONDS)
this.logIdent = "[" + logAndThreadNamePrefix + " Kafka Request Handler on Broker " + brokerId + "], "
val runnables = new mutable.ArrayBuffer[KafkaRequestHandler](numThreads)
/**创建num.io.threads个Handler线程*/
for (i <- 0 until numThreads) {
createHandler(i)
}
/**创建序号为指定id的Handler线程，并启动该线程*/
def createHandler(id: Int): Unit = synchronized {
runnables += new KafkaRequestHandler(id, brokerId, aggregateIdleMeter, threadPoolSize, requestChannel, apis, time)
KafkaThread.daemon(logAndThreadNamePrefix + "-kafka-request-handler-" + id, runnables(id)).start()
}
/**重置线程数，用于动态调整参数*/
def resizeThreadPool(newSize: Int): Unit = synchronized {
val currentSize = threadPoolSize.get
info(s"Resizing request handler thread pool size from $currentSize to $newSize")
if (newSize > currentSize) {
for (i <- currentSize until newSize) {
createHandler(i)
}
} else if (newSize < currentSize) {
for (i <- 1 to (currentSize - newSize)) {
runnables.remove(currentSize - i).stop()
}
}
threadPoolSize.set(newSize)
}
def shutdown(): Unit = synchronized {
info("shutting down")
for (handler <- runnables)
handler.initiateShutdown()
for (handler <- runnables)
handler.awaitShutdown()
info("shut down completely")
}
}
KafkaRequestHandler
- 实际执行kafka处理请求
- 消费requestQueue中的请求，调用KafkaApis的handle处理实际的IO操作
class KafkaRequestHandler(id: Int,
brokerId: Int,
val aggregateIdleMeter: Meter,
val totalHandlerThreads: AtomicInteger,
val requestChannel: RequestChannel,
apis: KafkaApis,
time: Time) extends Runnable with Logging {
this.logIdent = "[Kafka Request Handler " + id + " on Broker " + brokerId + "], "
private val shutdownComplete = new CountDownLatch(1)
@volatile private var stopped = false
def run(): Unit = {
while (!stopped) {
val startSelectTime = time.nanoseconds
/**从requestChannel的requestQueue中获取请求*/
val req = requestChannel.receiveRequest(300)
val endTime = time.nanoseconds
val idleTime = endTime - startSelectTime
aggregateIdleMeter.mark(idleTime / totalHandlerThreads.get)
req match {
case RequestChannel.ShutdownRequest =>
debug(s"Kafka request handler $id on broker $brokerId received shut down command")
shutdownComplete.countDown()
return
case request: RequestChannel.Request =>
try {
request.requestDequeueTimeNanos = endTime
trace(s"Kafka request handler $id on broker $brokerId handling request $request")
/**调用KafkaApis处理handler*/
apis.handle(request)
} catch {
case e: FatalExitError =>
shutdownComplete.countDown()
Exit.exit(e.statusCode)
case e: Throwable => error("Exception when handling request", e)
} finally {
request.releaseBuffer()
}
case null => // continue
}
}
shutdownComplete.countDown()
}
def stop(): Unit = {
stopped = true
}
def initiateShutdown(): Unit = requestChannel.sendShutdownRequest()
def awaitShutdown(): Unit = shutdownComplete.await()
}
总结
- 整体介绍了kafka server网络层的处理流程
- 介绍各个组件的职责和能力
