Apollo配置中心通过docker部署，单机双环境（dev，pro）

分布式部署（单机双环境dev，pro）

一、准备数据库

1、准备数据库文件

--
-- Copyright 2022 Apollo Authors
--
-- Licensed under the Apache License, Version 2.0 (the "License");
-- you may not use this file except in compliance with the License.
-- You may obtain a copy of the License at
--
-- http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.
--
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

# Create Database
# ------------------------------------------------------------
CREATE DATABASE IF NOT EXISTS ApolloPortalDB DEFAULT CHARACTER SET = utf8mb4;

Use ApolloPortalDB;

# Dump of table app
# ------------------------------------------------------------

DROP TABLE IF EXISTS `App`;

CREATE TABLE `App` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_DeletedAt` (`AppId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Name` (`Name`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用表';



# Dump of table appnamespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AppNamespace`;

CREATE TABLE `AppNamespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT 'namespace名字，注意，需要全局唯一',
  `AppId` varchar(64) NOT NULL DEFAULT '' COMMENT 'app id',
  `Format` varchar(32) NOT NULL DEFAULT 'properties' COMMENT 'namespace的format类型',
  `IsPublic` bit(1) NOT NULL DEFAULT b'0' COMMENT 'namespace是否为公共',
  `Comment` varchar(64) NOT NULL DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Name_DeletedAt` (`AppId`,`Name`,`DeletedAt`),
  KEY `Name_AppId` (`Name`,`AppId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用namespace定义';



# Dump of table consumer
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Consumer`;

CREATE TABLE `Consumer` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_DeletedAt` (`AppId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='开放API消费者';



# Dump of table consumeraudit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ConsumerAudit`;

CREATE TABLE `ConsumerAudit` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'Consumer Id',
  `Uri` varchar(1024) NOT NULL DEFAULT '' COMMENT '访问的Uri',
  `Method` varchar(16) NOT NULL DEFAULT '' COMMENT '访问的Method',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_ConsumerId` (`ConsumerId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer审计表';



# Dump of table consumerrole
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ConsumerRole`;

CREATE TABLE `ConsumerRole` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'Consumer Id',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_ConsumerId_RoleId_DeletedAt` (`ConsumerId`,`RoleId`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_RoleId` (`RoleId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer和role的绑定表';



# Dump of table consumertoken
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ConsumerToken`;

CREATE TABLE `ConsumerToken` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'ConsumerId',
  `Token` varchar(128) NOT NULL DEFAULT '' COMMENT 'token',
  `Expires` datetime NOT NULL DEFAULT '2099-01-01 00:00:00' COMMENT 'token失效时间',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Token_DeletedAt` (`Token`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer token表';

# Dump of table favorite
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Favorite`;

CREATE TABLE `Favorite` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `UserId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '收藏的用户',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Position` int(32) NOT NULL DEFAULT '10000' COMMENT '收藏顺序',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_UserId_AppId_DeletedAt` (`UserId`,`AppId`,`DeletedAt`),
  KEY `AppId` (`AppId`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB AUTO_INCREMENT=23 DEFAULT CHARSET=utf8mb4 COMMENT='应用收藏表';

# Dump of table permission
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Permission`;

CREATE TABLE `Permission` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `PermissionType` varchar(32) NOT NULL DEFAULT '' COMMENT '权限类型',
  `TargetId` varchar(256) NOT NULL DEFAULT '' COMMENT '权限对象类型',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_TargetId_PermissionType_DeletedAt` (`TargetId`,`PermissionType`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='permission表';



# Dump of table role
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Role`;

CREATE TABLE `Role` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `RoleName` varchar(256) NOT NULL DEFAULT '' COMMENT 'Role name',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_RoleName_DeletedAt` (`RoleName`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='角色表';



# Dump of table rolepermission
# ------------------------------------------------------------

DROP TABLE IF EXISTS `RolePermission`;

CREATE TABLE `RolePermission` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `PermissionId` int(10) unsigned DEFAULT NULL COMMENT 'Permission Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_RoleId_PermissionId_DeletedAt` (`RoleId`,`PermissionId`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_PermissionId` (`PermissionId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='角色和权限的绑定表';



# Dump of table serverconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ServerConfig`;

CREATE TABLE `ServerConfig` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Key` varchar(64) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Value` varchar(2048) NOT NULL DEFAULT 'default' COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Key_DeletedAt` (`Key`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置服务自身配置';



# Dump of table userrole
# ------------------------------------------------------------

DROP TABLE IF EXISTS `UserRole`;

CREATE TABLE `UserRole` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `UserId` varchar(128) DEFAULT '' COMMENT '用户身份标识',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_UserId_RoleId_DeletedAt` (`UserId`,`RoleId`,`DeletedAt`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_RoleId` (`RoleId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='用户和role的绑定表';

# Dump of table Users
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Users`;

CREATE TABLE `Users` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Username` varchar(64) NOT NULL DEFAULT 'default' COMMENT '用户登录账户',
  `Password` varchar(512) NOT NULL DEFAULT 'default' COMMENT '密码',
  `UserDisplayName` varchar(512) NOT NULL DEFAULT 'default' COMMENT '用户名称',
  `Email` varchar(64) NOT NULL DEFAULT 'default' COMMENT '邮箱地址',
  `Enabled` tinyint(4) DEFAULT NULL COMMENT '是否有效',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Username` (`Username`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='用户表';


# Dump of table Authorities
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Authorities`;

CREATE TABLE `Authorities` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Username` varchar(64) NOT NULL,
  `Authority` varchar(50) NOT NULL,
  PRIMARY KEY (`Id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;


# Config
# ------------------------------------------------------------
INSERT INTO `ServerConfig` (`Key`, `Value`, `Comment`)
VALUES
    ('apollo.portal.envs', 'dev,pro', '可支持的环境列表'),
    ('organizations', '[{\"orgId\":\"TEST1\",\"orgName\":\"样例部门1\"},{\"orgId\":\"TEST2\",\"orgName\":\"样例部门2\"}]', '部门列表'),
    ('superAdmin', 'apollo', 'Portal超级管理员'),
    ('api.readTimeout', '10000', 'http接口read timeout'),
    ('consumer.token.salt', 'someSalt', 'consumer token salt'),
    ('admin.createPrivateNamespace.switch', 'true', '是否允许项目管理员创建私有namespace'),
    ('configView.memberOnly.envs', 'dev,pro', '只对项目成员显示配置信息的环境列表，多个env以英文逗号分隔'),
    ('apollo.portal.meta.servers', '{"PRO":"http://172.80.130.12:8083/"}', '各环境Meta Service列表');


INSERT INTO `Users` (`Username`, `Password`, `UserDisplayName`, `Email`, `Enabled`)
VALUES
  ('apollo', '$2a$10$7r20uS.BQ9uBpf3Baj3uQOZvMVvB1RN3PYoKE94gtz2.WAOuiiwXS', 'apollo', 'apollo@acme.com', 1);

INSERT INTO `Authorities` (`Username`, `Authority`) VALUES ('apollo', 'ROLE_user');

-- spring session (https://github.com/spring-projects/spring-session/blob/faee8f1bdb8822a5653a81eba838dddf224d92d6/spring-session-jdbc/src/main/resources/org/springframework/session/jdbc/schema-mysql.sql)
CREATE TABLE SPRING_SESSION (
  PRIMARY_ID CHAR(36) NOT NULL,
  SESSION_ID CHAR(36) NOT NULL,
  CREATION_TIME BIGINT NOT NULL,
  LAST_ACCESS_TIME BIGINT NOT NULL,
  MAX_INACTIVE_INTERVAL INT NOT NULL,
  EXPIRY_TIME BIGINT NOT NULL,
  PRINCIPAL_NAME VARCHAR(100),
  CONSTRAINT SPRING_SESSION_PK PRIMARY KEY (PRIMARY_ID)
) ENGINE=InnoDB ROW_FORMAT=DYNAMIC;

CREATE UNIQUE INDEX SPRING_SESSION_IX1 ON SPRING_SESSION (SESSION_ID);
CREATE INDEX SPRING_SESSION_IX2 ON SPRING_SESSION (EXPIRY_TIME);
CREATE INDEX SPRING_SESSION_IX3 ON SPRING_SESSION (PRINCIPAL_NAME);

CREATE TABLE SPRING_SESSION_ATTRIBUTES (
  SESSION_PRIMARY_ID CHAR(36) NOT NULL,
  ATTRIBUTE_NAME VARCHAR(200) NOT NULL,
  ATTRIBUTE_BYTES BLOB NOT NULL,
  CONSTRAINT SPRING_SESSION_ATTRIBUTES_PK PRIMARY KEY (SESSION_PRIMARY_ID, ATTRIBUTE_NAME),
  CONSTRAINT SPRING_SESSION_ATTRIBUTES_FK FOREIGN KEY (SESSION_PRIMARY_ID) REFERENCES SPRING_SESSION(PRIMARY_ID) ON DELETE CASCADE
) ENGINE=InnoDB ROW_FORMAT=DYNAMIC;

# Sample Data
# ------------------------------------------------------------
INSERT INTO `App` (`AppId`, `Name`, `OrgId`, `OrgName`, `OwnerName`, `OwnerEmail`)
VALUES
  ('SampleApp', 'Sample App', 'TEST1', '样例部门1', 'apollo', 'apollo@acme.com');

INSERT INTO `AppNamespace` (`Name`, `AppId`, `Format`, `IsPublic`, `Comment`)
VALUES
  ('application', 'SampleApp', 'properties', 0, 'default app namespace');

INSERT INTO `Permission` (`Id`, `PermissionType`, `TargetId`)
VALUES
  (1, 'CreateCluster', 'SampleApp'),
  (2, 'CreateNamespace', 'SampleApp'),
  (3, 'AssignRole', 'SampleApp'),
  (4, 'ModifyNamespace', 'SampleApp+application'),
  (5, 'ReleaseNamespace', 'SampleApp+application');

INSERT INTO `Role` (`Id`, `RoleName`)
VALUES
  (1, 'Master+SampleApp'),
  (2, 'ModifyNamespace+SampleApp+application'),
  (3, 'ReleaseNamespace+SampleApp+application');

INSERT INTO `RolePermission` (`RoleId`, `PermissionId`)
VALUES
  (1, 1),
  (1, 2),
  (1, 3),
  (2, 4),
  (3, 5);

INSERT INTO `UserRole` (`UserId`, `RoleId`)
VALUES
  ('apollo', 1),
  ('apollo', 2),
  ('apollo', 3);

/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;

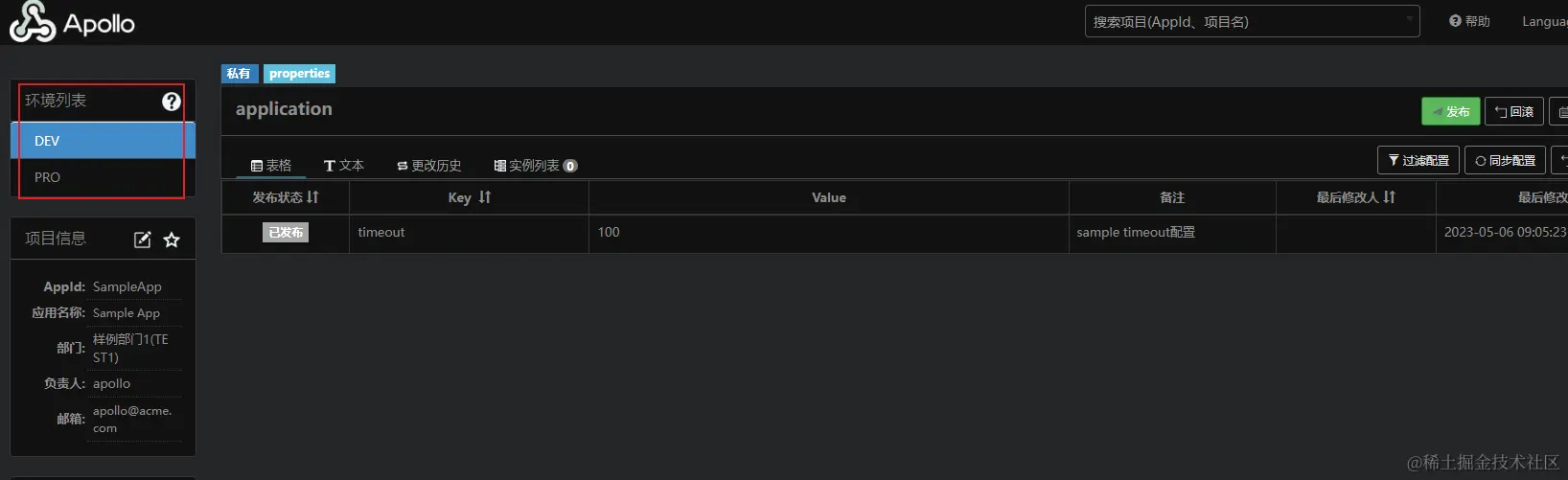

ApolloPortalDB数据双环境修改： 1、修改ServerConfig表apollo.portal.envs值为dev,pro 2、修改ServerConfig表configView.memberOnly.envs的值为dev,pro

--
-- Copyright 2022 Apollo Authors
--
-- Licensed under the Apache License, Version 2.0 (the "License");
-- you may not use this file except in compliance with the License.
-- You may obtain a copy of the License at
--
-- http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.
--
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

# Create Database
# ------------------------------------------------------------
CREATE DATABASE IF NOT EXISTS ApolloConfigDBDev DEFAULT CHARACTER SET = utf8mb4;

Use ApolloConfigDBDev;

# Dump of table app
# ------------------------------------------------------------

DROP TABLE IF EXISTS `App`;

CREATE TABLE `App` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_DeletedAt` (`AppId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Name` (`Name`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用表';



# Dump of table appnamespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AppNamespace`;

CREATE TABLE `AppNamespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT 'namespace名字，注意，需要全局唯一',
  `AppId` varchar(64) NOT NULL DEFAULT '' COMMENT 'app id',
  `Format` varchar(32) NOT NULL DEFAULT 'properties' COMMENT 'namespace的format类型',
  `IsPublic` bit(1) NOT NULL DEFAULT b'0' COMMENT 'namespace是否为公共',
  `Comment` varchar(64) NOT NULL DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Name_DeletedAt` (`AppId`,`Name`,`DeletedAt`),
  KEY `Name_AppId` (`Name`,`AppId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用namespace定义';



# Dump of table audit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Audit`;

CREATE TABLE `Audit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `EntityName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '表名',
  `EntityId` int(10) unsigned DEFAULT NULL COMMENT '记录ID',
  `OpName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '操作类型',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='日志审计表';



# Dump of table cluster
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Cluster`;

CREATE TABLE `Cluster` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT '集群名字',
  `AppId` varchar(64) NOT NULL DEFAULT '' COMMENT 'App id',
  `ParentClusterId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '父cluster',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Name_DeletedAt` (`AppId`,`Name`,`DeletedAt`),
  KEY `IX_ParentClusterId` (`ParentClusterId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='集群';



# Dump of table commit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Commit`;

CREATE TABLE `Commit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `ChangeSets` longtext NOT NULL COMMENT '修改变更集',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `AppId` (`AppId`(191)),
  KEY `ClusterName` (`ClusterName`(191)),
  KEY `NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='commit 历史表';

# Dump of table grayreleaserule
# ------------------------------------------------------------

DROP TABLE IF EXISTS `GrayReleaseRule`;

CREATE TABLE `GrayReleaseRule` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'branch name',
  `Rules` varchar(16000) DEFAULT '[]' COMMENT '灰度规则',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '灰度对应的release',
  `BranchStatus` tinyint(2) DEFAULT '1' COMMENT '灰度分支状态: 0:删除分支,1:正在使用的规则 2：全量发布',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='灰度规则表';


# Dump of table instance
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Instance`;

CREATE TABLE `Instance` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `DataCenter` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'Data Center Name',
  `Ip` varchar(32) NOT NULL DEFAULT '' COMMENT 'instance ip',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`AppId`,`ClusterName`,`Ip`,`DataCenter`),
  KEY `IX_IP` (`Ip`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='使用配置的应用实例';



# Dump of table instanceconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `InstanceConfig`;

CREATE TABLE `InstanceConfig` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `InstanceId` int(11) unsigned DEFAULT NULL COMMENT 'Instance Id',
  `ConfigAppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'Config App Id',
  `ConfigClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Cluster Name',
  `ConfigNamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Namespace Name',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `ReleaseDeliveryTime` timestamp NULL DEFAULT NULL COMMENT '配置获取时间',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`InstanceId`,`ConfigAppId`,`ConfigNamespaceName`),
  KEY `IX_ReleaseKey` (`ReleaseKey`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Valid_Namespace` (`ConfigAppId`,`ConfigClusterName`,`ConfigNamespaceName`,`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用实例的配置信息';



# Dump of table item
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Item`;

CREATE TABLE `Item` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `Key` varchar(128) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Type` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '配置项类型，0: String，1: Number，2: Boolean，3: JSON',
  `Value` longtext NOT NULL COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `LineNum` int(10) unsigned DEFAULT '0' COMMENT '行号',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_GroupId` (`NamespaceId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置项目';



# Dump of table namespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Namespace`;

CREATE TABLE `Namespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_ClusterName_NamespaceName_DeletedAt` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191),`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='命名空间';



# Dump of table namespacelock
# ------------------------------------------------------------

DROP TABLE IF EXISTS `NamespaceLock`;

CREATE TABLE `NamespaceLock` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  `IsDeleted` bit(1) DEFAULT b'0' COMMENT '软删除',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_NamespaceId_DeletedAt` (`NamespaceId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='namespace的编辑锁';



# Dump of table release
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Release`;

CREATE TABLE `Release` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `Name` varchar(64) NOT NULL DEFAULT 'default' COMMENT '发布名字',
  `Comment` varchar(256) DEFAULT NULL COMMENT '发布说明',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Configurations` longtext NOT NULL COMMENT '发布配置',
  `IsAbandoned` bit(1) NOT NULL DEFAULT b'0' COMMENT '是否废弃',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_ReleaseKey_DeletedAt` (`ReleaseKey`,`DeletedAt`),
  KEY `AppId_ClusterName_GroupName` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布';


# Dump of table releasehistory
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ReleaseHistory`;

CREATE TABLE `ReleaseHistory` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT '发布分支名',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '关联的Release Id',
  `PreviousReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '前一次发布的ReleaseId',
  `Operation` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '发布类型，0: 普通发布，1: 回滚，2: 灰度发布，3: 灰度规则更新，4: 灰度合并回主分支发布，5: 主分支发布灰度自动发布，6: 主分支回滚灰度自动发布，7: 放弃灰度',
  `OperationContext` longtext NOT NULL COMMENT '发布上下文信息',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`,`BranchName`),
  KEY `IX_ReleaseId` (`ReleaseId`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_PreviousReleaseId` (`PreviousReleaseId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布历史';


# Dump of table releasemessage
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ReleaseMessage`;

CREATE TABLE `ReleaseMessage` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Message` varchar(1024) NOT NULL DEFAULT '' COMMENT '发布的消息内容',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Message` (`Message`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布消息';



# Dump of table serverconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ServerConfig`;

CREATE TABLE `ServerConfig` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Key` varchar(64) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Cluster` varchar(32) NOT NULL DEFAULT 'default' COMMENT '配置对应的集群，default为不针对特定的集群',
  `Value` varchar(2048) NOT NULL DEFAULT 'default' COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Key_Cluster_DeletedAt` (`Key`,`Cluster`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置服务自身配置';

# Dump of table accesskey
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AccessKey`;

CREATE TABLE `AccessKey` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Secret` varchar(128) NOT NULL DEFAULT '' COMMENT 'Secret',
  `IsEnabled` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: enabled, 0: disabled',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Secret_DeletedAt` (`AppId`,`Secret`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='访问密钥';


# Dump of table serviceregistry
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ServiceRegistry`;

CREATE TABLE `ServiceRegistry` (
  `Id` INT(11) UNSIGNED NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ServiceName` VARCHAR(64) NOT NULL COMMENT '服务名',
  `Uri` VARCHAR(64) NOT NULL COMMENT '服务地址',
  `Cluster` VARCHAR(64) NOT NULL COMMENT '集群，可以用来标识apollo.cluster或者网络分区',
  `Metadata` VARCHAR(1024) NOT NULL DEFAULT '{}' COMMENT '元数据，key value结构的json object，为了方面后面扩展功能而不需要修改表结构',
  `DataChange_CreatedTime` TIMESTAMP NOT NULL COMMENT '创建时间',
  `DataChange_LastTime` TIMESTAMP NOT NULL COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE INDEX `IX_UNIQUE_KEY` (`ServiceName`, `Uri`),
  INDEX `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='注册中心';


# Config
# ------------------------------------------------------------
INSERT INTO `ServerConfig` (`Key`, `Cluster`, `Value`, `Comment`)
VALUES
    ('eureka.service.url', 'default', 'http://localhost:8080/eureka/', 'Eureka服务Url，多个service以英文逗号分隔'),
    ('namespace.lock.switch', 'default', 'false', '一次发布只能有一个人修改开关'),
    ('item.key.length.limit', 'default', '128', 'item key 最大长度限制'),
    ('item.value.length.limit', 'default', '20000', 'item value最大长度限制'),
    ('config-service.cache.enabled', 'default', 'false', 'ConfigService是否开启缓存，开启后能提高性能，但是会增大内存消耗！');

# Sample Data
# ------------------------------------------------------------
INSERT INTO `App` (`AppId`, `Name`, `OrgId`, `OrgName`, `OwnerName`, `OwnerEmail`)
VALUES
  ('SampleApp', 'Sample App', 'TEST1', '样例部门1', 'apollo', 'apollo@acme.com');

INSERT INTO `AppNamespace` (`Name`, `AppId`, `Format`, `IsPublic`, `Comment`)
VALUES
  ('application', 'SampleApp', 'properties', 0, 'default app namespace');

INSERT INTO `Cluster` (`Name`, `AppId`)
VALUES
  ('default', 'SampleApp');

INSERT INTO `Namespace` (`Id`, `AppId`, `ClusterName`, `NamespaceName`)
VALUES
  (1, 'SampleApp', 'default', 'application');


INSERT INTO `Item` (`NamespaceId`, `Key`, `Value`, `Comment`, `LineNum`)
VALUES
  (1, 'timeout', '100', 'sample timeout配置', 1);

INSERT INTO `Release` (`ReleaseKey`, `Name`, `Comment`, `AppId`, `ClusterName`, `NamespaceName`, `Configurations`)
VALUES
  ('20161009155425-d3a0749c6e20bc15', '20161009155424-release', 'Sample发布', 'SampleApp', 'default', 'application', '{\"timeout\":\"100\"}');

INSERT INTO `ReleaseHistory` (`AppId`, `ClusterName`, `NamespaceName`, `BranchName`, `ReleaseId`, `PreviousReleaseId`, `Operation`, `OperationContext`, `DataChange_CreatedBy`, `DataChange_LastModifiedBy`)
VALUES
  ('SampleApp', 'default', 'application', 'default', 1, 0, 0, '{}', 'apollo', 'apollo');

INSERT INTO `ReleaseMessage` (`Message`)
VALUES
  ('SampleApp+default+application');

/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;

--
-- Copyright 2022 Apollo Authors
--
-- Licensed under the Apache License, Version 2.0 (the "License");
-- you may not use this file except in compliance with the License.
-- You may obtain a copy of the License at
--
-- http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.
--
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

# Create Database
# ------------------------------------------------------------
CREATE DATABASE IF NOT EXISTS ApolloConfigDBPro DEFAULT CHARACTER SET = utf8mb4;

Use ApolloConfigDBPro;

# Dump of table app
# ------------------------------------------------------------

DROP TABLE IF EXISTS `App`;

CREATE TABLE `App` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_DeletedAt` (`AppId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Name` (`Name`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用表';



# Dump of table appnamespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AppNamespace`;

CREATE TABLE `AppNamespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT 'namespace名字，注意，需要全局唯一',
  `AppId` varchar(64) NOT NULL DEFAULT '' COMMENT 'app id',
  `Format` varchar(32) NOT NULL DEFAULT 'properties' COMMENT 'namespace的format类型',
  `IsPublic` bit(1) NOT NULL DEFAULT b'0' COMMENT 'namespace是否为公共',
  `Comment` varchar(64) NOT NULL DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Name_DeletedAt` (`AppId`,`Name`,`DeletedAt`),
  KEY `Name_AppId` (`Name`,`AppId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用namespace定义';



# Dump of table audit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Audit`;

CREATE TABLE `Audit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `EntityName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '表名',
  `EntityId` int(10) unsigned DEFAULT NULL COMMENT '记录ID',
  `OpName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '操作类型',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='日志审计表';



# Dump of table cluster
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Cluster`;

CREATE TABLE `Cluster` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT '集群名字',
  `AppId` varchar(64) NOT NULL DEFAULT '' COMMENT 'App id',
  `ParentClusterId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '父cluster',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Name_DeletedAt` (`AppId`,`Name`,`DeletedAt`),
  KEY `IX_ParentClusterId` (`ParentClusterId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='集群';



# Dump of table commit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Commit`;

CREATE TABLE `Commit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `ChangeSets` longtext NOT NULL COMMENT '修改变更集',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `AppId` (`AppId`(191)),
  KEY `ClusterName` (`ClusterName`(191)),
  KEY `NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='commit 历史表';

# Dump of table grayreleaserule
# ------------------------------------------------------------

DROP TABLE IF EXISTS `GrayReleaseRule`;

CREATE TABLE `GrayReleaseRule` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'branch name',
  `Rules` varchar(16000) DEFAULT '[]' COMMENT '灰度规则',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '灰度对应的release',
  `BranchStatus` tinyint(2) DEFAULT '1' COMMENT '灰度分支状态: 0:删除分支,1:正在使用的规则 2：全量发布',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='灰度规则表';


# Dump of table instance
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Instance`;

CREATE TABLE `Instance` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `DataCenter` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'Data Center Name',
  `Ip` varchar(32) NOT NULL DEFAULT '' COMMENT 'instance ip',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`AppId`,`ClusterName`,`Ip`,`DataCenter`),
  KEY `IX_IP` (`Ip`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='使用配置的应用实例';



# Dump of table instanceconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `InstanceConfig`;

CREATE TABLE `InstanceConfig` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `InstanceId` int(11) unsigned DEFAULT NULL COMMENT 'Instance Id',
  `ConfigAppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'Config App Id',
  `ConfigClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Cluster Name',
  `ConfigNamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Namespace Name',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `ReleaseDeliveryTime` timestamp NULL DEFAULT NULL COMMENT '配置获取时间',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`InstanceId`,`ConfigAppId`,`ConfigNamespaceName`),
  KEY `IX_ReleaseKey` (`ReleaseKey`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Valid_Namespace` (`ConfigAppId`,`ConfigClusterName`,`ConfigNamespaceName`,`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用实例的配置信息';



# Dump of table item
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Item`;

CREATE TABLE `Item` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `Key` varchar(128) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Type` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '配置项类型，0: String，1: Number，2: Boolean，3: JSON',
  `Value` longtext NOT NULL COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `LineNum` int(10) unsigned DEFAULT '0' COMMENT '行号',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_GroupId` (`NamespaceId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置项目';



# Dump of table namespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Namespace`;

CREATE TABLE `Namespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_ClusterName_NamespaceName_DeletedAt` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191),`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='命名空间';



# Dump of table namespacelock
# ------------------------------------------------------------

DROP TABLE IF EXISTS `NamespaceLock`;

CREATE TABLE `NamespaceLock` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  `IsDeleted` bit(1) DEFAULT b'0' COMMENT '软删除',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_NamespaceId_DeletedAt` (`NamespaceId`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='namespace的编辑锁';



# Dump of table release
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Release`;

CREATE TABLE `Release` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `Name` varchar(64) NOT NULL DEFAULT 'default' COMMENT '发布名字',
  `Comment` varchar(256) DEFAULT NULL COMMENT '发布说明',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Configurations` longtext NOT NULL COMMENT '发布配置',
  `IsAbandoned` bit(1) NOT NULL DEFAULT b'0' COMMENT '是否废弃',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_ReleaseKey_DeletedAt` (`ReleaseKey`,`DeletedAt`),
  KEY `AppId_ClusterName_GroupName` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布';


# Dump of table releasehistory
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ReleaseHistory`;

CREATE TABLE `ReleaseHistory` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT '发布分支名',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '关联的Release Id',
  `PreviousReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '前一次发布的ReleaseId',
  `Operation` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '发布类型，0: 普通发布，1: 回滚，2: 灰度发布，3: 灰度规则更新，4: 灰度合并回主分支发布，5: 主分支发布灰度自动发布，6: 主分支回滚灰度自动发布，7: 放弃灰度',
  `OperationContext` longtext NOT NULL COMMENT '发布上下文信息',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`,`BranchName`),
  KEY `IX_ReleaseId` (`ReleaseId`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_PreviousReleaseId` (`PreviousReleaseId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布历史';


# Dump of table releasemessage
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ReleaseMessage`;

CREATE TABLE `ReleaseMessage` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Message` varchar(1024) NOT NULL DEFAULT '' COMMENT '发布的消息内容',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Message` (`Message`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布消息';



# Dump of table serverconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ServerConfig`;

CREATE TABLE `ServerConfig` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Key` varchar(64) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Cluster` varchar(32) NOT NULL DEFAULT 'default' COMMENT '配置对应的集群，default为不针对特定的集群',
  `Value` varchar(2048) NOT NULL DEFAULT 'default' COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_Key_Cluster_DeletedAt` (`Key`,`Cluster`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置服务自身配置';

# Dump of table accesskey
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AccessKey`;

CREATE TABLE `AccessKey` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Secret` varchar(128) NOT NULL DEFAULT '' COMMENT 'Secret',
  `IsEnabled` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: enabled, 0: disabled',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DeletedAt` BIGINT(20) NOT NULL DEFAULT '0' COMMENT 'Delete timestamp based on milliseconds',
  `DataChange_CreatedBy` varchar(64) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(64) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `UK_AppId_Secret_DeletedAt` (`AppId`,`Secret`,`DeletedAt`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='访问密钥';


# Dump of table serviceregistry
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ServiceRegistry`;

CREATE TABLE `ServiceRegistry` (
  `Id` INT(11) UNSIGNED NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ServiceName` VARCHAR(64) NOT NULL COMMENT '服务名',
  `Uri` VARCHAR(64) NOT NULL COMMENT '服务地址',
  `Cluster` VARCHAR(64) NOT NULL COMMENT '集群，可以用来标识apollo.cluster或者网络分区',
  `Metadata` VARCHAR(1024) NOT NULL DEFAULT '{}' COMMENT '元数据，key value结构的json object，为了方面后面扩展功能而不需要修改表结构',
  `DataChange_CreatedTime` TIMESTAMP NOT NULL COMMENT '创建时间',
  `DataChange_LastTime` TIMESTAMP NOT NULL COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE INDEX `IX_UNIQUE_KEY` (`ServiceName`, `Uri`),
  INDEX `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='注册中心';


# Config
# ------------------------------------------------------------
INSERT INTO `ServerConfig` (`Key`, `Cluster`, `Value`, `Comment`)
VALUES
    ('eureka.service.url', 'default', 'http://localhost:8083/eureka/', 'Eureka服务Url，多个service以英文逗号分隔'),
    ('namespace.lock.switch', 'default', 'false', '一次发布只能有一个人修改开关'),
    ('item.key.length.limit', 'default', '128', 'item key 最大长度限制'),
    ('item.value.length.limit', 'default', '20000', 'item value最大长度限制'),
    ('config-service.cache.enabled', 'default', 'false', 'ConfigService是否开启缓存，开启后能提高性能，但是会增大内存消耗！');

# Sample Data
# ------------------------------------------------------------
INSERT INTO `App` (`AppId`, `Name`, `OrgId`, `OrgName`, `OwnerName`, `OwnerEmail`)
VALUES
  ('SampleApp', 'Sample App', 'TEST1', '样例部门1', 'apollo', 'apollo@acme.com');

INSERT INTO `AppNamespace` (`Name`, `AppId`, `Format`, `IsPublic`, `Comment`)
VALUES
  ('application', 'SampleApp', 'properties', 0, 'default app namespace');

INSERT INTO `Cluster` (`Name`, `AppId`)
VALUES
  ('default', 'SampleApp');

INSERT INTO `Namespace` (`Id`, `AppId`, `ClusterName`, `NamespaceName`)
VALUES
  (1, 'SampleApp', 'default', 'application');


INSERT INTO `Item` (`NamespaceId`, `Key`, `Value`, `Comment`, `LineNum`)
VALUES
  (1, 'timeout', '100', 'sample timeout配置', 1);

INSERT INTO `Release` (`ReleaseKey`, `Name`, `Comment`, `AppId`, `ClusterName`, `NamespaceName`, `Configurations`)
VALUES
  ('20161009155425-d3a0749c6e20bc15', '20161009155424-release', 'Sample发布', 'SampleApp', 'default', 'application', '{\"timeout\":\"100\"}');

INSERT INTO `ReleaseHistory` (`AppId`, `ClusterName`, `NamespaceName`, `BranchName`, `ReleaseId`, `PreviousReleaseId`, `Operation`, `OperationContext`, `DataChange_CreatedBy`, `DataChange_LastModifiedBy`)
VALUES
  ('SampleApp', 'default', 'application', 'default', 1, 0, 0, '{}', 'apollo', 'apollo');

INSERT INTO `ReleaseMessage` (`Message`)
VALUES
  ('SampleApp+default+application');

/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;

ApolloConfigDBPro数据双环境修改： 1、修改ServerConfig表eureka.service.url的值为http://localhost:8083/eureka/

2、docker搭建mysql

docker pull mysql:5.7   # 拉取 mysql 5.7
docker pull mysql       # 拉取最新版mysql镜像
docker images           # 检查是否拉取成功

docker run -p 23306:3306 --privileged=true --name mysql-apollo -e MYSQL_ROOT_PASSWORD=123456 -d sql

端口向外暴露为：23306，避免与docker 中其他容器暴露的端口产生冲突

3、进入mysql容器执行sql文件

docker ps -a #查询mysql容器的容器编号
docker cp sql 4ab95c1d21ae:/home/ #将装有sql文件的文件夹复制到指定容器编号的文件夹中
docker exec -it 4ab /bin/bash #进入容器，4ab替换成自己的容器编号前三位

mysql -u root -p #进入mysql，输入密码
#执行sql文件
source /home/sql/apolloportaldb.sql
source /home/sql/apolloconfigdbDev.sql
source /home/sql/apolloconfigdbPro.sql
show databases; #查询所有数据库，检查是否已经创建完成
exit #退出mysql
exit #退出容器

二、搭建idoop/docker-apollo

1、下载apollo项目并解压

github.com/idoop/docke…

2、如果docker端口被占用的修改

PORTAL_PORT=8070 \ #必要端口
    DEV_ADMIN_PORT=8090 \ #必要端口

    FAT_ADMIN_PORT=8091 \
    UAT_ADMIN_PORT=8092 \
    PRO_ADMIN_PORT=8093 \

    DEV_CONFIG_PORT=8080 \ #必要端口
		FAT_CONFIG_PORT=8081 \
    UAT_CONFIG_PORT=8082 \
    PRO_CONFIG_PORT=8083

例子：当前8090的端口已被占用，因此需要修改

1、修改Dockfile文件

ENV VERSION=1.9.0 \
    PORTAL_PORT=8070 \
    DEV_ADMIN_PORT=8095 \ #将原来的8090修改为8095
    FAT_ADMIN_PORT=8091 \
    UAT_ADMIN_PORT=8092 \
    PRO_ADMIN_PORT=8093 \
    DEV_CONFIG_PORT=8080 \
    FAT_CONFIG_PORT=8081 \
    UAT_CONFIG_PORT=8082 \
    PRO_CONFIG_PORT=8083

EXPOSE 8070 8080 8081 8082 8083 8090 8091 8092 8093 8095 #更改8090为8095或者新加一个8095

2、修改docker-compose.yaml文件

DEV_DB: jdbc:mysql://172.80.130.12:23306/ApolloConfigDBDev?characterEncoding=utf8
DEV_DB_USER: root
DEV_DB_PWD: 123456
DEV_ADMIN_PORT: 8095 #因为原来是8090，现在为8095，所以需要指定使用端口8095

由于8090端口是DEV的Admin端口，但是被占用了，因此需要修改dev的admin端口为8095

根据不同的环境的端口，更换端口时需要指定，

PORTAL_PORT: 80 XXX_CONFIG_PORT: XXX_ADMIN_PORT:

如果是dev以外的环境的config端口需要修改，则也需要修改对应的环境config数据库 修改ServerConfig表eureka.service.url的值为http://localhost:修改的端口号/eureka/

3、完成apollo部署

1、复制apollo文件夹复制到虚拟机中

2、执行docker-compose，启动apollo容器

docker-compose up

三、mysql通过docker-compose部署

1、按照第一步完成sql文件的修改

2、编写docker-compose.yml文件

version: '2.2'
services:
  mysql:
    container_name: mysql-apollo
    image: mysql:8.0
    ports:
      - "23306:3306"
    privileged: true
    environment:
      MYSQL_ROOT_PASSWORD: 123456
    volumes:
      - ./sql:/docker-entrypoint-initdb.d

3、文件夹应该如下设置

然后通过docker-compose up即可

提示

如果启动了apollo的容器以后，再修改mysql的内容，需要重新启动apollo容器

四、检查是否成功

查看dev的注册中心（config的端口）：http://172.80.130.12:8080/ 查看pro的注册中心：http://172.80.130.12:8083/ 进入apollo查看点击项目查看是否有两个环境：http://172.80.130.12:8070/
