前言

最近在研究Android TV开发的leanback，打算学习使用它的HorizontalGridView，并在此基础上实现一个常见TV应用的分类标题栏。类似的实现有云视听极光app，如下图：

Leanback家族

leanback依赖：

implementation "androidx.leanback:leanback:1.0.0"

参考：Leanback

leanback为我们提供了HorizontalGridView和VerticalGridView用于水平和垂直方向的网格布局，两者均集成自RecyclerView。这里有几个家族成员需要了解一下：

• BaseGridView：继承RecyclerView，处理与焦点相关的逻辑。
  • HorizontalGridView：继承自BaseGridView，提供水平布局。
  • VerticalGridView：继承自BaseGridView，提供垂直布局。
• ArrayObjectAdapter：可以理解为一个数据适配器，用于对数据源的管理。
• Presenter：提供视图的创建和数据绑定，类似RecyclerView.Adapter的能力。
• PresenterSelector：根据不同的数据类型，可以返回不同的Presenter，达到多布局的目的。
• ItemBridgeAdapter：继承自RecyclerView.Adapter，真正的Adapter。

Presenter、PresenterSelector、ItemBridgeAdapter

Presenter的职能类似于RecyclerView中多布局中某一个布局的视图数据适配。提供的方法与RecyclerView.Adapter类似。

// 截取自tv-samples的LeanbackShowCase
public class ImageCardViewPresenter extends AbstractCardPresenter<ImageCardView> {
    。。。

    @Override
    protected ImageCardView onCreateView() {
        ImageCardView imageCardView = new ImageCardView(getContext());
        return imageCardView;
    }

    @Override
    public void onBindViewHolder(Card card, final ImageCardView cardView) {
        cardView.setTag(card);
        cardView.setTitleText(card.getTitle());
        cardView.setContentText(card.getDescription());
        if (card.getLocalImageResourceName() != null) {
            int resourceId = getContext().getResources()
                    .getIdentifier(card.getLocalImageResourceName(),
                            "drawable", getContext().getPackageName());
            Glide.with(getContext())
                    .asBitmap()
                    .load(resourceId)
                    .into(cardView.getMainImageView());
        }
    }

}

PresenterSelector的职能是根据数据类型返回对应布局的Presenter。

// 截取自tv-samples的LeanbackShowCase
public class CardPresenterSelector extends PresenterSelector {

    private final Context mContext;
    private final HashMap<Card.Type, Presenter> presenters = new HashMap<Card.Type, Presenter>();

    public CardPresenterSelector(Context context) {
        mContext = context;
    }

    @Override
    public Presenter getPresenter(Object item) {
        if (!(item instanceof Card)) throw new RuntimeException(
                String.format("The PresenterSelector only supports data items of type '%s'",
                        Card.class.getName()));
        Card card = (Card) item;
        Presenter presenter = presenters.get(card.getType());
        if (presenter == null) {
            switch (card.getType()) {
                。。。
            }
        }
        presenters.put(card.getType(), presenter);
        return presenter;
    }

}

ItemBridgeAdapter在getItemViewType时，可以通过PresenterSelector获取不同的Presenter，在后续的onCreateViewHolder会通过viewType获取到对应的Presenter进行视图创建。属于是对普通多布局写法的扩展。

@Override
public int getItemViewType(int position) {
    PresenterSelector presenterSelector = mPresenterSelector != null
            ? mPresenterSelector : mAdapter.getPresenterSelector();
    Object item = mAdapter.get(position);
    Presenter presenter = presenterSelector.getPresenter(item);
    int type = mPresenters.indexOf(presenter);
    if (type < 0) {
        mPresenters.add(presenter);
        type = mPresenters.indexOf(presenter);
        if (DEBUG) Log.v(TAG, "getItemViewType added presenter " + presenter + " type " + type);
        onAddPresenter(presenter, type);
        if (mAdapterListener != null) {
            mAdapterListener.onAddPresenter(presenter, type);
        }
    }
    return type;
}

@Override
public final RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
    if (DEBUG) Log.v(TAG, "onCreateViewHolder viewType " + viewType);
    Presenter presenter = mPresenters.get(viewType);
    Presenter.ViewHolder presenterVh;
    View view;
    if (mWrapper != null) {
        view = mWrapper.createWrapper(parent);
        presenterVh = presenter.onCreateViewHolder(parent);
        mWrapper.wrap(view, presenterVh.view);
    } else {
        presenterVh = presenter.onCreateViewHolder(parent);
        view = presenterVh.view;
    }

    。。。

    return viewHolder;
}

ps：如果涉及到行列嵌套的场景，可以使用ListRow、ListRowPresenter达到HorizontalGridView和VerticalGridView嵌套的效果。详情可参考下面的文章或项目。

关于Leanback的基础内容可参考：

android/tv-samples

从 Android 开发到读懂源码 第05期：Leanback 结构源码简析

聊一聊 Leanback 中的 HorizontalGridView

TV应用的分类标题栏实现

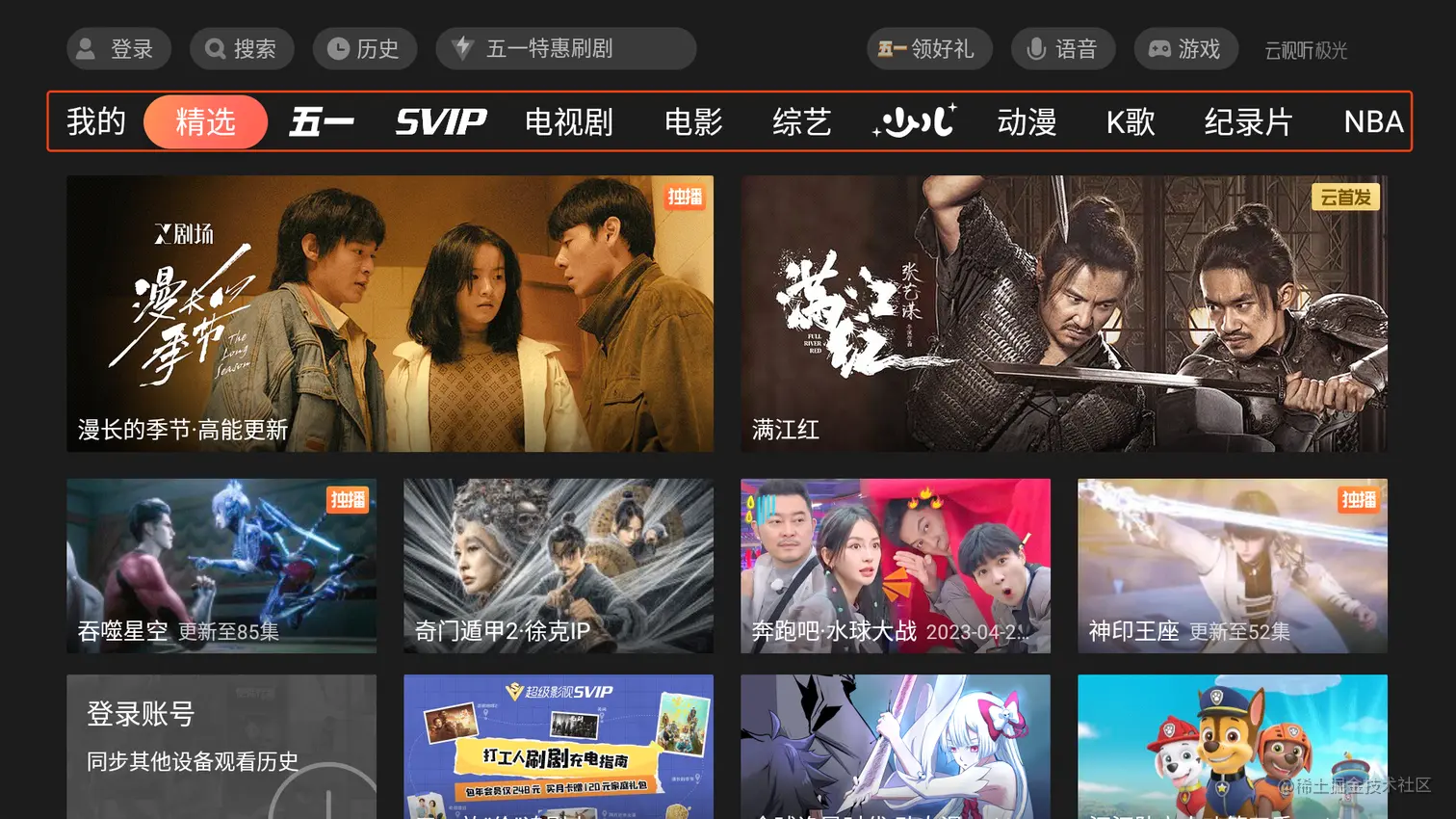

简单的需求描述：

• item获取到焦点后显示为红色背景。
• 焦点离开标题栏后，item仍显示为选中状态，样式为底部显示下划线。
• 焦点从别处回到标题栏，默认选中回之前的item。
• 焦点在标题栏移动，始终居中。
• 手动获取焦点，选中item。

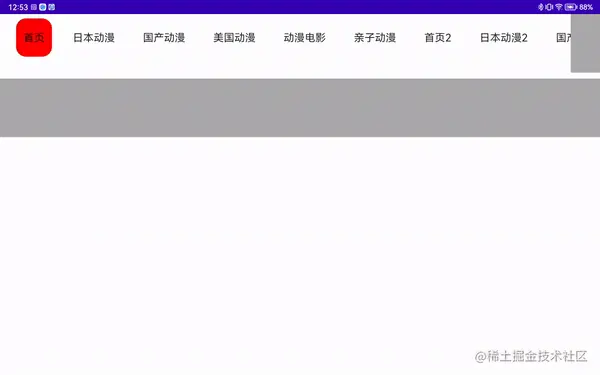

自定义一个item

简单实现一个自定义的TextView，作为标题栏的item。

class TitleItem @JvmOverloads constructor(
    context: Context,
    attr: AttributeSet? = null,
    defStyleAttr: Int = 0
) : AppCompatTextView(context, attr, defStyleAttr) {
    private val backgroundRect: RectF = RectF()
    private val bottomLineRect: RectF = RectF()
    private val backgroundPaint: Paint = Paint(Paint.ANTI_ALIAS_FLAG)

    init {
        isFocusable = true
        isFocusableInTouchMode = true
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) {
            defaultFocusHighlightEnabled = false
        }
    }

    override fun onSizeChanged(w: Int, h: Int, oldw: Int, oldh: Int) {
        super.onSizeChanged(w, h, oldw, oldh)

        backgroundRect.top = width * 0.05f
        backgroundRect.left = width * 0.05f
        backgroundRect.right = w * 1f - width * 0.05f
        backgroundRect.bottom = h * 1f - width * 0.05f

        bottomLineRect.top = h * 1f - h * 0.2f - width * 0.05f
        bottomLineRect.left = w * 0.3f
        bottomLineRect.right = w * 0.7f
        bottomLineRect.bottom = h * 1f - h * 0.1f - width * 0.05f
    }

    override fun onDraw(canvas: Canvas?) {
        canvas ?: return
        if (isFocused) {  // 获取焦点时红色背景
            canvas.drawRoundRect(backgroundRect, width / 4f, width / 4f, backgroundPaint.apply {
                this.color = Color.RED
            })
        } else if (isSelected) {  // 选中状态为红色下划线
            canvas.drawRoundRect(bottomLineRect, width / 2f, width / 2f, backgroundPaint.apply {
                this.color = Color.RED
            })
        }

        super.onDraw(canvas)
    }
}

为适配“焦点离开标题栏后，item仍显示为选中状态”的需求，这里区分使用isFocused和isSelected的绘制部分，在焦点离开标题栏后，会将当前item的isSelected设置为true。这个后面会讲到。

关联

val rowAdapter = ArrayObjectAdapter(TitlePresenter())
titles.forEach {
    rowAdapter.add(it)
}
val gridView = findViewById<HorizontalGridView>(R.id.gridView)
gridView.adapter = ItemBridgeAdapter(rowAdapter)

• TitlePresenter作为上述TitleItem的视图创建和数据绑定
• ArrayObjectAdapter添加对应的title集合
• 通过ItemBridgeAdapter往HorizontalGridView设置视图和数据适配

失去焦点后，继续保持item的选中效果

失去焦点的场景在TV比较常见的是焦点从标题栏移动到下方的内容区域，此时需要保持item的选中效果。以下这里笔者采用的方案

// TitlePresenter
override fun onBindViewHolder(viewHolder: Presenter.ViewHolder?, item: Any?) {
    viewHolder ?: return
    item ?: return
    if (viewHolder is ViewHolder && item is String) {
        viewHolder.tvTitle.text = item
        viewHolder.tvTitle.onFocusChangeListener = onFocusChangeListener
        viewHolder.tvTitle.tag = item
    }
}

在onBindViewHolder时，设置item的tag，以此来区分是哪个标题。

// TitlePresenter
/** 用于记录获取焦点和失去焦点的item **/
private val map = mutableMapOf<Boolean, String>()
private var lastSelectedView: View? = null

private val onFocusChangeListener = OnFocusChangeListener { view, hasFocus ->
    map[hasFocus] = view.tag.toString()
    if (map[true] == map[false]) {
        //  获得焦点和失去焦点的是同一个item，会有以下两种情况：
        //  RecyclerView失去焦点
        //  RecyclerView重新获得焦点
        //  让此item保持选中状态
        view.isSelected = true
        lastSelectedView = view
    } else {
        lastSelectedView?.isSelected = false
        lastSelectedView = null
    }
}

这里简单理解是：

• 如果OnFocusChangeListener两次回调的item相同，则说明标题栏在失去焦点或者重新获得焦点，此时就要将item的isSelected设置为true，并记录最后一次选中的item
• 如果两次回调的item不相同，说明焦点在标题栏内部的item间移动，只需要将上一次选中的item的isSelected设置为false即可。

这样就可以达到“失去焦点后，继续保持item的选中效果”的目的，这种做法是通过外部监听的方式实现的，如果有更好的办法也可以一起讨论。

参考：

Android TV--RecyclerView中item焦点实战

焦点始终居中

HorizontalGridView可以通过设置setFocusScrollStrategy来修改焦点的滚动策略。默认就是FOCUS_SCROLL_ALIGNED，即焦点居中。

• FOCUS_SCROLL_ALIGNED：焦点居中
• FOCUS_SCROLL_ITEM：焦点在末尾，即RecyclerView原有的滚动效果
• FOCUS_SCROLL_PAGE：翻页，每次滚动会滚动到完整新的一页

如果是自定义RecyclerView实现的话，也可通过该方法来修正焦点居中问题：

// 自定义RecyclerView时，可在每次焦点更新时修正滚动的位置
private fun makeViewCenter(view: View) {
    val parentLeft = this.paddingLeft
    val parentTop = this.paddingTop
    val parentRight = this.width - this.paddingRight
    val childLeft = view.left - view.scrollX
    val childTop = view.top - view.scrollY

    val dx = childLeft - parentLeft - (parentRight - view.width) / 2
    val dy = childTop - parentTop - (parentTop - view.height) / 2
    smoothScrollBy(dx, dy)
}

参考：

android TV常见需求，焦点item保持居中

重新获得焦点后，选中上次的item

HorizontalGridView的父类BaseGridView默认处理了这个焦点问题。如果是想自定义一个有焦点记忆功能的布局，可以考虑在焦点搜索时通过addFocusables将之前选中的item直接加入到可获取焦点的集合里，这样就可以保证上次选中的item可以继续获取焦点了。

下面以自定义RecyclerView时，在addFocusables中将当前选中的位置对应的view重新添加到可获取焦点的集合。 这里只简单展示，不展开叙述。

override fun addFocusables(views: ArrayList<View>?, direction: Int, focusableMode: Int) {
    val view: View? = layoutManager?.findViewByPosition(currentSelectedPosition)
    if (hasFocus() || currentSelectedPosition < 0 || view == null) {
        super.addFocusables(views, direction, focusableMode)
    } else if (view.isFocusable && view.visibility == View.VISIBLE) {
        // 上一次选中的view，直接添加到集合，不再进行递归。
        views?.add(view)
    } else {
        super.addFocusables(views, direction, focusableMode)
    }
}

手动获取焦点，选中item

日常开发会有需求，需要在初始化时默认选中第几个item，默认展示哪个分类的内容。此时可以配合HorizontalGridView#setSelectedPosition方法，内部是交给了自定义LayoutManager实现的，具体就是通过需要选中的位置，滚动到对应位置更新视图和内部数据。这里不过多深究。

public void setSelectedPosition(int position) {
    mLayoutManager.setSelection(position, 0);
}

当然，调用这个只是将RecyclerView滚动到某个位置，不能让指定位置的item获取焦点。此时

• 需要保证的是item的focusable和focusableInTouchMode属性为true，保证item可以获取到焦点。

  isFocusable = true
  isFocusableInTouchMode = true

  or

  android:focusable="true"
  android:focusableInTouchMode="true"


• 然后调用HorizontalGridView#requestFocus

  gridView.requestFocus()


这样就能保证指定的item获取到焦点了。

源码浅析

至于为什么在HorizontalGridView调用requestFocus后，item能获取到焦点呢？这里作一个浅析：

• 当在onCreate时调用requestFocus后，HorizontalGridView获取到焦点。等到onLayout时，RecyclerView会对应触发LayoutManager#onLayoutChildren方法。我们来看看自定义的GridLayoutManager：

  // GridLayoutManager.java
  @Override
  public void onLayoutChildren(RecyclerView.Recycler recycler, RecyclerView.State state) {

     。。。

      // check if we need align to mFocusPosition, this is usually true unless in smoothScrolling
      // 1
      final boolean scrollToFocus = !isSmoothScrolling()
              && mFocusScrollStrategy == BaseGridView.FOCUS_SCROLL_ALIGNED;
      。。。


      do {
          updateScrollLimits();
          oldFirstVisible = mGrid.getFirstVisibleIndex();
          oldLastVisible = mGrid.getLastVisibleIndex();
          // 2
          focusToViewInLayout(hadFocus, scrollToFocus, -deltaPrimary, -deltaSecondary);
          appendVisibleItems();
          prependVisibleItems();
          // b/67370222: do not removeInvisibleViewsAtFront/End() in the loop, otherwise
          // loop may bounce between scroll forward and scroll backward forever. Example:
          // Assuming there are 19 items, child#18 and child#19 are both in RV, we are
          // trying to focus to child#18 and there are 200px remaining scroll distance.
          //   1  focusToViewInLayout() tries scroll forward 50 px to align focused child#18 on
          //      right edge, but there to compensate remaining scroll 200px, also scroll
          //      backward 200px, 150px pushes last child#19 out side of right edge.
          //   2  removeInvisibleViewsAtEnd() remove last child#19, updateScrollLimits()
          //      invalidates scroll max
          //   3  In next iteration, when scroll max/min is unknown, focusToViewInLayout() will
          //      align focused child#18 at center of screen.
          //   4  Because #18 is aligned at center, appendVisibleItems() will fill child#19 to
          //      the right.
          //   5  (back to 1 and loop forever)
      } while (mGrid.getFirstVisibleIndex() != oldFirstVisible
              || mGrid.getLastVisibleIndex() != oldLastVisible);
  }


  • 注释1：scrollToFocus，这里需要确认焦点滚动策略是FOCUS_SCROLL_ALIGNED，即焦点始终居中对齐
  • 注释2：focusToViewInLayout会使默认item获取焦点或进行焦点对齐

  // GridLayoutManager.java
  // called by onLayoutChildren, either focus to FocusPosition or declare focusViewAvailable
  // and scroll to the view if framework focus on it.
  private void focusToViewInLayout(boolean hadFocus, boolean alignToView, int extraDelta,
          int extraDeltaSecondary) {
      // 1
      View focusView = findViewByPosition(mFocusPosition);
      if (focusView != null && alignToView) {  // 如果是FOCUS_SCROLL_ALIGNED策略下，需要进行焦点对齐。
          scrollToView(focusView, false, extraDelta, extraDeltaSecondary);
      }
      if (focusView != null && hadFocus && !focusView.hasFocus()) {
          focusView.requestFocus();
      } else if (!hadFocus && !mBaseGridView.hasFocus()) {
          if (focusView != null && focusView.hasFocusable()) {
              mBaseGridView.focusableViewAvailable(focusView);
          } else {
              for (int i = 0, count = getChildCount(); i < count; i++) {
                  focusView = getChildAt(i);
                  if (focusView != null && focusView.hasFocusable()) {
                      mBaseGridView.focusableViewAvailable(focusView);
                      break;
                  }
              }
          }
          // focusViewAvailable() might focus to the view, scroll to it if that is the case.
          if (alignToView && focusView != null && focusView.hasFocus()) {
              scrollToView(focusView, false, extraDelta, extraDeltaSecondary);
          }
      }
  }


  优先关注注释1，mFocusPosition为记录当前获取焦点的位置，在前面的onLayoutChildren中有这样的操作：

  // GridLayoutManager.java
  private boolean layoutInit() {
      final int newItemCount = mState.getItemCount();
      if (newItemCount == 0) {
          mFocusPosition = NO_POSITION;
          mSubFocusPosition = 0;
      } else if (mFocusPosition >= newItemCount) {
          mFocusPosition = newItemCount - 1;
          mSubFocusPosition = 0;
      } else if (mFocusPosition == NO_POSITION && newItemCount > 0) {  // 如果mFocusPosition是初始值，item数量大于0，会主动将mFocusPosition设置为0
          // if focus position is never set before,  initialize it to 0
          mFocusPosition = 0;
          mSubFocusPosition = 0;
      }
      。。。


  即当item数量大于0后，mFocusPosition会默认为0，当然这个也可以通过前面讲到的setSelectedPosition修改的。

  回到focusToViewInLayout中，通过mFocusPosition可以获取到当前需要获取焦点的view，alignToView即为前面提到的scrollToFocus，即需要进行焦点对齐。此时就会调用到scrollToView方法。 ps：该方法在子View主动获取焦点，选中位置变更等逻辑被广泛使用。

  // GridLayoutManager.java
  private void scrollToView(View view, View childView, boolean smooth, int extraDelta,
          int extraDeltaSecondary) {
      if ((mFlag & PF_SLIDING) != 0) {
          return;
      }
      // 变更位置记录，并响应监听
      int newFocusPosition = getAdapterPositionByView(view);
      int newSubFocusPosition = getSubPositionByView(view, childView);
      if (newFocusPosition != mFocusPosition || newSubFocusPosition != mSubFocusPosition) {
          mFocusPosition = newFocusPosition;
          mSubFocusPosition = newSubFocusPosition;
          mFocusPositionOffset = 0;
          if ((mFlag & PF_STAGE_MASK) != PF_STAGE_LAYOUT) {
              dispatchChildSelected();
          }
          if (mBaseGridView.isChildrenDrawingOrderEnabledInternal()) {
              mBaseGridView.invalidate();
          }
      }
      if (view == null) {
          return;
      }
      // MARK: - 若当前view没有焦点，且GridView有焦点，那么子view需要获取焦点
      // 1
      if (!view.hasFocus() && mBaseGridView.hasFocus()) {
          // transfer focus to the child if it does not have focus yet (e.g. triggered
          // by setSelection())
          view.requestFocus();
      }
      if ((mFlag & PF_SCROLL_ENABLED) == 0 && smooth) {
          return;
      }
      if (getScrollPosition(view, childView, sTwoInts)
              || extraDelta != 0 || extraDeltaSecondary != 0) {
          scrollGrid(sTwoInts[0] + extraDelta, sTwoInts[1] + extraDeltaSecondary, smooth);
      }
  }


  关注注释1，view即为需要获取焦点的item，当它没有焦点而GridView有焦点时，需要将焦点转移到item上。而GridView之所以获取到焦点是因为我们在刚开始时调用了它的requestFocus。

• 还有一种情况是，在其余情况下手动调用requestFocus后，根据ViewGroup的策略是需要分发给子View获取的，这是ViewGroup#requestFocus

  // ViewGroup.java
  public boolean requestFocus(int direction, Rect previouslyFocusedRect) {
      if (DBG) {
          System.out.println(this + " ViewGroup.requestFocus direction="
                  + direction);
      }
      int descendantFocusability = getDescendantFocusability();

      boolean result;
      switch (descendantFocusability) {
          case FOCUS_BLOCK_DESCENDANTS: // 禁止子View获取焦点
              result = super.requestFocus(direction, previouslyFocusedRect);
              break;
          case FOCUS_BEFORE_DESCENDANTS: { // 优先子View获取焦点
              final boolean took = super.requestFocus(direction, previouslyFocusedRect);
              result = took ? took : onRequestFocusInDescendants(direction,
                      previouslyFocusedRect);
              break;
          }
          case FOCUS_AFTER_DESCENDANTS: { // 子View优先获取焦点
              final boolean took = onRequestFocusInDescendants(direction, previouslyFocusedRect);
              result = took ? took : super.requestFocus(direction, previouslyFocusedRect);
              break;
          }
          default:
              throw new IllegalStateException(
                      "descendant focusability must be one of FOCUS_BEFORE_DESCENDANTS,"
                          + " FOCUS_AFTER_DESCENDANTS, FOCUS_BLOCK_DESCENDANTS but is "
                              + descendantFocusability);
      }
      if (result && !isLayoutValid() && ((mPrivateFlags & PFLAG_WANTS_FOCUS) == 0)) {
          mPrivateFlags |= PFLAG_WANTS_FOCUS;
      }
      return result;
  }


  所以会触发BaseGridView#onRequestFocusInDescendants方法

  // BaseGridView.java
  @Override
  public boolean onRequestFocusInDescendants(int direction, Rect previouslyFocusedRect) {
      return mLayoutManager.gridOnRequestFocusInDescendants(this, direction,
              previouslyFocusedRect);
  }

  // GridLayoutManager.java
  boolean gridOnRequestFocusInDescendants(RecyclerView recyclerView, int direction,
          Rect previouslyFocusedRect) {
      switch (mFocusScrollStrategy) {
          case BaseGridView.FOCUS_SCROLL_ALIGNED:
          default:
              // 1
              return gridOnRequestFocusInDescendantsAligned(recyclerView,
                      direction, previouslyFocusedRect);
          case BaseGridView.FOCUS_SCROLL_PAGE:
          case BaseGridView.FOCUS_SCROLL_ITEM:
              return gridOnRequestFocusInDescendantsUnaligned(recyclerView,
                      direction, previouslyFocusedRect);
      }
  }

  private boolean gridOnRequestFocusInDescendantsAligned(RecyclerView recyclerView,
          int direction, Rect previouslyFocusedRect) {
      View view = findViewByPosition(mFocusPosition);
      if (view != null) {
          // 2
          boolean result = view.requestFocus(direction, previouslyFocusedRect);
          if (!result && DEBUG) {
              Log.w(getTag(), "failed to request focus on " + view);
          }
          return result;
      }
      return false;
  }


  可以看到当焦点滚动策略是FOCUS_SCROLL_ALIGNED（注释1）时，会自动寻找当前mFocusPosition的item，并调用其requestFocus（注释2）。

效果

最后大概的效果就是这样了，下面有一个View用于模拟内容区焦点选中的效果。

最后

本文主要介绍如何使用HorizontalGridView实现一个TV应用的分类标题栏，中间穿插了一些对于焦点处理的解析，由于Android的焦点流程比较复杂，考虑后续写一篇文章专门梳理，方便后续处理问题。
