TypeORM

安装typeorm

pnpm i -save @nestjs/typeorm typeorm mysql2

在nestjs中基本使用

1. 创建 env 配置环境与枚举常量

NODE_ENV=development

DB_TYPE=mysql
DB_HOST=localhost
DB_PORT=3307

DB_DATABASE=testdb
DB_USERNAME=root
DB_PASSWORD=example

DB_SYNC=false

export enum ConfigEnum {
  DB_TYPE = 'DB_TYPE',
  DB_HOST = 'DB_HOST',
  DB_PORT = 'DB_PORT',
  DB_DATABASE = 'DB_DATABASE',
  DB_USERNAME = 'DB_USERNAME',
  DB_PASSWORD = 'DB_PASSWORD',
  DB_SYNC = 'DB_SYNC'
}

2. 创建 entity

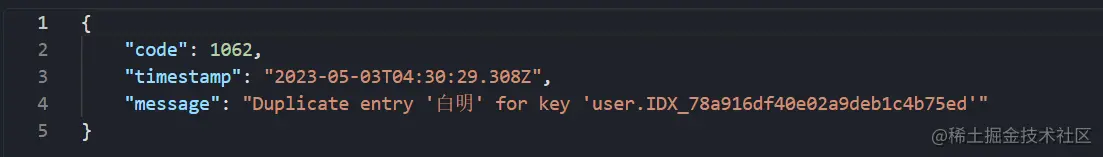

• unique 代表唯一索引

import { Logs } from 'src/logs/logs.entity'
import { Roles } from 'src/roles/entity/roles.entity'
import { Column, Entity, PrimaryGeneratedColumn } from 'typeorm'

@Entity()
export class User {
  @PrimaryGeneratedColumn()
  id: number

  @Column({ unique: true })
  username: string

  @Column()
  password: string
}

3. 在 app.module 引入

• 在 TypeOrmModule 的 entities 导入上面定义 User，再使用 synchronize 初始化数据表
• synchronize 为 true 表示将自动同步实体和数据库（如果数据库中不存在相应表），而 false表示不进行自动同步，即不执行数据库的自动迁移。

/* eslint-disable prettier/prettier */
import { Module } from '@nestjs/common';
import { ConfigModule, ConfigService } from '@nestjs/config';
import { AppController } from './app.controller';
import { AppService } from './app.service';
import Configuration from './configuration';
import { TypeOrmModule, TypeOrmModuleOptions } from '@nestjs/typeorm';

import { ConfigEnum } from './enum/config.enum'
import { UserModule } from './user/user.module';
import { User } from './user/entities/user.entity';
import { Profile } from './user/entities/profile.entity';
import { Roles } from './roles/entity/roles.entity';
import { Logs } from './logs/logs.entity';

@Module({
  imports: [
    ConfigModule.forRoot({
      isGlobal: true, // 定义为全局
    }),
    TypeOrmModule.forRootAsync({
      imports: [ConfigModule],
      inject: [ConfigService],
      useFactory: (config: ConfigService) => ({
        type: config.get(ConfigEnum.DB_TYPE),
        host: config.get(ConfigEnum.DB_HOST),
        port: config.get(ConfigEnum.DB_PORT),
        username: config.get(ConfigEnum.DB_USERNAME),
        password: config.get(ConfigEnum.DB_PASSWORD),
        database: config.get(ConfigEnum.DB_DATABASE),
        entities: [User],
        // 同步本地的schema与数据库 -> 初始化的时候使用
        synchronize: config.get(ConfigEnum.DB_SYNC),
        // 设置日志等级
        logging: ['error']
      } as TypeOrmModuleOptions)
    }),
    UserModule,
  ],
  controllers: [AppController],
  providers: [AppService],
})
export class AppModule { }

或者也可以创建一个文件配置 TypeOrmModule

import { TypeOrmModuleOptions } from '@nestjs/typeorm'
import { Logs } from './src/logs/entities/logs.entity'
import { Roles } from './src/roles/entity/roles.entity'
import { Profile } from './src/user/entities/profile.entity'
import { User } from './src/user/entities/user.entity'

export default {
  type: 'mysql',
  host: 'localhost',
  port: 3307,
  username: 'root',
  password: 'example',
  database: 'testdb',
  entities: [User, Profile, Roles, Logs],
  // 同步本地的schema与数据库 -> 初始化的时候使用
  synchronize: true,
  // 设置日志输出sql 也可以通过 logs
  // logging: process.env.NODE_ENV === 'development' // true打印sql语句
  logging: true
} as TypeOrmModuleOptions

AppModule

import { Module } from '@nestjs/common'
import { ConfigModule } from '@nestjs/config'
import { TypeOrmModule } from '@nestjs/typeorm'
import { AppController } from './app.controller'
import { AppService } from './app.service'

import { LogsModule } from './logs/logs.module'
import { UserModule } from './user/user.module'
import ormconfig from '../ormconfig'

@Module({
  imports: [
    ConfigModule.forRoot({
      isGlobal: true // 定义为全局
    }),
    // 必须forRoot forRootAsync不行
    TypeOrmModule.forRoot(ormconfig),
    UserModule,
    LogsModule
  ],
  controllers: [AppController],
  providers: [AppService]
})
export class AppModule {}

4. 结果

数据库生成实体类

1. 安装生成器依赖

pnpm i typeorm-model-generator -D

2.配置 package.json 命令

• -p 端口
• -d 数据库
• -x 后接密码
• -o 后接生成实体类的存放路径

"generate:models": "typeorm-model-generator -h localhost -p 3307 -d testdb -u root -x example -e mssql -o ./src/entities"

3. 运行命令

pnpm generate:models

增删改查

1. 在 user.module.ts 中导入 TypeOrmModule

import { Module } from '@nestjs/common'
import { UserService } from './user.service'
import { UserController } from './user.controller'
import { User } from './entities/user.entity'
import { TypeOrmModule } from '@nestjs/typeorm'

@Module({
  imports: [TypeOrmModule.forFeature([User])],
  controllers: [UserController],
  providers: [UserService]
})
export class UserModule { }

2. dto

export class CreateUserDto {
  username: string
  password: string
}

3. user.service.ts

import { Injectable } from '@nestjs/common'
import { CreateUserDto } from './dto/create-user.dto'
import { UpdateUserDto } from './dto/update-user.dto'
import { InjectRepository } from '@nestjs/typeorm'
import { User } from './entities/user.entity'
import { Repository } from 'typeorm'

@Injectable()
export class UserService {
  constructor(
    @InjectRepository(User) private userRepository: Repository<User>
  ) { }

  create(createUserDto: CreateUserDto) {
    return this.userRepository.save(createUserDto)
  }

  findAll() {
    return this.userRepository.find()
  }

  findOne(id: number) {
    return this.userRepository.findOne({ where: { id } })
  }

  async update(id: number, updateUserDto: Partial<User>) {
    await this.userRepository.update(id, updateUserDto)
    return this.findOne(id)
  }

  remove(id: number) {
    return this.userRepository.delete(id)
  }
}

4. controller

import {
  Controller,
  Get,
  Post,
  Body,
  Patch,
  Param,
  Delete
} from '@nestjs/common'
import { UserService } from './user.service'
import { UpdateUserDto } from './dto/update-user.dto'
import { User } from './entities/user.entity'
import { CreateUserDto } from './dto/create-user.dto'

@Controller('user')
export class UserController {
  constructor(private readonly userService: UserService) { }

  @Post()
  create(@Body() createUserDto: CreateUserDto) {
    return this.userService.create(createUserDto)
  }

  @Get()
  findAll() {
    return this.userService.findAll()
  }

  @Get(':id')
  findOne(@Param('id') id: string) {
    return this.userService.findOne(+id)
  }

  @Patch(':id')
  update(@Param('id') id: string, @Body() updateUserDto: Partial<User>) {
    return this.userService.update(+id, updateUserDto)
  }

  @Delete(':id')
  remove(@Param('id') id: string) {
    return this.userService.remove(+id)
  }
}

联合关系

OneToOne

1. 定义 entities

import {
  Column,
  Entity,
  JoinColumn,
  OneToOne,
  PrimaryGeneratedColumn
} from 'typeorm'
import { User } from './user.entity'

@Entity()
export class Profile {
  @PrimaryGeneratedColumn()
  id: number

  @Column()
  gender: number

  @Column()
  photo: string

  @Column()
  address: string

  // 一对一关联关系
  @OneToOne(() => User)
  // 默认加入的关联关系字段名会以表名与主键小驼峰连接 userId
  @JoinColumn()
  // name自定义关联关系的字段名称
  // @JoinColumn({ name: 'user_id' })
  // 查询(也就是join)时会查userId与User表的id相同的数据 并将数据塞入user
  user: User
}

user

import { Column, Entity, OneToOne, PrimaryGeneratedColumn } from 'typeorm'
import { Profile } from './profile.entity'

@Entity()
export class User {
  @PrimaryGeneratedColumn()
  id: number

  @Column()
  username: string

  @Column()
  password: string

  @OneToOne(() => Profile, (profile) => profile.user)
  profile: Profile
}

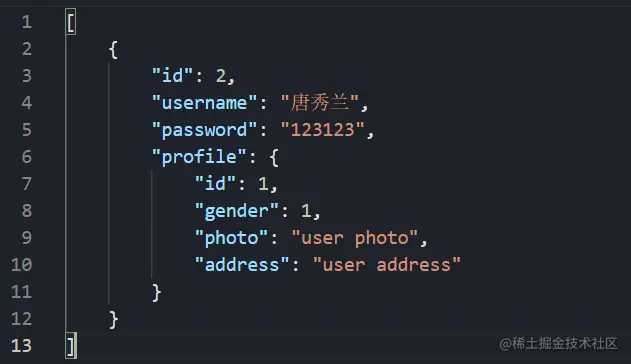

2. 查询

@Injectable()
export class UserService {
  constructor(
    @InjectRepository(User) private userRepository: Repository<User>
  ) { }

  ...

  findProfile(id: number) {
    return this.userRepository.find({
      where: {
        id
      },
      relations: {
        profile: true
      }
    })
  }
}

OneToMany与ManyToMany

1. 定义 entities

User

import { Logs } from 'src/logs/logs.entity'
import { Roles } from 'src/roles/entity/roles.entity'
import {
  Column,
  Entity,
  JoinTable,
  ManyToMany,
  OneToMany,
  PrimaryGeneratedColumn
} from 'typeorm'

@Entity()
export class User {
  @PrimaryGeneratedColumn()
  id: number

  @Column()
  username: string

  @Column()
  password: string

  // oneToMany 一个用户有多条log日志输出
  // logs.user代表的是logs表中的userId 告诉服务器去查询user表的id与logs表中的userId相等的数据 就是join
  // 然后把查询到的数据塞给logs
  @OneToMany(() => Logs, (logs) => logs.user)
  logs: Logs[]

  @ManyToMany(() => Roles, (roles) => roles.users)
  // 生成多对多关联表
  @JoinTable({ name: 'users-roles' })
  roles: Roles[]
}

Logs

import { User } from 'src/user/entities/user.entity'
import {
  Column,
  Entity,
  JoinColumn,
  ManyToOne,
  PrimaryGeneratedColumn
} from 'typeorm'

@Entity()
export class Logs {
  @PrimaryGeneratedColumn()
  id: number

  @Column()
  path: string

  @Column()
  method: string

  @Column()
  data: string

  @Column()
  result: string

  // ManyToOne 多条日志是同一个用户输出
  @ManyToOne(() => User, (user) => user.logs)
  // 生成userId字段
  @JoinColumn()
  user: User
}

Roles

import { User } from 'src/user/entities/user.entity'
import { Column, Entity, ManyToMany, PrimaryGeneratedColumn } from 'typeorm'

@Entity()
export class Roles {
  @PrimaryGeneratedColumn()
  id: number

  @Column()
  name: string

  @ManyToMany(() => User, (user) => user.roles)
  users: User[]
}

2. 查询

@Injectable()
export class UserService {
  constructor(
    @InjectRepository(User) private userRepository: Repository<User>,
    @InjectRepository(Logs) private logsRepository: Repository<Logs>
  ) { }

  ...

  async findUserLogs(id: number) {
    const user = await this.findOne(id)
    return this.logsRepository.find({
      where: {
        user
      }
      // relations: {
      //   user: true
      // }
    })
  }
}

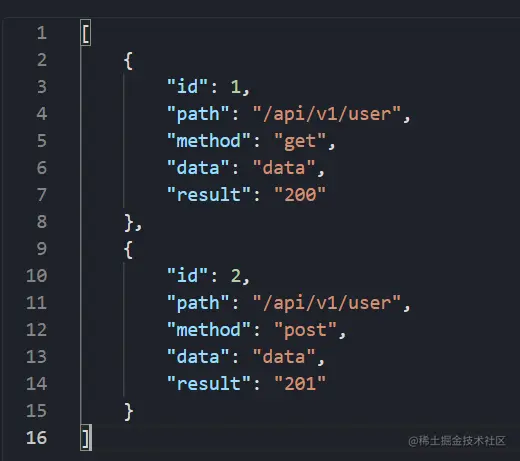

注释 relations ，不会把 user 查出来

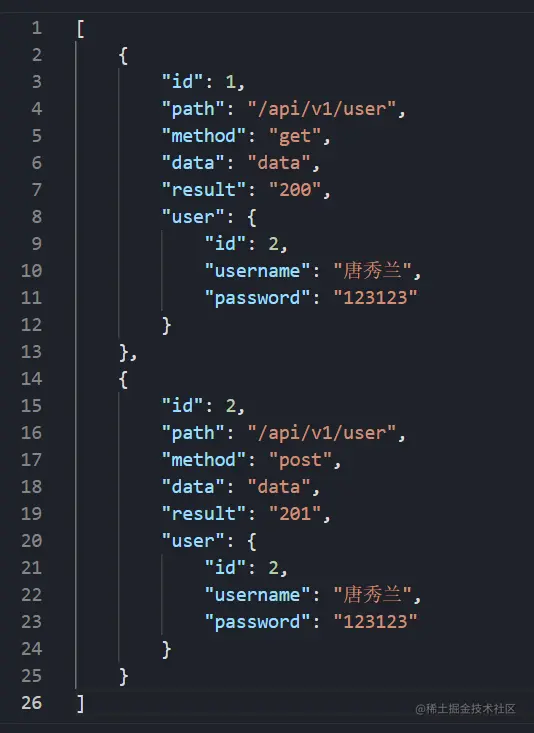

使用 relations ，把 user 查出来

QueryBuilder

基本使用

service

@Injectable()
export class UserService {
  constructor(
    @InjectRepository(Logs) private logsRepository: Repository<Logs>
  ) {}

  ...

  getLogsByGroup(id: number): Promise<any[]> {
    // SELECT logs.result as result, COUNT(logs.result) as count from logs, user WHERE user.id = logs.userId AND user.id = 2 GROUP BY logs.result

    // logs为别名
    return this.logsRepository
      .createQueryBuilder('logs')
      .select('logs.result', 'result')
      .addSelect('COUNT("logs.result")', 'count') // count为COUNT("logs.result")的别名
      .leftJoinAndSelect('logs.user', 'user')
      .where('user.id=:id', { id })
      .groupBy('logs.result')
      .orderBy('result', 'DESC') // 根据result倒序排列
      .addOrderBy('count', 'DESC') // 如果result相同 根据count倒序排列
      .limit(3) // 只查3条
      .getRawMany()
  }
}

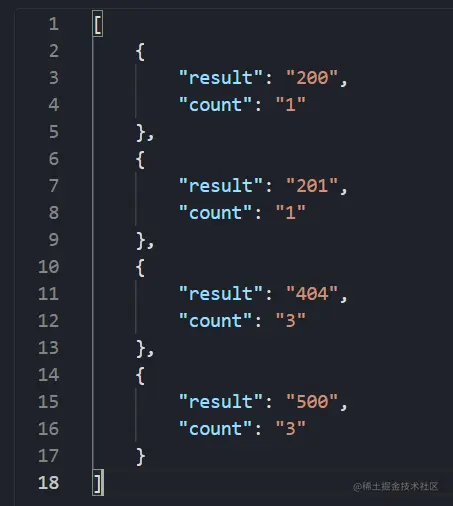

controller

@Controller('user')
export class UserController {
  constructor(private readonly userService: UserService) {}

  @Get('/logsByGroup/:id')
  async getLogsByGroup(@Param('id') id: string) {
    const res = await this.userService.getLogsByGroup(+id)

    // 映射返回数据 只返回 result 与 count
    return res.map((item) => ({
      result: item.result,
      count: item.count
    }))
  }
}

原生使用

service

@Injectable()
export class UserService {
  constructor(
    @InjectRepository(User) private userRepository: Repository<User>,
    @InjectRepository(Logs) private logsRepository: Repository<Logs>
  ) {}

  getLogsByGroup(id: number): Promise<any[]> {
    return this.logsRepository.query(
      'SELECT logs.result as result, COUNT(logs.result) as count from logs, user WHERE user.id = logs.userId AND user.id = 2 GROUP BY logs.result'
    )
  }
}

分页查询

find分页查询

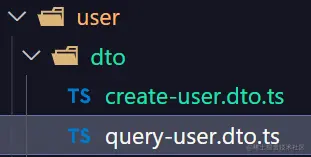

1. 定义查询 dto

export interface QueryUserDto {
  page: number
  limit?: number
  username?: string
  role?: number // 下拉框
  gender?: number
}

2. controller

...
import { QueryUserDto } from './dto/query-user.dto'

@Controller('user')
export class UserController {
  ...

  @Get()
  findAll(@Query() query: QueryUserDto) {
    return this.userService.findAll(query)
  }
}

3. service

• 通过 take 、 skip 进行分页
• 会根据 limit, page, username, gender, role 是否有值动态形成 sql

@Injectable()
export class UserService {
  ...

  findAll(query: QueryUserDto) {
    const { limit, page, username, gender, role } = query
    const take = limit || 10

    return this.userRepository.find({
      select: {
        id: true,
        username: true,
        profile: {
          gender: true
        }
      },
      relations: {
        profile: true,
        roles: true
      },
      where: {
        username,
        profile: {
          gender
        },
        roles: {
          id: role
        }
      },
      take,
      skip: (page - 1) * take
    })
  }
}

select: 可以选择展示什么数据

relations: 是否展示联合的数据，如下图的 profile 、 roles

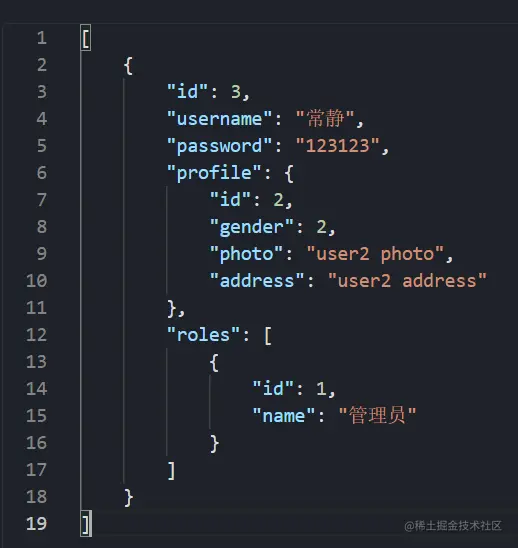

• 不添加 select

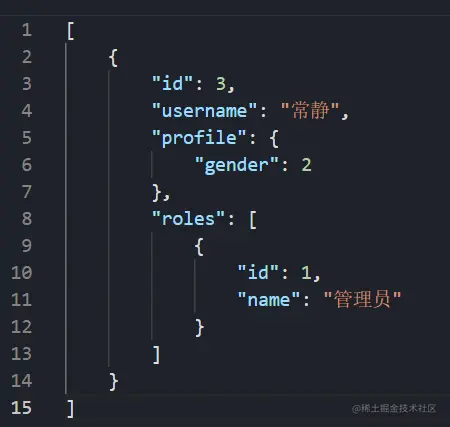

• 添加 select

QueryBuilder分页查询

1. QueryBuilder 不能根据参数动态生成 sql，需要外面手动动态生成，如下的 conditionUtils

...
import { conditionUtils } from 'src/utils/db.helper'

@Injectable()
export class UserService {
  ...

  findAll(query: QueryUserDto) {
    const { limit, page, username, gender, role } = query
    const take = limit || 10

    const obj = {
      'user.username': username,
      'profile.gender': gender,
      'roles.id': role
    }

    const queryBuilder = this.userRepository
      .createQueryBuilder('user')
      // 通过左连接profile表并把数据填充到user.profile且起个别名profile
      .leftJoinAndSelect('user.profile', 'profile')
      .leftJoinAndSelect('user.roles', 'roles')

    const newQuery = conditionUtils<User>(queryBuilder, obj)

    return newQuery
      .take(take)
      .skip((page - 1) * take)
      .getMany()
  }
}

2. 封装判断参数是否存在动态添加 sql 的工具方法

import { SelectQueryBuilder } from 'typeorm'

export const conditionUtils = <T>(
  queryBuilder: SelectQueryBuilder<T>,
  obj: Record<string, unknown>
) => {
  Object.keys(obj).forEach((key) => {
    // 如果参数存在 再添加wherer参数
    if (obj[key]) {
      queryBuilder.andWhere(`${key}=:${key}`, { [key]: obj[key] })
    }
  })

  return queryBuilder
}

TypeORM数据库异常处理

1. 创建 typeorm 的过滤器

import { ArgumentsHost, Catch, ExceptionFilter } from '@nestjs/common'
import { QueryFailedError, TypeORMError } from 'typeorm'

// 捕抓TypeORMError类型的错误
@Catch(TypeORMError)
export class TypeormFilter implements ExceptionFilter {
  catch(exception: TypeORMError, host: ArgumentsHost) {
    const ctx = host.switchToHttp()
    // 响应、请求对象
    const response = ctx.getResponse()

    let code = 500
    if (exception instanceof QueryFailedError) {
      code = exception.driverError.errno
    }

    response.status(500).json({
      code: code,
      timestamp: new Date().toISOString(),
      message: exception.message
    })
  }
}

2. 使用：可以在 main.ts 全局注册 filter 使用，也可以在 controller 中使用注解 @UseFilters(new TypeormFilter())

...

@Controller('user')
@UseFilters(new TypeormFilter())
export class UserController {
	...
}
