前言
面向切面编程 - Aspect Oriented Programming (AOP) 是什么：
AOP最早是AOP联盟的组织提出的,指定的一套规范,spring将AOP的思想引入框架之中,通过预编译方式和运行期间动态代理实现程序的统一维护的一种技术。
如何理解AOP？
AOP的本质也是为了 解耦，它是一种设计思想； 提供了一种在代码运行期间实现代码动态织入的能力，在不影响业务代码的基础上，对义务代码的功能逻辑做统一的处理。重点在 解耦 和 复用
怎么用？
AOP 主要是通过代理来实现的，在运行期间，通过代理对需要增强的类进行扩展。
JDK & Cglib 动态代理
代理区分了 JDK 动态代理、Cglib 动态代理，两种方式的区别在于
- JDK 动态代理 只能代理接口，所以被jdk代理的类需要实现一个接口
- Cglib 可以代理接口、也可以直接代理类，Cglib 的通过 ASM 操作 底层字节码实现的代理，所以没有什么限制。
为什么JDK只能代理接口？
这是一个被面试问了很多次的问题，很多时候我们只是知道他就是不能，总是知其然，不知所以然。我们知道的是，JDK代理对象，是通过生成一个实现了接口的新类，然后对这个新类做的扩展。然后执行业务逻辑的生活还是由原来的业务类执行。就是说代理类，其实在执行业务逻辑前，跟实现类是没有很大的关系的。两个类都是存在于 spring的容器中的。
@Test
public void test_cglib(){
IUserDao userDao = (IUserDao) Proxy.newProxyInstance(Thread.currentThread().getContextClassLoader(),
new Class[]{IUserDao.class}, (proxy, method, args) -> "你被代理了！");
String name = userDao.queryName();
String user = userDao.queryUser();
System.out.println("测试结果："+name+","+user);
}
使用JDK动态代理去代理一个类的过程，主要用到的是 Proxy.newProxyInstance。接下来，我们从 源码中去找问题。
/*
* Look up or generate the designated proxy class.
* 获取代理对象
*/
Class<?> cl = getProxyClass0(loader, intfs);
private static Class<?> getProxyClass0(ClassLoader loader,
Class<?>... interfaces) {
if (interfaces.length > 65535) {
throw new IllegalArgumentException("interface limit exceeded");
}
// If the proxy class defined by the given loader implementing
// the given interfaces exists, this will simply return the cached copy;
// otherwise, it will create the proxy class via the ProxyClassFactory
// 如果实现给定接口的给定加载器定义的代理类存在，这将简单地返回缓存副本;
// 否则，它将通过ProxyClassFactory创建代理类。 这里提到通过 ProxyClassFactory 创建代理类，
// 下面我们去看这个是怎么创建对象的
return proxyClassCache.get(loader, interfaces);
}
ProxyClassFactory是proxy 里面的一个内部类，实现了 BiFunction函数式接口
private static final class ProxyClassFactory
implements BiFunction<ClassLoader, Class<?>[], Class<?>>
{
// prefix for all proxy class names
private static final String proxyClassNamePrefix = "$Proxy";
// next number to use for generation of unique proxy class names
private static final AtomicLong nextUniqueNumber = new AtomicLong();
@Override
public Class<?> apply(ClassLoader loader, Class<?>[] interfaces) {
Map<Class<?>, Boolean> interfaceSet = new IdentityHashMap<>(interfaces.length);
for (Class<?> intf : interfaces) {
....
/*
* Verify that the Class object actually represents an
* interface.
* 这里会做一次接口检查
*/
if (!interfaceClass.isInterface()) {
throw new IllegalArgumentException(
interfaceClass.getName() + " is not an interface");
}
...
}
...
/*
* Generate the specified proxy class.
* 这里会去生成一个代理对象
*/
byte[] proxyClassFile = ProxyGenerator.generateProxyClass(
proxyName, interfaces, accessFlags);
....
}
}
把通过JDK代理创建的代理对象输出出来，我们就明白他的 前因后果了。
@Test
public void test_jdk(){
UserService service = new UserService();
Class[] clazzs = new Class[]{IUserService.class};
byte[] bytes = ProxyGenerator.generateProxyClass("UserService", clazzs);
File path = new File("E:\\huangle\\UserService.class");
try {
FileOutputStream outputStream = new FileOutputStream(path);
outputStream.write(bytes);
outputStream.flush();
outputStream.close();
}catch (Exception e){
e.printStackTrace();
}
}
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//
public final class UserService extends Proxy implements IUserService {
private static Method m1;
private static Method m2;
private static Method m4;
private static Method m0;
private static Method m3;
public UserService(InvocationHandler var1) throws {
super(var1);
}
}
通过上面输出的内容，就可以很明显的看出问题所在。
当通过JDK代理后，生成的类，重点在 extends Proxy, 根据 java 单继承、多实现的原理，所以代理类是不能继承 实现类去完成业务的扩展的，所以只能使用 实现接口的方式，来完成对业务的扩展
总结：为什么jdk只能代理接口
因为jdk代理是通过继承 Proxy 来实现的，根据 java 单继承的特点，所以他不能在去继承
业务类类完成对 业务类的扩展，所以只能 通过实现业务类接口的方式来完成扩展。
实现

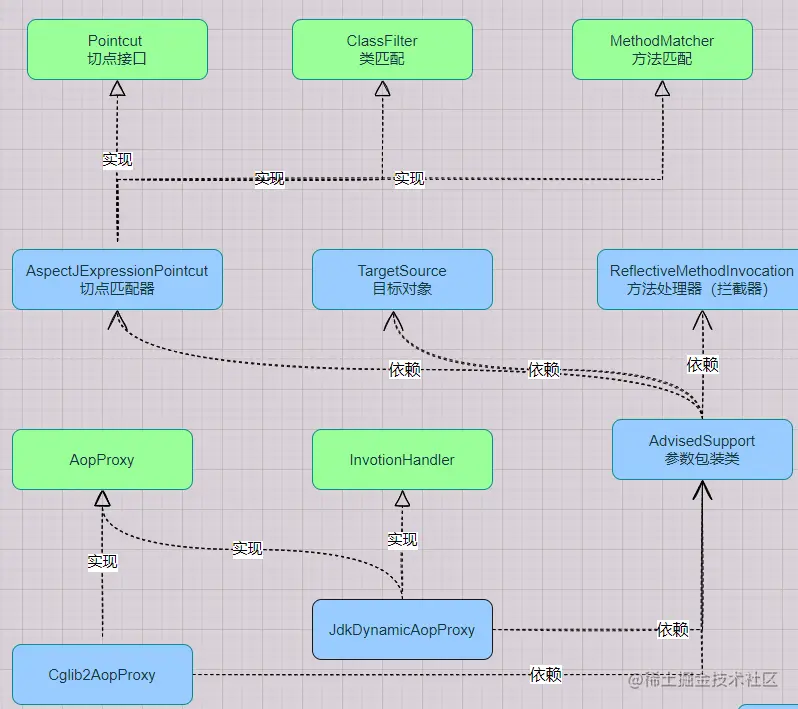

AOP 实现 方法扩展的 主要是通过几个操作实现的。方法拦截器、方法匹配器、代理对象等。
匹配器（类&方法）
主要是 ClassFilter/MethodMatcher
public interface ClassFilter {
/**
* Should the pointcut apply to the given interface or target class?
* @param clazz the candidate target class
* @return whether the advice should apply to the given target class
*/
boolean matches(Class<?> clazz);
}
public interface MethodMatcher {
/**
* Perform static checking whether the given method matches. If this
* @return whether or not this method matches statically
*/
boolean matches(Method method, Class<?> targetClass);
}
切点（匹配器包装接口）
这个接口主要是把 类 匹配器和方法匹配器，包装起来，统一管理（统称切点）
public interface Pointcut {
ClassFilter getClassFilter();
MethodMatcher getMethodMatcher();
}
拦截器(处理方法)
在 aop 中，这类操作 可以分为 前置通知，后置通知， 环绕通知
package org.aopalliance.aop;
public interface Advice {
}
// 观察者模式？
public interface Advisor {
Advice getAdvice();
}
// 前置通知
public interface BeforeAdvice extends Advice {
}
// 方法前置通知
public interface MethodBeforeAdvice extends BeforeAdvice{
void before(Method method, Object[] args, Object target) throws Throwable;
}
jdk & cglib 代理类
/**
* @author huangle
* @date 2023/3/15 15:35
*/
public class CglibAopProxy implements AopProxy{
private final AdvisedSupport advised;
public CglibAopProxy(AdvisedSupport advised) {
this.advised = advised;
}
@Override
public Object getProxy() {
Enhancer enhancer = new Enhancer();
enhancer.setSuperclass(advised.getTargetSource().getTarget().getClass());
enhancer.setInterfaces(advised.getTargetSource().getTargetClass());
enhancer.setCallback(new DynamicAdvisedInterceptor(advised));
return enhancer.create();
}
private static class DynamicAdvisedInterceptor implements MethodInterceptor {
private AdvisedSupport advised;
public DynamicAdvisedInterceptor(AdvisedSupport advised) {
this.advised = advised;
}
@Override
public Object intercept(Object obj, Method method, Object[] args, MethodProxy proxy) throws Throwable {
CglibMethodInvocation methodInvocation = new CglibMethodInvocation(advised.getTargetSource().getTarget(), method, args, proxy);
if (advised.getMethodMatcher().matches(method, advised.getTargetSource().getTarget().getClass())) {
return advised.getMethodInterceptor().invoke(methodInvocation);
}
return methodInvocation.proceed();
}
}
private static class CglibMethodInvocation extends ReflectiveMethodInvocation {
private MethodProxy methodProxy;
public CglibMethodInvocation(Object target, Method method, Object[] args, MethodProxy methodProxy) {
super(target, method, args);
this.methodProxy = methodProxy;
}
@Override
public Object proceed() throws Throwable {
return this.methodProxy.invoke(this.target, this.args);
}
}
}
public class JdkDynamicAopProxy implements AopProxy, InvocationHandler {
private final AdvisedSupport advisedSupport;
public JdkDynamicAopProxy(AdvisedSupport advisedSupport) {
this.advisedSupport = advisedSupport;
}
@Override
public Object getProxy() {
return Proxy.newProxyInstance(Thread.currentThread().getContextClassLoader(), advisedSupport.getTargetSource().getTargetClass(), this);
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
if (advisedSupport.getMethodMatcher().matches(method, advisedSupport.getTargetSource().getTarget().getClass())) {
MethodInterceptor interceptor = advisedSupport.getMethodInterceptor();
return interceptor.invoke(new ReflectiveMethodInvocation(advisedSupport.getTargetSource().getTarget(), method, args));
}
return method.invoke(advisedSupport.getTargetSource().getTarget(), args);
}
}
AOP 织入spring生命周期
aop 织入 spring的生命周期，是通过 BeanFactoryPostProcessor 实现的，在beanDefinition 注册后，给beanDefinition 添加代理对象。实现替换
@Override
protected Object createBean(String beanName, BeanDefinition beanDefinition, Object[] args) {
Object bean = null;
try {
// 检查是否需要代理
bean = resolveBeforeInstantiation(beanName, beanDefinition);
if (bean != null) {
return bean;
}
bean = createBeanInstance(beanDefinition, beanName, args);
// 在设置bean属性钱，允许修改bean的属性（通过BeanPostProcessor）
applyBeanPostProcessorsBeforeApplyingPropertyValues(beanName, bean, beanDefinition);
// 注入属性
applyPropertyValues(beanName, bean, beanDefinition);
// 提供给外部的扩展包装，执行 Bean 的初始化方法和 BeanPostProcessor 的前置和后置处理方法
bean = initializeBean(beanName, bean, beanDefinition);
} catch (Exception e) {
throw new RuntimeException("bean create error!", e);
}
// 注册实现了 DisposableBean 接口的 Bean 对象
registerDisposableBeanIfNecessary(beanName, bean, beanDefinition);
// 检查bean是单例还是原型
if (beanDefinition.isSingleton()) {
registerSingleton(beanName, bean);
}
return bean;
}
// 检查是否需要代理
protected Object resolveBeforeInstantiation(String beanName, BeanDefinition beanDefinition) throws BeansException {
Object bean = applyBeanPostProcessorBeforeInstantiation(beanDefinition.getBeanClass(), beanName);
if (bean != null) {
bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
}
return bean;
}
// 每一个bean 都会去检查
public Object applyBeanPostProcessorBeforeInstantiation(Class<?> clazz, String beanName) {
for (BeanPostProcessor processor : getBeanPostProcessors()) {
if (processor instanceof InstantiationAwareBeanPostProcessor) {
Object bean = ((InstantiationAwareBeanPostProcessor) processor).postProcessBeforeInstantiation(clazz, beanName);
if (bean != null) {
return bean;
}
}
}
return null;
}
public class DefaultAdvisorAutoProxyCreator implements InstantiationAwareBeanPostProcessor, BeanFactoryAware {
private DefaultListableBeanFactory beanFactory;
@Override
public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
this.beanFactory = (DefaultListableBeanFactory) beanFactory;
}
@Override
public Object postProcessBeforeInstantiation(Class<?> clazz, String beanName) {
// 框架类，直接跳过 （切点、拦截类、匹配类等）
if (isInfrastructureClass(clazz)) return null;
// 获取所有需要处理的切点处理方法
Collection<AspectJExpressionPointcutAdvisor> pointcutAdvisors = beanFactory.getBeansOfType(AspectJExpressionPointcutAdvisor.class).values();
for (AspectJExpressionPointcutAdvisor advisor : pointcutAdvisors) {
ClassFilter classFilter = advisor.getPointcut().getClassFilter();
if (!classFilter.matches(clazz)) {
continue;
}
AdvisedSupport support = new AdvisedSupport();
TargetSource targetSource = null;
try {
targetSource = new TargetSource(clazz.getDeclaredConstructor().newInstance());
} catch (Exception e) {
throw new RuntimeException(e);
}
support.setTargetSource(targetSource);
support.setMethodInterceptor((MethodInterceptor) advisor.getAdvice());
support.setMethodMatcher(advisor.getPointcut().getMethodMatcher());
support.setProxyTargetClass(false);
return new ProxyFactory(support).getProxy();
}
return null;
}
private boolean isInfrastructureClass(Class<?> beanClass) {
return Advice.class.isAssignableFrom(beanClass) || Pointcut.class.isAssignableFrom(beanClass) || Advisor.class.isAssignableFrom(beanClass);
}
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
}
测试
定义拦截处理器
public class UserServiceBeforeAdvice implements MethodBeforeAdvice {
@Override
public void before(Method method, Object[] args, Object target) throws Throwable {
System.out.println("拦截方法："+method.getName());
}
}
注册bean
<?xml version="1.0" encoding="UTF-8"?>
<beans>
<bean id="userService" class="cn.anoxia.springframework.beans.factory.support.UserService"/>
<bean id="autoProxyCreator" class="cn.anoxia.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator"/>
<bean id="beforeAdvice" class="cn.anoxia.springframework.beans.factory.support.proxy.UserServiceBeforeAdvice"/>
<bean id="methodInterceptor" class="cn.anoxia.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor">
<property name="advice" ref="beforeAdvice"/>
</bean>
<bean id="pointcutAdvisor" class="cn.anoxia.springframework.aop.aspect.AspectJExpressionPointcutAdvisor">
<property name="expression" value="execution(* cn.anoxia.springframework.beans.factory.support.IUserService.*(..))"/>
<property name="advice" ref="methodInterceptor"/>
</bean>
</beans>
