Flume 案例：自定义拦截器

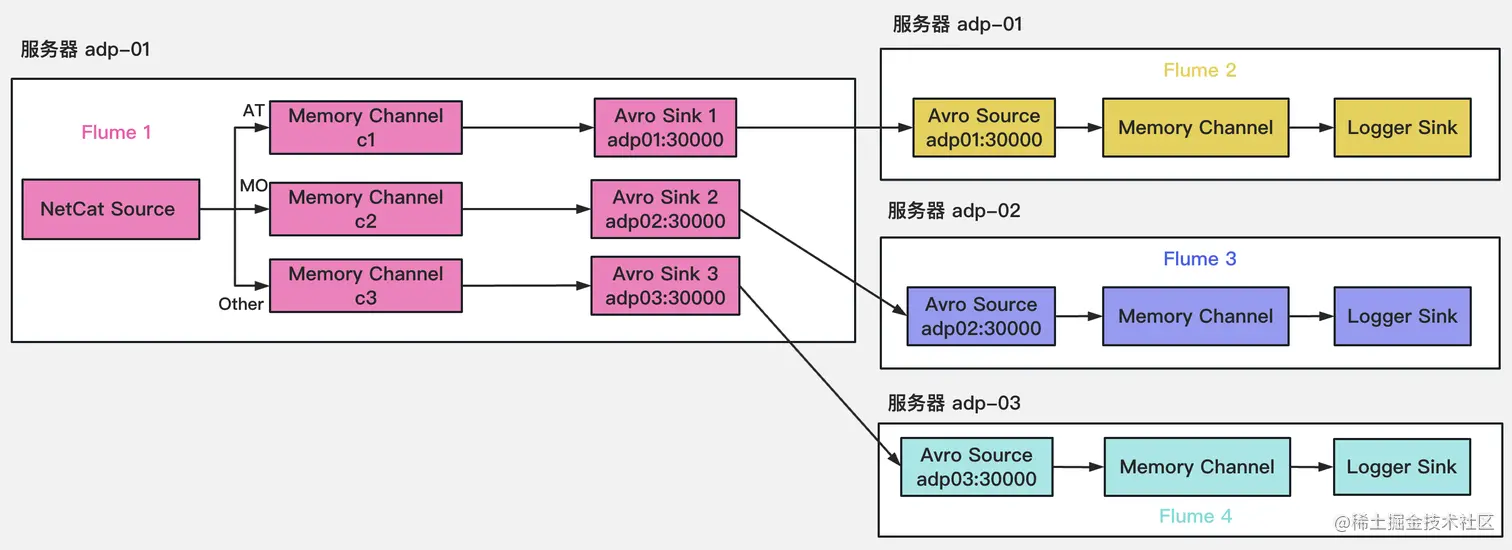

数据流中存在 3 种数据：

• 以 "AT" 开头的数据
• 以 "MO" 开头的数据
• 其他数据

要求：

• 以 "AT" 开头的数据，写入 Sink 1
• 以 "MO" 开头的数据，写入 Sink 2
• 其他数据写入 Sink 3

首先自定义拦截器，项目中引入 flume 的依赖：

<dependency>
  <groupId>org.apache.flume</groupId>
  <artifactId>flume-ng-core</artifactId>
  <version>${flume.version}</version>
</dependency>

自定义的类要实现org.apache.flume.interceptor.Interceptor接口：

import org.apache.flume.Context;
import org.apache.flume.Event;
import org.apache.flume.interceptor.Interceptor;

import java.nio.charset.StandardCharsets;
import java.util.List;

/**
 * 需求：
 * 1、event 的 header 中 title 的值是 AT 的，写入 Channel c1
 * 2、event 的 header 中 title 的值是 MO 的，写入 Channel c2
 * 3、其他的 event 写入 Channel c3
 * 所有拦截器应该在 event 的 header 中写入 title 的值
 */
public class MyInterceptor implements Interceptor {

    @Override
    public void initialize() {}

    @Override
    public Event intercept(Event event) {
        String body = new String(event.getBody(), StandardCharsets.UTF_8);
        if ("AT".equalsIgnoreCase(body.substring(0, 2))) {
            event.getHeaders().put("title", "AT");
        } else if ("MO".equalsIgnoreCase(body.substring(0, 2))) {
            event.getHeaders().put("title", "MO");
        }
        return event;
    }

    @Override
    public List<Event> intercept(List<Event> list) {
        for (Event event : list) {
            intercept(event);
        }
        return list;
    }

    @Override
    public void close() {}

    public static class Builder implements Interceptor.Builder {
        @Override
        public Interceptor build() {
            return new MyInterceptor();
        }

        @Override
        public void configure(Context context) {}
    }

}

将代码达成 jar 包，上传到 flume 的 lib 目录下。

Flume 1（adp-01） 配置文件：

a1.sources = r1
a1.sinks = k1 k2 k3
a1.channels = c1 c2 c3

a1.sources.r1.type = netcat
a1.sources.r1.bind = localhost
a1.sources.r1.port = 44444

a1.sources.r1.interceptors = i1
# 设置为自定义拦截器的全限定类名 + $Builder
a1.sources.r1.interceptors.i1.type = com.arc.flume.interceptor.MyInterceptor$Builder

a1.sources.r1.selector.type = multiplexing
# 设置为要过滤的 header 中的 key
a1.sources.r1.selector.header = title
# title = AT 的发送到 c1
a1.sources.r1.selector.mapping.AT = c1
# title = MO 的发送到 c2
a1.sources.r1.selector.mapping.MO = c2
# 其他的 event 发送到 c3
a1.sources.r1.selector.default = c3

a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

a1.channels.c2.type = memory
a1.channels.c2.capacity = 1000
a1.channels.c2.transactionCapacity = 100

a1.channels.c3.type = memory
a1.channels.c3.capacity = 1000
a1.channels.c3.transactionCapacity = 100

a1.sinks.k1.type = avro
a1.sinks.k1.hostname = adp-01
a1.sinks.k1.port = 30000

a1.sinks.k2.type=avro
a1.sinks.k2.hostname = adp-02
a1.sinks.k2.port = 30000

a1.sinks.k3.type=avro
a1.sinks.k3.hostname = adp-03
a1.sinks.k3.port = 30000

a1.sources.r1.channels = c1 c2 c3
a1.sinks.k1.channel = c1
a1.sinks.k2.channel = c2
a1.sinks.k3.channel = c3

Flume 2（adp-01） 配置文件：

a2.sources = r1
a2.channels = c1
a2.sinks = k1

a2.sources.r1.type = avro
a2.sources.r1.bind = adp-01
a2.sources.r1.port = 30000

a2.channels.c1.type = memory
a2.channels.c1.capacity = 1000
a2.channels.c1.transactionCapacity = 100

a2.sinks.k1.type = logger

a2.sources.r1.channels = c1
a2.sinks.k1.channel = c1

Flume 3（adp-02） 配置文件：

a3.sources = r1
a3.channels = c1
a3.sinks = k1

a3.sources.r1.type = avro
a3.sources.r1.bind = adp-02
a3.sources.r1.port = 30000

a3.channels.c1.type = memory
a3.channels.c1.capacity = 1000
a3.channels.c1.transactionCapacity = 100

a3.sinks.k1.type = logger

a3.sources.r1.channels = c1
a3.sinks.k1.channel = c1

Flume 4（adp-03） 配置文件：

a4.sources = r1
a4.channels = c1
a4.sinks = k1

a4.sources.r1.type = avro
a4.sources.r1.bind = adp-03
a4.sources.r1.port = 30000

a4.channels.c1.type = memory
a4.channels.c1.capacity = 1000
a4.channels.c1.transactionCapacity = 100

a4.sinks.k1.type = logger

a4.sources.r1.channels = c1
a4.sinks.k1.channel = c1

启动 Flume：

# 先启动 3 个用于接收 Avro 数据源的 agent
# adp-01
[admin@adp-01 ~]$ flume-ng agent -n a2 -c conf -f a2.conf
# adp-02
[admin@adp-02 ~]$ flume-ng agent -n a3 -c conf -f a3.conf
# adp-03
[admin@adp-03 ~]$ flume-ng agent -n a4 -c conf -f a4.conf
# adp-01
[admin@adp-01 ~]$ flume-ng agent -n a1 -c conf -f a1.conf

发送数据（adp-01）

[admin@adp-01 ~]$ nc localhost 44444
AT_ABC
MO_ABC
XXX

# adp-01
2023-04-27 06:15:29,002 INFO sink.LoggerSink: Event: { headers:{title=AT} body: 41 54 5F 41 42 43                               AT_ABC }

# adp-02
2023-04-27 06:15:23,890 INFO sink.LoggerSink: Event: { headers:{title=MO} body: 4D 4F 5F 41 42 43                               MO_ABC }

# adp-03
2023-04-27 06:15:31,943 INFO sink.LoggerSink: Event: { headers:{} body: 58 58 58                                        XXX }
