记一次微信小程序自定义带背景图的tabbar

本文只是一次代码记录

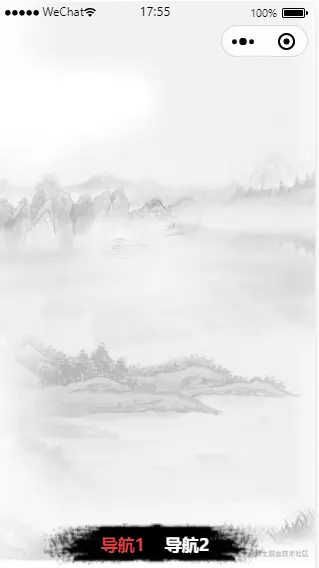

最终效果如下：

• 根目录创建custom-tab-bar文件夹,创建component

• index.js

// custom-tab-bar/index.js
Component({
  /**
   * 组件的属性列表
   */
  properties: {

  },

  /**
   * 组件的初始数据
   */
  data: {
    selected: 0,
    color: "#ffffff",
    selectedColor: "#EE3D42",
    listTab: [
      {
        pagePath: "/pages/index/index",
        text: "导航1"
      },
      {
        pagePath: "/pages/home/index",
        text: "导航2"
      }
    ]
  },

  /**
   * 组件的方法列表
   */
  methods: {
    switchTab(e) {
      const data = e.currentTarget.dataset;
      const url = data.path;
      wx.switchTab({ url });
    }
  }
})

• index.json

{
  "component": true,
}

• index.wxml

<!--custom-tab-bar/index.wxml-->
<view class="tab-bar">
  <image class="tab-bar-bg" mode="scaleToFill" src="/assets/tabbar_bg.png"></image>
  <view class="tab-bar-content">
    <view wx:for="{{listTab}}" wx:key="index" class="tab-bar-item" data-path="{{item.pagePath}}" data-index="{{index}}" bindtap="switchTab">
    <view style="color: {{selected === index ? selectedColor : color}}">{{item.text}}</view>
  </view>
  </view>
</view>

• index.wxss

/* custom-tab-bar/index.wxss */
.tab-bar {
  position: fixed;
  bottom: 10rpx;
  left: 0;
  right: 0;
  height: 100rpx;
  width: 100%;
  display: flex;
  flex-direction: row;
  justify-content: center;
  padding-bottom: env(safe-area-inset-bottom);
}

.tab-bar-bg {
  width: 70%;
  height: 100rpx;
  position: fixed;
  justify-content: center;
}

.tab-bar-content {
  height: 100rpx;
  width: 40%;
  display: flex;
}

.tab-bar-item {
  flex: 1;
  text-align: center;
  display: flex;
  justify-content: center;
  align-items: center;
  flex-direction: column;
  position: relative;
}

.tab-bar-item view {
  font-size: 40rpx;
  font-weight: 700;
}

• 在app.json添加tabbar, "custom": true标识自定义tabbar

"tabBar": {
    "custom": true,
    "color": "#999999",
    "selectedColor": "#EE3D42",
    "list": [
      {
        "pagePath": "pages/index/index",
        "text": "导航1"
      },
      {
        "pagePath": "pages/home/index",
        "text": "导航2"
      }
    ]
  }

• 在需要显示的*.js（如：pages/index/index.js,pages/home/index.js）中添加

  /**
   * 生命周期函数--监听页面显示
   */
  onShow() {
    if (typeof this.getTabBar === 'function' && this.getTabBar()) {
      this.getTabBar().setData({
        selected: 0 //0,1  0-导航1  1-导航1
      })
    }
  },
