css画三角形,梯形,扇形,圆形,半圆

215 阅读3分钟

三角形

思路

  • 画一个正方形+边框
.box {
    width: 100px;
    height: 100px;
    border: 150px solid;
    border-color: #96ceb4 #ffeead #d9534f #ffad60;
 }

效果如下图所示:


  • 白色区域则为widthheight,这时候只需要你将白色区域部分宽高逐渐变小,最终变为0,则变成如下图所示:
        width: 0px;
        height: 0px;
        border:  solid;
        border-width: 150px;
        border-color: #96ceb4 #ffeead #d9534f #ffad60;


  • 如果取下边框作为三角形,先把上边框(绿色区域)宽度设置为0,看一下效果
        width: 0px;
        height: 0px;
        border:  solid;
        border-width: 0 100px 100px;
        border-color: transparent #ffeead #d9534f #ffad60;


  • 右边框(黄色区域)设置为0,看一下效果
        width: 0px;
        height: 0px;
        border:  solid;
        border-width: 0 0 100px 100px;
        border-color: transparent #ffeead #d9534f #ffad60;


  • 可以看出下边框不是刚开始的三角形形状了,所以右边框宽度不能设置为0,保留宽度,颜色设置为透明的,再看效果
        width: 0px;
        height: 0px;
        border:  solid;
        border-width: 0 100px 100px;
        border-color: transparent transparent #d9534f #ffad60;


  • 同理,左边框也设置为透明色,就得到一个三角形

最终代码

        width: 0px;
        height: 0px;
        border:  solid;
        border-width: 0 100px 100px;
        border-color: transparent transparent #d9534f transparent;

梯形

思路

  • 画一个正方形
.box {
    width: 100px;
    height: 100px;
    border: 50px solid;
    border-color: #96ceb4 #ffeead #d9534f #ffad60;
 }


可以看出下边框是梯形的样子

  • 再把上边框宽度设置为0,看一下效果
        width: 100px;
        height: 100px;
        border:  solid;
        border-width: 0 50px 50px;
        border-color: transparent #ffeead #d9534f #ffad60;


  • 如果右边框宽度设置为0
        width: 100px;
        height: 100px;
        border:  solid;
        border-width: 0 0 50px 50px;
        border-color: transparent #ffeead #d9534f #ffad60;


  • 可以看出下边框不是梯形的样子了,所以右边框的宽度不能是0,将颜色设置为透明色,看一下效果
        width: 100px;
        height: 100px;
        border:  solid;
        border-width: 0 50px 50px;
        border-color: transparent transparent #d9534f #ffad60;


  • 同理,左边框宽度设置为0,就可以了
        width: 100px;
        height: 100px;
        border:  solid;
        border-width: 0 50px 50px 0;
        border-color: transparent transparent #d9534f #ffad60;


但是可以看出梯形上方有高度是被占用了,这个高度就是上图中白色区域的高度,即div的height,将height设置为0,就能实现一个梯形了

最终代码

        width: 100px;
        height: 0;
        border:  solid;
        border-width: 0 50px 50px 0;
        border-color: transparent transparent #d9534f #ffad60;

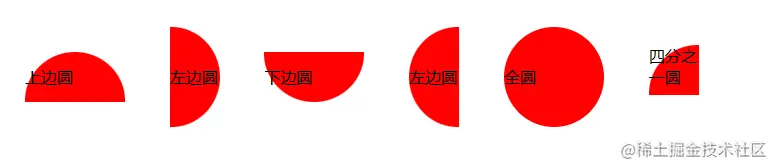

圆形、半圆、四分之一圆

    <div class="circle circle1">上边圆</div>
    <div class="circle circle2">左边圆</div>
    <div class="circle circle3">下边圆</div>
    <div class="circle circle4">左边圆</div>
    <div class="circle circle5">全圆</div>
    <div class="circle circle6">四分之一圆</div>
      .circle{
        background-color:red;
        margin: 20px;
      }
      .circle1 {
        width: 100px;
        height: 50px;
        border-radius: 50px 50px 0 0;
        line-height: 50px;
      }

      .circle2 {
        width: 50px;
        height: 100px;
        border-radius: 0 50px 50px 0;
        line-height: 100px;
      }

      .circle3 {
        width: 100px;
        height: 50px;
        border-radius: 0 0px 50px 50px;
        line-height: 50px;
      }

      .circle4 {
        width: 50px;
        height: 100px;
        border-radius: 50px 0 0 50px;
        line-height: 100px;
      }

      .circle5 {
        width: 100px;
        height: 100px;
        border-radius: 50px;
        line-height: 100px;
      }
      .circle6{
        width: 50px;
        height: 50px;
        border-radius: 50px 0 0 0;
      }
