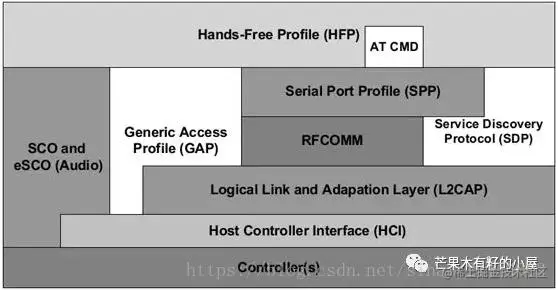

HFP协议

目前HFP的使用场景有车载蓝牙，耳机和PDA，定义了AG和HFP两种角色。

AG（Audio Gate）音频网关—音频设备输入输出网关
HF（Hands Free）免提—该设备作为音频网关的远程音频输入/输出机制，并可提供若干遥控功能。

在车载蓝牙中，手机侧是AG，车载蓝牙侧是HF，在android源代码中，将AG侧称为HFP/AG，将HF侧称为HFPClient/HF。

手机侧是HF，耳机侧是HFClient

HFClient

设备的角色定义为hfp client,需做如下配置：

<bool name="profile_supported_hs_hfp">false</bool>
<bool name="profile_supported_hfpclient">true</bool>


adb root
adb remount
adb shell setprop persist.vendor.bluetooth.hfp_client true
adb shell getprop persist.vendor.bluetooth.hfp_client

HFP client
- /frameworks/base/core/java/android/bluetooth/BluetoothHeadsetClient.java
- /frameworks/base/core/java/android/bluetooth/BluetoothHeadsetClientCall.java
- /packages/apps/Bluetooth/src/com/android/bluetooth/hfpclient/HeadsetClientHalConstants.java
- /packages/apps/Bluetooth/src/com/android/bluetooth/hfpclient/HeadsetClientService.java
- /packages/apps/Bluetooth/src/com/android/bluetooth/hfpclient/HeadsetClientStateMachine.java
- /packages/apps/Bluetooth/jni/com_android_bluetooth_hfpclient.cpp
- /hardware/libhardware/include/hardware/bt_hf_client.h

接下来看一下hfp client的实现，以accept call为例
//3步获取hfp client service

1)BluetoothAdapter mAdapter = BluetoothAdapter.getDefaultAdapter();

2)mAdapter.getProfileProxy(getApplicationContext(),new MServerListener(), BluetoothProfile.HEADSET_CLIENT);

3)public class MServerListener implements ServiceListener {
@Override
    public void onServiceConnected(int profile, BluetoothProfile proxy) {
    if (profile == BluetoothProfile.HEADSET_CLIENT) {
        mclient=(BluetoothHeadsetClient)proxy;
    .......
    }
}

//app获取hfp client service 的proxy之后，就可以直接调用相应的API进行连接控制与call 控制。

e.g.
mclient.connect( device) //Connects to remote device.
mclient.connectAudio() //Initiates a connection of audio channel, set up SCO channel
mclient.acceptCall(device,0);
mclient.rejectCall(device);
mclient.terminateCall(device,0);
