React过渡动画

309 阅读4分钟

react-transition-group。

  • 这个库可以帮助我们方便的实现组件的 入场 和 离场
  • npm install react-transition-group --save

主要组件

  1. Transition
    • 该组件是一个和平台无关的组件(不一定要结合CSS);
    • 在前端开发中,我们一般是结合CSS来完成样式,所以比较常用的是CSSTransition;
  2. CSSTransition
    • 在前端开发中,通常使用CSSTransition来完成过渡动画效果
  3. SwitchTransition
    • 两个组件显示和隐藏切换时,使用该组件
  4. TransitionGroup
    • 将多个动画组件包裹在其中,一般用于列表中元素的动画;

详解

CSSTransition

CSSTransition是基于Transition组件构建的:

  1. CSSTransition执行过程中,有三个状态:appear、enter、exit;
  2. 它们有三种状态,需要定义对应的CSS样式:
    • 第一类,开始状态:对应的类是-appear、-enter、exit;
    • 第二类:执行动画:对应的类是-appear-active、-enter-active、-exit-active;
    • 第三类:执行结束:对应的类是-appear-done、-enter-done、-exit-done;
  3. CSSTransition常见对应的属性:
  • in:触发进入或者退出状态

    • 如果添加了unmountOnExit={true},那么该组件会在执行退出动画结束后被移除掉;
    • 当in为true时,触发进入状态,会添加-enter、-enter-acitve的class开始执行动画,当动画执行结束后,会移除两个class,并且添加-enter-done的class;
    • 当in为false时,触发退出状态,会添加-exit、-exit-active的class开始执行动画,当动画执行结束后,会移除两个class,并且添加-enter-done的class;
  • classNames:动画class的名称

    • 决定了在编写css时,对应的class名称:比如card-enter、card-enter-active、card-enter-done;
  • timeout:

    • 过渡动画的时间
  • appear:

    • 是否在初次进入添加动画(需要和in同时为true)
  • unmountOnExit:退出后卸载组件

  • 其他属性可以参考官网来学习:https://reactcommunity.org/react-transition-group/transition reactcommunity.org/react-trans…

  1. CSSTransition对应的钩子函数:主要为了检测动画的执行过程,来完成一些JavaScript的操作(使用CSSTransition来完成过渡动画效果)
    • onEnter:在进入动画之前被触发;
    • onEntering:在应用进入动画时被触发;
    • onEntered:在应用进入动画结束后被触发;
    export class App extends PureComponent {
      constructor(props) {
        super(props)

        this.state = {
          isShow: true
        }

        this.sectionRef = createRef()
      }

      render() {
        const { isShow } = this.state

        return (
          <div>
            <button onClick={e => this.setState({isShow: !isShow})}>切换</button>
            {/* { isShow && <h2>哈哈哈</h2> } */}

            <CSSTransition
              nodeRef={this.sectionRef}
              in={isShow}
              unmountOnExit={true}
              classNames="why"
              timeout={2000}
              appear
              onEnter={e => console.log("开始进入动画")}
              onEntering={e => console.log("执行进入动画")}
              onEntered={e => console.log("执行进入结束")}
              onExit={e => console.log("开始离开动画")}
              onExiting={e => console.log("执行离开动画")}
              onExited={e => console.log("执行离开结束")}
            >
              <div className='section' ref={this.sectionRef}>
                <h2>哈哈哈</h2>
                <p>我是内容, 哈哈哈</p>
              </div>
            </CSSTransition>
          </div>
        )
      }
    }
    //动画效果
    .why-appear, .why-enter {
      opacity: 0;
    }

    .why-appear-active, .why-enter-active {
      opacity: 1;
      transition: opacity 2s ease;
    }

    /* 离开动画 */
    .why-exit {
      opacity: 1;
    }

    .why-exit-active {
      opacity: 0;
      transition: opacity 2s ease;
    }


SwitchTransition

SwitchTransition可以完成两个组件之间切换的炫酷动画:

  • 比如我们有一个按钮需要在on和off之间切换,我们希望看到on先从左侧退出,off再从右侧进入;
  • 这个动画在vue中被称之为 vue transition modes;
  • react-transition-group中使用SwitchTransition来实现该动画;

SwitchTransition中主要有一个属性:mode,有两个值

  • in-out:表示新组件先进入,旧组件再移除;
  • out-in:表示旧组件先移除,新组件再进入;

如何使用SwitchTransition呢?

  • SwitchTransition 组件里面要有 CSSTransition 或者 Transition 组件,不能直接包裹你想要切换的组件;
  • SwitchTransition 里面的 CSSTransitionTransition 组件不再像以前那样接受in属性来判断元素是何种状态,取而代之的是key属性;
    export class App extends PureComponent {
      constructor() {
        super()

        this.state = {
          isLogin: true
        }
      }

      render() {
        const { isLogin } = this.state

        return (
          <div>
            <SwitchTransition mode='out-in'>
              <CSSTransition
                key={isLogin ? "exit": "login"}
                classNames="login"
                timeout={1000}
              >
                <button onClick={e => this.setState({ isLogin: !isLogin })}>
                  { isLogin ? "退出": "登录" }
                </button>
              </CSSTransition>
            </SwitchTransition>
          </div>
        )
      }
    }

    //动画
    .login-enter {
      transform: translateX(100px);
      opacity: 0;
    }

    .login-enter-active {
      transform: translateX(0);
      opacity: 1;
      transition: all 1s ease;
    }

    .login-exit {
      transform: translateX(0);
      opacity: 1;
    }

    .login-exit-active {
      transform: translateX(-100px);
      opacity: 0;
      transition: all 1s ease;
    }

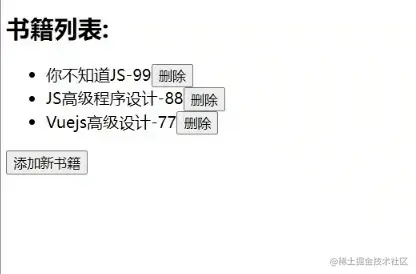

TransitionGroup

  • 将多个动画组件包裹在其中,一般用于列表中元素的动画
    export class App extends PureComponent {
      constructor() {
        super()

        this.state = {
          books: [
            { id: 111, name: "你不知道JS", price: 99 },
            { id: 222, name: "JS高级程序设计", price: 88 },
            { id: 333, name: "Vuejs高级设计", price: 77 },
          ]
        }
      }

      addNewBook() {
        const books = [...this.state.books]
        books.push({ id: new Date().getTime(), name: "React高级程序设计", price: 99 })
        this.setState({ books })
      }

      removeBook(index) {
        const books = [...this.state.books]
        books.splice(index, 1)
        this.setState({ books })
      }

      render() {
        const { books } = this.state

        return (
          <div>
            <h2>书籍列表:</h2>
            <TransitionGroup component="ul">
              {
                books.map((item, index) => {
                  return (
                    <CSSTransition key={item.id} classNames="book" timeout={1000}>
                      <li>
                        <span>{item.name}-{item.price}</span>
                        <button onClick={e => this.removeBook(index)}>删除</button>
                      </li>
                    </CSSTransition>
                  )
                })
              }
            </TransitionGroup>
            <button onClick={e => this.addNewBook()}>添加新书籍</button>
          </div>
        )
      }
    }

    //动画
    .book-enter {
      transform: translateX(150px);
      opacity: 0;
    }

    .book-enter-active {
      transform: translateX(0);
      opacity: 1;
      transition: all 1s ease;
    }

    .book-exit {
      transform: translateX(0);
      opacity: 1;
    }

    .book-exit-active {
      transform: translateX(150px);
      opacity: 0;
      transition: all 1s ease;
    }
