水文：Transaction rolled back because it has been marked as rollback-only

vito599
145 阅读5分钟

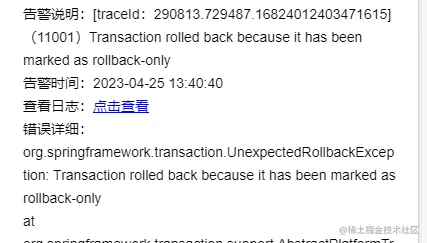

今天测试环境同事写测试代码的时候，出现了一个Transaction rolled back because it has been marked as rollback-only，还发了组内的告警邮件


过多的信息可不敢截取啊，展示其中的关键信息就好。

辣么问题来了，这个问题是肿么肥四呢？

稍加思考，立马恍然大悟!

为了重现这个异常，我搭建了一个小小的demo：

@Service
public class TestService {
    @Autowired
    private StudentMapper studentMapper;

    @Transactional(propagation = Propagation.REQUIRED,rollbackFor = Exception.class)
    public void test(){
        studentMapper.get(1L);
        throw new RuntimeException();
    }
}

@Service
public class StudentService {
    @Autowired
    private StudentMapper studentMapper;
    @Autowired private TestService testService;

    @Transactional(propagation = Propagation.REQUIRED, readOnly = true, noRollbackFor = Exception.class)
    public Student get(Long id) {
        Student student = studentMapper.get(id);
        testService.test();
        return student;
    }
}

@RequestMapping("/student")
@RestController
public class StudentController {

    @Autowired
    private StudentService studentService;

    @RequestMapping("one")
    public Student save(@RequestParam("id") Long id) {
    return studentService.get(id);
    }
}

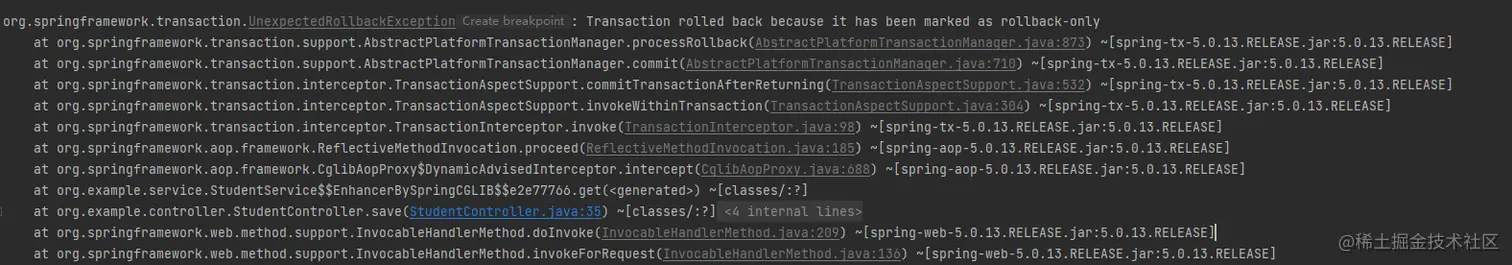

请求一下，果然不出山人所料 image.png 让我们来分析一波

首先 test()方法上面加的是一个正常的读写事务，propagation = Propagation.REQUIRED

其次StudentService.get()加的是一个只读的事务，propagation = Propagation.REQUIRED，并且调用了 test()

辣么，推理可得test()与StudentService.get()是公用的同一个事务，然后test()方法内抛了一个异常，所以test()执行完之后，事务会被标记为回滚

但是！

StudentService.get()说我是个只读的啊，我不想要回滚，谁也不能勉强我，所以我要正常提交事务

这样问题就来了啊，事务已经被标记为回滚了，这个时候要去提交，Spring说这我怎么办啊，很蓝的啦，只能抛一个异常这样子的啦；

最终就是我们看到的 Transaction rolled back because it has been marked as rollback-only

这个问题的本质是什么：是serviceA调用了serviceB，两者在同一个事务，B要回滚A要commit，就会出现这样的问题;

所以StudentService.get()换一种写法也可以实现同样的效果

@Transactional(propagation = Propagation.REQUIRED)
public Student get(Long id) {
Student student = studentMapper.get(id);
    try{
        testService.test();
    }catch (Exception exception){ }
    return student;
}

源码分析：

通过方法断点，我们可以很快地定位到，事务执行的切面代码，关键代码展示如下

protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass, final InvocationCallback invocation) throws Throwable {
    TransactionAttributeSource tas = getTransactionAttributeSource();
    final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);
    //获取事务管理器
    final PlatformTransactionManager tm = determineTransactionManager(txAttr);
    //切点定义解析，也就是目标方法，如test()与StudentService.get()
    final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);
    if (txAttr == null || !(tm instanceof CallbackPreferringPlatformTransactionManager)) {
        // 创建事务
        TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification); Object retVal = null;
        try {
            //执行目标方法
            retVal = invocation.proceedWithInvocation();
        } catch (Throwable ex) {
            // 目标方法异常后的事务处理方式
            completeTransactionAfterThrowing(txInfo, ex);
            throw ex;
        } finally {
            cleanupTransactionInfo(txInfo);
        }
        // 目标方法正常执行后的事务处理方式
        commitTransactionAfterReturning(txInfo); return retVal;
    }
}

先看事务的创建逻辑

protected TransactionInfo createTransactionIfNecessary(@Nullable PlatformTransactionManager tm, @Nullable TransactionAttribute txAttr, final String joinpointIdentification) {
    // TransactionAttribute命名，不重要
    if (txAttr != null && txAttr.getName() == null) {
        txAttr = new DelegatingTransactionAttribute(txAttr) {
            @Override
            public String getName() {
                return joinpointIdentification;
            }
        };
    }
    TransactionStatus status = null;
    if (txAttr != null) {
        if (tm != null) {
            //获取事务
            status = tm.getTransaction(txAttr);
        }
    }
    return prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
}

获取事务的关键代码：

@Override public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition) throws TransactionException {
    Object transaction = doGetTransaction();
    if (isExistingTransaction(transaction)) {
        // 如果当前已经存在一个事务的处理方式
        return handleExistingTransaction(definition, transaction, debugEnabled);
    }
    //如果没有事务，并且PROPAGATION是下列几种PROPAGATION_REQUIRED PROPAGATION_REQUIRES_NEW PROPAGATION_NESTED
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED || definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW || definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
        SuspendedResourcesHolder suspendedResources = suspend(null);
        try {
            boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
            // 初始化事务的状态
            DefaultTransactionStatus status = newTransactionStatus( definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);
            // 开启事务
            doBegin(transaction, definition);
            // 不知道，暂时不管
            prepareSynchronization(status, definition); return status;
        } catch (RuntimeException | Error ex) {
            resume(null, suspendedResources);
            throw ex;
        }
    } else {
        boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
        return prepareTransactionStatus(definition, null, true, newSynchronization, debugEnabled, null);
    }
}

通过上面代码可以看到，StudentService.get()方法执行的时候，当前是没有事务的，所以执行代码是 初始化事务状态——开启事务等操作；对于test()方法执行的时候已经有一个事务了，所以需要执行handleExistingTransaction()方法，主要逻辑如下：

private TransactionStatus handleExistingTransaction( TransactionDefinition definition, Object transaction, boolean debugEnabled) throws TransactionException {
    ...
    if (isValidateExistingTransaction()) {
    // 隔离级别是否一致
        if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT) {
            Integer currentIsolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel();
            if (currentIsolationLevel == null || currentIsolationLevel != definition.getIsolationLevel()) {
                Constants isoConstants = DefaultTransactionDefinition.constants;
                throw new IllegalTransactionStateException("Participating transaction with definition [" + definition + "] specifies isolation level which is incompatible with existing transaction: " + (currentIsolationLevel != null ? isoConstants.toCode(currentIsolationLevel, DefaultTransactionDefinition.PREFIX_ISOLATION) : "(unknown)"));
            }
        }
        if (!definition.isReadOnly()) {
            if (TransactionSynchronizationManager.isCurrentTransactionReadOnly()) {
                throw new IllegalTransactionStateException("Participating transaction with definition [" + definition + "] is not marked as read-only but existing transaction is");
            }
        }
    }
    boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
    // 复用老事务的连接
    return prepareTransactionStatus(definition, transaction, false, newSynchronization, debugEnabled, null);
}

经过上述代码可以看到，当事务嵌套的时候，如果被嵌套的事务propagation = Propagation.REQUIRED，那么就会复用外层的事务，也就是我们说的公用了同一个事务连接；

那么当test()发生异常的时候执行completeTransactionAfterThrowing()逻辑，主要代码如下

protected void completeTransactionAfterThrowing(@Nullable TransactionInfo txInfo, Throwable ex) {
    if (txInfo != null && txInfo.getTransactionStatus() != null) {
        // 如果发生的异常，在回滚的异常范围内，那么走事务回滚逻辑
        if (txInfo.transactionAttribute != null && txInfo.transactionAttribute.rollbackOn(ex)) {
            try {
                // 标记事务状态为回滚/回滚事务
                txInfo.getTransactionManager().rollback(txInfo.getTransactionStatus());
            } catch (TransactionSystemException ex2) {
                throw ex2;
            } catch (RuntimeException | Error ex2) {
                throw ex2;
            }
        } else {
        ...
        }
    }
}

其中对于txInfo.getTransactionManager().rollback(txInfo.getTransactionStatus()); 最终会判断如果当前事务方法是被嵌套的事务，并且共用了一个大事务，那么会把这个事务标记为rollbackOnly，代码为

    txInfo.getTransactionManager().rollback(txInfo.getTransactionStatus());

而对于StudentService.get()方法（以try-catch方式为例），异常被捕获，整个方法正常执行，所以会进入到commitTransactionAfterReturning(txInfo);

最终追踪到

@Override public final void commit(TransactionStatus status) throws TransactionException {
    DefaultTransactionStatus defStatus = (DefaultTransactionStatus) status;
    if (defStatus.isLocalRollbackOnly()) {
        processRollback(defStatus, false);
        return;
    }
    if (!shouldCommitOnGlobalRollbackOnly() && defStatus.isGlobalRollbackOnly()) {
        //如果发现事务被标记为 rollbackOnly了，那么不会提交事务，反而执行回滚逻辑，并且，标记这个回滚是超出预期的
        processRollback(defStatus, true);
        return;
    }
    //提交事务
    processCommit(defStatus);
}

最终对于超出预期的事务回滚，在回滚逻辑执行完成后，抛出异常

if (unexpectedRollback) {
    throw new UnexpectedRollbackException( "Transaction rolled back because it has been marked as rollback-only");
}

以上就是整个代码追踪的全部过程啦
