css布局篇——两栏布局与三栏布局

207 阅读1分钟

两栏布局

两栏布局:一侧宽度固定,另一侧自适应

1、使用浮动

思路

  • 左侧盒子使用float,左浮动
  • 右侧盒子宽度为100%

代码

 <div class="box">
    <div class="left">left</div>
    <div class="right">right</div>
  </div>
 .left {
    float: left;
    width: 200px;
    background-color: red;
    height: 400px;
}
.right {
    width: 100%;
    background-color: green;
    height: 400px;
}

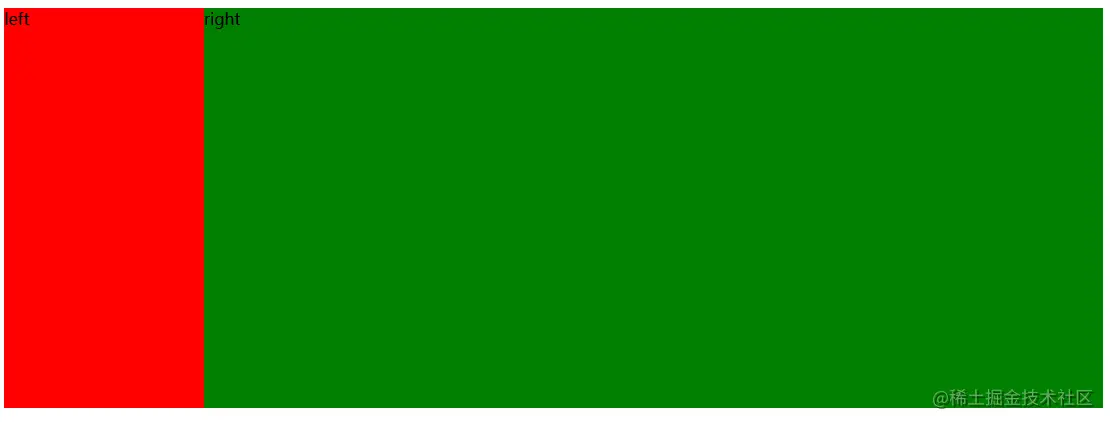

效果


2、定位

思路

  • 父元素定位position:relative
  • 左侧盒子position:absolute
  • 右侧盒子宽度100%,margin-left:左侧盒子宽度

代码

    .box {
      position: relative;
    }
    .left {
      position: absolute;
      width: 200px;
      height: 200px;
      background-color: red;
    }

    .right {
      width: 100%;
      height: 200px;
      background-color: green;
      margin-left: 200px;
    }

3、flex布局

思路

  • 父元素display:flex
  • justify-content: space-between

代码

    .box {
      display: flex;
      justify-content: space-between;
    }
    .left {
      width: 200px;
      height: 200px;
      background-color: red;
    }

    .right {
      width: 100%;
      height: 200px;
      background-color: green;
    }

三栏布局

两边定宽,中间自适应。

1、position

思路

  • 父元素position:relative
  • 左右两侧position:absolute
  • 中间内容margin设置边距

代码

 <div class="box">
    <div class="left">left</div>
    <div class="middle">middle</div>
    <div class="right">right</div>
 </div>
    .box {
      position: relative;
    }
    .left {
      position: absolute;
      top: 0;
      left: 0;
      width: 200px;
      height: 200px;
      background-color: red;
    }
    .right {
      position: absolute;
      top: 0;
      right: 0;
      width: 200px;
      height: 200px;
      background-color: red;
    }
    .middle {
      margin-left: 200px;
      margin-right: 200px;
      background-color: green;
      height: 200px;
    }

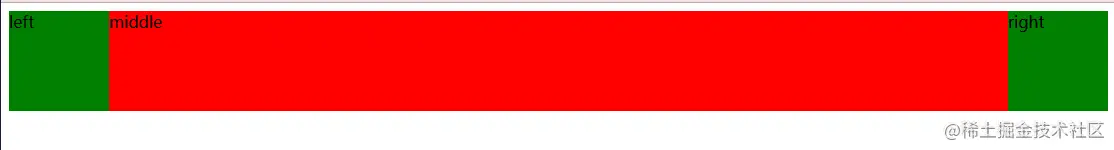

效果


2、float

思路

  • 左侧float:left
  • 右侧float:right
  • 中间内容margin

代码

.box {
    overflow: hidden;
}
.left {
    float: left;
    background-color: gray;
    width: 200px;
    height: 200px;
}
.right {
    float: right;
    background-color: gray;
    width: 200px;
    height: 200px;
}
.middle {
    height: 200px;
    background-color: lightgray;
    margin-left: 210px;
    margin-right: 210px;
}

3、flex

思路

  • 父元素display:flex
  • 中间盒子flex:1

代码

    .box {
      display: flex;
    }
    .middle {
      height: 100px;
      background-color: red;
      flex: 1;
    }
    .left {
      height: 100px;
      width: 100px;
      background: green;
    }
    .right {
      height: 100px;
      width: 100px;
      background: yellow;
    }
