通过内网穿透配置微信公众号被动回复

最开始想用chatGTP做微信公众号的自动回复；因为个人号不能做微信认证，只能实现被动回复并不能主动发消息给用户

被动回复必须5秒累做出回复，chatGTP的API国内不能直接访问，只能通过代理访问，所以会超时

1、通过koa搭建一个本地服务

• 初始化项目

npm init test -y

• 项目依赖

npm i koa crypto koa-logger koa-router xml2js superagent koa-bodyparser dayjs

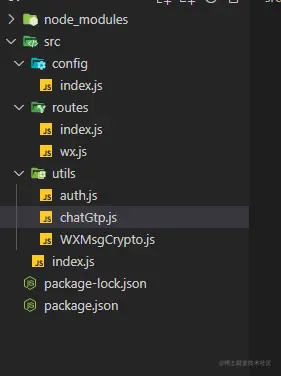

• 目录结构

• index.js

const koa = require("koa2");
const logger = require('koa-logger')
const bodyParser = require('koa-bodyparser');
var app = new koa();
const routers = require('./routes')

//设置允许跨域访问该服务.
app.use(async (ctx, next)=> {
    ctx.set('Access-Control-Allow-Origin', '*');
    ctx.set('Access-Control-Allow-Headers', 'Content-Type, Content-Length, Authorization, Accept, X-Requested-With , yourHeaderFeild');
    ctx.set('Access-Control-Allow-Methods', 'PUT, POST, GET, DELETE, OPTIONS');
    if (ctx.method == 'OPTIONS') {
        ctx.body = 200;
    } else {
        await next();
    }
});
// 公众号请求的参数是xml 这里解析
app.use(bodyParser({
    enableTypes: ['text', 'xml'],
}))


app.use(logger())

// logger
app.use(async (ctx, next) => {
    const start = new Date()
    await next()
    const ms = new Date() - start
    console.log(`${ctx.method} ${ctx.url} - ${ms}ms`)
})

// routes
app.use(routers.routes()).use(routers.allowedMethods())

//监听3000端口
app.listen(80);

• routes

  • index.js

    // 动态引入router
    const fs = require('fs')

    const Router = require('koa-router')
    const router = new Router()

    fs.readdirSync(__dirname).forEach(file => {
      if(file !== 'index.js'){
        let r = require('./' + file)
        router.use(r.routes())
      }
    })

    module.exports = router


  • wx.js

    // 这里可以封装成中间件 这里就省略了
    const router = require("koa-router")();
    const xml2js = require("xml2js");
    const dayjs = require("dayjs");
    const config = require("../config");
    const WXMsgCrypto = require("../utils/WXMsgCrypto");
    const chatGtp = require("../utils/chatGtp");
    const auth = require("../utils/auth");
    // 这里是验证
    router.get("/", function (ctx, next) {
      const res = auth(ctx.request.query);
      ctx.body = res;
    });

    // 这里是用户给微信公众号发送消息 参数需要解密 解密后是xml
    let inow = false
    const wx = new WXMsgCrypto(config.token, config.EncodingAESKey, config.appid);
    router.post("/", async function (ctx, next) {
      console.log("来了来了");
      const data = ctx.request.body;
      const parser = new xml2js.Parser({ explicitArray: false, ignoreAttrs: true });
      const jsonData = await parser.parseStringPromise(data);
      const xml = await wx.decrypt(jsonData.xml.Encrypt);
      const msg = await parser.parseStringPromise(xml.message);
      console.log(msg, "-----", xml, JSON.stringify(msg));
      // 这里是链接chatGTP 问点比较简单的可以回复 复杂点会超过五秒断开链接
      // 如果是企业认证这里可以直接默认回复，然后等chatGTP返回成功后在通过公众号客服功能回复
      try {
        if(inow) return
        inow = true
        const res = await chatGtp(msg.xml.Content);
        // 回复也是xml格式
        let xml = `<xml>
        <ToUserName><![CDATA[oO-x10Xky1zv7bJeqLAN2OeawgqA]]></ToUserName>
        <FromUserName><![CDATA[gh_d32ad421b149]]></FromUserName>
        <CreateTime>${dayjs().unix()}</CreateTime>
        <MsgType><![CDATA[text]]></MsgType>
        <Content><![CDATA[${res[0].message.content}]]></Content>
      </xml>`;
        inow = false
        ctx.body = xml;
      } catch {
        inow = false
        console.log("失败");
      }
    });

    module.exports = router;



• config index.js

module.exports = {
   token: `这里的值对应服务器对应的token`,
   appid: `公众号ID`,
   EncodingAESKey: `服务器配置的EncodingAESKey`
}

• utils

  • auth.js

    const crypto = require("crypto");
    const config = require('../config')

    const auth = (req) => {
      //1.获取微信服务器Get请求的参数 signature、timestamp、nonce、echostr
      var signature = req.signature, //微信加密签名
        timestamp = req.timestamp, //时间戳
        nonce = req.nonce, //随机数
        echostr = req.echostr; //随机字符串

      //2.将token、timestamp、nonce三个参数进行字典序排序
      var array = [config.token, timestamp, nonce];
      array.sort();

      //3.将三个参数字符串拼接成一个字符串进行sha1加密
      var tempStr = array.join("");
      const hashCode = crypto.createHash("sha1"); //创建加密类型
      var resultCode = hashCode.update(tempStr, "utf8").digest("hex"); //对传入的字符串进行加密

      //4.开发者获得加密后的字符串可与signature对比，标识该请求来源于微信
      return resultCode === signature ? echostr : "mismatch";
    };

    module.exports = auth;


  • chatGtp.js

    const superagent = require("superagent");

    const send = (content) => {
      console.log(content, 'content')
      // https://www.openai-proxy.com/
      return new Promise((resolve, reject) => {
        superagent
          .post("https://api.openai-proxy.com/v1/chat/completions")
          .set(
            "Authorization",
            "Bearer 这里是自己openai key"
          )
          .send({
            model: "gpt-3.5-turbo",
            messages: [{ role: "user", content }],
          })
          .then(res => {
            const data = JSON.parse(res.text);
            console.log(' 返回了', data.choices)
            resolve(data.choices)
          }).catch(err => {
            reject(err)
          })
      })
    };
    // send('德玛西亚').then(res => console.log('成功', res)).catch(err => console.log('失败'))
    module.exports = send;


  • WXMsgCrypto.js

    var crypto = require('crypto')
    class PKCS7 {
      /**
       * 删除补位
       * @param {String} text 解密后的明文
       */
      decode(text) {
        let pad = text[text.length - 1]
        if (pad < 1 || pad > 32) {
          pad = 0
        }
        return text.slice(0, text.length - pad)
      }
      /**
       * 填充补位
       * @param {String} text 需要进行填充补位的明文
       */
      encode(text) {
        const blockSize = 32
        const textLength = text.length
        // 计算需要填充的位数
        const amountToPad = blockSize - (textLength % blockSize)
        const result = Buffer.alloc(amountToPad)
        result.fill(amountToPad)
        return Buffer.concat([text, result])
      }
    }

    /**
     * 微信公众号消息加解密
     * 官方文档(写的非常之烂)：https://developers.weixin.qq.com/doc/oplatform/Third-party_Platforms/Message_Encryption/Technical_Plan.html
     */
    class WXMsgCrypto {
      /**
       * 以下信息在公众号 - 开发 - 基本配置
       * @param {String} token          令牌(Token)
       * @param {String} encodingAESKey 消息加解密密钥
       * @param {String} appId          公众号的AppId
       */
      constructor(token, encodingAESKey, appId) {
        if (!token || !encodingAESKey || !appId) {
          throw new Error('please check arguments')
        }
        this.token = token
        this.appId = appId

        let AESKey = Buffer.from(encodingAESKey + '=', 'base64')
        if (AESKey.length !== 32) {
          throw new Error('encodingAESKey invalid')
        }
        this.key = AESKey
        this.iv = AESKey.slice(0, 16)
        this.pkcs7 = new PKCS7()
      }
      /**
       * 获取签名
       * @param {String} timestamp    时间戳
       * @param {String} nonce        随机数
       * @param {String} encrypt      加密后的文本
       */
      getSignature(timestamp, nonce, encrypt) {
        const sha = crypto.createHash('sha1')
        const arr = [this.token, timestamp, nonce, encrypt].sort()
        sha.update(arr.join(''))
        return sha.digest('hex')
      }
      /**
       * 对密文进行解密
       * @param {String} text    待解密的密文
       */
      decrypt(text) {
        // 创建解密对象，AES采用CBC模式，数据采用PKCS#7填充；IV初始向量大小为16字节，取AESKey前16字节
        const decipher = crypto.createDecipheriv('aes-256-cbc', this.key, this.iv)
        decipher.setAutoPadding(false)

        let deciphered = Buffer.concat([decipher.update(text, 'base64'), decipher.final()])

        deciphered = this.pkcs7.decode(deciphered)
        // 算法：AES_Encrypt[random(16B) + msg_len(4B) + msg + $CorpID]
        // 去除16位随机数
        const content = deciphered.slice(16)
        const length = content.slice(0, 4).readUInt32BE(0)

        return {
          message: content.slice(4, length + 4).toString(),
          appId: content.slice(length + 4).toString()
        }
      }
      /**
       * 对明文进行加密
       * 算法：Base64_Encode(AES_Encrypt[random(16B) + msg_len(4B) + msg + $appId])
       * @param {String} text    待加密明文文本
       */
      encrypt(text) {
        // 16B 随机字符串
        const randomString = crypto.pseudoRandomBytes(16)

        const msg = Buffer.from(text)
        // 获取4B的内容长度的网络字节序
        const msgLength = Buffer.alloc(4)
        msgLength.writeUInt32BE(msg.length, 0)

        const id = Buffer.from(this.appId)

        const bufMsg = Buffer.concat([randomString, msgLength, msg, id])

        // 对明文进行补位操作
        const encoded = this.pkcs7.encode(bufMsg)

        // 创建加密对象，AES采用CBC模式，数据采用PKCS#7填充；IV初始向量大小为16字节，取AESKey前16字节
        const cipher = crypto.createCipheriv('aes-256-cbc', this.key, this.iv)
        cipher.setAutoPadding(false)

        const cipheredMsg = Buffer.concat([cipher.update(encoded), cipher.final()])

        return cipheredMsg.toString('base64')
      }
    }

    module.exports = WXMsgCrypto



• 启动服务

在packge.json配置或者在node ./src/index.js

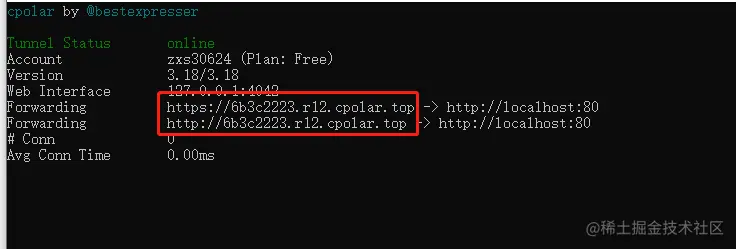

2、通过cpolar实现内网穿透 cpolar http [端口]

3、配置微信公众号

有问题评论互相学习交流
