代码示例

MyServer:

public class MyServer {
    public static void main(String[] args) throws InterruptedException {
        EventLoopGroup bossGroup = new NioEventLoopGroup();
        EventLoopGroup workGroup = new NioEventLoopGroup();

        try {
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup,workGroup)
                    .channel(NioServerSocketChannel.class)
                    //childHandler的任务由workGroup来执行
                    //如果是handler，则由bossGroup来执行
                    .childHandler(new MyServerInitializer());

            ChannelFuture channelFuture = serverBootstrap.bind(8899).sync();
            channelFuture.channel().closeFuture().sync();
        } finally {
            bossGroup.shutdownGracefully();
            workGroup.shutdownGracefully();
        }
    }
}

一 创建线程组EventLoopGroup

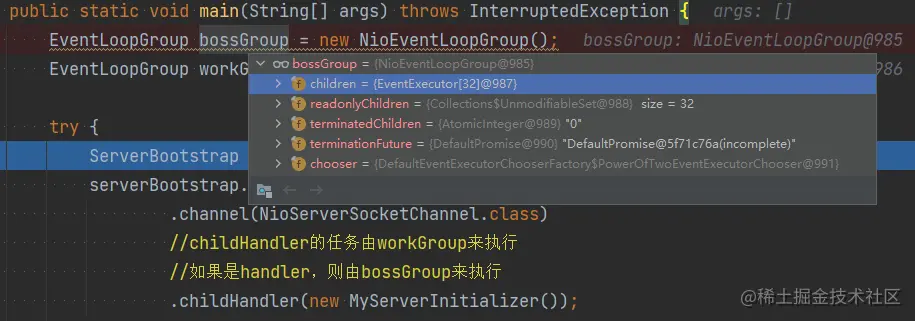

首先看下执行后的结构

  • 默认情况下 bossGroup 和 workerGroup 中的线程个数都为cpu核数的2倍
  • 每一个 NioEventLoop 包含如下的属性（比如自己的 Selector、任务队列、执行器等）

微信截图_20230417111528.png 微信截图_20230417111708.png

EventLoopGroup

/**
 * Special {@link EventExecutorGroup}
 * which allows registering {@link Channel}s that get
 * processed for later selection during the event loop.
 *
 */
public interface EventLoopGroup extends EventExecutorGroup {
    /**
     * Return the next {@link EventLoop} to use
     */
    @Override
    EventLoop next();

    /**
     * Register a {@link Channel} with this {@link EventLoop}. The returned {@link ChannelFuture}
     * will get notified once the registration was complete.
     */
    ChannelFuture register(Channel channel);

    /**
     * Register a {@link Channel} with this {@link EventLoop} using a {@link ChannelFuture}. The passed
     * {@link ChannelFuture} will get notified once the registration was complete and also will get returned.
     */
    ChannelFuture register(ChannelPromise promise);

    /**
     * Register a {@link Channel} with this {@link EventLoop}. The passed {@link ChannelFuture}
     * will get notified once the registration was complete and also will get returned.
     *
     * @deprecated Use {@link #register(ChannelPromise)} instead.
     */
    @Deprecated
    ChannelFuture register(Channel channel, ChannelPromise promise);
}

EventLoopGroup 是一个线程组，其中的每一个线程都在循环执行着三件事情

  • select：轮训注册在其中的 Selector 上的 Channel 的 IO 事件
  • processSelectedKeys：在对应的 Channel 上处理 IO 事件
  • runAllTasks：再去以此循环处理任务队列中的其他任务

1调用NioEventLoopGroup的构造方法

public NioEventLoopGroup(int nThreads, Executor executor, final SelectorProvider selectorProvider,
                             final SelectStrategyFactory selectStrategyFactory) {
        super(nThreads, executor, selectorProvider, selectStrategyFactory, RejectedExecutionHandlers.reject());
    }

2调用MultithreadEventLoopGroup的构造方法

protected MultithreadEventLoopGroup(int nThreads, Executor executor, Object... args) {
        super(nThreads == 0 ? DEFAULT_EVENT_LOOP_THREADS : nThreads, executor, args);
    }

如果不指定线程数则默认为cpu核数的2倍

private static final int DEFAULT_EVENT_LOOP_THREADS;

    static {
        DEFAULT_EVENT_LOOP_THREADS = Math.max(1, SystemPropertyUtil.getInt(
                "io.netty.eventLoopThreads", NettyRuntime.availableProcessors() * 2));

        if (logger.isDebugEnabled()) {
            logger.debug("-Dio.netty.eventLoopThreads: {}", DEFAULT_EVENT_LOOP_THREADS);
        }
    }

3调用MultithreadEventExecutorGroup的构造方法

public abstract class MultithreadEventExecutorGroup extends AbstractEventExecutorGroup {
  //Reactor线程组中的Reactor集合
  private final EventExecutor[] children;
  private final Set<EventExecutor> readonlyChildren;
  //从Reactor group中选择一个特定的Reactor的选择策略 用于channel注册绑定到一个固定的Reactor上
  private final EventExecutorChooserFactory.EventExecutorChooser chooser;

  /**
   * Create a new instance.
   *
   * @param nThreads          the number of threads that will be used by this instance.
   * @param executor          the Executor to use, or {@code null} if the default should be used.
   * @param chooserFactory    the {@link EventExecutorChooserFactory} to use.
   * @param args              arguments which will passed to each {@link #newChild(Executor, Object...)} call
   */
  protected MultithreadEventExecutorGroup(int nThreads, Executor executor,
                                          EventExecutorChooserFactory chooserFactory, Object... args) {
      checkPositive(nThreads, "nThreads");

      if (executor == null) {
          //用于创建Reactor线程
          executor = new ThreadPerTaskExecutor(newDefaultThreadFactory());
      }
	  //创建EventExecutor的数组(默认容量cpu核数2倍)
      children = new EventExecutor[nThreads];

      //循环创建reaactor group中的Reactor
      for (int i = 0; i < nThreads; i ++) {
          boolean success = false;
          try {
              //创建reactor
              children[i] = newChild(executor, args);
              success = true;
          } catch (Exception e) {
              // TODO: Think about if this is a good exception type
              throw new IllegalStateException("failed to create a child event loop", e);
          } finally {
              if (!success) {
                  for (int j = 0; j < i; j ++) {
                      children[j].shutdownGracefully();
                  }

                  for (int j = 0; j < i; j ++) {
                      EventExecutor e = children[j];
                      try {
                          while (!e.isTerminated()) {
                              e.awaitTermination(Integer.MAX_VALUE, TimeUnit.SECONDS);
                          }
                      } catch (InterruptedException interrupted) {
                          // Let the caller handle the interruption.
                          Thread.currentThread().interrupt();
                          break;
                      }
                  }
              }
          }
      }

      // chooser 的作用是为了实现 next()方法，即从 group 中挑选
      // 一个 NioEventLoop 来处理连接上 IO 事件的方法
      chooser = chooserFactory.newChooser(children);

      final FutureListener<Object> terminationListener = new FutureListener<Object>() {
          @Override
          public void operationComplete(Future<Object> future) throws Exception {
              if (terminatedChildren.incrementAndGet() == children.length) {
                  terminationFuture.setSuccess(null);
              }
          }
      };

      for (EventExecutor e: children) {
          e.terminationFuture().addListener(terminationListener);
      }

      Set<EventExecutor> childrenSet = new LinkedHashSet<EventExecutor>(children.length);
      Collections.addAll(childrenSet, children);
      readonlyChildren = Collections.unmodifiableSet(childrenSet);
  }
}

3.1创建executor

executor = new ThreadPerTaskExecutor(newDefaultThreadFactory());

3.1.1创建线程工厂

public DefaultThreadFactory(String poolName, boolean daemon, int priority, ThreadGroup threadGroup) {
    ObjectUtil.checkNotNull(poolName, "poolName");

    if (priority < Thread.MIN_PRIORITY || priority > Thread.MAX_PRIORITY) {
        throw new IllegalArgumentException(
                "priority: " + priority + " (expected: Thread.MIN_PRIORITY <= priority <= Thread.MAX_PRIORITY)");
    }

    prefix = poolName + '-' + poolId.incrementAndGet() + '-';
    this.daemon = daemon;
    this.priority = priority;
    this.threadGroup = threadGroup;
}

3.1.2创建ThreadPerTaskExecutor

public final class ThreadPerTaskExecutor implements Executor {
    private final ThreadFactory threadFactory;

    public ThreadPerTaskExecutor(ThreadFactory threadFactory) {
        this.threadFactory = ObjectUtil.checkNotNull(threadFactory, "threadFactory");
    }

    @Override
    public void execute(Runnable command) {
        threadFactory.newThread(command).start();
    }
}

3.2创建EventExecutor newChild(executor, args)

NioEventLoopGroup

protected EventLoop newChild(Executor executor, Object... args) throws Exception {
    SelectorProvider selectorProvider = (SelectorProvider) args[0];
    SelectStrategyFactory selectStrategyFactory = (SelectStrategyFactory) args[1];
    RejectedExecutionHandler rejectedExecutionHandler = (RejectedExecutionHandler) args[2];
    EventLoopTaskQueueFactory taskQueueFactory = null;
    EventLoopTaskQueueFactory tailTaskQueueFactory = null;

    int argsLength = args.length;
    if (argsLength > 3) {
        taskQueueFactory = (EventLoopTaskQueueFactory) args[3];
    }
    if (argsLength > 4) {
        tailTaskQueueFactory = (EventLoopTaskQueueFactory) args[4];
    }
    return new NioEventLoop(this, executor, selectorProvider,
            selectStrategyFactory.newSelectStrategy(),
            rejectedExecutionHandler, taskQueueFactory, tailTaskQueueFactory);
}

可以看到返回的就是NioEventLoop

3.2.1 调用NioEventLoop构造方法

NioEventLoop(NioEventLoopGroup parent, Executor executor, SelectorProvider selectorProvider,
             SelectStrategy strategy, RejectedExecutionHandler rejectedExecutionHandler,
             EventLoopTaskQueueFactory taskQueueFactory, EventLoopTaskQueueFactory tailTaskQueueFactory) {
    super(parent, executor, false, newTaskQueue(taskQueueFactory), newTaskQueue(tailTaskQueueFactory),
            rejectedExecutionHandler);
    this.provider = ObjectUtil.checkNotNull(selectorProvider, "selectorProvider");
    this.selectStrategy = ObjectUtil.checkNotNull(strategy, "selectStrategy");
    //获得nio的selector
    final SelectorTuple selectorTuple = openSelector();
    this.selector = selectorTuple.selector;
    this.unwrappedSelector = selectorTuple.unwrappedSelector;
}

openSelector()

这里对selector进行了优化

private SelectorTuple openSelector() {
    final Selector unwrappedSelector;
    try {
        //调用jdk底层的api
        unwrappedSelector = provider.openSelector();
    } catch (IOException e) {
        throw new ChannelException("failed to open a new selector", e);
    }
    //判断是否需要关闭优化(默认false, 也就是默认需要优化)
    if (DISABLE_KEY_SET_OPTIMIZATION) {
        return new SelectorTuple(unwrappedSelector);
    }

    //通过反射拿到sun.nio.ch.SelectorImpl这个类的class对象
    Object maybeSelectorImplClass = AccessController.doPrivileged(new PrivilegedAction<Object>() {
        @Override
        public Object run() {
            try {
                return Class.forName(
                        "sun.nio.ch.SelectorImpl",
                        false,
                        PlatformDependent.getSystemClassLoader());
            } catch (Throwable cause) {
                return cause;
            }
        }
    });
    //判断拿到的是不是class对象并且是不是Selector的实现类
    if (!(maybeSelectorImplClass instanceof Class) ||
        // ensure the current selector implementation is what we can instrument.
        !((Class<?>) maybeSelectorImplClass).isAssignableFrom(unwrappedSelector.getClass())) {
        if (maybeSelectorImplClass instanceof Throwable) {
            Throwable t = (Throwable) maybeSelectorImplClass;
            logger.trace("failed to instrument a special java.util.Set into: {}", unwrappedSelector, t);
        }
        //如果不是他的实现, 直接返回原生select
        return new SelectorTuple(unwrappedSelector);
    }
    //如果是它的实现, 就拿到其class对象
    final Class<?> selectorImplClass = (Class<?>) maybeSelectorImplClass;
    //用这个数据结构替换原生的SelectionKeySet
    final SelectedSelectionKeySet selectedKeySet = new SelectedSelectionKeySet();

    Object maybeException = AccessController.doPrivileged(new PrivilegedAction<Object>() {
        @Override
        public Object run() {
            try {
                //反射拿到selectedKeys和publicSelectedKeys两个属性, 默认这两个属性底层都是hashSet方式实现的
                Field selectedKeysField = selectorImplClass.getDeclaredField("selectedKeys");
                Field publicSelectedKeysField = selectorImplClass.getDeclaredField("publicSelectedKeys");

                if (PlatformDependent.javaVersion() >= 9 && PlatformDependent.hasUnsafe()) {
                    // Let us try to use sun.misc.Unsafe to replace the SelectionKeySet.
                    // This allows us to also do this in Java9+ without any extra flags.
                    long selectedKeysFieldOffset = PlatformDependent.objectFieldOffset(selectedKeysField);
                    long publicSelectedKeysFieldOffset =
                            PlatformDependent.objectFieldOffset(publicSelectedKeysField);

                    if (selectedKeysFieldOffset != -1 && publicSelectedKeysFieldOffset != -1) {
                        PlatformDependent.putObject(
                                unwrappedSelector, selectedKeysFieldOffset, selectedKeySet);
                        PlatformDependent.putObject(
                                unwrappedSelector, publicSelectedKeysFieldOffset, selectedKeySet);
                        return null;
                    }
                    // We could not retrieve the offset, lets try reflection as last-resort.
                }

                //selectedKeys属性设置成可修改的
                Throwable cause = ReflectionUtil.trySetAccessible(selectedKeysField, true);
                if (cause != null) {
                    return cause;
                }
                //publicSelectedKeys属性设置成可修改的
                cause = ReflectionUtil.trySetAccessible(publicSelectedKeysField, true);
                if (cause != null) {
                    return cause;
                }
                //将selector的这两个属性替换成Netty的selectedKeySet
                selectedKeysField.set(unwrappedSelector, selectedKeySet);
                publicSelectedKeysField.set(unwrappedSelector, selectedKeySet);
                return null;
            } catch (NoSuchFieldException e) {
                return e;
            } catch (IllegalAccessException e) {
                return e;
            }
        }
    });

    if (maybeException instanceof Exception) {
        selectedKeys = null;
        Exception e = (Exception) maybeException;
        logger.trace("failed to instrument a special java.util.Set into: {}", unwrappedSelector, e);
        return new SelectorTuple(unwrappedSelector);
    }
    //将优化后的keySet保存成NioEventLoop的成员变量
    selectedKeys = selectedKeySet;
    logger.trace("instrumented a special java.util.Set into: {}", unwrappedSelector);
    return new SelectorTuple(unwrappedSelector,
                             new SelectedSelectionKeySetSelector(unwrappedSelector, selectedKeySet));
}
  • 使用反射将selectedKeySet替换了selector对象中的selectedKeys, 和publicSelectedKeys两个属性
  • selectedKeys = selectedKeySet 将优化的数据结构selectedKeySet保存在NioEventLoop的成员变量中，这样, selector在select()操作的过程中, 如果有就绪事件则会将返回的key存放在selectedKeySet所对应的数组中
3.2.1.1 调用SingleThreadEventLoop构造方法
protected SingleThreadEventExecutor(EventExecutorGroup parent, Executor executor,
                                    boolean addTaskWakesUp, Queue<Runnable> taskQueue,
                                    RejectedExecutionHandler rejectedHandler) {
    super(parent);
    this.addTaskWakesUp = addTaskWakesUp;
    this.maxPendingTasks = DEFAULT_MAX_PENDING_EXECUTOR_TASKS;
    this.executor = ThreadExecutorMap.apply(executor, this);
    //创建任务队列
    this.taskQueue = ObjectUtil.checkNotNull(taskQueue, "taskQueue");
    this.rejectedExecutionHandler = ObjectUtil.checkNotNull(rejectedHandler, "rejectedHandler");
}

再进入super(parent);

protected AbstractScheduledEventExecutor(EventExecutorGroup parent) {
    super(parent);
}

再进入super(parent);

protected AbstractEventExecutor(EventExecutorGroup parent) {
    this.parent = parent;
}

NioEventLoopGroup构造方法执行后总结

  • NioEventLoopGroup构造方法执行完后
    • nThreads数量默认为cpu核数2倍
    • executor为null
    • chooserFactory=DefaultEventExecutorChooserFactory.INSTANCE
    • selectorProvider=SelectorProvider.provider()
    • selectStrategyFactory=DefaultSelectStrategyFactory.INSTANCE
    • rejectedExecutionHandler=RejectedExecutionHandlers.reject()
  • 父类 MultithreadEventLoopGroup 的有参数构造函数创建一个 NioEventLoop 的容器 children = new EventExecutor[nThreads]
  • 构建每一个 NioEventLoop 调用的是 children[i] = newChild(executor, args)
  • newChild()方法最终调用了 NioEventLoop 的构造函数，初始化其中的选择器、任务队列、执行器

二 创建ServerBootstrap

1调用ServerBootstrap构造方法

ServerBootstrap serverBootstrap = new ServerBootstrap();

2绑定线程组

serverBootstrap.group(bossGroup,workGroup)

2.1

ServerBootstrap

public ServerBootstrap group(EventLoopGroup parentGroup, EventLoopGroup childGroup) {
    super.group(parentGroup);
    if (this.childGroup != null) {
        throw new IllegalStateException("childGroup set already");
    }
    this.childGroup = ObjectUtil.checkNotNull(childGroup, "childGroup");
    return this;
}

2.1.1

AbstractBootstrap

/**
 * The {@link EventLoopGroup} which is used to handle all the events for the to-be-created
 * {@link Channel}
 */
public B group(EventLoopGroup group) {
    ObjectUtil.checkNotNull(group, "group");
    if (this.group != null) {
        throw new IllegalStateException("group set already");
    }
    this.group = group;
    return self();
}

private B self() {
    return (B) this;
}

执行完serverBootstrap.group(bossGroup,workGroup)可以发现bossGroup赋给了父类AbstractBootstrap，workGroup赋给了ServerBootstrap

3绑定通道

serverBootstrap.group(bossGroup,workGroup)
                    .channel(NioServerSocketChannel.class)

3.1

AbstractBootstrap

/**
 * The {@link Class} which is used to create {@link Channel} instances from.
 * You either use this or {@link #channelFactory(io.netty.channel.ChannelFactory)} if your
 * {@link Channel} implementation has no no-args constructor.
 */
public B channel(Class<? extends C> channelClass) {
    return channelFactory(new ReflectiveChannelFactory<C>(
            ObjectUtil.checkNotNull(channelClass, "channelClass")
    ));
}

3.1.1 创建channel实例并赋值给channelFactory

ReflectiveChannelFactory

public ReflectiveChannelFactory(Class<? extends T> clazz) {
    ObjectUtil.checkNotNull(clazz, "clazz");
    try {
        this.constructor = clazz.getConstructor();
    } catch (NoSuchMethodException e) {
        throw new IllegalArgumentException("Class " + StringUtil.simpleClassName(clazz) +
                " does not have a public non-arg constructor", e);
    }
}

3.1.2创建channelFactory

AbstractBootstrap

/**
 * @deprecated Use {@link #channelFactory(io.netty.channel.ChannelFactory)} instead.
 */
@Deprecated
public B channelFactory(ChannelFactory<? extends C> channelFactory) {
    ObjectUtil.checkNotNull(channelFactory, "channelFactory");
    if (this.channelFactory != null) {
        throw new IllegalStateException("channelFactory set already");
    }

    this.channelFactory = channelFactory;
    return self();
}

4设置childHandler处理器

serverBootstrap.group(bossGroup,workGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new TestServerInitializer());

ServerBootstrap

/**
 * Set the {@link ChannelHandler} which is used to serve the request for the {@link Channel}'s.
 */
public ServerBootstrap childHandler(ChannelHandler childHandler) {
    this.childHandler = ObjectUtil.checkNotNull(childHandler, "childHandler");
    return this;
}

5绑定端口号

ChannelFuture channelFuture = serverBootstrap.bind(8899).sync();

AbstractBootstrap

private ChannelFuture doBind(final SocketAddress localAddress) {
    //初始化和注册
    final ChannelFuture regFuture = initAndRegister();
    final Channel channel = regFuture.channel();
    if (regFuture.cause() != null) {
        return regFuture;
    }

    if (regFuture.isDone()) {
        // At this point we know that the registration was complete and successful.
        ChannelPromise promise = channel.newPromise();
        doBind0(regFuture, channel, localAddress, promise);
        return promise;
    } else {
        // Registration future is almost always fulfilled already, but just in case it's not.
        final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
        regFuture.addListener(new ChannelFutureListener() {
            @Override
            public void operationComplete(ChannelFuture future) throws Exception {
                Throwable cause = future.cause();
                if (cause != null) {
                    // Registration on the EventLoop failed so fail the ChannelPromise directly to not cause an
                    // IllegalStateException once we try to access the EventLoop of the Channel.
                    promise.setFailure(cause);
                } else {
                    // Registration was successful, so set the correct executor to use.
                    // See https://github.com/netty/netty/issues/2586
                    promise.registered();

                    doBind0(regFuture, channel, localAddress, promise);
                }
            }
        });
        return promise;
    }
}

5.1 初始化和注册

AbstractBootstrap#initAndRegister()

final ChannelFuture initAndRegister() {
    Channel channel = null;
    try {
        channel = channelFactory.newChannel();
        init(channel);
    } catch (Throwable t) {
        if (channel != null) {
            // channel can be null if newChannel crashed (eg SocketException("too many open files"))
            channel.unsafe().closeForcibly();
            // as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
            return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
        }
        // as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
        return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
    }

    ChannelFuture regFuture = config().group().register(channel);
    if (regFuture.cause() != null) {
        if (channel.isRegistered()) {
            channel.close();
        } else {
            channel.unsafe().closeForcibly();
        }
    }

    // If we are here and the promise is not failed, it's one of the following cases:
    // 1) If we attempted registration from the event loop, the registration has been completed at this point.
    //    i.e. It's safe to attempt bind() or connect() now because the channel has been registered.
    // 2) If we attempted registration from the other thread, the registration request has been successfully
    //    added to the event loop's task queue for later execution.
    //    i.e. It's safe to attempt bind() or connect() now:
    //         because bind() or connect() will be executed *after* the scheduled registration task is executed
    //         because register(), bind(), and connect() are all bound to the same thread.

    return regFuture;
}

5.1.1 创建channel

channel = channelFactory.newChannel();

这时的channelFactory其实是ReflectiveChannelFactory,调用newChannel其实就是在将NioServerSocketChannel实例化

5.1.1.1进入NioServerSocketChannel无参构造

private static final SelectorProvider DEFAULT_SELECTOR_PROVIDER = SelectorProvider.provider();

public NioServerSocketChannel() {
        this(newSocket(DEFAULT_SELECTOR_PROVIDER));
}

private static ServerSocketChannel newSocket(SelectorProvider provider) {
    try {
        /**
         *  Use the {@link SelectorProvider} to open {@link SocketChannel} and so remove condition in
         *  {@link SelectorProvider#provider()} which is called by each ServerSocketChannel.open() otherwise.
         *
         *  See <a href="https://github.com/netty/netty/issues/2308">#2308</a>.
         */
        return provider.openServerSocketChannel();
    } catch (IOException e) {
        throw new ChannelException(
                "Failed to open a server socket.", e);
    }
}

可以看到调用newSocket方法后，通过SelectorProvider得到了nio中的ServerSocketChannel

public NioServerSocketChannel(ServerSocketChannel channel) {
        super(null, channel, SelectionKey.OP_ACCEPT);
        config = new NioServerSocketChannelConfig(this, javaChannel().socket());
}
5.1.1.1.1调用super进入AbstractNioChannel的构造方法
protected AbstractNioChannel(Channel parent, SelectableChannel ch, int readInterestOp) {
    super(parent);
    this.ch = ch;
    this.readInterestOp = readInterestOp;
    try {
        ch.configureBlocking(false);
    } catch (IOException e) {
        try {
            ch.close();
        } catch (IOException e2) {
            logger.warn(
                        "Failed to close a partially initialized socket.", e2);
        }

        throw new ChannelException("Failed to enter non-blocking mode.", e);
    }
}
5.1.1.1.1.1再调用super进入AbstractChannel的构造方法
protected AbstractChannel(Channel parent) {
    this.parent = parent;
    id = newId();
    unsafe = newUnsafe();
    pipeline = newChannelPipeline();
}
5.1.1.1.2调用NioServerSocketChannelConfig的构造方法
public NioServerSocketChannel(ServerSocketChannel channel) {
    super(null, channel, SelectionKey.OP_ACCEPT);
    config = new NioServerSocketChannelConfig(this, javaChannel().socket());
}

点击super，直到进入AbstractChannel的构造方法

/**
 * Creates a new instance.
 *
 * @param parent
 *        the parent of this channel. {@code null} if there's no parent.
 */
protected AbstractChannel(Channel parent) {
    this.parent = parent;
    id = newId();
    unsafe = newUnsafe();
    pipeline = newChannelPipeline();
}

可以看到ChannelPipeline是在这里进行创建的。 进入newChannelPipeline()方法

protected DefaultChannelPipeline(Channel channel) {
    this.channel = ObjectUtil.checkNotNull(channel, "channel");
    succeededFuture = new SucceededChannelFuture(channel, null);
    voidPromise =  new VoidChannelPromise(channel, true);

    tail = new TailContext(this);
    head = new HeadContext(this);

    head.next = tail;
    tail.prev = head;
}

可以看到创建了head和tail两个节点，并且首尾相连。

进入DefaultServerSocketChannelConfig的构造方法

public DefaultServerSocketChannelConfig(ServerSocketChannel channel, ServerSocket javaSocket) {
    super(channel, new ServerChannelRecvByteBufAllocator());
    this.javaSocket = ObjectUtil.checkNotNull(javaSocket, "javaSocket");
}

ServerChannelRecvByteBufAllocator为动态的ByteBuf分配器，是根据前一次分配缓冲区的大小来决定下一次分配的大小。

5.1.2 初始化init(channel)

init(channel);

ServerBootstrap#init(Channel channel)

void init(Channel channel) {
    setChannelOptions(channel, newOptionsArray(), logger);
    setAttributes(channel, newAttributesArray());

    ChannelPipeline p = channel.pipeline();
    //childGroup就是workGroup
    final EventLoopGroup currentChildGroup = childGroup;
    //childHandler就是我们自己定义的ChannelHandler
    final ChannelHandler currentChildHandler = childHandler;
    final Entry<ChannelOption<?>, Object>[] currentChildOptions = newOptionsArray(childOptions);
    final Entry<AttributeKey<?>, Object>[] currentChildAttrs = newAttributesArray(childAttrs);

    p.addLast(new ChannelInitializer<Channel>() {
        @Override
        public void initChannel(final Channel ch) {
        	// 获取 NioServerSocketChannel 实例的 pipeline
            final ChannelPipeline pipeline = ch.pipeline();
            ChannelHandler handler = config.handler();
            if (handler != null) {
                //如果之前在serverBootstrap调用了handler方法，
                //在这里就会进行添加
                pipeline.addLast(handler);
            }
			// 异步执行向 pipeline 添加 ServerBootstrapAcceptor
            ch.eventLoop().execute(new Runnable() {
                @Override
                public void run() {
                    //配置处理器配置的适配器
                    pipeline.addLast(new ServerBootstrapAcceptor(
                            ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
                }
            });
        }
    });
}
5.1.2.1 设置channelOption属性

channelOption主要用来配置channel的网络属性

static void setChannelOptions(
        Channel channel, Map.Entry<ChannelOption<?>, Object>[] options, InternalLogger logger) {
    for (Map.Entry<ChannelOption<?>, Object> e: options) {
        setChannelOption(channel, e.getKey(), e.getValue(), logger);
    }
}
5.1.2.2 netty创建一个ChannelInitializer添加到ChannelPipeline中。
p.addLast(new ChannelInitializer<Channel>() {
        @Override
        public void initChannel(final Channel ch) {
            final ChannelPipeline pipeline = ch.pipeline();
            ChannelHandler handler = config.handler();
            if (handler != null) {
                //如果之前在serverBootstrap调用了handler方法，
                //在这里就会进行添加
                pipeline.addLast(handler);
            }
			// 异步执行向 pipeline 添加 ServerBootstrapAcceptor
            ch.eventLoop().execute(new Runnable() {
                @Override
                public void run() {
                    //配置处理器配置的适配器
                    pipeline.addLast(new ServerBootstrapAcceptor(
                            ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
                }
            });
        }
    });

可以看到在初始化init方法内，ChannelPipeline并且自己会创建一个ChannelInitializer添加到ChannelPipeline中。而 ChannelInitializer中的initChannel方法执行时机后续会进行分析。

  • ChannelInitializer其实是一个特殊的ChannelInboundHandlerAdapter
/**
 * A special {@link ChannelInboundHandler} which offers an easy way to initialize a {@link Channel} once it was
 * registered to its {@link EventLoop}.
 *
 * Implementations are most often used in the context of {@link Bootstrap#handler(ChannelHandler)} ,
 * {@link ServerBootstrap#handler(ChannelHandler)} and {@link ServerBootstrap#childHandler(ChannelHandler)} to
 * setup the {@link ChannelPipeline} of a {@link Channel}.
 *
 * Be aware that this class is marked as {@link Sharable} and so the implementation must be safe to be re-used.
 *
 * @param <C>   A sub-type of {@link Channel}
 */
@Sharable
public abstract class ChannelInitializer<C extends Channel> extends ChannelInboundHandlerAdapter
  • ChannelHandlerContext是负责将ChannelHandler与ChannelPipeline相关联起来的桥梁
    • 如果同一个ChannelHandler添加多次到ChannelPipeline中，那就会有多个ChannelHandlerContext对象与之对应
/**
 * Enables a {@link ChannelHandler} to interact with its {@link ChannelPipeline}
 * and other handlers. Among other things a handler can notify the next {@link ChannelHandler} in the
 * {@link ChannelPipeline} as well as modify the {@link ChannelPipeline} it belongs to dynamically.
 *
 * <h3>Notify</h3>
 *
 * You can notify the closest handler in the same {@link ChannelPipeline} by calling one of the various methods
 * provided here.
 *
 * Please refer to {@link ChannelPipeline} to understand how an event flows.
 *
 * <h3>Modifying a pipeline</h3>
 *
 * You can get the {@link ChannelPipeline} your handler belongs to by calling
 * {@link #pipeline()}.  A non-trivial application could insert, remove, or
 * replace handlers in the pipeline dynamically at runtime.
 *
 * <h3>Retrieving for later use</h3>
 *
 * You can keep the {@link ChannelHandlerContext} for later use, such as
 * triggering an event outside the handler methods, even from a different thread.
 * <pre>
 * public class MyHandler extends {@link ChannelDuplexHandler} {
 *
 *     <b>private {@link ChannelHandlerContext} ctx;</b>
 *
 *     public void beforeAdd({@link ChannelHandlerContext} ctx) {
 *         <b>this.ctx = ctx;</b>
 *     }
 *
 *     public void login(String username, password) {
 *         ctx.write(new LoginMessage(username, password));
 *     }
 *     ...
 * }
 * </pre>
 *
 * <h3>Storing stateful information</h3>
 *
 * {@link #attr(AttributeKey)} allow you to
 * store and access stateful information that is related with a {@link ChannelHandler} / {@link Channel} and its
 * context. Please refer to {@link ChannelHandler} to learn various recommended
 * ways to manage stateful information.
 *
 * <h3>A handler can have more than one {@link ChannelHandlerContext}</h3>
 *
 * Please note that a {@link ChannelHandler} instance can be added to more than
 * one {@link ChannelPipeline}.  It means a single {@link ChannelHandler}
 * instance can have more than one {@link ChannelHandlerContext} and therefore
 * the single instance can be invoked with different
 * {@link ChannelHandlerContext}s if it is added to one or more {@link ChannelPipeline}s more than once.
 * Also note that a {@link ChannelHandler} that is supposed to be added to multiple {@link ChannelPipeline}s should
 * be marked as {@link io.netty.channel.ChannelHandler.Sharable}.
 *
 * <h3>Additional resources worth reading</h3>
 * <p>
 * Please refer to the {@link ChannelHandler}, and
 * {@link ChannelPipeline} to find out more about inbound and outbound operations,
 * what fundamental differences they have, how they flow in a  pipeline,  and how to handle
 * the operation in your application.
 */
public interface ChannelHandlerContext extends AttributeMap, ChannelInboundInvoker, ChannelOutboundInvoker
5.1.2.3 配置处理器配置的适配器 调用ServerBootstrapAcceptor构造方法
ServerBootstrapAcceptor(
        final Channel channel, EventLoopGroup childGroup, ChannelHandler childHandler,
        Entry<ChannelOption<?>, Object>[] childOptions, Entry<AttributeKey<?>, Object>[] childAttrs) {
    this.childGroup = childGroup;
    this.childHandler = childHandler;
    this.childOptions = childOptions;
    this.childAttrs = childAttrs;

    // Task which is scheduled to re-enable auto-read.
    // It's important to create this Runnable before we try to submit it as otherwise the URLClassLoader may
    // not be able to load the class because of the file limit it already reached.
    //
    // See https://github.com/netty/netty/issues/1328
    enableAutoReadTask = new Runnable() {
        @Override
        public void run() {
            channel.config().setAutoRead(true);
        }
    };
}
5.1.2.4 addLast方法

回到5.1.2.2 ChannelPipeline p = channel.pipeline();得到的是DefaultChannelPipeline 所以进入DefaultChannelPipeline的addLast方法。

public final ChannelPipeline addLast(EventExecutorGroup group, String name, ChannelHandler handler) {
    final AbstractChannelHandlerContext newCtx;
    synchronized (this) {
        checkMultiplicity(handler);

        newCtx = newContext(group, filterName(name, handler), handler);

        addLast0(newCtx);

        // If the registered is false it means that the channel was not registered on an eventLoop yet.
        // In this case we add the context to the pipeline and add a task that will call
        // ChannelHandler.handlerAdded(...) once the channel is registered.
        if (!registered) {
            newCtx.setAddPending();
            callHandlerCallbackLater(newCtx, true);
            return this;
        }

        EventExecutor executor = newCtx.executor();
        if (!executor.inEventLoop()) {
            callHandlerAddedInEventLoop(newCtx, executor);
            return this;
        }
    }
    callHandlerAdded0(newCtx);
    return this;
}
5.1.2.4.1 创建ChannelHandlerContext，并将ChannelHandler放入其中

进入newContext(group, filterName(name, handler), handler)

newCtx = newContext(group, filterName(name, handler), handler);

DefaultChannelHandlerContext(
        DefaultChannelPipeline pipeline, EventExecutor executor, String name, ChannelHandler handler) {
    super(pipeline, executor, name, handler.getClass());
    this.handler = handler;
}
5.1.2.4.2 将创建好ChannelHandlerContext放入ChannelPipeline中，并添加到尾结点的前一个节点
private void addLast0(AbstractChannelHandlerContext newCtx) {
    AbstractChannelHandlerContext prev = tail.prev;
    newCtx.prev = prev;
    newCtx.next = tail;
    prev.next = newCtx;
    tail.prev = newCtx;
}
5.1.2.4.3 如果channel没有注册到eventLoop的话会将创建出的ChannelHandlerContext放入
if (!registered) {
    newCtx.setAddPending();
    callHandlerCallbackLater(newCtx, true);
    return this;
}

private void callHandlerCallbackLater(AbstractChannelHandlerContext ctx, boolean added) {
    assert !registered;

    PendingHandlerCallback task = added ? new PendingHandlerAddedTask(ctx) : new PendingHandlerRemovedTask(ctx);
    PendingHandlerCallback pending = pendingHandlerCallbackHead;
    if (pending == null) {
        pendingHandlerCallbackHead = task;
    } else {
        // Find the tail of the linked-list.
        while (pending.next != null) {
            pending = pending.next;
        }
        pending.next = task;
    }
}

到目前为止，准确的说ChannelPipeline里面存放的是一个个ChannelHandlerContext，而ChannelHandlerContext里面含有ChannelHandler

5.1.2.4.4 获取ChannelHandlerContext里面的ChannelHandler，并将ChannelHandlerContext放入其中。(要等channel注册到eventLoop。registered为true才会执行)

到这里， ChannelHandlerContext和 ChannelHandler相当于相互引用。

callHandlerAdded0(newCtx);

final void callHandlerAdded() throws Exception {
    // We must call setAddComplete before calling handlerAdded. Otherwise if the handlerAdded method generates
    // any pipeline events ctx.handler() will miss them because the state will not allow it.
    if (setAddComplete()) {
        handler().handlerAdded(this);
    }
}
avatar
文章
阅读
粉丝
