Spring cloud Gateway 换成 Apache APISIX 云原生 API 网关初体验

拉裤兜子装不下
1,127 阅读3分钟

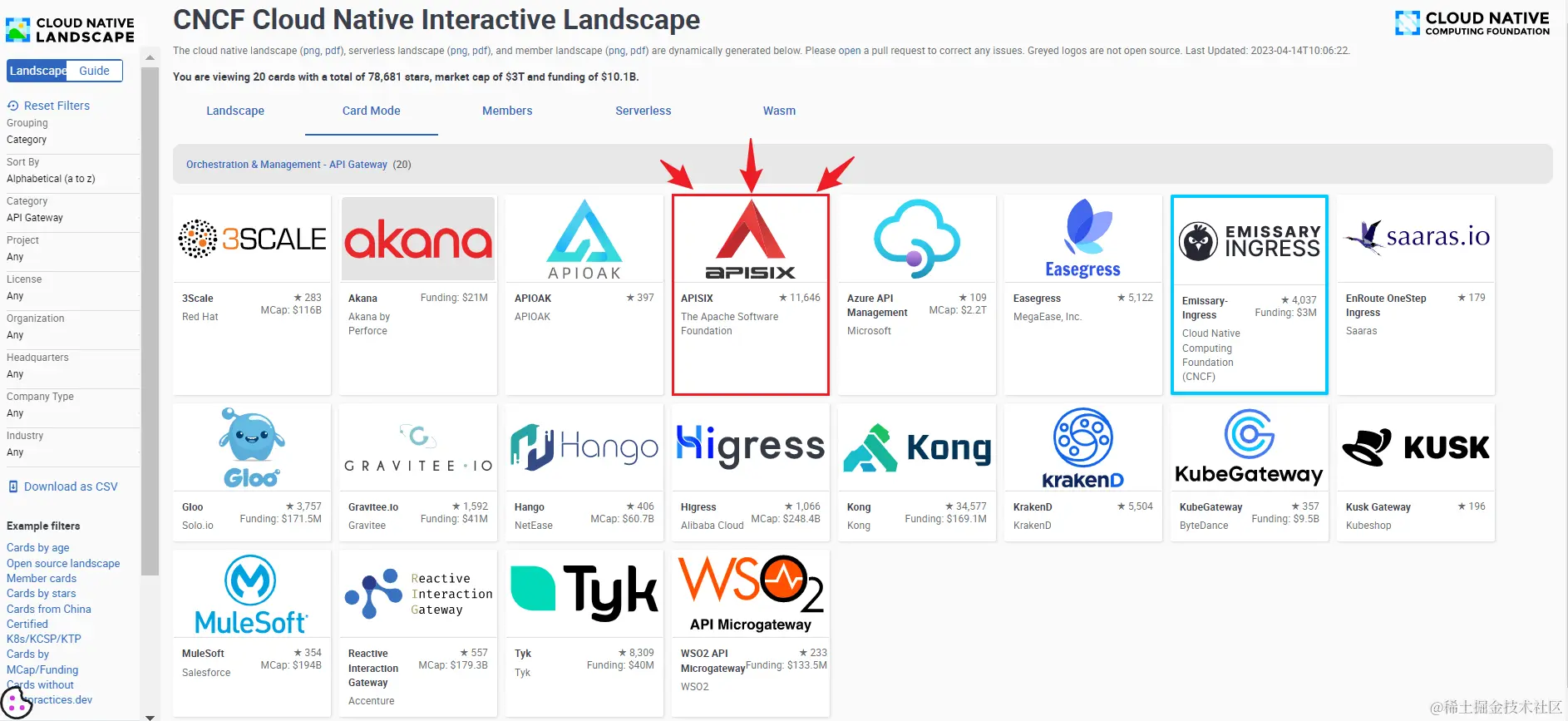

0.png landscape.cncf.io/card-mode?c…

一、环境项目准备

1、创建Spring Cloud Gateway API 网关项目

  1. 新建 demo-gateway 项目

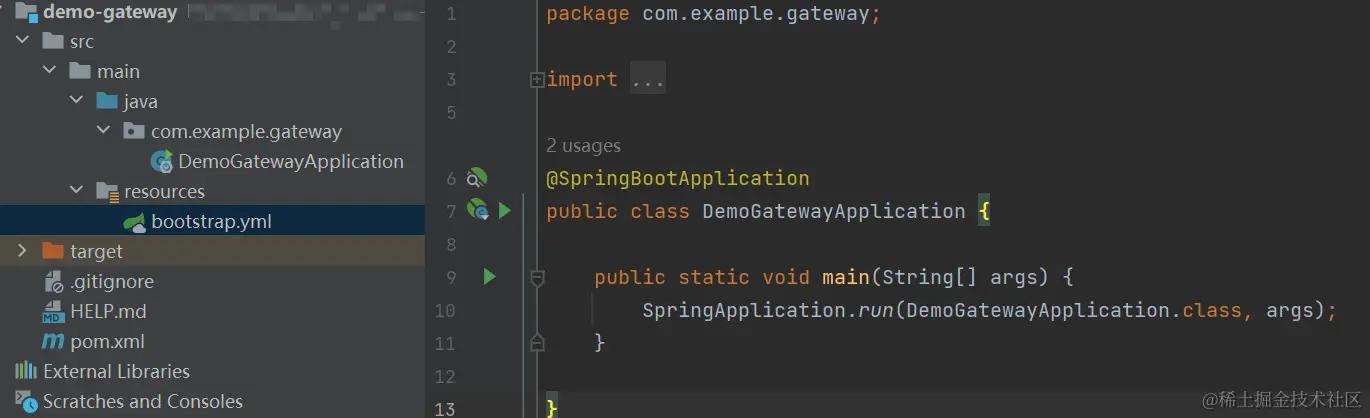

1.png pom 依赖如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.example</groupId>
    <artifactId>demo-gateway</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo-gateway</name>
    <description>demo-gateway</description>
    <properties>
        <java.version>17</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.6.13</spring-boot.version>
        <spring-cloud-alibaba.version>2021.0.5.0</spring-cloud-alibaba.version>
        <spring-cloud.version>2021.0.5</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-loadbalancer</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainClass>com.example.gateway.DemoGatewayApplication</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>
  1. 配置文件 bootstrap.yml
server:
  port: 8099
spring:
  application:
    name: demo-gateway
  profiles:
    active: dev
  cloud:
    nacos:
      discovery:
        server-addr: NacosIP地址:8848
      config:
        server-addr: ${spring.cloud.nacos.discovery.server-addr}
        file-extension: yml

2、创建Srping Cloud 接口服务 项目

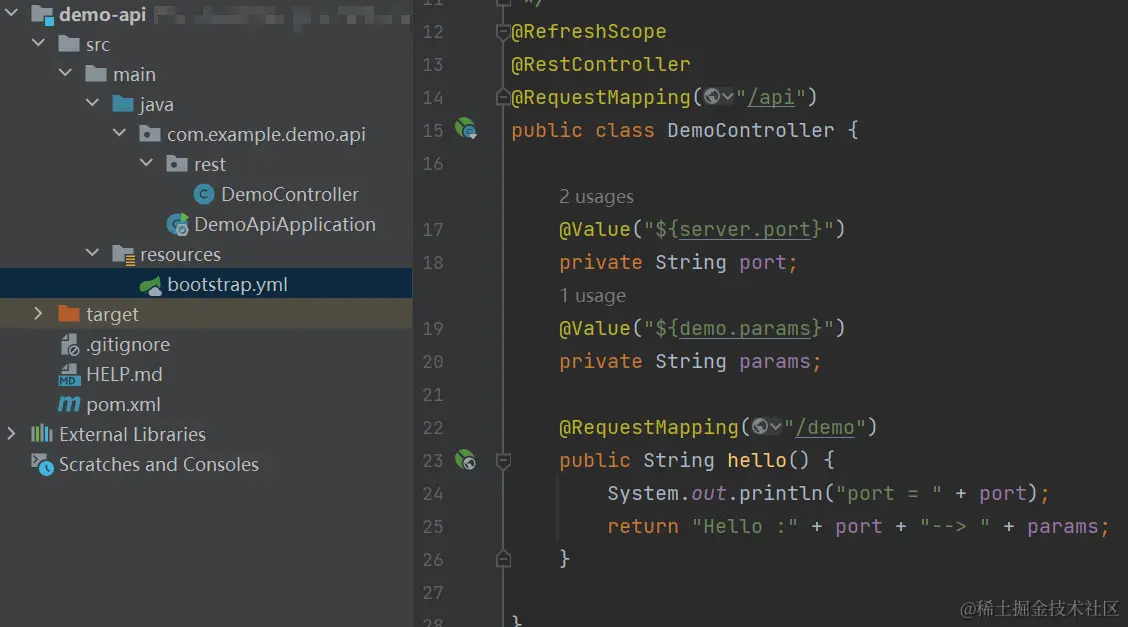

  1. 新建 demo-api 项目 2.png pom 依赖如下
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.example</groupId>
    <artifactId>demo-api</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo-api</name>
    <description>demo-api</description>
    <properties>
        <java.version>17</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>3.0.0</spring-boot.version>
        <spring-cloud-alibaba.version>2022.0.0.0-RC1</spring-cloud-alibaba.version>
        <spring-cloud.version>2022.0.0-RC2</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainClass>com.example.demo.api.DemoApiApplication</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
    <repositories>
        <repository>
            <id>spring-milestones</id>
            <name>Spring Milestones</name>
            <url>https://repo.spring.io/milestone</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
    </repositories>
</project>
  1. 配置文件 bootstrap.yml
server:
  port: 9001
spring:
  application:
    name: demo-api
  profiles:
    active: dev
  cloud:
    nacos:
      discovery:
        server-addr: NacosIP地址:8848
      config:
        server-addr: ${spring.cloud.nacos.discovery.server-addr}
        file-extension: yml

3、下载启动 Naocs 作为服务配置注册中心

  • 下载安装

本地下载安装详见 nacos.io/zh-cn/docs/…

当然也可Docker方式详见 nacos.io/zh-cn/docs/…

  • 添加demo-gateway、demo-api的配置文件

3.png demo-gateway-dev.yml

spring:
  cloud:
    gateway:
      routes:
        # 路由的ID，没有固定规则，但要求唯一，建议配合服务名
        - id: demo-api
          # 匹配后提供服务的路由地址
          uri: lb://demo-api
          predicates:
            - Path=/api/**

demo-api-dev.yml

demo:
  params: 来自Nancos配置中心的数据

4、安装并运行 APISIX API 网关

本次使用CentOS 选用Docker方式安装，需要先安装 Docker和Docker-Compose

## 卸载旧版本
sudo yum remove docker \
                  docker-client \
                  docker-client-latest \
                  docker-common \
                  docker-latest \
                  docker-latest-logrotate \
                  docker-logrotate \
                  docker-engine
## 设置 Docker 存储库
sudo yum install -y yum-utils

sudo yum-config-manager \
    --add-repo \
    https://download.docker.com/linux/centos/docker-ce.repo
## 安装运行
sudo yum install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

sudo systemctl start docker
## 设置docker 开机自启
systemctl enable docker

## 下载安装（龟速，或者使用后边的方式）
curl -SL https://github.com/docker/compose/releases/download/v2.17.2/docker-compose-linux-x86_64 -o /usr/local/bin/docker-compose

## 通过地址离线下载上传CentOS后执行
sudo mv docker-compose-Linux-x86_64 /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose
docker-compose -v
  • 正菜来了！APISIX 安装
## 首先下载apisix-docker仓库（龟速继续离线下载上传）
git clone https://github.com/apache/apisix-docker.git
## 使用Nacos 服务发现注册，配置Nacos
cd apisix-docker-master/example/apisix_conf
## 添加Nacos地址
discovery:
  nacos:
    host:
      - "http://NacosIP地址:8848"
## 回到apisix-docker-master/example 路径下，使用 docker-compose 启用 APISIX
docker-compose -p docker-apisix up -d

账号密码查看apisix-docker-master/example/dashboard_conf/conf.yaml 默认admin/admin


前期准备工作完成！

二、Spring Cloud Gateway 网关运行测试

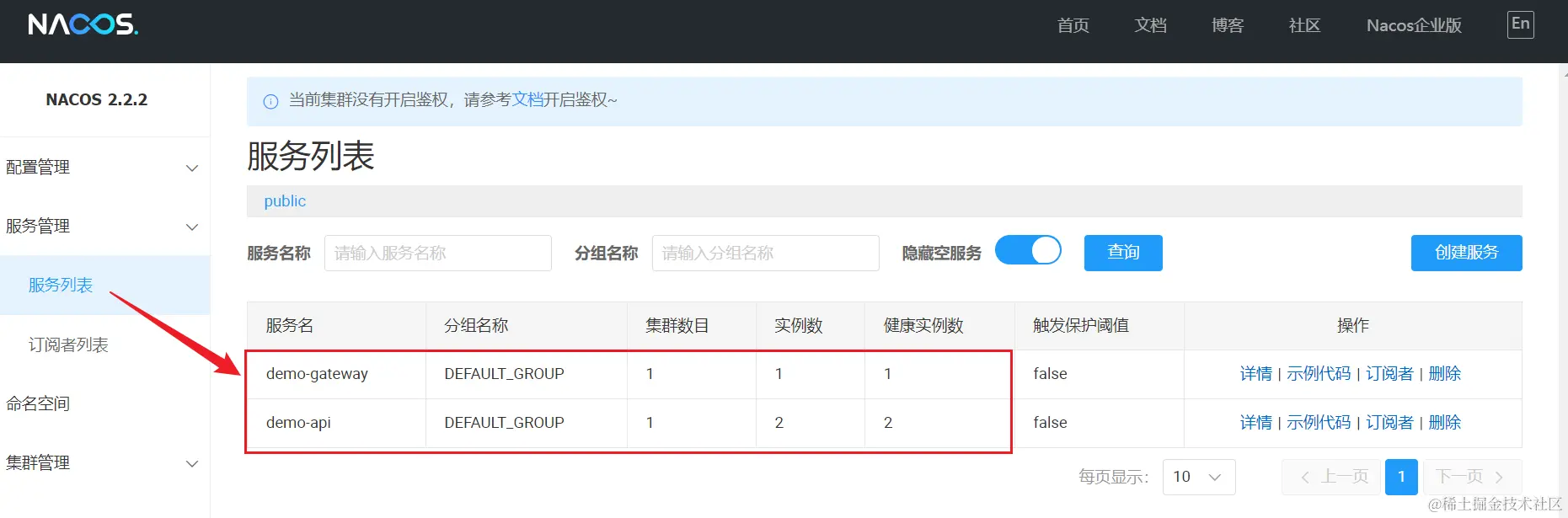

  • 启动 demo-gateway、demo-api服务，默认9001再启动个9002 服务做负载。



发送两次请求，得到9001和9002的轮询响应

Hello :9001--> 来自Nancos配置中心的数据
Hello :9002--> 来自Nancos配置中心的数据

三、Spring Cloud Gateway 改成 APISIX 网关运行测试

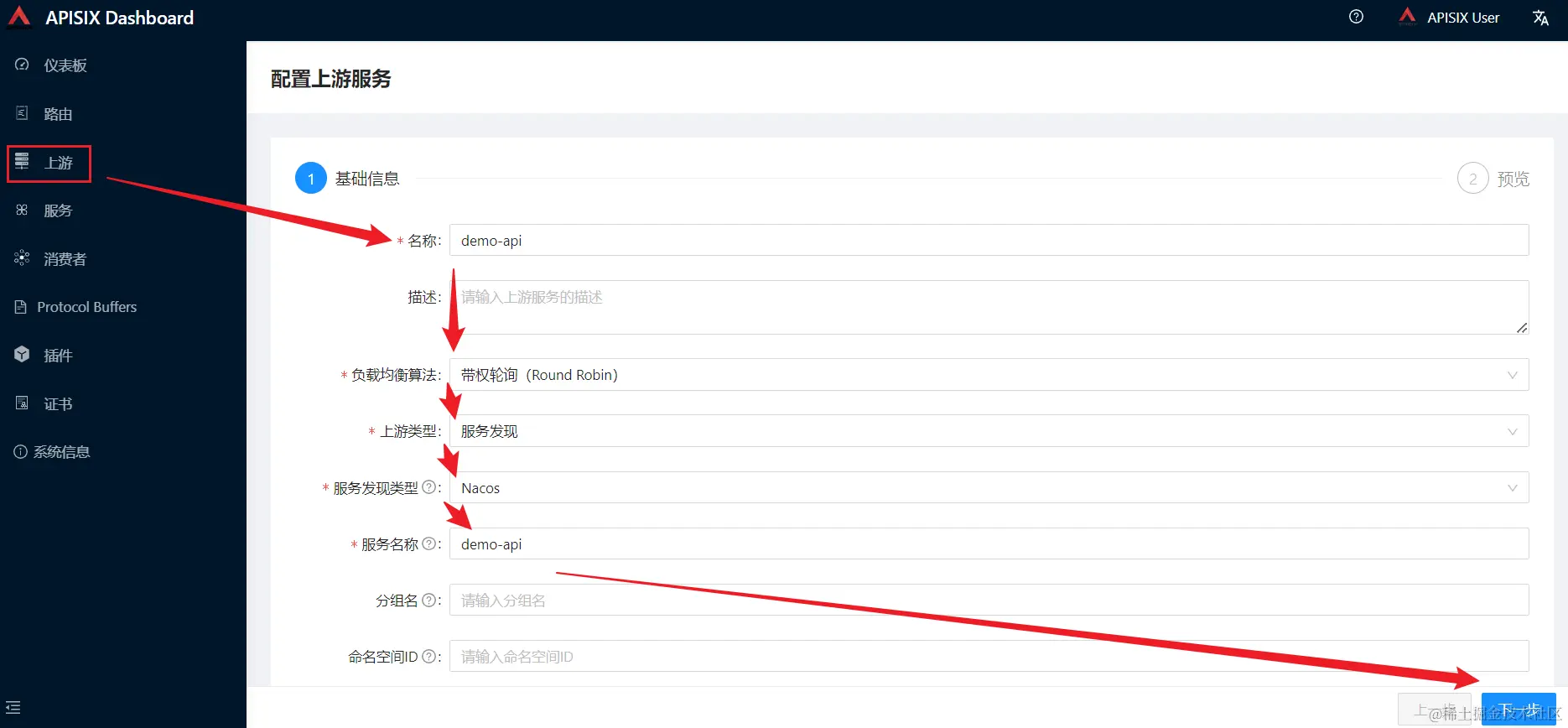

  1. 登录APISIX Dashboard，配置上游服务发现Naocs

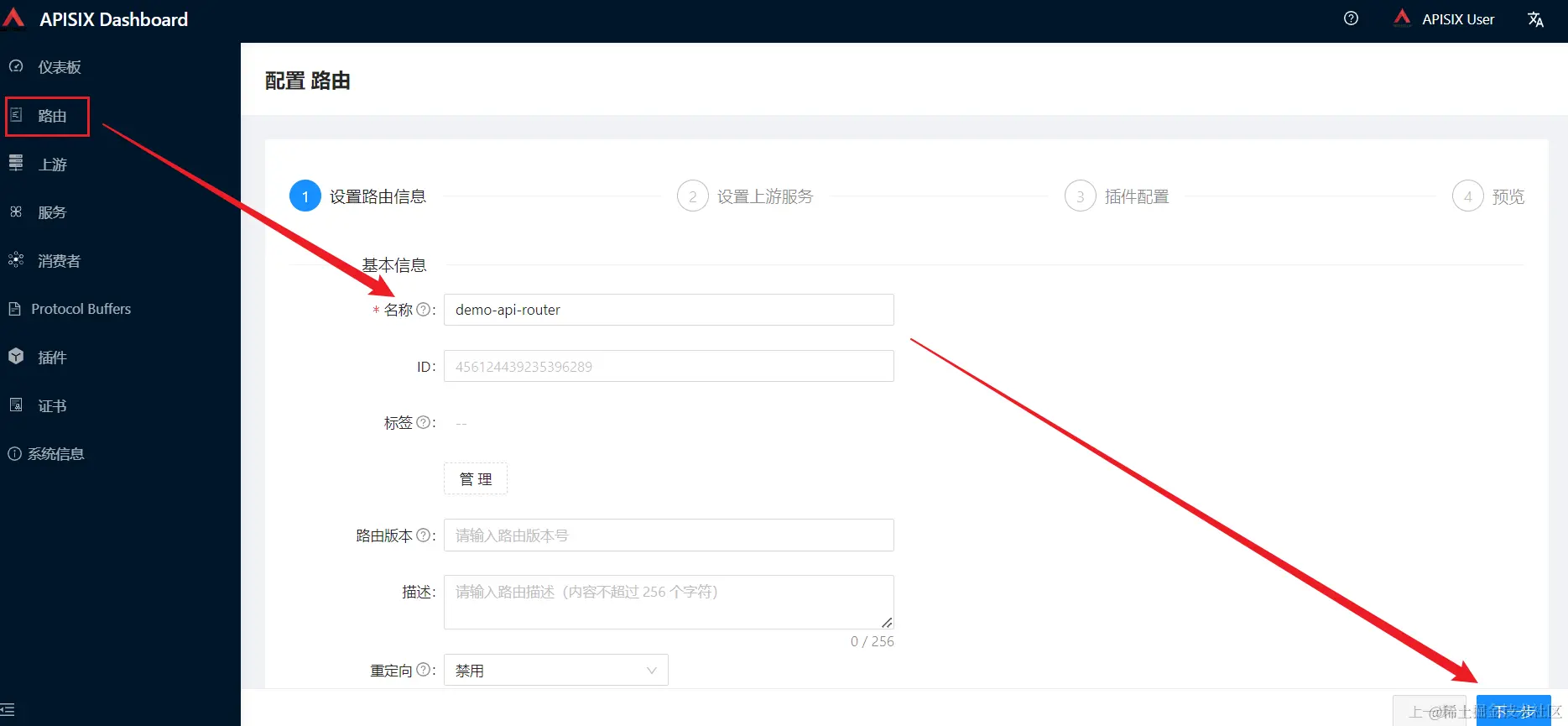

6.png 2. 配置路由，除了标注和特殊配置，一路欢快的下一步即可

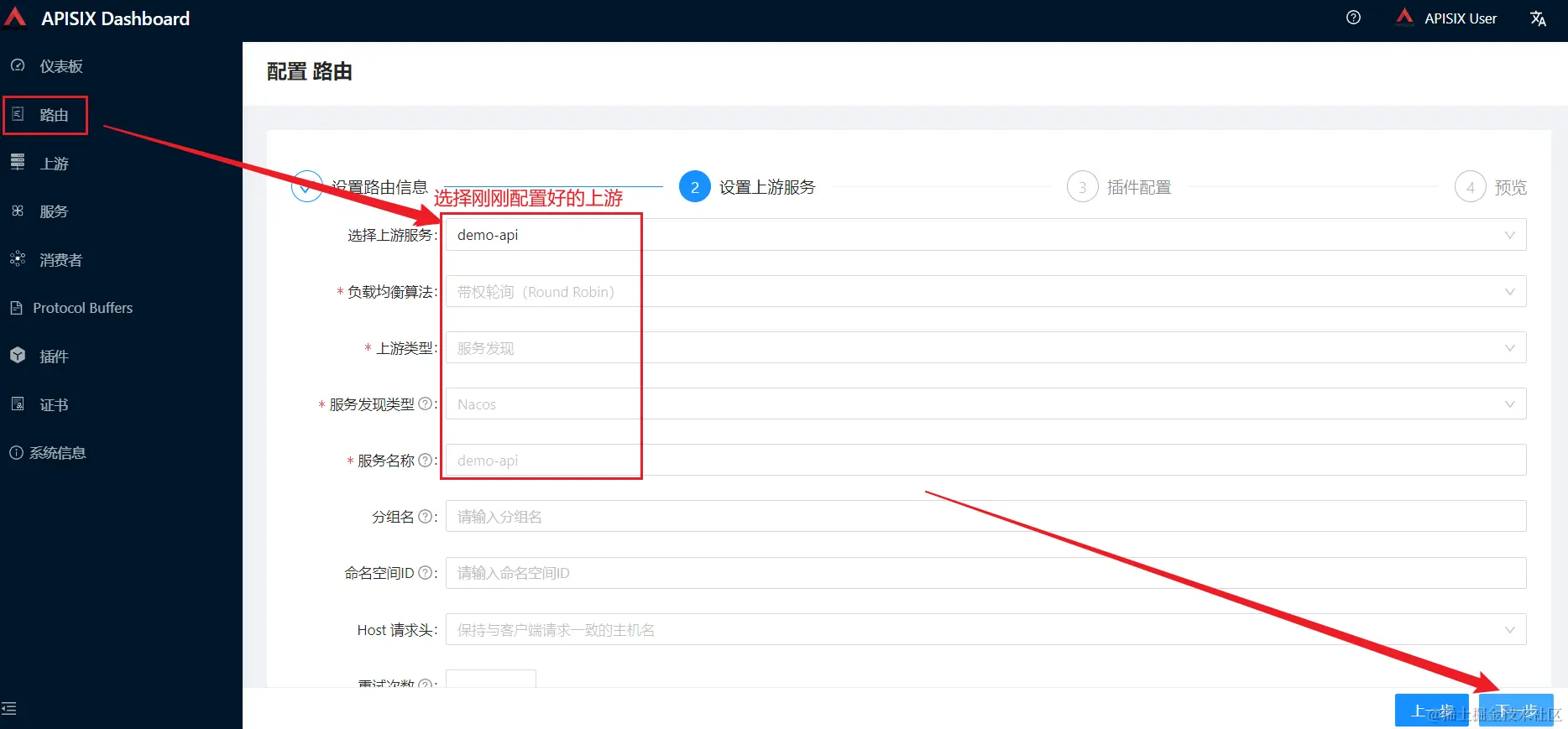

7-3.png 3. 发送请求 http://APISIX的机器IP:9080/api/demo

发送两次请求，得到9001和9002的轮询响应

Hello :9001--> 来自Nancos配置中心的数据
Hello :9002--> 来自Nancos配置中心的数据

到此，最最最基础的替代就完成啦！
