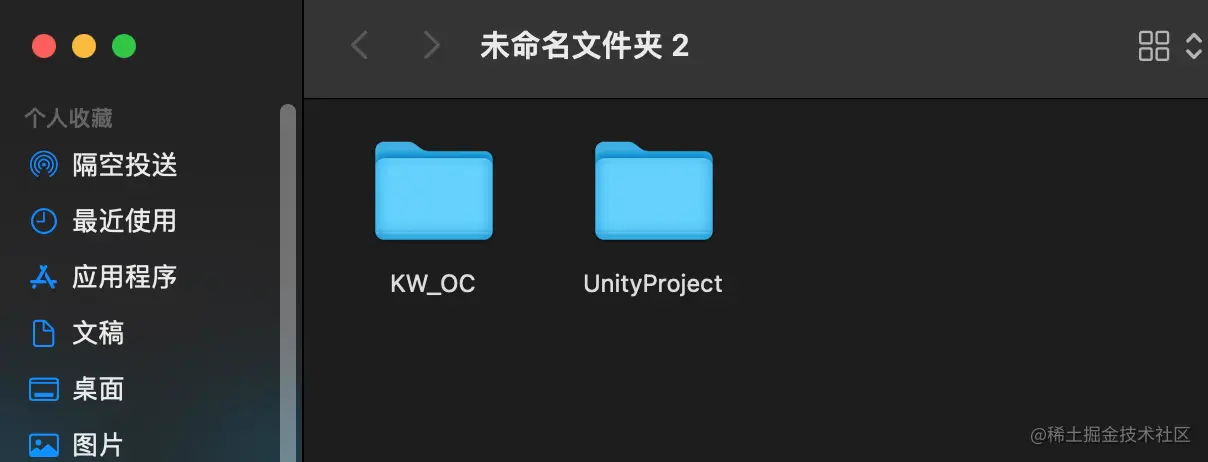

1.先准备好原生工程【KW_OC】和导出的unity工程【UnityProject】

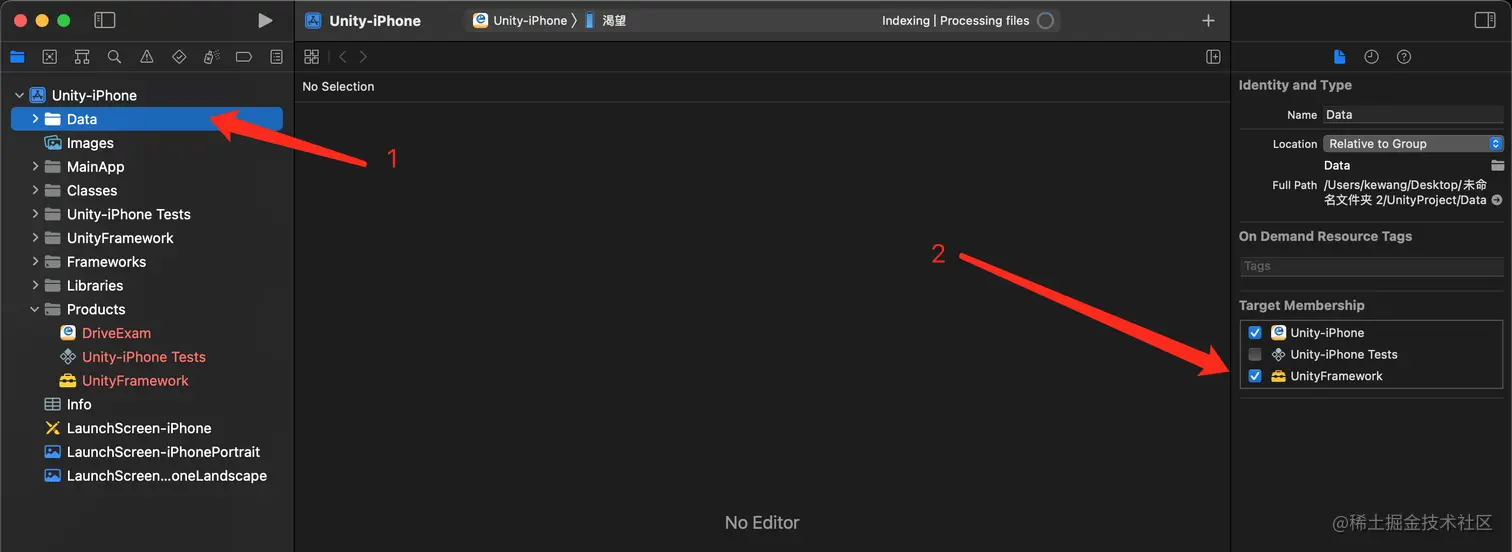

2.打开UnityProject，检查Data文件是否勾选UnityFramework

3.选择真机设备，Command+B 进行编译，编译成功后会看到 UnityFramework文件变色了

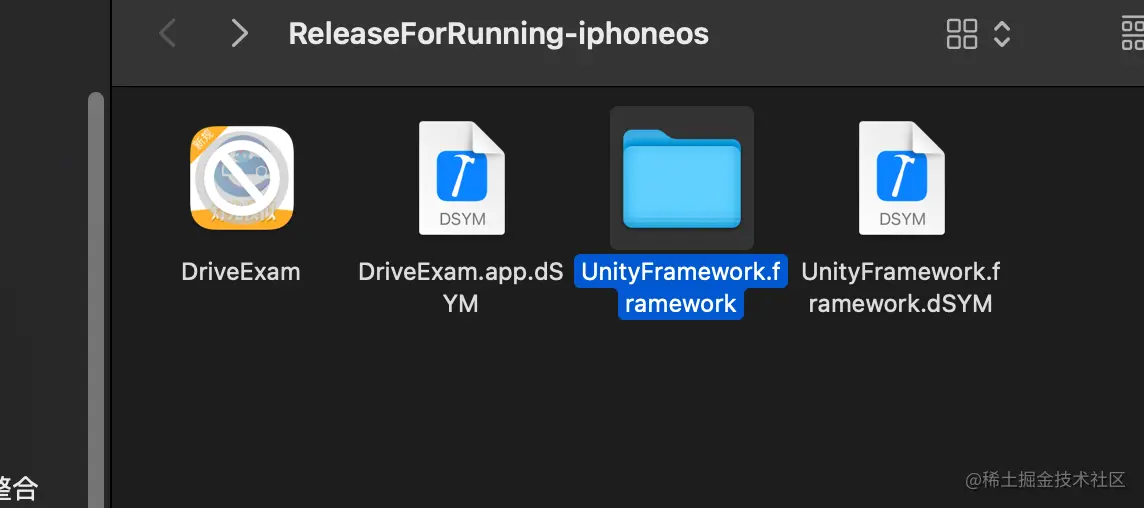

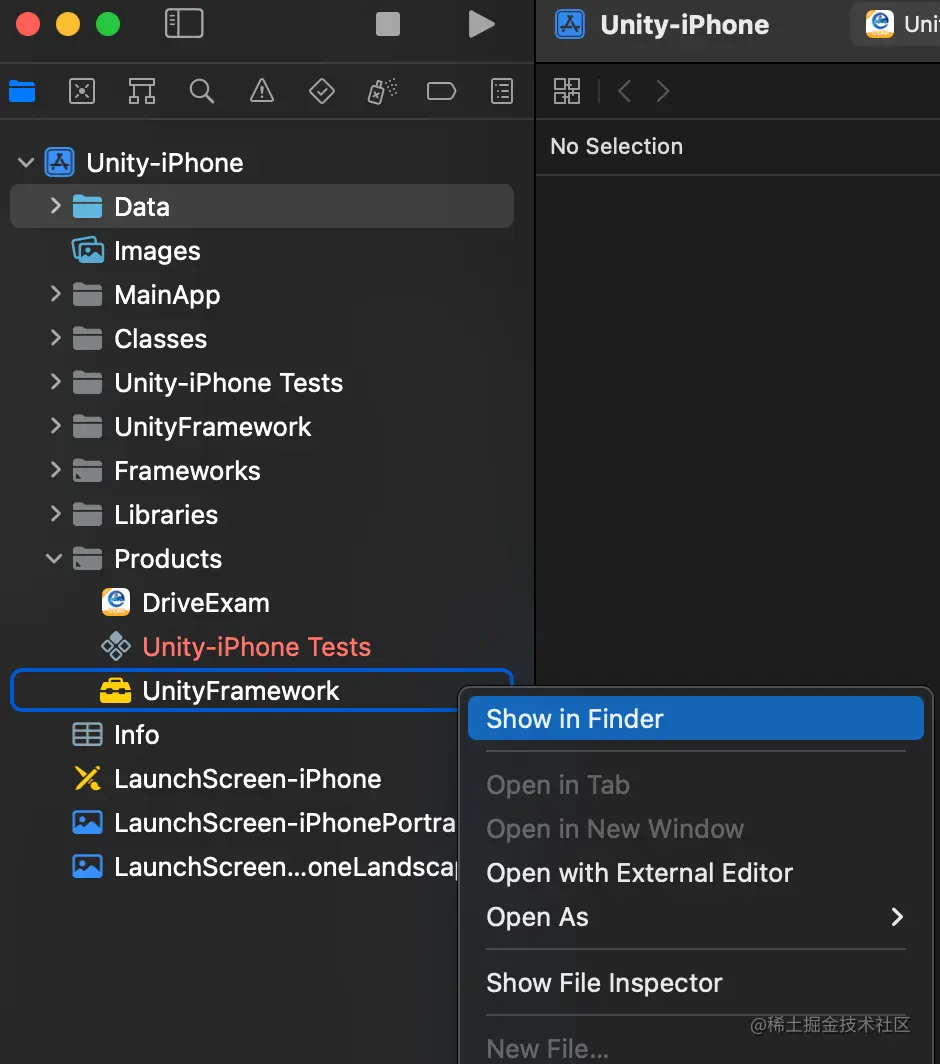

4.点击Show in Finder ，打开文件目录

5.将Unity项目嵌入原生项目

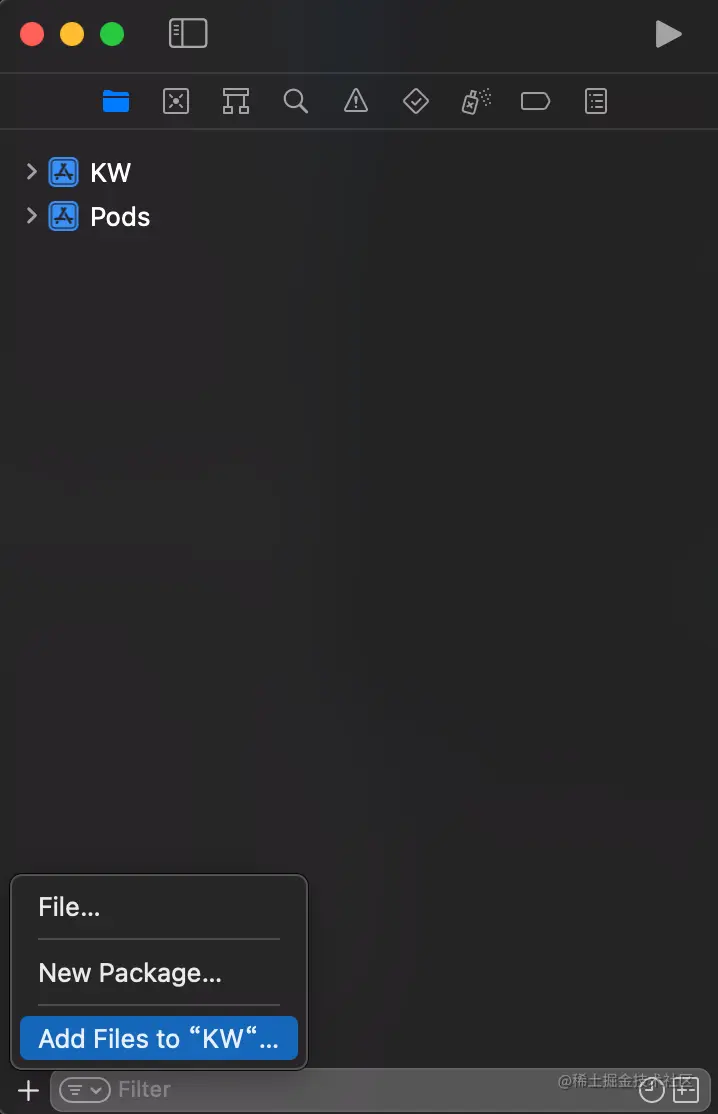

• 打开原生工程，左下角 + 按钮

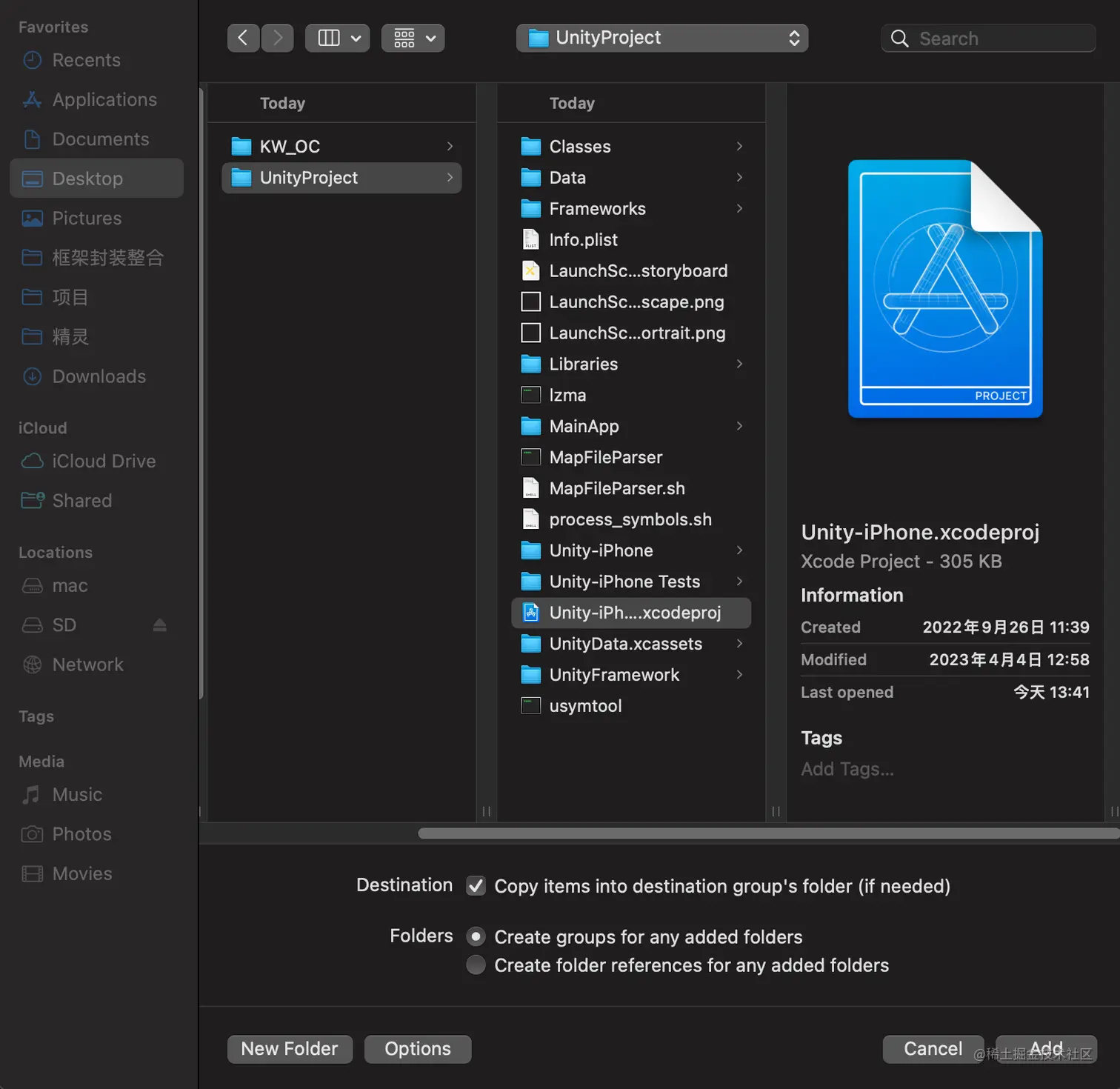

• 选中xcodeproj文件，右下角add

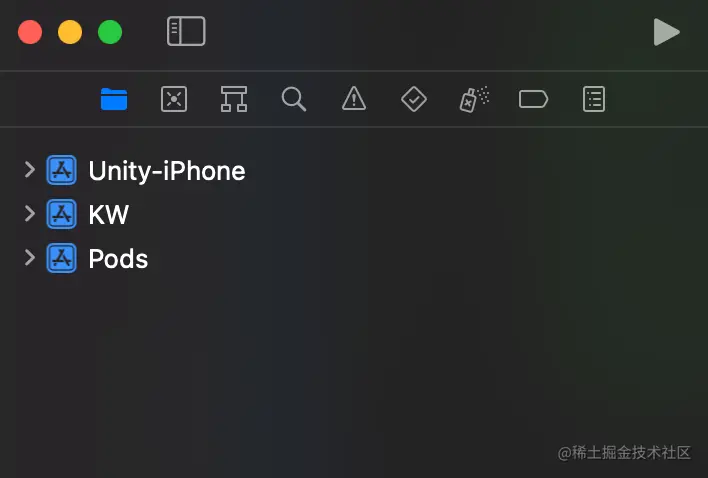

• 现在原生工程文件目录就变成这样了

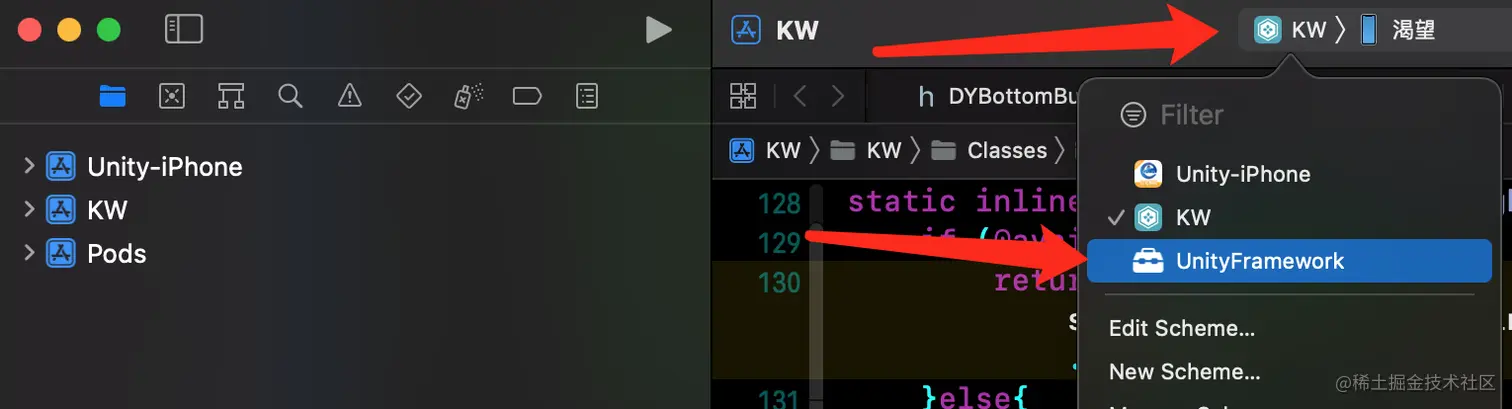

• 编译UnityFramework 【Command + B】

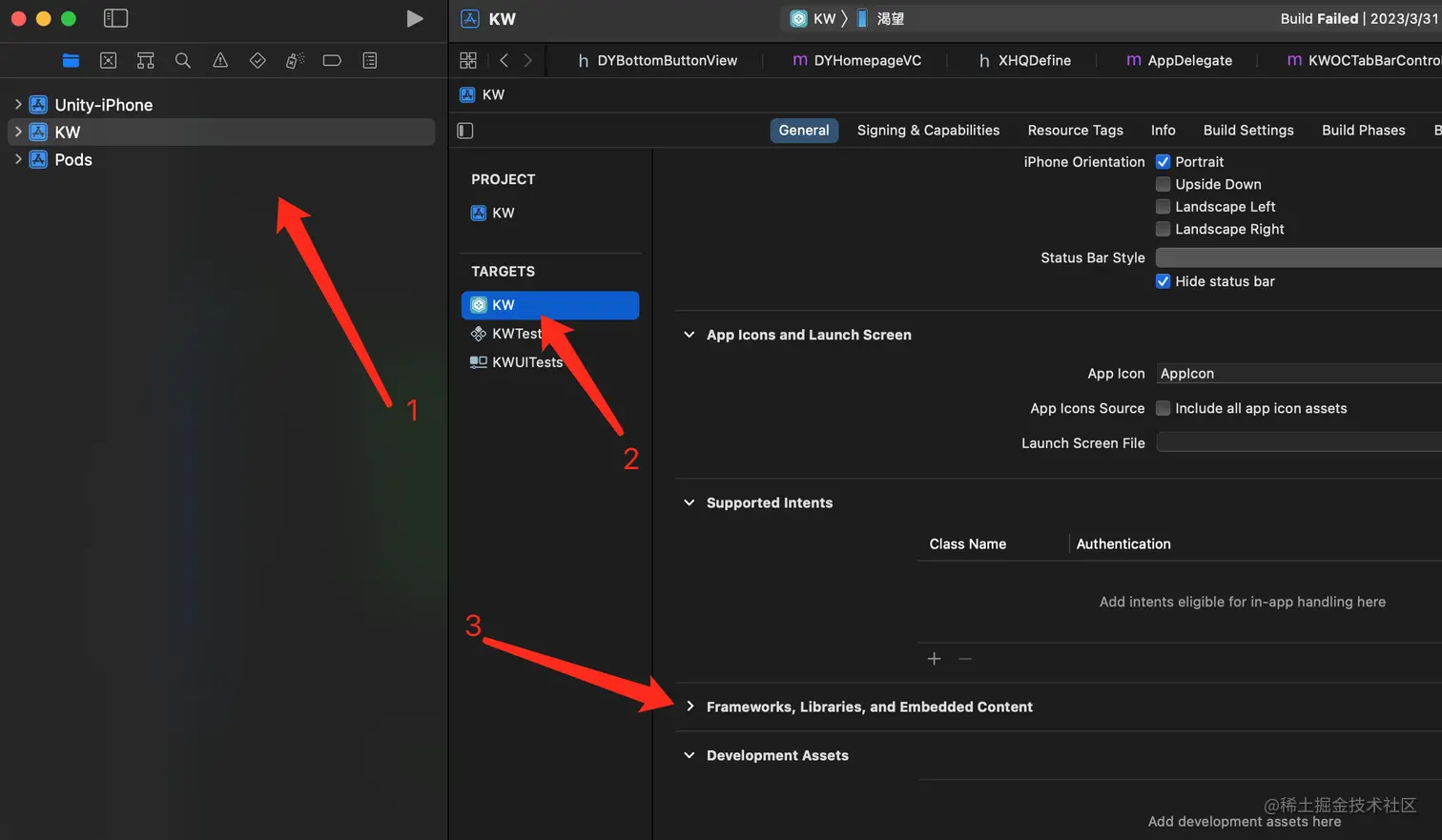

• 配置Framework

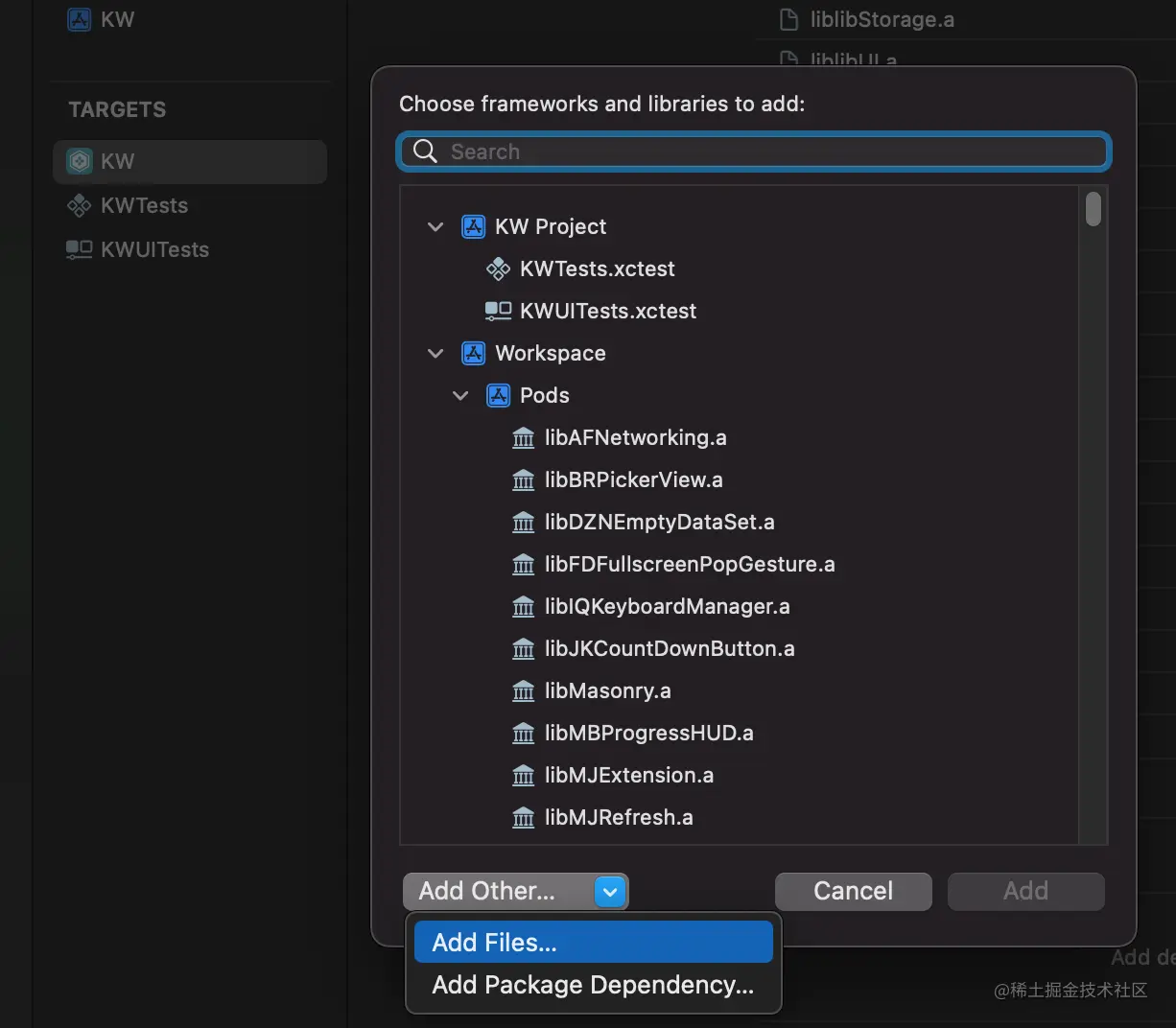

• • Frameworks，Librarys，and... 展开后点击+ ， AddFile

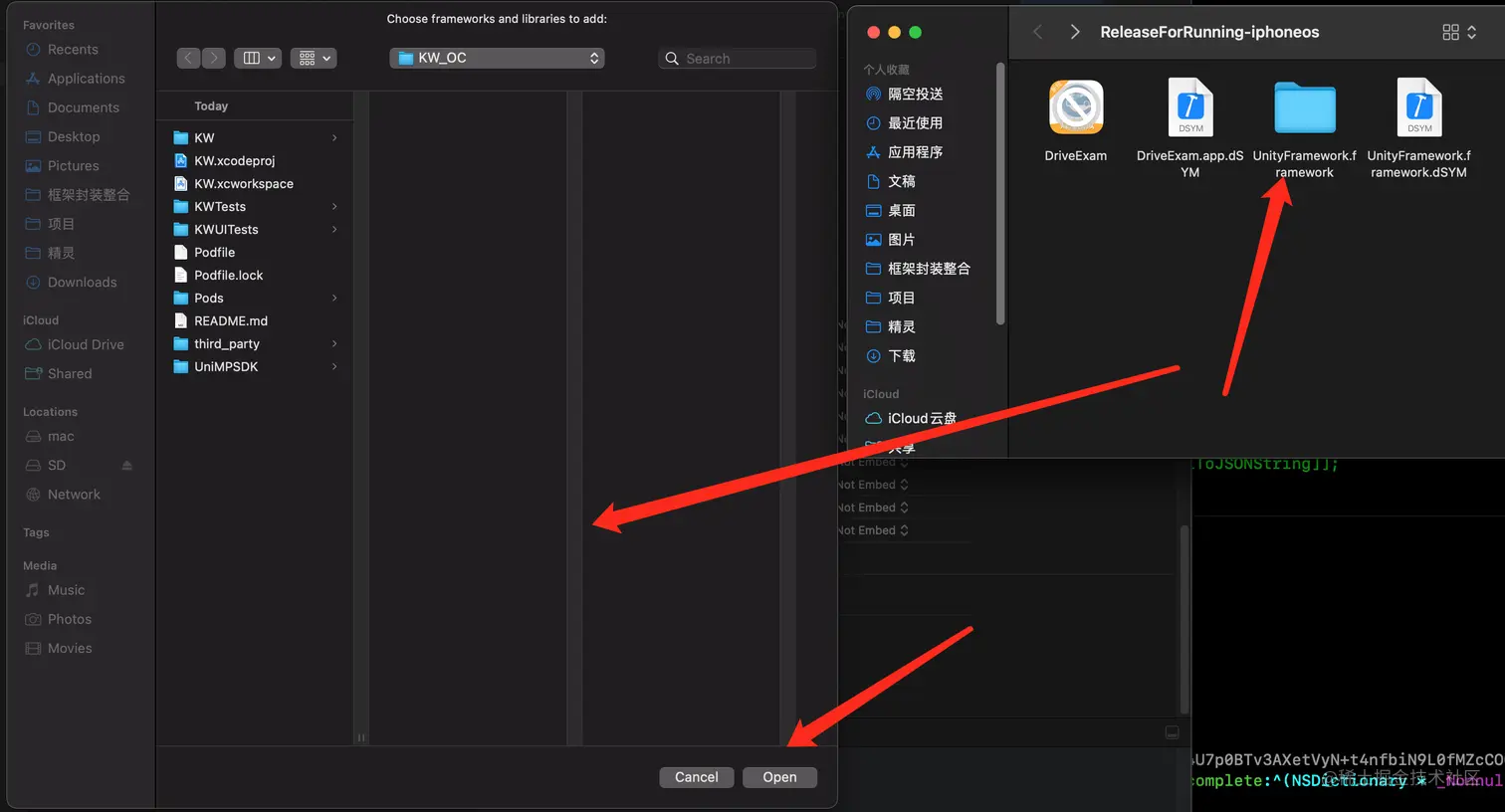

• • 把刚才的framework文件拖进来，点击open

6.嵌入完成 进入代码部分

• appdelegate.h 文件

#include <UnityFramework/UnityFramework.h>
#include <UnityFramework/NativeCallProxy.h>

@property UnityFramework* ufw;

• appdelegate.m 文件

#import "AppDelegate.h"

UnityFramework* UnityFrameworkLoad() {
    NSString* bundlePath = nil;
    bundlePath = [[NSBundle mainBundle] bundlePath];
    bundlePath = [bundlePath stringByAppendingString: @"/Frameworks/UnityFramework.framework"];
    NSBundle* bundle = [NSBundle bundleWithPath: bundlePath];

    if ([bundle isLoaded] == false) [bundle load];

    UnityFramework* ufw = [bundle.principalClass getInstance];
    if (![ufw appController]) {
        [ufw setExecuteHeader: &_mh_execute_header];
    }
    return ufw;
}




@interface AppDelegate ()
@end

@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  [self initUnityWithLaunchOptions:launchOptions]
}

//初始化unity
- (void)initUnityWithLaunchOptions:(NSDictionary *)options {
/*
    NSUserDefaults *user = [NSUserDefaults standardUserDefaults];
    NSString *receiveUnityMsg = [user objectForKey:@"receiveUnityMsg"];
    NSString *unityType = [user objectForKey:@"Unity_Type"];
    if (![receiveUnityMsg isEqualToString:unityType]) {
        [[self ufw] unregisterFrameworkListener: self];
        [self setUfw: nil];
    }
    _shouldChangeOrientation = YES;

    if([self unityIsInitialized]) {
        [[self ufw] showUnityWindow];
        [[self ufw]pause:false];
    }
*/


    [self setUfw: UnityFrameworkLoad()];
    // Set UnityFramework target for Unity-iPhone/Data folder to make Data part of a UnityFramework.framework and uncomment call to setDataBundleId
    // ODR is not supported in this case, ( if you need embedded and ODR you need to copy data )
    [[self ufw] setDataBundleId: "com.unity3d.framework"];
    [[self ufw] registerFrameworkListener: self];
    [NSClassFromString(@"FrameworkLibAPI") registerAPIforNativeCalls:self];

    [[self ufw] runEmbeddedWithArgc: gArgc argv: gArgv appLaunchOpts: appLaunchOpts];


}

//其他设置

- (void)applicationWillResignActive:(UIApplication *)application {
    [[[self ufw] appController] applicationWillResignActive: application];
}
- (void)applicationDidEnterBackground:(UIApplication *)application {
    [[[self ufw] appController] applicationDidEnterBackground: application];
}
- (void)applicationWillEnterForeground:(UIApplication *)application {
    [[[self ufw] appController] applicationWillEnterForeground: application];
  }
- (void)applicationDidBecomeActive:(UIApplication *)application {
    [[[self ufw] appController] applicationDidBecomeActive: application];
}
- (void)applicationWillTerminate:(UIApplication *)application {
    [[[self ufw] appController] applicationWillTerminate: application];
}


@end
