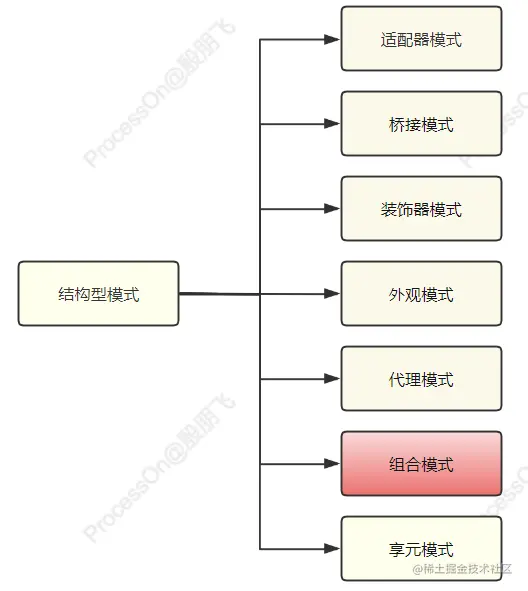

结构型模式-组合模式

组合模式

组合模式是将对象组合成树形结构以表示部分-整体的层次结构，使得用户对单个对象和组合对象的使用具有一致性。

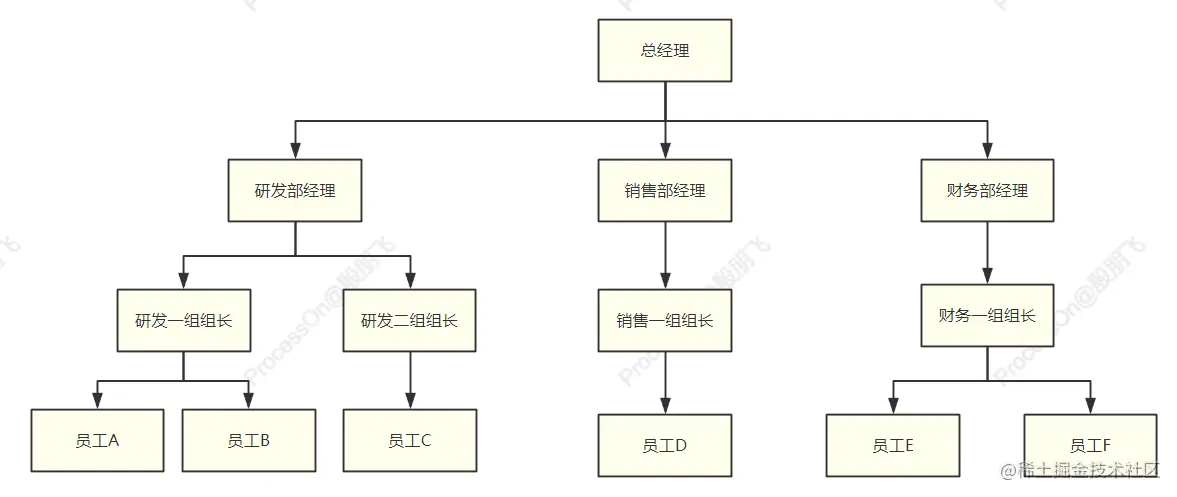

以公司员工举例：

如果要表示这样的树结构，就可以用到组合模式。

实现

首先抽象出每个员工的信息，拥有的信息都是名字、职位、薪水。

员工抽象类

public abstract class Staff {

    protected String name;

    protected String position;

    protected Integer salary;

    public Staff(String name, String position, Integer salary) {
        this.name = name;
        this.position = position;
        this.salary = salary;
    }

    public void addStaff(Staff staff){

    }
    abstract void display();
}

基础员工

public class BaseStaff extends Staff{
    public BaseStaff(String name, String position, Integer salary) {
        super(name, position, salary);
    }

    @Override
    public void display(){
        System.out.println("姓名:"+name+","+"职位:"+position+",薪水:"+salary);
    }
}

管理层员工

public class ControllerStaff extends Staff{

    List<Staff> staffList = new ArrayList<>();

    public ControllerStaff(String name, String position, Integer salary) {
        super(name, position, salary);
    }

    @Override
    public void addStaff(Staff staff) {
        staffList.add(staff);
    }

    @Override
    void display() {
        System.out.println("姓名:"+name+","+"职位:"+position+",薪水:"+salary);
        for (Staff staff : staffList) {
            staff.display();
        }
    }
}

测试

public class Main {
    public static void main(String[] args) {
        Staff staff = new ControllerStaff("张三","总经理",50000);

        Staff staff1 = new ControllerStaff("李思","研发部经理",40000);
        Staff staff2 = new ControllerStaff("王武","销售部经理",40000);
        Staff staff3 = new ControllerStaff("张云","财务部经理",40000);

        Staff staff4 = new ControllerStaff("张虎","研发一组组长",30000);
        Staff staff5 = new ControllerStaff("王二","研发二组组长",30000);
        Staff staff6 = new ControllerStaff("赵四","销售一组组长",30000);
        Staff staff7 = new ControllerStaff("李三","财务一组组长",30000);

        Staff staff8 = new BaseStaff("员工A","员工",20000);
        Staff staff9 = new BaseStaff("员工B","员工",20000);
        Staff staff10 = new BaseStaff("员工C","员工",20000);
        Staff staff11 = new BaseStaff("员工D","员工",20000);
        Staff staff12 = new BaseStaff("员工E","员工",20000);
        Staff staff13 = new BaseStaff("员工F","员工",20000);

        staff.addStaff(staff1);
        staff.addStaff(staff2);
        staff.addStaff(staff3);

        staff1.addStaff(staff4);
        staff1.addStaff(staff5);

        staff2.addStaff(staff6);
        staff3.addStaff(staff7);

        staff4.addStaff(staff8);
        staff4.addStaff(staff9);

        staff5.addStaff(staff10);
        staff6.addStaff(staff11);
        staff7.addStaff(staff12);
        staff7.addStaff(staff13);

        staff.display();
    }
}

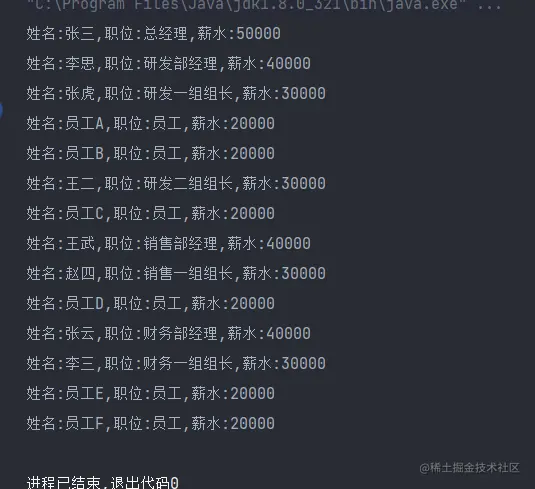

打印结果：

组合模式优点：

• 高层模块调用简单
• 自由增加节点

组合模式适用场景：

• 树形结构、文件、文件夹
